Handheld Industrial Mouse® Pointers and FlightStick Input Devices

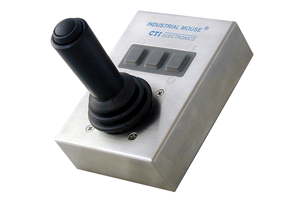

M20X9-NX Series – NEMA 4X Hand Held Industrial Mouse® or USB FlightStick:
This series features the Industrial Mouse® computer mouse pointer in a space saving, NEMA 4X (IP66) sealed, stainless steel enclosure; designed for hand held or limited space applications. This design is the perfect solution for harsh or wet environments requiring rugged computer mouse pointers or control input devices
(USB FlightStick a.k.a. sidewinder joystick) and near waterproof sealing. The standard industrial mouse pointers have all the features of the Industrial Mouse family; and when combined with the low profile, N5 joystick knob, it can be held in one hand and easily operated with just the thumb. The three sealed switches perform all mouse functions, as well as allow the operator to select one of eight speed curves.
The stainless steel enclosure with gasket sealed bottom plate has rubber feet. Options include joystick knob, Serial, PS/2 or USB interface, and an optional bulkhead waterproof cable assembly for simple installation of the cable through metal cabinets.
An anodized aluminum M2000 holder is available for convenient storage of the M20X9-NX series Industrial Mouse computer mouse pointer. The holder has holes for simple screw mounting along side any machine or cabinet.
M20X9-NX Input Devices Technical Drawing (PDF)
M2000 Holder (PDF)
More About the Industrial Mouse (PDF)
Industrial Mouse Pointing Devices Operation (PDF)
Speed Control for the Industrial Mouse Pointing Devices (PDF)
Industrial Mouse Features (PDF)
Bulkhead Panel Cable NEMA 4 (PDF)
Serial (RS232) Power Supply Cable (PDF)
USB FlightStick Testing Procedure (PDF)
Joystick knob options hide
The stainless steel enclosure with gasket sealed bottom plate has rubber feet. Options include joystick knob, Serial, PS/2 or USB interface, and an optional bulkhead waterproof cable assembly for simple installation of the cable through metal cabinets.
An anodized aluminum M2000 holder is available for convenient storage of the M20X9-NX series Industrial Mouse computer mouse pointer. The holder has holes for simple screw mounting along side any machine or cabinet.
M20X9-NX Input Devices Technical Drawing (PDF)
M2000 Holder (PDF)
More About the Industrial Mouse (PDF)
Industrial Mouse Pointing Devices Operation (PDF)
Speed Control for the Industrial Mouse Pointing Devices (PDF)
Industrial Mouse Features (PDF)
Bulkhead Panel Cable NEMA 4 (PDF)
Serial (RS232) Power Supply Cable (PDF)
USB FlightStick Testing Procedure (PDF)
Joystick knob options hide

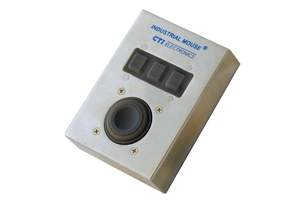

M20X9-OM Series
This series features the OrbitalMouse® button style mouse pointer in a space saving, NEMA 4X (IP66) sealed, stainless steel enclosure; designed for hand held or limited space applications. This design is perfect for harsh or wet environments requiring rugged computer mouse pointers; and for those who prefer a touchpad feel.
The three switches provide all mouse functions, as well as have an optional drag feature with an LED indicator; so that the user can execute drag functions without holding down the left switch. These industrial button style mouse pointers are also available with back-lighting (illumination).
The stainless steel enclosure with gasket sealed bottom plate has rubber feet. Options include PS/2 or USB interface and an optional bulkhead waterproof cable assembly for simple installation of the cable through metal cabinets.
An anodized aluminum M2000 holder is available for convenient storage of the M20X9-OM series. The holder has holes for simple screw mounting along side any machine or cabinet.
M20X9-OM Computer Mouse Pointers Technical Drawing(PDF)
OrbitalMouse Mouse Cursors Speed Control Setup (PDF)
M2000 Holder (PDF)
Bulkhead Panel Cable NEMA 4 (PDF) hide
The stainless steel enclosure with gasket sealed bottom plate has rubber feet. Options include PS/2 or USB interface and an optional bulkhead waterproof cable assembly for simple installation of the cable through metal cabinets.
An anodized aluminum M2000 holder is available for convenient storage of the M20X9-OM series. The holder has holes for simple screw mounting along side any machine or cabinet.
M20X9-OM Computer Mouse Pointers Technical Drawing(PDF)
OrbitalMouse Mouse Cursors Speed Control Setup (PDF)
M2000 Holder (PDF)
Bulkhead Panel Cable NEMA 4 (PDF) hide

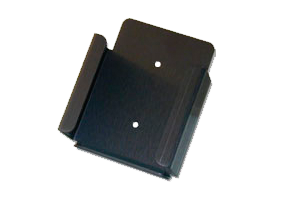

M2000 Series
The M2000 series of rugged hand held computer mouse pointers and computer input devices offers an anodized aluminum holder with pre-drilled mounting holes for easy panel mounting. This precision machined cradle is designed for rugged environments and allows the operator a place of convenient storage for the M2000 series
of handheld industrial mouse pointers and industrial computer input devices such as the Industrial Mouse®, OrbitalMouse®, and USB FlightStick.
M2000 Holder (PDF) hide
M2000 Holder (PDF) hide
