Mini OEM keyboard with language options

M2000-Nx Series
M2000-Nx NEMA 4X (IP66) Hand-held Industrial Motion Controller:
January 5, 2010: CTI Electronics Corporation introduces a new line of man machine interface devices called the M2000-Nx Series hand-held Industrial Motion Controller. These rugged NEMA 4X (IP66) sealed analog controllers are designed for use as an operator interface in industrial environments for precision motion control of numerous analog devices including DC motor control, Stepper Motors, Programmable Logic Controllers (PLC's), etc.
The M2000-Nx Series is a Commercial-Off-The-Shelf (COTS) product which is readily manufactured based upon a customer's individual specifications.

The NEMA 4X (IP66) stainless steel enclosure is designed for limited-space applications; it features a gasket sealed bottom plate with rubber feet to prevent movement or slippage on dirty, wet, surfaces. With an 8 pin NEMA 4 (IP66) connection (Shell and Plug) it provides X and Y axis voltage outputs, center voltage reference, and optional one or two pushbutton voltage outputs. A variety of Input/Output Voltage selections (+5V, +10V, +12V, +24V, ±5V, ±10V, ±12V Inputs) are provided to encompass a broad range of applications spanning Industrial, Medical, and Military markets. Its design is the perfect solution where washing off of debris, harsh oils and/or abrasive chemicals is required.

The M2000-Nx Series has all the features of the Industrial Mouse™ family, and with optional one or two pushbuttons on the joystick it allows the operator to conveniently perform controlled functions; while wearing heavy duty gloves. A selection of eight different joystick knobs allows for unlimited possibilities to suit your applications' unique needs. (Joystick options include Conformal Coating of PCB to protect against rapid changes in temperature or high humidity environments. Low Temperature Components to survive and operate in -40ºC to +80ºC temperature range. Also, these joysticks can be manufactured with an electrical “Safety” indicator known as the Optical Neutral Switch which is activated upon spring return to center.)

In addition, CTI Electronics Corporation also offers an anodized aluminum M2000 holder for convenient placement and storage of the M2000-Nx series Motion Controller. The aluminum holder has pre-drilled holes for simple screw mounting along side any machine or cabinet. CTI also offers a full one (1) year warranty protection on the M2000-Nx series. For complete information call CTI at (203) 386-9779 or visit us online at www.ctielectronics.com to view our full line of rugged Industrial Human Machine Interface (HMI) devices.

M2000-Nx Handheld Industrial Motion Controller Technical Drawing (PDF)
M2000 Holder (PDF) hide

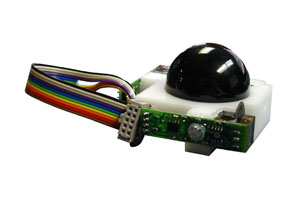

Trackball with newly redesigned encoder

Trackball
Trackball with Newly Redesigned Electro-Optical Encoder:
November 25, 2009: Each high-reliability trackball from CTI Electronics utilizes newly redesigned electro-optical encoders, patent pending. Additionally, these new electro-optical encoders feature a redundant photo-detector and light path to monitor the encoder LED light output.

A novel circuit uses this light-intensity feedback signal to ensure that the quadrature output withstands the test of time— without compromising performance. Not only do our trackballs offer very high encoder wheel resolution, they also provide long-term reliability and durability.

In that CTI is building its own optical encoder, as opposed to purchasing a photo-detector sensor, customers can be assured of not only lasting reliability, but also long-term availability. This is especially important in products that require regulatory approvals, have long-term market requirements, or would be costly to redesign should an off-the-shelf photo-detector become obsolete.

Our strategy is to produce all of the key sensors used in our products, allowing CTI to regulate quality, reliability and long-term availability.

hide


Mini OEM keyboard with language options

KIO6800 Series
KIO6800 Series – Mini OEM Keyboards Offer Language Options:
August 25, 2009: CTI has expanded its language options with the new KIO6800 Series, now available in Spanish, French, Italian, German, English (UK) and Portuguese. These NEMA 4 (IP66) sealed miniature industrial keyboards offer full 101/104 key functionality in an innovative small footprint.

The KIO6800 Series combines an embedded numeric keypad (patent pending) with CTI’s OrbitalMouse® button style mouse pointer, and is available with red or green backlighting. CTI’s OrbitalMouse® is a sealed, drift-free, button style mouse pointer molded in silicone rubber, making it more user-friendly and durable than a touchpad.

These OEM sub-assemblies apply CTI’s advanced design for sealing and reliability. They are molded of silicone rubber and have 2mm travel with excellent tactile feel. Gold over nickel contacts combined with superior sealing (waterproof) assure users of years of reliable operation. This series is designed for continuous use in harsh environments, and is the perfect solution when space is a consideration.

Industries that have benefited from CTI’s OEM keyboards include military, aerospace, security, fleet vehicles and medical equipment carts. The KIO6800 Series is also available in a painted aluminum or stainless steel enclosure rated at NEMA 4/4X (IP66).

KIO6800 Miniature Keyboard w/ OrbitalMouse® Technical Drawing (PDF)
OrbitalMouse® Mouse Cursors Speed Control Setup (PDF)

hide

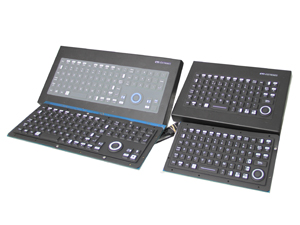

OEM keyboard with language options

KIO7800 Series
KIO7800 Series - OEM Keyboards w/ OrbitalMouse® and Language Options:
August 25, 2009: CTI Electronics has announced that the KIO7800 Series OEM keyboard is now available in Spanish, French, Italian and German. These NEMA 4 (IP66) sealed industrial keyboards feature full 101/104 key functionality in an innovative small footprint with full-size keys.
The rugged KIO7800 Series includes 12 function keys, a separate numeric keypad, and CTI’s OrbitalMouse® button style mouse pointer. CTI's OrbitalMouse® is a sealed, drift free, button style industrial pointer molded in silicone rubber, making it more user-friendly and durable than a touchpad.

These OEM industrial keyboards use CTI's advanced design for sealing and reliability. They are molded of silicone rubber and have 2mm travel with excellent tactile feel. Gold over nickel contacts combined with superior waterproof sealing assure users of years of reliable operation. This series is designed for continuous use in harsh environments, and is also available as an illuminated keyboard for areas with low level lighting.

KIO7800 Industrial Keyboards Technical Drawing (PDF)
OrbitalMouse® Mouse Cursors Speed Control Setup (PDF)
KIO7800-BX Series Backlit Keyboards
Understanding NEMA and IP Ratings (PDF)

hide

handheld mouse, mouse pointer, industrial joystick, NEMA 4 (IP66), Industrial Mouse™ holder

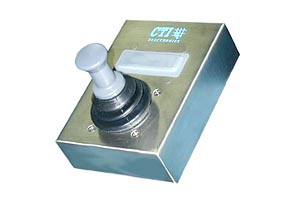

M20U1-N54 Series
Hand Held Industrial Mouse™ with Extra Large Enter Button:
July 27, 2009: CTI introduces the M20U1-N54 Series hand held Industrial Mouse™ pointing device. These rugged NEMA 4X (IP66) pointers feature a single extra-large button and are designed for use in limited-space hand held applications.
The low-profile N54 joystick knob is sealed in a NEMA 4X (IP66) stainless steel enclosure, complete with gasket sealed bottom plate and rubber feet. Its near-waterproof design is the perfect solution for harsh or wet environments requiring rugged computer mouse pointers.

The M20U1-N54 has all the features of the Industrial Mouse™ family, and its extra large sealed button allows the operator to conveniently perform all mouse functions; even while wearing gloves. A choice from nine different joystick knobs allows for unlimited possibilities to suit your application’s unique needs. (Optionally available configured as a USB FlightStick, a.k.a. sidewinder joystick.)

In addition, an optional bulkhead waterproof cable assembly is available for simple installation of the cable through metal cabinets. CTI also offers an anodized aluminum M2000 holder for convenient storage of the M20U1-N54 series Industrial Mouse™ computer mouse pointer. The holder has holes for simple screw mounting along side any machine or cabinet.

M20U1-N54 Input Devices Technical Drawing (PDF)
M2000 Holder (PDF)
More About the Industrial Mouse™ (PDF)
Industrial Mouse™ Pointing Devices Operation (PDF)
Industrial Mouse™ Features (PDF)
USB FlightStick Testing Procedure (PDF)
Joystick knob options

hide


H20U1-N5 Series
Panel Mount Industrial Mouse™ with Extra Large Enter Button:
July 27, 2009: CTI introduces the H20U1-N5 Series Industrial Mouse™ pointing devices, featuring a single extra-large button. These rugged NEMA 4X (IP66) pointers are designed for use in harsh, wet, and limited-space panel mounted applications.
The low-profile N5 joystick knob is attached to a stainless steel bezel for simple under-panel installation, while a neoprene gasket is combined with a six-screw mounting pattern to provide near-waterproof sealing. The H20U1-N5 has all the features of the Industrial Mouse™ family, and its extra large sealed button allows the operator to conveniently perform all mouse functions; even while wearing gloves. A choice from nine different joystick knobs allows for unlimited possibilities to suit your application's unique needs. (Optionally available configured as a USB FlightStick, a.k.a. sidewinder joystick.)

H20U1-N5 Input Devices Technical Drawing (PDF)
More About the Industrial Mouse™ (PDF)
Industrial Mouse™ Pointing Devices Operation (PDF)
Industrial Mouse™ Features (PDF)
USB FlightStick Testing Procedure (PDF)
Joystick knob options

hide


KIO7000
KIO7000 Series
KIO7000 Series - Now available in white for medical applications: With its innovative ergonomic design, the KIO7000 NEMA 4 (IP66) series provides superior levels of sealing, reliability, durability, and performance. This series is part of CTI’s most recent endeavor in designing state-of-the-art mid-sized industrial and medical-grade keyboards.
These keyboards feature patented button-style OrbitalMouse® pointing devices, the perfect “no drift” alternative to touchpads in a sleek, smart design. Sealing is executed through an advanced design in molded silicone rubber that allows 2mm key travel with an excellent tactile feel. Demonstrating CTI's commitment to excellence, all of our molded rubber keyboards feature a unique coating, which protects against oils and harsh cleaning agents. In addition, these keyboards have full 101/104 key functionality including a numeric keypad. Innovative component design eliminates vibration sensitivity and dramatically improves durability and long-term reliability. Patented hardware design incorporates components that endure, require no re-calibration, and are capable of reaching temperatures of -40 to 80º C, thus improving durability and performance. Patented pending software technology allows adjustable speed control of pointer through innovative switch capability and with eight speed curve settings for pointer movement, which increases user friendliness and permits a significant improvement in performance. Optional LED's, available in red or green, enable effortless visual location of key legends and pointing device in low-light conditions. This series is available as an OEM panel mount device or in an aluminum or stainless steel enclosure. Standard interfaces include PS/2 and USB. Meets NEMA 4/4X (IP66) and IP66/ Standards. hide

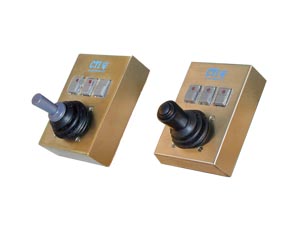

Compumotor
Handheld Compumotor Joystick Replacement
Handheld Compumotor Joystick Replacement: April 8, 2009—CTI Electronics continues support of the Compumotor joystick. This is a form fit and function replacement joystick for JS6000 Compumotor analog joystick. JS6000 Compumotor analog joysticks are used on the AT6250/AT6450 Servo controllers.

KIO6000 Series
oem keyboards, medical keyboards, industrial keyboards, sealed keyboards, miniature keyboards
KIO6000 Series - NEMA 4 (IP66) Miniature Industrial Keyboard w/ OrbitalMouse®: STRATFORD, CONNECTICUT, April 30, 2008 — CTI Electronics expands its line of Miniature Sealed Industrial Keyboards by introducing the KIO6000 Series. These NEMA 4 (IP66) sealed keyboards provides full 101/104 key functionality, are combined with CTI's OrbitalMouse® mouse pointer,
offer a red backlit embedded numeric keypad (patent pending) and come packaged in a very compact painted aluminum or stainless steel enclosure.CTI's OrbitalMouse® mouse pointer is a sealed, drift-free, button-style mouse pointer molded in silicone rubber; making it more user friendly and durable than a touchpad.These miniature keyboards use CTI's advanced design for sealing and reliability. They are molded of silicone rubber and have 2mm travel with excellent tactile feel. Gold over nickel contacts combined with superior sealing (waterproof) assure users of years of reliable operation. This series is designed for continuous use in harsh environments, and is the perfect solution when space is a consideration; such as military, aerospace, security, fleet vehicles and medical equipment carts. The KIO6000 Series keyboards are also available as NEMA 4 (IP66) sealing OEM sub-assemblies; which are perfect for designing into custom panels where space is at a premium.

KIO6000 Miniature Keyboard w/ OrbitalMouse® Technical Drawing (PDF)
KIO6800 OEM Miniature Keyboard w/ OrbitalMouse® Technical Drawing (PDF) hide


N-63 Joystick
hand-operated, industrial joystick, sealed, custom, Industrial Mouse™
N-63 - Hand-Operated Joystick: STRATFORD, CONNECTICUT, October 16, 2006 - CTI Electronics continues to expand its line of rugged F-Series industrial joysticks by introducing its Hand-Operated joystick today. Based on the same patented non-contacting (inductive) design
as the rest of the F-Series, the joystick provides high reliability, drift-free performance, ruggedness and excellent feel. The smooth travel and excellent precision control, combined with the new 4.03 inch above panel handle, make it the perfect solution when wearing gloves is a must.
Designed for industrial, military, and medical applications, the new Hand-Operated joystick's superior environmental sealing, NEMA 4 (IP66), eliminates moisture and dirt contaminants, and is available as an analog joystick, USB FlightStick, or Industrial Mouse™ Pointing Device (as pictured). hide


KIO7000-BX
industrial keyboards, sealed, waterproof, sealed, button style mouse, mouse pointer
KIO7000-BX - Sealed Illuminated Computer Keyboard w/ OrbitalMouse®:
CTI Electronics introduces the KIO7000-BX Series illuminated mid-size NEMA 4/4X (IP66) sealed computer keyboard with full 101/104 functionality. This industrial keyboard is offered in a patented, innovative small foot print with full size keys. The backlit keyboard includes 12 function keys, a separate numeric keypad,
and is combined with the OrbitalMouse® mouse pointer.
CTI's OrbitalMouse® mouse pointers are sealed (NEMA 4 (IP66) /4X IP66), drift-free, ergonomically designed, button style mouse pointers that are molded in silicone rubber. Models are compatible with all computers; no special software drivers required.
These illuminated keyboards use CTI's advanced design for sealing and reliability. They are molded of silicone rubber, and have 2mm travel with excellent tactile feel. Gold over nickel contacts combined with superior sealing assure users of years of reliable operation. These industrial keyboards are designed for continuous use in harsh environments; even while wearing gloves.
The KIO7000-BX Series computer keyboards offer red or green LED back lighting with ten levels of intensity, and black elastomer silicone. These industrial keyboards are also available in non back-lit models; offered with gray elastomer silicone and special syn-proof coating.
Available in aluminum or stainless steel enclosures rated at NEMA 4/4X (IP66) or as OEM sub-assemblies.

KIO7000-BX Illuminated Keyboards Technical Drawing (PDF)
KIO7000-BX Ready-to-Go Series Illuminated Computer Keyboards
KIO7000 Ready-to-Go Series Non-Backlit Keyboards
KIO7800-BX OEM Series Illuminated Computer Keyboards
KIO7800 OEM Series Non-Backlit Keyboards hide


KIT6000
industrial keyboards, sealed, industrial trackball, trackball mouse
KIT6000 - Sealed Industrial Keyboard w/ 1.3” Trackball:
CTI Electronics introduces its compact, NEMA 12, sealed keyboard with integral 1.3" high-reliability industrial trackball, in a painted aluminum enclosure. A drain-hole below the industrial trackball allows water to exit at the button; a feature which allows the trackball to be rated NEMA 12. This sealed keyboard provides full
101/104 functionality, and offers full size keys made of molded silicone rubber with 2mm travel, excellent tactile feel, and hard gold contacts for high reliability. The enclosure has a footprint of just 6.1" x 11.3" and a total depth of 1.6"; allowing it to be used in standard 1U (1.75"high) rack-mount drawers or other tight applications.
The industrial trackball has a formed teflon sealing ring in an iodized aluminum collar. This sealed trackball uses CTI's redundant photo-detector technology, as well as shielded aerospace bearings, hardened stainless steel shafts, and an encoder resolution of 416 counts per revolution.
The sealed keyboard is plug and play, compatible with all computers, and comes with various options including a model with ten levels of back-lighting; a valuable feature in dimly lit environments. In addition, the enclosure's bottom plate has two 6-32 threaded mounting holes; for easily securing the keyboard to a shelf or bracket.
hide


AP2000
waterproof, NEMA 4 (IP66), oem, button style mouse, mouse pointer
AP2000 - Sealed OEM No-Drift Arrow Mouse, Computer Mouse Pointer:
CTI Electronics introduces the newest addition to its NEMA 4 (IP66) Sealed Industrial and Medical Controls family; the AP2000 Series ArrowMouse™ mouse pointer. This new drift free pointing device is mouse port compatible, and is perfect for point and click, drop down menu, and icon selection applications.
The ArrowMouse™ is also available as a backlit version with 10 levels of back light intensity adjustment, which is controlled from the AP2000 without the need for external power sources. A simple connection to the host computer is all that is required for complete operation of this button style Industrial Mouse™ pointer.
The AP2000 Series measures only 1.8" X 1.9" and will fit into many existing controls designs. The horizontal symmetry of the AP2000 allows application flexibility to the OE designer.
The CTI Electronics AP2000 ArrowMouse™ is suitable for use in Medical Technology, Industrial Control, Marine Navigation Systems, "In-Fleet" Computer and Communications Systems, and many other applications. Evenly spaced mounting holes, rugged construction, and an integral sealing gasket provide for easy integration where space is limited, and full and reliable mouse functionality is required. hide


KIA6000-BX
illuminated keyboards, backlit keyboards, industrial keyboards, custom keyboards, mini keyboards
KIA6000-BX - NEMA 4 (IP66) Illuminated Computer Keyboard w/ Arrow Mouse:
CTI Electronics introduces the newest addition to its Miniature Sealed Industrial Keyboard line. This new sealed keyboard will provide full 101/104 key functionality, plus mouse control (Patent Pending) with either RED or GREEN back lighting in a very compact 8" X 6" package less than 1" deep.
This new illuminated keyboard is port compatible and provides 10 levels of back light intensity controlled from the keyboard, without the need for external power sources. A simple connection to the host computer is all that is required for complete operation.
Versions are available for OEM, as an open frame keyboard, or for Workstation applications with a fully sealed metal enclosure.
The NEMA 4 (IP66) rated industrial keyboards are constructed of custom molded silicon keys with 2mm travel and excellent tactile feel, and each key has hard gold plated contacts for reliability. Key legends are fused into each key for long life and abrasion resistance. Custom key legends and key codes are available in OEM quantities.
For superior reliability, only gold plated interconnects are used for all internal and external keyboard connections.
The CTI Electronics Miniature Sealed Illuminated Keyboards are suitable for use in "In-Fleet" Computer and Communications Systems, Marine Navigation Systems and many other applications. Evenly spaced mounting holes, rugged construction, and an integral sealing gasket provide for easy integration of this ergonomic keyboard in any application where space is limited, and full and reliable industrial keyboard functionality is required.
These Miniature Keyboards with ArrowMouse™ mouse pointers and backlighting are made in the U.S.A. in our Stratford, CT facility

KIA6000 Industrial Keyboards Technical Drawing (PDF)
ArrowMouse™ Mouse Cursors Operation (PDF)
Optional Bulk Head Cable Drawing (PDF)
KIA6000-BX Series Illuminated Keyboards
KIA6000 Series Non-Backlit Keyboards hide


KIA9000
KIA9000 Series - NEMA 4 (IP66) Sealed Industrial Keyboard w/ ArrowMouse™ :
CTI Electronics introduces the newest addition to its Full Size Sealed Keyboard line, the KIA9000 Series. This new NEMA 4 (IP66) sealed keyboard provides full 101/104 key functionality, 24 Function Keys plus drift free ArrowMouse™ mouse pointer (Patent Pending) in an industrial keyboard package less than 1" deep.
The ArrowMouse™ provides 8 unique sealed keys that replicate all mouse functions, providing drift free cursor control in a port compatible product that requires no additional software drivers or installation procedures.
Three versions of the KIA9000 Series Sealed Keyboard with ArrowMouse™ are available. Besides the Panel Mount OEM version, there is a Workstation Model that is housed in a fully sealed, welded, Stainless Steel enclosure rated as NEMA 4X (IP66).
The KIA3000 is the Rack Mount version of this industrial keyboard with ArrowMouse™. The sealed rack mount version includes CTI's patented ergonomic hinged door in a low profile 1U configuration, and features drawer slides rated at 80 pounds each, with extension brackets that accommodate mounting depths from 18" to 24". hide

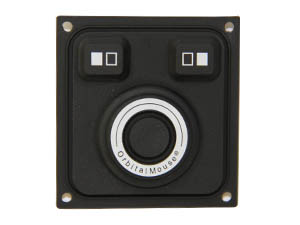

OM2000
OM2000 Series - NEMA 4 (IP66) OrbitalMouse® (Button Style Mouse Pointer):
CTI Electronics introduces a new family of low cost, high reliability, industrial button style computer mouse pointers; the OrbitalMouse®. The OM2X00 Series is a drift-free, molded silicone rubber, NEMA 4 (IP66) sealed, button style pointer that provides significant improvement in reliability over similar products that use membrane
technology and membrane style connectors. CTI's industrial computer mouse pointers always use gold plated terminals and contacts on rigid pcbs.
The OEM versions are available as standard and back-lit, as well as with switch options. Models are also available with enclosures; as hand-held mouse pointers, desk-top mouse pointers and integrated with industrial keyboards; including a rack-mount version.
OM Series OrbitalMouse® Computer Mouse Pointers
OM2000 OrbitalMouse® Computer Mouse Pointers
OM2200 OrbitalMouse® Computer Mouse Pointers
OM2300 OrbitalMouse® Computer Mouse Pointers
OM Series OrbitalMouse® Illuminated Computer Mouse Pointers
OM2000-BX OrbitalMouse® Computer Mouse Pointers
OM2200-BX OrbitalMouse® Computer Mouse Pointers hide


USB FlightStick
USB FlightSticks - NEMA 4 (IP66) Flight Simulators:
STRATFORD, CONNECTICUT, August 15, 2005. CTI Electronics expands its line of rugged F-Series miniature industrial joysticks, the original Industrial Mouse™, by developing CTI's USB device driver interface for pointing devices. USB FlightStick offers real-time response rates with acute accuracy and high reliability.
With complete freedom of movement, users simply plug-in and move the USB FlightStick in the desired direction for device control. Long-term durability of these joysticks, rated for over 10 million deflections, is achieved with the use of non-contacting inductive technology. All joysticks offer smooth travel and excellent precision control. The joystick's superior environmental sealing, to NEMA 4 (IP66), eliminates moisture and dirt contaminants.
The new pointing devices, designed for industrial and medical applications, are available for OEM's, as a USB Flightstick, or the ready-to-integrate USB Industrial Mouse™. These devices are also available for the end-user in a hand-held or desktop stainless steel enclosure. The USB FlightStick offers up to three axes of control, nine knob options, up to eight separate user-defined button functions, extreme temperature option, and a redundant safety switch option. CTI has done all the work so that any application using the standard Microsoft HID and SideWinder USB protocols will automatically recognize and identify the CTI USB FlightStick and button controls. The USB Industrial Mouse™ also offers up to two axes of control, eight knob options, a three button mouse, extreme temperatoption, and a reure dundant safety switch option. The eight knob options feature an extremely low profile from 1.4" to 4.03" above panel.
The joystick USB interfaces are compatible with standard computer hardware and operating systems. For added flexibility, design options are available including composite device interfacing for applications requiring more than the standard three axes of control and eight USB user-defined button functions. Ideally suited for harsh environments, precision instruments, and restricted spaces. A few of the industries which are benefiting from the USB FlightStick are aerospace, automotive, heavy equipment, medical, and military. hide
