Custom F1000 Series Joysticks
F1000-N24 Series
These precision control industrial joysticks feature an aluminum-coated knob and a non-contacting design, which ensures a much longer lifespan than other types of joysticks. These analog industrial joysticks are extremely precise, highly reliable, rugged, drift-free, and rated to 10 million operations. With the smallest footprint and below-panel depth in its class, the F1000 Series truly sets the standard for industrial-grade miniature joysticks.
F1000-N24 Industrial Joysticks Technical Drawing (PDF)

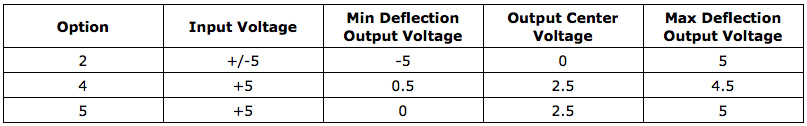

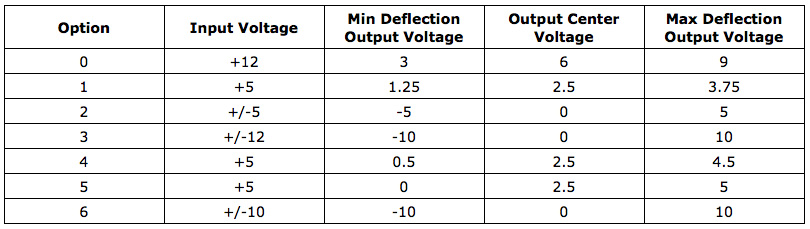

F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1000 Series - One & Two Axes Specification (PDF)
How to Select an Industrial Joystick (PDF)
hide
F1800 Series

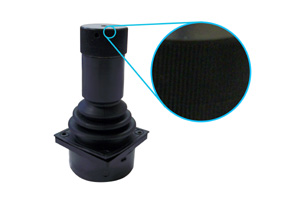

CTI's 3-axes industrial joysticks (F Series joysticks) feature a 5k potentiometer with a rotational life of 20 million. Their non-contacting design ensures a much longer lifespan than other types of joysticks. These analog industrial joysticks are extremely precise, highly reliable, rugged, drift-free, and rated to 10 million operations. With the smallest footprint and below-panel depth in its class, the F1800 Series truly sets the standard for industrial-grade miniature joysticks.
F1800 Industrial Joysticks Technical Drawing (PDF)
F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1000 Series - Three Axes NEMA 12 (IP54) Specifications (PDF)
How to Select an Industrial Joystick (PDF)
hide
Motion Controller using OEM Joystick with RS-485 Serial Interface
F1000 Industrial Joystick with RS-285 Serial Interface:
The F1000 Series RS-485 Joysticks are used as motion controller devices (USB Joystick a.k.a. sidewinder joystick or flight simulator) allowing up to three axis of control with up to eight user-defined button functions. Using a Windows® Operating System with the Microsoft® HID Driver Interface an Application Developer can quickly implement a motion control application.The USB FlightStick (flight simulator) is an industrial motion controller that offers real-time response rates with pin-point precise accuracy for a broad range of application possibilities. These industrial motion controlllers are ideally suited for harsh environments, precision instruments, and restricted spaces. A few of the industries benefiting from the USB FlightStick are aerospace, automotive, medical, homeland security, surveillance, and military.
When mounted to a panel, the USB FlightStick assembly provides NEMA 4 (IP66) sealing. The USB joystick only requires a 1.65 inch square footprint and 7/8 inch depth for the handle. The interface PCB and switch assembly can be located in any position relative to the joystick handle. These rugged motion control devices can easily be interchanged with one of ten knob options including one, two, or three axis joysticks. A few of these USB Joysticks have one or two NEMA 4 (IP66) sealed "point and click" buttons in the handle for easy switching or selection of control.
The switch assembly is molded silicone with 2mm travel and has gold over nickel contacts for both tactile response and reliability. When mounted to your panel, the motion control device assembly provides NEMA 4 (IP66) sealing.
Options include joystick knob selection and custom length cables or special wiring as required.
F1000 Industrial Joystick with RS-485 Serial Interface Technical Drawing (PDF)
F1000 Series - One & Two Axes Specification (PDF)
F1800-N82 Series - (N82) Three Axes NEMA 12 (IP54) Specifications (PDF)
F1800-N84 Series - Three Axes NEMA 4 (IP66) Specifications (PDF)
F1000 Series Precision Control Industrial Joysticks Knob Options (PDF)
How to Select an Industrial Joystick (PDF)
