F1000 Series OEM Precision Control Industrial Joysticks
F1000-N24

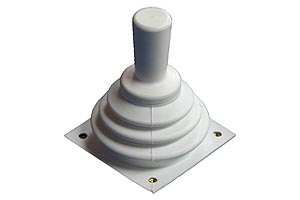

Available in white for medical applications
Mechanical Options
- Standard 2 Axes Model
- Single Axis
- Spring return to center
- Spring return to center
- Neoprene or conductive
silicone boot
Modification Options
- Conformal Coating
- Low Temp Operation
(-40°C to 80°C) - No Deadband
- EMI boot & ferrite bead
over ribbon cable
more| Option | Input Voltage | Min Deflection Output Voltage | Output Center Voltage | Max Deflection Output Voltage |
| 0 | +12 | 3 | 6 | 9 |
| 1 | +5 | 1.25 | 2.5 | 3.75 |
| 2 | +/-5 | -5 | 0 | 5 |
| 3 | +/-12 | -10 | 0 | 10 |
| 4 | +5 | 0.5 | 2.5 | 4.5 |
| 5 | +5 | 0 | 2.5 | 5 |
| 6 | +/-10 | -10 | 0 | 10 |
F1000-N24 Industrial Joysticks Technical Drawing (PDF)
F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1000 Series - One & Two Axes Specification (PDF)
How to Select an Industrial Joystick (PDF)
