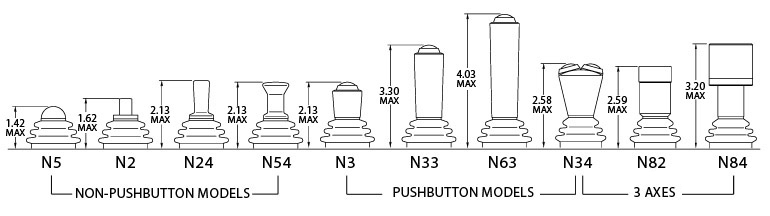

F1000 Series OEM Precision Control Industrial Joysticks (Analog Joysticks)

F-series joystick

industrial joysticks, Industrial Mouse™, oem, analog, rugged

miniature, oem, industrial joysticks, rugged, analog

N5
F1000-N5 Series - NEMA 4 (IP66) Miniature Industrial Joysticks:

Mechanical Options
  • Standard 2 Axes Model
  • Single Axis
  • Thumb operated
  • Spring return to center
  • Neoprene or conductive
    silicone boot
Modification Options
  • Conformal Coating
  • Low Temp Operation
    (-40°C to 80°C)
  • No Deadband
  • EMI boot & ferrite bead
    over ribbon cable

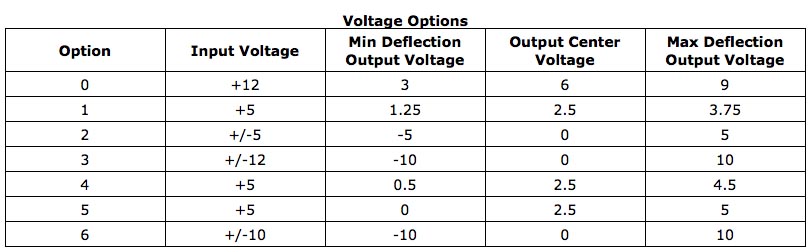

Voltage Options
F1000-N5 Industrial Joysticks Technical Drawing (PDF)
F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1000 Series - One & Two Axes Specification (PDF)
How to Select an Industrial Joystick (PDF)

2 axis, hand controls, commercial joysticks, military joysticks, miniature joystick

N2
F1000-N2 Series - NEMA 4 (IP66) Miniature Industrial Joysticks:

Mechanical Options
  • Standard 2 Axes Model
  • Single Axis
  • Spring return to center
  • Neoprene or conductive
    silicone boot
  • Fingertip operation
Modification Options
  • Conformal Coating
  • Low Temp Operation
    (-40°C to 80°C)
  • No Deadband
  • EMI boot & ferrite bead
    over ribbon cable

Voltage Options
F1000-N2 Industrial Joysticks Technical Drawing (PDF)
F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1000 Series - One & Two Axes Specification (PDF)
How to Select an Industrial Joystick (PDF)

analog, miniature joystick, displacement type, commercial joysticks, custom

N24
F1000-N24 Series - NEMA 4 (IP66) Industrial Joysticks:

Mechanical Options
  • Standard 2 Axes Model
  • Single Axis
  • Spring return to center
  • Neoprene or conductive
    silicone boot
Modification Options
  • Conformal Coating
  • Low Temp Operation
    (-40°C to 80°C)
  • No Deadband
  • EMI boot & ferrite bead
    over ribbon cable

Voltage Options
F1000-N24 Industrial Joysticks Technical Drawing (PDF)
F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1000 Series - One & Two Axes Specification (PDF)
How to Select an Industrial Joystick (PDF)

industrial joysticks, military joysticks, controllers, 2 axis, control grips

N54
F1000-N54 Series - NEMA 4 (IP66) Industrial Joysticks:

Mechanical Options
  • Standard 2 Axes Model
  • Single Axis
  • Spring return to center
  • Friction held single Axis
  • Neoprene or conductive
    silicone boot
Modification Options
  • Conformal Coating
  • Low Temp Operation
    (-40°C to 80°C)
  • No Deadband
  • EMI boot & ferrite bead
    over ribbon cable

Voltage Options
F1000-N54 Industrial Joysticks Technical Drawing (PDF)
F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1000 Series - One & Two Axes Specification (PDF)
How to Select an Industrial Joystick (PDF)

2 axis, industrial joysticks, pushbutton, oem, miniature joystick

N3
F1000-N3 Series — NEMA 4 (IP66) (IP66) Industrial Joysticks w/ Pushbutton:

Mechanical Options
  • Standard 2 Axes Model
  • Single Axis
  • Spring return to center
  • Neoprene or conductive
    silicone boot
  • PB switch is fully sealed
    & rated w/ 1m actuations
  • PB switch has gold contacts
Modification Options
  • Conformal Coating
  • Low Temp Operation
    (-40°C to 80°C)
  • No Deadband
  • EMI boot & ferrite bead
    over ribbon cable

Voltage Options
F1000-N3 Industrial Joysticks Technical Drawing (PDF)
F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1000 Series - One & Two Axes Specification (PDF)
How to Select an Industrial Joystick (PDF)

military joysticks, rugged, hand controls, aerospace controls

N33
F1000-N33 Series — NEMA 4 (IP66) (IP66) Industrial Joysticks w/ Pushbutton:

Mechanical Options
  • Standard 2 Axes Model
  • Single Axis
  • Spring return to center
  • Neoprene or conductive
    silicone boot
  • PB switch is fully sealed
    & rated w/ 1m actuations
  • PB switch has gold contacts
Modification Options
  • Conformal Coating
  • Low Temp Operation
    (-40°C to 80°C)
  • No Deadband
  • EMI boot & ferrite bead
    over ribbon cable

Voltage Options
F1000-N33 Industrial Joysticks Technical Drawing (PDF)
F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1000 Series - One & Two Axes Specification (PDF)
How to Select an Industrial Joystick (PDF)

hand controls, rugged, pushbutton, control grips, commercial joysticks

N63
F1000-N63 Series — NEMA 4 (IP66) (IP66) Industrial Joysticks w/ Pushbutton:

Mechanical Options
  • Standard 2 Axes Model
  • Single Axis
  • Spring return to center
  • Neoprene or conductive
    silicone boot
  • PB switch is fully sealed
    & rated w/ 1m actuations
  • PB switch has gold contacts
Modification Options
  • Conformal Coating
  • Low Temp Operation
    (-40°C to 80°C)
  • No Deadband
  • EMI boot & ferrite bead
    over ribbon cable

Voltage Options
F1000-N63 Industrial Joysticks Technical Drawing (PDF)
F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1000 Series - One & Two Axes Specification (PDF)
How to Select an Industrial Joystick (PDF)

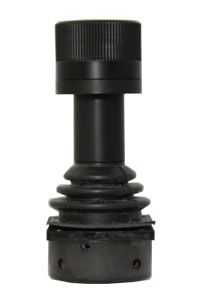

analog, simulation controls, hand controls, control grips, grips

N34
F1000-N34 Series— NEMA 4 (IP66) (IP66) Industrial Joysticks w/ Dual Pushbuttons:

Mechanical Options
  • Standard 2 Axes Model
  • Single Axis
  • Spring return to center
  • Neoprene or conductive
    silicone boot
  • Two momentary
    pushbuttons on top
  • PB switch is fully sealed
    & rated w/ 1m actuations
  • PB switch has gold contacts
Modification Options
  • Conformal Coating
  • Low Temp Operation
    (-40°C to 80°C)
  • No Deadband
  • EMI boot & ferrite bead
    over ribbon cable

Voltage Options
F1000-N34 Industrial Joysticks Technical Drawing (PDF)
F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1000 Series - One & Two Axes Specification (PDF)
How to Select an Industrial Joystick (PDF)

3 axis, muti axis, potentiometer, industrial joysticks, medical

F1800
F1800 Series - NEMA 12 (IP54) Three Axes Industrial Joysticks:

Mechanical Options
  • 3 Axes with 5k
    potentiometer
  • Spring return to center
  • Neoprene or conductive
    silicone boot
  • Rotational life for 5k
    potentiometer is 20m
Modification Options
  • Conformal Coating
  • Low Temp Operation
    (-40°C to 80°C)
  • No Deadband
  • EMI boot & ferrite bead
    over ribbon cable

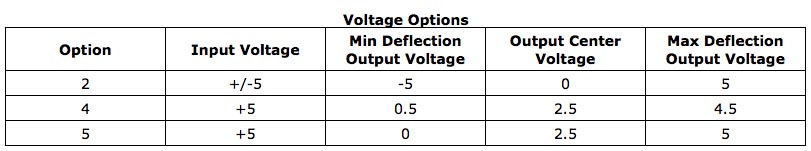

Voltage Options
F1800 Industrial Joysticks Technical Drawing (PDF)
F1000 Series Industrial Joysticks Electrical Output Curves (PDF)
F1000 Series - Three Axes NEMA 12 (IP54) Specifications (PDF)
How to Select an Industrial Joystick (PDF)


heavy duty joysticks, heavy duty joystick, rugged joysticks, off road, analog joysticks

H-Series Joysticks
H0000 Series OEM Heavy Duty Industrial Joysticks:

H0000 Series OEM Heavy Duty Industrial Joysticks: CTI's heavy duty, full size industrial joysticks (H Series heavy duty joysticks), predecessor to the F Series, offer the same non-contacting design in a larger size model. The H0000 Series industrial
joysticks are legacy products and are not recommended for new projects. These analog industrial joysticks are also extremely precise, highly reliable, rugged, and drift-free. These OEM industrial joysticks are supplied complete with interface electronics and NEMA 4 (IP66) (single or dual axis models) or NEMA 12 (IP54) (3 axes model) sealing. These heavy duty industrial joysticks are ideally suited for harsh environments, heavy equipment machinery, and manufacturing/processing facilities. Without compromise, both the F1000 Series and H0000 Series industrial joysticks are simply the most durable and reliable joysticks available on the market today. hide
