NEMA 4 (IP66) Sealing Medical OEM Keyboards, with and without OrbitalMouse® Pointers

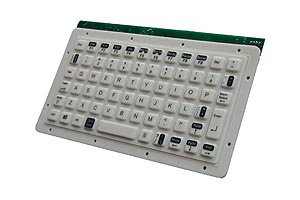

KI6800 Series - NEMA 4 (IP66) OEM Medical Keyboard:
The KI6800 Series are rugged, NEMA 4 (IP66) sealing, medical keyboards with full 101/104 key functionality in a patented, innovative small footprint that will allow one to utilize the keyboard in many different areas of a medical facility. These miniature medical keyboards use CTI's advanced designs for sealing and reliability, are molded of silicone rubber which allows the keyboard to be easily cleaned thoroughly and allows the user to manage infection control with in the facility
We can assure years of reliable operation because of our combination of Gold over nickel contacts and superior waterproof sealing. These OEM medical keyboards are an excellent solution for custom panels that have a limited space and when portability is a must. We now offer this medical keyboard in a white elastomer which is ideal for medical environments and we also offer an illuminated keyboard version for areas with low lighting.
KI6800 Medical Keyboard Technical Drawing (PDF)
Understanding NEMA and IP Ratings (PDF)
KI6800 Medical Keyboard Specification Data (PDF)
How to select an Industrial Keyboard
hide
KIO7800 Series

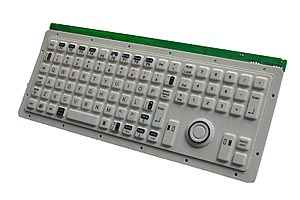

KIO7800 Series - NEMA 4 (IP66) OEM Waterproof Keyboard with OrbitalMouse®:
The KIO7800 is medical keyboard that is now offered in white, designed for various locations in medical facilities such as operating rooms, Intensive-care units, Labs, Patient rooms, nursing stations, mobile carts, cleanrooms and many more areas. This medical keyboard offer 101/104 functionality with a very small footprint with full size keys. This medical keyboard includes 12 keys, a separate numeric keypad, and is combined with CTI's OrbitalMouse® button style mouse pointer.
CTI's OrbitalMouse® is a drift free NEMA 4 (IP166), drift-free, button-style medical pointer. Its silicone rubber molding makes it easy to use and durable than a touchpad. This OEM medical keyboard is molded out of silicone rubber that also helps prevent any unwanted harmful bacteria from entering the keyboard, provides excellent infection control and makes it extremely easy to clean. Gold over nickel contacts, combined with waterproof superior sealing, assure users of years of reliable operation. This series is designed for continuous use in harsh environments, and is also available as an illuminated keyboard for areas with low-lit areas
KIO7800 Medical Keyboards Technical Drawing (PDF)
Understanding NEMA and IP Ratings (PDF)
KIO7000 Series Key Symbol Quick Reference Guide (PDF)
KIO7800 Medical Keyboard Specification Data (PDF)
How to select an Industrial Keyboard
hide
NEMA 4 (IP66) Desktop Medical Keyboards with OrbitalMouse® Pointers

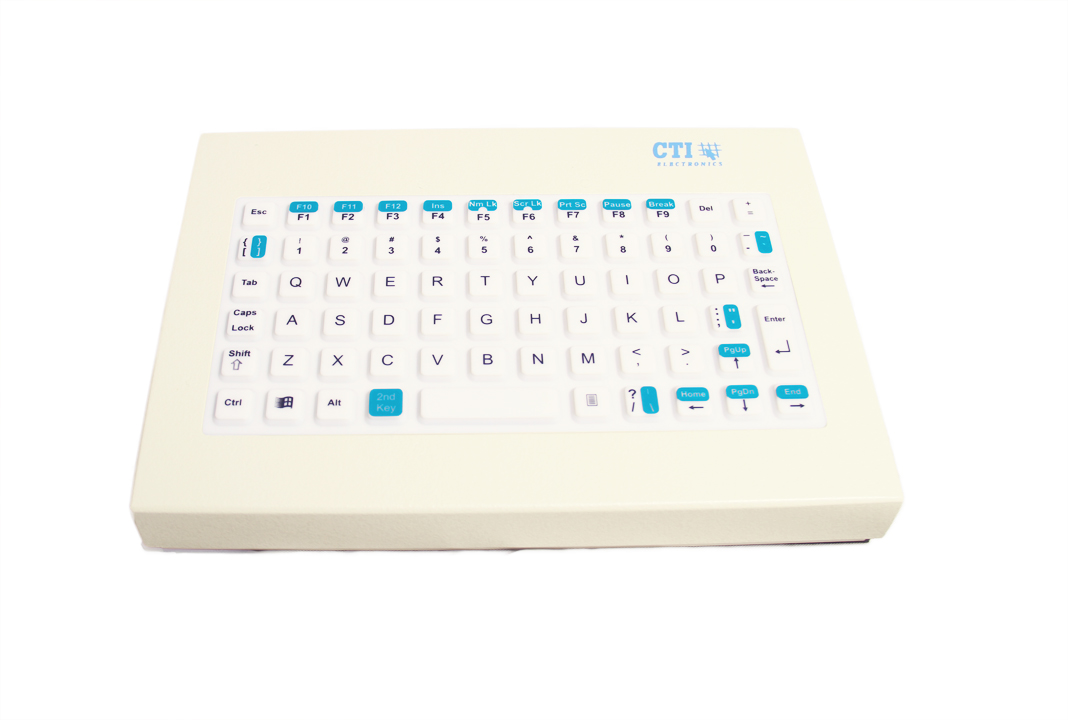

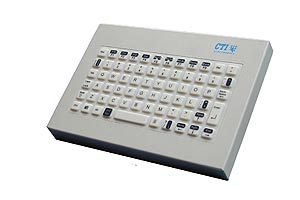

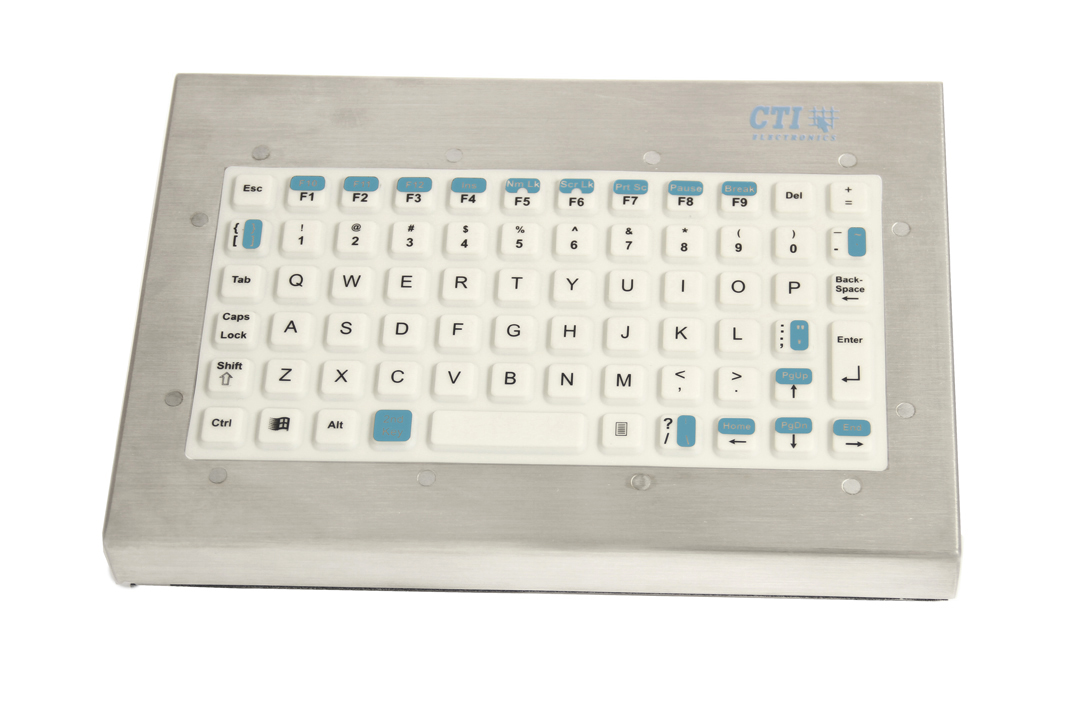

KI6000 Series - NEMA 4 (IP66) Sealed Keyboards:
The KI6000 (NEMA 4 (IP66)/IP66) series is a sealed keyboard, now available in white to provide a clean look for medical environments such as operating rooms, labs, patient rooms and can be also utilized in a cleanroom environment. These keyboards feature our patented button-style OrbitalMouse® pointing devices, the perfect no-drift alternative to touch pads in a sleek, smart design. Silicone rubber molding offers a protection against bio-hazardous materials, and makes it very easy to clean allowing infection control.
KI6000 Medical Keyboards Technical Drawing (PDF)
Optional Bulk Head Cable Drawing (PDF)
USB Bulkhead Connector (PDF)
KI6000 Medical Keyboard Specification Data (PDF)
How to select an Industrial Keyboard
hide

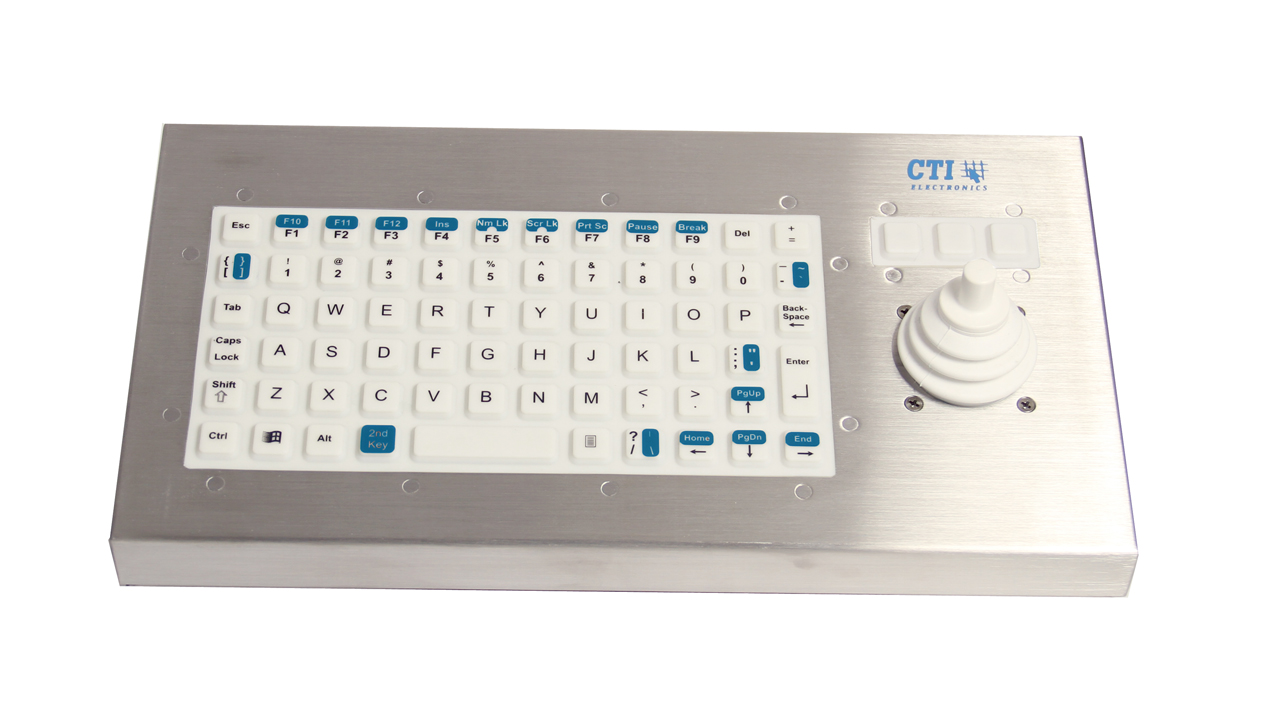

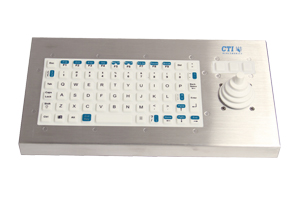

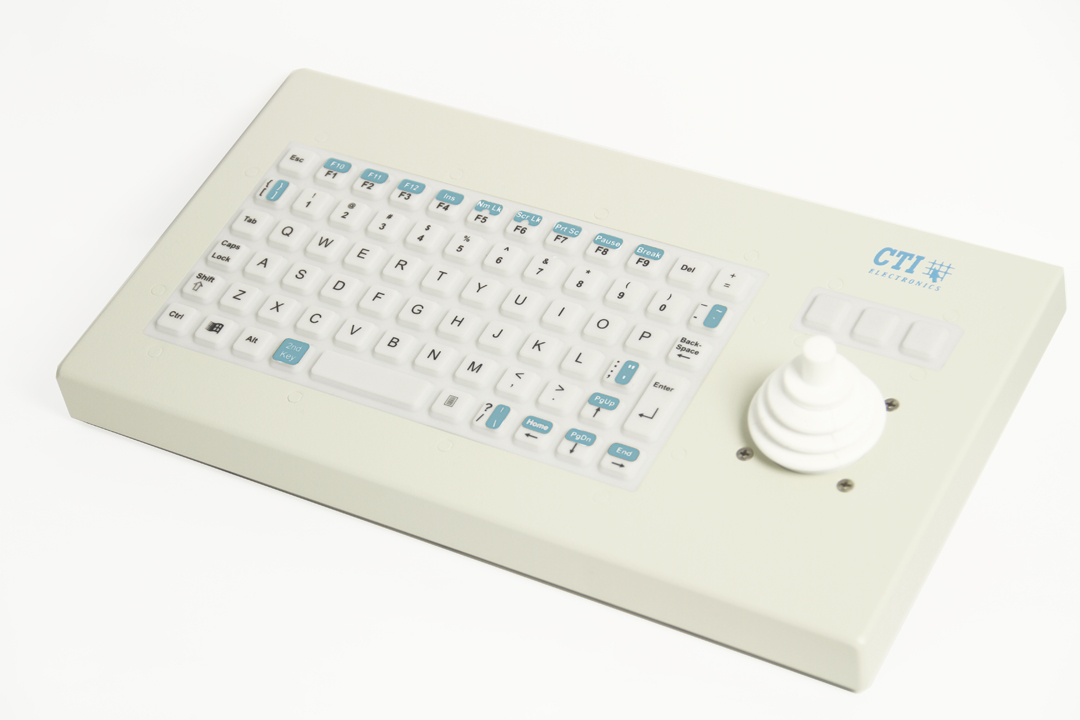

KIF6000 - NEMA 4/4X (IP66) Medical Grade Keyboard w/ Industrial Mouse™:
The KIF6000 Series is a NEMA 4/4X (IP66) medical grade keyboard with full 101/104 key functionality, 69 keys including 12 function keys. The KIF6000 Series combines CTI's medical keyboard with its original, full travel Industrial Mouse™ mouse pointer. The Industrial Mouse™ (industrial joystick) is the most reliable, rugged pointer; and with a sealed button in the joystick knob, provides simple point and click operation. Models are compatible with all computers, no special software drivers required.
These ergonomic keyboards are designed for continuous use in harsh environments; even while wearing gloves. The enclosures are available in watertight, anodized aluminum or welded stainless steel. Both enclosure options come standard with a gasket sealed bottom plate, rubber feet and sealed threaded holes for optional mounting to any work surface with just two screws.
These medical keyboards with Industrial Mouse™ mouse pointers are an excellent solution for use in cleanrooms and hospitals; such as medical equipment carts, operating rooms, cleanroom, and many other scientific and medical facilities.
KIF6000-NX Industrial Keyboards Technical Drawing(PDF)
Industrial Mouse™ Pointing Devices Operation (PDF)
USB Bulkhead Panel Cable (PDF) [Industrial Keyboard USB Bulkhead Panel Cable Video]
Joystick knob options (PDF)
KIF6000 Series Reliability and Specification Data
How to select an Industrial Keyboard
hide

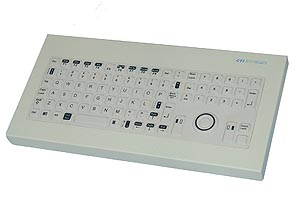

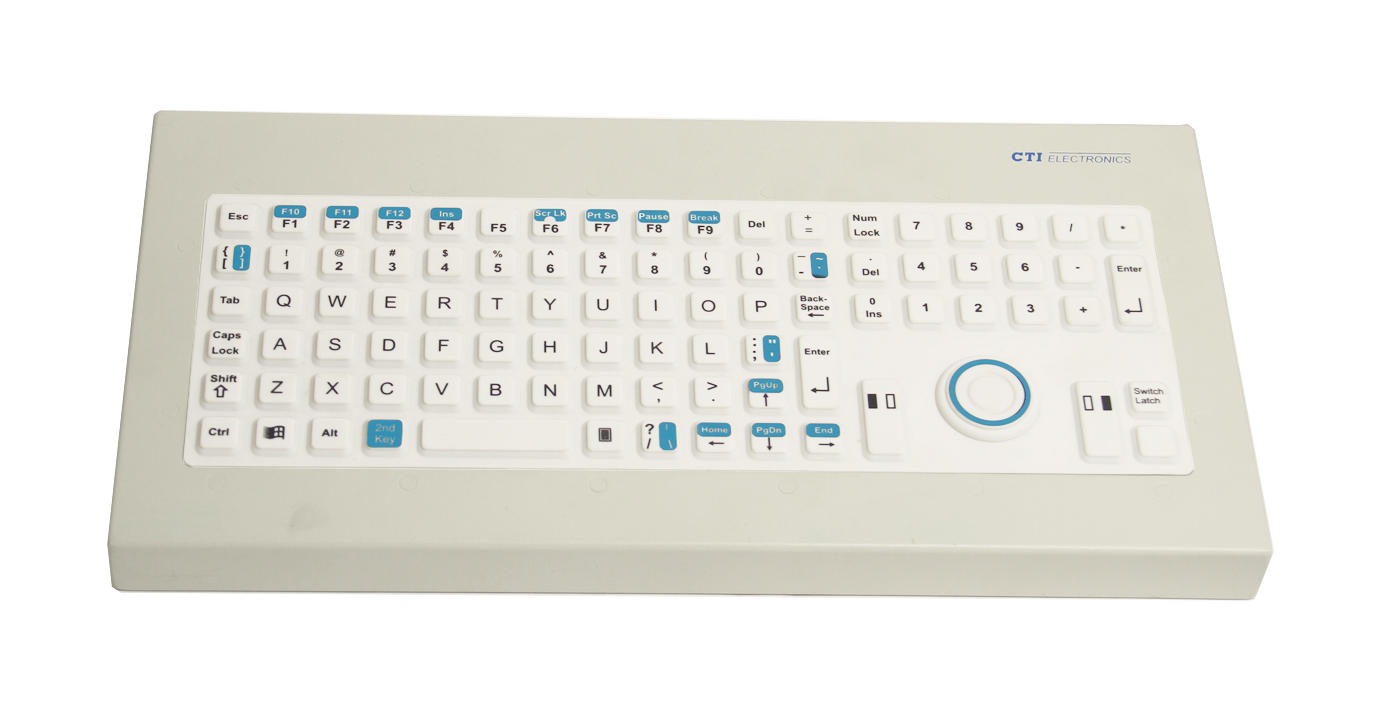

KIO7000 Series
With its innovative ergonomic design, the KIO7000 NEMA 4 (IP66) series provides superior levels of sealing, reliability, durability, and performance. These waterproof keyboards feature our patented button-style OrbitalMouse® pointing devices, the perfect no-drift alternative to touch pads in a sleek, smart design. Molded silicone rubber sealing
allows for 2mm key travel and offers an excellent tactile feel, while a unique waterproof coating protects against liquids from harming components. Optional LEDs are available in red or green. This series is available as an OEM panel mount device or in an aluminum or stainless steel enclosure. Standard interfaces include PS/2 and USB. Meets NEMA 4/4X (IP66) and IP66/ Standards.
KIO7000 Waterproof Keyboards Technical Drawing (PDF)
Optional Bulk Head Cable Drawing (PDF)
KIO7000 Series Key Symbol Quick Reference Guide (PDF)
USB Bulkhead Connector (PDF)
KIO7800 Waterproofl Keyboard Specification Data (PDF)
How to select an Industrial Keyboard
hide

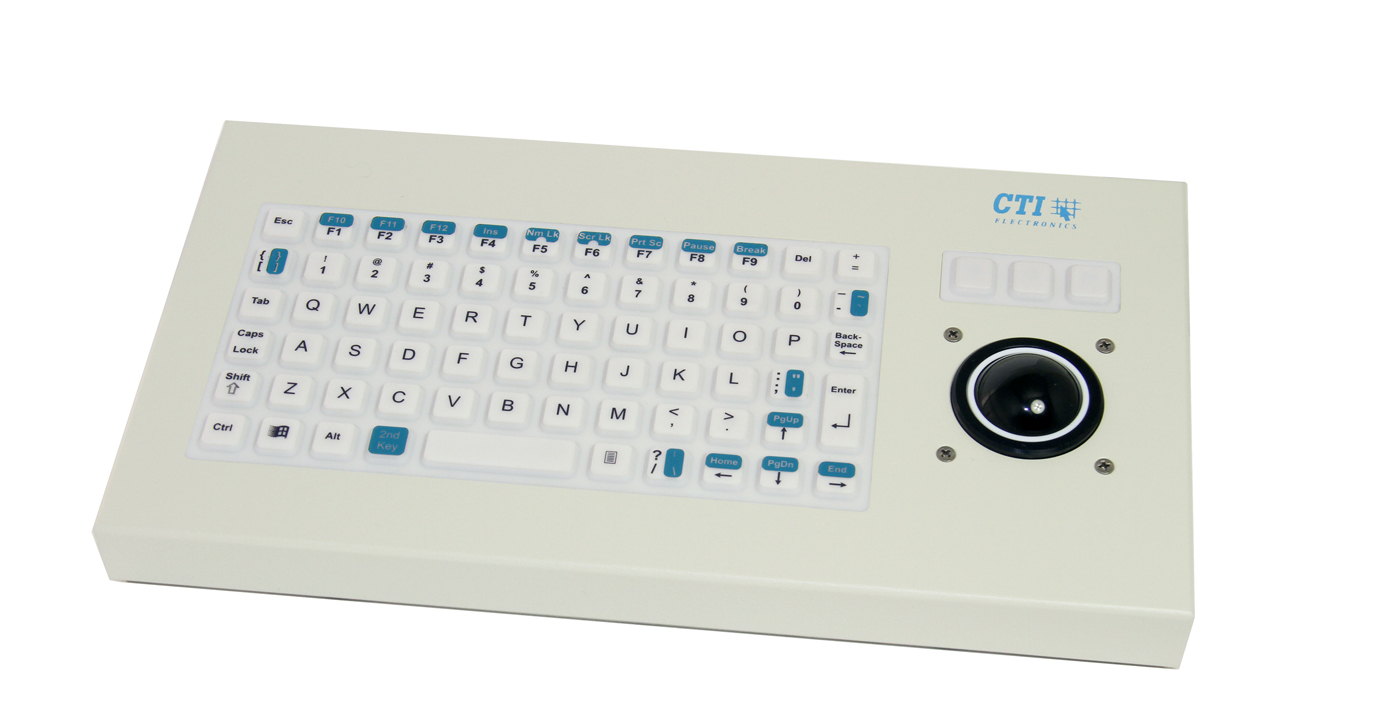

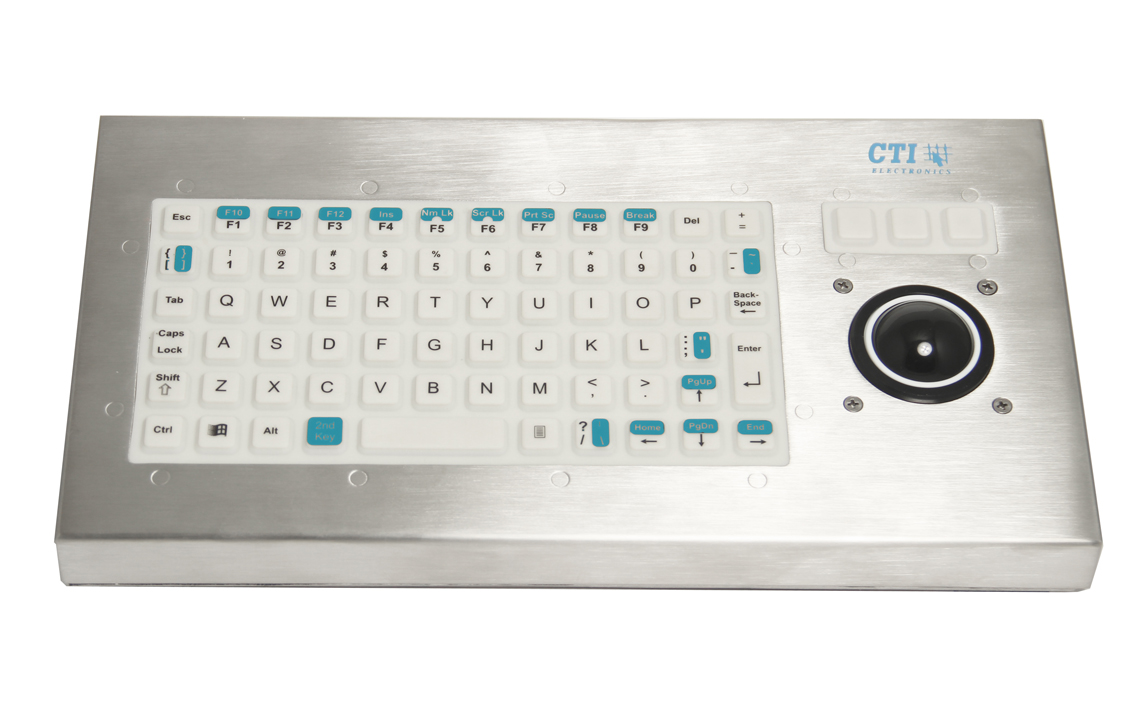

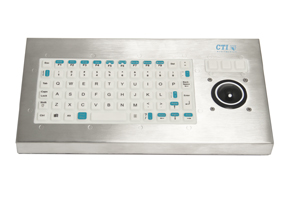

KIT6000 Series - NEMA 12 Medical Keyboards with 1.3" Trackball:
The KIT6000 Series are NEMA 12 (IP54) medical keyboards with full 101/104 key functionality in a patented, innovative, small footprint with full size keys. This medical keyboard is combined with CTI's high reliability 1.3" trackball mouse pointer, and is compatible with all computers; without requiring any special software
These medical keyboards with trackball mouse pointers offer high reliability and ease of use; and are packaged in compact, anodized aluminum enclosures. The enclosure comes standard with a gasket sealed bottom plate, rubber feet and sealed threaded holes for optional mounting to any work surface with just two screws.The KIT6000 medical keyboard is perfect for medical facilities or cleanrooms.
Being lightweight with a small footprint, these sealed keyboards with trackball mouse pointers are perfect as portable industrial computer input devices.
KIT6000 Hospital Keyboards Technical Drawing (PDF)
Optional Bulk Head Cable Drawing (PDF)
USB Bulkhead Connector (PDF)
KIT6000-BX Series Illuminated Hospital Keyboards
KIT6000 Industrial Keyboard Specification Data (PDF) hide
