NEMA 4 (IP66) & NEMA 12 (IP54) Rack Mount Industrial Keyboards, with and without Industrial Mouse™ Pointers
KI3700 Series
The KI3700 Series are full size, NEMA 4 (IP66) sealed keyboards with full 101/104 key functionality, including 24 function keys and a separate numeric keypad. These rugged keyboards use CTI's advanced designs for sealing and reliability, are molded of silicone rubber and have 2 mm travel with excellent tactile feel. Gold over nickel
contacts combined with superior sealing (waterproof) assure users of years of reliable operation.
These sealed, industrial keyboards are packaged in heavy gauge anodized aluminum with a 1U panel height, and includes CTI's patented, ergonomic folding door hand rest feature. Sliding rails are rated at 80 lbs. per side and lock in the extended position. All installation hardware is included.
Various options are available to meet your application requirements (e.g. French keyboards, Spanish keyboards).
KI3700 Industrial Keyboards Technical Drawing (PDF)
ArrowMouse™ Mouse Cursors Operating Instructions (PDF) hide
These sealed, industrial keyboards are packaged in heavy gauge anodized aluminum with a 1U panel height, and includes CTI's patented, ergonomic folding door hand rest feature. Sliding rails are rated at 80 lbs. per side and lock in the extended position. All installation hardware is included.
Various options are available to meet your application requirements (e.g. French keyboards, Spanish keyboards).
KI3700 Industrial Keyboards Technical Drawing (PDF)
ArrowMouse™ Mouse Cursors Operating Instructions (PDF) hide
KIA3700 Series
The KIA3700 Series are full size, NEMA 4 (IP66) sealed keyboards with full 101/104 key functionality, including 24 function keys and a separate numeric keypad. The KIA9000 Series combines CTI's rugged, industrial keyboard with its low profile, drift-free ArrowMouse™ mouse pointer.
These industrial keyboards with ArrowMouse™ mouse pointers offer high reliability and ease of use; and are packaged in heavy gauge anodized aluminum with a 1U panel height, and includes CTI's patented, ergonomic folding door hand rest feature. Sliding rails are rated at 80 lbs. per side and lock in the extended position. All installation hardware is included.
Various options are available to meet your application requirements.
KIA3700 Industrial Keyboards Technical Drawing (PDF)
ArrowMouse™ Mouse Cursors Operating Instructions (PDF) hide
Various options are available to meet your application requirements.
KIA3700 Industrial Keyboards Technical Drawing (PDF)
ArrowMouse™ Mouse Cursors Operating Instructions (PDF) hide

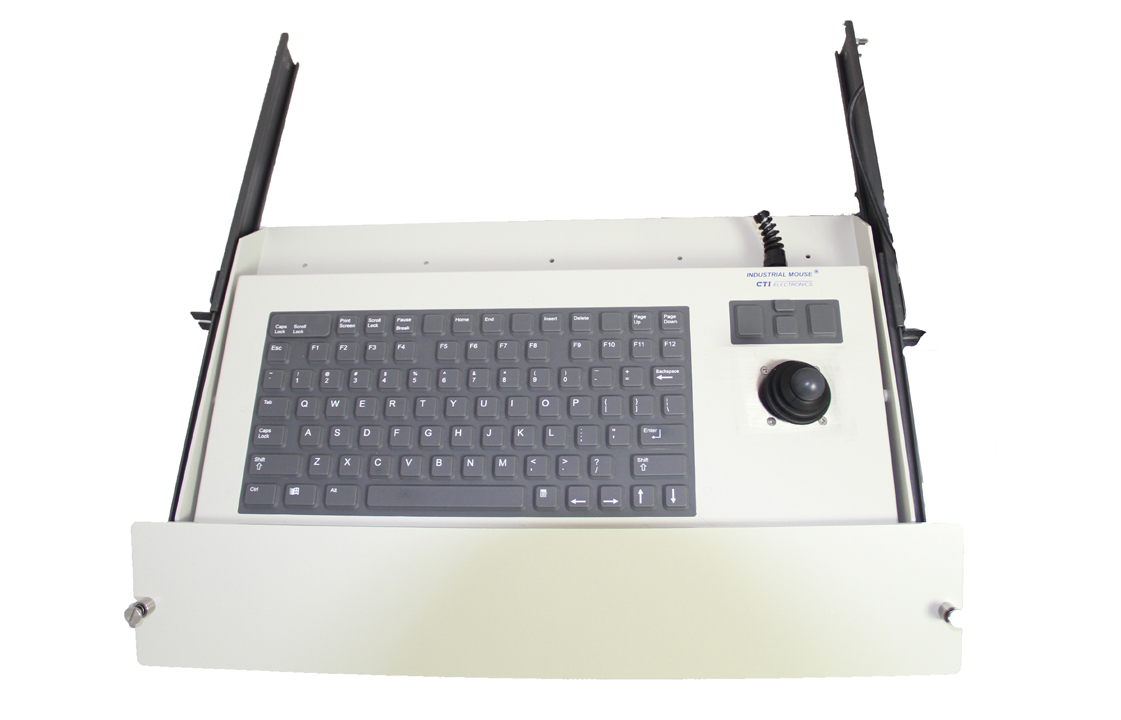

KIF3000 Series
The KIF3000 Series are rugged, NEMA 4 (IP66) sealed industrial keyboards with full 101/104 key functionality. The KIF3000 Series combines CTI's rugged, industrial keyboard with its original, full travel Industrial Mouse™ mouse pointer. The Industrial Mouse™ (industrial joystick) is the most reliable, rugged pointer on the market.
Models are compatible with all computers, no special software drivers required.
These industrial keyboards are designed for continuous use in harsh environments; even while wearing gloves. The KIF3000 Series is packaged in heavy gauge anodized aluminum with a 2U panel height, and includes CTI's patented, ergonomic folding door hand rest feature. Sliding rails are rated at 80 lbs. per side and lock in the extended position. All installation hardware is included.
Various options are available to meet your application requirements (e.g. French keyboards, Spanish keyboards).
KIF3000 Industrial Keyboards Technical Drawing (PDF)
Industrial Mouse™ Pointing Devices Operation (PDF)
Speed Control for Industrial Mouse™ Pointing Devices (PDF)
Joystick knob options hide
These industrial keyboards are designed for continuous use in harsh environments; even while wearing gloves. The KIF3000 Series is packaged in heavy gauge anodized aluminum with a 2U panel height, and includes CTI's patented, ergonomic folding door hand rest feature. Sliding rails are rated at 80 lbs. per side and lock in the extended position. All installation hardware is included.
Various options are available to meet your application requirements (e.g. French keyboards, Spanish keyboards).
KIF3000 Industrial Keyboards Technical Drawing (PDF)
Industrial Mouse™ Pointing Devices Operation (PDF)
Speed Control for Industrial Mouse™ Pointing Devices (PDF)
Joystick knob options hide
KIO3700 Series
The KIO3700 Series are rugged, NEMA 4 (IP66) sealed industrial keyboards with full 101/104 key functionality. These sealed keyboards include 12 function keys and are combined with CTI's OrbitalMouse® button style mouse pointer.
CTI's OrbitalMouse® is a sealed NEMA 4 (IP66), drift-free, button style
industrial pointer, and is molded in silicone rubber; making it more user friendly and durable than a touchpad.
These ruggedized keyboards use CTI's advanced design for sealing and reliability. They are molded of silicone rubber and have 2mm travel with excellent tactile feel. Gold over nickel contacts combined with superior sealing (waterproof) assure users of years of reliable operation.
The KIO3700 Series are packaged in heavy gauge anodized aluminum with a 1U panel height, and includes CTI's patented, ergonomic folding door hand rest feature. Sliding rails are rated at 80 lbs. per side and lock in the extended position. All installation hardware is included.
Various options are available to meet your application requirements.
KIO3700 Industrial Keyboards Technical Drawing (PDF)
Speed Control for OrbitalMouse® Mouse Cursors (PDF) hide
These ruggedized keyboards use CTI's advanced design for sealing and reliability. They are molded of silicone rubber and have 2mm travel with excellent tactile feel. Gold over nickel contacts combined with superior sealing (waterproof) assure users of years of reliable operation.
The KIO3700 Series are packaged in heavy gauge anodized aluminum with a 1U panel height, and includes CTI's patented, ergonomic folding door hand rest feature. Sliding rails are rated at 80 lbs. per side and lock in the extended position. All installation hardware is included.
Various options are available to meet your application requirements.
KIO3700 Industrial Keyboards Technical Drawing (PDF)
Speed Control for OrbitalMouse® Mouse Cursors (PDF) hide
KIT3000 Series
The KIT3000 Series are full travel industrial keyboards, with 101/104 key functionality.
These rugged keyboards are sealed to NEMA 12 (IP54) with a molded, replaceable polyurethane seal, and are combined with our high reliability trackball mouse pointer. The 2.0 " diameter trackball has a formed Teflon sealing ring in a metal collar,
redundant photo-detectors and hardened stainless steel shafts; making it very durable and precise.
These ergonomic keyboards offer high reliability trackball mouse pointers, are packaged in heavy gauge anodized aluminum with a 2U panel height, and include CTI's patented, ergonomic folding door hand rest feature. Sliding rails are rated at 80 lbs. per side and lock in the extended position. All installation hardware is included.
Various options are available to meet your application requirements.
KIT3000 Industrial Keyboards Technical Drawing (PDF)
Trackball Mouse Cursors Specifications (PDF) hide
These ergonomic keyboards offer high reliability trackball mouse pointers, are packaged in heavy gauge anodized aluminum with a 2U panel height, and include CTI's patented, ergonomic folding door hand rest feature. Sliding rails are rated at 80 lbs. per side and lock in the extended position. All installation hardware is included.
Various options are available to meet your application requirements.
KIT3000 Industrial Keyboards Technical Drawing (PDF)
Trackball Mouse Cursors Specifications (PDF) hide

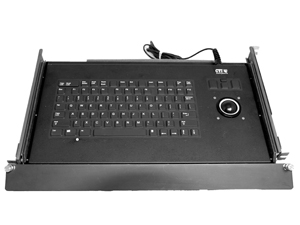

KIT3700 Series
The KIT3700 Series are full travel industrial keyboards, with 101/104 key functionality.
These rugged keyboards are sealed to NEMA 12 (IP54) with a molded, replaceable polyurethane seal, and are combined with our high reliability trackball mouse pointer. The 1.5 " diameter trackball has a formed Teflon sealing ring in a metal collar,
redundant photo-detectors and hardened stainless steel shafts; making it very durable and precise.
These ergonomic keyboards offer high reliability trackball mouse pointers, are packaged in heavy gauge anodized aluminum with a 1U panel height, and include CTI's patented, ergonomic folding door hand rest feature. Sliding rails are rated at 80 lbs. per side and lock in the extended position. All installation hardware is included. This industrial keyboard and trackball mouse pointer combination are the perfect solution where dust and minor liquid spills are of a concern; such as offices, security booths, manufacture control systems, and packaging plants.
KIT3700 Industrial Keyboards Technical Drawing (PDF)
Trackball Mouse Cursors Specifications (PDF) hide
These ergonomic keyboards offer high reliability trackball mouse pointers, are packaged in heavy gauge anodized aluminum with a 1U panel height, and include CTI's patented, ergonomic folding door hand rest feature. Sliding rails are rated at 80 lbs. per side and lock in the extended position. All installation hardware is included. This industrial keyboard and trackball mouse pointer combination are the perfect solution where dust and minor liquid spills are of a concern; such as offices, security booths, manufacture control systems, and packaging plants.
KIT3700 Industrial Keyboards Technical Drawing (PDF)
Trackball Mouse Cursors Specifications (PDF) hide
