Handheld Industrial Mouse™ Pointers and FlightStick Input Devices | NEMA 4 (IP66) Rated

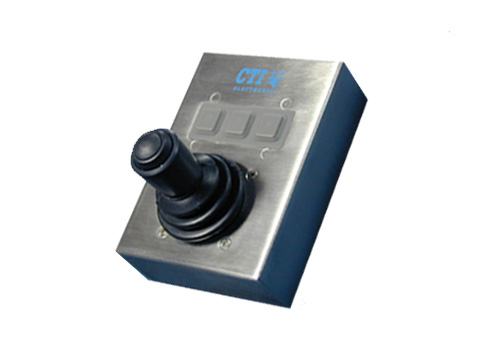

M20X9-NX Series - NEMA 4X (IP66) Hand Held Industrial Mouse™ or USB FlightStick:
This series features the Industrial Mouse™ computer mouse pointer in a space saving, NEMA 4X (IP66) sealed, stainless steel enclosure; designed for hand held or limited space applications. This design is the perfect solution for harsh or wet environments requiring rugged computer mouse pointers or control input devices
(USB FlightStick a.k.a. sidewinder joystick) and near waterproof sealing. The standard Industrial Mouse™ pointers have all the features of the Industrial Mouse™ family; and when combined with the low profile, N5 joystick knob, it can be held in one hand and easily operated with just the thumb. The three sealed switches perform all mouse functions, as well as allow the operator to select one of eight speed curves.
The stainless steel enclosure with gasket sealed bottom plate has rubber feet. Options include joystick knob, Serial, PS/2 or USB interface, and an optional bulkhead waterproof cable assembly for simple installation of the cable through metal cabinets.
An anodized aluminum M2000 holder is available for convenient storage of the M20X9-NX series Industrial Mouse™ computer mouse pointer. The holder has holes for simple screw mounting along side any machine or cabinet.
M20X9-NX Input Devices Technical Drawing (PDF)
M2000 Holder (PDF)
More About the Industrial Mouse™ (PDF)
Industrial Mouse™ Pointing Devices Operation (PDF)
Speed Control for the Industrial Mouse™ Pointing Devices (PDF)
Industrial Mouse™ Features (PDF)
Bulkhead Panel Cable NEMA 4 (IP66) (PDF)
USB Bulkhead Connector (PDF)
Serial (RS232) Power Supply Cable (PDF)
USB FlightStick Testing Procedure (PDF)
Joystick knob options
hide
The stainless steel enclosure with gasket sealed bottom plate has rubber feet. Options include joystick knob, Serial, PS/2 or USB interface, and an optional bulkhead waterproof cable assembly for simple installation of the cable through metal cabinets.
An anodized aluminum M2000 holder is available for convenient storage of the M20X9-NX series Industrial Mouse™ computer mouse pointer. The holder has holes for simple screw mounting along side any machine or cabinet.
M20X9-NX Input Devices Technical Drawing (PDF)
M2000 Holder (PDF)
More About the Industrial Mouse™ (PDF)
Industrial Mouse™ Pointing Devices Operation (PDF)
Speed Control for the Industrial Mouse™ Pointing Devices (PDF)
Industrial Mouse™ Features (PDF)
Bulkhead Panel Cable NEMA 4 (IP66) (PDF)
USB Bulkhead Connector (PDF)
Serial (RS232) Power Supply Cable (PDF)
USB FlightStick Testing Procedure (PDF)
Joystick knob options
hide
M20U1-NX Series

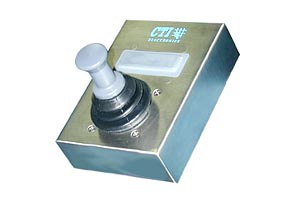

CTI's rugged Industrial Mouse™ computer mouse pointers are the most reliable, easy-to-use pointers available. The M20U1-NX Series is designed for hand held or limited space applications, and features a NEMA 4X (IP66) sealed, stainless steel enclosure complete with gasket sealed bottom plate and rubber feet. Its near-waterproof design is the perfect solution for harsh or wet environments requiring rugged computer mouse pointers. (Optionally available as a USB FlightStick a.k.a. sidewinder joystick).
The standard Industrial Mouse™ pointers have all the features of the Industrial Mouse™ family, and when combined with the low-profile N54 joystick knob option, as shown, it can be held in one hand and easily operated with just the thumb. The extra large sealed switch offers convenience, allowing the operator to quickly perform all mouse functions; even while wearing gloves.
A choice from nine different joystick knobs allows for unlimited possibilities to suit your application's unique needs. In addition, an optional bulkhead waterproof cable assembly is available for simple installation of the cable through metal cabinets. CTI also offers an anodized aluminum M2000 holder for convenient storage of the M20U1-NX series Industrial Mouse™ computer mouse pointer. The holder has holes for simple screw mounting along side any machine or cabinet.
M20U1-NX Input Devices Technical Drawing (PDF)
M2000 Holder (PDF)
More About the Industrial Mouse™ (PDF)
Industrial Mouse™ Pointing Devices Operation (PDF)
Industrial Mouse™ Features (PDF)
Bulkhead Panel Cable NEMA 4 (IP66) (PDF)
USB Bulkhead Connector (PDF)
USB FlightStick Testing Procedure (PDF)
Joystick knob options
hide

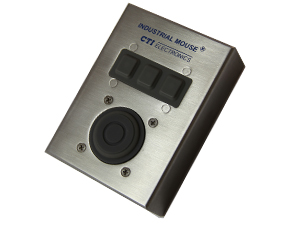

M20X9-OM Series
This series features the OrbitalMouse® button style mouse pointer in a space saving, NEMA 4X (IP66) sealed, stainless steel enclosure; designed for hand held or limited space applications. This design is perfect for harsh or wet environments requiring rugged computer mouse pointers; and for those who prefer a touchpad feel.
The three switches provide all mouse functions, as well as have an optional drag feature with an LED indicator; so that the user can execute drag functions without holding down the left switch. These industrial button style mouse pointers are also available with back-lighting (illumination).
The stainless steel enclosure with gasket sealed bottom plate has rubber feet. Options include PS/2 or USB interface and an optional bulkhead waterproof cable assembly for simple installation of the cable through metal cabinets.
An anodized aluminum M2000 holder is available for convenient storage of the M20X9-OM series. The holder has holes for simple screw mounting along side any machine or cabinet.
M20X9-OM Computer Mouse Pointers Technical Drawing(PDF)
OrbitalMouse® Mouse Cursors Speed Control Setup (PDF)
M2000 Holder (PDF)
Bulkhead Panel Cable NEMA 4 (IP66) (PDF)
USB Bulkhead Connector (PDF)
hide
The stainless steel enclosure with gasket sealed bottom plate has rubber feet. Options include PS/2 or USB interface and an optional bulkhead waterproof cable assembly for simple installation of the cable through metal cabinets.
An anodized aluminum M2000 holder is available for convenient storage of the M20X9-OM series. The holder has holes for simple screw mounting along side any machine or cabinet.
M20X9-OM Computer Mouse Pointers Technical Drawing(PDF)
OrbitalMouse® Mouse Cursors Speed Control Setup (PDF)
M2000 Holder (PDF)
Bulkhead Panel Cable NEMA 4 (IP66) (PDF)
USB Bulkhead Connector (PDF)
hide

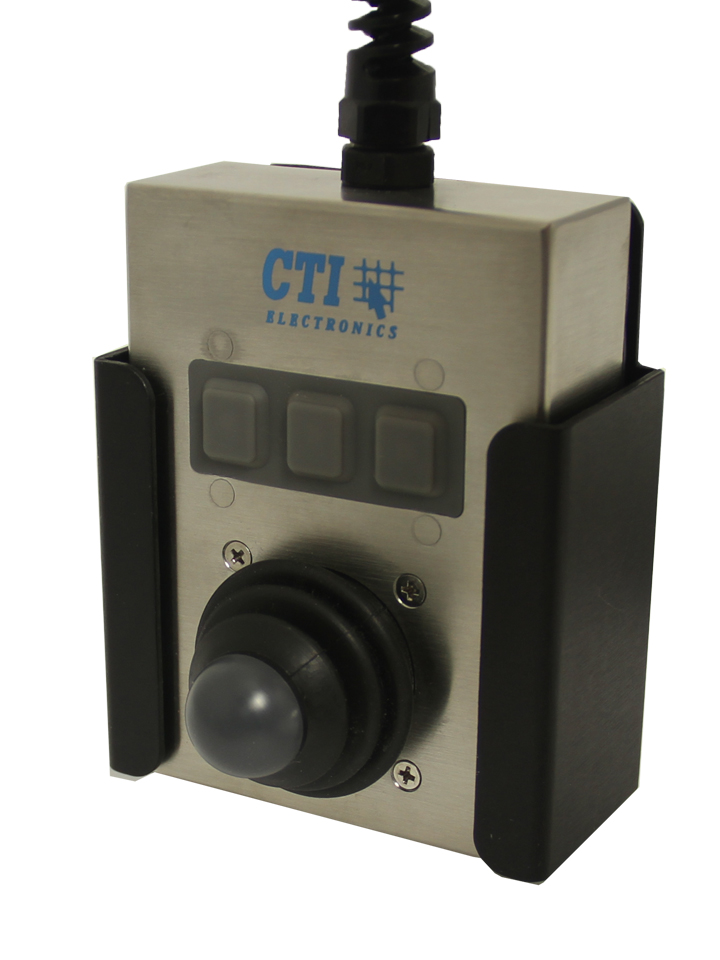

M2000 Series

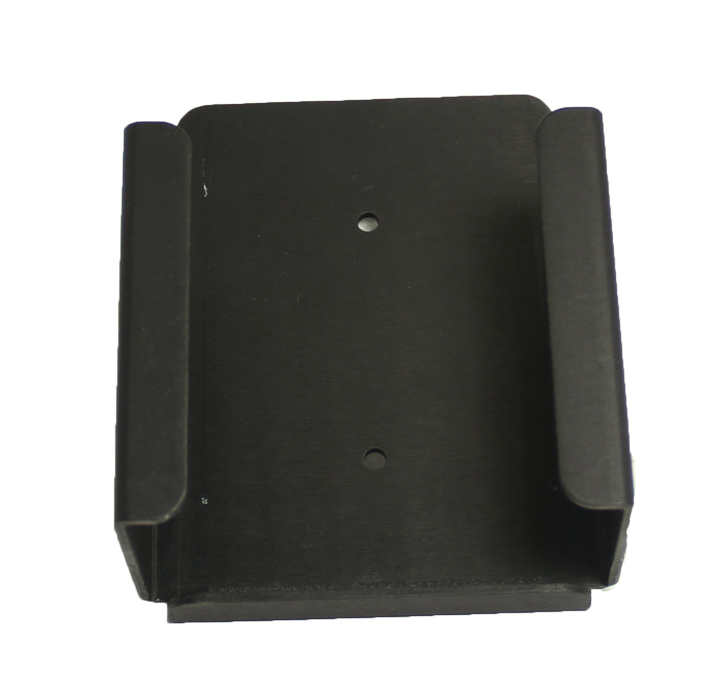

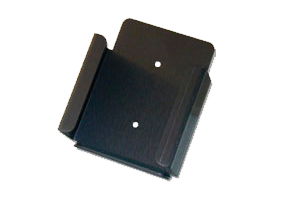

The M2000 series of rugged hand held computer mouse pointers and computer input devices offers an anodized aluminum holder with pre-drilled mounting holes for easy panel mounting. This precision machined cradle is designed for rugged environments and allows the operator a place of convenient storage for the M2000 series
of handheld Industrial Mouse™ pointers and industrial computer input devices such as the Industrial Mouse™, OrbitalMouse®, and USB FlightStick.
M2000 Holder (PDF)
hide
M2000 Holder (PDF)
hide
Desktop Industrial Mouse™ Pointers and FlightStick Input Devices | NEMA 4 (IP66) Rated

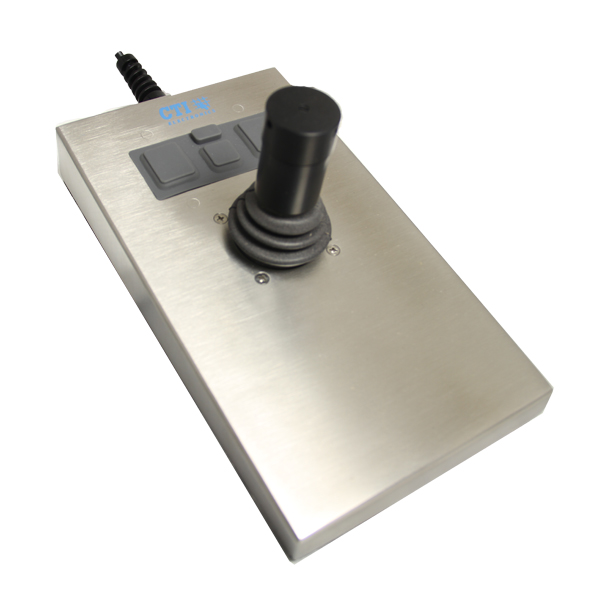

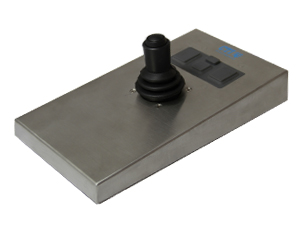

M90X9-NX Series - NEMA 4X (IP66) Desktop Industrial Mouse™ or USB FlightStick:
The workstation/desktop version of the Industrial Mouse™ has an ergonomic; stainless steel NEMA 4X (IP66) sealed enclosure. This design is perfect for harsh or wet environments requiring rugged Industrial Mouse™ pointers or control input devices (USB FlightStick a.k.a. sidewinder joystick). In addition to the three sealed computer
mouse switches on the enclosure,the standard industrial computer mouse pointer offers a "point and click" button in the handle.
The stainless steel enclosure with gasket sealed bottom plate has rubber feet and a sealed threaded hole allowing for easy securing to any work surface with just one screw. Options include industrial joystick knob, Serial, PS/2 or USB interface, and an optional bulkhead waterproof cable assembly for simple installation of the cable through metal cabinets.
M90X9-NX Input Devices Technical Drawing (PDF)
More About the Industrial Mouse™ (PDF)
Industrial Mouse™ Pointing Devices Operation (PDF)
Speed Control for the Industrial Mouse™ Pointing Devices (PDF)
Industrial Mouse™ Features (PDF)
Bulkhead Panel Cable NEMA 4 (IP66) (PDF)
USB Bulkhead Connector (PDF)
Serial (RS232) Power Supply Cable (PDF)
USB FlightStick Testing Procedure (PDF)
Joystick knob options hide
The stainless steel enclosure with gasket sealed bottom plate has rubber feet and a sealed threaded hole allowing for easy securing to any work surface with just one screw. Options include industrial joystick knob, Serial, PS/2 or USB interface, and an optional bulkhead waterproof cable assembly for simple installation of the cable through metal cabinets.
M90X9-NX Input Devices Technical Drawing (PDF)
More About the Industrial Mouse™ (PDF)
Industrial Mouse™ Pointing Devices Operation (PDF)
Speed Control for the Industrial Mouse™ Pointing Devices (PDF)
Industrial Mouse™ Features (PDF)
Bulkhead Panel Cable NEMA 4 (IP66) (PDF)
USB Bulkhead Connector (PDF)
Serial (RS232) Power Supply Cable (PDF)
USB FlightStick Testing Procedure (PDF)
Joystick knob options hide

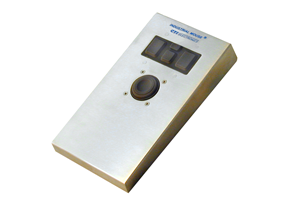

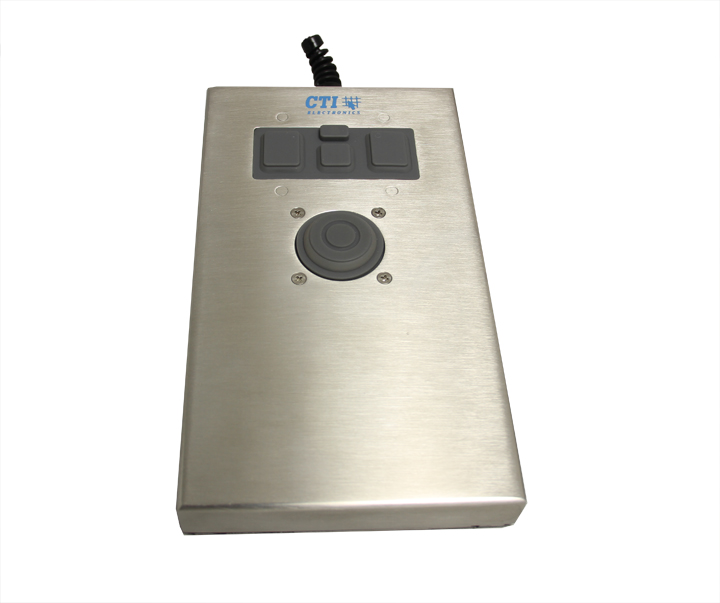

M90X9-OM Series
The workstation/desktop version of the OrbitalMouse® button style mouse pointer has an ergonomic; stainless steel NEMA 4X (IP66) sealed enclosure. This design is recommended for environments requiring rugged Industrial Mouse™ pointers; and for those who prefer a touchpad feel. These button style Industrial Mouse™ pointers come with three
sealed mouse switches and an LED indicator for the optional drag feature.
The stainless steel enclosure with a gasket sealed bottom plate has rubber feet and a sealed threaded hole allowing for easy securing to any work surface with just one screw. Options include PS/2 or USB interface and an optional bulkhead waterproof cable assembly for simple installation of the cable through metal cabinets.
M90X9-OM Computer Mouse Pointers Technical Drawing (PDF)
OrbitalMouse® Mouse Cursors Speed Control Setup (PDF)
Bulkhead Panel Cable NEMA 4 (IP66) (PDF)
USB Bulkhead Connector (PDF) hide
The stainless steel enclosure with a gasket sealed bottom plate has rubber feet and a sealed threaded hole allowing for easy securing to any work surface with just one screw. Options include PS/2 or USB interface and an optional bulkhead waterproof cable assembly for simple installation of the cable through metal cabinets.
M90X9-OM Computer Mouse Pointers Technical Drawing (PDF)
OrbitalMouse® Mouse Cursors Speed Control Setup (PDF)
Bulkhead Panel Cable NEMA 4 (IP66) (PDF)
USB Bulkhead Connector (PDF) hide

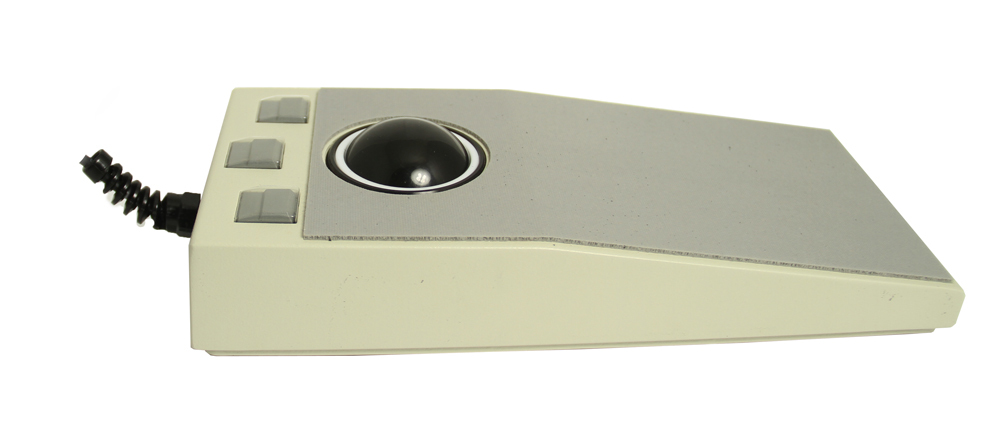

T80X3 Series

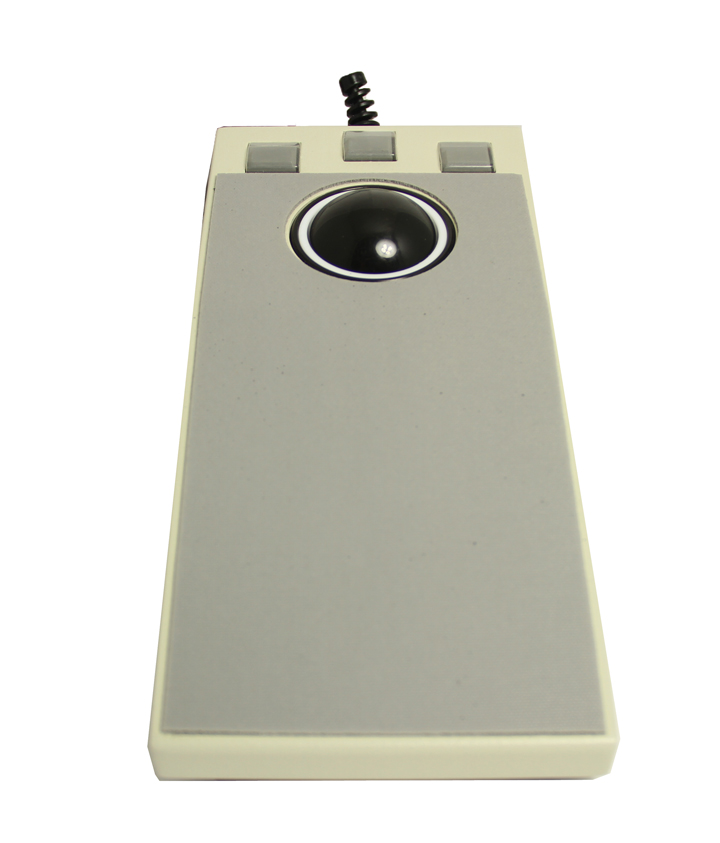

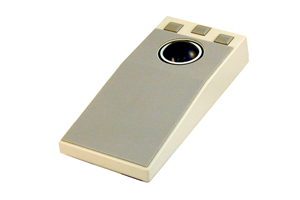

The workstation/desktop version of the Industrial Mouse™ trackball mouse pointer has an ergonomic design with a padded foam hand rest; and is NEMA 12 (IP54) sealed in a stainless steel enclosure. This 2" industrial trackball mouse pointer is recommended for environments requiring rugged mouse pointers combined with precision accuracy;
such as in medical, military, and aerospace industries. These precision Industrial Mouse™ pointers come with the three sealed mechanical computer mouse switches and an optional LED indicator for the click and drag feature. CTI industrial trackballs are rugged industrial computer input devices and have been in service for over 2 decades without the need for repair; due to the quality of the materials used.
The anodized aluminum enclosure with gasket sealed bottom plate has rubber feet and a sealed threaded hole allowing for easy securing to any work surface with just one screw. Options include PS/2, USB or Serial interface and an optional Serial power supply cable assembly.
T80X3 Computer Mouse Pointers Technical Drawing (PDF)
Serial (RS232) Power Supply Cable (PDF) hide
The anodized aluminum enclosure with gasket sealed bottom plate has rubber feet and a sealed threaded hole allowing for easy securing to any work surface with just one screw. Options include PS/2, USB or Serial interface and an optional Serial power supply cable assembly.
T80X3 Computer Mouse Pointers Technical Drawing (PDF)
Serial (RS232) Power Supply Cable (PDF) hide
