OEM Industrial Pointing Devices

oem, rugged, sealed, NEMA 4 (IP66), mouse pointer

AP2000 Series

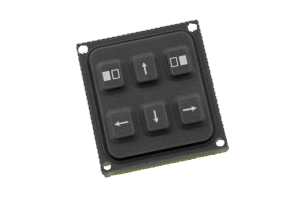

AP2000 Series - NEMA 4 (IP66) OEM ArrowMouse™ (Arrow Key Mouse Pointers):
The AP2000 Series are high reliability, drift-free, sealed, Industrial Mouse™ pointers with a low profile and small footprint. These rugged OEM mouse pointers are extremely reliable in wet, harsh environments and critical applications. The ArrowMouse™ is molded of silicone rubber with 2mm of travel for excellent tactile response; and has gold
over nickel contacts for high reliability. Gold plated contacts ensure a very long life with over 10M activations. Besides separate left and right mouse keys, the computer mouse pointers have four other direction keys that allow for cursor movement in eight directions, with variable speed or single pixel control.
The ArrowMouse™ arrow key mouse pointer is a cost effective solution in a miniaturized package, measuring 1.8 by 1.9 inches and requiring less than .5 inch of panel depth. This series is available with backlighting (illumination); and with custom length cables, or wired to your specification. These industrial computer input devices have versions for all types of computers that are port compatible (PS/2 or USB), requiring no special software drivers.
Rated NEMA 4 (IP66), FCC class A, CE marked, (patents pending).
AP2000 Computer Mouse Pointers Series Technical Drawing (PDF)
ArrowMouse™ Mouse Cursors Operation (PDF)
AP2000-BX Series Illuminated Computer Mouse Pointers
Understanding NEMA and IP Ratings (PDF) hide

industrial joysticks, rugged, Industrial Mouse™, sealed, flight simulator

F10X0 Series

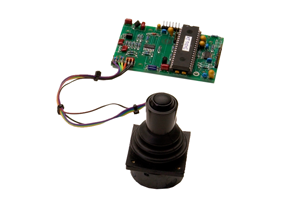

F10X0 Series - NEMA 4 (IP66) OEM Industrial Mouse™ or USB FlightStick:
The F10X0 Series, OEM industrial computer mouse pointers, are space saving mouse pointers that have one sealed "point and click" button in the handle for easy panel mounting. The miniature joystick only requires a 1.65 inch square footprint and 7/8 inch depth for the handle, as the interface PCB can be located
anywhere beneath the panel. These rugged mouse pointers allow for custom OEM mouse switches to be wired directly to the PCB, in which case any of the alternate nine knob options can be substituted.
When mounted to a panel, the computer mouse pointers assembly provides NEMA 4 (IP66) sealing. Options include joystick knob selection with Serial, PS/2 or USB interface, and custom length cables or special wiring as required.
In addition, this series can also be used as control input devices (USB FlightStick a.k.a. sidewinder joystick) instead of traditional computer mouse pointers. The USB FlightStick (flight simulator) is an industrial input device that offers real-time response rates with pin-point precise accuracy for a broad range of application possibilities. These industrial computer input devices are ideally suited for harsh environments, precision instruments, and restricted spaces. A few of the industries benefiting from the USB FlightStick are aerospace, automotive, heavy equipment, medical, and military.
F10X0 Input Devices Technical Drawing (PDF)
More About the Industrial Mouse™ (PDF)
Industrial Mouse™ Pointing Devices Operation (PDF)
Speed Control for the Industrial Mouse™ Pointing Devices (PDF)
Industrial Mouse™ Features (PDF)
Joystick knob options
Understanding NEMA and IP Ratings (PDF) hide

panel mount, industrial joysticks, NEMA 4 (IP66), oem, flight stick

F80X0 Series

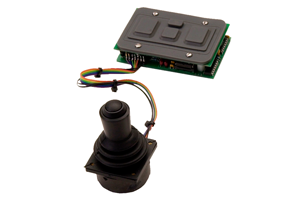

F80X0 Series - OEM Industrial Mouse™ or USB FlightStick w/ 3 Switches:
The F80X0 Series are OEM industrial computer mouse pointers. These NEMA 4 (IP66) Industrial Mouse™ pointers have a separate joystick control knob wired to the interface PCB and switch assembly, allowing the designer to locate the switches in any position relative to the handle. As with all of our Industrial Mouse™ products, the handle is available
with a choice of nine different knobs including the "point and click" option. Standard options include joystick knob, Serial, PS/2 or USB interface, and cabling.
The switch assembly is molded silicone with 2mm travel and has gold over nickel contacts for both tactile response and reliability. When mounted to your panel, the computer mouse pointers assembly provides NEMA 4 (IP66) sealing.
In addition, this series can also be used as control input devices (USB FlightStick a.k.a. sidewinder joystick) instead of traditional computer mouse pointers. The USB FlightStick (flight simulator) is an industrial input device that offers real-time response rates with pin-point precise accuracy for a broad range of application possibilities. These industrial computer input devices are ideally suited for harsh environments, precision instruments, and restricted spaces. A few of the industries benefiting from the USB FlightStick are aerospace, automotive, heavy equipment, medical, and military.
F80X0 Input Devices Technical Drawing (PDF)
More About the Industrial Mouse™ (PDF)
Industrial Mouse™ Pointing Devices Operation (PDF)
Speed Control for the Industrial Mouse™ Pointing Devices (PDF)
Industrial Mouse™ Features (PDF)
Joystick knob options
Understanding NEMA and IP Ratings (PDF) hide

Industrial Mouse™, sealed, mouse pointer, waterproof

OM2000 Series

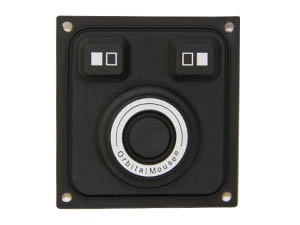

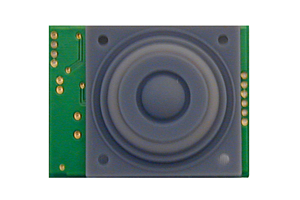

OM2000 Series – NEMA 4 (IP66) OEM OrbitalMouse® (Button Style Mouse Pointers):
CTI's OrbitalMouse®, sealed mouse pointers, are high reliability industrial computer mouse pointers with a low-profile button style pointer. The OM2000 Series is designed for OEM applications where the mouse buttons are provided by the OEM. It has various options such as backlighting (OM2000-BX) in red or green, as well as cable
styles and lengths. The dimensions are 1.65 by 2.05 inches and require less than .70 inches behind the panel; the perfect alternative to touchpads. For applications requiring less panel depth, right angle headers can be supplied. Available interfaces are PS/2 or USB and do not require any special drivers or calibration.
OM2000 Computer Mouse Pointers Technical Drawing (PDF)
OrbitalMouse® Mouse Cursors Speed Control Setup (PDF)
OM2000-BX Series Illuminated Computer Mouse Pointers
Understanding NEMA and IP Ratings (PDF) hide

NEMA 4 (IP66), oem, custom, mouse cursor

OM2200 Series

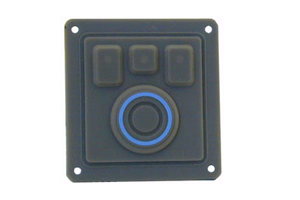

OM2200 Series - OEM NEMA 4 (IP66) OrbitalMouse® w/ Integrated Switches:
This version of the industrial button style mouse pointer integrates the OM2000 with industrial rubber switches, providing NEMA 4 (IP66) sealing. These switches have an LED for the drag function indicator option. The switches are integrated into a PCB offering a compact size. The dimensions are 2.56 by 2.68 inches and require less than .40 inches
behind the panel; the perfect alternative to a touchpad. Options include backlighting (OM2200-BX) in red or green, as well as cable styles and lengths. Available interfaces are PS/2 or USB and do not require any special drivers or calibration.
OM2200 Computer Mouse Pointers Technical Drawing (PDF)
OrbitalMouse® Mouse Cursors Speed Control Setup (PDF)
OM2000-BX Series Illuminated Computer Mouse Pointers
Understanding NEMA and IP Ratings (PDF) hide

panel mount, rugged, sealed, input devices, pointing devices

OM2300 Series

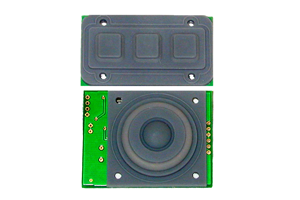

OM2300 Series - OEM NEMA 4 (IP66) OrbitalMouse® w/ Separate Switches:
This version of the industrial button style mouse pointer combines the OM2000 with a separate industrial rubber switch pad; both provide NEMA 4 (IP66) sealing. This switch pad has an LED for the drag function indicator option. The switch pad is attached to the OM2000 PCB with a 4.5 inch ribbon cable, allowing for flexibility in positioning the switches
near the button. The dimensions of the OM2000 are 1.65 by 2.15 inches and require less than .50 inches behind the panel. The dimensions of the sealed switch pad are 2.26 inches by 1.33 inches and require less than .09 inches behind the panel. Available interface is PS/2 or USB and does not require any special drivers or calibration.
OM2300 Computer Mouse Pointers Technical Drawing (PDF)
OrbitalMouse® Mouse Cursors Speed Control Setup (PDF)
Understanding NEMA and IP Ratings (PDF) hide
