OEM Industrial Trackball Sub-Assemblies

oem, rugged, sealed, quadrature, tracker ball

T6XXX Series

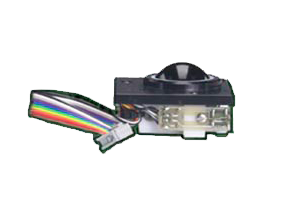

T6XXX Series – 1.3” Diameter OEM Trackball Sub-Assembly:
These industrial trackballs are the sub-assembly version of the high reliability 1.3 inch diameter panel mount trackball; for integrating into your OEM product. CTI’s rugged trackballs have a Delrin housing with a formed Teflon sealing ring in a machined, anodized aluminum mounting collar. The 1.3 inch diameter industrial trackballs can

withstand over 0g forces. The T6XXX Series industrial trackball mounts with four screws and occupies just .85 inches of below panel depth. The encoder outputs are quadrature signals brought out on a ribbon cable terminated in a ten-pin connector with standard 0.1 inch spacing for easy connection to a PCB.
ower requirements are 5V DC at 40 mA maximum. The encoder resolution is 416 counts.
T6XXX Series Industrial Trackballs Technical Drawing (PDF)
Specifications, Test & MTBF Data (PDF) hide

industrial trackballs, quadrature, sealed, rugged, medical

T7XXX Series

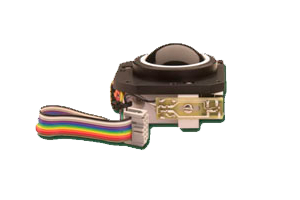

T7XXX Series – 1.5” Diameter OEM Trackball Sub-Assembly:
These industrial trackballs are the sub-assembly version of the high reliability 1.5 inch diameter panel mount trackball; for integrating into your OEM equipment. CTI’s rugged trackballs have a Delrin housing with a formed Teflon sealing ring in a machined, anodized aluminum mounting collar. The 1.5 inch diameter rugged trackballs can

withstand over 30g forces. The T7XXX Series industrial trackball mount swith four screws and occupies just 1.0 inch of below panel depth. The encoder outputs are quadrature signals brought out on a ribbon cable terminated in a ten-pin connector with standard 0.1 inch spacing for easy connection to a PCB.
Power requirements are 5V DC at 40 mA maximum. The encoder resolution is 480 counts.
T7XXX Series Industrial Trackballs Technical Drawing (PDF)
Specifications, Test & MTBF Data (PDF) hide

aerospace grade, aerospace, oem, rugged, pointing devices

T1XXX/T8XXX Series

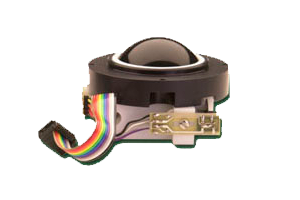

T1XXX/T8XXX Series – 2.0” Diameter OEM Sub-Assembly:
These industrial trackballs are the sub-assembly version of the high reliability 2.0 inch diameter panel mount trackball; for integrating into your OEM equipment. CTI’s rugged trackballs have a Delrin housing with a formed Teflon sealing ring in a machined, anodized aluminum mounting collar. The T1XXX has a 0.290" collar. The T8XXX has

a 0.130" collar for thinner mounting plates. The 2.0 inch diameter rugged trackballs can withstand over 0g forces. The T1XXX and T8XXX industrial trackballs mount with four screws and occupy just 1.26 inches of below panel depth. The encoder outputs are quadrature signals brought out on a ribbon cable terminated in a ten-pin connector with standard 0.1 inch spacing for easy connection to a PCB.
Power requirements are 5V DC at 40 mA maximum. The encoder resolution is 640 counts.
T1XXX Series Industrial Trackballs Technical Drawing (PDF)
T8XXX Series Industrial Trackballs Technical Drawing (PDF)
Specifications, Test & MTBF Data (PDF) hide
