T6000 Series
T6000 Series - 1.3" Panel Mount Trackballs & Trackball Mouse Pointers:

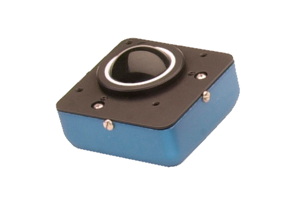

The T6000 Series of industrial trackballs have a very small 2.5 inch square footprint design. These precision trackballs require less than 1.0 inch below panel depth for the quadrature model, and 1.54 inches for units with an interface PCB (Industrial Mouse™ Trackball Mouse Pointer). The 1.3 inch diameter industrial trackballs can withstand
over 100g forces. CTI’s industrial trackballs mount to the panel with four screws and comes with a neoprene gasket; which combined with the formed Teflon sealing ring in the anodized aluminum housing is spill resistant. The unit is protected from below with a blue anodized aluminum cover that also includes a drain hole.
These industrial trackballs and trackball mouse pointers combine all the high reliability features of CTI’s trackballs, with an encoder resolution of either 832 or 416 per rotation, or divisions thereof.
T6000 Series Industrial Trackballs Technical Drawing (PDF)
Trackball Mouse Cursors Specifications, Test & MTBF Data (PDF)
Understanding NEMA and IP Ratings (PDF) hide

panel mount, industrial trackball, rugged, sealed, trackerball

T7000 Series
T7000 Series - 1.5" Panel Mount Trackballs & Trackball Mouse Pointers:

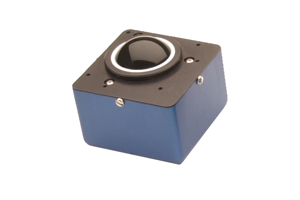

The T7000 Series of industrial trackballs have a very small 2.62 inch square footprint design. These precision pointing devices require 1.25 inches of below panel depth for the quadrature model, and 1.75 inches for units with an interface PCB (Industrial Mouse™ Trackball Mouse Pointer). The 1.5 inch diameter
industrial trackballs can withstand over 30g forces. CTI’s industrial trackballs mount to the panel with four screws and comes with a neoprene gasket; which combined with the formed Teflon sealing ring in the anodized aluminum housing is NEMA 12 (IP54) sealed. The unit is protected from below with a blue anodized aluminum cover that also includes a drain hole.
These industrial trackballs and trackball mouse pointers combine all the high reliability features of CTI’s trackballs, with an encoder resolution of either 960 or 480 per rotation, or divisions thereof.
T7000 Series Technical Drawing (PDF)
Trackball Mouse Cursors Specifications, Test & MTBF Data (PDF)
Understanding NEMA and IP Ratings (PDF) hide

nema 12, input devices, industrial trackballs, sealed, industrial input devices

T1000 Series
T1000 Series - 2.0" Panel Mount Trackballs & Trackball Mouse Pointers:

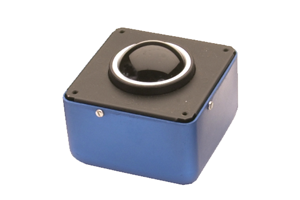

The T1000 Series of industrial trackballs have the popular sized 2.0 inch ball in a 3.5 inch square footprint design. These aerospace grade pointing devices require 2.08 inches of below panel depth, for both the quadrature model and units with an interface PCB (Industrial Mouse™ Trackball Mouse Pointer).
The 2.0 inch diameter industrial trackballs can withstand over 10g forces. CTI’s industrial trackballs mount to the panel with four screws and comes with a neoprene gasket; which combined with the formed Teflon sealing ring in the anodized aluminum housing is NEMA 12 (IP54) sealed. The unit is protected from below with a blue anodized aluminum cover that also includes a drain hole.
These industrial trackballs and trackball mouse pointers combine all the high reliability features of CTI’s trackballs, with an encoder resolution of either 1280 or 640 per rotation, or divisions thereof.
T1000 Series Industrial Trackballs Technical Drawing (PDF)
Trackball Mouse Cursors Specifications, Test & MTBF Data (PDF)
Understanding NEMA and IP Ratings (PDF) hide

military, medical, precision, rugged, pointing devices

T4000 Series
T4000 Series - 3.0" Panel Mount Trackballs & Trackball Mouse Pointers:

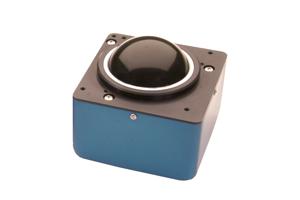

The T4000 Series of industrial trackballs have a high rotational inertia, 3.0 inch ball in a 4.25 inch square footprint design. These rugged pointing devices require 2.03 inches of below panel depth for the quadrature model, and 2.65 inches for units with an interface PCB (Industrial Mouse™ Trackball Mouse Pointer).
The 3.0 inch diameter precision trackballs can withstand over 6g forces. CTI’s industrial trackballs mount to the panel with four screws and comes with a neoprene gasket; which combined with the formed Teflon sealing ring in the anodized aluminum housing is NEMA 12 (IP54) sealed. The unit is protected from below with a blue anodized aluminum cover that also includes a drain hole.
These industrial trackballs and trackball mouse pointers combine all the high reliability features of CTI’s trackballs, with an encoder resolution of either 1280 or 640 per rotation, or divisions thereof.
T4000 Series Industrial Trackballs Technical Drawing (PDF)
Trackball Mouse Cursors Specifications, Test & MTBF Data (PDF)
Understanding NEMA and IP Ratings (PDF) hide

Industrial Mouse™, industrial trackballs, trackball mouse, aerospace, medical

T70X3 Series
T70X3 Series - 1.5" Panel Mount Trackball Mouse Pointer w/ 3 Sealed Switches:

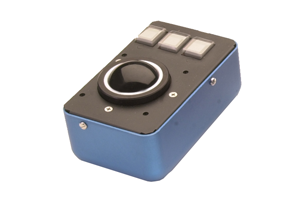

The T70X3 Series of industrial trackballs have CTI’s high reliability 1.5 inch diameter trackball in a compact, metal panel mount enclosure with three sealed switches and a neoprene gasket, and is ready for panel mounting with four screws. The switches are full travel mechanical switches with gold contacts rated at 5,000,000 cycles,
and are protected with a molded polyurethane seal; which in combination with the formed Teflon sealing ring provide spill resistance. The 1.5 inch diameter sealed mouse pointers can withstand over 30g forces. The encoder resolution is available as either 960 or 480 per rotation, or divisions thereof.
Although these industrial computer mouse pointers are very compact, they come complete with an interface PCB and cable compatible with all types of computers. With a smaller ball, these trackball mouse pointers are suitable for higher g force applications, such as military and aerospace.
T70X3 Series Industrial Trackballs Technical Drawing (PDF)
Trackball Mouse Cursors Specifications, Test & MTBF Data (PDF)
High Reliability Trackballs Mouse Pointers (PDF)
Understanding NEMA and IP Ratings (PDF) hide

trackball mouse, aerospace, aircraft, trackball mouse, nema 12

T10X3 Series
T10X3 Series - 2.0" Panel Mount Trackball Mouse Pointers w/ 3 Sealed Switches:

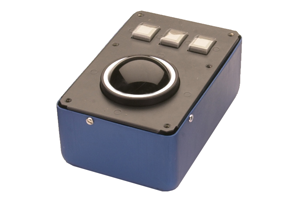

The T10X3 Series of industrial trackballs have CTI’s high reliability 2.0 inch diameter trackball in a compact, metal panel mount enclosure with three sealed switches and a neoprene gasket, and is ready for panel mounting with four screws. The switches are full travel mechanical switches with gold contacts rated at 5,000,000 cycles,
and are protected with a molded polyurethane seal; which in combination with the formed Teflon sealing ring provide NEMA 12 (IP54) sealing. These 2.0 inch diameter precision mouse pointers are the perfect solution for medical applications. These rugged trackballs can withstand over 10g forces. The encoder resolution is available as either 1280 or 640 per rotation, or divisions thereof.
These sealed industrial trackballs come complete with an interface PCB and cable compatible with all types of computers.
T10X3 Series Industrial Trackballs Technical Drawing (PDF)
Trackball Mouse Cursors Specifications, Test & MTBF Data (PDF)
High Reliability Trackballs Mouse Pointers (PDF)
Understanding NEMA and IP Ratings (PDF) hide

sealed, rugged, trackball mouse, military, medical

T40X3 Series
T40X3 Series - 3.0" Panel Mount Trackball Mouse Pointer w/ 3 Sealed Switches:

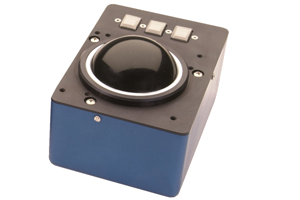

The T40X3 series of industrial trackballs have CTI’s high reliability, large 3.0 inch diameter trackball in a metal panel mount enclosure with three sealed switches and a neoprene gasket, and is ready for panel mounting with six screws. The switches are full travel mechanical switches with gold contacts rated at 5,000,000 cycles,
and are protected with a molded polyurethane seal; which in combination with the formed Teflon sealing ring provide NEMA 12 (IP54) sealing. The 3.0 inch rugged mouse cursors can withstand over 6g forces. The encoder resolution is available as either 1280 or 640 per rotation, or divisions thereof.
These precision trackball mouse pointers are complete with an interface PCB and cable compatible with all types of computers. The large ball diameter has substantial rotational inertia, which provides exceptional feel and ease of use, particularly for demanding applications of trackball mouse cursors; such as control rooms, radar sites or air-traffic control.
T40X3 Series Industrial Trackballs Technical Drawing (PDF)
Trackball Mouse Cursors Specifications, Test & MTBF Data (PDF)
High Reliability Trackballs Mouse Pointers (PDF)
Understanding NEMA and IP Ratings (PDF) hide
