Panel Mount Motion Controller using a USB Joystick
H2xU9T-Nx Series – Panel Mounted USB Joystick (FlightStick Technology):

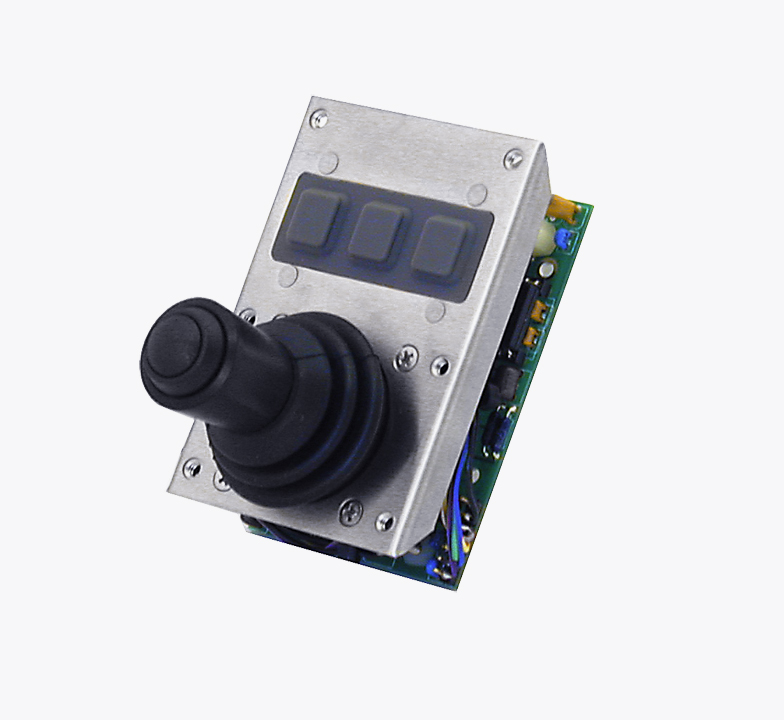

The H2XU9T-NX Series is a panel mount version of the motion contoller USB Joystick built as one complete assembly attached to a stainless steel bezel for simple under panel installation. A neoprene gasket is provided, which in combination with a six-screw mounting pattern, provides NEMA 4X (IP66) sealing in a small footprint. This design is perfect for harsh or wet environments requiring rugged computer controlled devices (USB FlightStick a.k.a. sidewinder joystick).
These standard industrial motion controller devices have all the features of the FlightStick technology family; including choice of ten joystick knobs, and are available in versions compatible with most Windows® Operating systems. The three button sealed switches perform up to three user-defined functions, allowing the operator to select or control motion. These motion controllers can be used in a variety of situations from camera motion control to stepper motor control.
The H2xU9T-Nx is optimized for quick installations that are suited for Systems Integrators.
H2xU9T-Nx USB Joystick Motion Controller Technical Drawing (PDF)
USB Joystick (FlightStick) One & Two Axes Specification (PDF)
USB Joystick (FlightStick) Three Axes NEMA 12 (IP54) Specification (PDF)
USB Joystick (FlightStick) Three Axes NEMA 4 (IP66) Specification (PDF)
USB Joystick (FlightStick) Testing Procedure (PDF)
How to select an Industrial Motion Controller (PDF)
Joystick knob options
Understanding NEMA and IP Ratings (PDF)
H2xU9T-Nx USB Joystick Motion Controller CAD Drawing (CAD DWG)
Panel Mount Industrial USB FlightStick(Motion Controller or Gaming Controller) Pricing
hide
H2xU1T-Nx Series

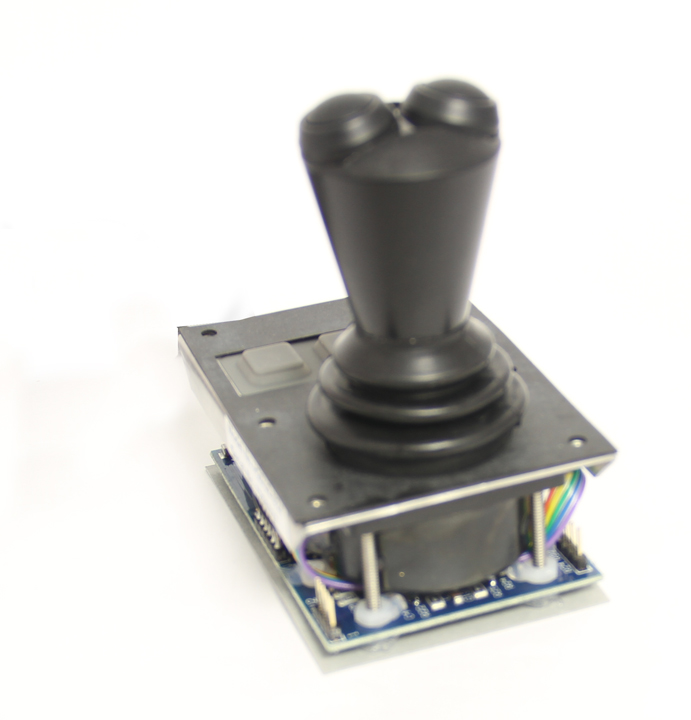

The H2xU1T-Nx Series is a panel mount version of the motion contoller USB Joystick mounted to a stainless steel bezel for simple under-panel installation. A neoprene gasket is combined with a six-screw mounting pattern, providing NEMA 4X (IP66) sealing in a small footprint. This near-waterproof design is perfect for harsh or wet environments requiring rugged computer controlled devices (USB FlightStick, a.k.a. sidewinder joystick).
The standard industrial motion controller devices have all the features of the FlightStick technology family, and when combined with the low-profile N5 joystick knob, it can be mounted to a panel and easily operated with just the thumb. The extra large sealed switch offers convenience, allowing the operator to quickly perform all motion movement functions; even while wearing gloves. A choice from ten different joystick knobs allows for unlimited possibilities to suit your application's unique needs.
The H2xU1T-Nx is optimized for quick installations that are suited for Systems Integrators.
H2xU1T-Nx USB Joystick Motion Controller Technical Drawing (PDF)
USB Joystick (FlightStick) One & Two Axes Specification (PDF)
USB Joystick (FlightStick) Three Axes NEMA 12 (IP54) Specification (PDF)
USB Joystick (FlightStick) Three Axes NEMA 4 (IP66) Specification (PDF)
USB FlightStick Testing Procedure (PDF)
How to select an Industrial Motion Controller (PDF)
Joystick knob options
Understanding NEMA and IP Ratings (PDF)
H2xU1T-Nx USB Joystick Motion Controller CAD Drawing (CAD DWG)
Panel Mount Industrial USB FlightStick(Motion Controller or Gaming Controller) Pricing
