Standard Industrial NEMA 4 (IP66) OEM Industrial Switch Assemblies

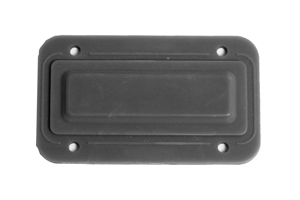

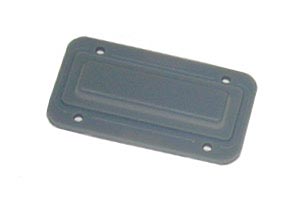

C2001A Switch
C2001A Series - NEMA 4 (IP66) Single-Button OEM Switch Assembly, No LED:
This single, extra large OEM switch offers convenience and allows the operator to quickly perform all mouse functions; even while wearing gloves.
Reliable and durable, these industrial input devices feature gray or black silicone rubber molding, gold plating and a ribbon cable.
CTI's SYN-Proof™ coating provides protection against harsh oils and solvents.
C200XA Series Industrial, OEM Switch Input Devices Technical Drawing (PDF)
C200XA Industrial OEM Switch Specifications

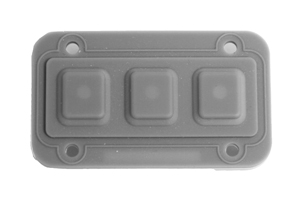

C200XA Series - NEMA 4 (IP66) Three-Button OEM Switches Assembly
with Optional LED's:
These industrial OEM switches are molded silicone rubber, three button industrial switches, and are available from stock with 0, 1 or 3 LED indicators. These OEM switches are very compact in design, and are made with gold plating and a ribbon cable.
Standard colors are gray or black; custom colors and custom legends are available. CTI's C200XA Series industrial switch assembly is the ideal switch for industrial or medical applications because of its small footprint, NEMA 4 (IP66) sealing, and CTI's SYN-Proof™ coating for protection against harsh oils and solvents.
C200XA Series OEM Switch Input Devices Technical Drawing (PDF)
C200XA Industrial Switchpad Specifications

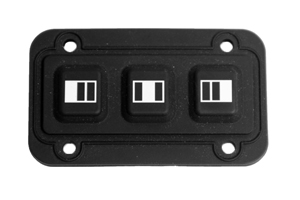

C2208A Switch
These molded silicone rubber switch pads feature three buttons with or without backlighting. Their compact design, NEMA 4 (IP66) sealing and protective SYN-Proof™ coating make them a perfect fit for industrial or medical applications. Standard non-backlit is gray, backlit version is black with red backlighting (optional green), and includes gold plating and 8.0" ribbon cable with a 10 pin connector.
C2208A Series Sealed Switch Input Devices Technical Drawing (PDF)
C200XA Industrial Switchpad Specifications

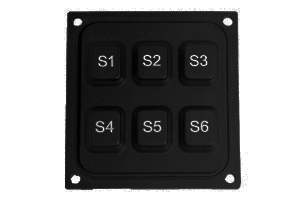

C6010 Six Button Industrial Switch Assembly:
This general purpose NEMA 4 (IP66) sealing industrial switch has six push buttons and offers a generic S1 through S6 legend. The molded silicone rubber has an o-ring seal, a 2mm travel key stroke, and an excellent tactile response. The Printed Circuit Board (PCB) has thick gold plating over nickel contacts ensure long life, rated at over 10 million actuations at 5VDC with a maximum 50mA input. The entire industrial switch assembly measures 1.8 inches by 1.9 inches and requires less than 0.5 inches of panel depth. The C6010 Model is a general purpose, debris and water resistant, industrial sealed switch device that is ideal for harsh environments and/or extreme operating temperatures ranges (-40°C to +80°C). The C6010 industrial sealed switches have a high immunity to Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI). These push button sealed switches can be manufactured with or without backlighting. The backlit or illuminated option is either all LED’s on or selectable on/off. This Six Push Button Sealed Switch is available to Original Equipment Manufacturers (OEMs) with custom legends.

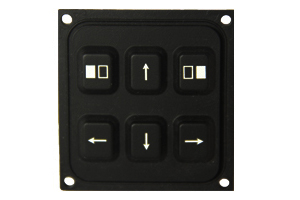

C6020 Series Six Button Industrial Switches:
These NEMA 4 (IP66) sealed switches have six push buttons and offers a directional pointer legend with two push buttons for illumination control. The molded silicone rubber has an o-ring seal, a 2mm travel key stroke, and an excellent tactile response. The Printed Circuit Board (PCB) has thick gold plating over nickel contacts ensure long life, rated at over 10 million actuations at 5VDC with a maximum 50mA input. The entire industrial switch assembly measures 1.8 inches by 1.9 inches and requires less than 0.5 inches of panel depth. The C6020 Model is a movement/directional indicator, debris and water resistant, industrial sealed switch device that is ideal for harsh environments and/or extreme operating temperatures ranges (-40°C to +80°C). The C6020 industrial sealed switches have a high immunity to Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI). These push button sealed switches can be manufactured with or without backlighting. The backlit or illuminated option is either all LED’s on or selectable on/off. This Six Push Button Sealed Switch is available to Original Equipment Manufacturers (OEMs) for selection of movement control.
C6000 Six Button Industrial Switch Assembly

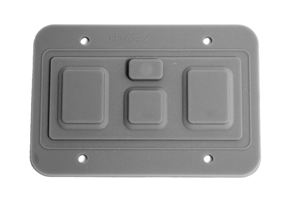

C920X Series - NEMA 4 (IP66) OEM Three-Button OEM Sealed Switch Assembly, 12" Ribbon Cable and 10 Pin Connector:
These sealed switches are molded, silicone rubber, three button sealed switch pads, and are available with an optional LED over the middle switch. Standard colors are gray or black; custom colors and custom legends are available. The switch printed circuit board has gold over nickel plating and ribbon cable output.
This switch is excellent for applications requiring sealing, and larger key size is desired; especially if the user will be wearing gloves. It provides a NEMA 4 (IP66) sealing and has CTI's SYN-Proof™ coating for protection against harsh oils and solvents.
C920X Series Sealed Switch Input Devices Technical Drawing (PDF)
C900X Industrial Switch Specifications
C900X Series - NEMA 4 (IP66) OEM Three-Button Waterproof Switch Assembly, 12" Ribbon Cable and No Connector:
This industrial waterproof switch are molded, silicone rubber, three button waterproof switch pads, and are available with an optional LED over the middle switch. Standard colors are gray or black; custom colors and custom legends are available. The switch printed circuit board has gold over nickel plating and ribbon cable output.
This switch is excellent for applications requiring sealing, and larger key size is desired; especially if the user will be wearing gloves. It provides a NEMA 4 (IP66) sealing and has CTI's SYN-Proof™ coating for protection against harsh oils and solvents.
C900X Series Waterproof Switch Input Devices Technical Drawing (PDF)
C900X Industrial Switch Specifications
