Custom Pointing Devices




M2000-N24 Series Medical Pointing Device

NEMA 4X (IP66) Medical / Cleanroom Handheld Industrial Mouse™


The M2000-N24 Series features the Industrial Mouse™ (Joystick Cursor Controller) computer mouse pointer in a space-saving design. This pointer is NEMA 4X (IP66) sealed and features a white joystick and boot. Designed for hand held or limited space applications and offering near-waterproof sealing, this is the perfect solution for harsh or wet environments. The three sealed switches perform all mouse functions. An anodized aluminum M2000 holder is available for convenient storage, with holes for simple screw mounting alongside any machine or cabinet. To maintain a clean appearance in medical environments, the holder is also available in white.


M20X9-NX Industrial Mouse™ Input Devices Technical Drawing PDF Icon

M2000-N24 Series Medical Pointing Device

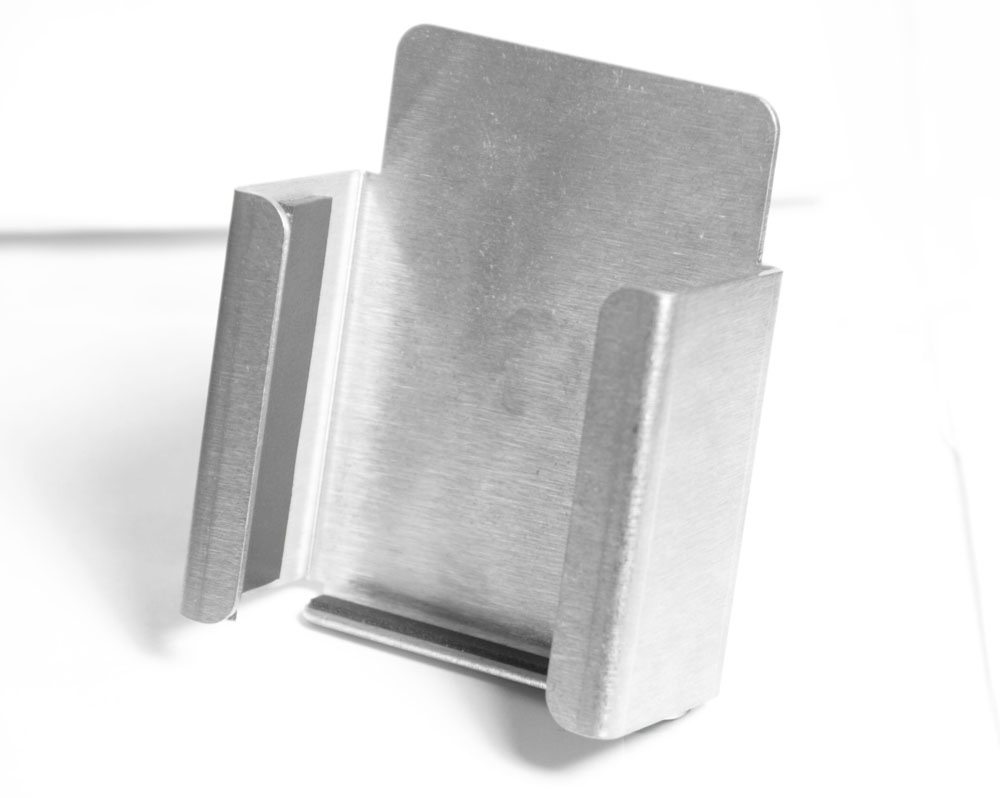

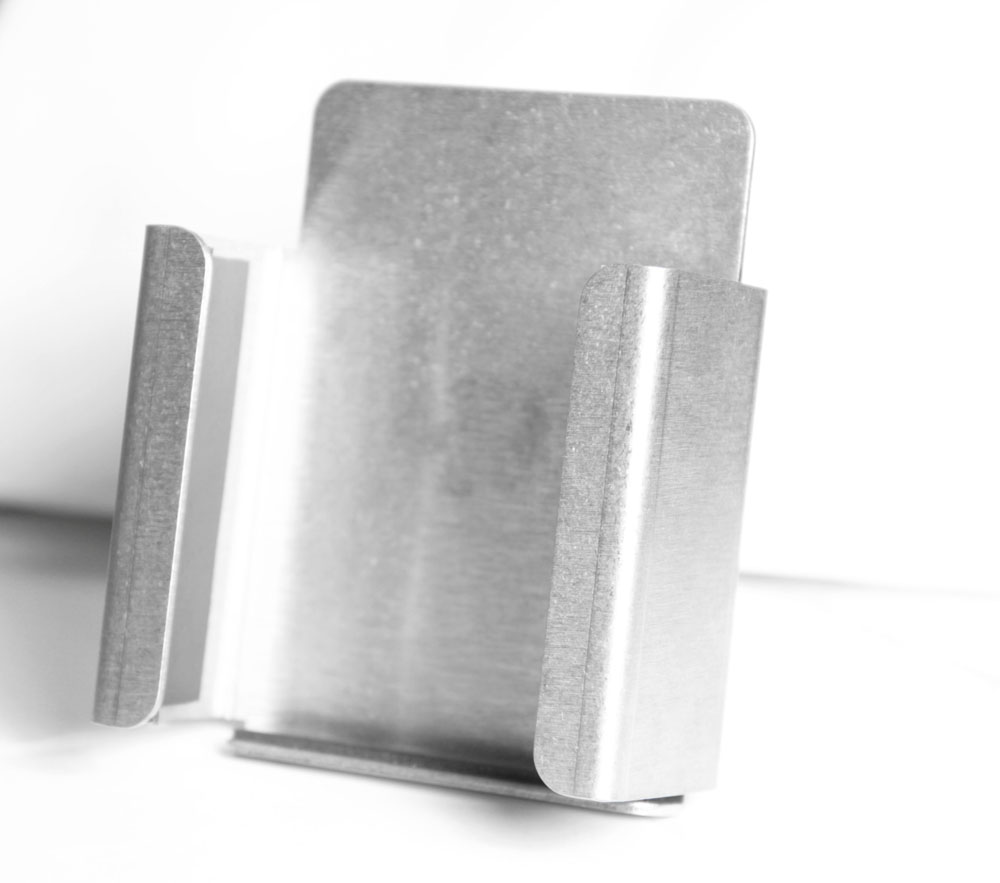

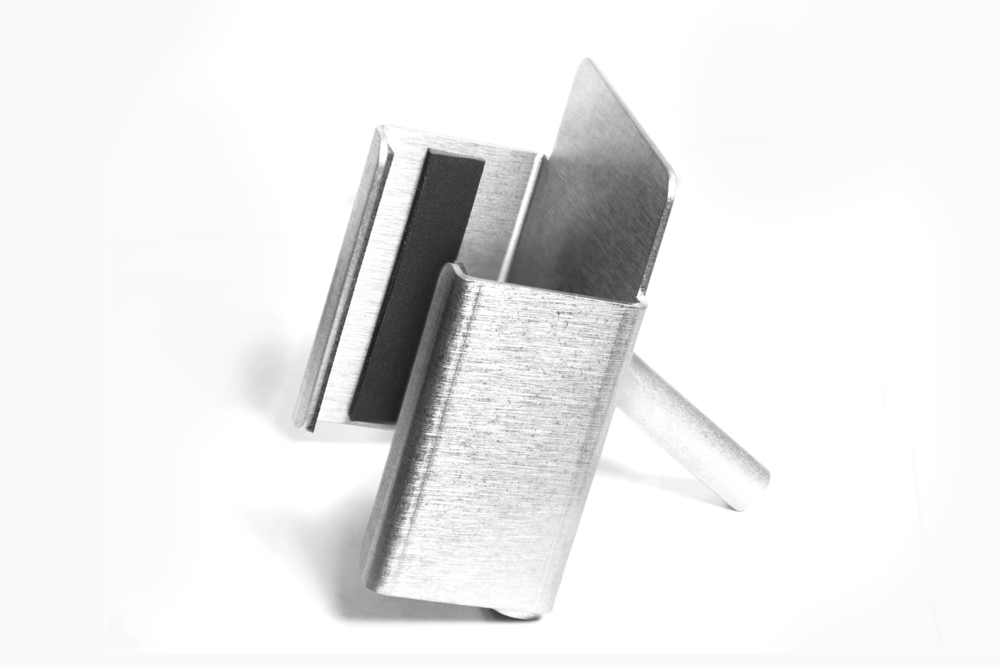

Custom M2000 Holder

Custom M2000 Holder

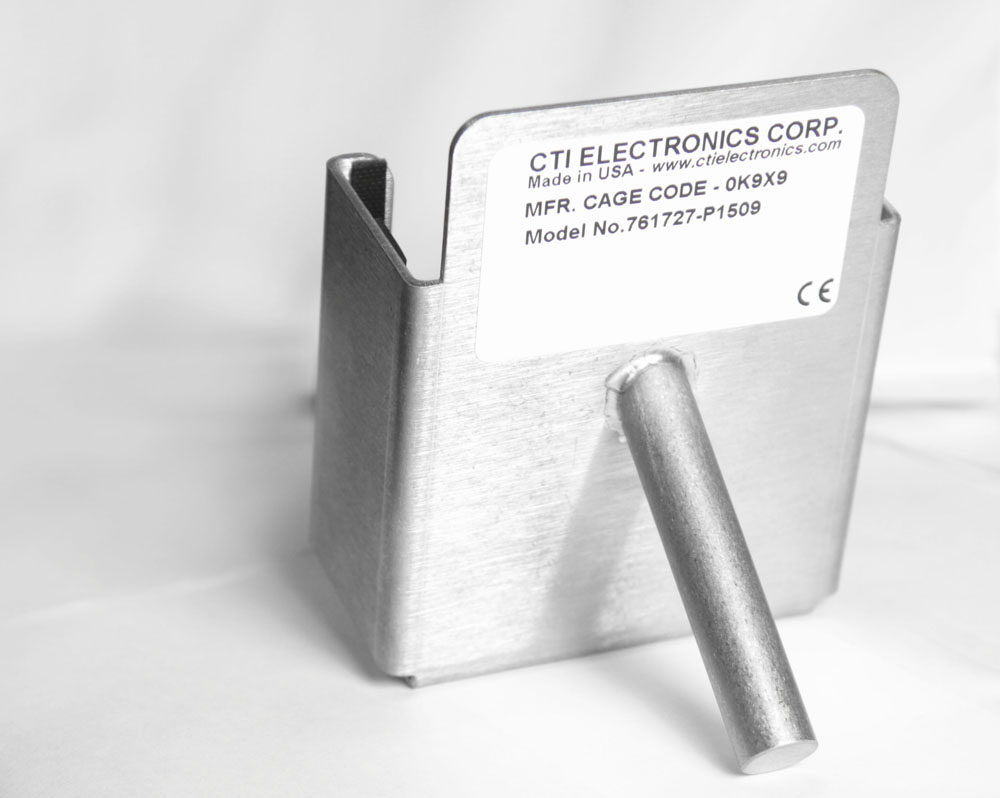

A custom M2000 Stainless Steel Holder which mounts into a bedside rail clamp and is easily disinfected and / or sterilized.



Custom M2000 Stainless steel holder
Photos
Videos
How-To
RFQ

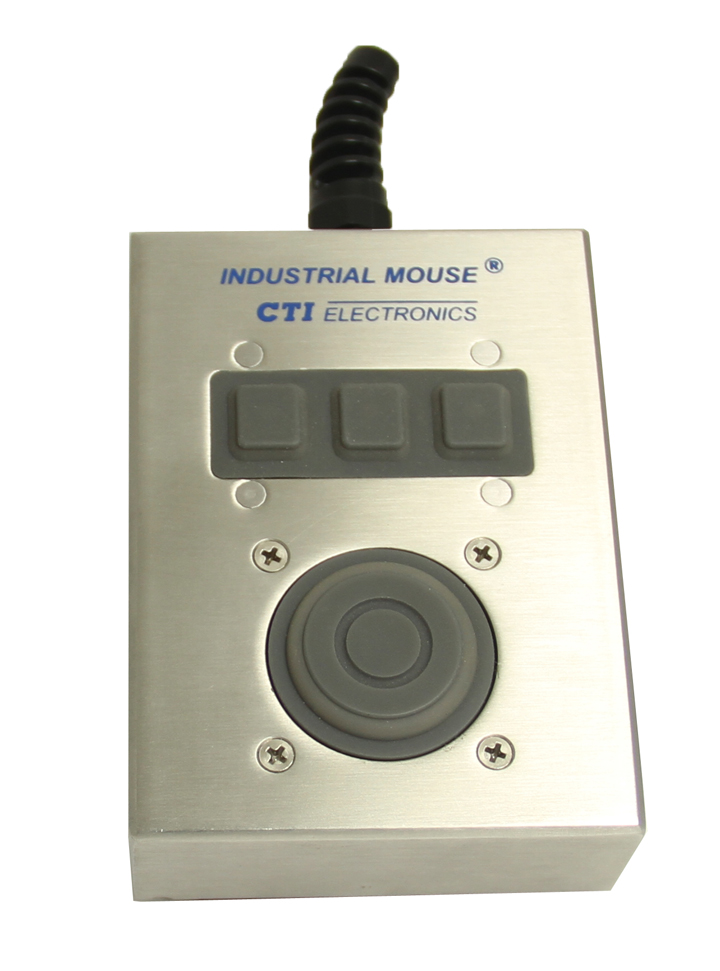

M20X9-OM Series Pointing Device

NEMA 4X (IP66) Hand Held OrbitalMouse®

Product Information

This series features the OrbitalMouse® button style mouse pointer in a space saving, NEMA 4X (IP66) sealed, stainless steel enclosure; designed for hand held or limited space applications. This design is perfect for harsh or wet environments requiring rugged computer mouse pointers; and for those who prefer a touchpad feel.

The three switches provide all mouse functions, as well as have an optional drag feature with an LED indicator; so that the user can execute drag functions without holding down the left switch. These industrial button style mouse pointers are also available with back-lighting (illumination).
The stainless steel enclosure with gasket sealed bottom plate has rubber feet. Options include PS/2 or USB interface and an optional bulkhead waterproof cable assembly for simple installation of the cable through metal cabinets.
An anodized aluminum M2000 holder is available for convenient storage of the M20X9-OM series. The holder has holes for simple screw mounting along side any machine or cabinet.

CTI's custom plug-n-play pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's plug-n-play pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These plug-n-play pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

M20X9-OM Series Pointing Device Specification

OrbitalMouse® (Button Style Mouse Cursors)
Molded silicone rubber keys
Excellent tactile feel, 2mm travel
Available with back-lighting
OrbitalMouse®
Button style pointer uses one round button for mouse cursor movement of 360°.

Features:
OEM Design
Sealed “Hard” gold plated switch contacts
Port compatible with all computers - no software drivers needed
Repairable design
Plug and Play
No Drift Design
No moving electrical parts or magnets
USB or PS/2 Output
Direct factory support - Made in USA



Temperature Ratings:
Operating Temperature  -40º to 80º C
Storage Temperature:      -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures):   100,000 hours per MIL-HDBK-217F
Shock Rating:   50g       11ms - 1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration:  Mil-Std-810F, Category 4
Buttons  Rated for up to 10 million cycles
Certifications:
Meets FCC Part 15 Class A & B
Meets CE Requirements, RoHS Requirements
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant

United States Patents:
U.S. Patent No. 7,499,032
U.S. Patents Pending 12/344368

OrbitalMouse® Pointers SpecificationsPDF Icon

Pricing

Plug-n-Play industrial OrbitalMouse® Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


Plug-n-Play Industrial OrbitalMouse® Pricing PDF Icon

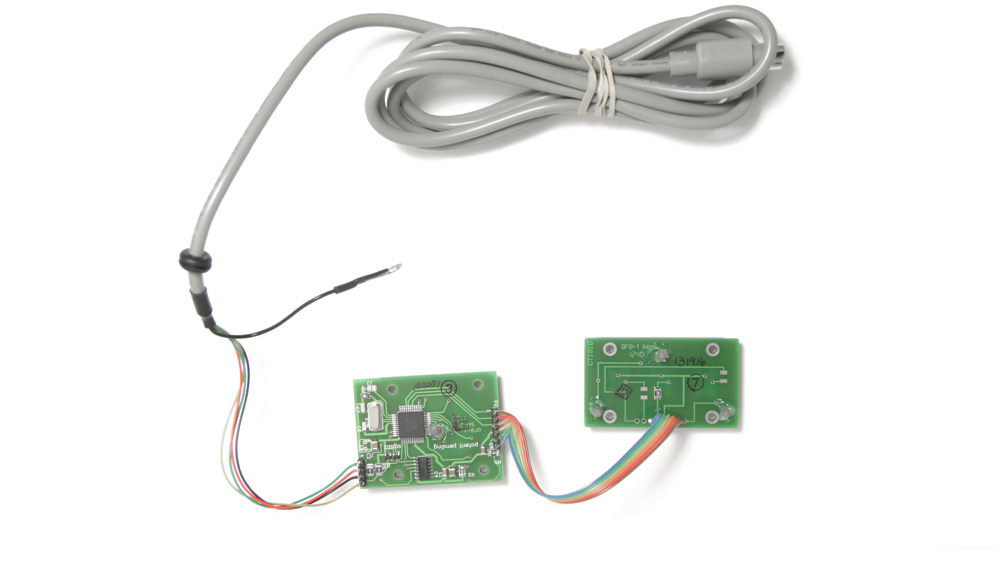

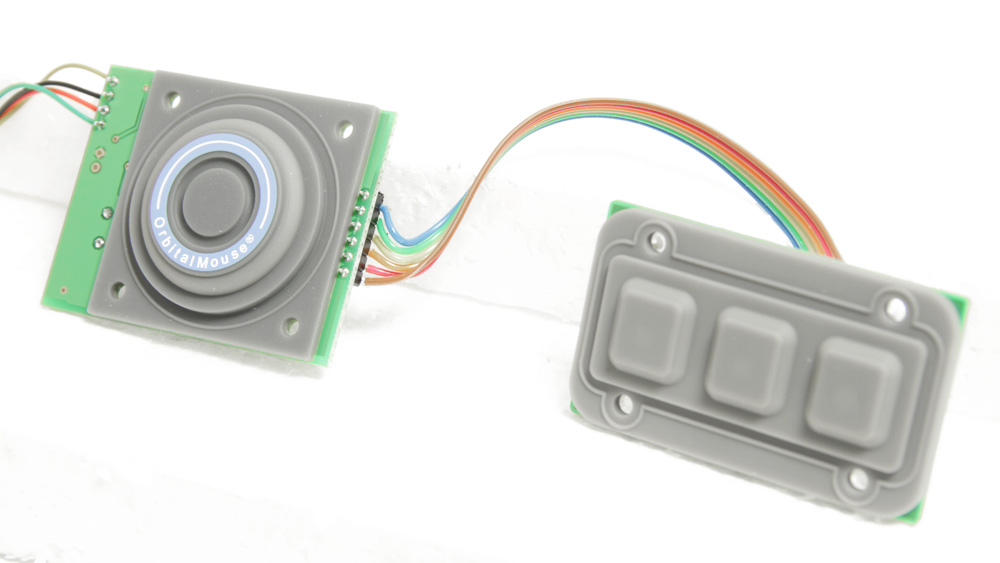

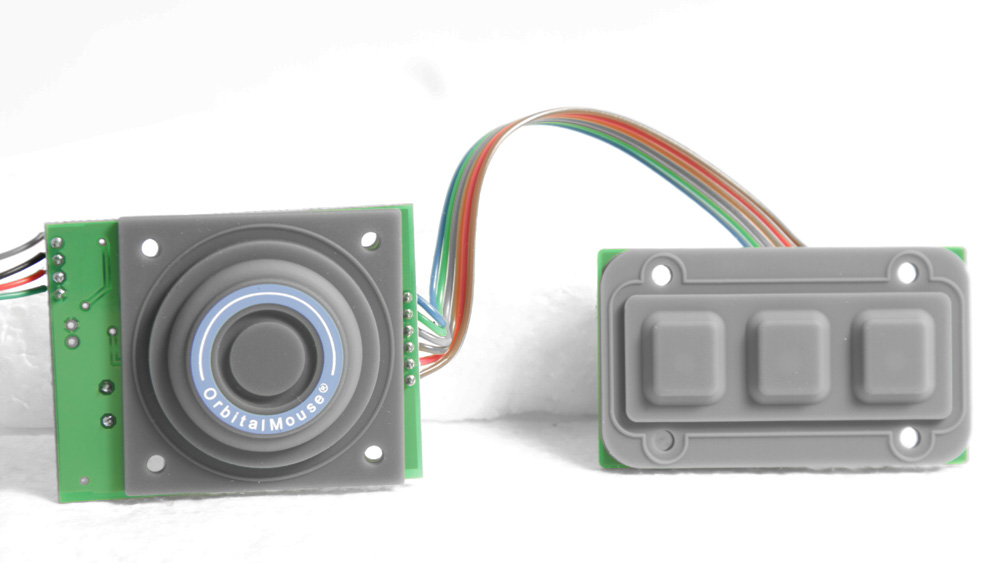

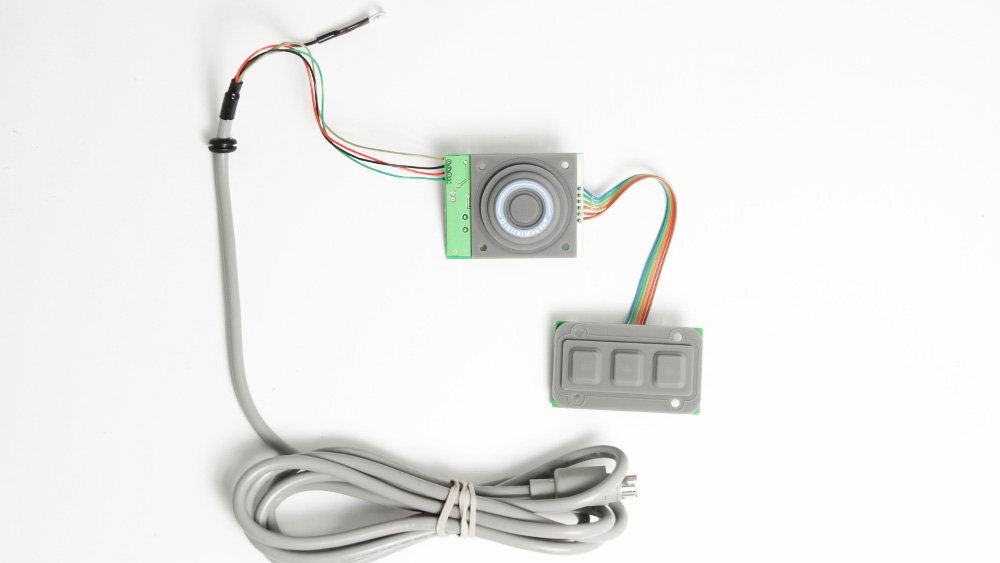

OM2300 Series Pointing Device

OEM NEMA 4 (IP66) OrbitalMouse® w/ Separate Switches

Product Information

This version of the industrial button style mouse pointer combines the OM2000 with a separate industrial rubber switch pad; both provide NEMA 4 (IP66) sealing. This switch pad has an LED for the drag function indicator option. The switch pad is attached to the OM2000 PCB with a 4.5 inch ribbon cable, allowing for flexibility in positioning the switches near the button. The dimensions of the OM2000 are 1.65 by 2.15 inches and require less than .50 inches behind the panel. The dimensions of the sealed switch pad are 2.26 inches by 1.33 inches and require less than .09 inches behind the panel. Available interface is PS/2 or USB and does not require any special drivers or calibration.

CTI's custom OEM pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's OEM pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These OEM pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

OM2300 Series Pointing Device Specification

OrbitalMouse® (Button Style Mouse Cursors)
Molded silicone rubber keys
Excellent tactile feel, 2mm travel
Available with back-lighting
OrbitalMouse®
Button style pointer uses one round button for mouse cursor movement of 360°.

Features:
OEM Design
Sealed “Hard” gold plated switch contacts
Port compatible with all computers - no software drivers needed
Repairable design
Plug and Play
No Drift Design
No moving electrical parts or magnets
USB or PS/2 Output
Direct factory support - Made in USA

Temperature Ratings:
Operating Temperature  -40º to 80º C
Storage Temperature:      -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures):   100,000 hours per MIL-HDBK-217F
Shock Rating:   50g       11ms - 1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration:  Mil-Std-810F, Category 4
Buttons  Rated for up to 10 million cycles

Certifications:
Meets FCC Part 15 Class A & B
Meets CE Requirements, RoHS Requirements
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant

United States Patents:
U.S. Patent No. 7,499,032
U.S. Patents Pending 12/344368

OrbitalMouse® Pointers SpecificationsPDF Icon

Pricing

OEM industrial OrbitalMouse® (Pointing Device) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


OEM Industrial OrbitalMouse® (Pointing Device) Pricing PDF Icon

OM2300-Bx Series Pointing Device

NEMA 4 (IP66) Backlit OrbitalMouse® w/ Separate Switches

Product Information

This version of the industrial button style mouse pointer combines the OM2000 with a separate industrial rubber switch pad; both provide NEMA 4 (IP66) sealing. This switch pad has an LED for the drag function indicator option. The switch pad is attached to the OM2000 PCB with a 4.5 inch ribbon cable, allowing for flexibility in positioning the switches near the button. The dimensions of the OM2000 are 1.65 by 2.15 inches and require less than .50 inches behind the panel. The dimensions of the sealed switch pad are 2.26 inches by 1.33 inches and require less than .09 inches behind the panel. Available interface is PS/2 or USB and does not require any special drivers or calibration.

CTI's custom backlit pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's backlit pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These backlit pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

OM2300-Bx Series Pointing Device Specification

OrbitalMouse® (Button Style Mouse Cursors)
Molded silicone rubber keys
Excellent tactile feel, 2mm travel
Available with back-lighting
OrbitalMouse®
Button style pointer uses one round button for mouse cursor movement of 360°.

Features:
OEM Design
Sealed “Hard” gold plated switch contacts
Port compatible with all computers - no software drivers needed
Repairable design
Plug and Play
No Drift Design
No moving electrical parts or magnets
USB or PS/2 Output
Direct factory support - Made in USA



Temperature Ratings:
Operating Temperature  -40º to 80º C
Storage Temperature:      -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures):   100,000 hours per MIL-HDBK-217F
Shock Rating:   50g       11ms - 1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration:  Mil-Std-810F, Category 4
Buttons  Rated for up to 10 million cycles

Certifications:
Meets FCC Part 15 Class A & B
Meets CE Requirements, RoHS Requirements
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant

United States Patents:
U.S. Patent No. 7,499,032
U.S. Patents Pending 12/344368

OrbitalMouse® Pointers SpecificationsPDF Icon

Pricing

OEM industrial OrbitalMouse® (Pointing Device) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


OEM Industrial OrbitalMouse® (Pointing Device) Pricing PDF Icon
