Rackmount Industrial Keyboards

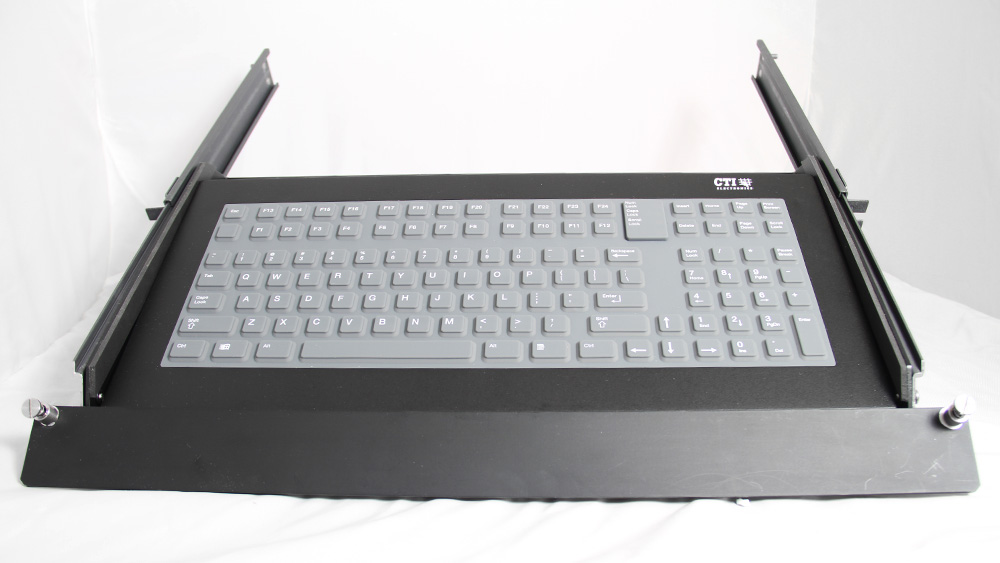

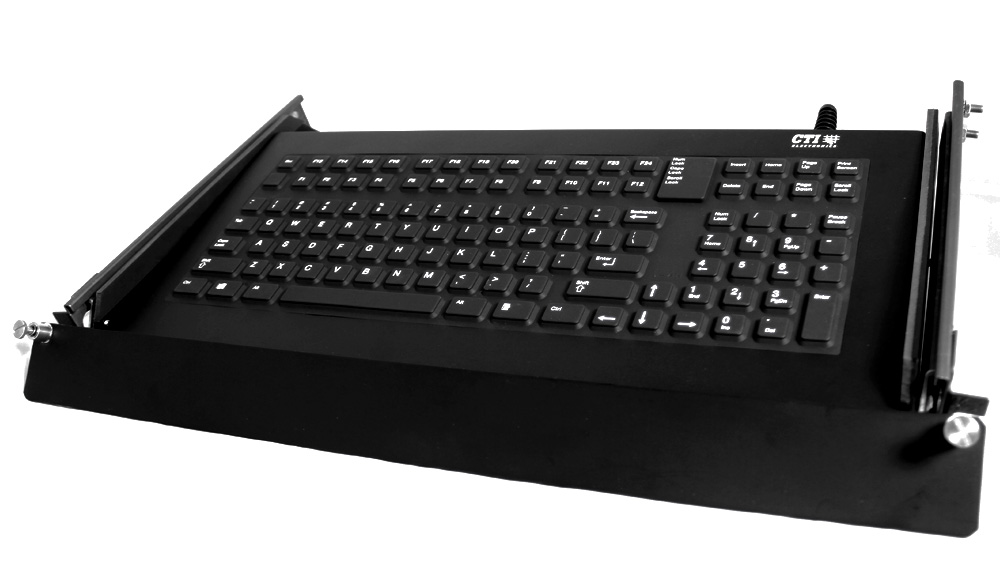

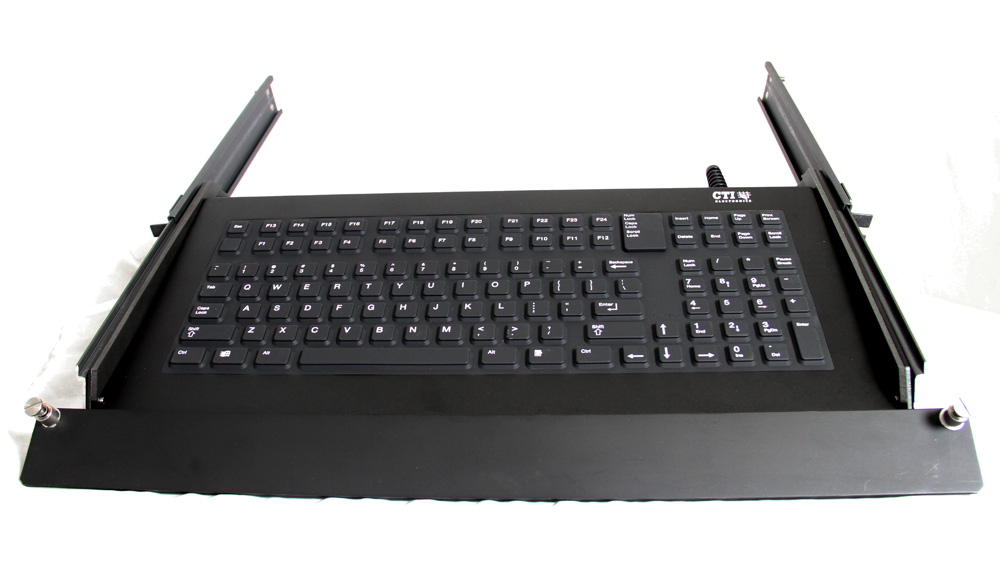

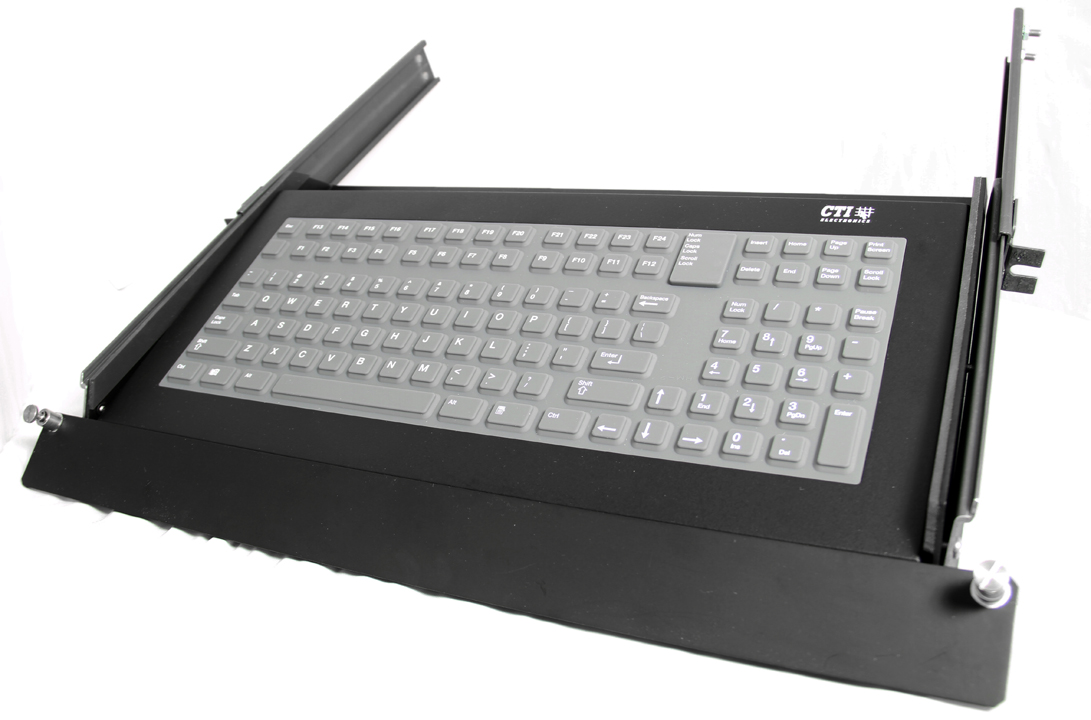

KI3700 Series Rackmount Industrial Keyboard

NEMA 4 (IP66) Rackmount Industrial Keyboard

Product Information

The KI3700 Series is a full size, NEMA 4 (IP66) sealed rackmount keyboard with full 101/104 key functionality, including 24 function keys and a separate numeric keypad. This rugged rackmount keyboard uses CTI's advanced designs for sealing and reliability, are molded of silicone rubber and have 2 mm travel with excellent tactile feel. Gold over nickel contacts combined with superior sealing (waterproof) assure users of years of reliable operation.

The KI3700 Series sealed industrial rackmount keyboard is packaged in heavy gauge anodized aluminum with a 1U panel height, and includes CTI's patented, ergonomic folding door hand rest feature. Sliding rails are rated at 80 lbs. per side and lock in the extended position. All installation hardware is included.

Various options are available to meet your application requirements (e.g. French keyboards, Spanish keyboards).

CTI's custom rackmount keyboards are ruggedized to meet aerospace, medical, and military standards. CTI's rackmount keyboards can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These rackmount keyboards are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

KI3700 Series Rackmount Industrial KeyboardSpecification

Industrial Keyboards without a Mouse Pointer
Anodized aluminum in beige
Stainless steel enclosure available
Molded rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel
Optional French (AZERTY), Spanish (QWERTY), or German (QWERTZ) legends
Serial, PS/2, or USB Interface with optional Bulkhead Cable Set (Waterproof)

Features
Two, stainless steel threaded mounting holes (in bottom plate)
Rugged NEMA 4, NEMA 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Gray or Black Elastomer
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Made in the USA

Reliability
MTBF (Mean Time between Failures): Electronics is greater than 100,000 hours
Operating Temperature: -40º to 80º C
Storage Temperature:  -40º to 80º C
Shock rating:   50g 11msec. half sine, three axes
Vibration:    10-55 Hz@ 0.013 DA
Elastomer keys: Rated for up to 10 million cycles
Contact Keys: "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts.

NEMA and IP Sealing and Protection Standards
NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Optional Parylene® coating available

Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV


Pricing

Industrial Rackmount Keyboard Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconIndustrial Rackmount Keyboard Pricing


KI3700 Industrial Rackmount Keyboard
Photos
Videos
How-To
RFQ

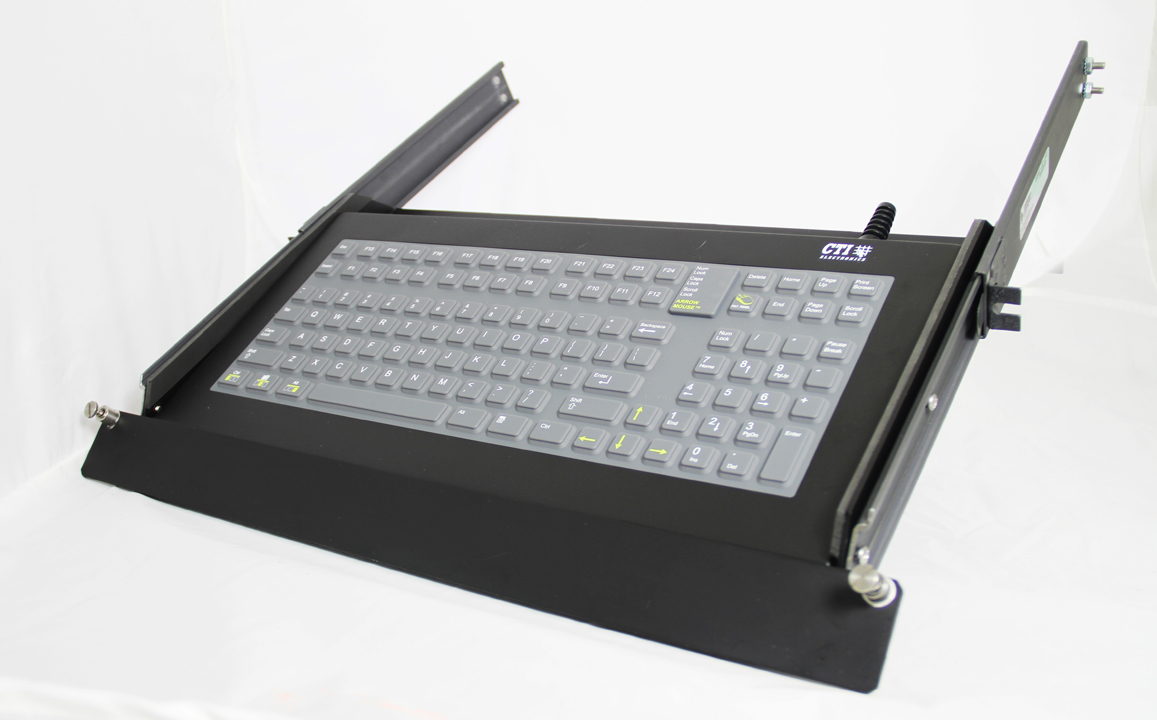

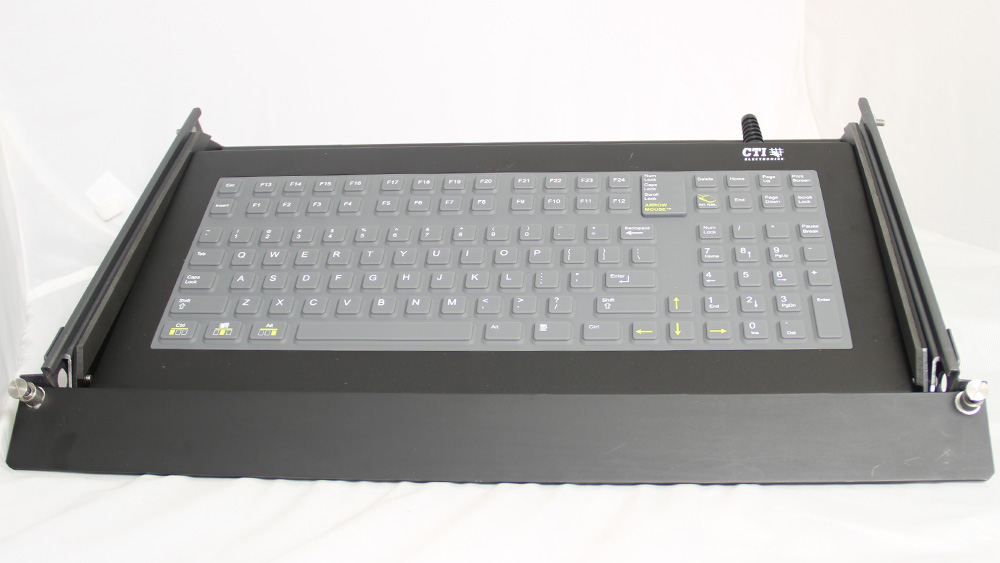

KIA3700 Series Rackmount Industrial Keyboard

NEMA 4 (IP66) Industrial Rackmount Keyboards with ArrowMouse™

Product Information

The KIA3700 Series is a full size, NEMA 4 (IP66) rackmount keyboard with full 101/104 key functionality, it also includes 24 function keys and a separate numeric keypad. The KIA3700 Series combines CTI's rugged, industrial rackmount keyboard with its low profile, drift-free ArrowMouse™ mouse pointer.

The KIA3700 rackmount keyboard with ArrowMouse™ mouse pointer provide high reliability and ease of use; and is packaged in heavy gauge anodized aluminum with a 1U panel height, and includes CTI's patented, ergonomic folding door hand rest feature. Sliding rails are rated at 80 lbs. per side and lock in the extended position. All installation hardware is included.

Various options are available to meet your application requirements.

CTI's custom rackmount keyboards are ruggedized to meet aerospace, medical, and military standards. CTI's rackmount keyboards can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These rackmount keyboards are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

KIA3700 SeriesRackmount Industrial Keyboard Specification

Industrial Keyboards with ArrowMouse™ Mouse Pointers
Anodized aluminum powder coated beige or stainless steel enclosure
Molded silicone rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel
ArrowMouse™ (Arrow Key Mouse Cursors)
Serial, PS/2, or USB Interface with optional Bulkhead Cable

Features
Two, stainless steel threaded mounting holes (in bottom plate)
Rugged NEMA 4, NEMA 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Gray or Black Elastomer
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Made in the USA

Reliability
MTBF (Mean Time between Failures): Electronics is greater than 100,000 hours
Operating Temperature: -40º to 80º C
Storage Temperature:  -40º to 80º C
Shock rating:   50g 11msec. half sine, three axes
Vibration:    10-55 Hz@ 0.013 DA
Elastomer keys: Rated for up to 10 million cycles
Contact Keys: "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts.  A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts is used.

NEMA and IP Sealing and Protection Standards
NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Optional Parylene® coating available

Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV

Pricing

Industrial Rackmount Keyboard Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconIndustrial Rackmount Keyboard Pricing

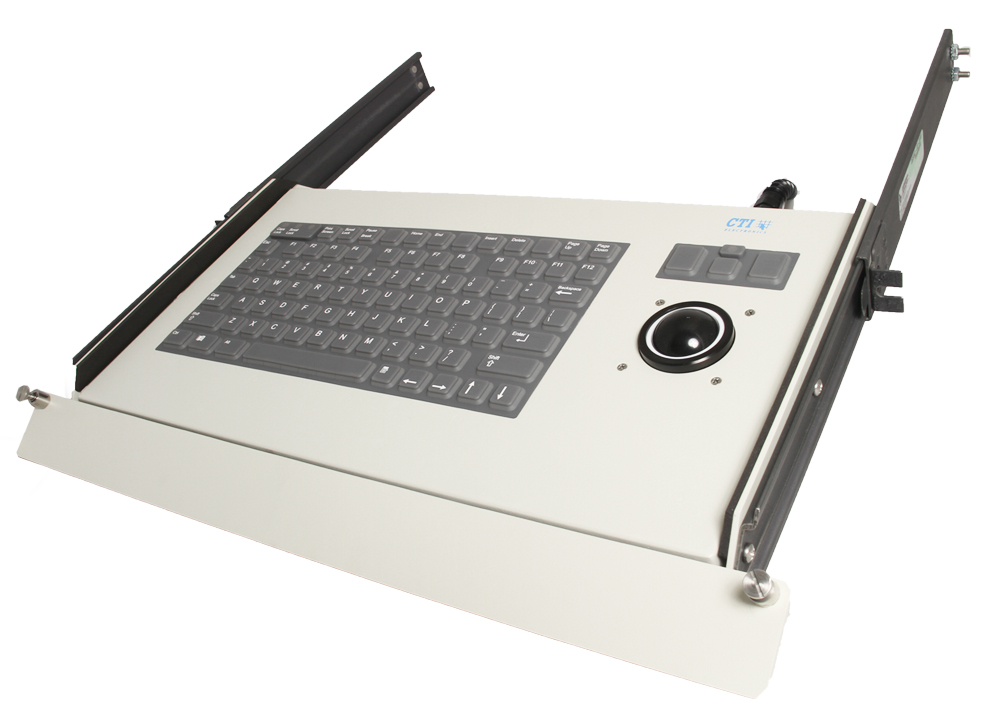

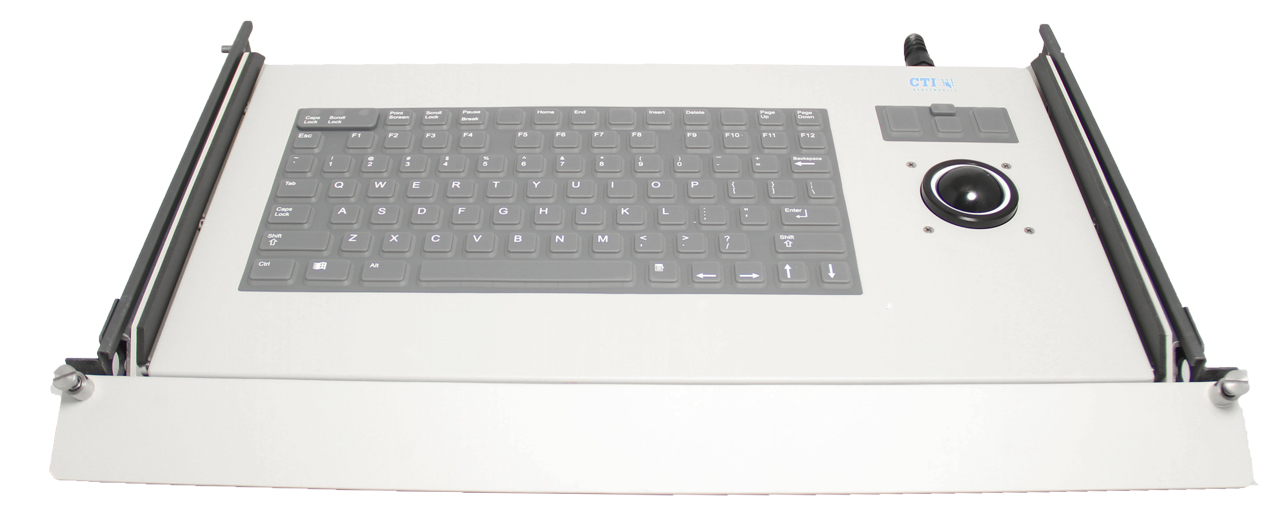

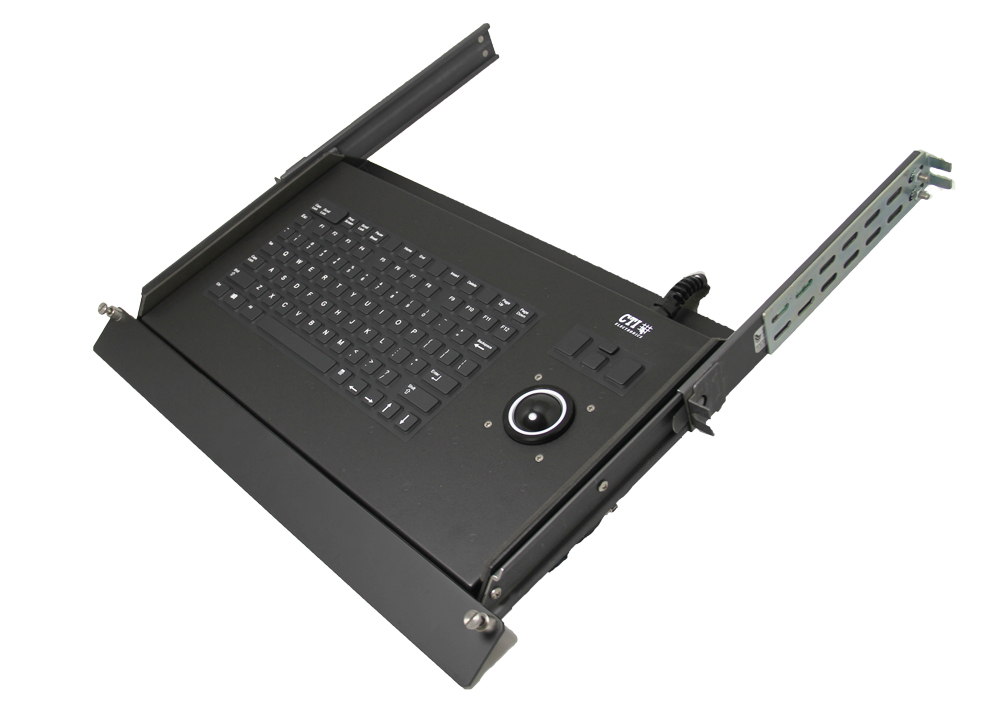

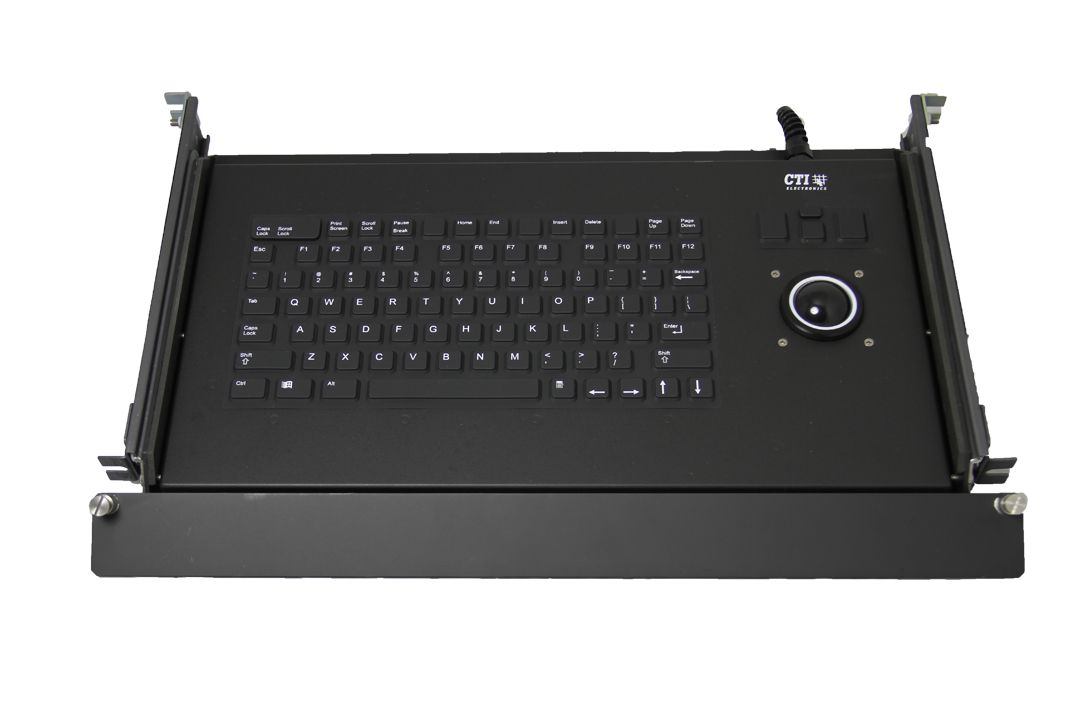

KIT3700 Series Rackmount Industrial Keyboard with Trackball

Sealed Rackmount Keyboards with 1.5" Trackball

Product Information

The KIT3700 Series are full travel industrial keyboards, with 101/104 key functionality.
This rackmount keyboard is sealed to NEMA 12 (IP54) with a molded, replaceable polyurethane seal, and are combined with our high reliability trackball mouse pointer. The 1.5 " diameter trackball has a formed Teflon sealing ring in a metal collar,>redundant photo-detectors and hardened stainless steel shafts; making it very durable and precise.

This ergonomic keyboard offers high reliability trackball mouse pointers, are packaged in heavy gauge anodized aluminum with a 1U panel height, and include CTI's patented, ergonomic folding door hand rest feature. Sliding rails are rated at 80 lbs. per side and lock in the extended position. All installation hardware is included. This industrial keyboard and trackball mouse pointer combination are the perfect solution where dust and minor liquid spills are of a concern; such as offices, security booths, manufacture control systems, and packaging plants.

CTI's custom rackmount keyboards are ruggedized to meet aerospace, medical, and military standards. CTI's rackmount keyboards can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These rackmount keyboards are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

KIT3700 Series Rackmount Industrial Keyboard Specification

Industrial Keyboards with built-in Industrial Trackball Mouse Pointers
Anodized aluminum enclosure in beige or black
Molded rubber elastomer keys
Excellent tactile feel, 2mm key travel
1.5” diameter Trackballs  (Trackball Mouse Cursors)
Optional French (AZERTY), Spanish (QWERTY), or German (QWERTZ) legendsSUN, Serial, PS/2, or USB Interface with optional Bulkhead Cable Set (Waterproof)

Features
Two stainless steel threaded mounting holes (in bottom plate)
Trackball has Teflon seal in aluminum collar.
Repairable design
Plug and Play
Direct factory support
Calculated rolling life of trackball bearings is 20 years
No rubber or foam on trackball rollers, no cleaning is required
Made in the USA

Reliability
MTBF (Mean Time between Failures): Electronics is greater than 100,000 hours
Operating Temperature: -25º to 80º C
Storage Temperature:  -40º to 80º C
Shock rating:   50g 11msec. half sine, three axes
Vibration:    10-55 Hz@ 0.013 DA
Elastomer keys: Rated for up to 10 million cycles
Contact Keys: "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts.

NEMA and IP Sealing and Protection Standards
NEMA 12 (IP54) Trackball, NEMA 4 Keyboard
Syn-Proof™ coating resists most oils and harsh chemicals
Optional Parylene® coating available

Certifications
Meets FCC Class A
Meets CE Requirements
ESD rated to 15KV

Pricing

Industrial Rackmount Keyboard Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconIndustrial Rackmount Keyboard Pricing
