Panel Mount Industrial Keyboards

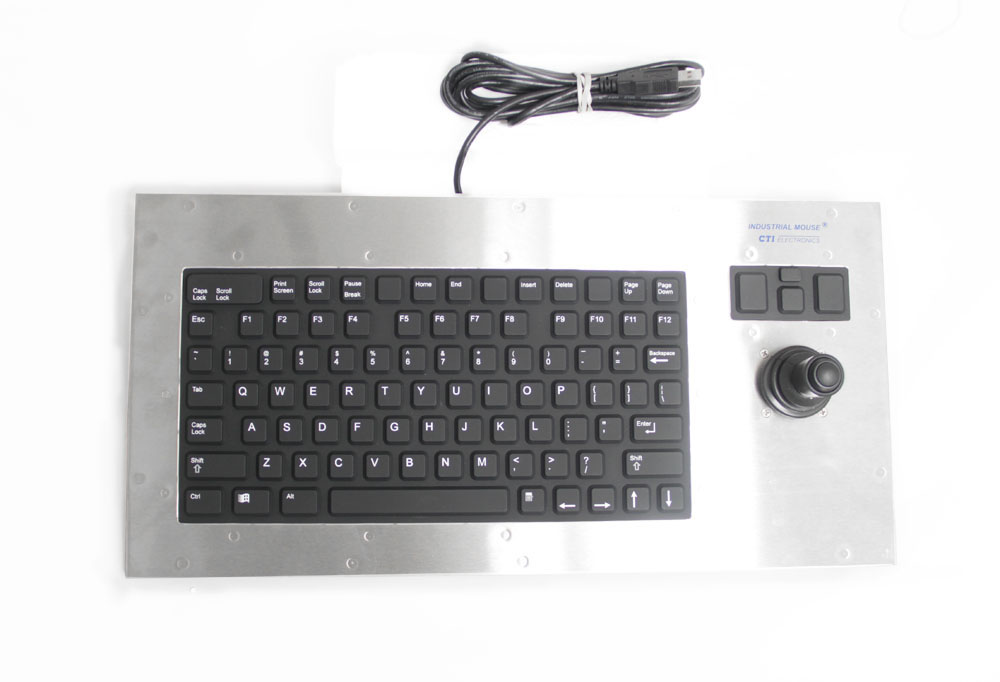

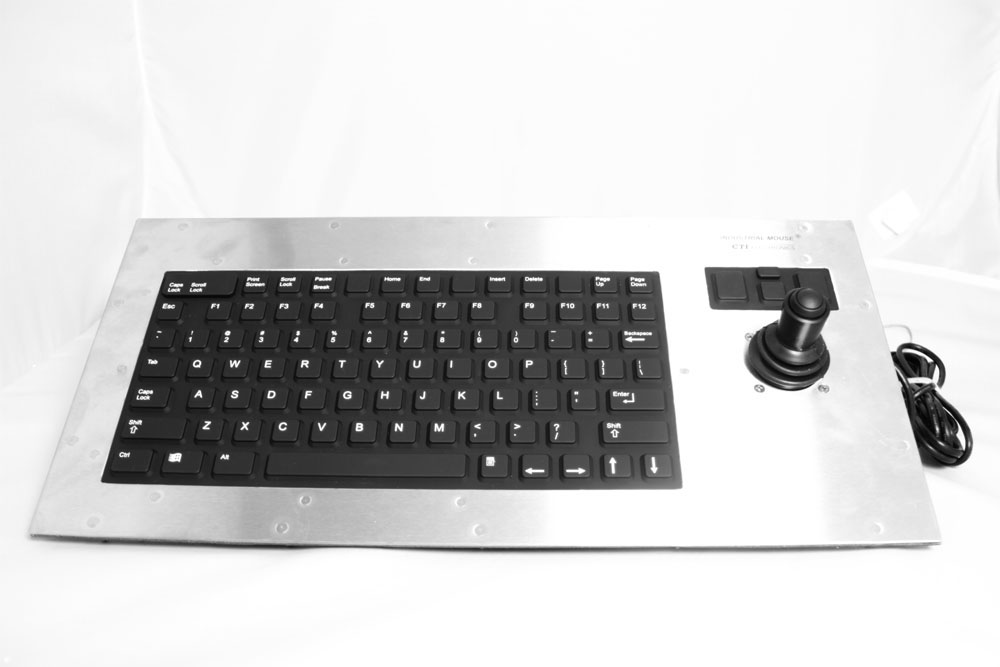

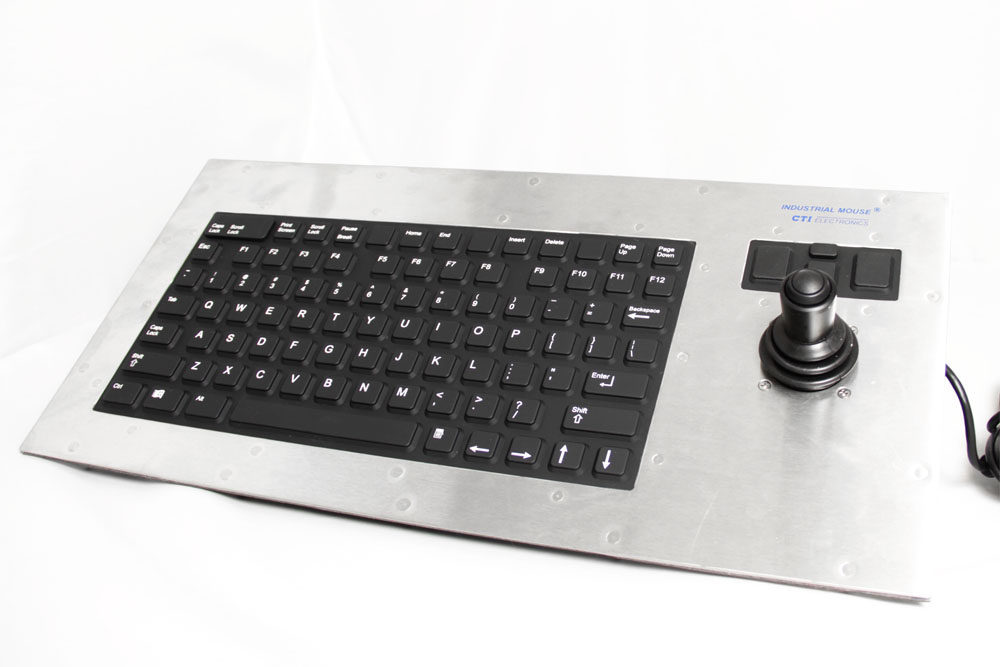

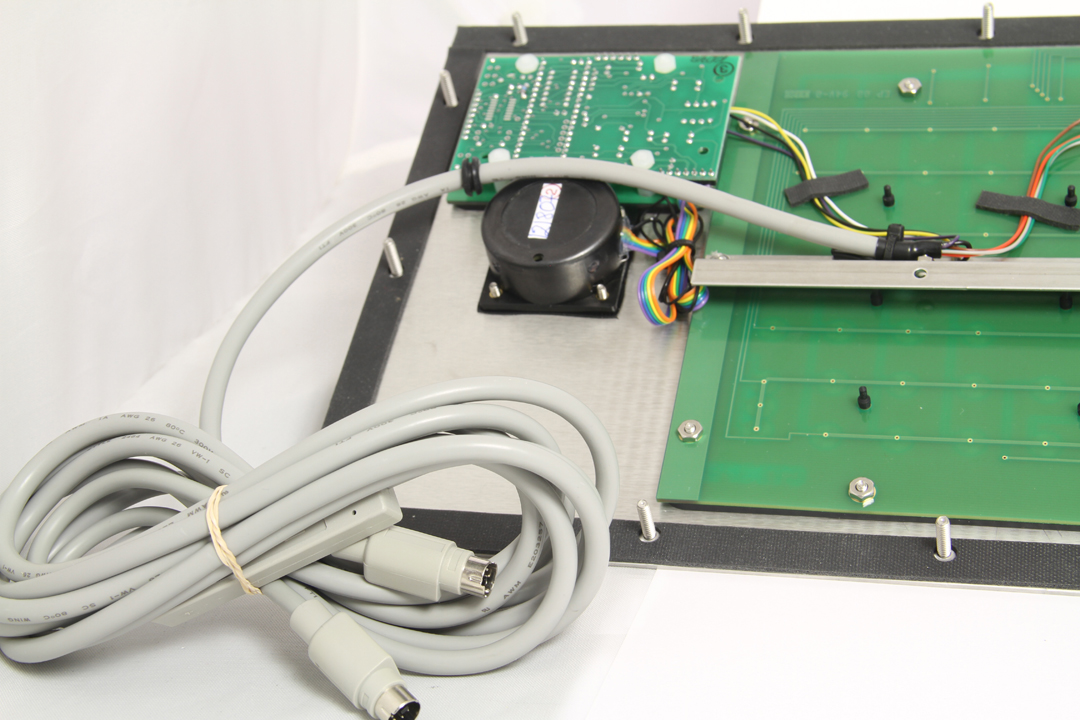

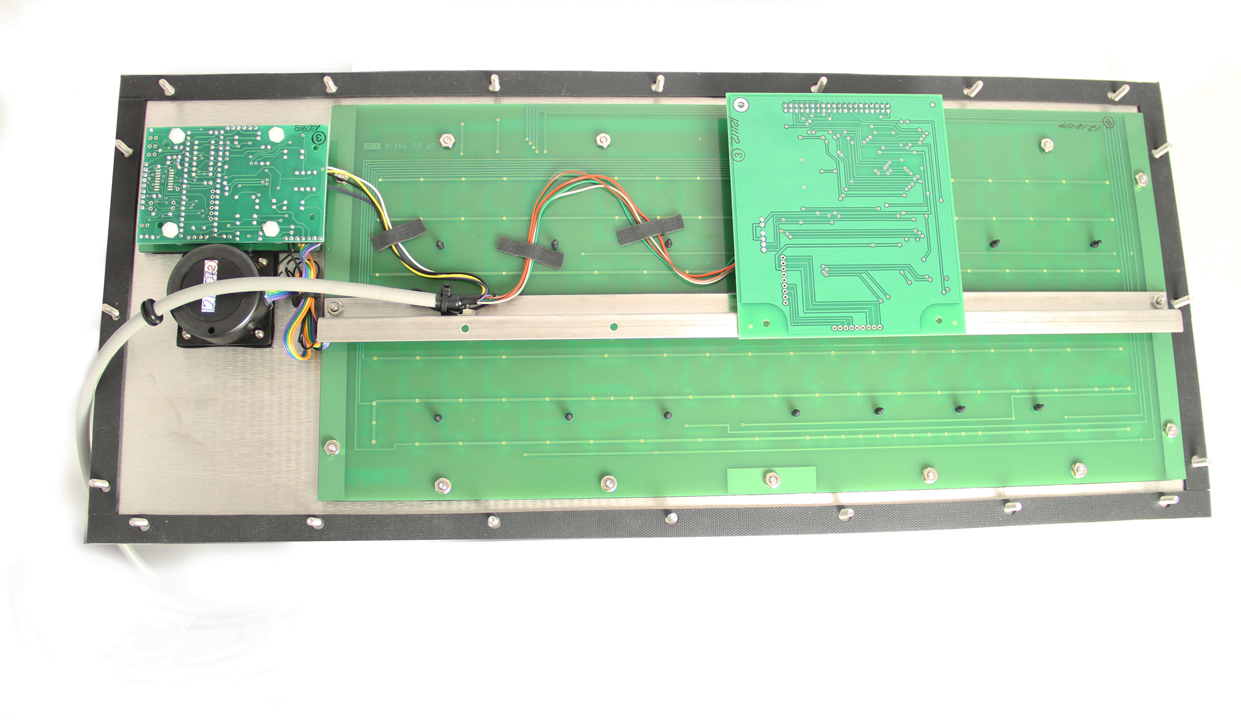

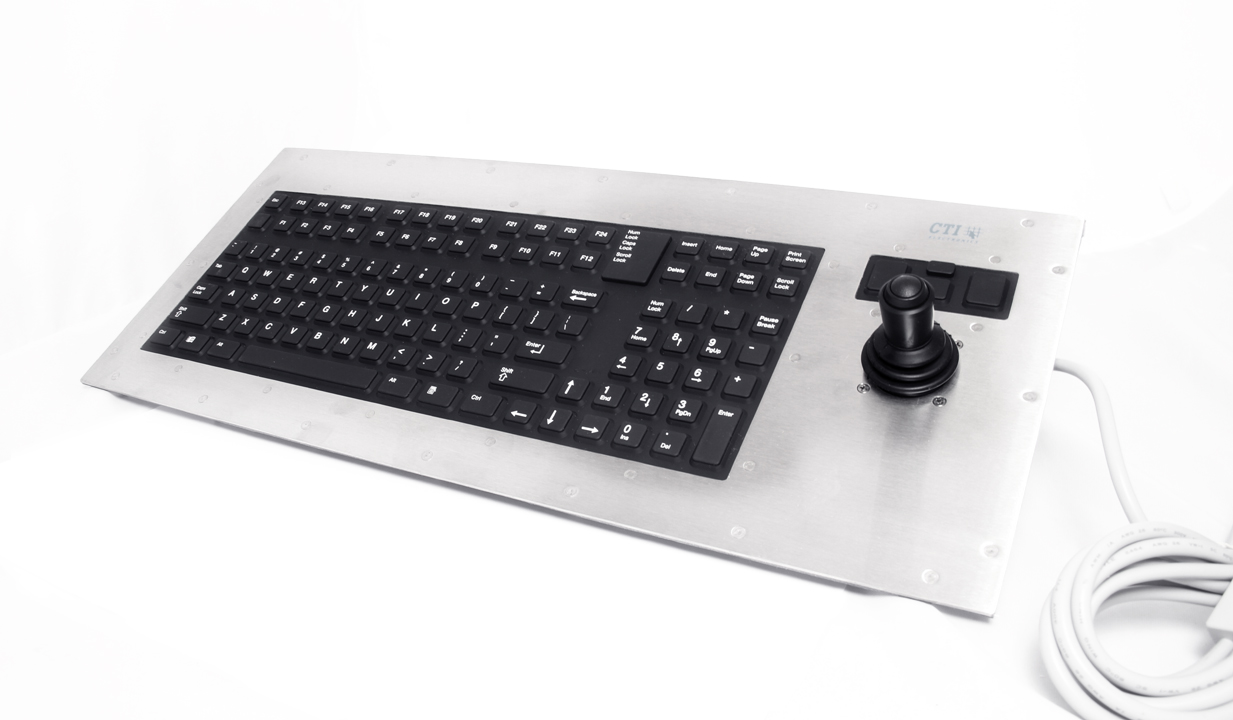

KIF8900 Series Industrial Panel Mount Keyboard

NEMA 4X (IP66) Panel Mount Industrial Keyboards w/ Industrial Mouse™

Product Information

The KIF8900 Series are rugged, NEMA 4X (IP66) sealed panel mount keyboards with full 101/104 key functionality. The KIF8900 Series combines CTI's rugged, industrial keyboard with its original, full travel Industrial Mouse™ (Joystick Cursor Controller) mouse pointer. The Industrial Mouse™ is the most reliable, rugged pointer; and with a sealed

button in the joystick knob,provides simple point and click operation. These panel mounted keyboards are compatible with all computers, no special software drivers required. CTI's panel mount keyboards are designed for continuous use in harsh environments; even while wearing gloves. These industrial keyboards and mouse pointers are mounted to a stainless steel plate that has threaded studs and a silicone gasket for mounting in a panel cutout from the top surface.

Various options are available to meet your application requirements (e.g. French keyboards, Spanish keyboards). These industrial keyboards with Industrial Mouse™ mouse pointers are perfect for use in wash down areas; such as food processing, medical laboratories and machining factories.

CTI's custom panel mount keyboards are ruggedized to meet aerospace, medical, and military standards. CTI's panel mount keyboards can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These panel mount keyboards are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

KIF8900 Series Industrial Panel Mount Keyboard Specification

Industrial Keyboards with Industrial Mouse™ (Joystick Cursor Controller) Specification
Anodized aluminum in black or beige enclosure or a stainless steel enclosure
Molded silicone rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel
Industrial Mouse™ (Joystick Mouse Cursors) available with eight joystick knob options
Optional French (AZERTY), Spanish (QWERTY), or German (QWERTZ) legends

Features
Two, stainless steel threaded mounting holes (in bottom plate)
Rugged NEMA 4, 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Gray or Black Elastomer
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Joystick withstands 25lbs of a static load
No drift pointer design
Made in the USA

Reliability
MTBF (Mean Time between Failures): Electronics is greater than 100,000 hours
Operating Temperature: -40º to 80º C
Storage Temperature:  -40º to 80º C
Shock rating:   50g 11msec. half sine, three axes
Vibration:    10-55 Hz@ 0.013 DA
Elastomer keys: Rated for up to 10 million cycles
Contact Keys: "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts.
A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts is used.

NEMA and IP Sealing and Protection Standards
NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Optional Parylene® coating available

Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
PDF Icon
KIF8900 Industrial Keyboard Specification Data

Pricing

Panel Mount Industrial Keyboard Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPanel Mount Industrial Keyboard Pricing


KIF8900 Industrial Panel Mount Keyboard
Photos
Videos
How-To
RFQ

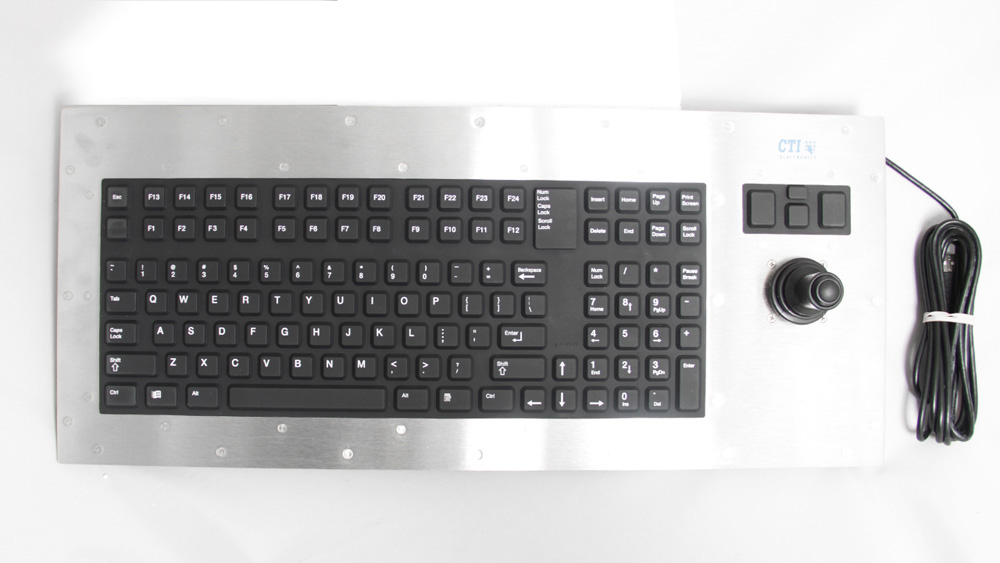

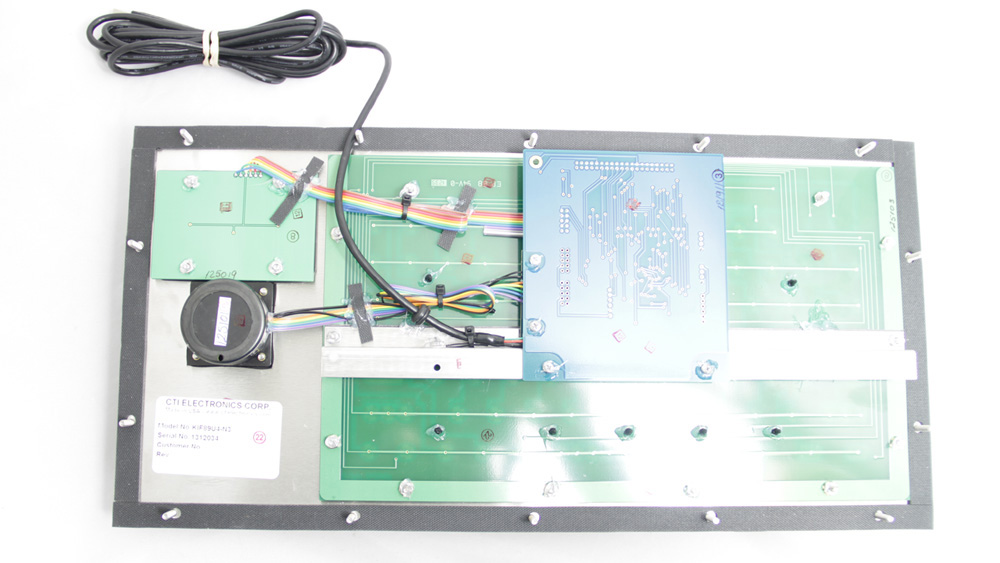

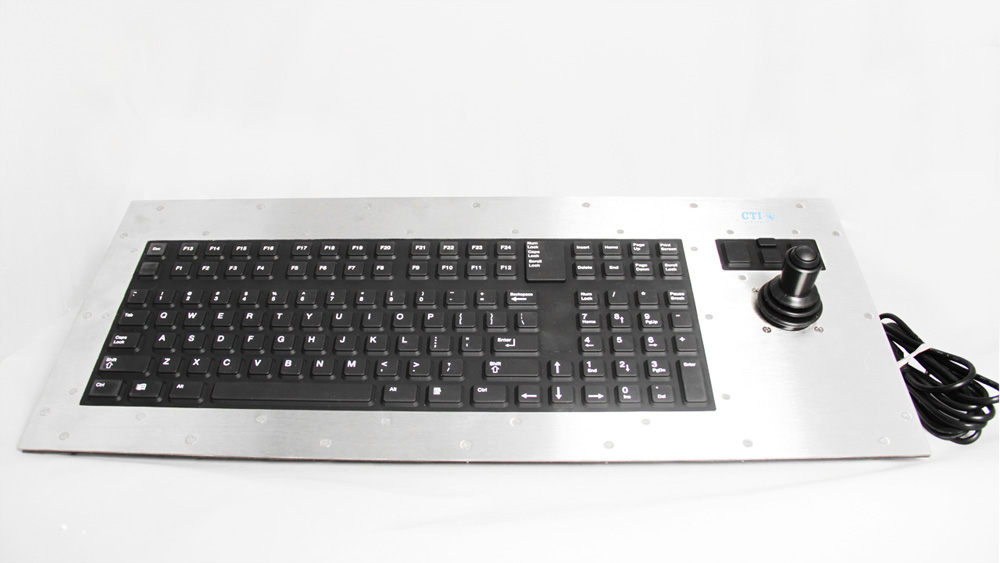

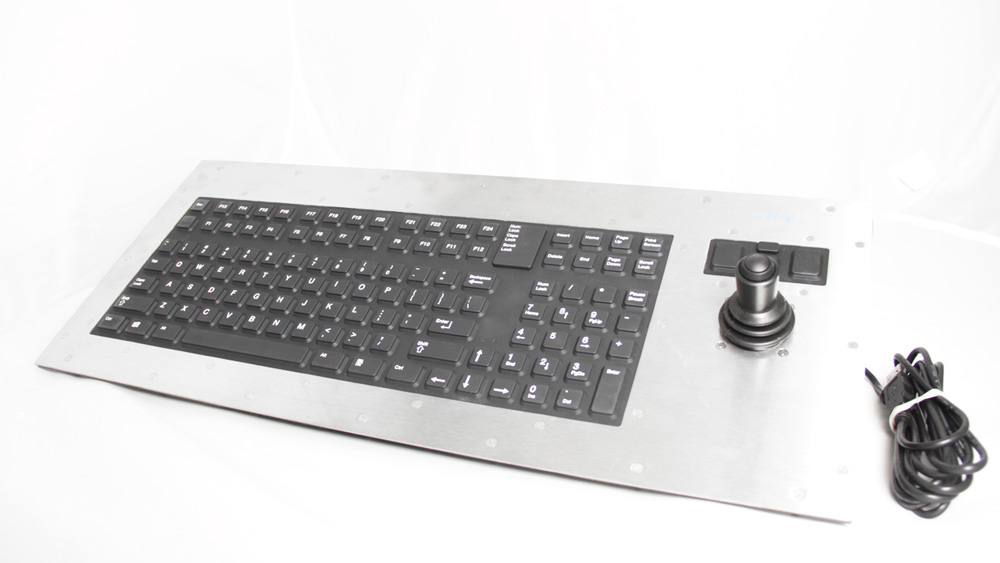

KIF9900 Series Industrial Panel Mount Keyboard

NEMA 4X (IP66) Panel Mount Industrial Keyboards w/ Industrial Mouse™

Product Information

The KIF9900 Series are full size NEMA 4X (IP66) sealed industrial keyboards with full 101/104 key functionality, including 24 function keys and a separate numeric keypad. The KIF9900 Series combines CTI's ruggedized keyboard with its original, full travel Industrial Mouse™ (Joystick Cursor Controller) mouse pointer. The Industrial Mouse™ is the most reliable, rugged pointer; and with a sealed button in the joystick knob, provides simple point and click operation. Panel mounted keyboards are compatible with all computers, no special software drivers required.
CTI's panel mount keyboards are designed for continuous use in harsh environments; even while wearing gloves. These ruggedized industrial keyboards and mouse pointers are mounted to a stainless steel plate that has threaded studs and a silicone gasket for mounting in a panel cutout from the top surface.

Various options are available to meet your application requirements (e.g. French keyboards, Spanish keyboards). These industrial keyboards with Industrial Mouse™ mouse pointers are perfect for use in wash down areas; such as food processing, medical laboratories and machining factories.

CTI's custom panel mount keyboards are ruggedized to meet aerospace, medical, and military standards. CTI's panel mount keyboards can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These panel mount keyboards are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

KIF9900 Series Industrial Panel Mount Keyboard Specification

Industrial Keyboards with Industrial Mouse™ (Joystick Cursor Controller) Specification

Anodized aluminum in black or beige enclosure or a stainless steel enclosure
Molded silicone rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel
Industrial Mouse™ (Joystick Mouse Cursors) available with eight joystick knob options
Optional French (AZERTY), Spanish (QWERTY), or German (QWERTZ) legends

Features
Two, stainless steel threaded mounting holes (in bottom plate)
Rugged NEMA 4, 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Gray or Black Elastomer
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Joystick withstands 25lbs of a static load
No drift pointer design
Made in the USA

Reliability

MTBF (Mean Time between Failures): Electronics is greater than 100,000 hours
Operating Temperature: -40º to 80º C
Storage Temperature:  -40º to 80º C
Shock rating:   50g 11msec. half sine, three axes
Vibration:    10-55 Hz@ 0.013 DA
Elastomer keys: Rated for up to 10 million cycles
Contact Keys: "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts.
A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts is used.

NEMA and IP Sealing and Protection Standards
NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Optional Parylene® coating available

Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
PDF Icon
KIF8900 Industrial Keyboard Specification Data

Pricing

Panel Mount Industrial Keyboard Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPanel Mount Industrial Keyboard Pricing


KIF9900 Industrial Panel Mount Keyboard
Photos
Videos
How-To
RFQ
