USB Medical / Cleanroom Motion Controllers




F10U0-NxW Series Medical Motion Controller F60U6-NxW Series Medical Motion Controller M20U6-Nx Series Medical Motion Controller

CTI' medical motion controller is the most reliable and durable cleanroom motion controller (USB HID game control device) available anywhere in the world today. Its NEMA 4X (IP66) watertight sealing protection resists ingress of liquid or solid debris. What makes the medical motion controller really special is the parylene coating protection that is applied to the white FDA Silicone elastomer, strain relief, joystick boot and knob. On a molecular level, Parylene encapsulates the substrate materials of the cleanroom motion controller to ensure a non-permeable surface to bio-hazardous agents.
The robust design of CTI' medical motion controller is comprised of only three moving parts: the shaft (3/8" diameter solid stainless steel), the spring-guide, and the spring. The two joystick body parts which encase the shaft bearing are secured together by six screws. The four mounting holes have threaded brass inserts instead of just clearance holes, protecting the body from cracking due to stresses caused by the installation, vibration, or shock. Its inductive coil sensor technology cannot be affected by changes in temperature, age, or usage. There is never a "drifting" issue of the calibrated voltage setting as the ratio of coil windings remains constant. When installed in either iridited painted aluminum or the finest grade of stainless steel the medical motion controller will provide 10+ years of reliable service.
Long term durability is guaranteed through the use of the highest quality materials and components which also ensures the highest reliability while being subjected to repeated hygienic cleaning, disinfection, or sterilization. CTI' cleanroom motion controller is the only choice when reliability is critical™ to the success of your application.

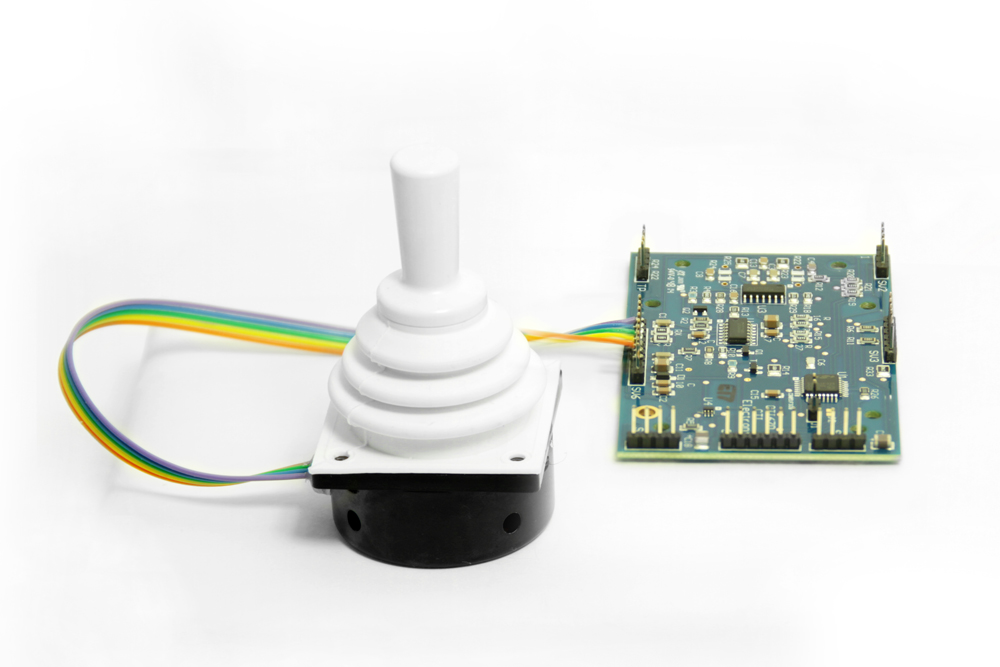

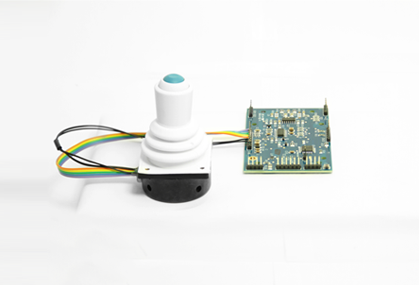

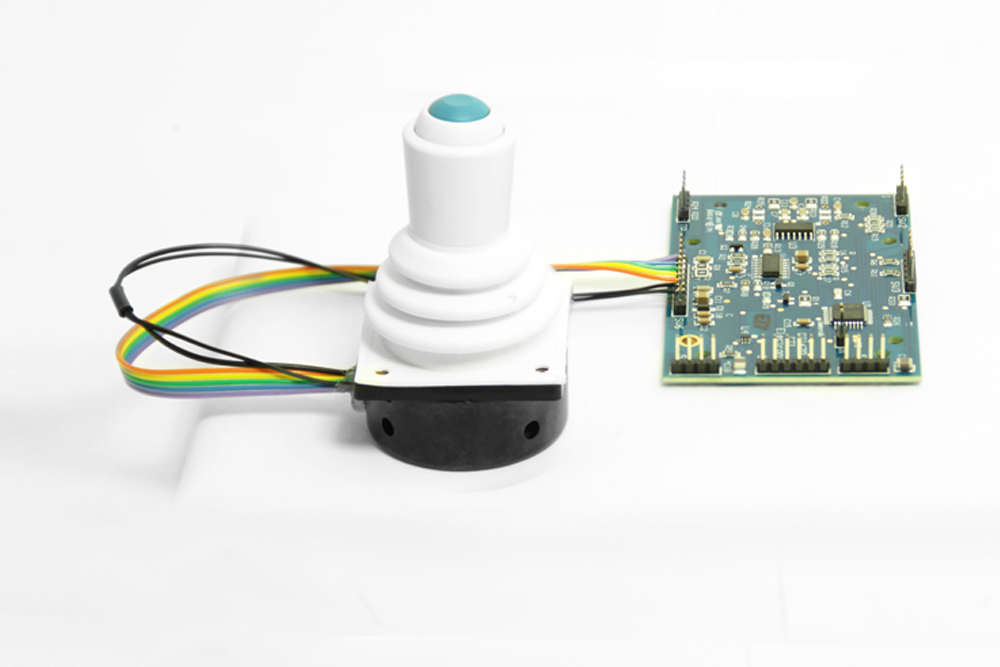

F10U0T-NxW Series Medical / Cleanroom Motion Controller

NEMA 4 (IP66) sealing Medical / Cleanroom Motion Controller

Product Information

The NEMA 4 (IP66) sealing F10U0T-NxW Series medical motion controller is an "open frame" offering to Original Equipment Manufacturers. These rugged Medical / Cleanroom Motion Controllers allow for custom OEM button control switches (up to six) to be wired directly to the USB interface PCB. There are four knobs/handles and a few manufacturing options to tailor the device to the requirements of the application, see the technical drawings below.

The white FDA silicone boot, white PVC joystick knob, and blue "left click" button have an impermeable molecular barrier sealing protection obtained from a Parylene C conformal coating process. This hygienic medical motion controller repels infectious pathogens or carcinogenic compounds so that proper decontamination, sanitization, or sterilization procedures can easily remove.

Related Documentation:

Specifications

F10U0T-NxW Series Medical / Cleanroom Motion Controller Specification

Medical / Cleanroom Motion Controller
PDF IconF10U0T-NxW Series OEM Medical Motion Controller Input Device Product Data Sheet

Pricing

OEM Medical / Cleanroom Motion Controller Pricing

Thank you for selecting CTIs medical / cleanroom computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "medical grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called medical products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Medical / Cleanroom Motion Controller Pricing

F10U0-NxW Series OEM Medical Motion Controller
Photos
Videos
How-To
RFQ

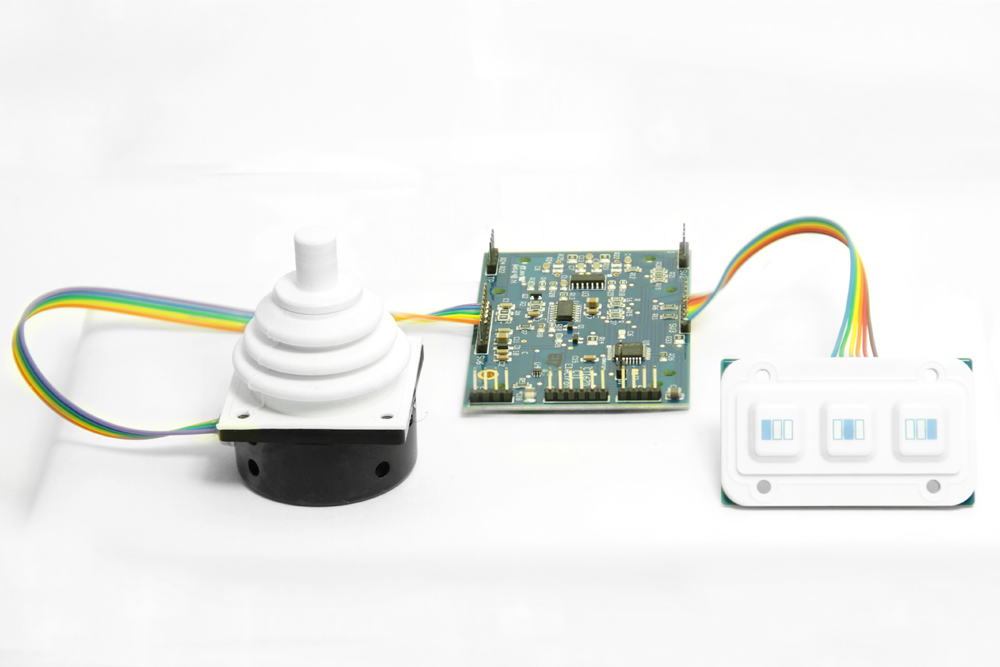

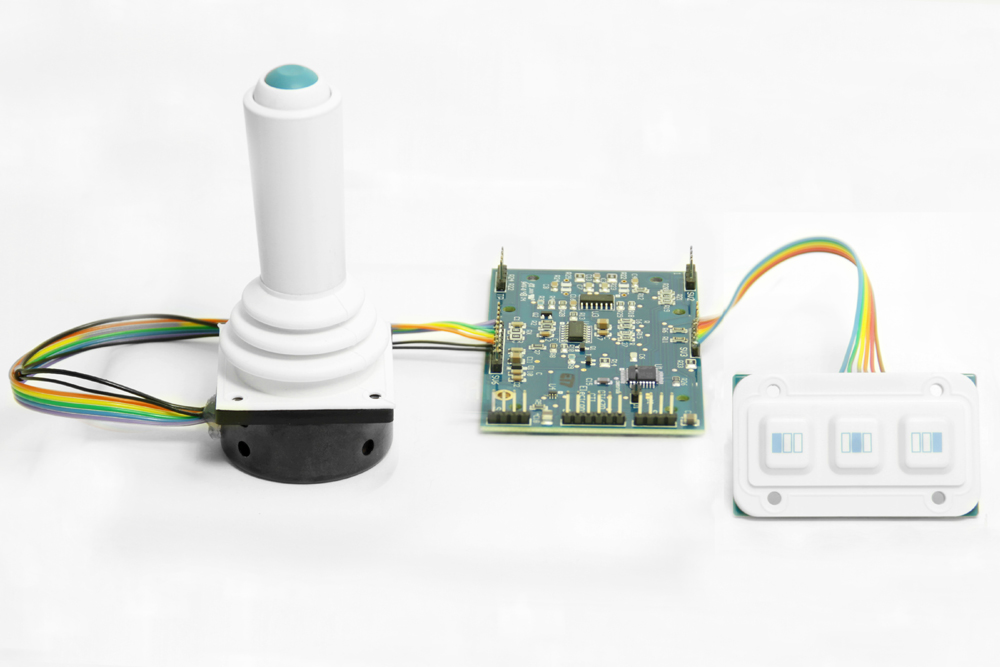

F60U6T-NxW Series OEM Medical / Cleanroom Motion Controller

NEMA 4 (IP66) sealing Medical / Cleanroom Motion Controller with Three (3) Switch Buttons

Product Information

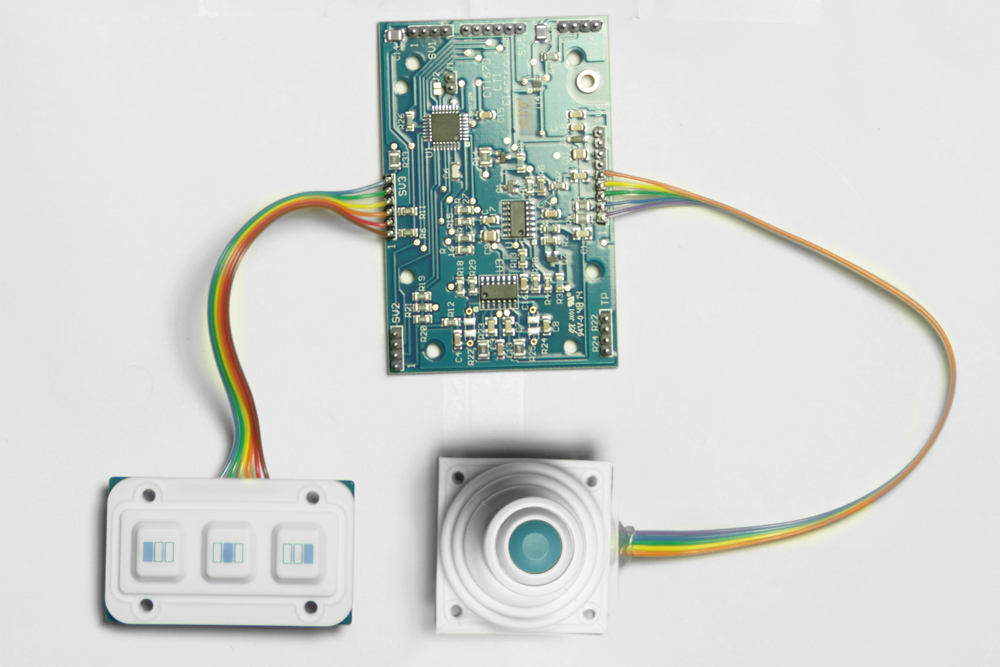

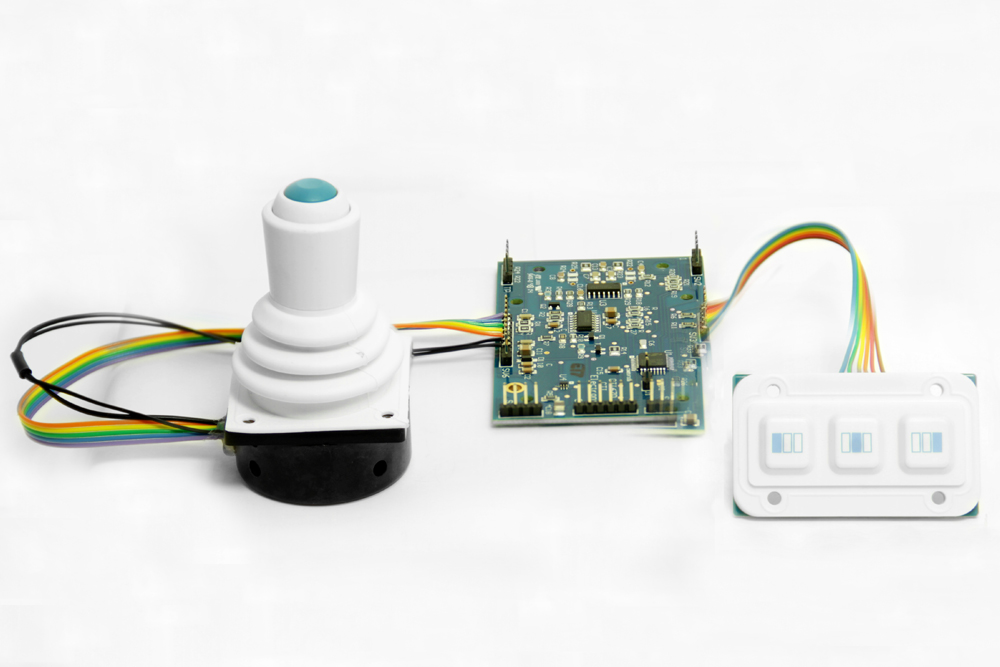

The NEMA 4 (IP66) sealing F60U6T-NxW Series medical motion controller is an "open frame" offering to Original Equipment Manufacturers. These rugged Medical / Cleanroom Motion Controllers have a three (3) button switchpad wired directly to the USB interface PCB. The heavy duty switch PCB is layered with thick "hard gold" contacts and the white three button elastomer has molded "hard carbon" pill contacts that combined have been proven to provide more than 10 years of reliable, maintenance free, service. The white elastomer with its 2mm key travel provides excellent tactile feel, even while wearing gloves. There are four knobs/handles and a few manufacturing options to tailor the device to the requirements of the application, see the technical drawings below.

The white FDA silicone boot, white PVC joystick knob, white three button elastomer, and blue "left click" button have an impermeable molecular barrier sealing protection obtained from a Parylene C conformal coating process. This hygienic cleanroom USB motion controller is impervious to infectious pathogens or carcinogenic compounds with allows complete removal by proper decontamination, sanitization, or sterilization procedures.

Related Documentation:

Specifications

F60U6T-NxW Series Medical / Cleanroom Motion Controller Specification

Medical / Cleanroom Motion Controller
PDF IconF60U0T-NxW Series OEM Medical Motion Controller Input Device Product Data Sheet

Pricing

OEM Medical / Cleanroom Motion Controller Pricing

Thank you for selecting CTIs medical / cleanroom computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "medical grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called medical products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Medical / Cleanroom Motion Controller Pricing

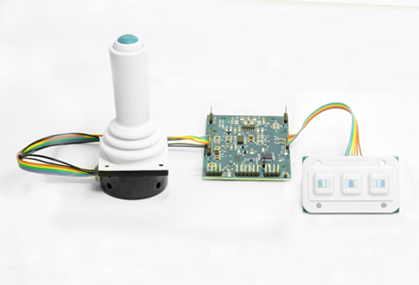

F60U6-NxW Series OEM Medical Motion Controller
Videos
How-To
RFQ

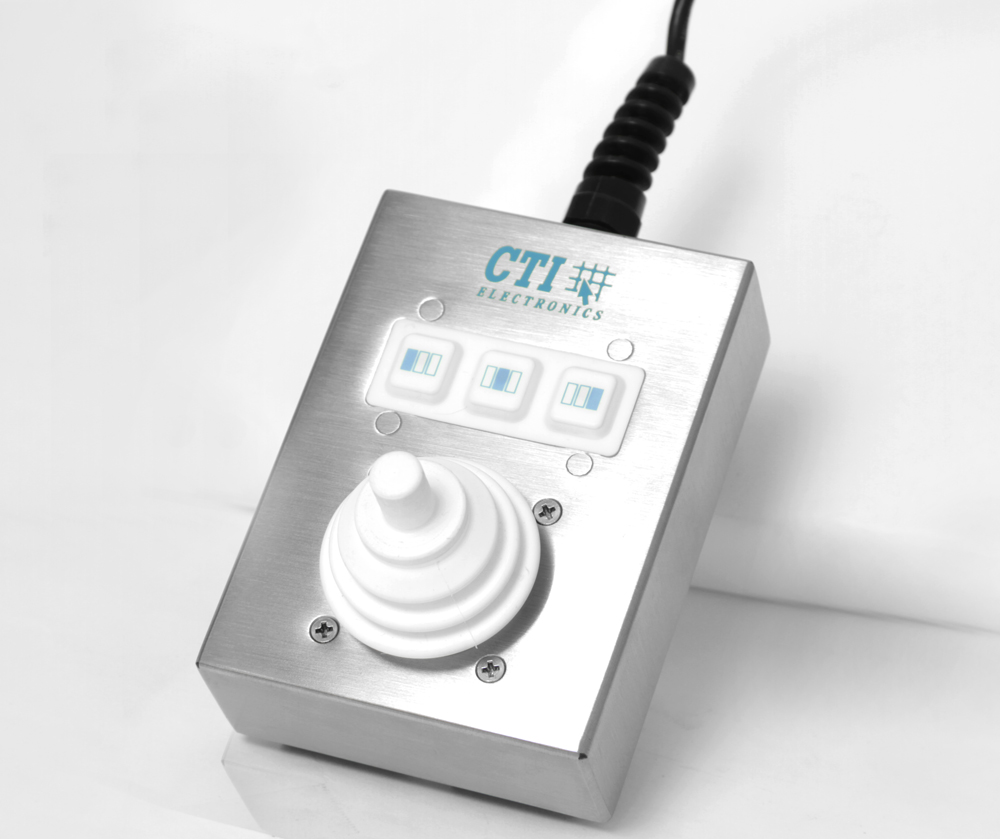

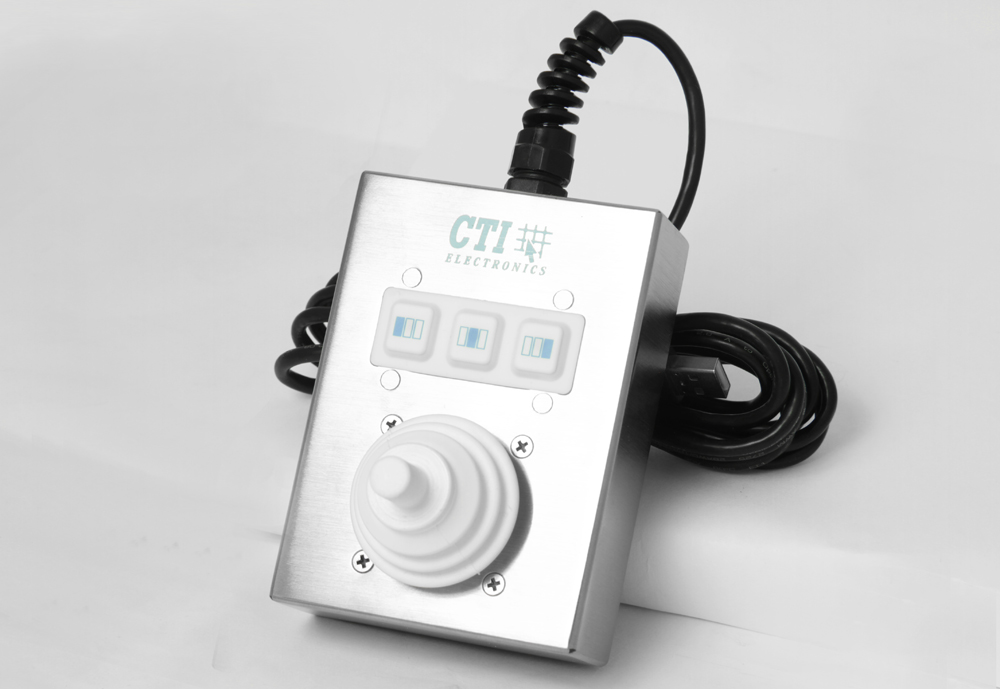

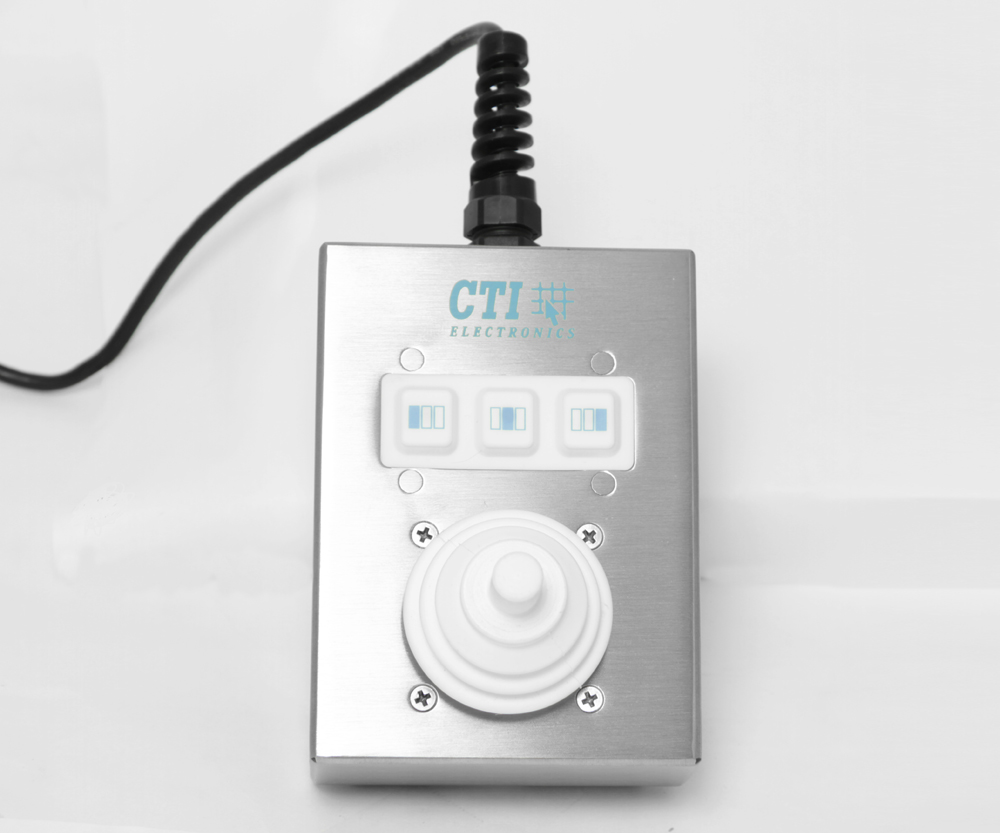

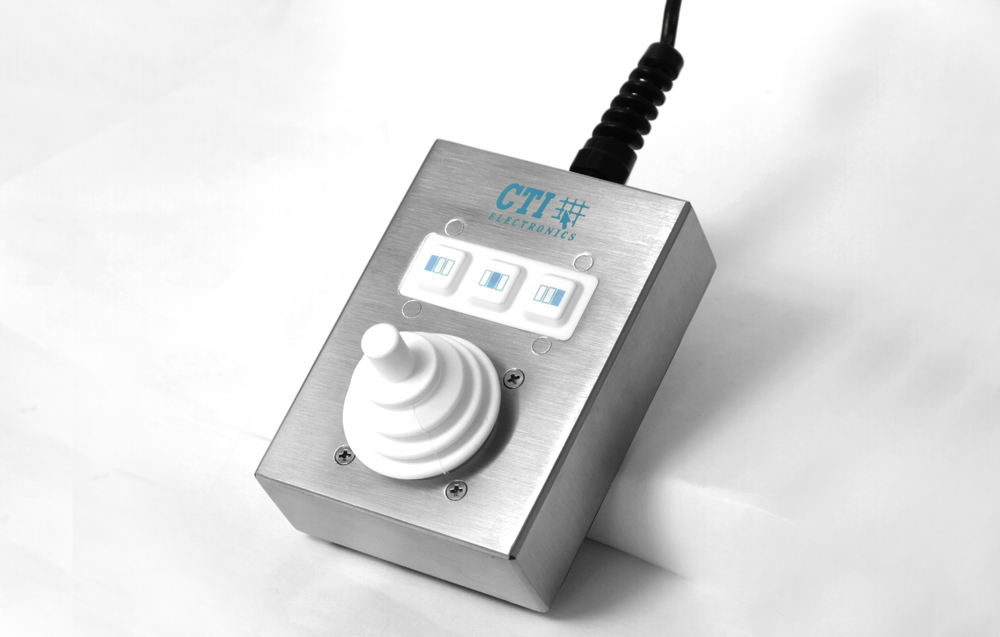

M2XU6T-N2W Series Plug-n-Play Medical Motion Controller

NEMA 4X (IP66) Medical / Cleanroom Handheld Motion Controller with Three (3) Switch Buttons

Product Information

The M2XU6T-N2W Series are used as motion control devices (USB HID Compliant Joystick or flight simulator) allowing up to three axis of control with up to eight designer-defined button functions. This device also uses the same USB HID Compliant Game Controller technology as a Microsoft Sidewinder®.

Using a Windows® Operating System with the Microsoft® HID Driver Interface an Application Developer can quickly implement a motion control application. The USB FlightStick (flight simulator) medical motion controller offers real-time response rates with pin-point precise accuracy for a broad range of application possibilities. A few of the industries benefiting from the USB HID Compliant Joystick Medical Motion Controller are aerospace, life sciences, semiconductor, and medical.

An anodized aluminum PDF IconM2000 holder is available for convenient storage of the M2XU6T-N2W series Handheld USB Medical Motion Controller. The holder has holes for simple screw mounting alongside any machine or cabinet.

CTI's medical motion controllers can be ruggedized to meet aerospace, medical, and military standards. For instance: MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. Compliance with these standards allow the medical motion controllers to withstand vibration, shock, high EMI/RFI levels, resistance to humidity, fungus, spray, along with an MTBF of greater than 100,000 hours.

Related Documentation:

Pricing

Medical Motion Controller USB FlightStick (HID Compliant Game Controller) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.

PDF IconPlug-n-Play Medical / Cleanroom Motion Controller Pricing

M2000-N24 Medical Pointing Device
Photos
Videos
How-To
RFQ

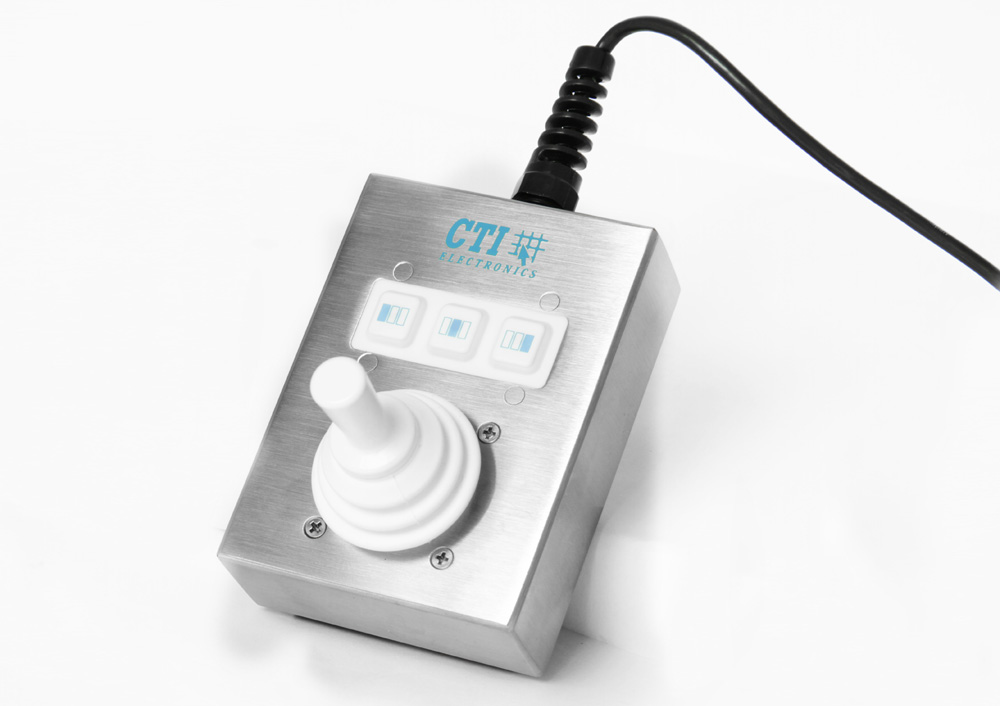

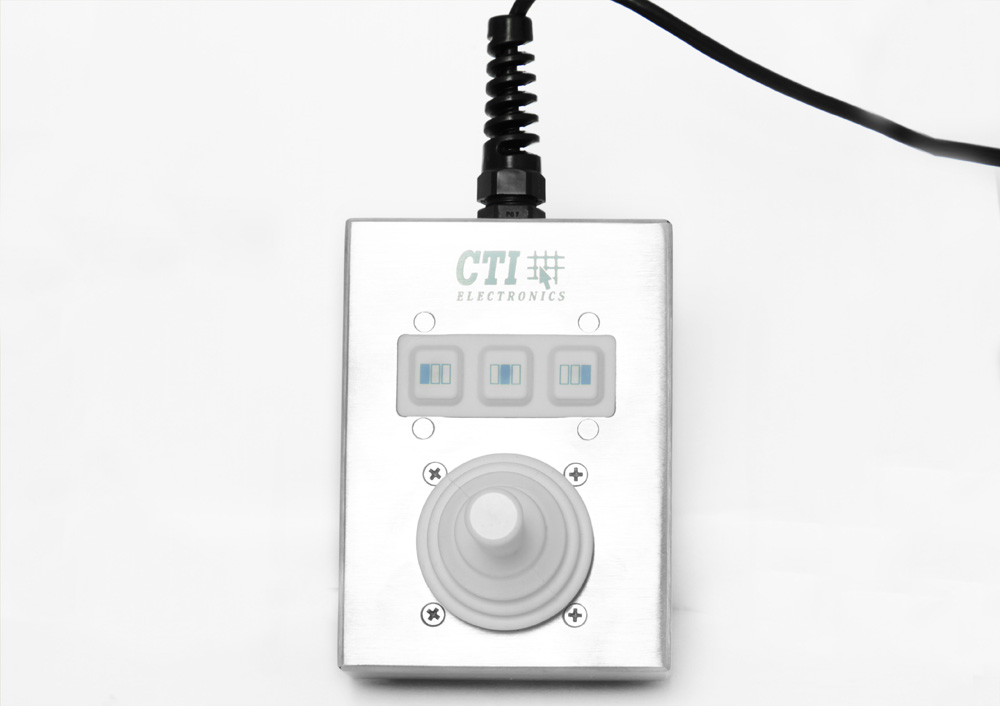

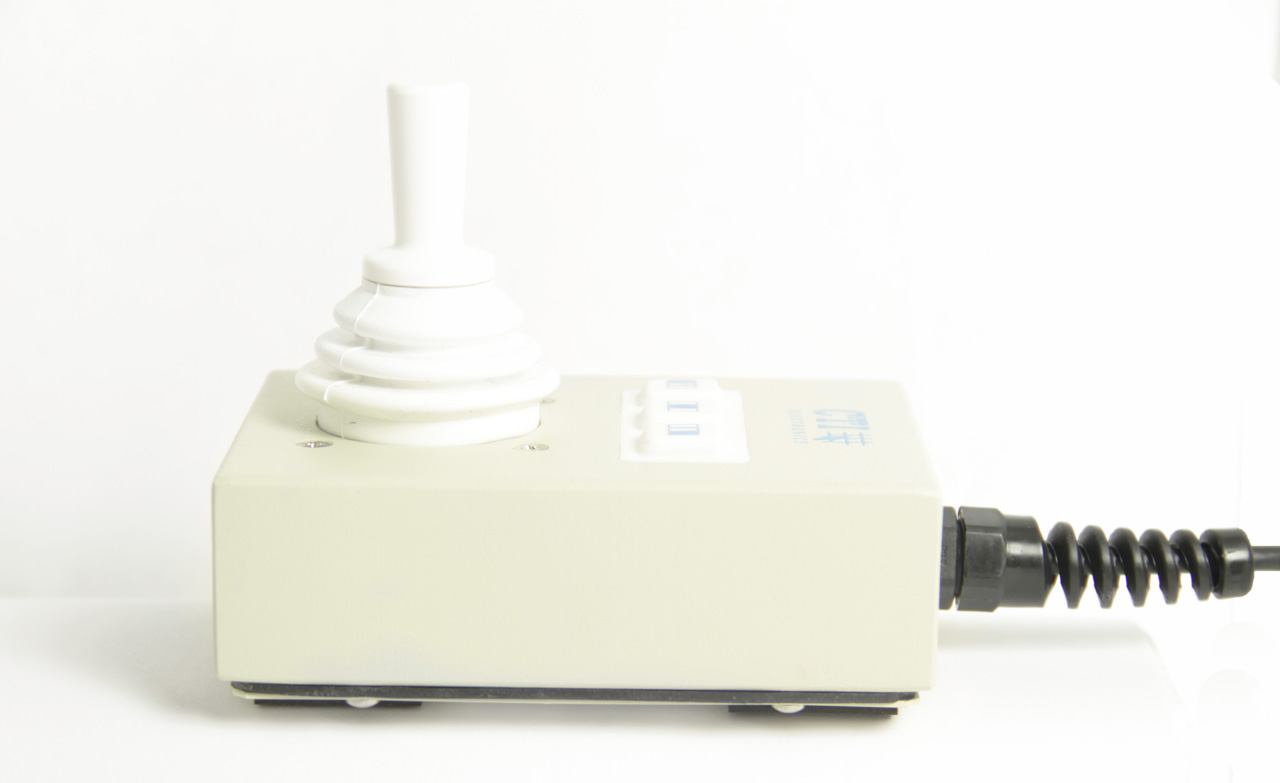

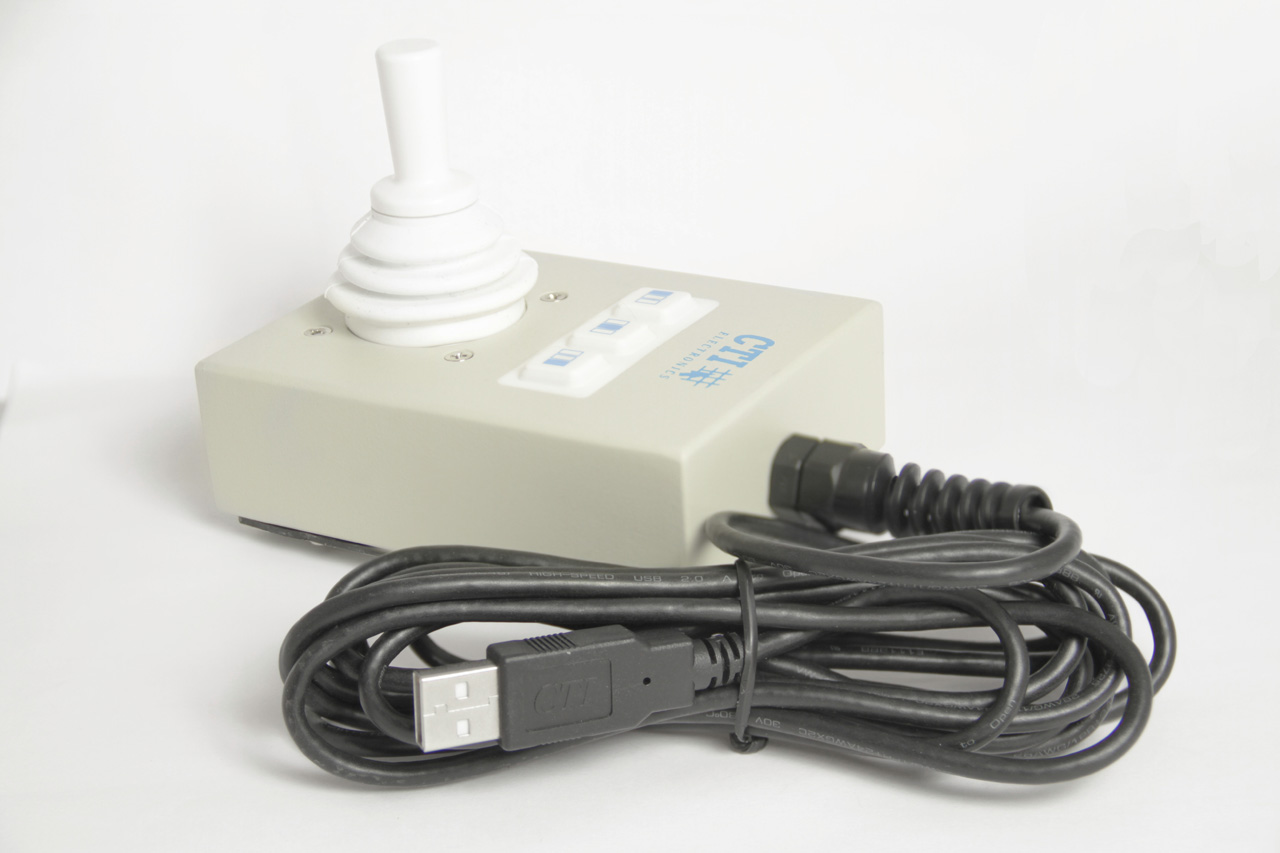

M2XU6T-N24W Series Plug-n-Play Medical Motion Controller

NEMA 4X (IP66) Medical / Cleanroom Handheld Motion Controller with Three (3) Switch Buttons

Product Information

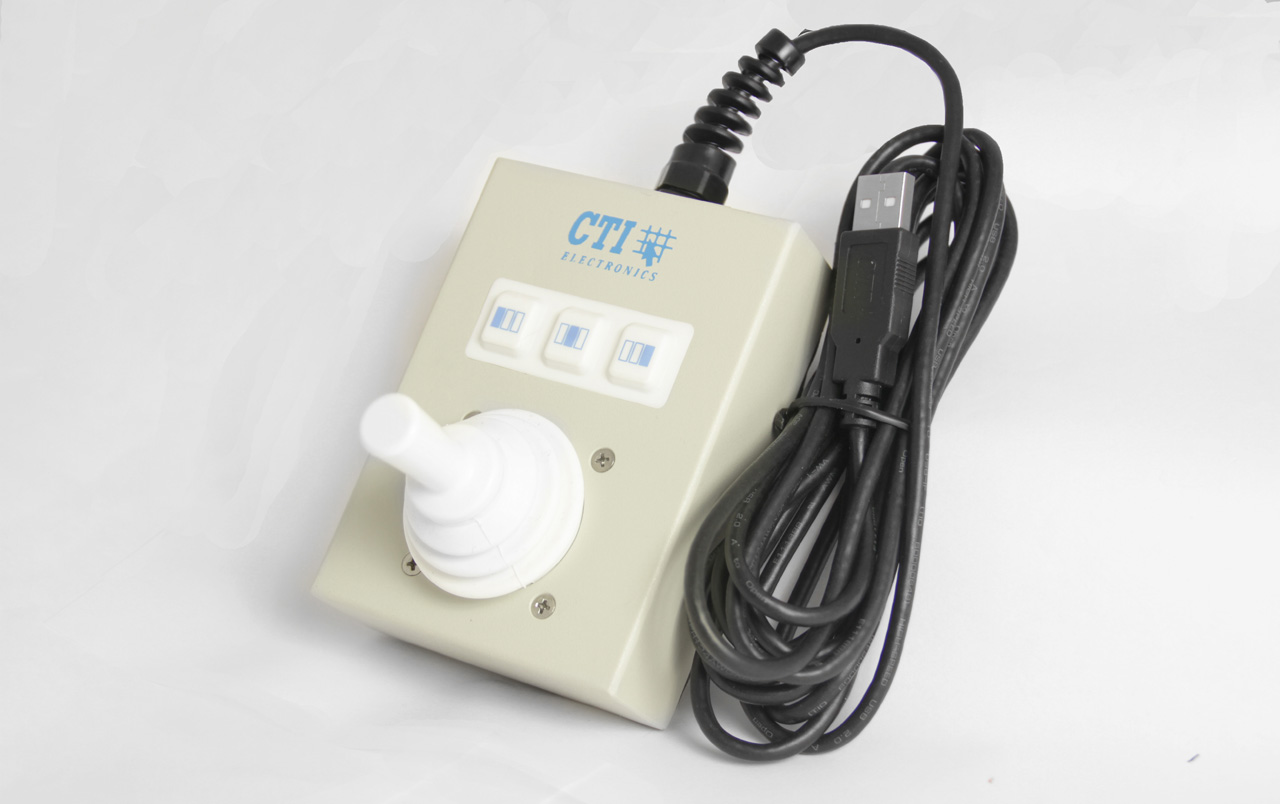

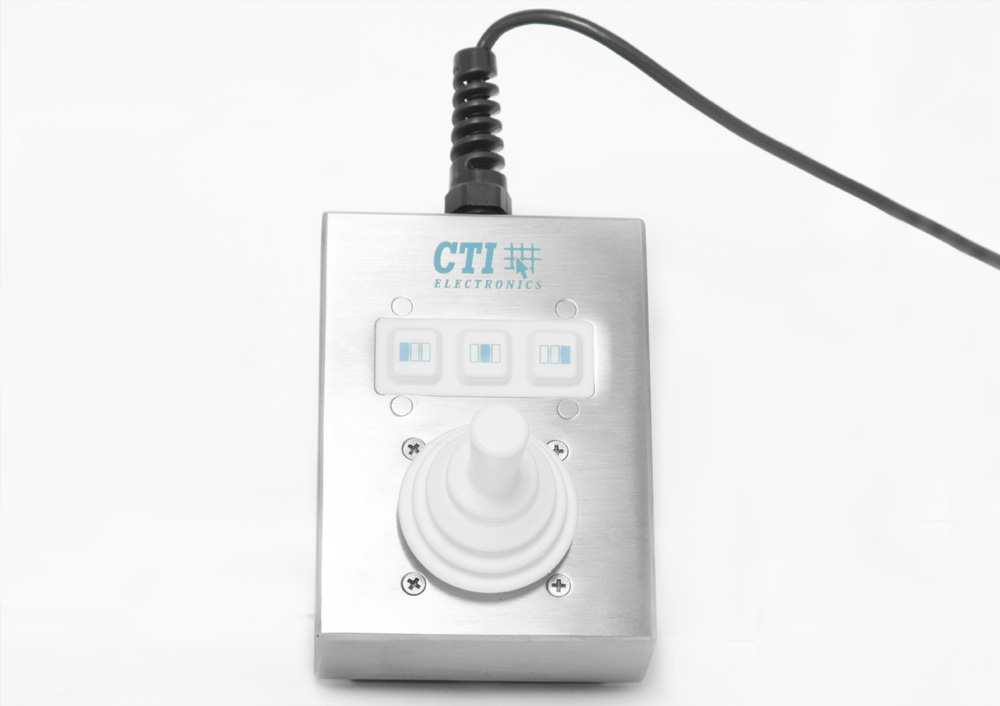

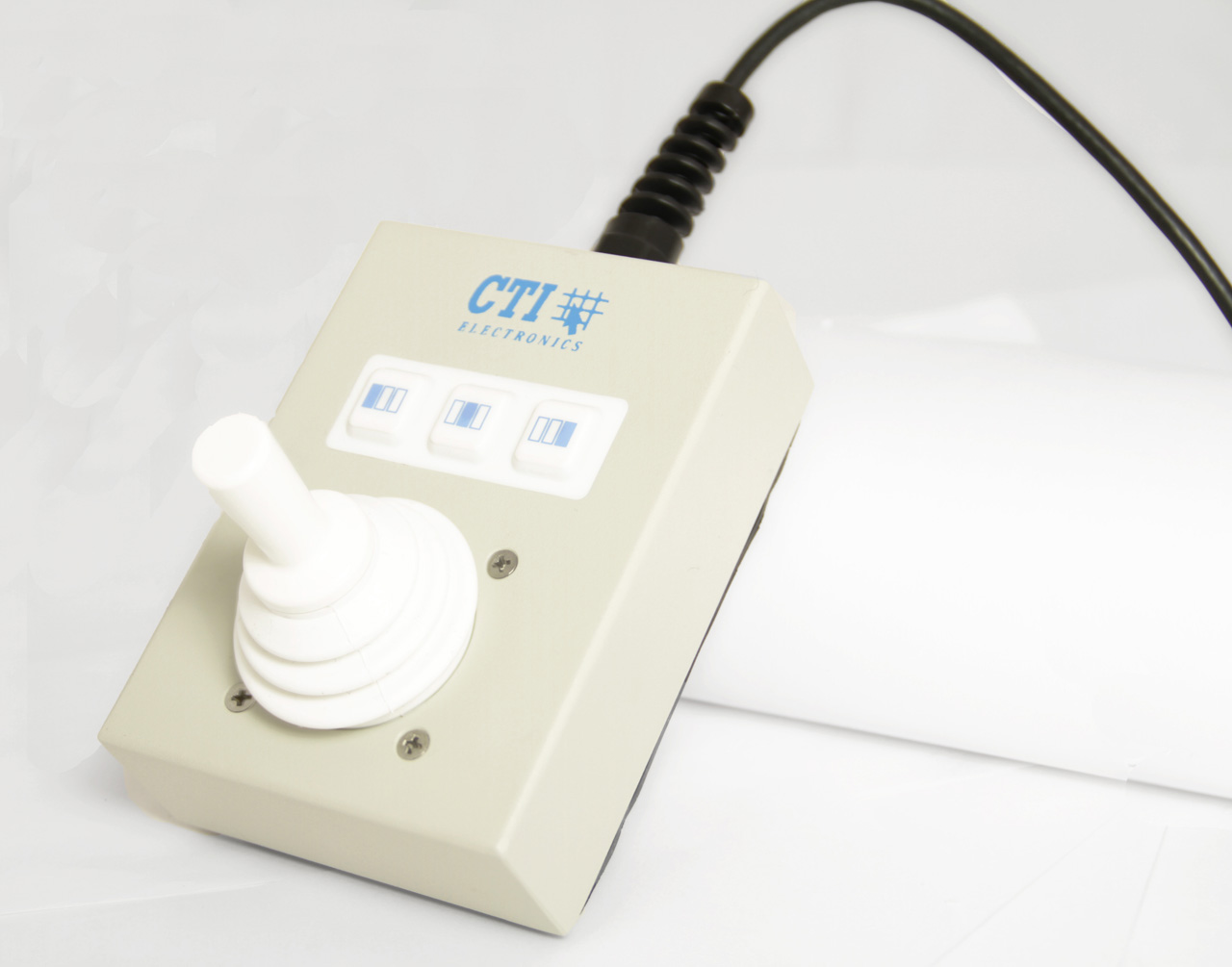

The M2XU6T-N24W Series handheld USB joysticks are used as motion control devices (USB HID Compliant Joystick or flight simulator) allowing up to three axis of control with up to eight designer-defined button functions. This device also uses the same USB HID Compliant Game Controller technology as a Microsoft Sidewinder®.

Using a Windows® Operating System with the Microsoft® HID Driver Interface an Application Developer can quickly implement a motion control application. The USB FlightStick (flight simulator) medical motion controller offers real-time response rates with pin-point precise accuracy for a broad range of application possibilities. A few of the industries benefiting from the USB HID Compliant Joystick Medical Motion Controller are aerospace, life sciences, semiconductor, and medical.

An anodized aluminum PDF IconM2000 holder is available for convenient storage of the M2XU6T-N24W series Handheld USB Medical Motion Controller. The holder has holes for simple screw mounting alongside any machine or cabinet.

CTI's medical motion controllers can be ruggedized to meet aerospace, medical, and military standards. For instance: MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. Compliance with these standards allow the medical motion controllers to withstand vibration, shock, high EMI/RFI levels, resistance to humidity, fungus, spray, along with an MTBF of greater than 100,000 hours.

Related Documentation:

Pricing

Medical Motion Controller USB FlightStick (HID Compliant Game Controller) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.

PDF IconPlug-n-Play Medical / Cleanroom Motion Controller Pricing

M2XU6T-N24 Medical Pointing Device
Photos
Videos
How-To
RFQ

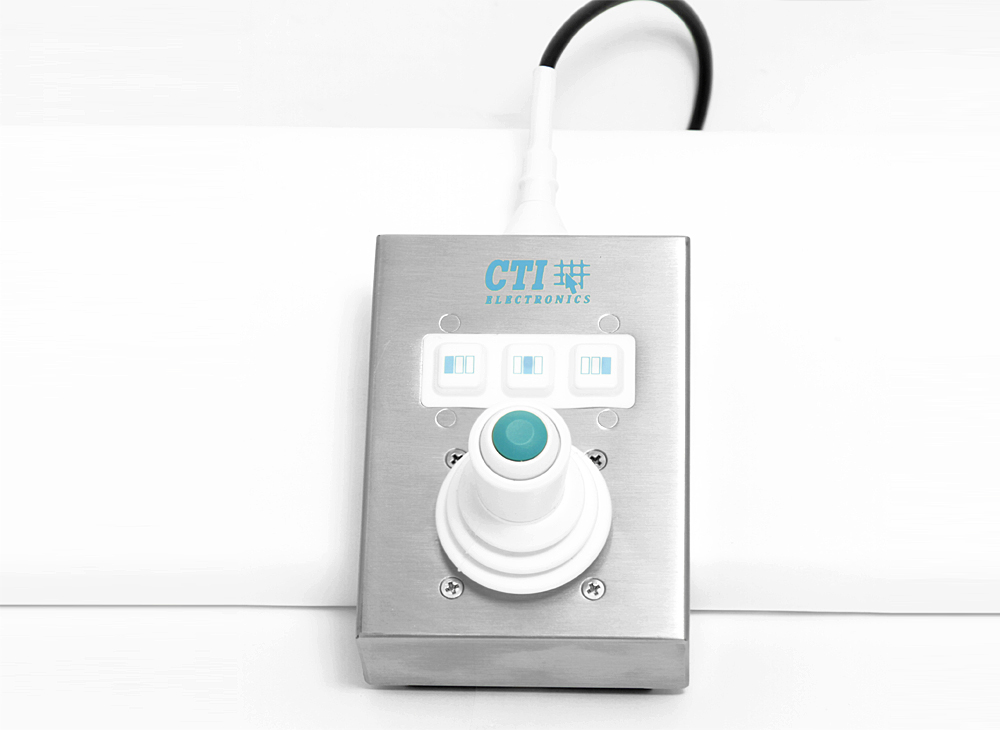

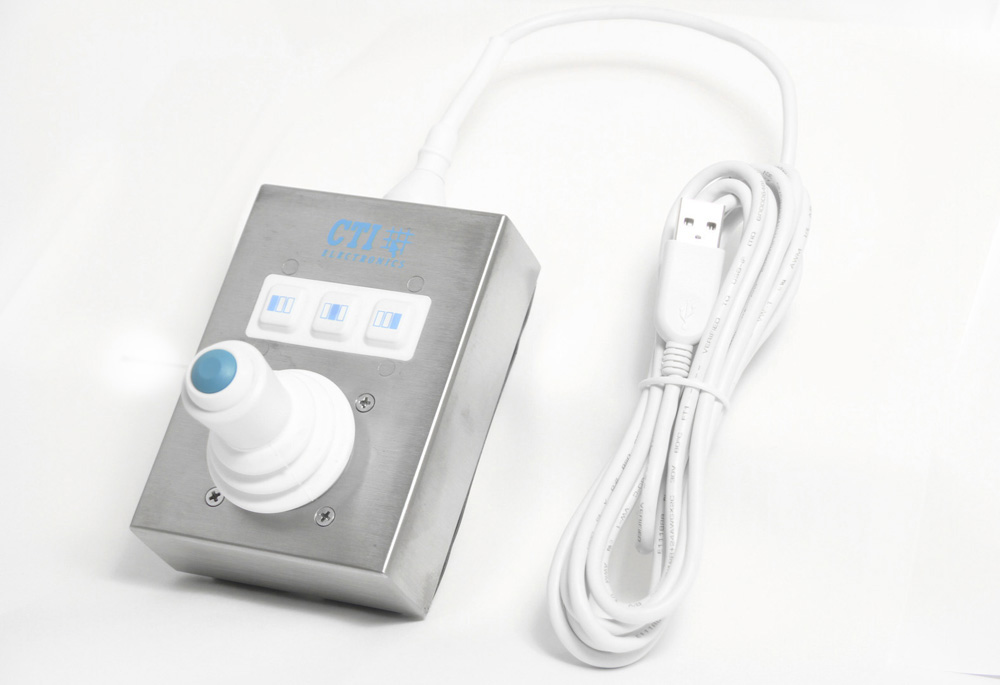

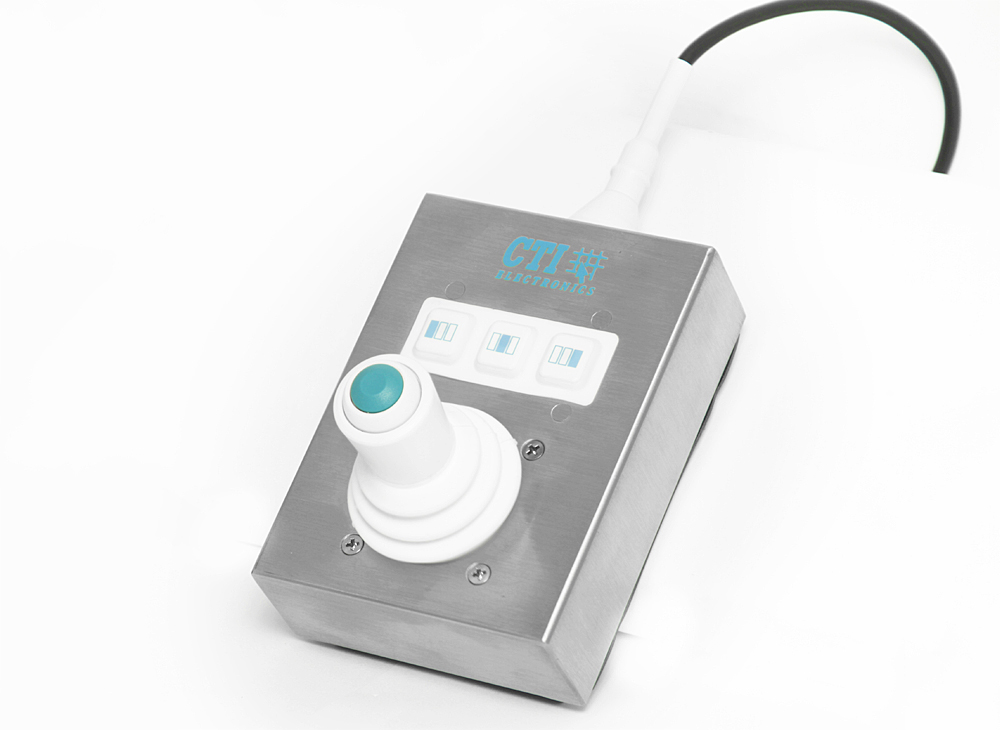

M2XU6T-N3W Series Medical Motion Controller

NEMA 4X (IP66) Medical / Cleanroom Handheld Motion Controller with Three (3) Switch Buttons

Product Information

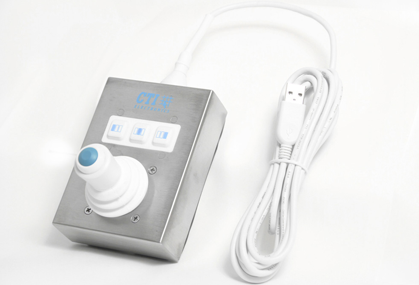

The M2XU6T-N3W Series handheld USB joysticks are used as motion control devices (USB HID Compliant Joystick or flight simulator) allowing up to three axis of control with up to eight designer-defined button functions. This device also uses the same USB HID Compliant Game Controller technology as a Microsoft Sidewinder®.

Using a Windows® Operating System with the Microsoft® HID Driver Interface an Application Developer can quickly implement a motion control application. The USB FlightStick (flight simulator) medical motion controller offers real-time response rates with pin-point precise accuracy for a broad range of application possibilities. A few of the industries benefiting from the USB HID Compliant Joystick Medical Motion Controller are aerospace, life sciences, semiconductor, and medical.

An anodized aluminum M2000 holder is available for convenient storage of the M2XU6T-N3W series Handheld USB Medical Motion Controller. The holder has holes for simple screw mounting alongside any machine or cabinet.

CTI's medical motion controllers can be ruggedized to meet aerospace, medical, and military standards. For instance: MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. Compliance with these standards allow the medical motion controllers to withstand vibration, shock, high EMI/RFI levels, resistance to humidity, fungus, spray, along with an MTBF of greater than 100,000 hours.

Related Documentation:

Specifications

M2XU6T-N3W Series Medical Motion Controller Specification

Medical / Cleanroom Motion Controller
Original Industrial Mouse™ (Joystick Cursor Controller) - A CTI invention!
Reliable mouse cursor, field proven for 30 years
Patented - Non contact inductive handle
No moving electrical parts or magnets
No wear and no drift
Gain never changes - No calibration needed
3/16" diameter solid stainless steel shaft
Four different knob options - Parylene coated
Knobs with pushbuttons on top to act like "left mouse button" for double clicking and drag and drop
White elastomer mouse switches - Parylene coated
Withstands 25 lbs. static load
40° total deflection of joystick travel
White FDA silicone boot - Parylene coated

Features & Options:
NEMA 4, NEMA 4X (IP66)
Point and click operation
Waterproof connector assembly for simple cable installation through metal cabinets
Sealed gold plated switch contacts
Port compatible with all computers - no software drivers needed
Stainless steel or painted aluminum enclosures
Repairable design
Easy to use sealed mouse cursor
Joystick withstands 25lbs of a static load
USB Output
Direct factory support - Made in USA

Temperature Ratings:
Operating Temperature  0º to 80º C
Operating (Optional)      -40ºC to 80º C
Storage Temperature: -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures): 100,000 hours per MIL-HDBK-217F.
Shock Rating: 30g to 50g depending on Knob 11ms -1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration: Mil-Std-810F, Category 4
Elastomer Switches: Rated for up to 10 million cycles
Joystick button: Rated at 1 million cycles
Joystick:  Rated at 10 million random operations

Certifications:
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant
PDF Icon
Industrial Mouse™ (Joystick Cursor Controller) Specification

Pricing

Plug-n-Play Medical / Cleanroom Motion Controller Pricing

Thank you for selecting CTIs medical / cleanroom computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "medical grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called medical products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPlug-n-Play Medical / Cleanroom Motion Controller Pricing

M2XU6-N3 Medical Motion Controller
Photos
Videos
How-To
RFQ

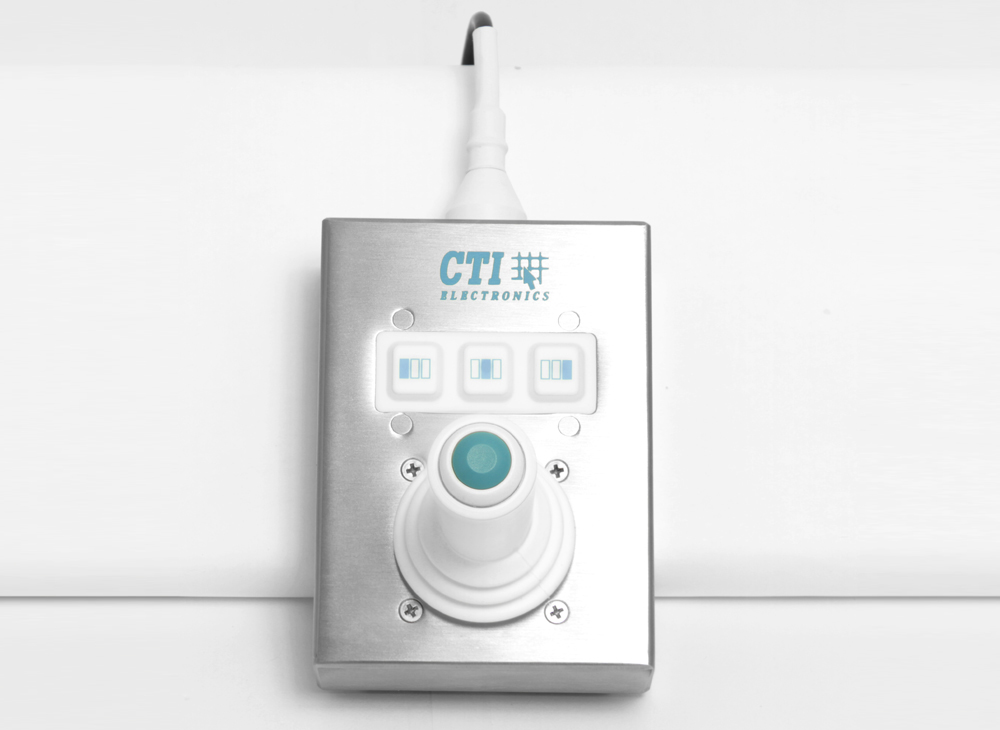

M2XU6T-N33W Series Medical Motion Controller

NEMA 4X (IP66) Medical / Cleanroom Handheld Motion Controller with Three (3) Switch Buttons

Product Information

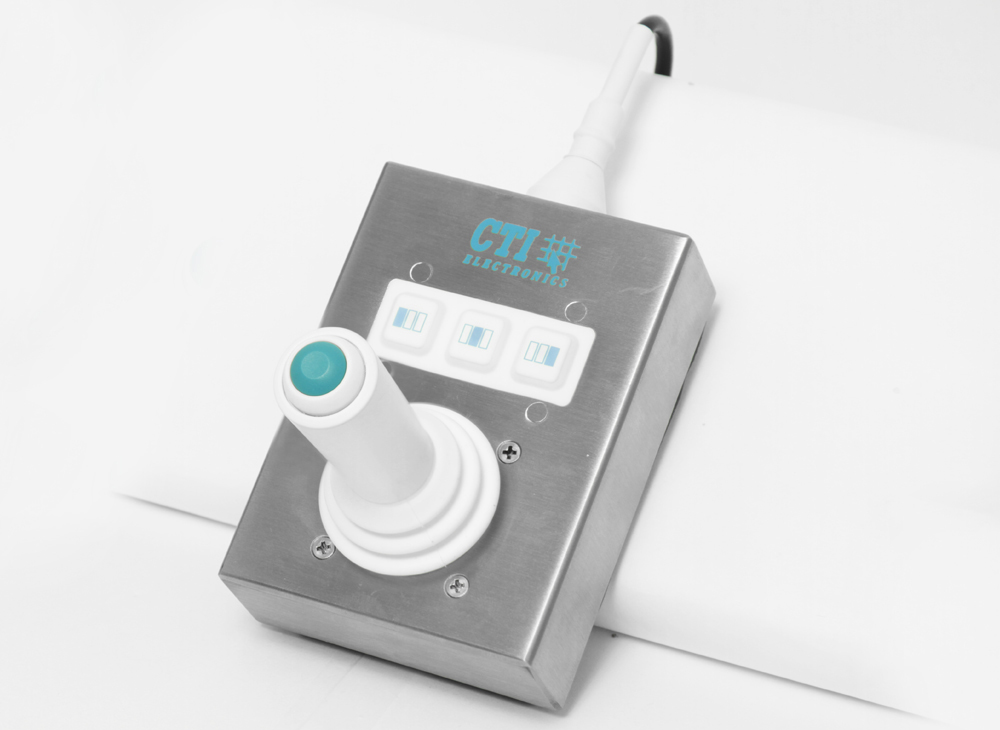

The M2XU6T-N33W Series handheld USB joysticks are used as motion control devices (USB HID Compliant Joystick or flight simulator) allowing up to three axis of control with up to eight designer-defined button functions. This device also uses the same USB HID Compliant Game Controller technology as a Microsoft Sidewinder®.

Using a Windows® Operating System with the Microsoft® HID Driver Interface an Application Developer can quickly implement a motion control application. The USB FlightStick (flight simulator) medical motion controller offers real-time response rates with pin-point precise accuracy for a broad range of application possibilities. A few of the industries benefiting from the USB HID Compliant Joystick Medical Motion Controller are aerospace, life sciences, semiconductor, and medical.

An anodized aluminum M2000 holder is available for convenient storage of the M2XU6T-N33W series Handheld USB Medical Motion Controller. The holder has holes for simple screw mounting alongside any machine or cabinet.

CTI's medical motion controllers can be ruggedized to meet aerospace, medical, and military standards. For instance: MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. Compliance with these standards allow the medical motion controllers to withstand vibration, shock, high EMI/RFI levels, resistance to humidity, fungus, spray, along with an MTBF of greater than 100,000 hours.

Related Documentation:

Specifications

M2XU6T-N33W Series Medical Motion Controller Specification

Medical / Cleanroom Motion Controller
Original Industrial Mouse™ (Joystick Cursor Controller) - A CTI invention!
Reliable mouse cursor, field proven for 30 years
Patented - Non contact inductive handle
No moving electrical parts or magnets
No wear and no drift
Gain never changes - No calibration needed
3/16" diameter solid stainless steel shaft
Four different knob options - Parylene coated
Knobs with pushbuttons on top to act like "left mouse button" for double clicking and drag and drop
White elastomer mouse switches - Parylene coated
Withstands 25 lbs. static load
40° total deflection of joystick travel
White FDA silicone boot - Parylene coated

Features & Options:
NEMA 4, NEMA 4X (IP66)
Point and click operation
Waterproof connector assembly for simple cable installation through metal cabinets
Sealed gold plated switch contacts
Port compatible with all computers - no software drivers needed
Stainless steel or painted aluminum enclosures
Repairable design
Easy to use sealed mouse cursor
Joystick withstands 25lbs of a static load
USB Output
Direct factory support - Made in USA

Temperature Ratings:
Operating Temperature  0º to 80º C
Operating (Optional)      -40ºC to 80º C
Storage Temperature: -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures): 100,000 hours per MIL-HDBK-217F.
Shock Rating: 30g to 50g depending on Knob 11ms -1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration: Mil-Std-810F, Category 4
Elastomer Switches: Rated for up to 10 million cycles
Joystick button: Rated at 1 million cycles
Joystick:  Rated at 10 million random operations

Certifications:
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant
PDF Icon
Industrial Mouse™ (Joystick Cursor Controller) Specification

Pricing

Plug-n-Play Medical / Cleanroom Motion Controller Pricing

Thank you for selecting CTIs medical / cleanroom computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "medical grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called medical products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPlug-n-Play Medical / Cleanroom Motion Controller Pricing

M2XU6-N33 Medical Motion Controller
Photos
Videos
How-To
RFQ

M2000 Device Holder

M2000 Device Holder

Product Information

The M2000 series of rugged handheld motion control devices can be secured in an anodized aluminum holder with pre-drilled mounting holes for easy panel mounting. This precision machined holder/cradle is designed for rugged environments and allows the operator a place of convenient storage for the M2000 series of Medical / Cleanroom Motion Control Devices.

Related Documentation:

Specifications

Black Anodized Aluminum

Pricing

M2000 Pricing

$60 each



M2000 Industrial Mouse™ Holder
Photos
Videos
How-To
RFQ
Sidewinder® is a registered trademark of Microsoft Corporation
