Plug-n-Play Industrial Motion Controllers (Analog)




Compumotor Industrial Motion Control Device

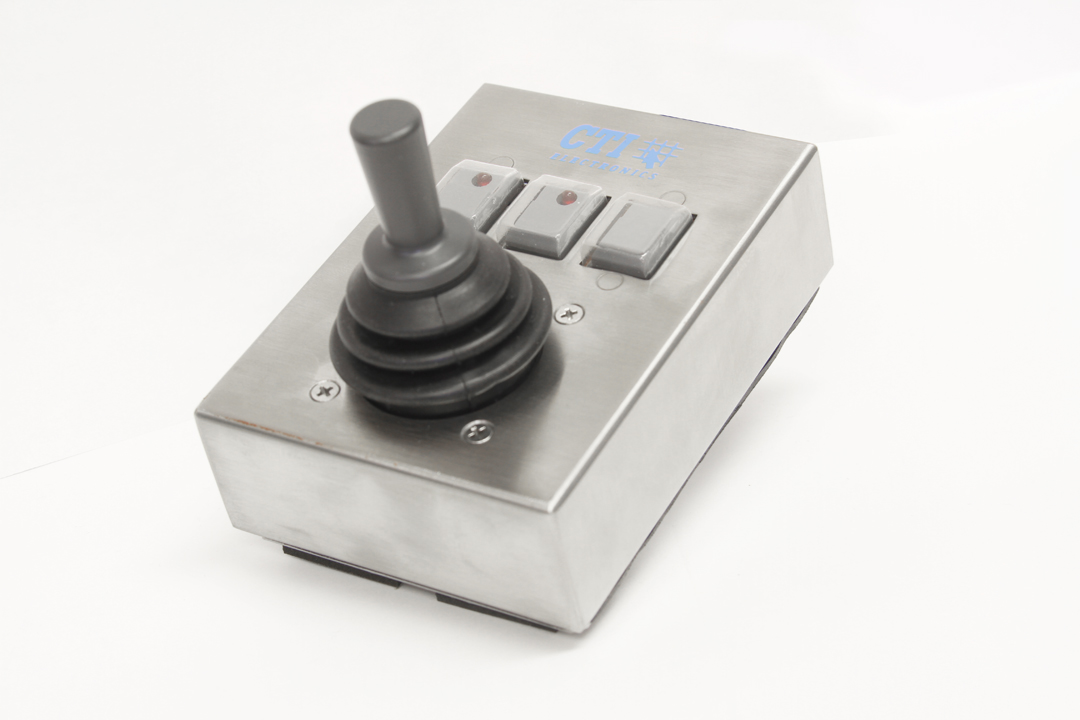

M2003-N24-P0283, M2003-N24-P0284 Analog Industrial Motion Controller

M2003-N24 Model NEMA 4X (IP66) Compumotor Joystick Controller

Product Information

CTI offers form, fit and function analog joystick controllers (JS6000 Joystick Substitute) to be used with the Compumotor 6000 Series programmable motion controllers. These low-profile N-24 joystick knobs are combined with stainless steel enclosures to provide near-waterproof sealing, making it ideal for harsh or wet environments and limited-space applications. The rugged M2003-N24 series features a single momentary switch and two latching switches with LED indicators, allowing the operator to perform all mouse functions, even in low-light conditions. An anodized aluminum M2000 holder is available for convenient storage of the M2003-N3 Series handheld analog joystick. The holder has holes for simple screw mounting alongside any machine or cabinet.

CTI's custom analog motion controllers are ruggedized to meet aerospace, medical, and military standards. CTI's analog motion controllers can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These analog motion controllers are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

Inductive Industrial Joysticks Reliability Data
F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
25mA @ 24VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)

Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)

Sealing
Water Tight    NEMA 4 (IP66)

Reliability
MTBF Greater than 100,000 hours
Life 10,000,000 random deflections
Optional Push Button Switch  1,000,000 cycles maximum

Shock
Peak Value 30g to 50g depending on knob & spring option
Pulse Duration 11 ms
Waveform Half Sine

Vibration
Frequency Displacement (inches)
5 - 25 Hz 0.1
25 - 55 Hz   0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
ESD rated to 15KV
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
PDF Icon
USB Joystick (FlightStick) One & Two Axes Specification

Pricing

Plug-n-Play Analog Industrial Motion Controller Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPlug-n-Play Analog Industrial Motion Controller Pricing

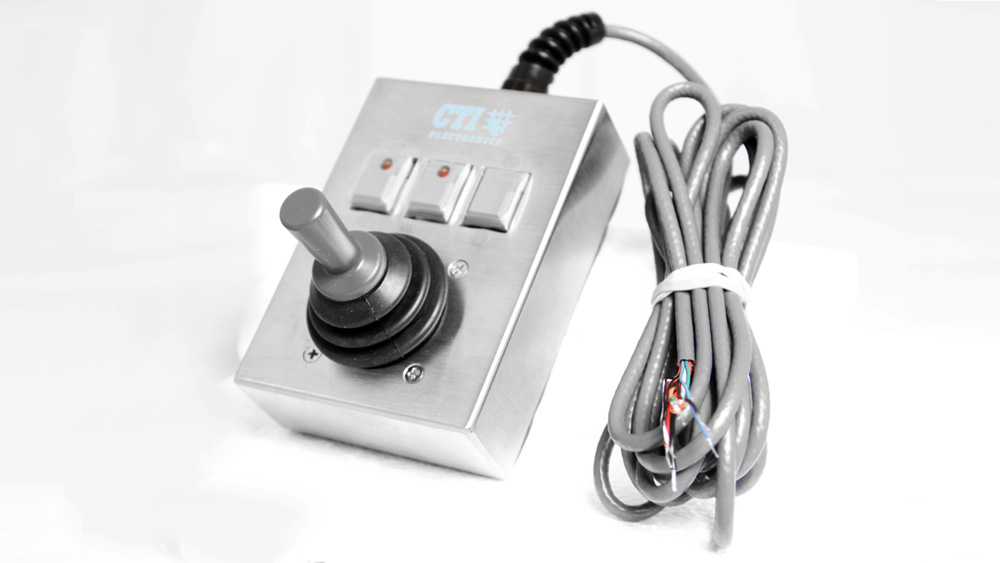

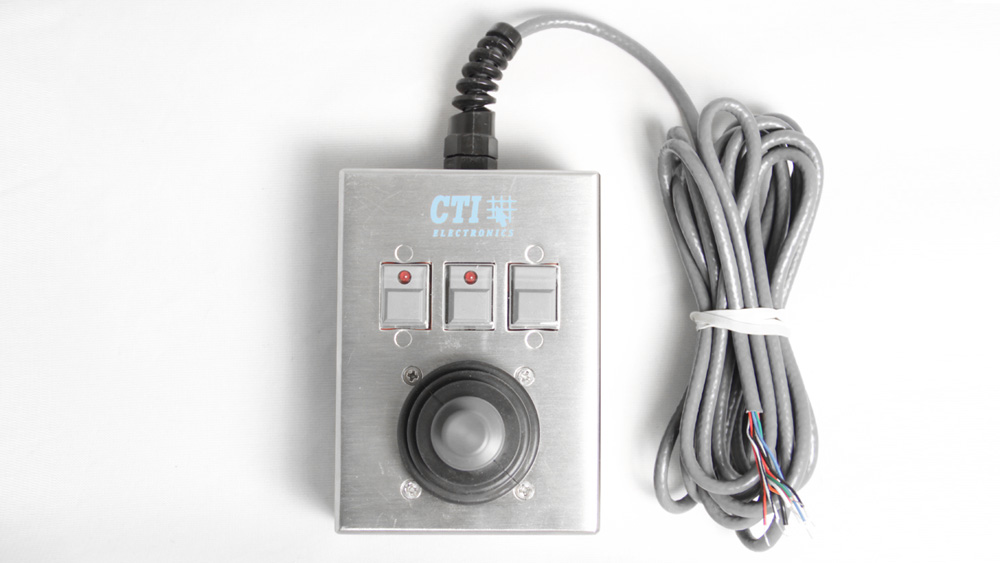

M2003-N24 Analog Motion Controller
Photos
Videos
How-To
RFQ

M2003-N24-P1483, M2003-N24-P1484 Analog Industrial Motion Controller

M2003-N24 Model NEMA 4X (IP66) Compumotor Joystick Controller

Product Information

CTI offers form, fit and function analog joystick controllers (JS6000 Joystick Substitute) to be used with the Compumotor 6000 Series programmable motion controllers. These low-profile N-24 joystick knobs are combined with stainless steel enclosures to provide near-waterproof sealing, making it ideal for harsh or wet environments and limited-space applications. The rugged M2003-N24 series features a three momentary switches, allowing the operator to perform all mouse functions, even in low-light conditions. An anodized aluminum M2000 holder is available for convenient storage of the M2003-N3 Series handheld analog joystick. The holder has holes for simple screw mounting alongside any machine or cabinet.

CTI's custom analog motion controllers are ruggedized to meet aerospace, medical, and military standards. CTI's analog motion controllers can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These analog motion controllers are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

Inductive Industrial Joysticks Reliability Data
F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
25mA @ 24VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)

Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)

Sealing
Water Tight    NEMA 4 (IP66)

Reliability
MTBF Greater than 100,000 hours
Life 10,000,000 random deflections
Optional Push Button Switch  1,000,000 cycles maximum

Shock
Peak Value 30g to 50g depending on knob & spring option
Pulse Duration 11 ms
Waveform Half Sine

Vibration
Frequency Displacement (inches)
5 - 25 Hz 0.1
25 - 55 Hz   0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
ESD rated to 15KV
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
PDF Icon
USB Joystick (FlightStick) One & Two Axes Specification

Pricing

Plug-n-Play Analog Industrial Motion Controller Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPlug-n-Play Analog Industrial Motion Controller Pricing

M2003-N24 Analog Motion Controller
Photos
Videos
How-To
RFQ

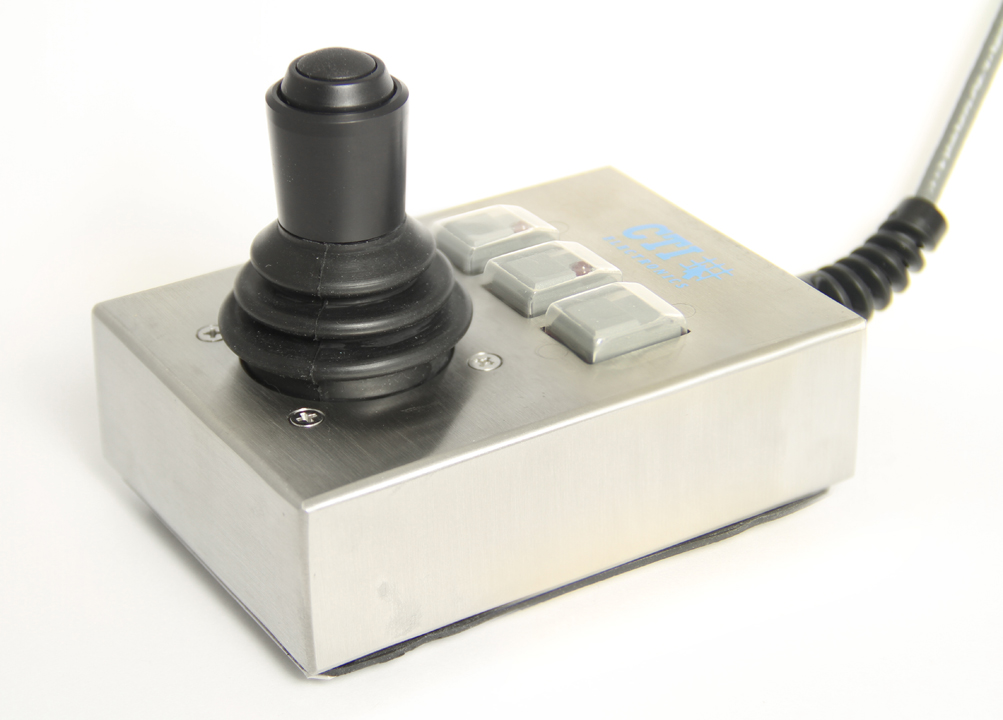

M2003-N3-P0322, M2003-N3-P0323 Analog Industrial Motion Controller

M2003-N3 Model NEMA 4X (IP66) Compumotor Joystick Controller

Product Information

These form, fit and function analog joystick controllers (JS6000 Joystick Substitute) have been designed for use with the Compumotor 6000 Series programmable motion controllers.  The rugged M2003-N3 series features three full-travel latching switches with LED indicators, allowing the operator to perform all mouse functions; even in low-light conditions.

These low-profile joystick knobs feature a fully sealed push-button switch with gold contacts. Rated with one million actuations, these push-button switches are sure to meet high standards for reliability and durability. The N3 joystick is held in a stainless steel enclosure, providing near-waterproof sealing and making it the ideal choice for harsh or wet environments and limited-space applications. The enclosure includes a gasket-sealed bottom plate with rubber feet. An anodized aluminum M2000 holder is available for convenient storage of the M2003-N3 Series handheld analog joystick. The holder has holes for simple screw mounting along side any machine or cabinet.

CTI's custom analog motion controllers are ruggedized to meet aerospace, medical, and military standards. CTI's analog motion controllers can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These analog motion controllers are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

Inductive Industrial Joysticks Reliability Data
F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks
Electrical
Power Consumption 10mA @ 5VDC (typical)
25mA @ 24VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)
Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)

Sealing
Water Tight    NEMA 4 (IP66)

Reliability
MTBF Greater than 100,000 hours
Life 10,000,000 random deflections
Optional Push Button Switch  1,000,000 cycles maximum

Shock
Peak Value 30g to 50g depending on knob & spring option
Pulse Duration 11 ms
Waveform Half Sine

Vibration
Frequency Displacement (inches)
5 - 25 Hz 0.1
25 - 55 Hz   0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
ESD rated to 15KV
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
PDF Icon
USB Joystick (FlightStick) One & Two Axes Specification

Pricing

Plug-n-Play Analog Industrial Motion Controller Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPlug-n-Play Analog Industrial Motion Controller Pricing

M2003-N3-P0322 Motion Controller
Photos
Videos
How-To
RFQ

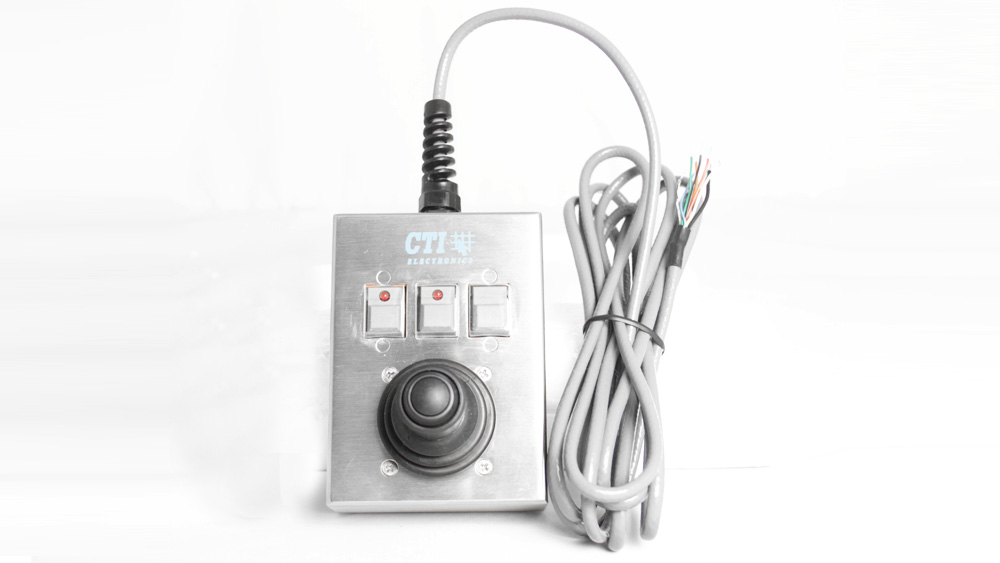

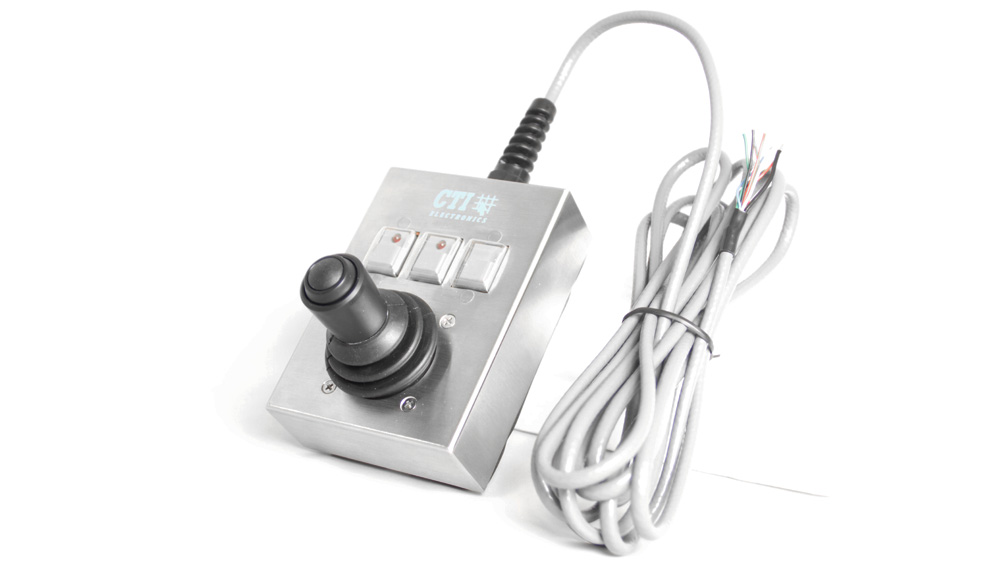

M2003-N3-P0511, M2003-N3-P0512 Analog Industrial Motion Controller

M2003-N3 Model NEMA 4X (IP66) Compumotor Joystick Controller

Product Information

These form, fit and function analog joystick controllers (JS6000 Joystick Substitute) have been designed for use with the Compumotor 6000 Series programmable motion controllers.

The rugged M2003-N3 series features a single momentary switch and two full-travel latching switches with LED indicators. This allows the operator to perform all mouse functions, even in low-light conditions. These low-profile joystick knobs feature a fully sealed push-button switch with gold contacts. Rated with one million actuations, these push-button switches are sure to meet high standards for reliability and durability. The N3 joystick is held in a stainless steel enclosure, providing near-waterproof sealing and making it the ideal choice for harsh or wet environments and limited-space applications. The enclosure includes a gasket-sealed bottom plate with rubber feet. An anodized aluminum M2000 holder is available for convenient storage of the M2003-N3 Series handheld analog joystick. The holder has holes for simple screw mounting along side any machine or cabinet.

CTI's custom analog motion controllers are ruggedized to meet aerospace, medical, and military standards. CTI's analog motion controllers can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These analog motion controllers are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

Inductive Industrial Joysticks Reliability Data
F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
25mA @ 24VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)
Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)
Sealing
Water Tight    NEMA 4 (IP66)
Reliability
MTBF Greater than 100,000 hours
Life 10,000,000 random deflections
Optional Push Button Switch  1,000,000 cycles maximum
Shock
Peak Value 30g to 50g depending on knob & spring option
Pulse Duration 11 ms
Waveform Half Sine
Vibration
Frequency Displacement (inches)
5 - 25 Hz 0.1
25 - 55 Hz   0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
ESD rated to 15KV
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)

PDF Icon
USB Joystick (FlightStick) One & Two Axes Specification

Pricing

Plug-n-Play Analog Industrial Motion Controller Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPlug-n-Play Analog Industrial Motion Controller Pricing

M2003-N3-P0511 and M2003-N3-P0512 Industrial Motion Controller
Photos
Videos
How-To
RFQ

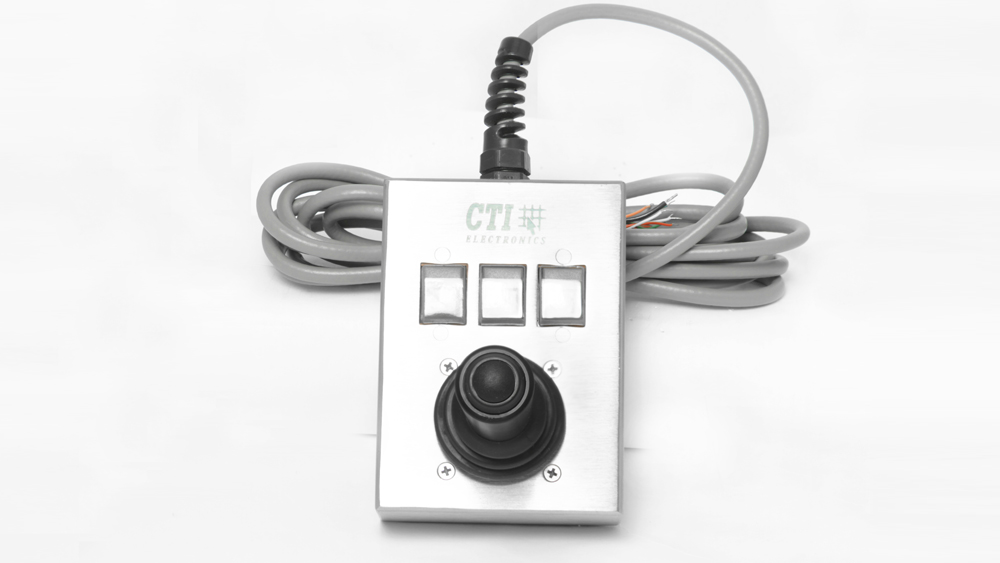

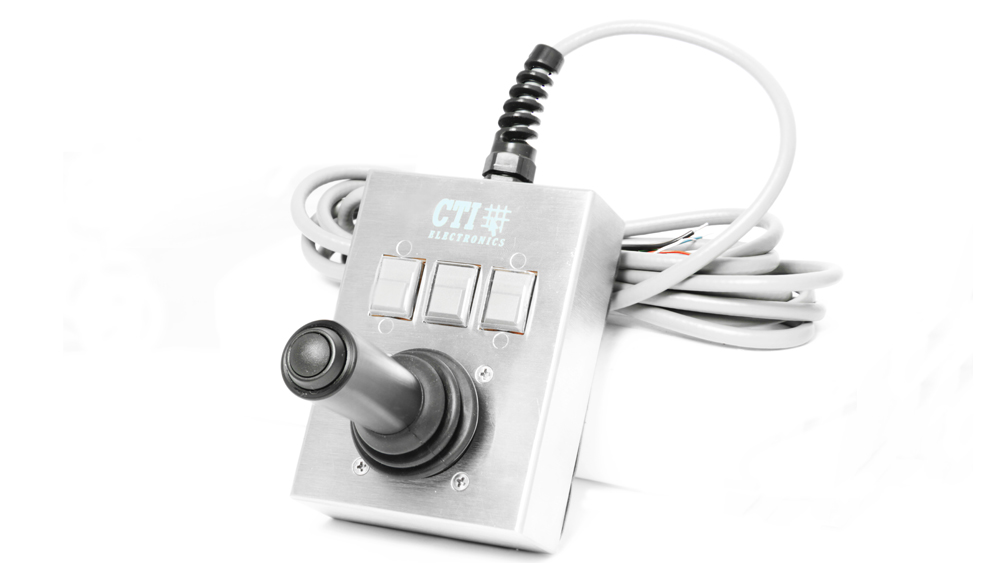

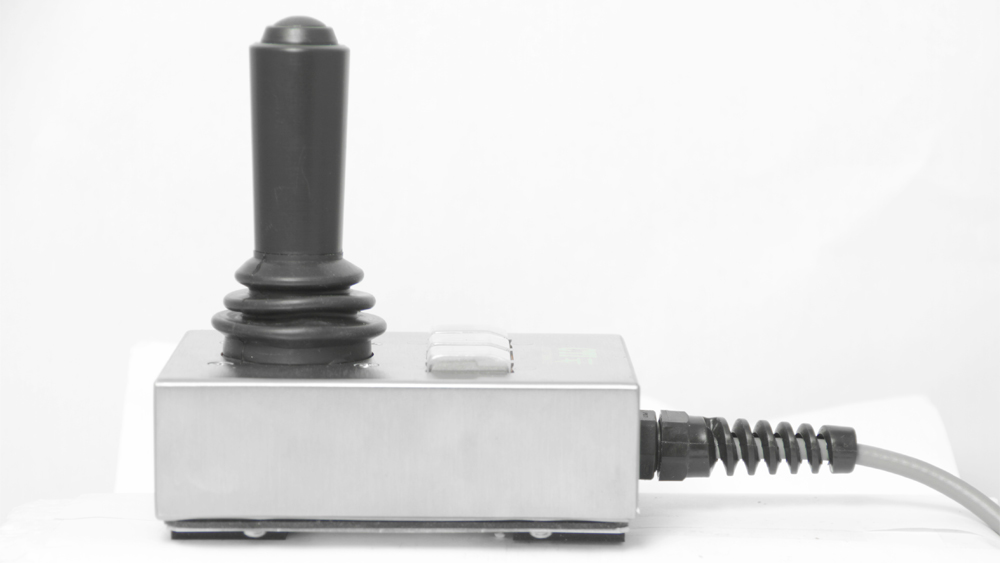

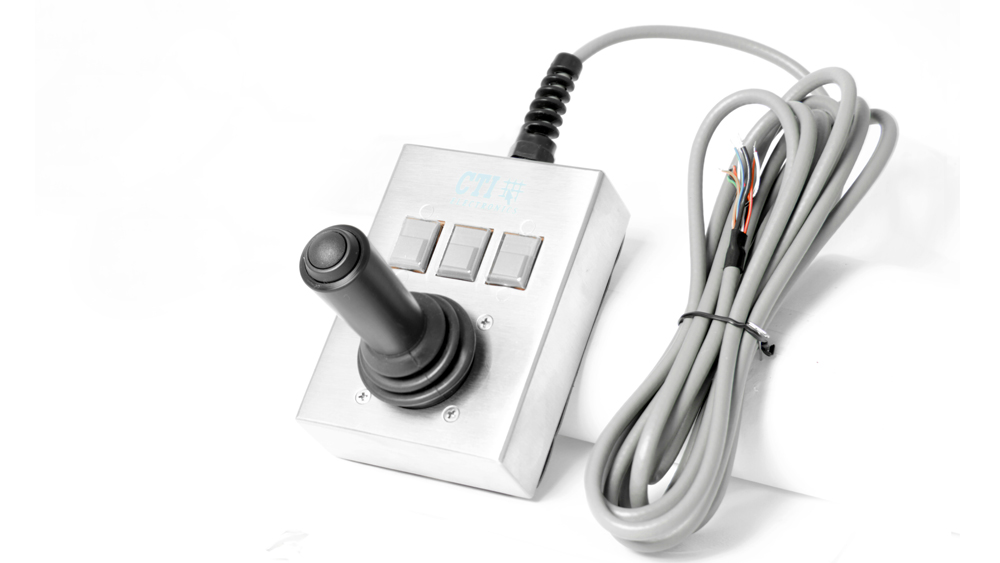

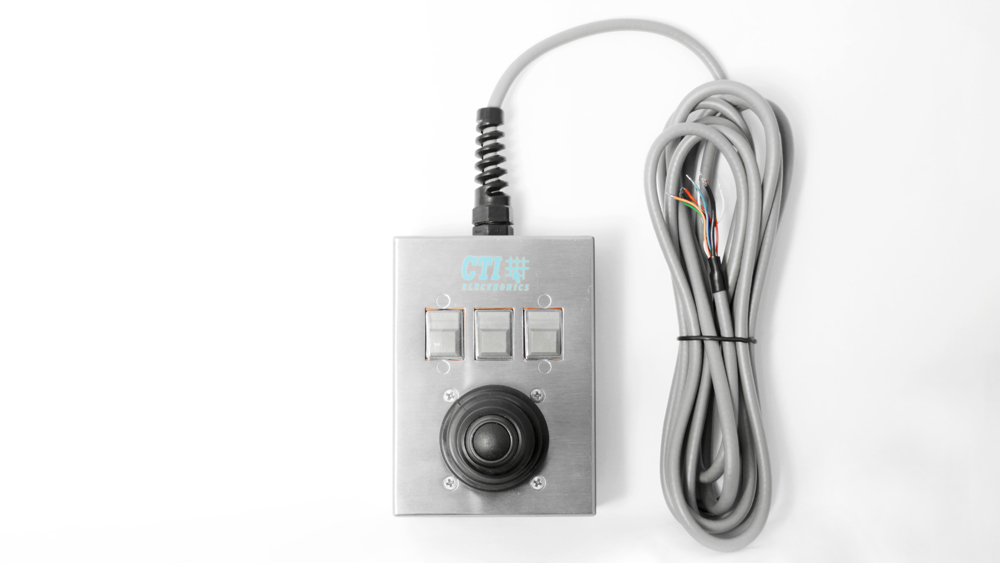

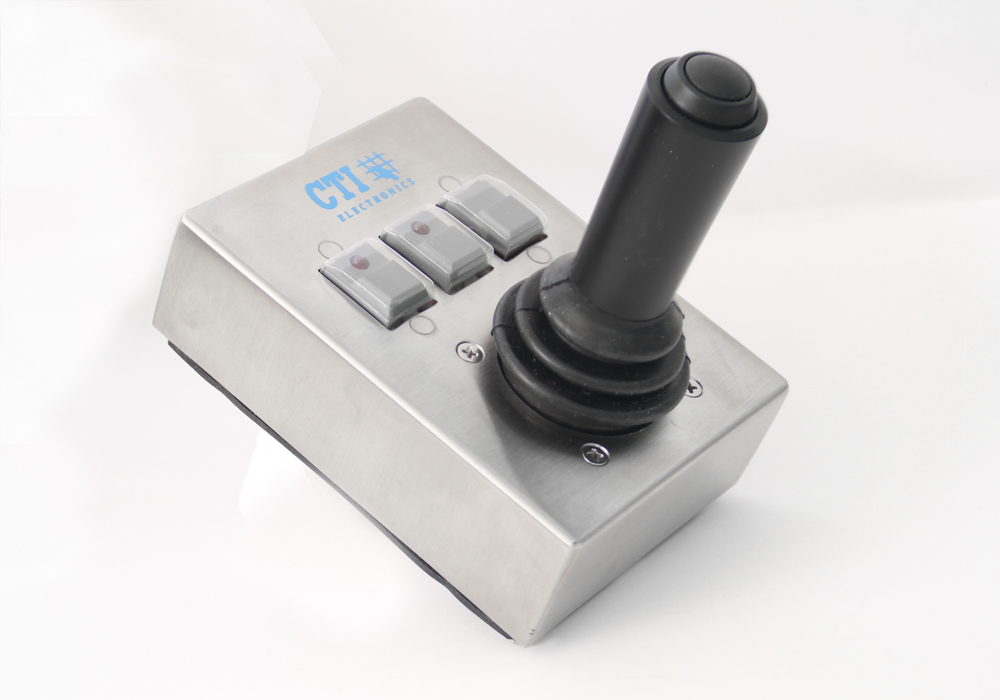

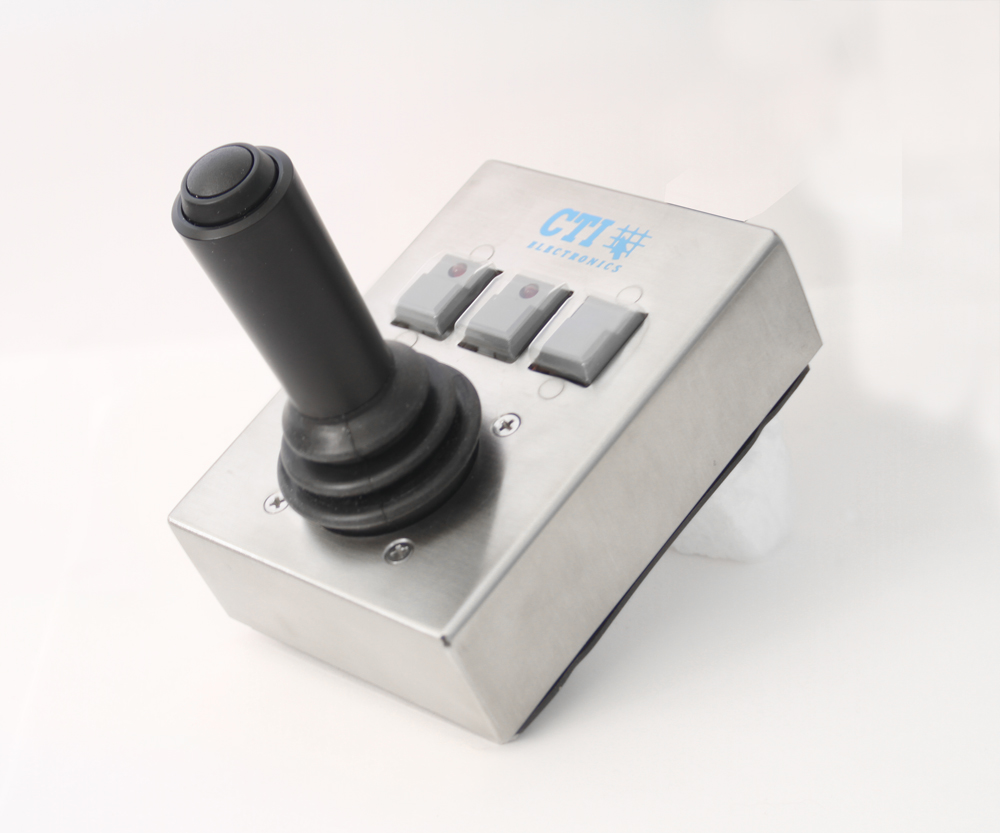

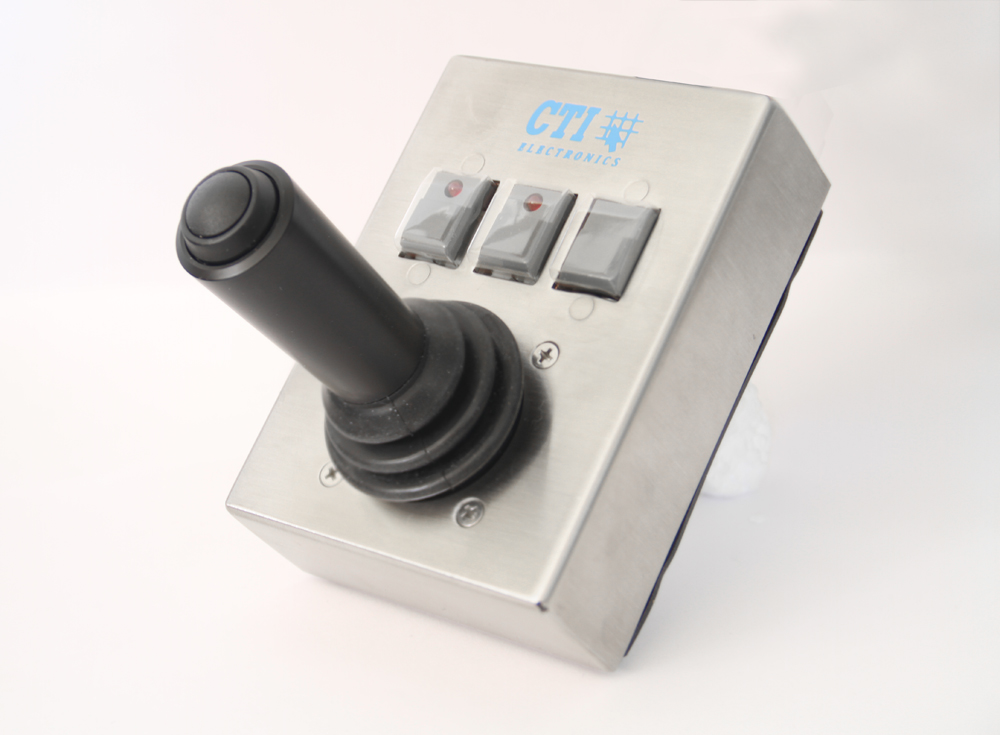

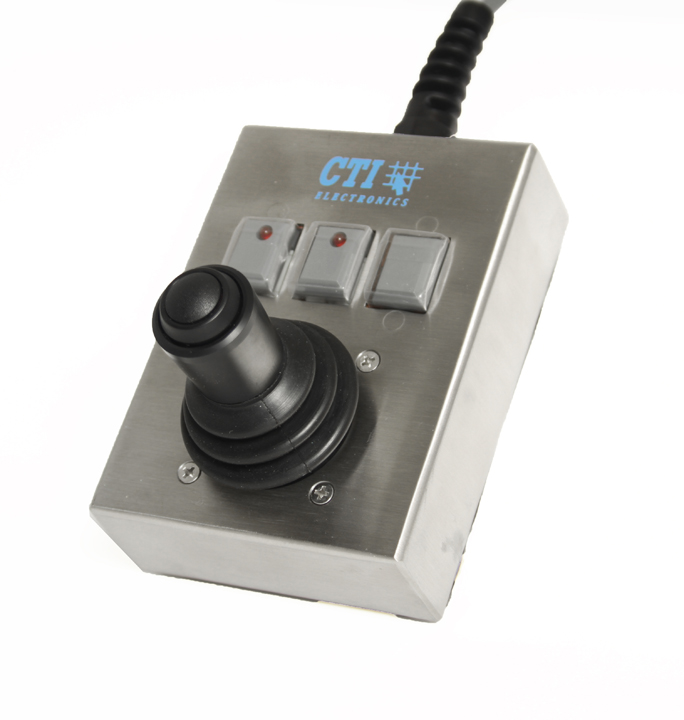

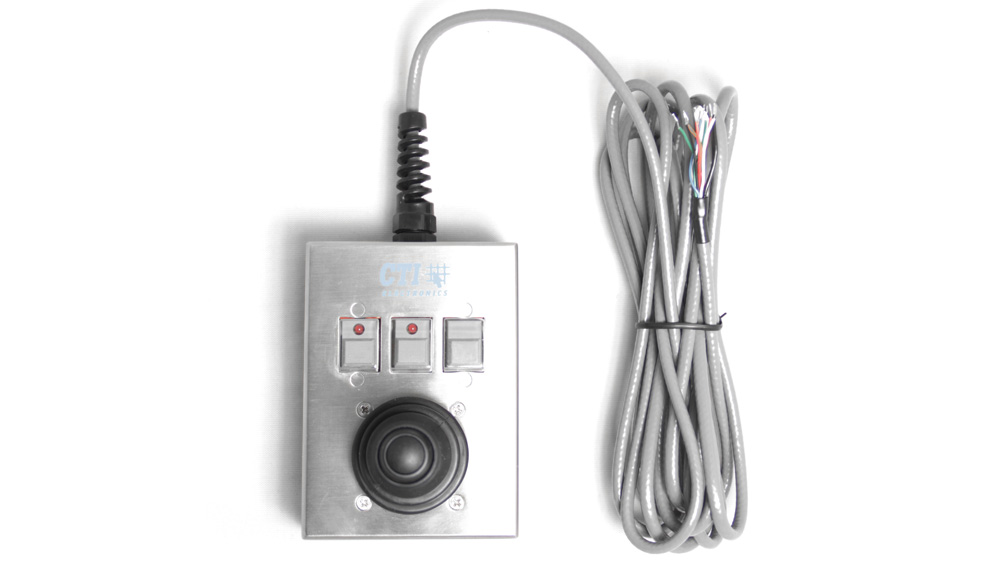

M2003-N3-P1411, M2003-N3-P1412 Analog Industrial Motion Controller

M2003-N3 Model NEMA 4X (IP66) Compumotor Joystick Controller

Product Information

These form, fit and function analog joystick controllers (JS6000 Joystick Substitute) have been designed for use with the Compumotor 6000 Series programmable motion controllers.

The rugged M2003-N3 series features a three momentary switches with LED indicators. This allows the operator to perform all mouse functions, even in low-light conditions. These low-profile joystick knobs feature a fully sealed push-button switch with gold contacts. Rated with one million actuations, these push-button switches are sure to meet high standards for reliability and durability. The N3 joystick is held in a stainless steel enclosure, providing near-waterproof sealing and making it the ideal choice for harsh or wet environments and limited-space applications. The enclosure includes a gasket-sealed bottom plate with rubber feet. An anodized aluminum M2000 holder is available for convenient storage of the M2003-N3 Series handheld analog joystick. The holder has holes for simple screw mounting along side any machine or cabinet.

CTI's custom analog motion controllers are ruggedized to meet aerospace, medical, and military standards. CTI's analog motion controllers can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These analog motion controllers are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

Inductive Industrial Joysticks Reliability Data
F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
25mA @ 24VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)
Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)
Sealing
Water Tight    NEMA 4 (IP66)
Reliability
MTBF Greater than 100,000 hours
Life 10,000,000 random deflections
Optional Push Button Switch  1,000,000 cycles maximum
Shock
Peak Value 30g to 50g depending on knob & spring option
Pulse Duration 11 ms
Waveform Half Sine
Vibration
Frequency Displacement (inches)
5 - 25 Hz 0.1
25 - 55 Hz   0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
ESD rated to 15KV
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)

PDF Icon
USB Joystick (FlightStick) One & Two Axes Specification

Pricing

Plug-n-Play Analog Industrial Motion Controller Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPlug-n-Play Analog Industrial Motion Controller Pricing

M2003-N3-P0511 and M2003-N3-P0512 Industrial Motion Controller
Photos
Videos
How-To
RFQ

M2003-N33-P1117, M2003-N33-P1118 Analog Industrial Motion Controller

M2003-N33 Model NEMA 4X (IP66) Compumotor Joystick Controller

Product Information

These form, fit and function analog joystick controllers (JS6000 Joystick Substitute) have been designed for use with the Compumotor 6000 Series programmable motion controllers.

The rugged M2003-N33 series features a single momentary switch and two full-travel latching switches with LED indicators. This allows the operator to perform all mouse functions, even in low-light conditions. These low-profile joystick knobs feature a fully sealed push-button switch with gold contacts. Rated with one million actuations, these push-button switches are sure to meet high standards for reliability and durability. The N33 joystick is held in a stainless steel enclosure, providing near-waterproof sealing and making it the ideal choice for harsh or wet environments and limited-space applications. The enclosure includes a gasket-sealed bottom plate with rubber feet. An anodized aluminum M2000 holder is available for convenient storage of the M2003-N33 Series handheld analog joystick. The holder has holes for simple screw mounting along side any machine or cabinet.

CTI's custom analog motion controllers are ruggedized to meet aerospace, medical, and military standards. CTI's analog motion controllers can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These analog motion controllers are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

Inductive Industrial Joysticks Reliability Data
F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
25mA @ 24VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)

Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)
Sealing
Water Tight    NEMA 4 (IP66)
Reliability
MTBF Greater than 100,000 hours
Life 10,000,000 random deflections
Optional Push Button Switch  1,000,000 cycles maximum
Shock
Peak Value 30g to 50g depending on knob & spring option
Pulse Duration 11 ms
Waveform Half Sine
Vibration
Frequency Displacement (inches)
5 - 25 Hz 0.1
25 - 55 Hz   0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
ESD rated to 15KV
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)

PDF Icon
USB Joystick (FlightStick) One & Two Axes Specification

Pricing

Plug-n-Play Analog Industrial Motion Controller Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPlug-n-Play Analog Industrial Motion Controller Pricing

M2003-N33-P1117 and M2003-N33-P1118 Industrial Motion Controller
Photos
Videos
How-To
RFQ

M2003-N33-P1417, M2003-N33-P1418 Analog Industrial Motion Controller

M2003-N33 Model NEMA 4X (IP66) Compumotor Joystick Controller

Product Information

These form, fit and function analog joystick controllers (JS6000 Joystick Substitute) have been designed for use with the Compumotor 6000 Series programmable motion controllers.

The rugged M2003-N33 series features a three momentary switches. This allows the operator to perform all mouse functions, even in low-light conditions. These low-profile joystick knobs feature a fully sealed push-button switch with gold contacts. Rated with one million actuations, these push-button switches are sure to meet high standards for reliability and durability. The N33 joystick is held in a stainless steel enclosure, providing near-waterproof sealing and making it the ideal choice for harsh or wet environments and limited-space applications. The enclosure includes a gasket-sealed bottom plate with rubber feet. An anodized aluminum M2000 holder is available for convenient storage of the M2003-N33 Series handheld analog joystick. The holder has holes for simple screw mounting along side any machine or cabinet.

CTI's custom analog motion controllers are ruggedized to meet aerospace, medical, and military standards. CTI's analog motion controllers can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These analog motion controllers are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

Inductive Industrial Joysticks Reliability Data
F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
25mA @ 24VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)

Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)
Sealing
Water Tight    NEMA 4 (IP66)
Reliability
MTBF Greater than 100,000 hours
Life 10,000,000 random deflections
Optional Push Button Switch  1,000,000 cycles maximum
Shock
Peak Value 30g to 50g depending on knob & spring option
Pulse Duration 11 ms
Waveform Half Sine
Vibration
Frequency Displacement (inches)
5 - 25 Hz 0.1
25 - 55 Hz   0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
ESD rated to 15KV
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)

PDF Icon
USB Joystick (FlightStick) One & Two Axes Specification

Pricing

Plug-n-Play Analog Industrial Motion Controller Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPlug-n-Play Analog Industrial Motion Controller Pricing

M2003-N33-P1418 Industrial Motion Controller
Photos
Videos
How-To
RFQ

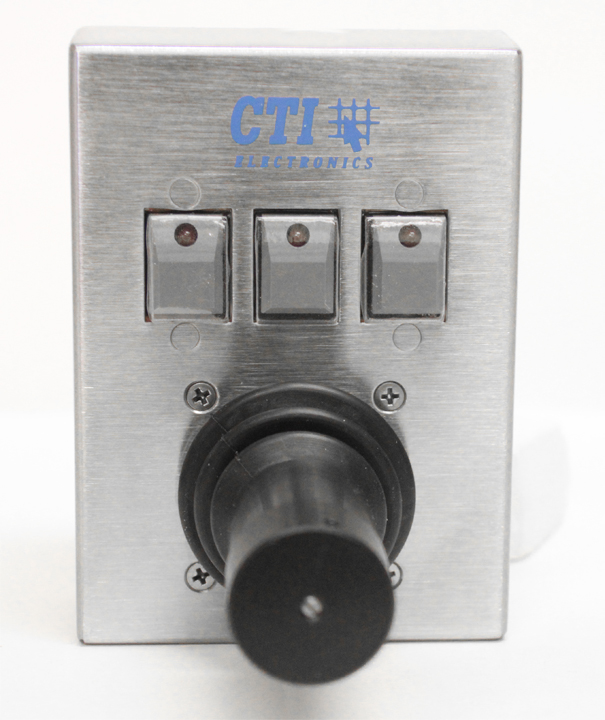

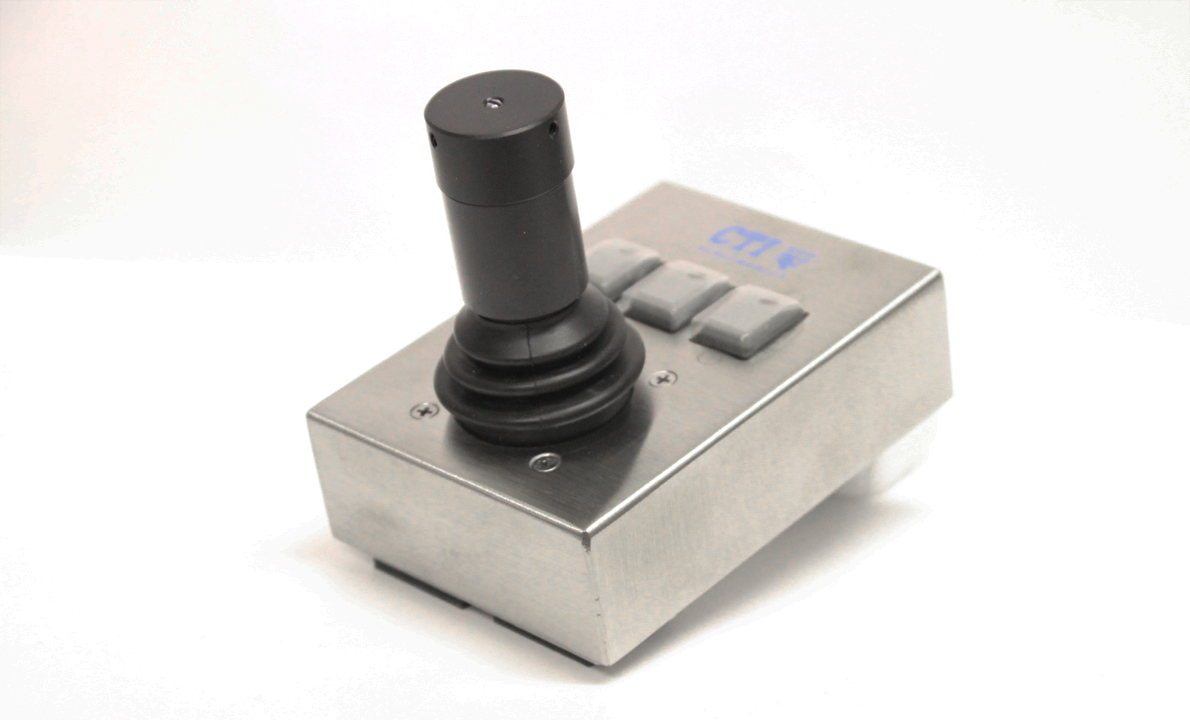

M2003-N82-P1000, M2003-N82-P1001, M2003-N82-P1002, M2003-N82-P1402 Analog Industrial Motion Controller

M2003-N82 Model Compumotor Joystick Controller

Product Information

These form, fit and function analog joystick controllers (JS6000 Joystick Substitute) have been designed for use with the Compumotor 6000 Series programmable motion controllers.

The rugged M2003-N82 series features Three-Axes of movement, either single(P1001), or three(P1002) momentary switches and/or two(P1001), or three(P1000) full-travel latching switches with LED indicators. This allows the operator to perform all mouse functions, even in low-light conditions. These low-profile joystick knobs feature a fully sealed push-button switch with gold contacts. Rated with one million actuations, these push-button switches are sure to meet high standards for reliability and durability. The N82 joystick is held in a stainless steel enclosure, providing near-waterproof sealing and making it the ideal choice for harsh or wet environments and limited-space applications. The enclosure includes a gasket-sealed bottom plate with rubber feet. An anodized aluminum M2000 holder is available for convenient storage of the M2003-N82 Series handheld analog joystick. The holder has holes for simple screw mounting along side any machine or cabinet.

Related Documentation:

Specifications

Inductive Industrial Joysticks Reliability Data
F1800-N82 Series – NEMA 12 (IP 54) 3 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)
Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)
Sealing
Drip Proof     Z Axis NEMA 12 (IP54), suitable for indoor use.
Water Resistant X&Y Axes NEMA 4 (IP66) Sealing Boot
Reliability
MTBF   Greater than 100,000 hours
Life   10,000,000 random deflections
Shock
Peak Value    10 g
Pulse Duration   11 ms
Waveform       Half Sine

Vibration
Frequency Displacement (inches)
5-25 Hz    0.1
25-55 Hz       0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)

PDF IconUSB Joystick (Flightstick) N82 Three Axes Specification

Pricing

Plug-n-Play Analog Industrial Motion Controller Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPlug-n-Play Analog Industrial Motion Controller Pricing

Analog Industrial Motion Controller
Photos
Videos
How-To
RFQ


M2000 Holder

Industrial Motion Controller Holder

Product Information

The M2000 series of rugged hand held computer motion control devices offers an anodized aluminum holder with pre-drilled mounting holes for easy panel mounting.

This precision machined cradle is designed for rugged environments and allows the operator a place of convenient storage for the M2000 series of handheld Industrial Mouse™ pointers such as the Industrial Mouse™, OrbitalMouse®, or industrial motion control devices such as the M2000-Nx and M20UxT-Nx Series (USB Joystick).

Related Documentation:

Specifications

Black Anodized Aluminum

Pricing

M2000 Holder Pricing

$60 each



M2000 Industrial Motion Controller Holder
Photos
Videos
How-To
RFQ
Sidewinder® is a registered trademark of Microsoft Corporation
TOP
Manufactured in U.S.A. Manufactured in U.S.A. Copyright © 2001-2017 | CTI Electronics Corporation an affiliate of ELECTRO SWITCH | Tel: (203) 386-9779 | All Rights Reserved - sitemap | Sales | Tech
