Panel Mount Industrial Trackball Mouse Pointers

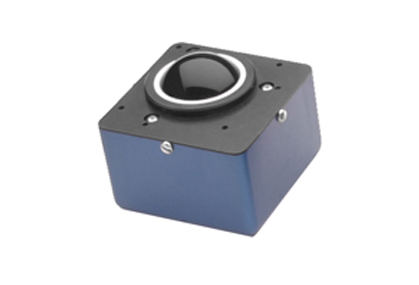

T6000 Panel Mount TrackballT4000 Panel Mount Trackball
T70X3 Panel Mount TrackballT10X3 Panel Mount Trackball T40X3 Panel Mount Trackball


CTI' Panel Mount industrial trackballs are manufactured with high grade aerospace materials to ensure long life. With a standard operating temperature range of -25°C to +80°C (-13°F to +176°F) there is no equal available anywhere in the world today. What makes these industrial trackballs really special are the dual optical encoders with gold coated optical pipes to prevent signal loss over time (decades) as LED intensity changes, stainless steel shafts, and ABEC bearings. The ball itself is made of a proprietary mineral material (very high density) with an aluminum housing that withstands expansion/contraction constraints over an extended operating range of -40°C to +80°C (-40°F to +176°F).
Long term durability is guaranteed through the use of the highest quality materials and components which also ensures the highest reliability over the broadest operating temperature range. The electrical MTBF is rated for 100,000+ hours (MIL-HDBK-217F rating) due to the electrical components, that's over 10 years of reliable service. CTI' industrial trackball is the only choice when reliability is critical™ to the success of your application.

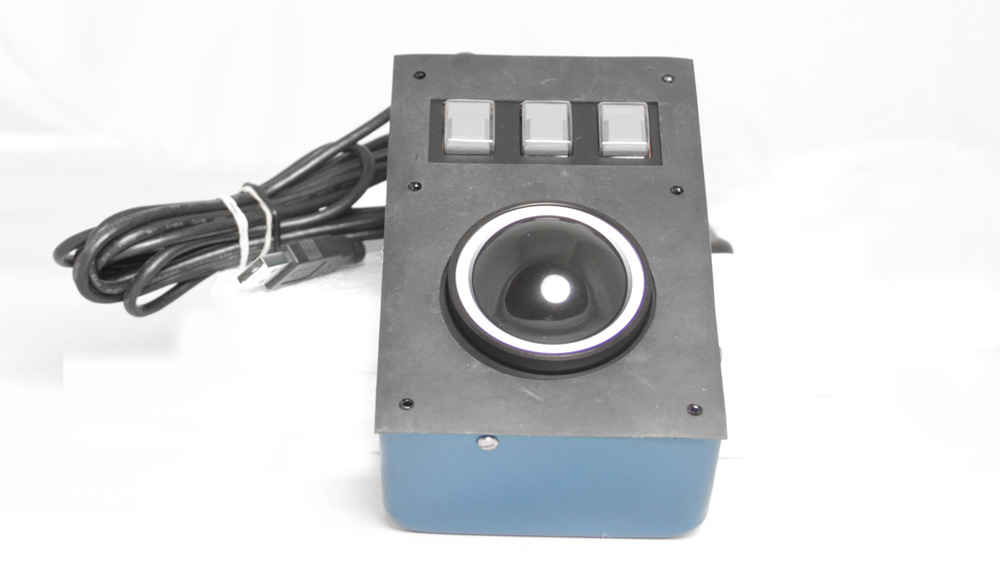

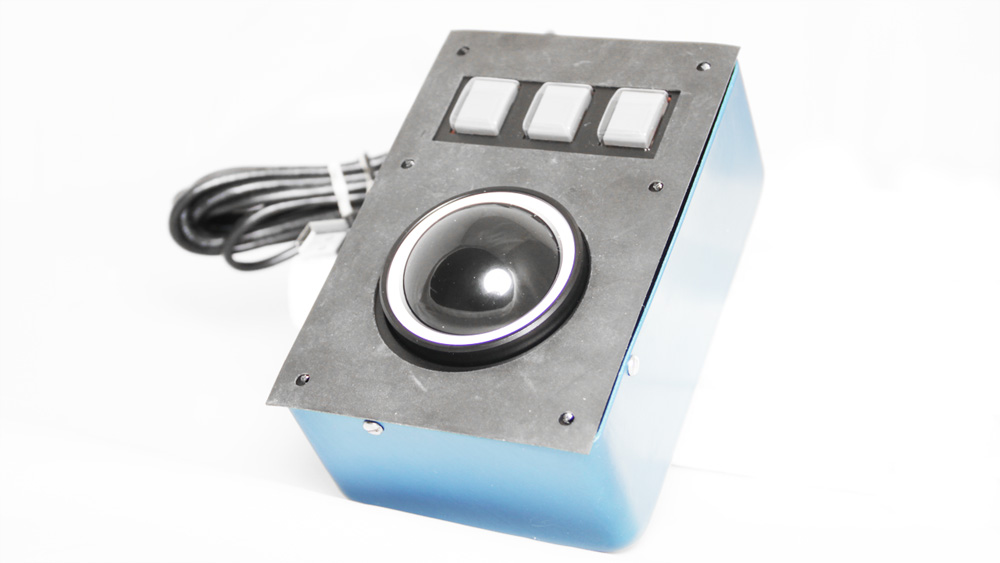

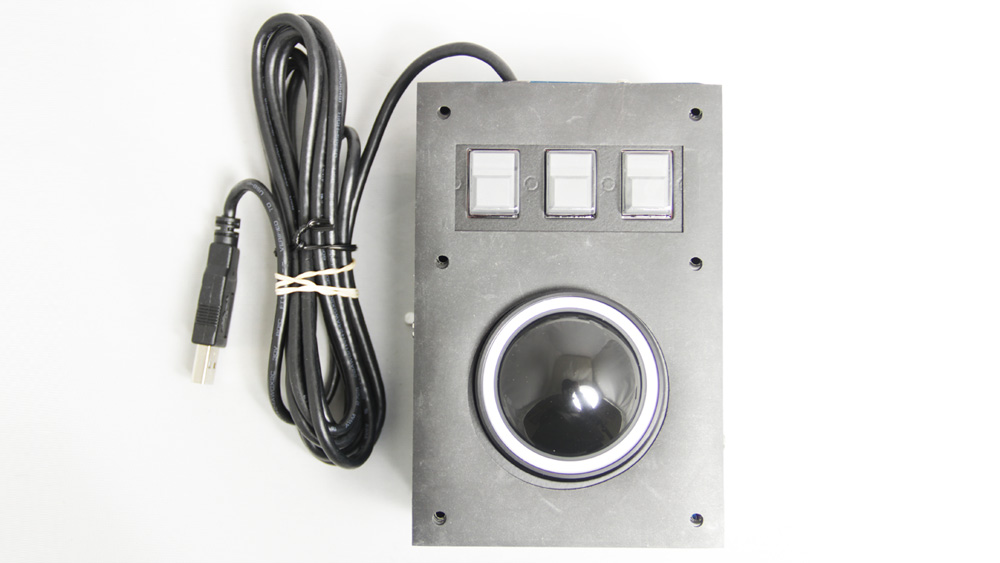

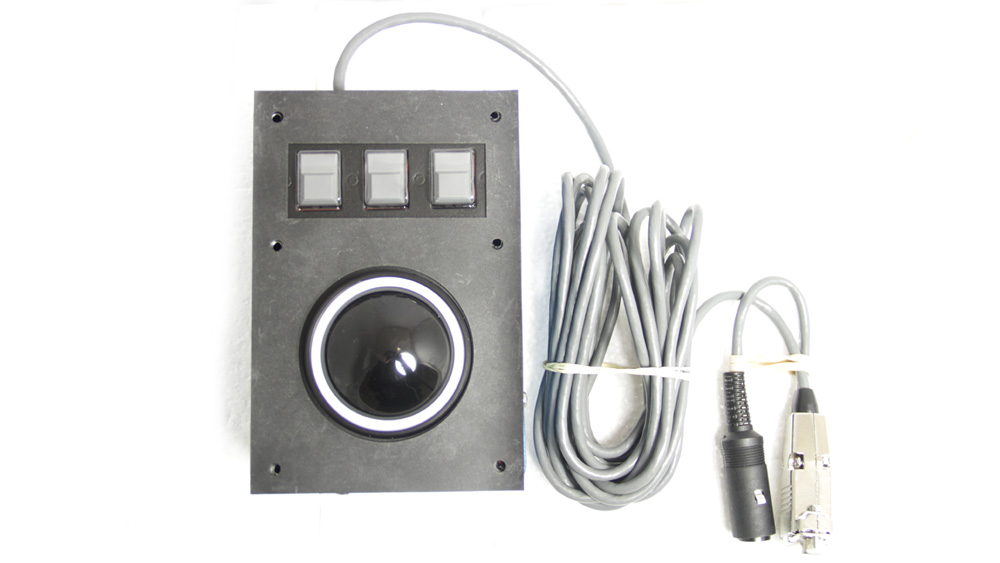

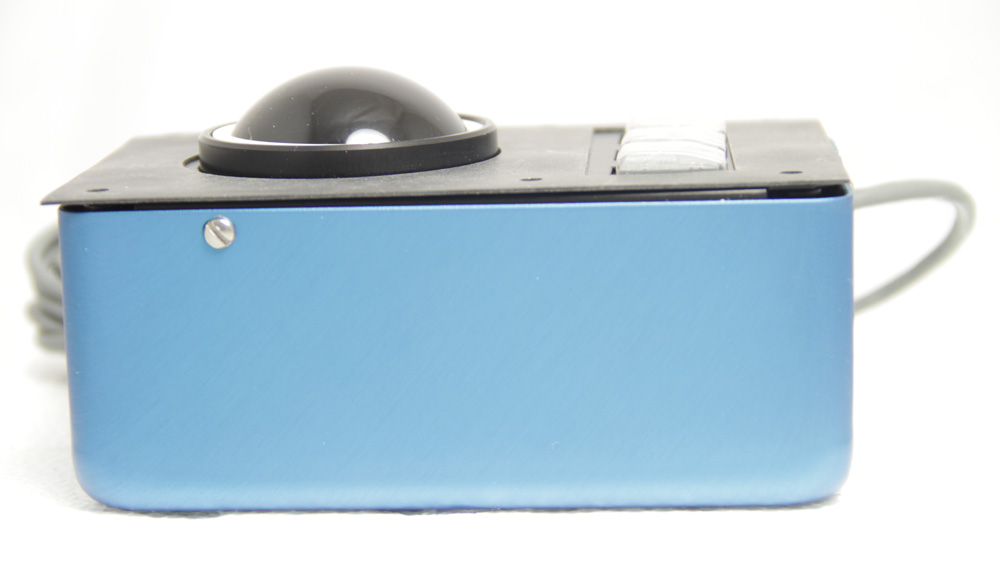

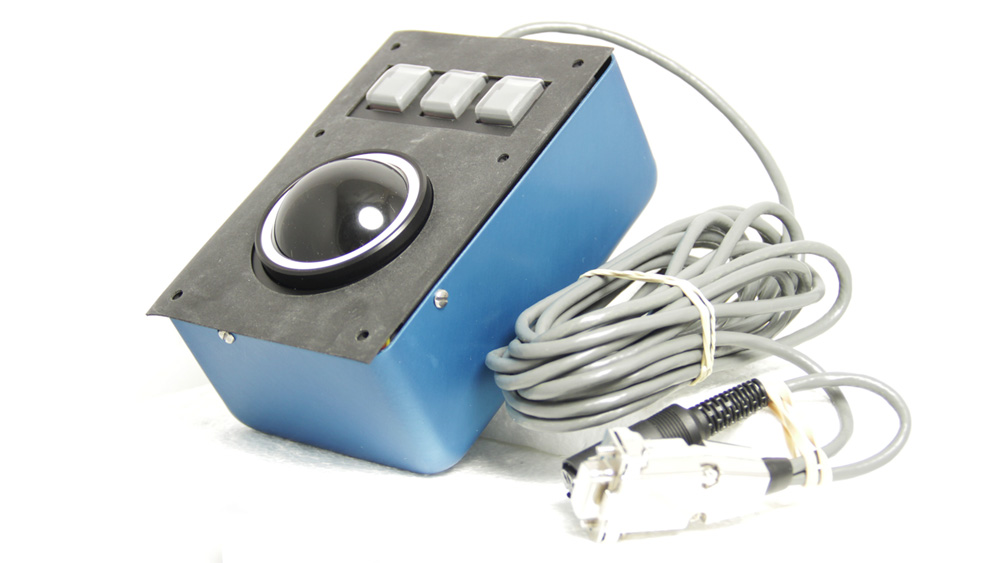

T1000 Series Industrial Trackball

2.0" (50mm) Panel Mount Trackballs & Trackball Mouse Pointers

Product Information

The T1000 Series of industrial trackballs have a very small 2.63 inch square footprint design. These precision pointing devices require 1.25 inches of below panel depth for the quadrature model, and 1.75 inches for units with an interface PCB (Industrial Mouse™ Trackball Mouse Pointer). The 2.0 inch (350mm) diameter industrial trackballs can withstand over 30g forces. CTI’s industrial trackballs mount to the panel with four screws and comes with a neoprene gasket; which combined with the formed Teflon sealing ring in the anodized aluminum housing is NEMA 12 (IP54) sealed. The unit is protected from below with a blue anodized aluminum cover that also includes a drain hole.

These industrial trackballs and trackball mouse pointers combine all the high reliability features of CTI’s trackballs, with an encoder resolution of either 960 or 480 per rotation, or divisions thereof.

CTI's custom panel mount trackballs are ruggedized to meet aerospace, medical, and military standards. CTI's panel mount trackballs can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These panel mount trackballs are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

T1000 Series Industrial Trackball Specification

Opto-Mechanical Industrial Trackballs

Shock and Vibration:
Diameter Resolution Shock   Vibration
1.3 inch (33mm) 416 cts/rev 100g 11ms - 1/2 sine 5-55HZ @ 0.013” DA
1.5 inch (38mm) 480 cts/rev 30g 11ms - 1/2 sine 5-55HZ @ 0.013” DA
2.0 inch (50mm) 640 cts/rev 10g 11ms - 1/2 sine 5-55HZ @ 0.013” DA

Environmental:
Operating: Up to 40,000 ft with conformal coating option
Horizontal Mounting: Recommended 0° to 30° Maximum (with Vibration Dampening Material)
Humidity: reliable operation from 0 to 95% relative humidity.
Trackball and Switch Assemblies sealed to NEMA 12 (IP54), for indoor use.

Temperature Ratings: (Operational)
Operating Temperature 0º to 70º C
Operating Temperature (Optional):   -25º to 80º C
Operating Temperature (Optional): -40º to 80º C (Typical Military & Aerospace Applications)
Storage Temperature:        -40º to 80º C

Mechanical:
Micro etched metal encoder wheels allow for greater resolution than possible with plastic
Precision instrument grade, shielded, bearings (ABEC Grade 7), rated @ 20 years continuous rolling life
No rubber or foam on rollers, no cleaning of shaft required
Precision ground and hardened stainless steel shaft
Precision ground ball to ± .002” tolerance
Formed Teflon sealing ring in an aluminum housing cleanable with alcohol

Photo Detectors:
Redundant photo detectors for each axis.  Not sensitive to LED fading
Guarantees longest reliability beyond 10 years without the need for re-calibration

Reliability:
MTBF (Mean Time between Failures): greater than 100,000 hours per MIL-HDBK-217F

Power Requirements:
+5VDC supply
Max. 40mA @ 5V OEM version without Interface PCB
Max. 70mA @ 5V OEM version with Interface PCB

Certifications:
Meets FCC Class A
Meets CE Requirements
ESD rated to 15KV

Options:
Low temperature operation
Vibration Dampening Material – Silicone based
Conformal coating of PCB
Microprocessor interface PCB
RoHS – Special Order
PDF Icon
Trackball Mouse Cursors Specifications, Test & MTBF Data

Pricing

Panel Mount Industrial Trackball (Mouse Pointing Device) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPanel Mount Industrial Trackball (Mouse Pointing Device) Pricing


T7000  Panel Mount Industrial Trackball
Photos
Videos
How-To
RFQ

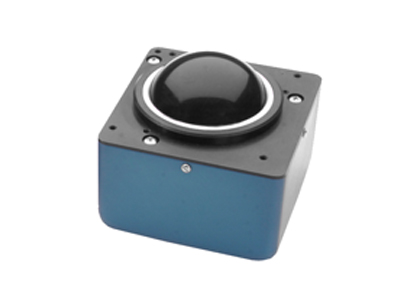

T4000 Series Industrial Trackball

3.0" (76mm) Panel Mount Trackballs & Trackball Mouse Pointers

Product Information

The T4000 Series of industrial trackballs have a high rotational inertia, 3.0 inch (76mm) ball in a 4.25 inch square footprint design. These rugged pointing devices require a below panel depth of 2.65 inches for units with an interface PCB (Trackball Mouse Pointer).

The 3.0 inch diameter precision trackballs can withstand over 6g forces. CTI's industrial trackballs mount to the panel with four screws and comes with a neoprene gasket; which combined with the formed Teflon sealing ring in the anodized aluminum housing is NEMA 12 (IP54) sealed. The unit is protected from below with a blue anodized aluminum cover that also includes a drain hole.

These industrial trackballs and trackball mouse pointers combine all the high reliability features of CTI's trackballs, with an encoder resolution of either 1280 or 640 per rotation, or divisions thereof.

CTI's custom panel mount trackballs are ruggedized to meet aerospace, medical, and military standards. CTI's panel mount trackballs can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These panel mount trackballs are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

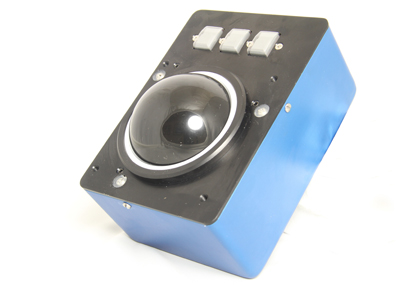

T40X3 Series Industrial Trackball

Opto-Mechanical Industrial Trackballs

Shock and Vibration:
Diameter Resolution Shock   Vibration
3.0 inch 640 cts/rev 6g 11ms - 1/2 sine 5-55HZ @ 0.013” DA

Environmental:
Operating: Up to 40,000 ft with conformal coating option
Horizontal Mounting: Recommended 0° to 30° Maximum (with Vibration Dampening Material)
Humidity: reliable operation from 0 to 95% relative humidity.
Trackball and Switch Assemblies sealed to NEMA 12 (IP54), for indoor use.
Sealed switch assembles
Conformal coating of PCB

Temperature Ratings: (Operational)
Operating Temperature 0º to 70º C
Operating Temperature (Optional):   -25º to 80º C
Operating Temperature (Optional): -40º to 80º C (Typical Military & Aerospace Applications)
Storage Temperature:        -40º to 80º C

Mechanical:
Micro etched metal encoder wheels allow for greater resolution than possible with plastic
Precision instrument grade, shielded, bearings (ABEC Grade 7), rated @ 20 years continuous rolling life
No rubber or foam on rollers, no cleaning of shaft required
Precision ground and hardened stainless steel shaft
Precision ground ball to ± .002" tolerance
Formed Teflon sealing ring in an aluminum housing cleanable with alcohol

Photo Detectors:
Redundant photo detectors for each axis. Not sensitive to LED fading
Redundant photo detectors for each axis. Not sensitive to LED fading

Reliability:
MTBF (Mean Time between Failures): greater than 100,000 hours per MIL-HDBK-217F

Power Requirements:
+5VDC supply
Max. 70mA @ 5V OEM version with Interface PCB

Certifications:
Meets FCC Class A
Meets CE Requirements
ESD rated to 15KV

Options:
Low temperature operation
Vibration Dampening Material – Silicone based
Conformal coating of PCB
Microprocessor interface PCB
RoHS – Special Order
PDF Icon
Trackball Mouse Cursors Specifications, Test & MTBF Data

Pricing

Panel Mount Industrial Trackball (Mouse Pointing Device) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPanel Mount Industrial Trackball (Mouse Pointing Device) Pricing


T4000 Panel Mount Industrial Trackball
Photos
Videos
How-To
RFQ

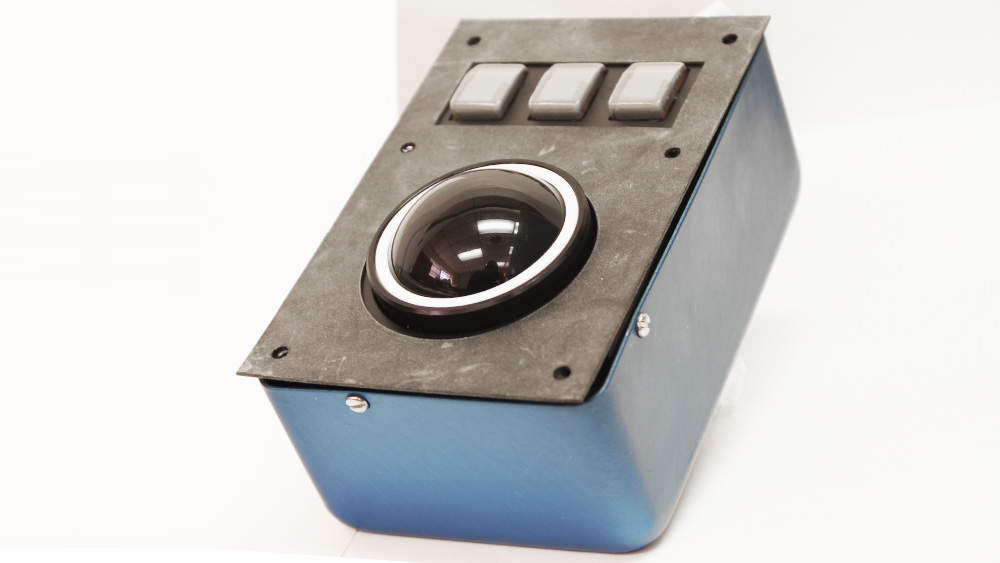

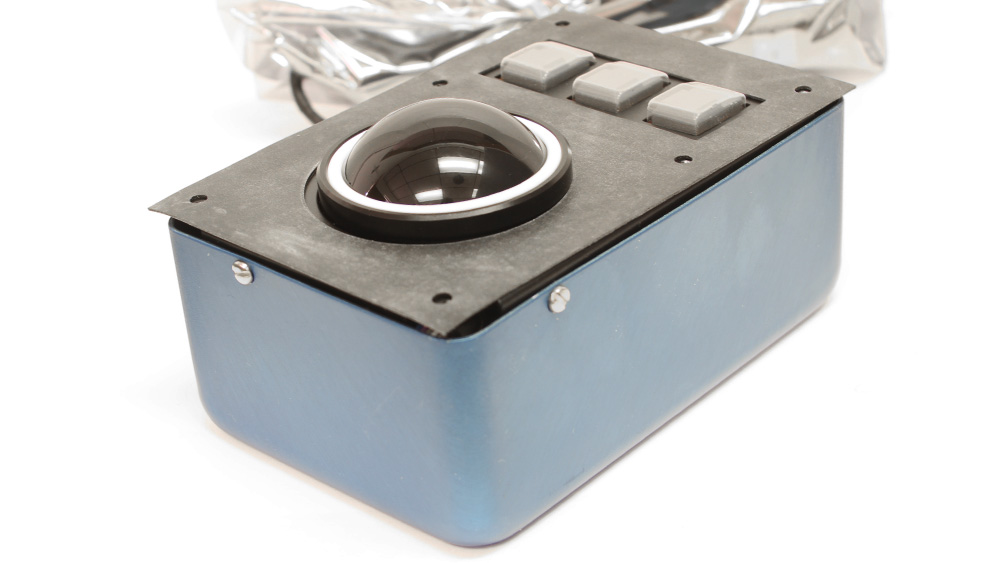

T70X3 Series Industrial Trackball

1.5" (38mm) Panel Mount Trackball Mouse Pointer w/ 3 Sealed Switches

Product Information

The T70X3 Series of industrial trackballs have CTI’s high reliability 1.5 inch (38mm) diameter trackball in a compact, metal panel mount enclosure with three sealed switches and a neoprene gasket, and is ready for panel mounting with four screws. The switches are full travel mechanical switches with gold contacts rated at 5,000,000 cycles, and are protected with a molded polyurethane seal; which in combination with the formed Teflon sealing ring provide spill resistance. The 1.5 inch diameter sealed mouse pointers can withstand over 30g forces. The encoder resolution is available as either 960 or 480 per rotation, or divisions thereof.

Although these industrial computer mouse pointers are very compact, they come complete with an interface PCB and cable compatible with all types of computers. With a smaller ball, these trackball mouse pointers are suitable for higher g force applications, such as military and aerospace.

CTI's custom panel mount trackballs are ruggedized to meet aerospace, medical, and military standards. CTI's panel mount trackballs can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These panel mount trackballs are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

T70X3 Series Industrial Trackball Specification

Opto-Mechanical Industrial Trackballs

Shock and Vibration:
Diameter Resolution Shock   Vibration
1.3 inch (33mm) 416 cts/rev 100g 11ms - 1/2 sine 5-55HZ @ 0.013” DA
1.5 inch (38mm) 480 cts/rev 30g 11ms - 1/2 sine 5-55HZ @ 0.013” DA
2.0 inch (50mm) 640 cts/rev 10g 11ms - 1/2 sine 5-55HZ @ 0.013” DA

Environmental:
Operating: Up to 40,000 ft with conformal coating option
Horizontal Mounting: Recommended 0° to 30° Maximum (with Vibration Dampening Material)
Humidity: reliable operation from 0 to 95% relative humidity.
Trackball and Switch Assemblies sealed to NEMA 12 (IP54), for indoor use.

Temperature Ratings: (Operational)
Operating Temperature 0º to 70º C
Operating Temperature (Optional):   -25º to 80º C
Operating Temperature (Optional): -40º to 80º C (Typical Military & Aerospace Applications)
Storage Temperature:        -40º to 80º C

Mechanical:
Micro etched metal encoder wheels allow for greater resolution than possible with plastic
Precision instrument grade, shielded, bearings (ABEC Grade 7), rated @ 20 years continuous rolling life
No rubber or foam on rollers, no cleaning of shaft required
Precision ground and hardened stainless steel shaft
Precision ground ball to ± .002” tolerance
Formed Teflon sealing ring in an aluminum housing cleanable with alcohol

Photo Detectors:
Redundant photo detectors for each axis.  Not sensitive to LED fading
Guarantees longest reliability beyond 10 years without the need for re-calibration

Reliability:
MTBF (Mean Time between Failures): greater than 100,000 hours per MIL-HDBK-217F

Power Requirements:
+5VDC supply
Max. 40mA @ 5V OEM version without Interface PCB
Max. 70mA @ 5V OEM version with Interface PCB

Certifications:
Meets FCC Class A
Meets CE Requirements
ESD rated to 15KV

Options:
Low temperature operation
Vibration Dampening Material – Silicone based
Conformal coating of PCB
Microprocessor interface PCB
RoHS – Special Order
PDF Icon
Trackball Mouse Cursors Specifications, Test & MTBF Data

Pricing

Panel Mount Industrial Trackball (Mouse Pointing Device) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPanel Mount Industrial Trackball (Mouse Pointing Device) Pricing

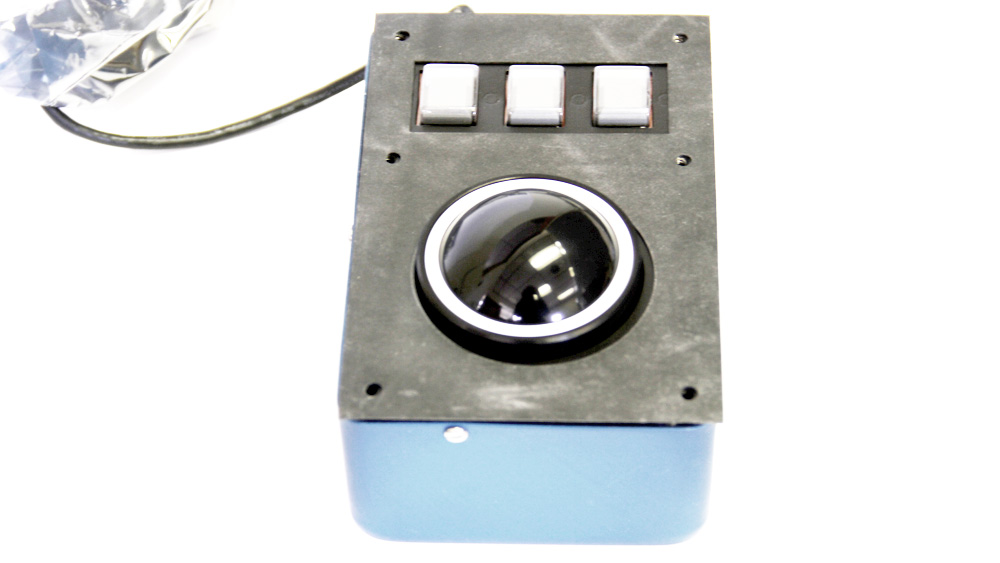

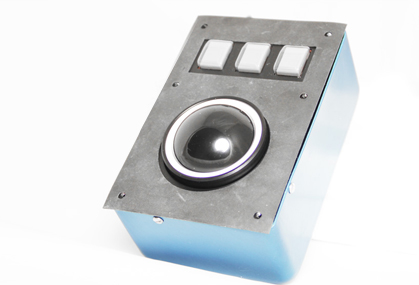

T70X3 Panel Mount Industrial Trackball
Photos
Videos
How-To
RFQ

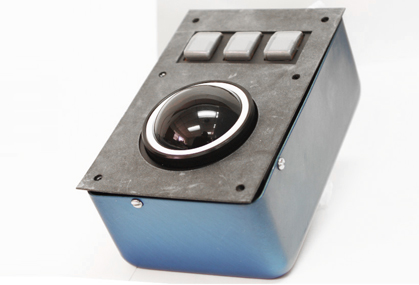

T10X3 Series Industrial Trackball

2.0" (50mm) Panel Mount Trackball Mouse Pointers w/ 3 Sealed Switches

Product Information

The T10X3 Series of industrial trackballs have CTI’s high reliability 2.0 inch (50mm) diameter trackball in a compact, metal panel mount enclosure with three sealed switches and a neoprene gasket, and is ready for panel mounting with four screws. The switches are full travel mechanical switches with gold contacts rated at 5,000,000 cycles, and are protected with a molded polyurethane seal; which in combination with the formed Teflon sealing ring provide NEMA 12 (IP54) sealing. These 2.0 inch diameter precision mouse pointers are the perfect solution for medical applications. These rugged trackballs can withstand over 10g forces. The encoder resolution is available as either 1280 or 640 per rotation, or divisions thereof.

These sealed industrial trackballs come complete with an interface PCB and cable compatible with all types of computers.

CTI's custom panel mount trackballs are ruggedized to meet aerospace, medical, and military standards. CTI's panel mount trackballs can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These panel mount trackballs are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

T10X3 Series Industrial Trackball

Opto-Mechanical Industrial Trackballs

Shock and Vibration:
Diameter Resolution Shock   Vibration
1.3 inch (33mm) 416 cts/rev 100g 11ms - 1/2 sine 5-55HZ @ 0.013” DA
1.5 inch (38mm) 480 cts/rev 30g 11ms - 1/2 sine 5-55HZ @ 0.013” DA
2.0 inch (50mm) 640 cts/rev 10g 11ms - 1/2 sine 5-55HZ @ 0.013” DA

Environmental:
Operating: Up to 40,000 ft with conformal coating option
Horizontal Mounting: Recommended 0° to 30° Maximum (with Vibration Dampening Material)
Humidity: reliable operation from 0 to 95% relative humidity.
Trackball and Switch Assemblies sealed to NEMA 12 (IP54), for indoor use.

Temperature Ratings: (Operational)
Operating Temperature 0º to 70º C
Operating Temperature (Optional):   -25º to 80º C
Operating Temperature (Optional): -40º to 80º C (Typical Military & Aerospace Applications)
Storage Temperature:        -40º to 80º C

Mechanical:
Micro etched metal encoder wheels allow for greater resolution than possible with plastic
Precision instrument grade, shielded, bearings (ABEC Grade 7), rated @ 20 years continuous rolling life
No rubber or foam on rollers, no cleaning of shaft required
Precision ground and hardened stainless steel shaft
Precision ground ball to ± .002” tolerance
Formed Teflon sealing ring in an aluminum housing cleanable with alcohol

Photo Detectors:
Redundant photo detectors for each axis.  Not sensitive to LED fading
Guarantees longest reliability beyond 10 years without the need for re-calibration

Reliability:
MTBF (Mean Time between Failures): greater than 100,000 hours per MIL-HDBK-217F

Power Requirements:
+5VDC supply
Max. 40mA @ 5V OEM version without Interface PCB
Max. 70mA @ 5V OEM version with Interface PCB

Certifications:
Meets FCC Class A
Meets CE Requirements
ESD rated to 15KV

Options:
Low temperature operation
Vibration Dampening Material – Silicone based
Conformal coating of PCB
Microprocessor interface PCB
RoHS – Special Order
PDF Icon
Trackball Mouse Cursors Specifications, Test & MTBF Data

Pricing

Panel Mount Industrial Trackball (Mouse Pointing Device) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPanel Mount Industrial Trackball (Mouse Pointing Device) Pricing


T10X3 Panel Mount Industrial Trackball
Photos
Videos
How-To
RFQ

T40X3 Series Industrial Trackball

3.0" (76mm) Panel Mount Trackball Mouse Pointer w/ 3 Sealed Switches

Product Information

The T40X3 series of industrial trackballs have CTI’s high reliability, large 3.0 inch (76mm) diameter trackball in a metal panel mount enclosure with three sealed switches and a neoprene gasket, and is ready for panel mounting with six screws. The switches are full travel mechanical switches with gold contacts rated at 5,000,000 cycles, and are protected with a molded polyurethane seal; which in combination with the formed Teflon sealing ring provide NEMA 12 (IP54) sealing. The 3.0 inch rugged mouse cursors can withstand over 6g forces. The encoder resolution is available as either 1280 or 640 per rotation, or divisions thereof.

These precision trackball mouse pointers are complete with an interface PCB and cable compatible with all types of computers. The large ball diameter has substantial rotational inertia, which provides exceptional feel and ease of use, particularly for demanding applications of trackball mouse cursors; such as control rooms, radar sites or air-traffic control.

CTI's custom panel mount trackballs are ruggedized to meet aerospace, medical, and military standards. CTI's panel mount trackballs can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These panel mount trackballs are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

T40X3 Series Industrial Trackball

Opto-Mechanical Industrial Trackballs

Shock and Vibration:
Diameter Resolution Shock   Vibration
3.0 inch 640 cts/rev 6g 11ms - 1/2 sine 5-55HZ @ 0.013” DA

Environmental:
Operating: Up to 40,000 ft with conformal coating option
Horizontal Mounting: Recommended 0° to 30° Maximum (with Vibration Dampening Material)
Humidity: reliable operation from 0 to 95% relative humidity.
Trackball and Switch Assemblies sealed to NEMA 12 (IP54), for indoor use.
Sealed switch assembles
Conformal coating of PCB

Temperature Ratings: (Operational)
Operating Temperature 0º to 70º C
Operating Temperature (Optional):   -25º to 80º C
Operating Temperature (Optional): -40º to 80º C (Typical Military & Aerospace Applications)
Storage Temperature:        -40º to 80º C

Mechanical:
Micro etched metal encoder wheels allow for greater resolution than possible with plastic
Precision instrument grade, shielded, bearings (ABEC Grade 7), rated @ 20 years continuous rolling life
No rubber or foam on rollers, no cleaning of shaft required
Precision ground and hardened stainless steel shaft
Precision ground ball to ± .002" tolerance
Formed Teflon sealing ring in an aluminum housing cleanable with alcohol

Photo Detectors:
Redundant photo detectors for each axis. Not sensitive to LED fading
Redundant photo detectors for each axis. Not sensitive to LED fading

Reliability:
MTBF (Mean Time between Failures): greater than 100,000 hours per MIL-HDBK-217F

Power Requirements:
+5VDC supply
Max. 70mA @ 5V OEM version with Interface PCB

Certifications:
Meets FCC Class A
Meets CE Requirements
ESD rated to 15KV

Options:
Low temperature operation
Vibration Dampening Material – Silicone based
Conformal coating of PCB
Microprocessor interface PCB
RoHS – Special Order
PDF Icon Trackball Mouse Cursors Specifications, Test & MTBF Data

Pricing

Panel Mount Industrial Trackball (Mouse Pointing Device) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPanel Mount Industrial Trackball (Mouse Pointing Device) Pricing


T40X3  Panel Mount Industrial Trackball
Photos
Videos
How-To
RFQ
TOP
Manufactured in U.S.A. Manufactured in U.S.A. Copyright © 2001-2017 | CTI Electronics Corporation an affiliate of ELECTRO SWITCH | Tel: (203) 386-9779 | All Rights Reserved - sitemap | Sales | Tech
