Medical Keyboard | Cleanroom Keyboards




KI6800 OEM Medical / Cleanroom Keyboard KIO7800 OEM Medical / Cleanroom Keyboard KI6800 Medical / Cleanroom Keyboard

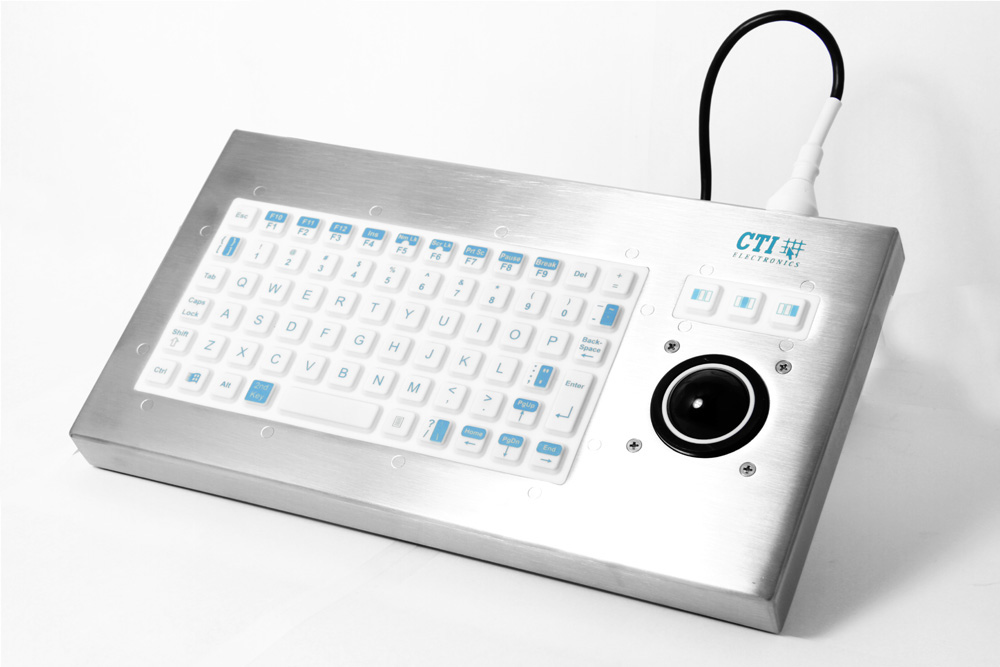

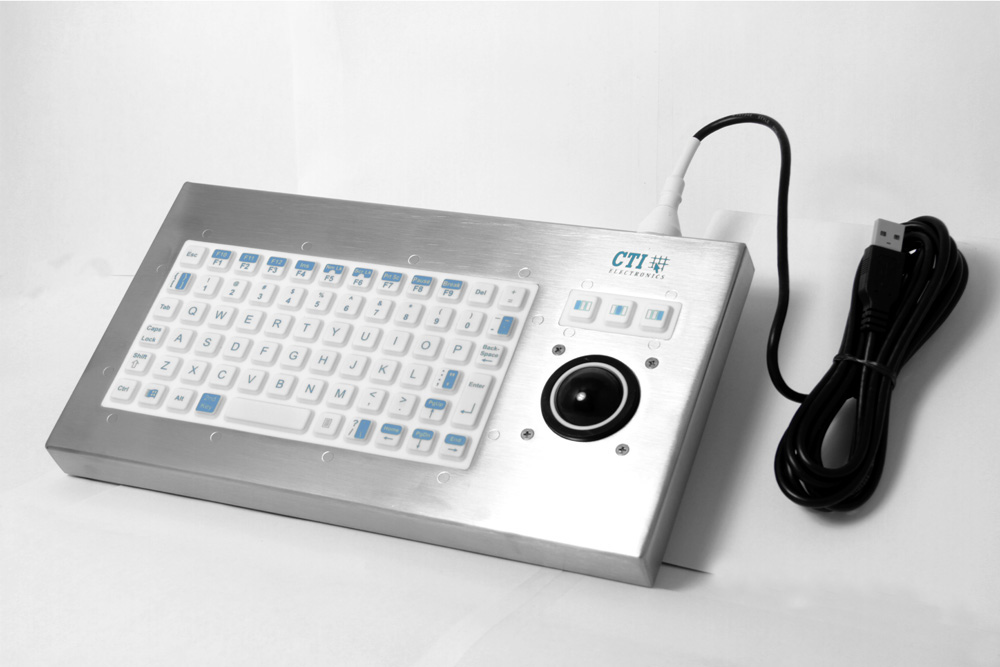

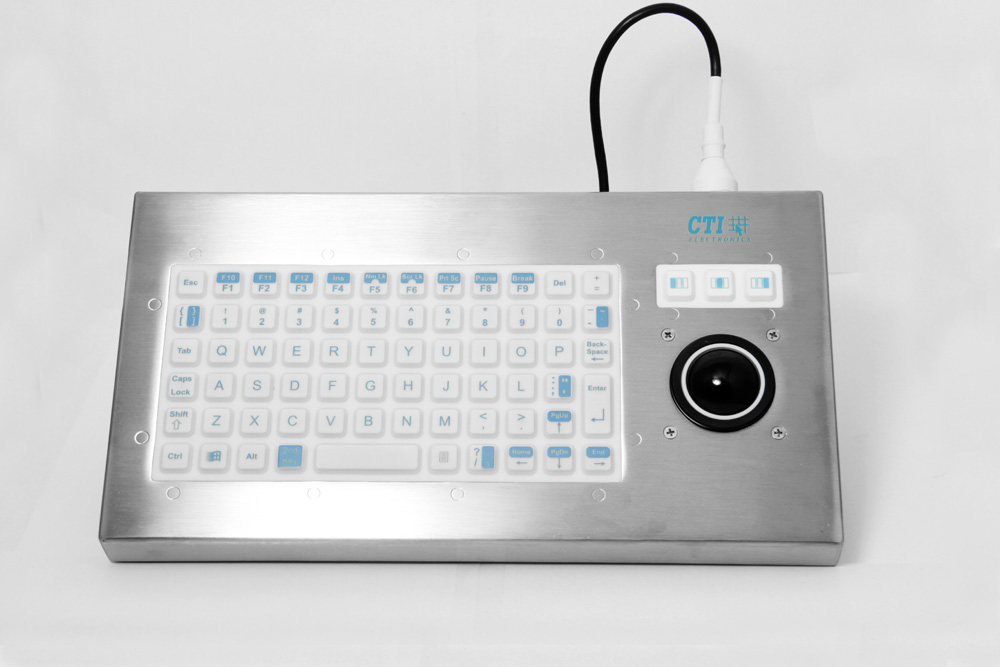

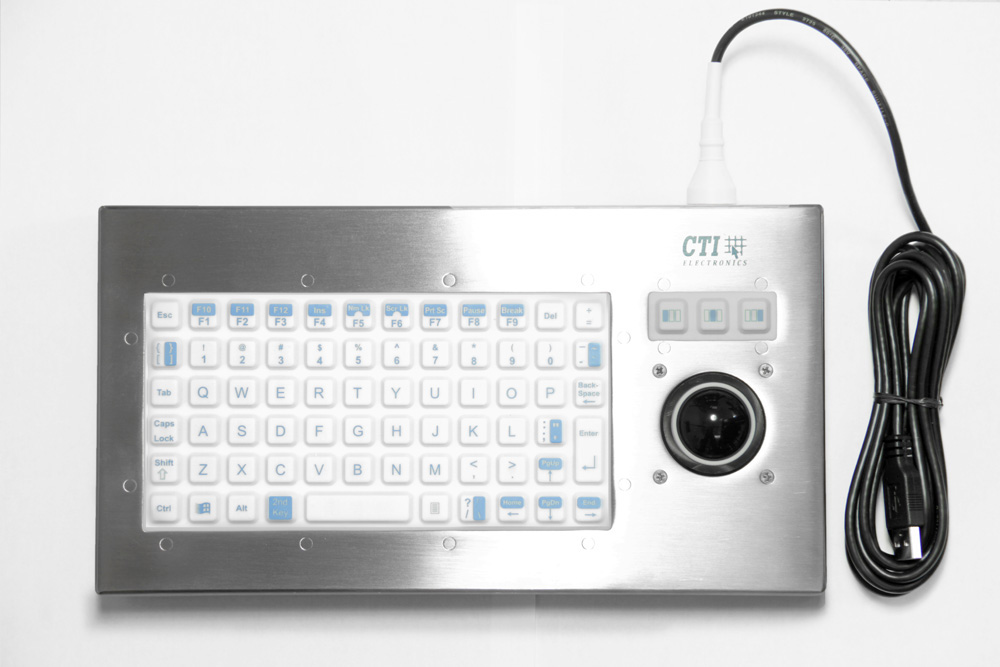

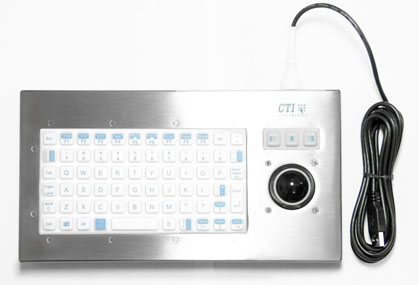

KIF6000 Medical / Cleanroom Keyboard KIT6000 Medical / Cleanroom Keyboard KIO7000 Medical / Cleanroom Keyboard

CTI' medical keyboard is the most reliable and durable hygienic keyboard available anywhere in the world today. It's NEMA 4 (IP66) watertight sealing protection resists ingress of liquid or solid debris. What makes these medical keyboards really special is the parylene coating protection that is applied to the white rubber FDA Silicone elastomers, strain relief, joystick boot and knob. On a molecular level, Parylene encapsulates the substrate materials of the hygienic keyboard to ensure a non-permeable surface to bio-hazardous agents.

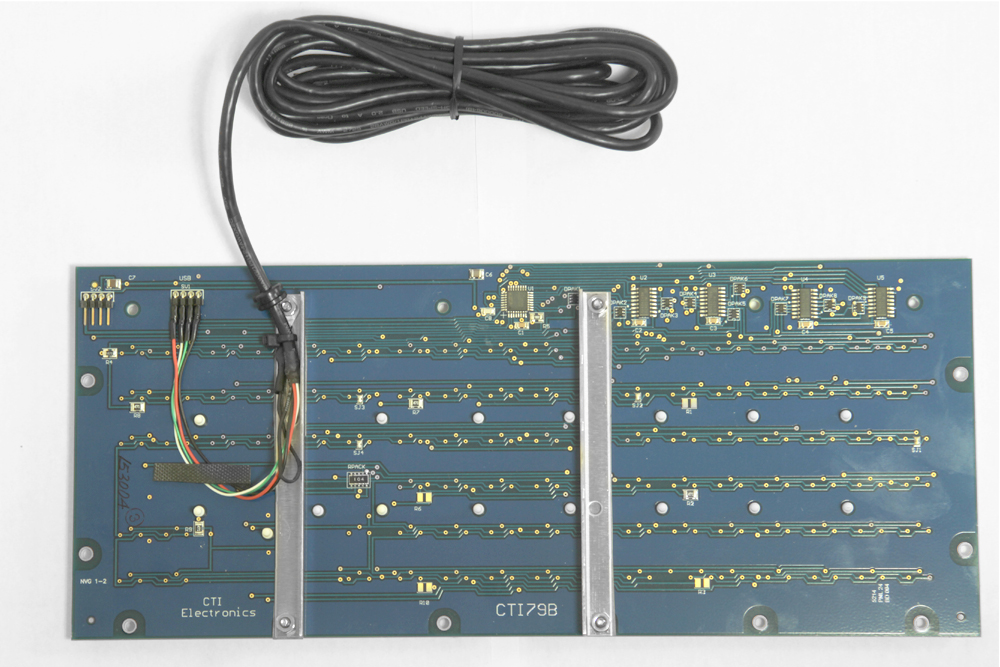

The robust design of CTI' medical keyboard is comprised of a PCB with "hard gold" contact surface, "hard carbon" pills, and a tactile rubber elastomer that has exceeded 10,000,000 activations. When installed in either iridited painted aluminum or the finest grade of stainless steel these medical keyboards will provide 10+ years of reliable service.
Long term durability is guaranteed through the use of the highest quality materials and components which also ensures the highest reliability while being subjected to repeated hygienic cleaning, disinfection, or sterilization. CTI' hygienic keyboard is the only choice when reliability is critical™ to the success of your application.

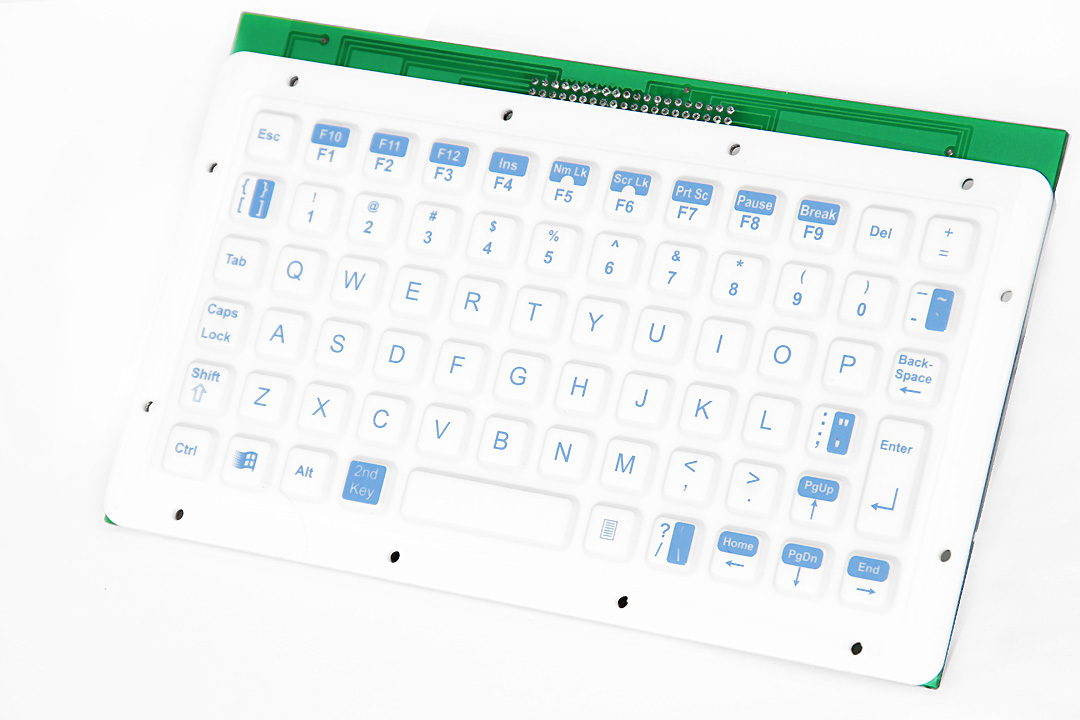

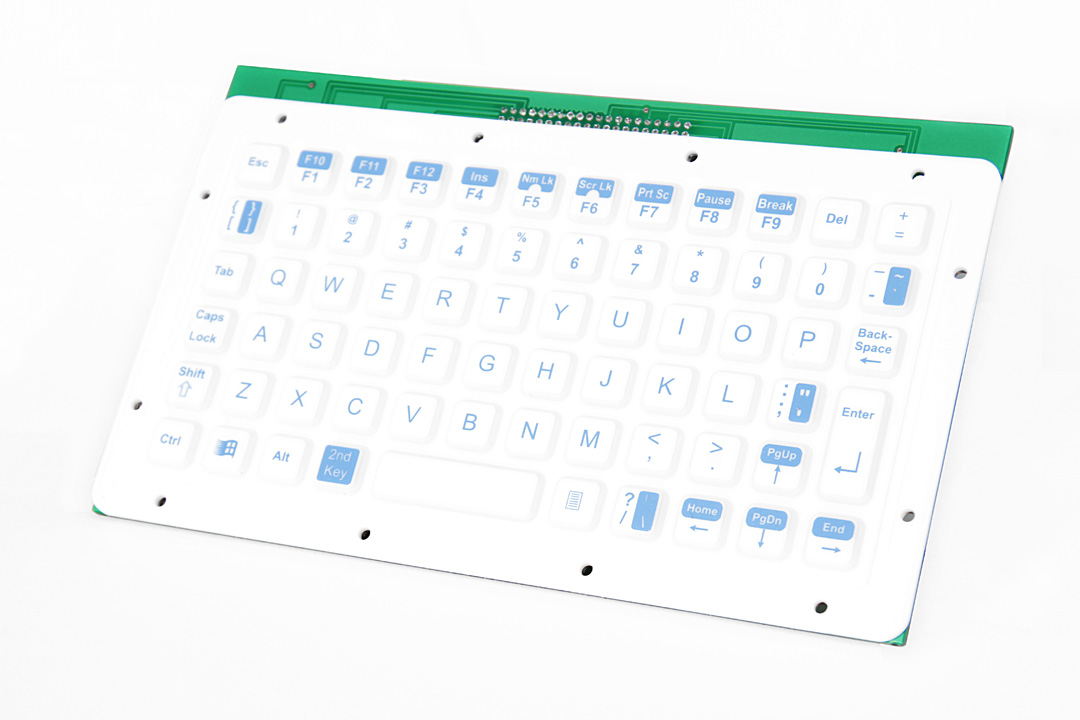

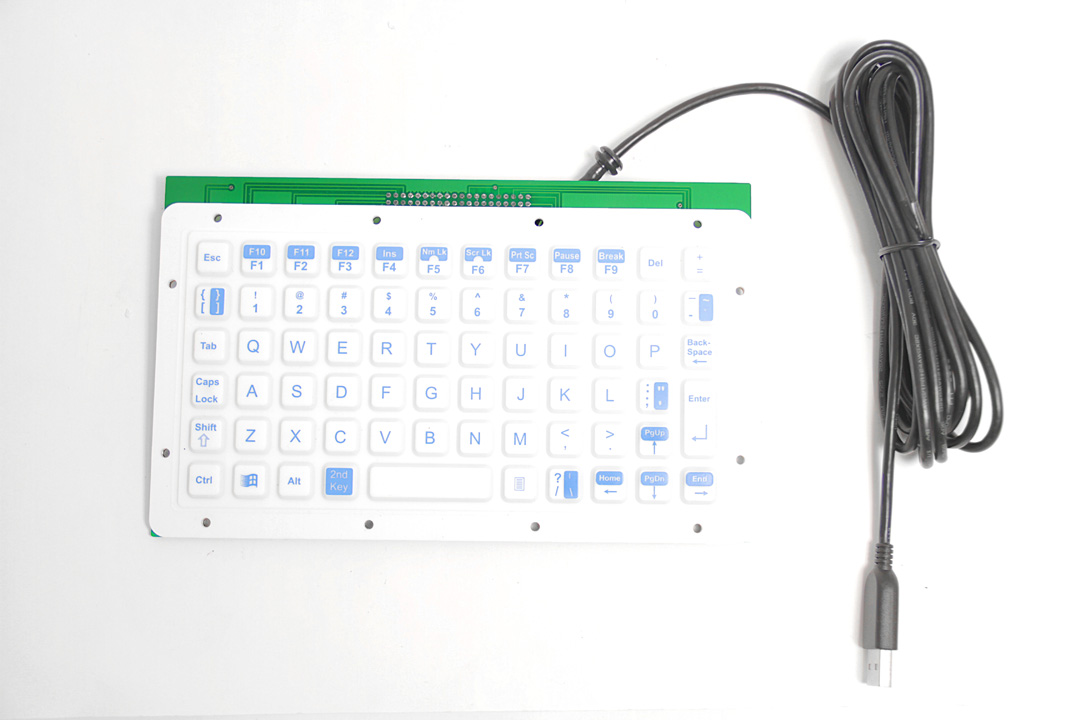

KI68U6 Series OEM Hygienic Keyboard

PDF Icon Understanding NEMA and IP Ratings

NEMA 4 (IP66) OEM Hygienic Keyboard

Product Information

The NEMA 4 (IP66) sealing KI6800 Series hygienic keyboard is an "open frame" that is offered to Original Equipment Manufacturers. The innovative small footprint is the most compact size available with 69 keys providing 101/104 key functionality. The heavy duty PCB is layered with thick "hard gold" contacts and the white FDA silicone elastomer has molded "hard carbon" pill contacts that combined have been proven to provide more than 10 years of reliable, maintenance free, service. The white FDA silicone elastomer with its 2mm key travel provides excellent tactile feel, but most impressive is the impermeable molecular barrier sealing protection obtained from a Parylene C conformal coating process. This miniature hygienic keyboard repels infectious pathogens or carcinogenic compounds so that proper decontamination, sanitization, or sterilization procedures can easily remove.

As an OEM of medical devices or cleanroom devices, this hygienic keyboard can be confidently designed into equipment with an assurance of high reliability and long term durability. Applications include managing infection control in healthcare facilities with usage as a medical keyboard, hospital keyboard, medical cart keyboard, surgical keyboard, or operating room (OR) keyboard. Or, managing exposure and/or contamination control in chemical, biological, or pharmaceutical research laboratories and other cleanroom facilities such as semiconductor, lithography, and manufacturing with a cleanroom keyboard.

Related Documentation:

Specifications

KI6800 Series OEM Hospital Keyboard Specification

Medical Keyboards with ArrowMouse™ Mouse Pointer
Anodized beige or black aluminum enclosure
Stainless steel enclosure available
Molded silicone rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel
ArrowMouse™ (Arrow Key Mouse Cursors)
Optional French (AZERTY), Spanish (QWERTY), German (QWERTZ), Italian (QWERTY)
PS/2 or USB Interface with optional Bulkhead Cable

Features
Two stainless steel threaded mounting holes (in bottom plate)
Back lighting option: RED or GREEN LED's
Black Elastomer or Gray Elastomer
Rugged NEMA 4, 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Made in the USA

Reliability

MTBF (Mean Time between Failures): Electronics is greater than 100,000 hours
Operating Temperature: -40º to 80º C
Storage Temperature:  -40º to 80º C
Shock rating:   50g 11msec. half sine, three axes
Vibration:    10-55 Hz@ 0.013 DA
Elastomer keys: Rated for up to 10 million cycles
Contact Keys: "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts.


NEMA and IP Sealing and Protection Standards
NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Parylene® coated

Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
Electro Static Discharge (ESD) rated to 15KV

KI6800 Medical Keyboard Specification Data PDF Icon

Pricing

OEM Medical Keyboard Pricing

Thank you for selecting CTIs medical computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "medical grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called medical products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF Icon OEM Medical Keyboard Pricing

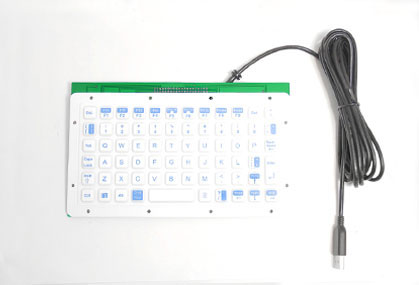

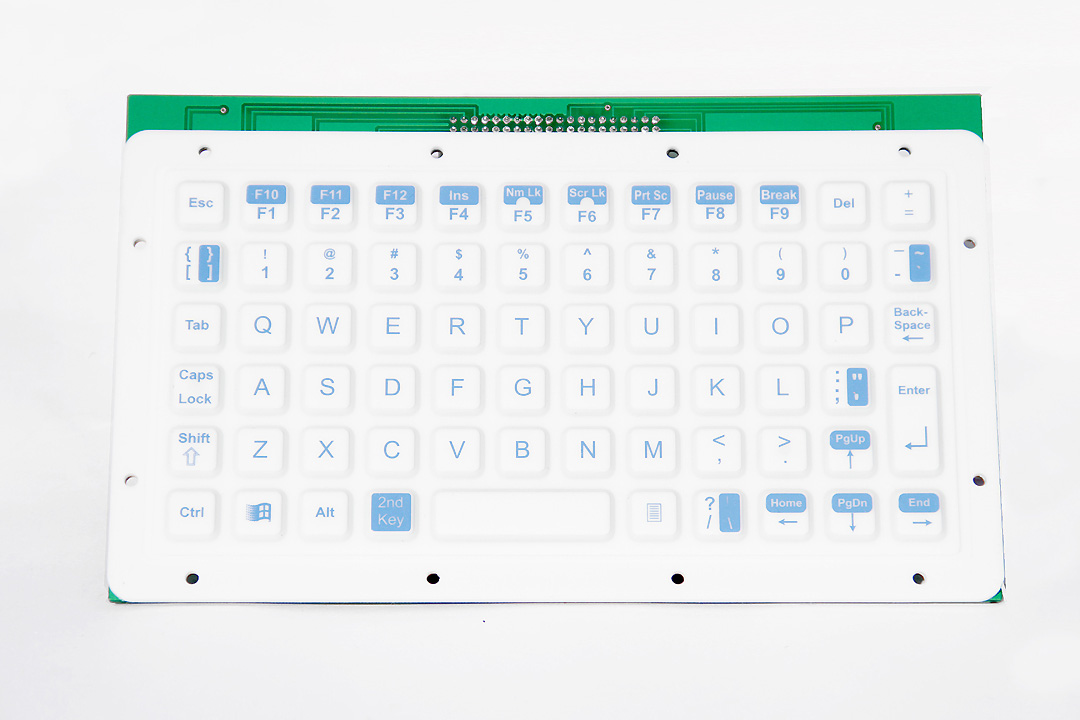

KI6800 Series OEM Hygienic Keyboard Image
Photos
Videos
How-to
RFQ

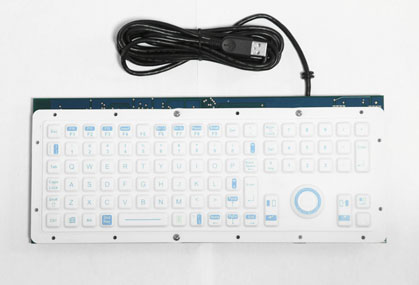

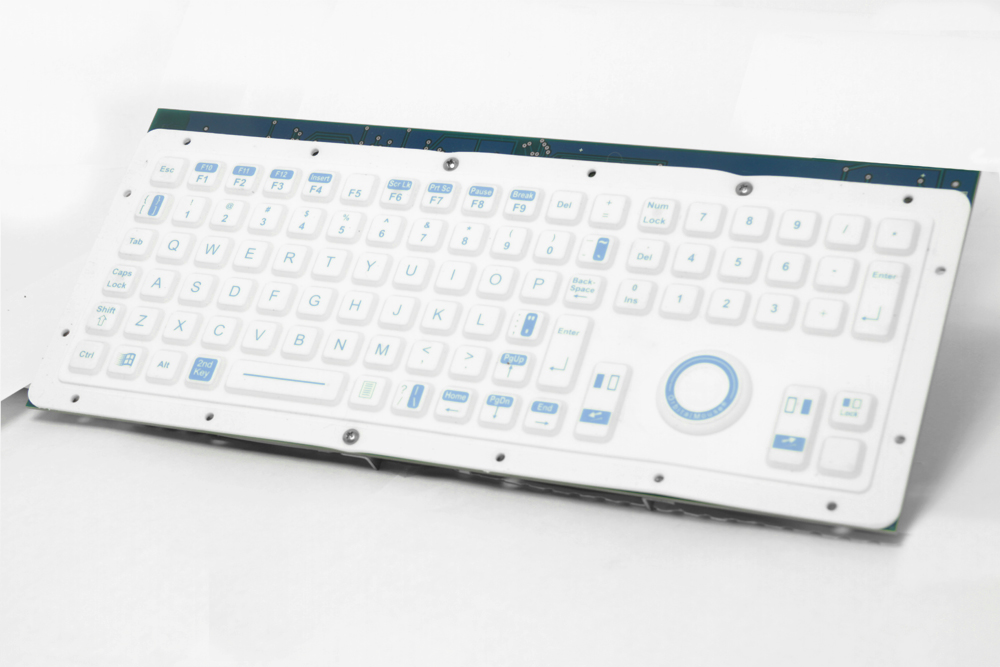

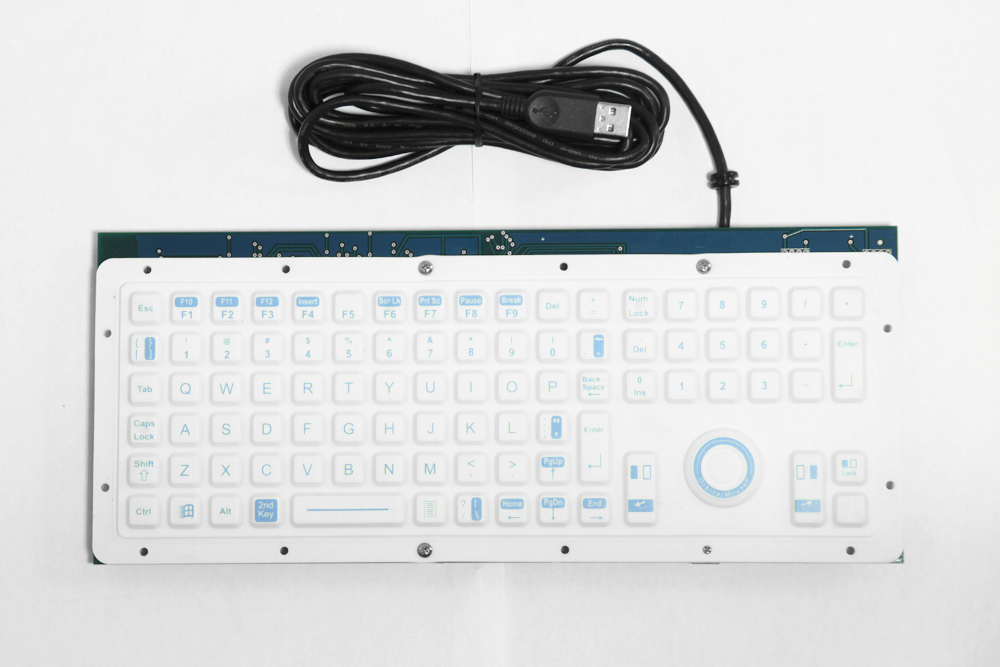

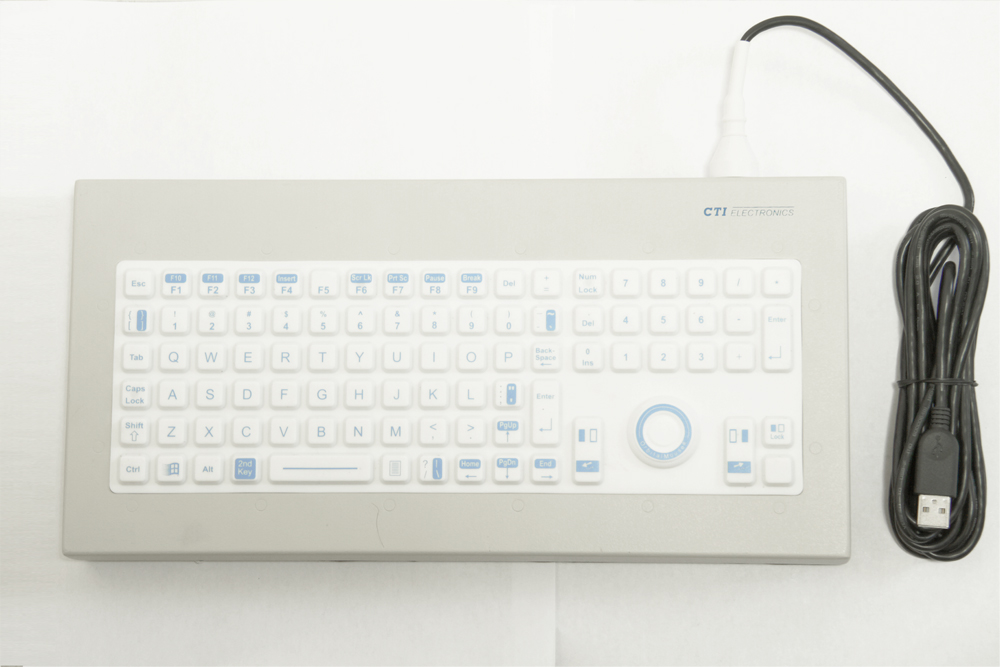

KIO7800 Series OEM Medical Keyboard with Orbital Mouse®

PDF Icon Understanding NEMA and IP Ratings

NEMA 4 (IP66) OEM Medical Keyboard with Orbital Mouse®

Product Information

The NEMA 4 (IP66) sealing KIO7800 Series hygienic keyboard is an "open frame" that is offered to Original Equipment Manufacturers. The compact size retains 90 full size keys with 101/104 key functionality, a numeric keypad, and the Orbital Mouse® button style "drift free" mouse pointer. Two stiffener brackets strengthen the heavy duty PCB which is layered with thick "hard gold" contacts. Covered with a white FDA silicone elastomer having molded "hard carbon" pill contacts has been proven to provide more than 10 years of reliable, maintenance free, service. The white FDA silicone elastomer with its 2mm key travel provides excellent tactile feel, but most impressive is the impermeable molecular barrier sealing protection obtained from a Parylene C conformal coating process. This compact hygienic keyboard is impervious to infectious pathogens or carcinogenic compounds with allows complete removal by proper decontamination,sanitization, or sterilization procedures.

As an OEM of medical devices or cleanroom devices, this hygienic keyboard can be confidently designed into equipment with an assurance of high reliability and long term durability. Applications include managing infection control in healthcare facilities with usage as a medical keyboard, hospital keyboard, medical cart keyboard, surgical keyboard, or Intensive-care keyboard. Or, managing exposure and/or contamination control in chemical, biological, or pharmaceutical research laboratories and other cleanroom facilities such as semiconductor, lithography, and manufacturing with a cleanroom keyboard.

Related Documentation:

Specifications

KIO7800 Series OEM Medical Keyboard Specification

Medical Keyboards with OrbitalMouse® Mouse Pointers
Anodized aluminum enclosure powder coated beige or black
Stainless steel enclosure available
Molded rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel
OrbitalMouse® (Button Style Mouse Cursors)
Optional French (AZERTY), Spanish (QWERTY), German (QWERTZ), Italian (QWERTY) legend
PS/2, or USB Interface with optional Bulkhead Cable

Features
Two stainless steel threaded mounting holes (in bottom plate)
Back lighting option: RED or GREEN LED's
Black Elastomer with backlighting option
Gray Elastomer standard
Rugged NEMA 4, NEMA 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Made in the USA

Reliability

MTBF (Mean Time between Failures): Electronics is greater than 100,000 hours
Operating Temperature: -40º to 80º C
Storage Temperature:  -40º to 80º C
Shock rating:   50g 11msec. half sine, three axes
Vibration:    10-55 Hz@ 0.013 DA
Elastomer keys: Rated for up to 10 million cycles
Contact Keys: "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts.

NEMA and IP Sealing and Protection Standards
NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Parylene® coated

Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV

United States Patents
U.S. Patent No. 7,499,032
U.S. Patents Pending 12/344368

PDF Icon KIO7800 Medical Keyboard Specification Data

Pricing

OEM Medical Keyboard Pricing

Thank you for selecting CTIs medical computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "medical grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called medical products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


OEM Medical Keyboard Pricing PDF Icon

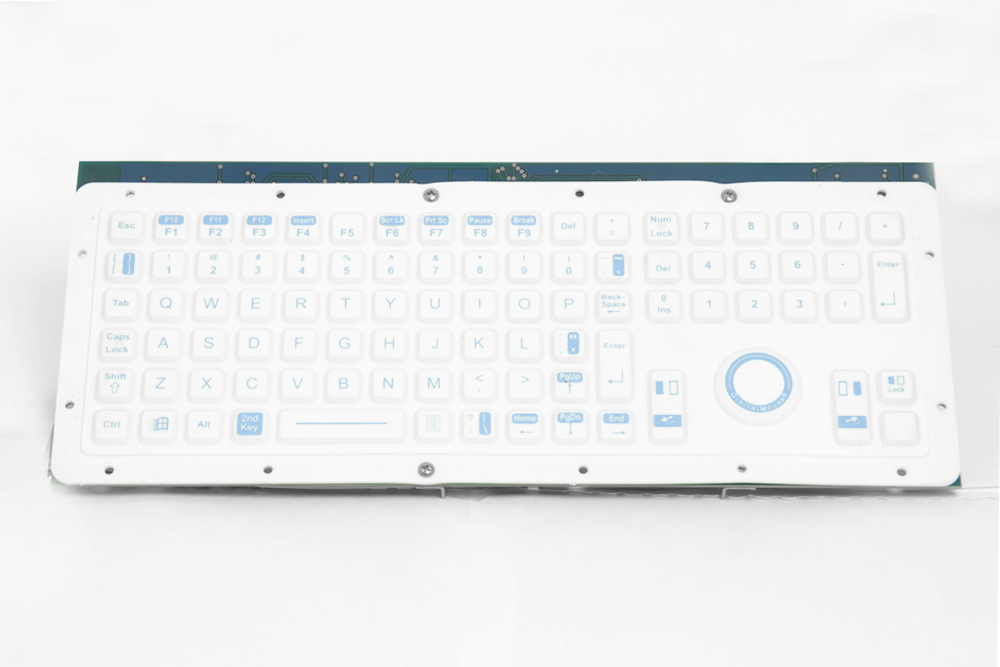

KIO7800 Series OEM Medical Keyboard with Orbital Mouse® Image
Photos
Videos
How-To
RFQ

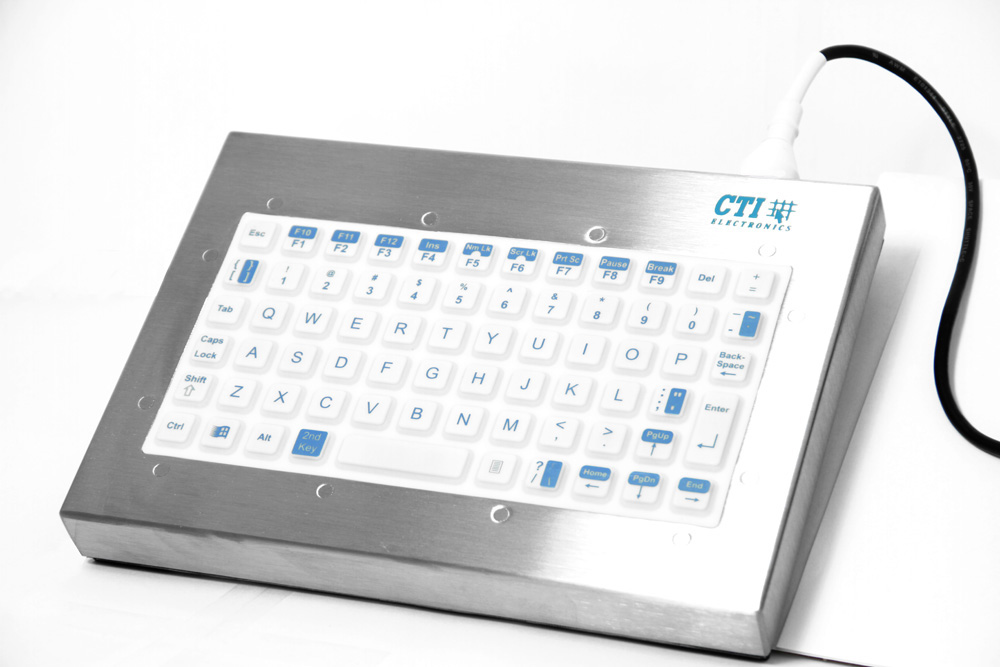

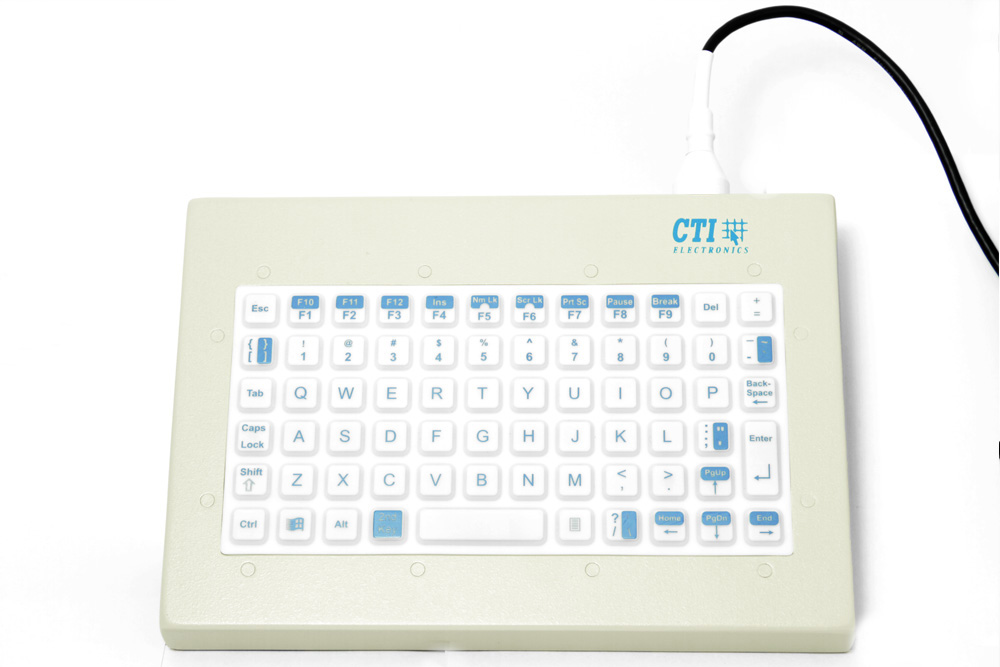

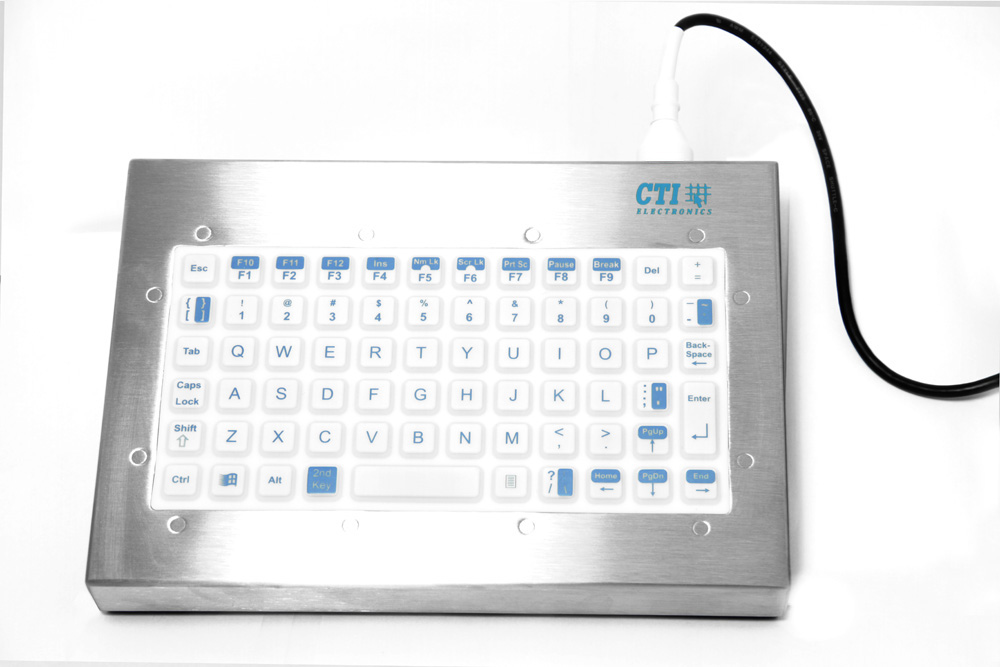

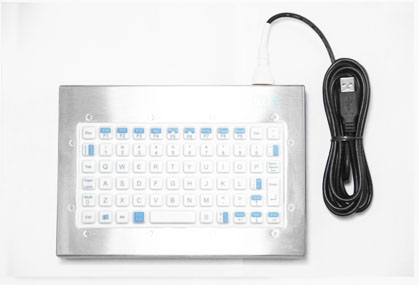

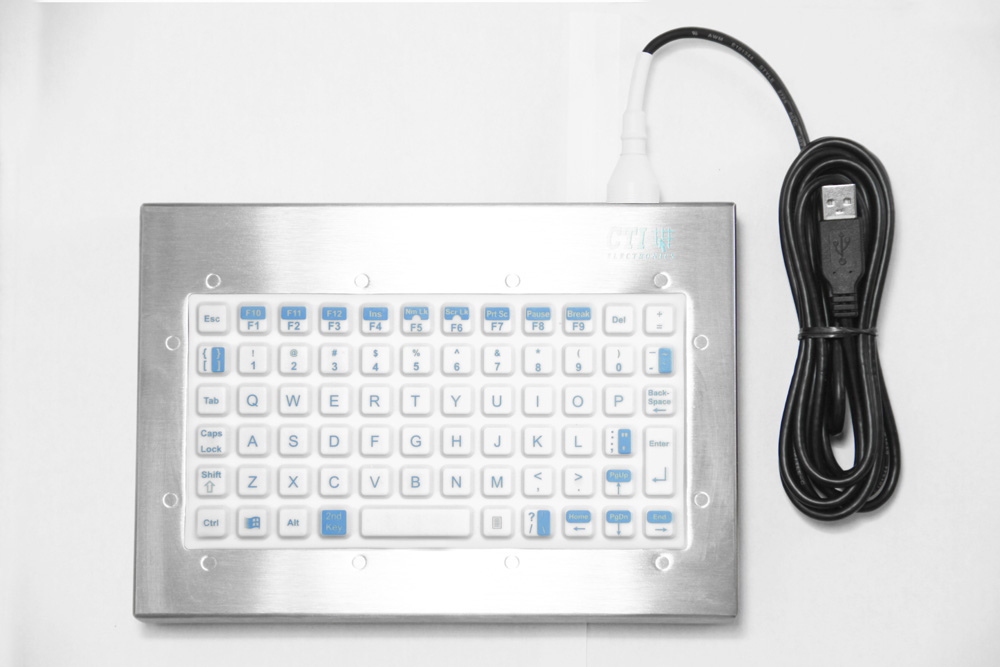

KI6000 Series Hospital Keyboard

PDF Icon Understanding NEMA and IP Ratings

NEMA 4 (IP66) Miniature Sealed Hospital Keyboards

Product Information

The NEMA 4X (IP66) sealed KI6000 Series hygienic keyboard is a fully enclosed Plug-n-Play keyboard that is offered to Systems Integrators and Commercial End Users. The innovative small footprint with 69 keys is the most compact size available that still retains 101/104 key functionality. The heavy duty PCB is layered with thick "hard gold" contacts and the white FDA silicone elastomer has molded "hard carbon" pill contacts that combined have been proven to provide more than 10 years of reliable, maintenance free, service. The white FDA silicone elastomer with its 2mm key travel provides excellent tactile feel, but most impressive is the impermeable molecular barrier sealing protection obtained from a Parylene C conformal coating process. This miniature hygienic keyboard repels infectious pathogens or carcinogenic compounds so that proper decontamination,sanitization,or sterilization procedures can easily remove.

These Plug-n-Play miniature hygienic keyboards are sealed (water resistant) in the finest grade of stainless steel or anodized aluminum. The metal enclosure employs a gasket sealed bottom plate which has two stainless steel threaded inserts for mounting to a surface. The 9.5 foot USB cable is secured through a specially designed white PVC strain relief which is Parylene C coated. Optionally, a USB bulkhead cable is available if the USB port is behind a panel or cabinet.

As a Plug-n-Play medical device or cleanroom device, this hygienic keyboard can be confidently installed with an assurance of high reliability and long term durability. Applications such as managing infection control in healthcare facilities have found usage as a medical keyboard, hospital keyboard, medical cart keyboard, surgical keyboard, or Intensive-care keyboard. Also, usage as a cleanroom keyboard for managing exposure and/or contamination control in chemical, biological, or pharmaceutical research laboratories and other cleanroom facilities such as semiconductor, lithography, and manufacturing.

Related Documentation:

Specifications

KI6000 Series Hospital Keyboard Specification

Medical Keyboards without Mouse Pointer
Anodized beige or black aluminum enclosure
Stainless steel enclosure available
Molded silicone rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel
Optional French (AZERTY), Spanish (QWERTY), German (QWERTZ), Italian (QWERTY)
Serial, PS/2, or USB Interface with optional Bulkhead Cable

Features
Two, stainless steel threaded mounting holes (in bottom plate)
Back lighting option: RED or GREEN LED's
Black Elastomer or Gray Elastomer
Rugged NEMA 4, 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Made in the USA

Reliability

MTBF (Mean Time between Failures): Electronics is greater than 100,000 hours
Operating Temperature: -40º to 80º C
Storage Temperature:  -40º to 80º C
Shock rating:   50g 11msec. half sine, three axes
Vibration:    10-55 Hz@ 0.013 DA
Elastomer keys: Rated for up to 10 million cycles
Contact Keys: "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts.  A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts is used.

NEMA and IP Sealing and Protection Standards
NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Parylene® coated

Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
Electro Static Discharge (ESD) rated to 15KV

PDF Icon KI6000 Series - NEMA 4 (IP66) Computer Keyboards

Pricing

Plug-n-Play Medical Keyboard Pricing

Thank you for selecting CTIs medical computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "medical grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called medical products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


Plug-n-Play Medical Keyboard Pricing PDF Icon

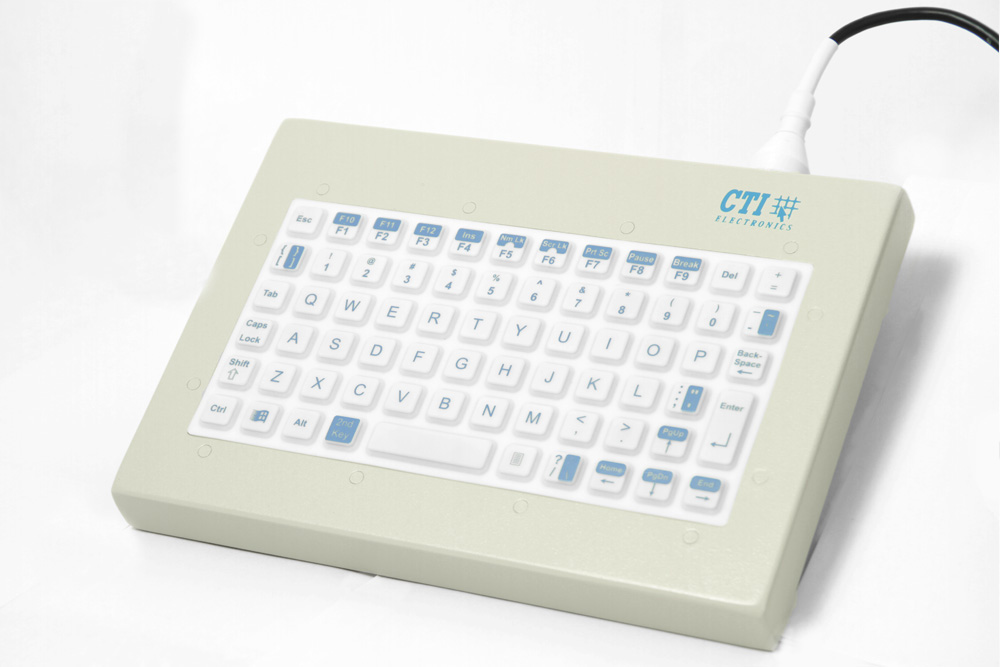

KI6000 Hospital Keyboard
Photos
Videos
How-To
RFQ

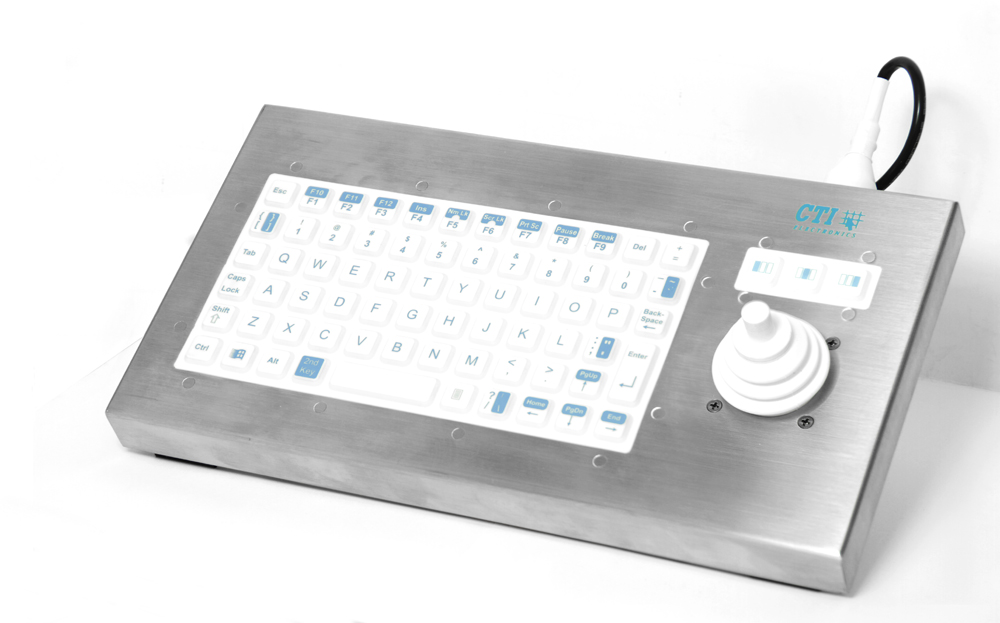

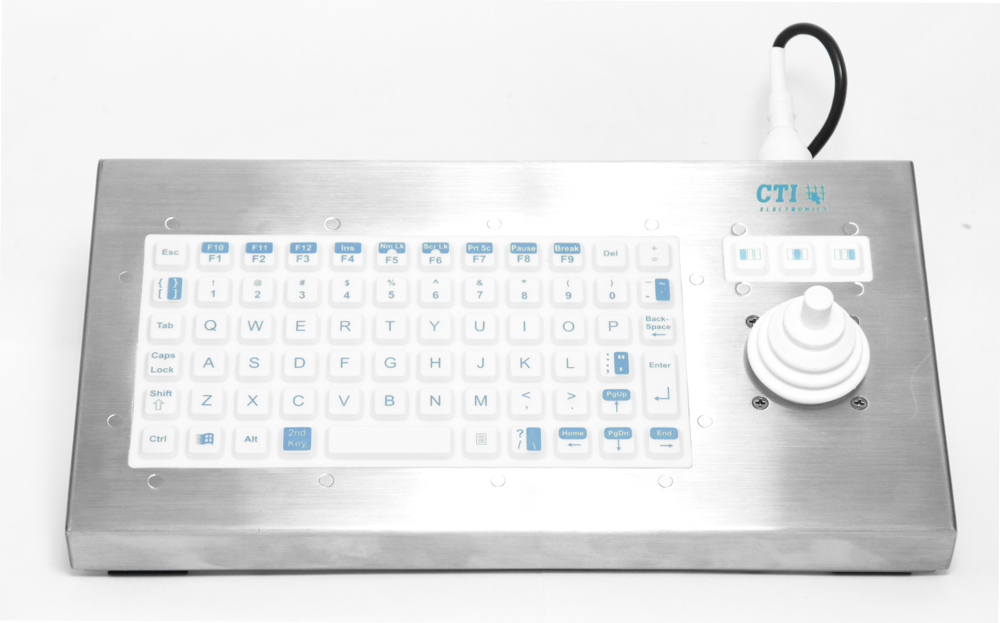

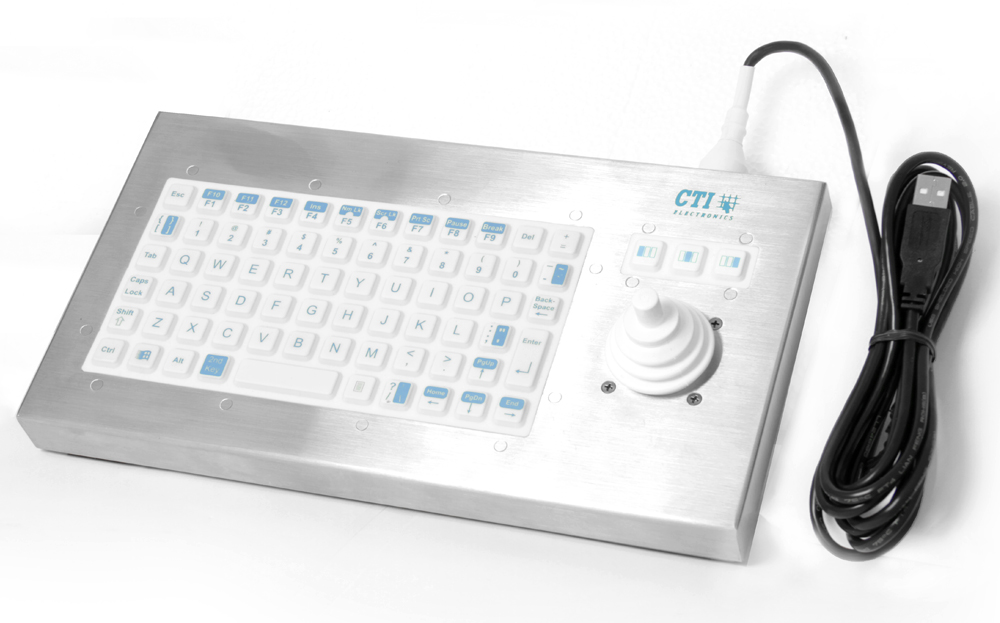

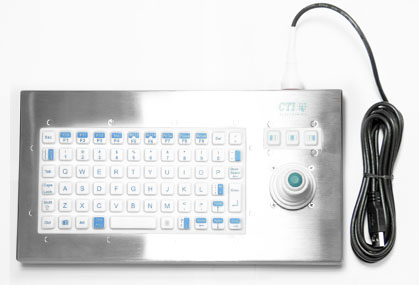

KIF66U6-N2W Series Medical / Cleanroom Keyboard with a Medical Mouse

PDF Icon Understanding NEMA and IP Ratings

NEMA 4X (IP66) Medical / Cleanroom Keyboard with a Medical Mouse

Product Information

The NEMA 4X (IP66) sealed KIF6000 Series medical keyboard is a fully enclosed Plug-n-Play keyboard that is offered to Systems Integrators and Commercial End Users. The compact size has 69 keys with 101/104 key functionality and the original Industrial Mouse™ (Joystick Cursor Controller) mouse pointer. The heavy duty PCB is layered with thick "hard gold" contacts and the white FDA silicone elastomer has molded "hard carbon" pill contacts that combined have been proven to provide more than 10 years of reliable, maintenance free, service. The white FDA silicone elastomer with its 2mm key travel provides excellent tactile feel, even while wearing gloves, but most impressive is the impermeable molecular barrier sealing protection obtained from a Parylene C conformal coating process. This compact hygienic keyboard is impervious to infectious pathogens or carcinogenic compounds with allows complete removal by proper decontamination, sanitization, or sterilization procedures.

These Plug-n-Play compact hygienic keyboards are sealed (water resistant) in the finest grade of stainless steel. The metal enclosure employs a gasket sealed bottom plate which has two stainless steel threaded inserts for mounting to a surface. The 9.5 foot USB cable is secured through a specially designed white PVC strain relief which is Parylene C coated. Optionally, a USB bulkhead cable is available if the USB port is behind a panel or cabinet. The Parylene C coated Medical Mouse is a very precise finger controlled pointer, it is the most reliable cursor controller.

As a Plug-n-Play medical device or cleanroom device, this hygienic keyboard can be confidently installed with an assurance of high reliability and long term durability. Applications such as managing infection control in healthcare facilities have found usage as a medical keyboard, hospital keyboard, medical cart keyboard, surgical keyboard, or Intensive-care keyboard. Also, usage as a cleanroom keyboard for managing exposure and/or contamination control in chemical, biological, or pharmaceutical research laboratories and other cleanroom facilities such as semiconductor, lithography, and manufacturing.

Related Documentation:

Specifications

KIF6000 Series Medical / Cleanroom Keyboard

Medicall Keyboards with Medical Mouse(Joystick Cursor Controller) Specification

Anodized aluminum in black or beige enclosure or a stainless steel enclosure
Stainless steel enclosure available
Molded silicone rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel
Industrial Mouse™ (Joystick Mouse Cursors) available with eight joystick knob options
Optional French (AZERTY), Spanish (QWERTY), or German (QWERTZ) legends

Features
Two, stainless steel threaded mounting holes (in bottom plate)
Back lighting option: RED or GREEN LED's
Black Elastomer with backlighting option
Gray Elastomer (non-backlit)
Rugged NEMA 4, 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Joystick withstands 25lbs of a static load
No drift pointer design
Made in the USA

Reliability

MTBF (Mean Time between Failures): Electronics is greater than 100,000 hours
Operating Temperature: -40º to 80º C
Storage Temperature:  -40º to 80º C
Shock rating:   50g 11msec. half sine, three axes
Vibration:    10-55 Hz@ 0.013 DA
Elastomer keys: Rated for up to 10 million cycles
Contact Keys: "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts.  A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts is used.

NEMA and IP Sealing and Protection Standards
NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Parylene® coated

Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
PDF Icon KIF6000 Series - NEMA 4 (IP66) Computer Keyboards

Pricing

Plug-n-Play Medical Keyboard Pricing

Thank you for selecting CTIs medical computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "medical grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called medical products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.

Plug-n-Play Medical Keyboard Pricing PDF Icon


Medical / Cleanroom Keyboard with a Medical Mouse
Photos
Videos
How-To
RFQ

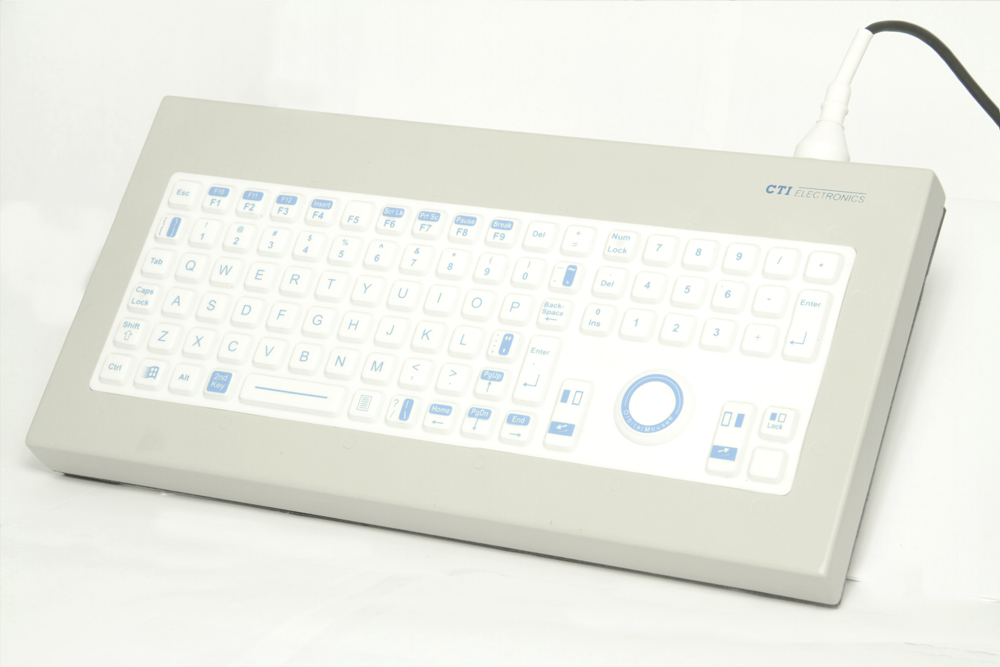

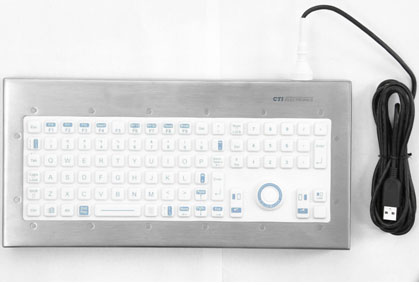

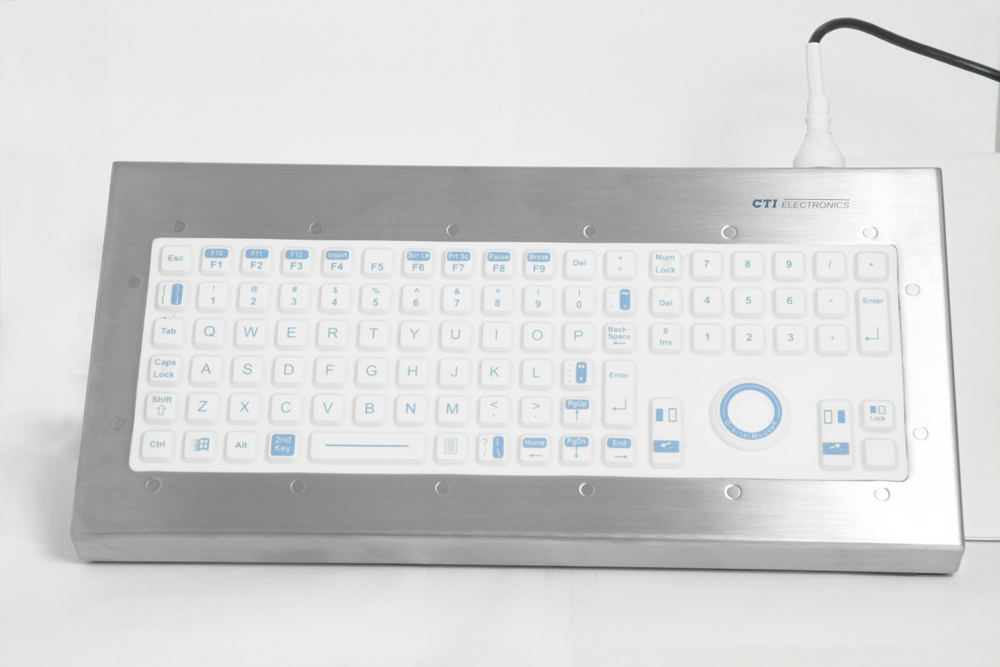

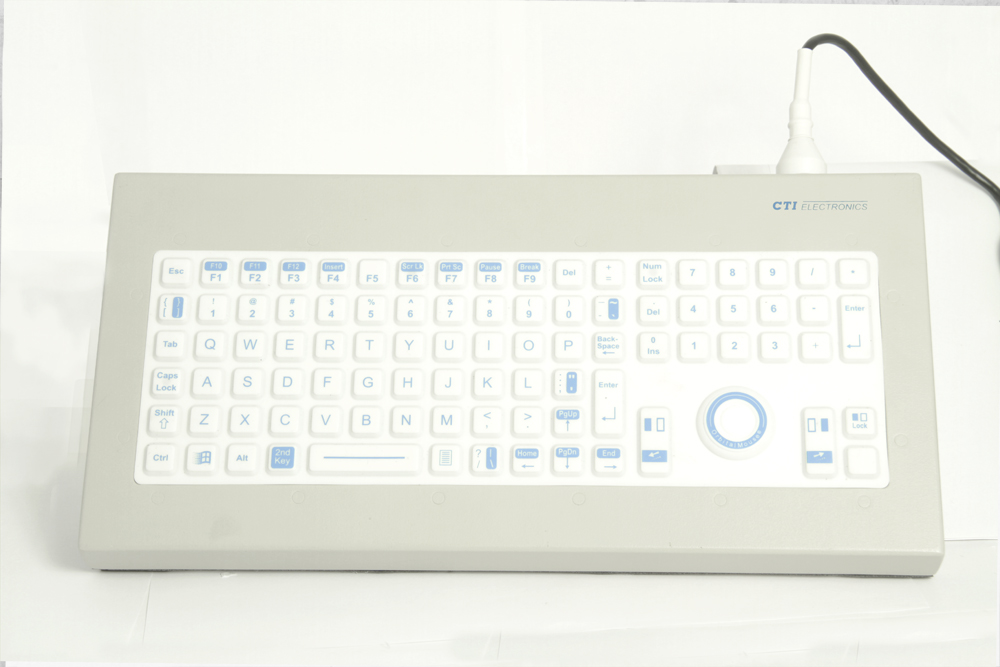

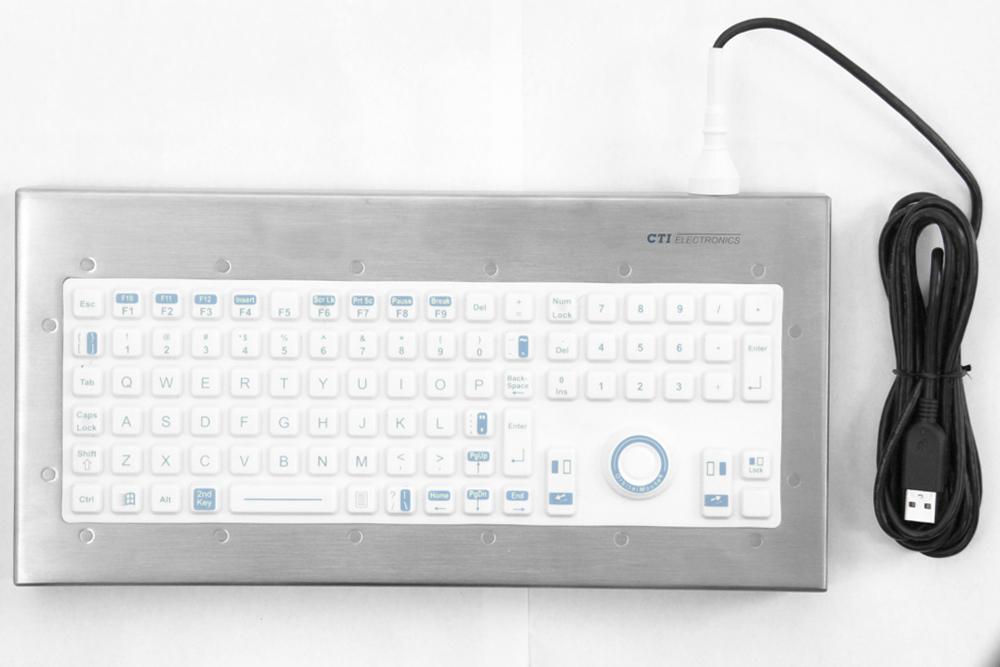

KIO7XU6 Series Hospital Keyboard with Orbital Mouse®

PDF Icon Understanding NEMA and IP Ratings

NEMA 4/4X (IP66) Sealed Hospital Keyboards w/ Orbital Mouse®

Product Information

The NEMA 4X (IP66) sealed KIO7XU6 Series hygienic keyboard is a fully enclosed Plug-n-Play keyboard that is offered to Systems Integrators and Commercial End Users. Yet compact, it retains 90 full size keys with 101/104 key functionality, a numeric keypad, and the low profile patented Orbital Mouse® button style "drift free" mouse pointer. The heavy duty PCB, strengthened by two stiffeners, has layered thick "hard gold" contacts and when combined with the white FDA silicone elastomer which has molded "hard carbon" pill contacts has been proven to provide more than 10 years of reliable, maintenance free, service. The white FDA silicone elastomer with its 2mm key travel provides excellent tactile feel, but most impressive is the impermeable molecular barrier sealing protection obtained from a Parylene C conformal coating process. This miniature hygienic keyboard repels infectious pathogens or carcinogenic compounds so that proper decontamination, sanitization, or sterilization procedures can easily remove.

These Plug-n-Play compact hygienic keyboards are sealed (water resistant) in the finest grade of stainless steel or anodized aluminum. The metal enclosure employs a gasket sealed bottom plate which has two stainless steel threaded inserts for mounting to a surface. The 9.5 foot USB cable is secured through a specially designed white PVC strain relief which is Parylene C coated. Optionally, a USB bulkhead cable is available if the USB port is behind a panel or cabinet. The Parylene C coated medical mouse is a perfect no-drift alternative to capacitive sensitive touchpad's or trackpad's, in a sleek low-profile, smart design.

As a Plug-n-Play medical device or cleanroom device, this hygienic keyboard can be confidently installed with an assurance of high reliability and long term durability. Applications such as managing infection control in healthcare facilities have found usage as a medical keyboard, hospital keyboard, medical cart keyboard, surgical keyboard, or Intensive-care keyboard. Also, usage as a cleanroom keyboard for managing exposure and/or contamination control in chemical, biological, or pharmaceutical research laboratories and other cleanroom facilities such as semiconductor, lithography, and manufacturing.

Related Documentation:

Specifications

KIO7XU6 Series Hospital Keyboard Specification

Medical Keyboards with OrbitalMouse® Mouse Pointers

Anodized aluminum enclosure powder coated beige or black
Stainless steel enclosure available
Molded rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel
OrbitalMouse® (Button Style Mouse Cursors)
Optional French (AZERTY), Spanish (QWERTY), German (QWERTZ), Italian (QWERTY) legend
PS/2, or USB Interface with optional Bulkhead Cable

Features

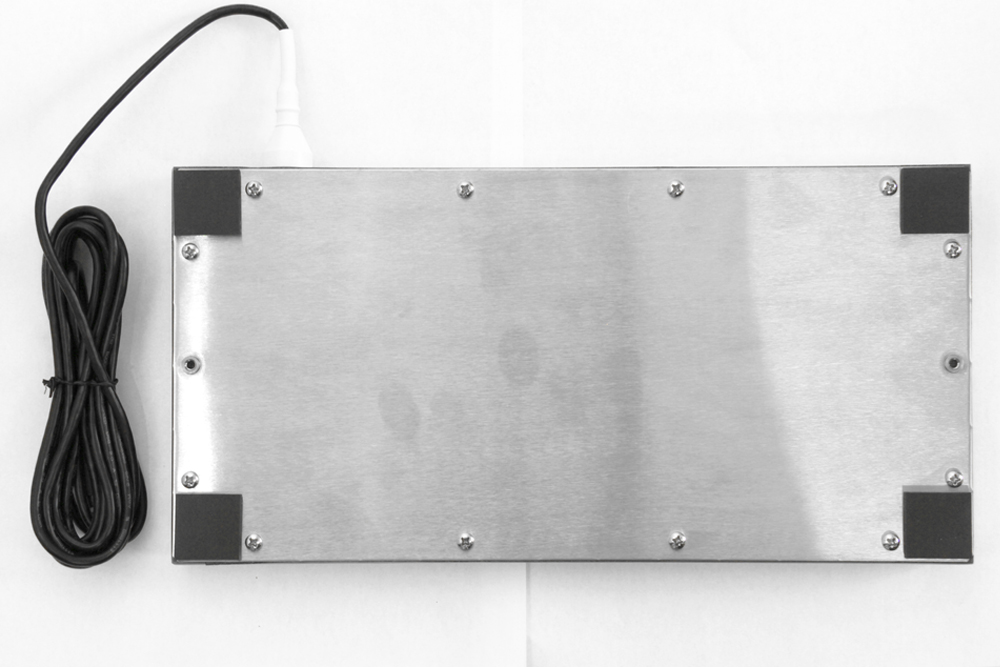

Two stainless steel threaded mounting holes (in bottom plate)
Back lighting option: RED or GREEN LED's
Black Elastomer with backlighting option
Gray Elastomer standard
Rugged NEMA 4, NEMA 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Made in the USA

Reliability

MTBF (Mean Time between Failures): Electronics is greater than 100,000 hours
Operating Temperature: -40º to 80º C
Storage Temperature:  -40º to 80º C
Shock rating:   50g 11msec. half sine, three axes
Vibration:    10-55 Hz@ 0.013 DA
Elastomer keys: Rated for up to 10 million cycles
Contact Keys: "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts.


NEMA and IP Sealing and Protection Standards
NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Parylene® coated

Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV

United States Patents
U.S. Patent No. 7,499,032
U.S. Patents Pending 12/344368

PDF Icon KIO7Xu6 Series - NEMA 4 (IP66) Computer Keyboards w/ OrbitalMouse®

Pricing

Plug-n-Play Medical Keyboard Pricing

Thank you for selecting CTIs medical computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "medical grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called medical products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.
PDF Icon Plug-n-Play Medical Keyboard Pricing


KIO7000 Series Hospital Keyboard with Orbital Mouse®
Photos
Videos
How-To
How-To

KIT6000 Series Cleanroom Keyboard with 1.3" (33mm) Trackball Mouse

PDF Icon Understanding NEMA and IP Ratings

NEMA 12 (IP54) Cleanroom Keyboard with 1.3" (33mm) Trackball Mouse

Product Information

The NEMA 12 (IP54) sealed KIT6000 Series cleanroom keyboard is an enclosed Plug-n-Play keyboard that is offered to Systems Integrators and Commercial End Users. The keyboard itself has a NEMA 4X (IP66) watertight seal but the 1.3" (33mm) trackball mouse has a NEMA 4 (IP65 rating while stationary (static mode) and a NEMA 12 (IP54) while rotating (dynamic mode).. The hygienic keyboard has 69 keys with 101/104 key functionality; it is combined with a high reliability 1.3" trackball mouse pointer in a compact design. The heavy duty PCB is layered with thick "hard gold" contacts and the white FDA silicone elastomer has molded "hard carbon" pill contacts that combined have been proven to provide more than 10 years of reliable, maintenance free, service. The white FDA silicone elastomer with its 2mm key travel provides excellent tactile feel, even while wearing gloves, but most impressive is the impermeable molecular barrier sealing protection obtained from a Parylene C conformal coating process. This compact cleanroom keyboard is recommended in areas where proper decontamination can be accomplished.

This compact Plug-n-Play keyboard is manufactured with the finest grade of stainless steel or anodized aluminum. The metal enclosure employs a gasket sealed bottom plate which has two stainless steel threaded inserts for mounting to a surface. The 9.5 foot USB cable is secured through a specially designed white PVC strain relief which is Parylene C coated. Optionally, a USB bulkhead cable is available if the USB port is behind a panel or cabinet. The CTI trackball mouse is an extremely high precision cursor controller with very fine movements of 1mm (0.04") or pixel by pixel. Typical usage is outlining images or tracing objects on the display screen.

As a Plug-n-Play medical device or cleanroom device, this compact keyboard can be confidently installed with an assurance of high reliability and long term durability. But, the applications as a medical keyboard or cleanroom keyboard will be limited due to the NEMA 12 (IP54) rating and the high precision mouse pointer. Usage could include an ultrasound keyboard or a medical cart keyboard.

Related Documentation:

Specifications

KIT6000 Series Medical / Cleanroom Keyboard Specification

Medical Keyboards with built-in Industrial Trackball Mouse Pointers
Anodized aluminum enclosure in beige or black, or stainless steel enclosure
Molded silicone rubber elastomer keys
Excellent tactile feel, 2mm key travel
1.3” diameter Trackballs  (Trackball Mouse Cursors
Standard U.S. English (QWERTY) legend
Optional French (AZERTY), Spanish (QWERTY), or German (QWERTZ) legends
Serial, PS/2, or USB Interface with optional Bulkhead Cable Set (Waterproof)

Features
Two, Stainless steel threaded mounting holes (in bottom plate)
Back lighting option: RED or GREEN LED's
Gray Elastomer standard, Black Elastomer with backlighting option
Trackball has Teflon seal in aluminum collar.
Repairable design
Plug and Play
Direct factory support
Calculated rolling life of trackball bearings is 20 years
No rubber or foam on trackball rollers, no cleaning is required
Made in the USA

Reliability

MTBF (Mean Time between Failures): Electronics is greater than 100,000 hours
Operating Temperature: -40º to 80º C
Storage Temperature:  -40º to 80º C
Shock rating: 50g 11msec. half sine, three axes
Vibration: 10-55 Hz@ 0.013 DA
Elastomer keys: Rated for up to 10 million cycles
Contact Keys: "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts.


NEMA and IP Sealing and Protection Standards
NEMA 12 (IP54) Trackball, NEMA 4 (IP66) Keyboard
Syn-Proof™ coating resists most oils and harsh chemicals
Parylene® coated

Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV

PDF Icon KXT6000 Series - NEMA 12 (IP54) Computer Keyboards w/ 1.3 Trackballs

Pricing

Plug-n-Play Medical Keyboard Pricing

Thank you for selecting CTIs medical computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "medical grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called medical products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF Icon Plug-n-Play Medical Keyboard Pricing


KIT6000 Series Cleanroom Keyboard with 1.3'' (33mm) Trackball Mouse
Photos
Videos
How-To
RFQ
TOP
Manufactured in U.S.A. Manufactured in U.S.A. Copyright © 2001-2017 | CTI Electronics Corporation an affiliate of ELECTRO SWITCH | Tel: (203) 386-9779 | All Rights Reserved - sitemap | Sales | Tech
