Plug-n-Play Industrial Motion Controllers (USB)




Handheld (USB Joystick) Industrial Motion Control Device

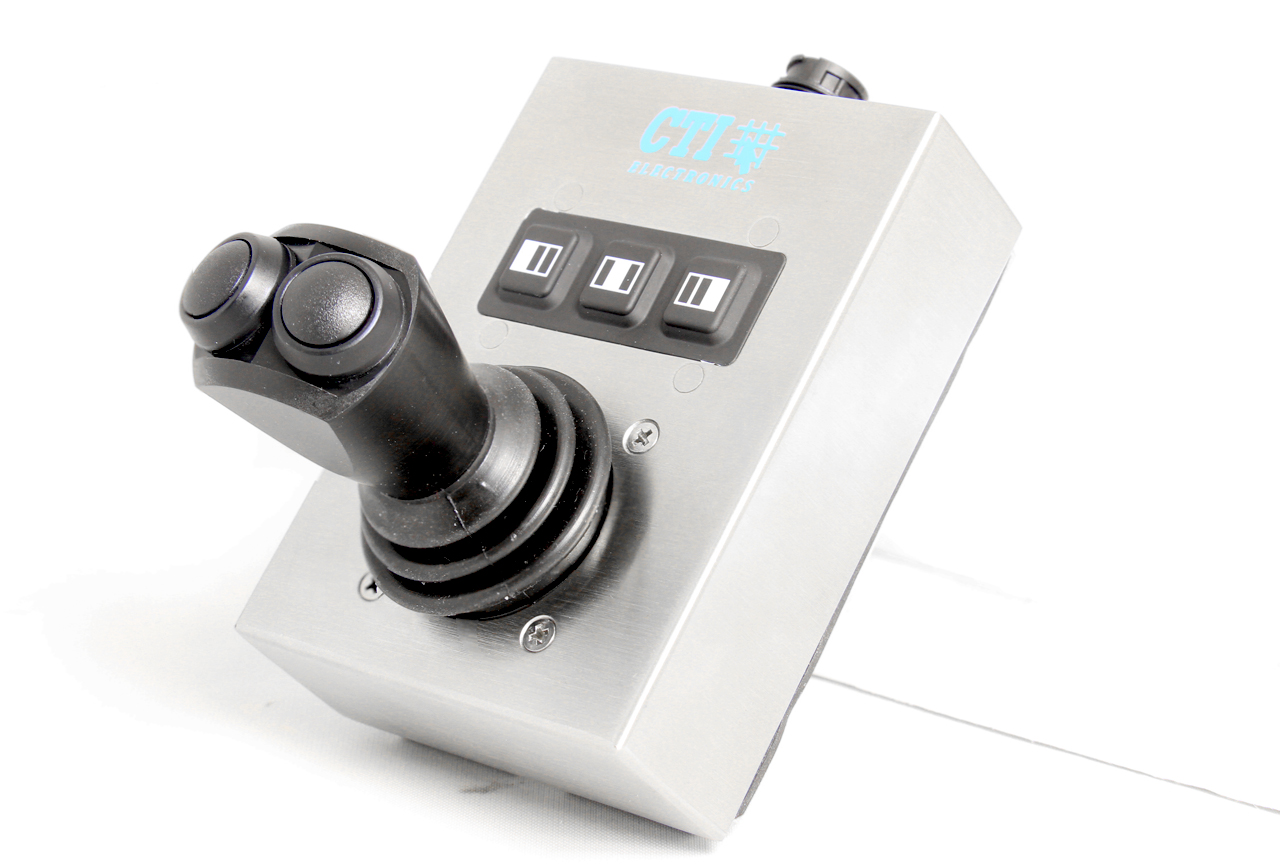

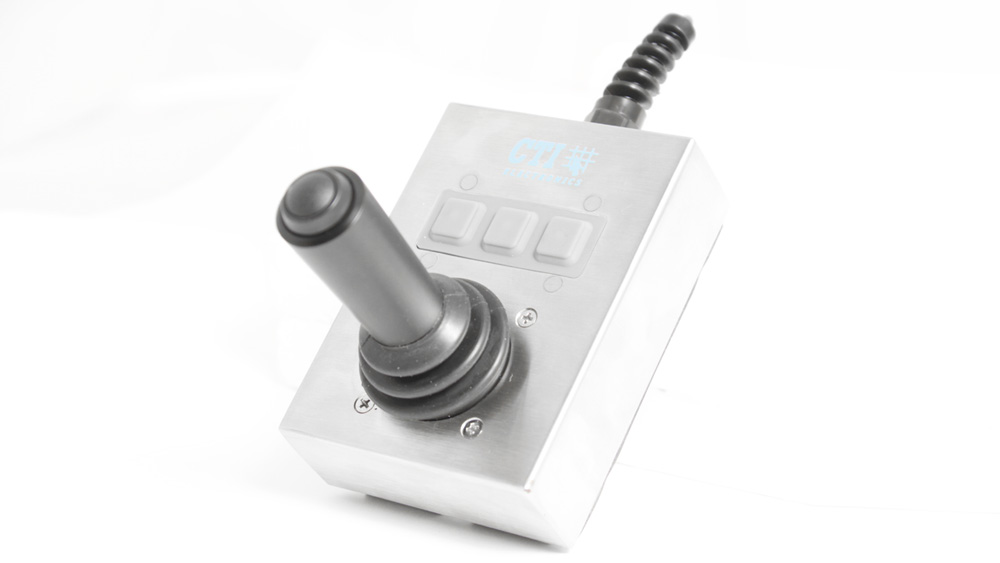

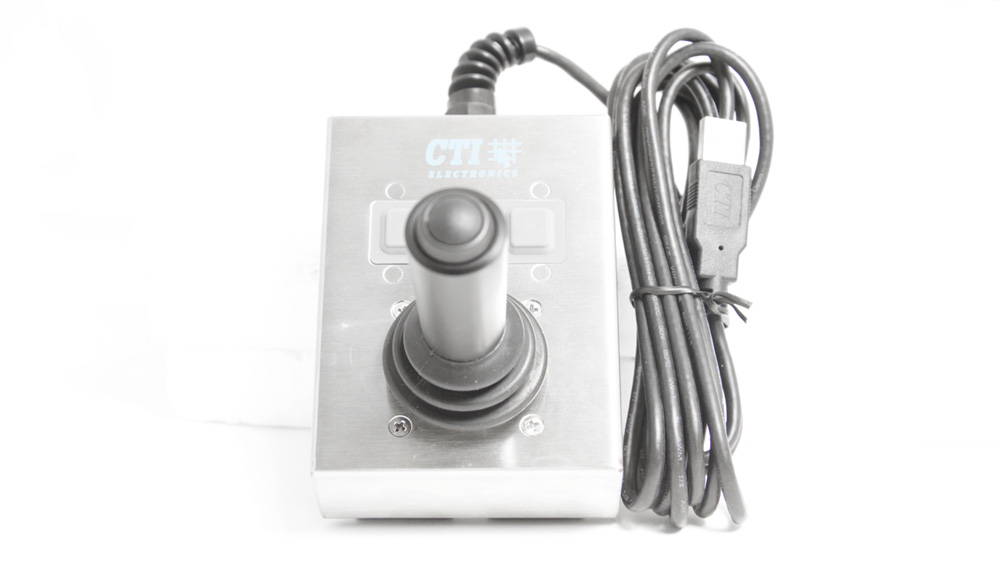

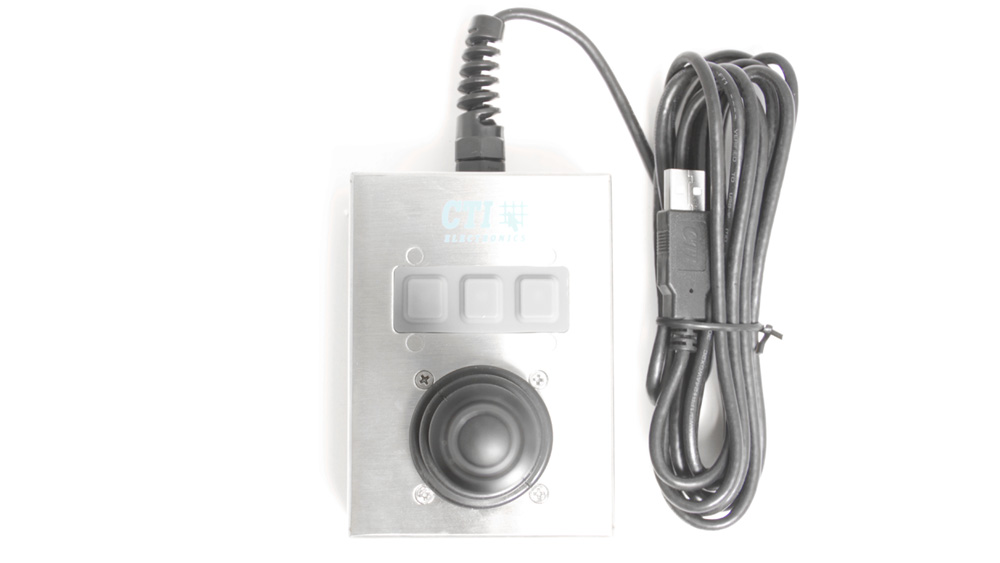

M20UxT-Nx-7P Series Motion Controller

NEMA 4X (IP66) USB HID Compliant Motion Controller

Product Information

The M20UxT-Nx-7P Series Handheld USB Joysticks are used as motion control devices (USB HID Compliant Joystick) allowing up to three axis of control with up to eight designer-defined button functions. An Application Developer, using a Windows® Operating System (or Mac OS X®, or Linux OS) with the standard HID Driver Interface of the operating system can quickly implement a motion control application. This device also uses the same USB HID Compliant Game Controller technology as a Microsoft Sidewinder®.

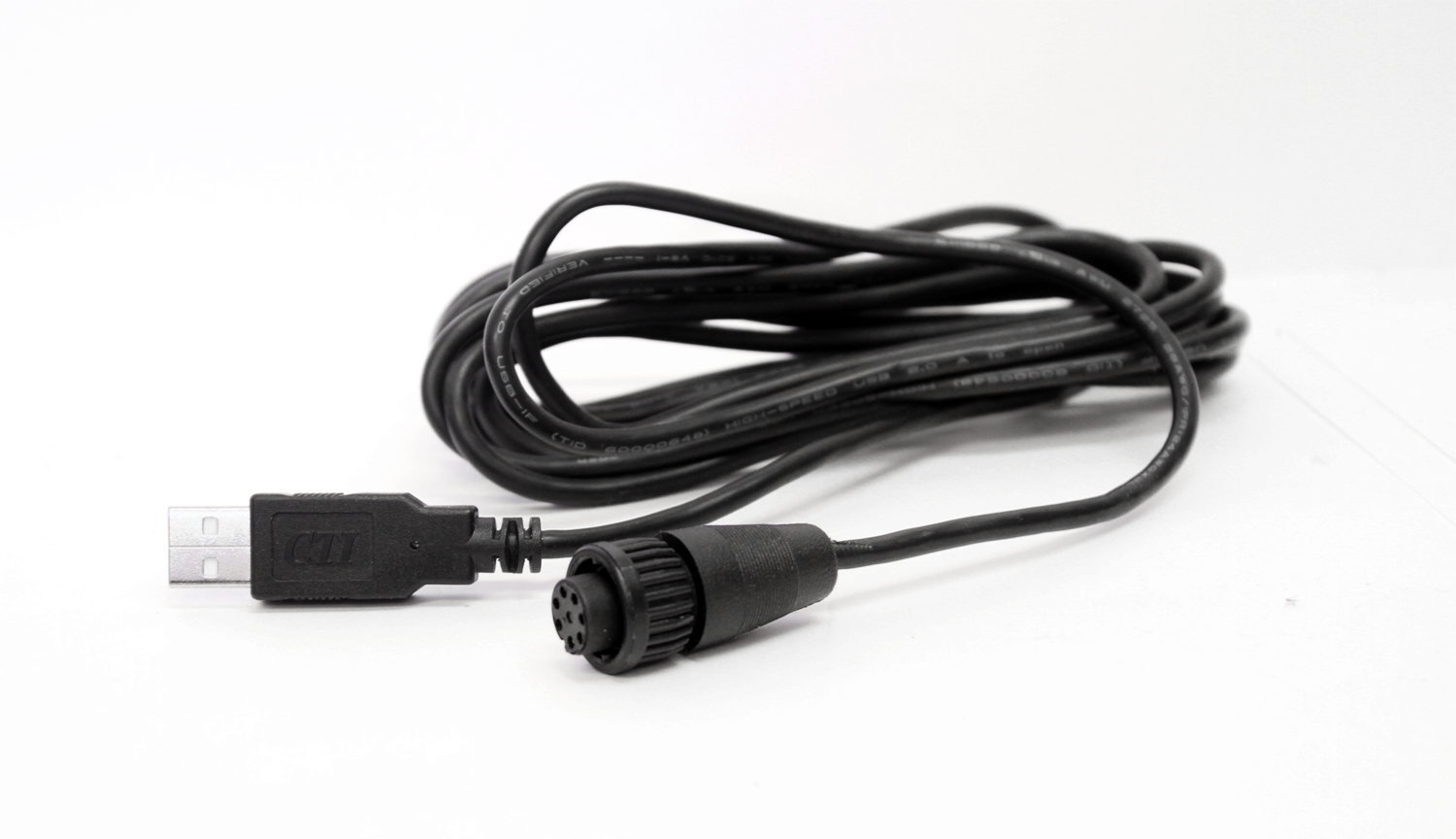

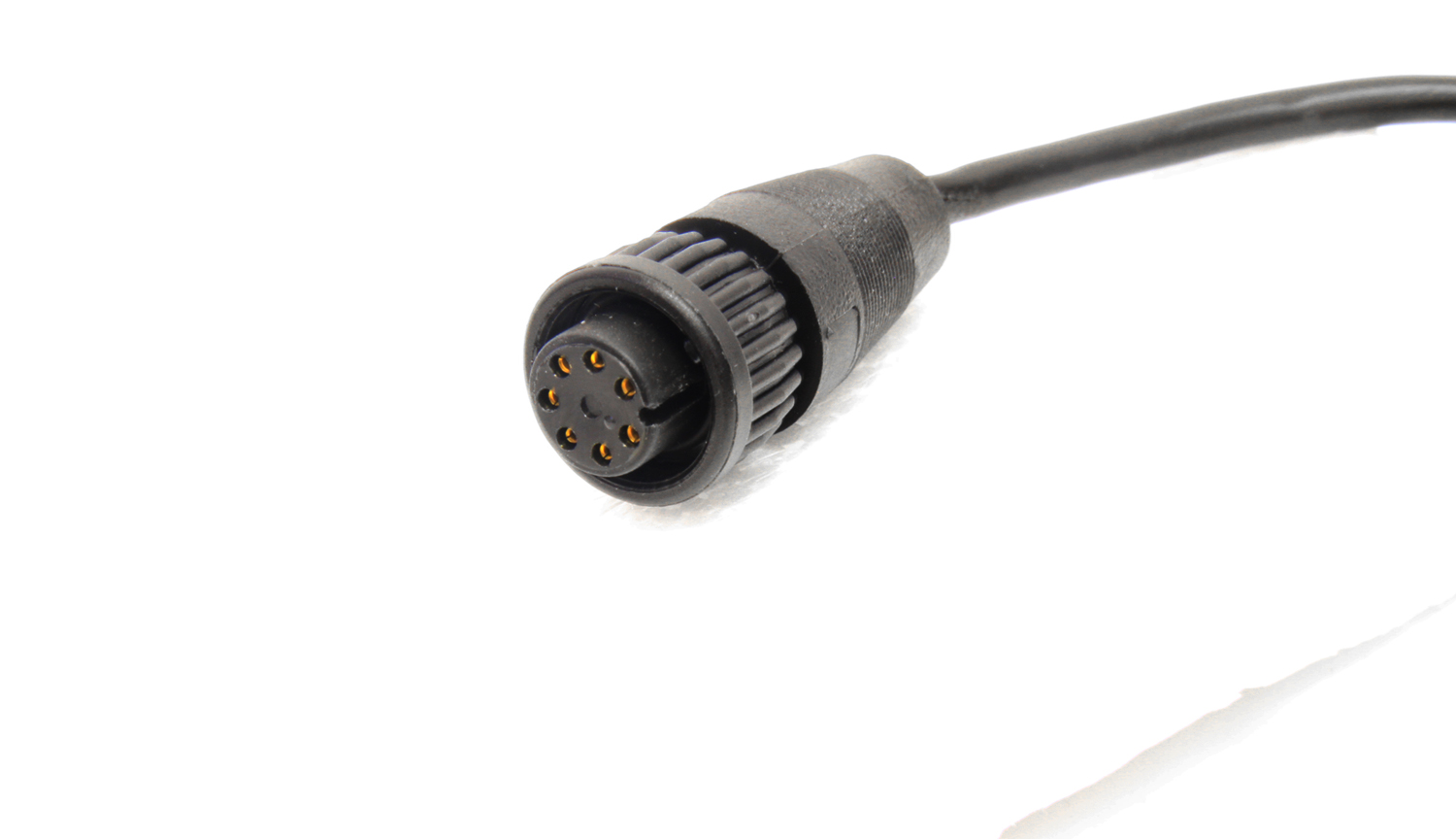

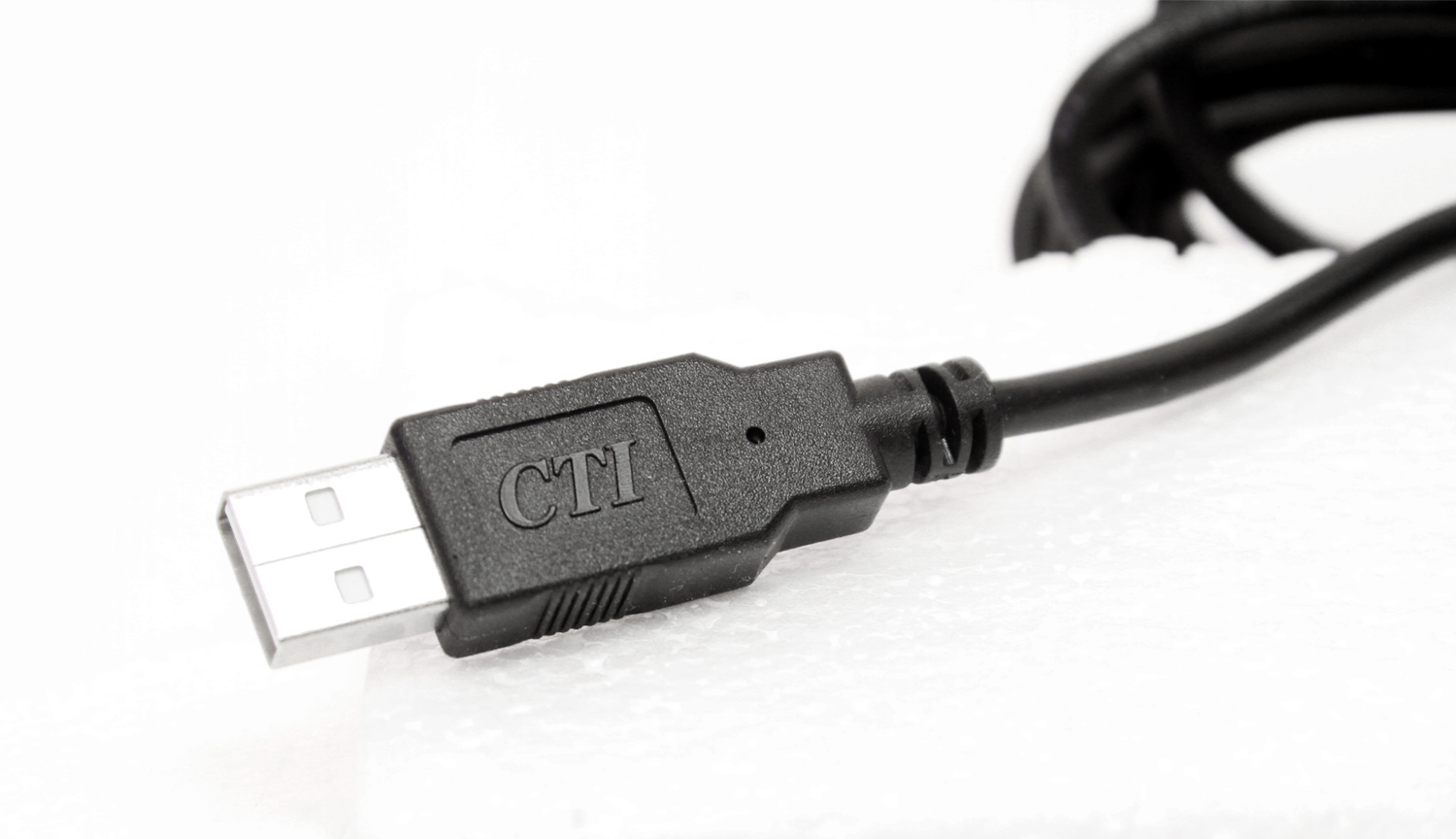

This series features the USB Joystick (FlightStick Technology) in a space saving NEMA 4X (IP66) sealed stainless steel enclosure that has a dis-connectable USB cable; designed for rugged use where the cable could become compromised and need replacement. The key feature of this design is a 7 pin NEMA 4 (IP66) connection (Shell) which provides grounding, shielding, and USB signals.

This design is the perfect solution for harsh environments requiring rugged industrial motion control devices (USB HID Compliant Joystick) and near waterproof sealing. The standard USB Joysticks have all the features of the FlightStick technology family; and when combined with the dual button N34 joystick knob, it can be held in one hand and easily operated with the other hand for say a Pan-Tilt Zoom (PTZ) application. Optionally, this USB motion controller offers either a one button switch or three button switches which can be used to perform any three designer-defined functions. This device also uses the same USB HID Compliant Game Controller technology as a Microsoft Sidewinder®.

The stainless steel enclosure with gasket sealed bottom plate has rubber feet. Options include joystick knob and various application specific options including protection against Electro-Magnetic Interference (EMI) and Radio-Frequency Interference (RFI) signals.
The USB FlightStick (flight simulator) industrial motion controller offers real-time response rates with pin-point precise accuracy for a broad range of application possibilities. A few of the industries benefiting from the USB Joystick Industrial Motion Controller are aerospace, automotive, medical, homeland security, surveillance, and military.

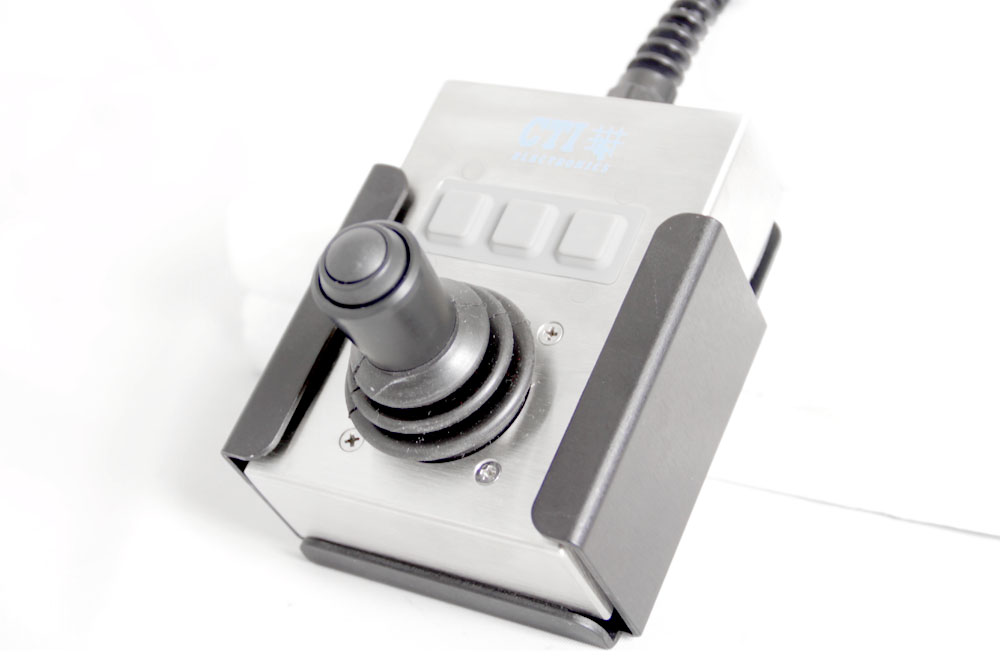

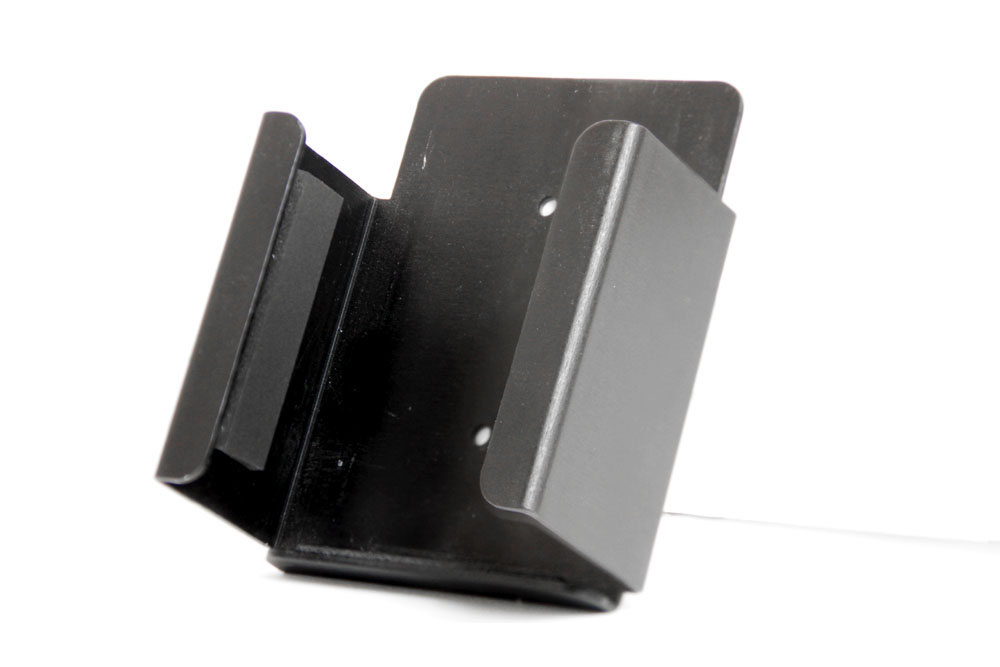

An anodized aluminum M2000 holder is available for convenient storage of the M20UxT-Nx-7P series Handheld USB HID Compliant Joystick Industrial Motion Controller. The holder has holes for simple screw mounting alongside any machine or cabinet.

CTI's custom plug-n-play usb motion controller are ruggedized to meet aerospace, medical, and military standards. CTI's plug-n-play usb motion controller can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These plug-n-play usb motion controller are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

Inductive Industrial Joysticks Reliability Data
F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
25mA @ 24VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)
Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)
Sealing
Water Tight    NEMA 4 (IP66)
Reliability
MTBF Greater than 100,000 hours
Life 10,000,000 random deflections
Optional Push Button Switch  1,000,000 cycles maximum
Shock
Peak Value 30g to 50g depending on knob & spring option
Pulse Duration 11 ms
Waveform Half Sine
Vibration
Frequency Displacement (inches)
5 - 25 Hz 0.1
25 - 55 Hz   0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
ESD rated to 15KV
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
PDF Icon
USB Joystick (FlightStick) One & Two Axes Specification


Inductive Industrial Joysticks Reliability Data
F1800-N82 Series – NEMA 12 (IP 54) 3 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)
Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)
Sealing
Drip Proof     Z Axis NEMA 12 (IP54), suitable for indoor use.
Water Resistant X&Y Axes NEMA 4 (IP66) Sealing Boot
Reliability
MTBF   Greater than 100,000 hours
Life   10,000,000 random deflections
Shock
Peak Value    10 g
Pulse Duration   11 ms
Waveform       Half Sine

Vibration
Frequency Displacement (inches)
5-25 Hz    0.1
25-55 Hz       0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)

PDF IconUSB Joystick (Flightstick) N82 Three Axes Specification


Inductive Industrial Joysticks Reliability Data
F1800-N84 Series NEMA 4 (IP 66) 3 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)
Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)
Sealing
Drip Proof     Z Axis NEMA 12 (IP54), suitable for indoor use.
Water Resistant X&Y Axes NEMA 4 (IP66) Sealing Boot
Reliability
MTBF   Greater than 100,000 hours
Life   10,000,000 random deflections
Shock
Peak Value    10 g
Pulse Duration   11 ms
Waveform       Half Sine

Vibration
Frequency Displacement (inches)
5-25 Hz    0.1
25-55 Hz       0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)

PDF IconUSB Joystick (Flightstick) N84 Three Axes Specification



Pricing

Plug-n-Play Industrial USB FlightStick (HID Compliant Game Controller) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.

PDF IconPlug-n-Play Industrial USB FlightStick (HID Compliant Game Controller) Pricing

M20UxT-Nx-7P Industrial Motion Controller
Photos
Videos
How-To
RFQ

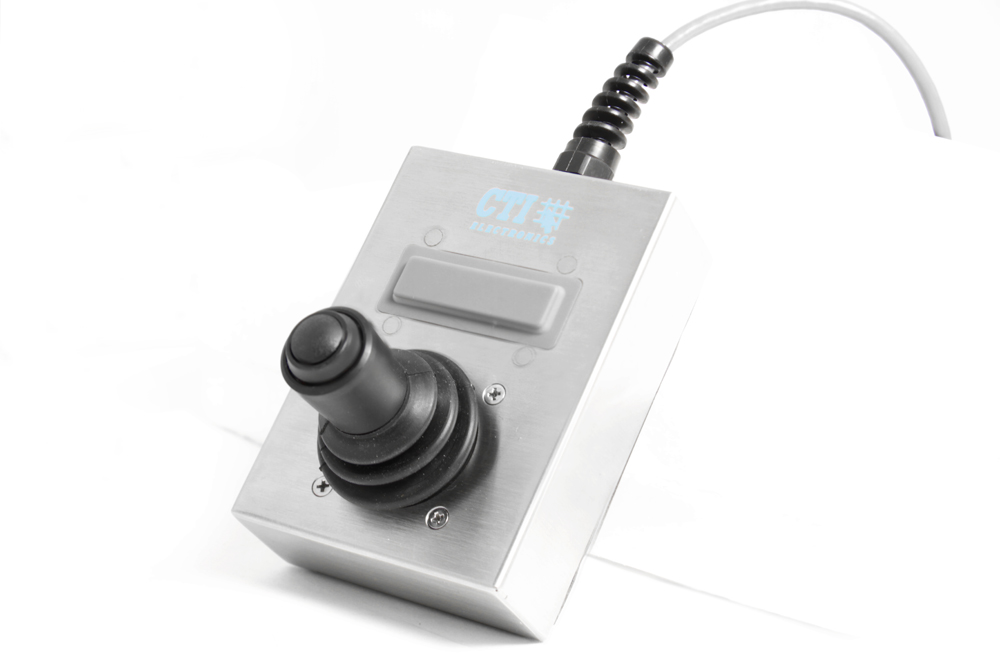

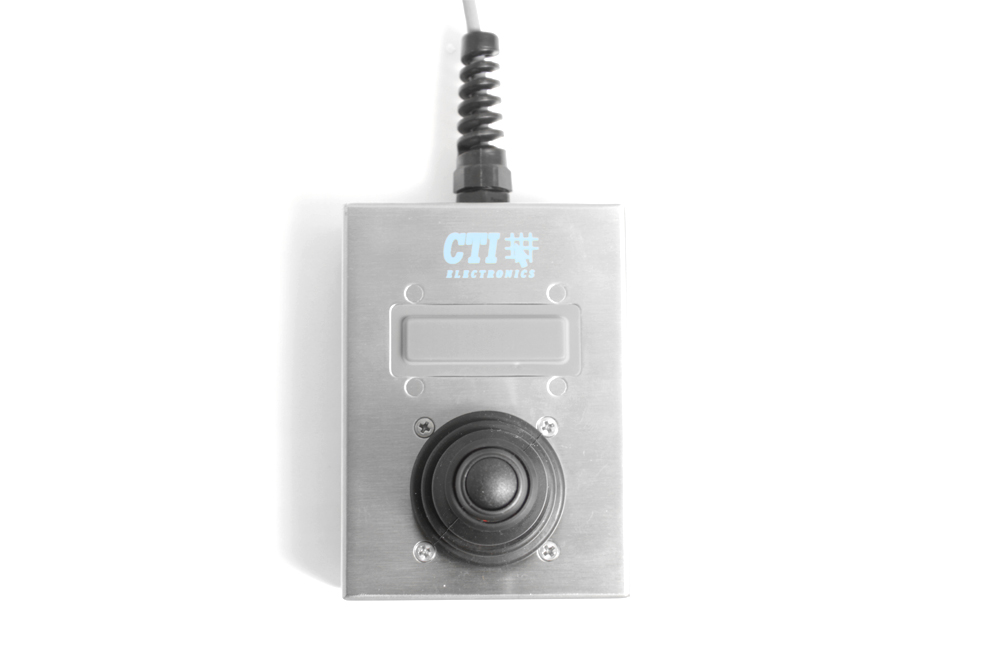

M20U1T-Nx-7P Series Motion Controller

NEMA 4X (IP66) USB HID Compliant Motion Controller

Product Information

The M20U1T-Nx-7P Series Handheld USB Joysticks are used as motion control devices (USB HID Compliant Joystick or flight simulator) allowing up to three axis of control with up to eight designer-defined button functions. An Application Developer, using a Windows® Operating System (or Mac OS X®, or Linux OS) with the standard HID Driver Interface of the operating system can quickly implement a motion control application. This device also uses the same USB HID Compliant Game Controller technology as a Microsoft Sidewinder®.

This series features the USB Joystick (FlightStick Technology) in a space saving NEMA 4X (IP66) sealed stainless steel enclosure that has a dis-connectable USB cable; designed for rugged use where the cable could become compromised and need replacement. The key feature of this design is a 7 pin NEMA 4 (IP66) connection (Shell) which provides grounding, shielding, and USB signals.

This design is the perfect solution for harsh environments requiring rugged industrial motion control devices (USB HID Compliant Joystick) and near waterproof sealing. The standard USB Joysticks have all the features of the FlightStick technology family; and when combined with the 3 Axes N84 joystick knob, it can be held in one hand and easily operated with the other hand for say a Pan-Tilt Zoom (PTZ) application. Optionally, this USB motion controller offers either a one button switch or three button switches which can be used to perform any three designer-defined functions. This device also uses the same USB HID Compliant Game Controller technology as a Microsoft Sidewinder®

The stainless steel enclosure with gasket sealed bottom plate has rubber feet. Options include joystick knob and various application specific options including protection against Electro-Magnetic Interference (EMI) and Radio-Frequency Interference (RFI) signals.
The USB FlightStick (flight simulator) industrial motion controller offers real-time response rates with pin-point precise accuracy for a broad range of application possibilities. A few of the industries benefiting from the USB HID Compliant Joystick Industrial Motion Controller are aerospace, automotive, medical, homeland security, surveillance, and military.

An anodized aluminum M2000 holder is available for convenient storage of the M20U1T-Nx-7P series Handheld USB Joystick Industrial Motion Controller. The holder has holes for simple screw mounting alongside any machine or cabinet.

CTI's custom plug-n-play usb motion controller are ruggedized to meet aerospace, medical, and military standards. CTI's plug-n-play usb motion controller can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These plug-n-play usb motion controller are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

Inductive Industrial Joysticks Reliability Data
F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
25mA @ 24VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)
Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)
Sealing
Water Tight    NEMA 4 (IP66)
Reliability
MTBF Greater than 100,000 hours
Life 10,000,000 random deflections
Optional Push Button Switch  1,000,000 cycles maximum
Shock
Peak Value 30g to 50g depending on knob & spring option
Pulse Duration 11 ms
Waveform Half Sine
Vibration
Frequency Displacement (inches)
5 - 25 Hz 0.1
25 - 55 Hz   0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
ESD rated to 15KV
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
PDF Icon USB Joystick (FlightStick) One & Two Axes Specification


Inductive Industrial Joysticks Reliability Data
F1800-N82 Series – NEMA 12 (IP 54) 3 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)
Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)
Sealing
Drip Proof     Z Axis NEMA 12 (IP54), suitable for indoor use.
Water Resistant X&Y Axes NEMA 4 (IP66) Sealing Boot
Reliability
MTBF   Greater than 100,000 hours
Life   10,000,000 random deflections
Shock
Peak Value    10 g
Pulse Duration   11 ms
Waveform       Half Sine

Vibration
Frequency Displacement (inches)
5-25 Hz    0.1
25-55 Hz       0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)

PDF IconUSB Joystick (Flightstick) N82 Three Axes Specification


Inductive Industrial Joysticks Reliability Data
F1800-N84 Series NEMA 4 (IP 66) 3 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)
Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)
Sealing
Drip Proof     Z Axis NEMA 12 (IP54), suitable for indoor use.
Water Resistant X&Y Axes NEMA 4 (IP66) Sealing Boot
Reliability
MTBF   Greater than 100,000 hours
Life   10,000,000 random deflections
Shock
Peak Value    10 g
Pulse Duration   11 ms
Waveform       Half Sine

Vibration
Frequency Displacement (inches)
5-25 Hz    0.1
25-55 Hz       0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)

PDF IconUSB Joystick (Flightstick) N84 Three Axes Specification



Pricing

Plug-n-Play Industrial USB FlightStick (HID Compliant Game Controller) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.

PDF IconPlug-n-Play Industrial USB FlightStick (HID Compliant Game Controller) Pricing

M20U1T-Nx-7P Industrial Motion Controller
Photos
Videos
How-To
RFQ

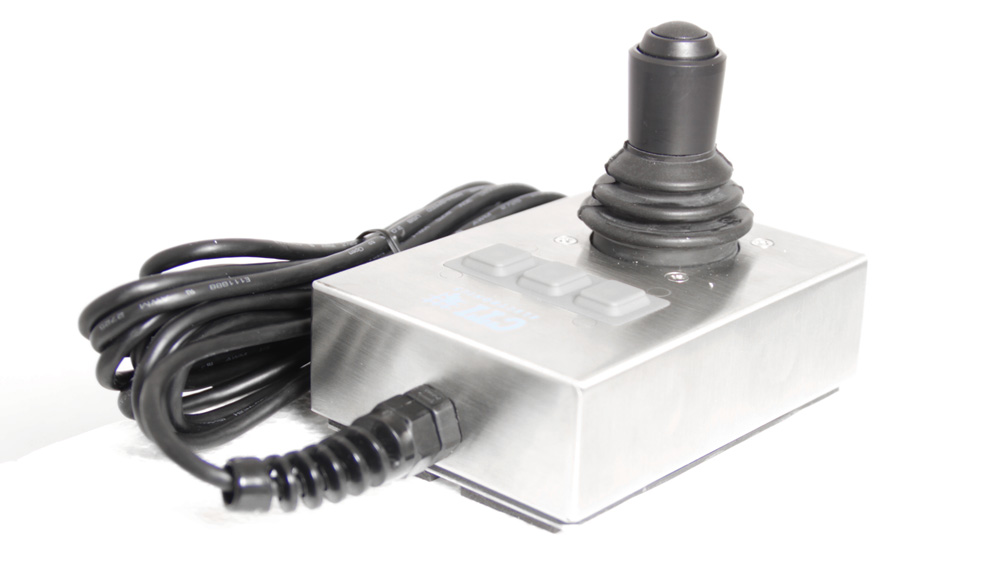

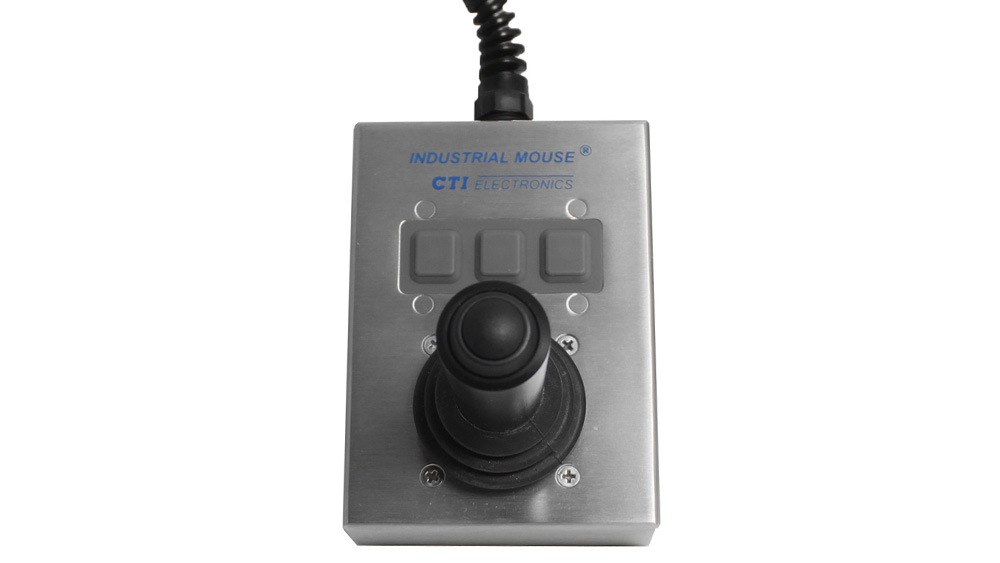

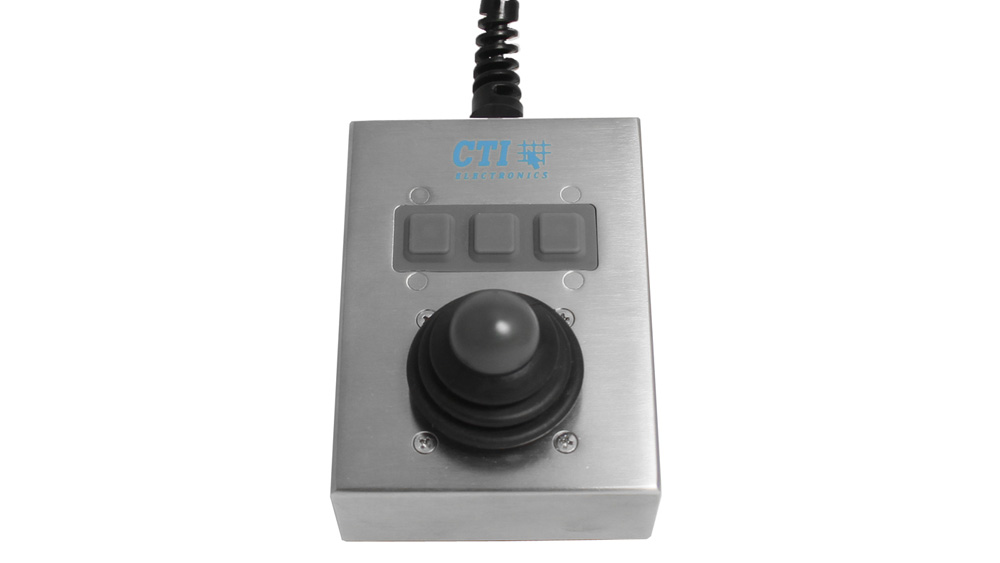

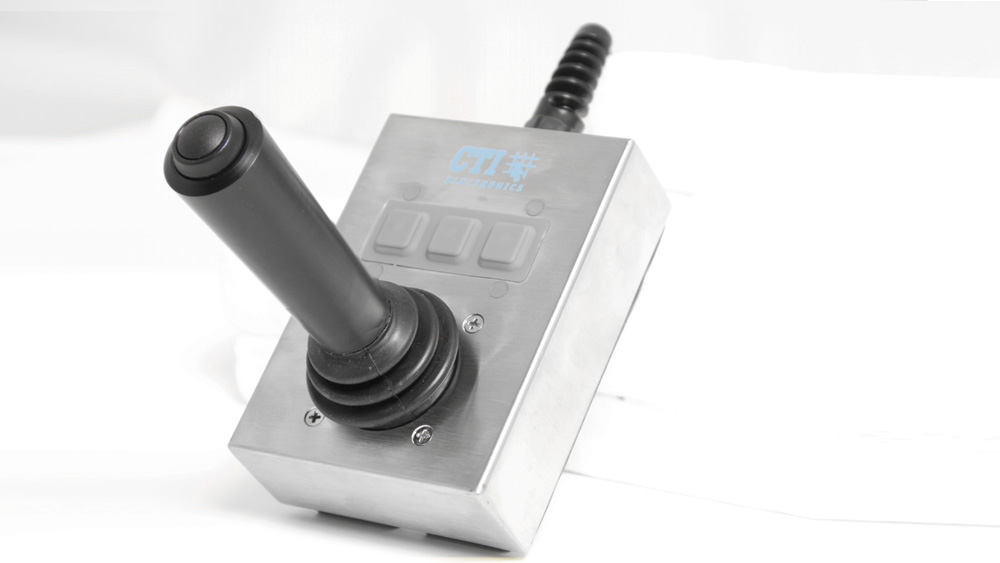

M20U9T-Nx Series Industrial Motion Controller

NEMA 4X (IP66) USB HID Compliant Motion Controller

Product Information

The M20U9T-Nx Series Handheld USB Joysticks are used as motion control devices (USB HID Compliant Joystick or flight simulator) allowing up to three axis of control with up to eight designer-defined button functions. This device also uses the same USB HID Compliant Game Controller technology as a Microsoft Sidewinder®.

Using a Windows® Operating System with the Microsoft® HID Driver Interface an Application Developer can quickly implement a motion control application.

This series features the USB Joystick (FlightStick Technology) in a space saving, NEMA 4X (IP66) sealed, stainless steel enclosure; designed for handheld or limited space applications. This design is the perfect solution for harsh or wet environments requiring rugged industrial motion control devices (USB HID Compliant Joystick) and near waterproof sealing. The standard USB Joysticks have all the features of the FlightStick technology family; and when combined with the low profile, N3 joystick knob, it can be held in one hand and easily operated with the other hand. The three sealed switches perform any three designer-defined functions. This device also uses the same USB HID Compliant Game Controller technology as a Microsoft Sidewinder®.

The stainless steel enclosure with gasket sealed bottom plate has rubber feet. Options include joystick knob, various application specific options, including an optional PDF Iconbulkhead waterproof cable assembly for simple installation of the cable through metal cabinets.

The USB FlightStick (flight simulator) industrial motion controller offers real-time response rates with pin-point precise accuracy for a broad range of application possibilities. A few of the industries benefiting from the USB HID Compliant Joystick Industrial Motion Controller are aerospace, automotive, medical, homeland security, surveillance, and military.

An anodized aluminum PDF IconM2000 holder is available for convenient storage of the M20U9T-Nx series Handheld USB Joystick Industrial Motion Controller. The holder has holes for simple screw mounting alongside any machine or cabinet.

CTI's custom plug-n-play usb motion controller are ruggedized to meet aerospace, medical, and military standards. CTI's plug-n-play usb motion controller can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These plug-n-play usb motion controller are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

Inductive Industrial Joysticks Reliability Data
F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
25mA @ 24VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)
Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)
Sealing
Water Tight    NEMA 4 (IP66)
Reliability
MTBF Greater than 100,000 hours
Life 10,000,000 random deflections
Optional Push Button Switch  1,000,000 cycles maximum
Shock
Peak Value 30g to 50g depending on knob & spring option
Pulse Duration 11 ms
Waveform Half Sine
Vibration
Frequency Displacement (inches)
5 - 25 Hz 0.1
25 - 55 Hz   0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
ESD rated to 15KV
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
PDF Icon
USB Joystick (FlightStick) One & Two Axes Specification


Inductive Industrial Joysticks Reliability Data
F1800-N82 Series – NEMA 12 (IP 54) 3 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)
Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)
Sealing
Drip Proof     Z Axis NEMA 12 (IP54), suitable for indoor use.
Water Resistant X&Y Axes NEMA 4 (IP66) Sealing Boot
Reliability
MTBF   Greater than 100,000 hours
Life   10,000,000 random deflections
Shock
Peak Value    10 g
Pulse Duration   11 ms
Waveform       Half Sine

Vibration
Frequency Displacement (inches)
5-25 Hz    0.1
25-55 Hz       0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)

PDF IconUSB Joystick (Flightstick) N82 Three Axes Specification


Inductive Industrial Joysticks Reliability Data
F1800-N84 Series NEMA 4 (IP 66) 3 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)
Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)
Sealing
Drip Proof     Z Axis NEMA 12 (IP54), suitable for indoor use.
Water Resistant X&Y Axes NEMA 4 (IP66) Sealing Boot
Reliability
MTBF   Greater than 100,000 hours
Life   10,000,000 random deflections
Shock
Peak Value    10 g
Pulse Duration   11 ms
Waveform       Half Sine

Vibration
Frequency Displacement (inches)
5-25 Hz    0.1
25-55 Hz       0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)

PDF IconUSB Joystick (Flightstick) N84 Three Axes Specification



Pricing

Plug-n-Play Industrial USB FlightStick (HID Compliant Game Controller) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.

PDF IconPlug-n-Play Industrial USB FlightStick (HID Compliant Game Controller) Pricing

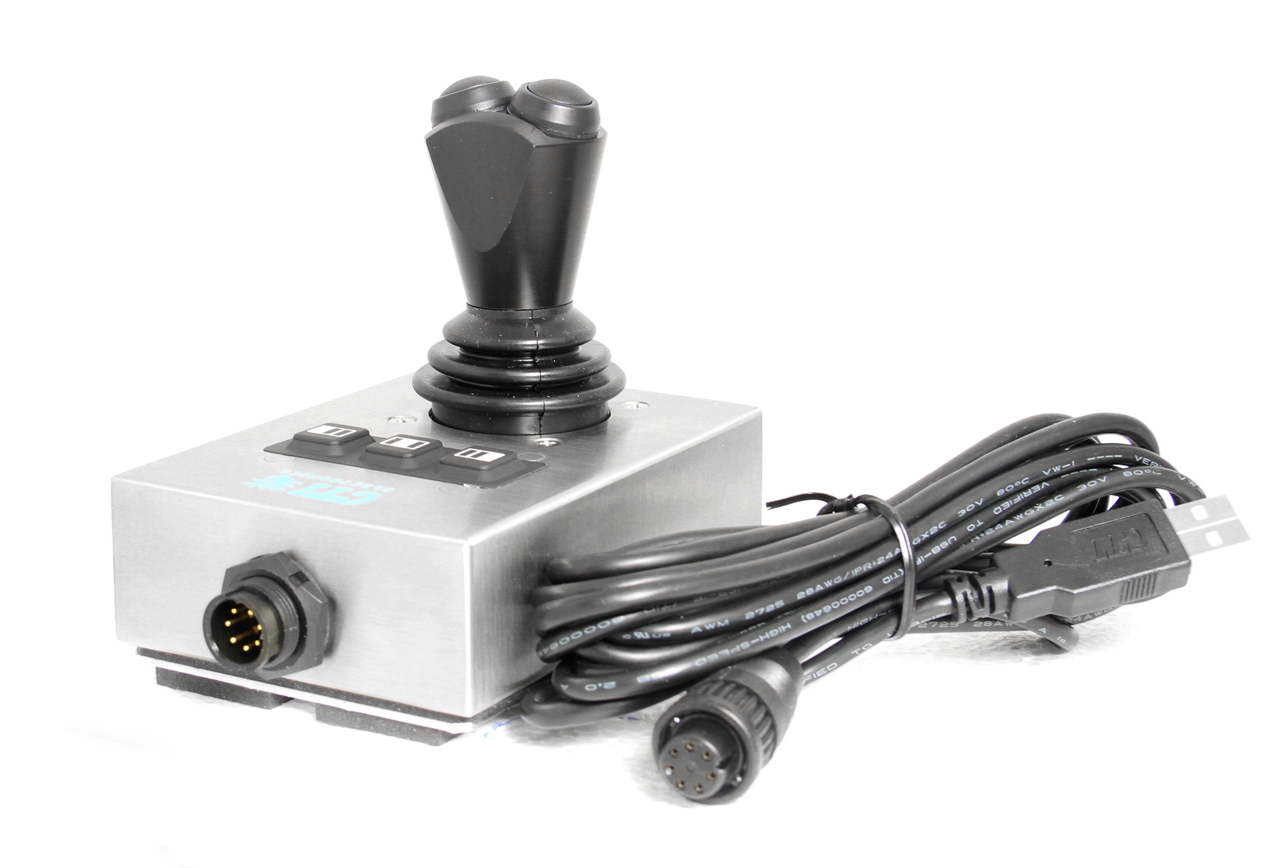

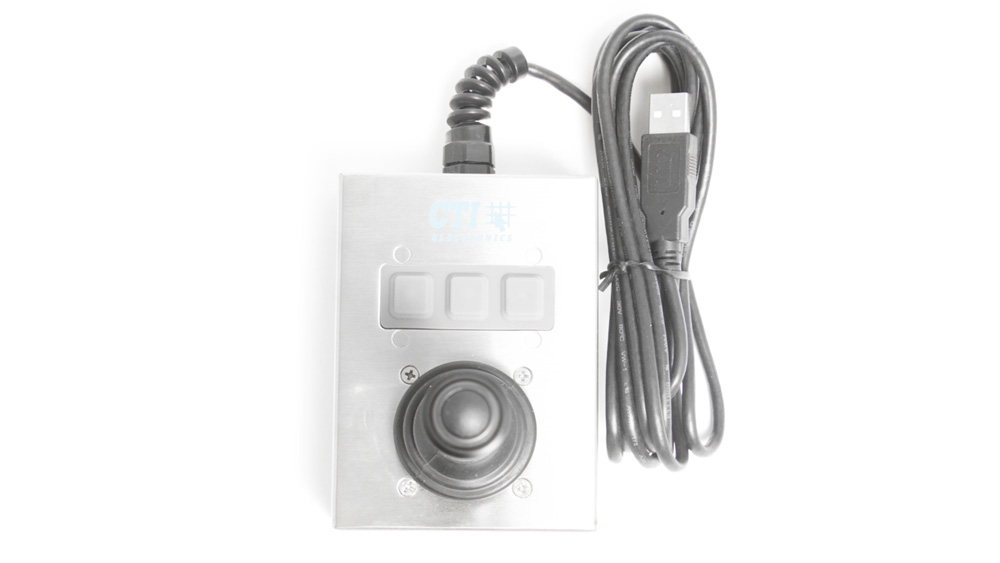

M20U9T-Nx Series Motion Controller
Photos
Videos
How-To
RFQ

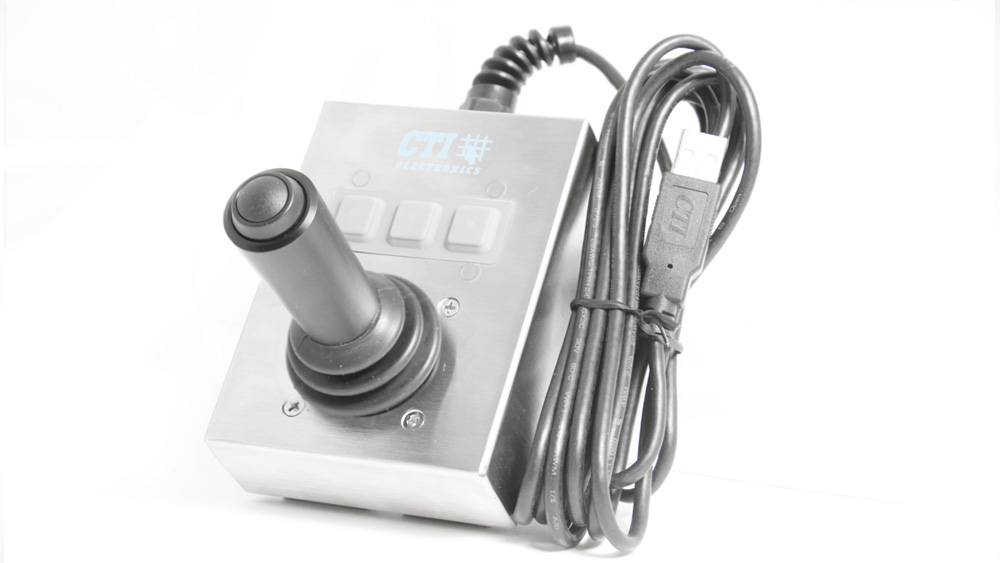

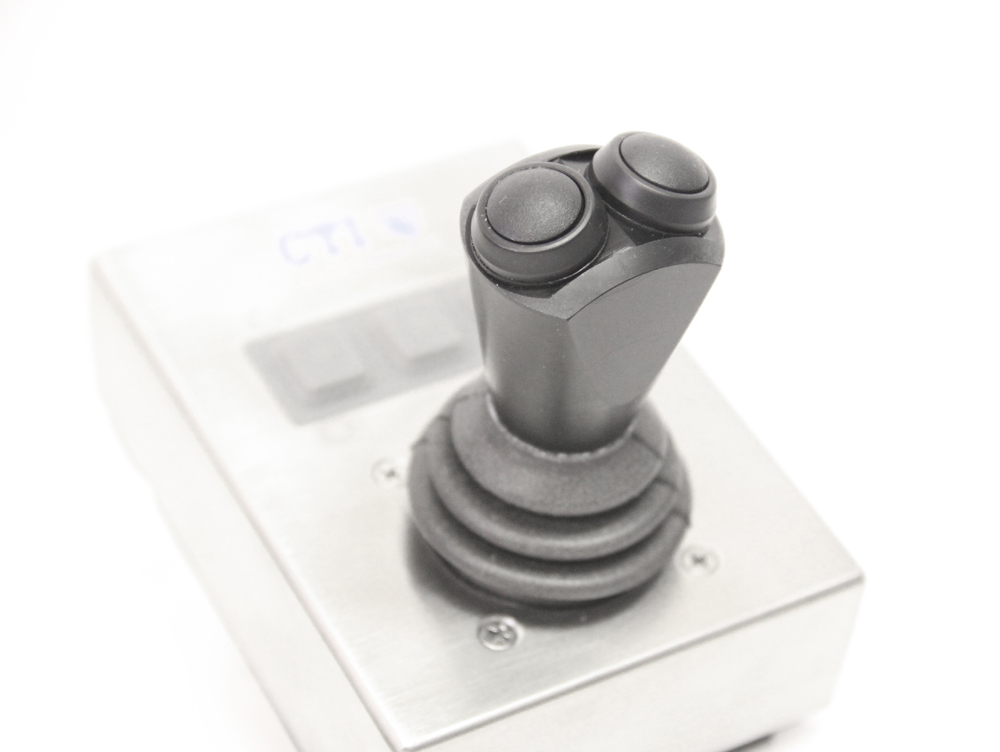

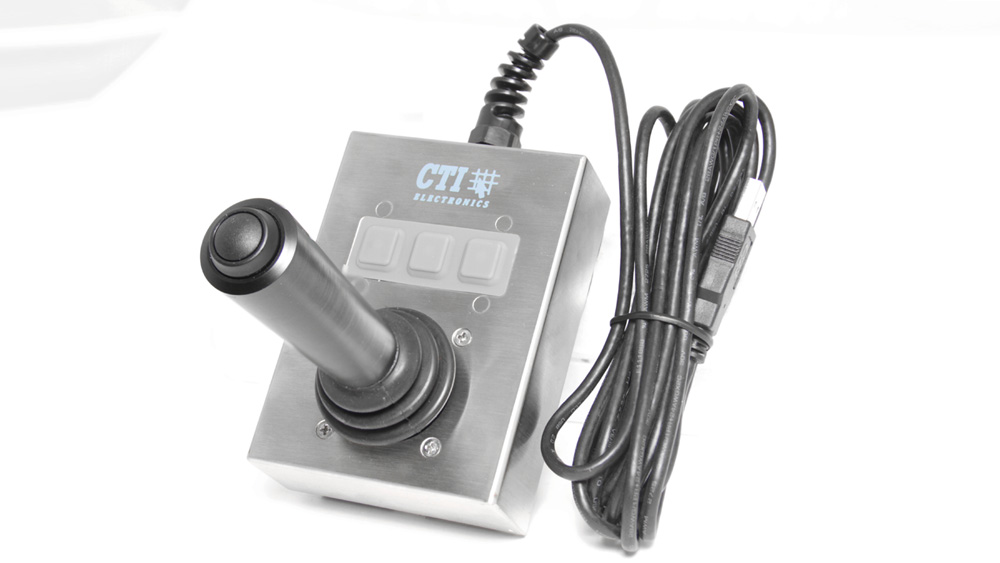

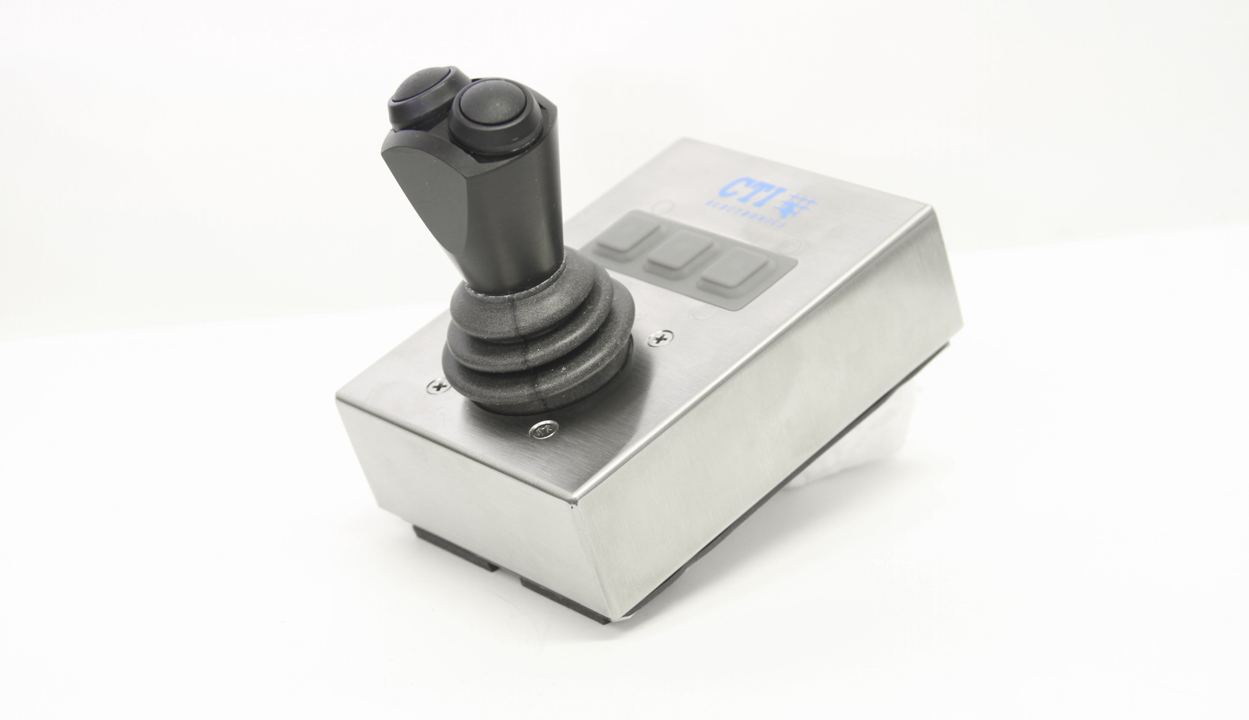

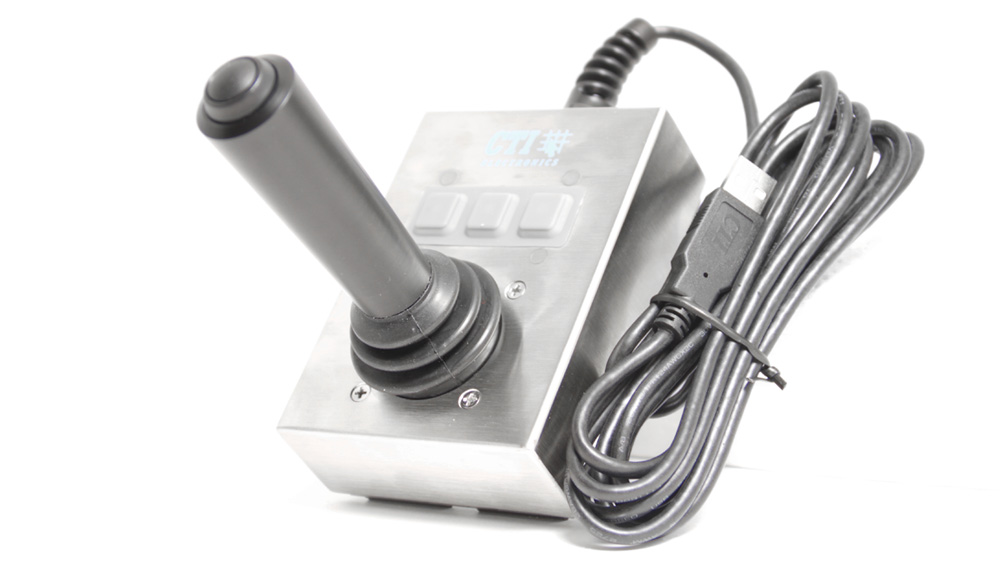

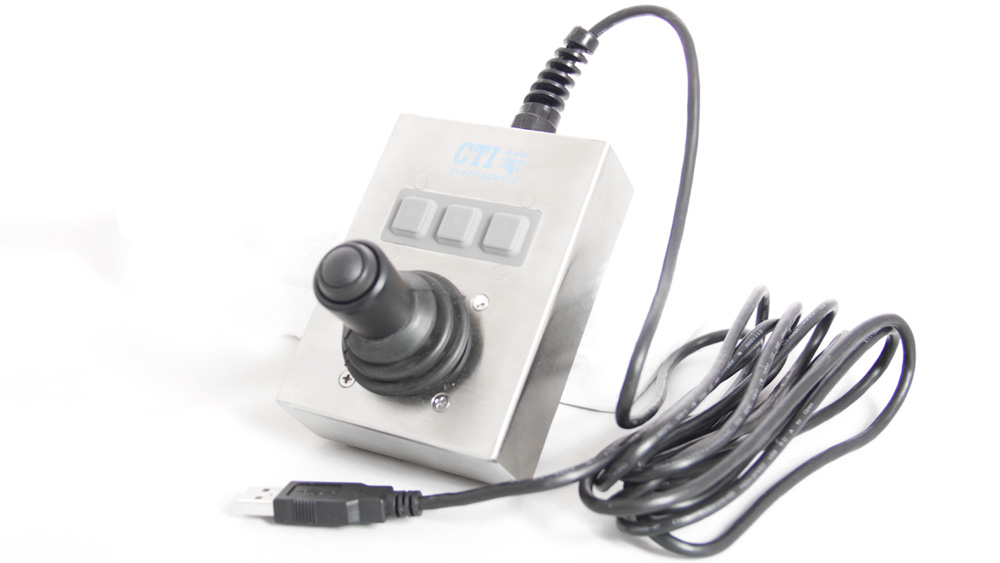

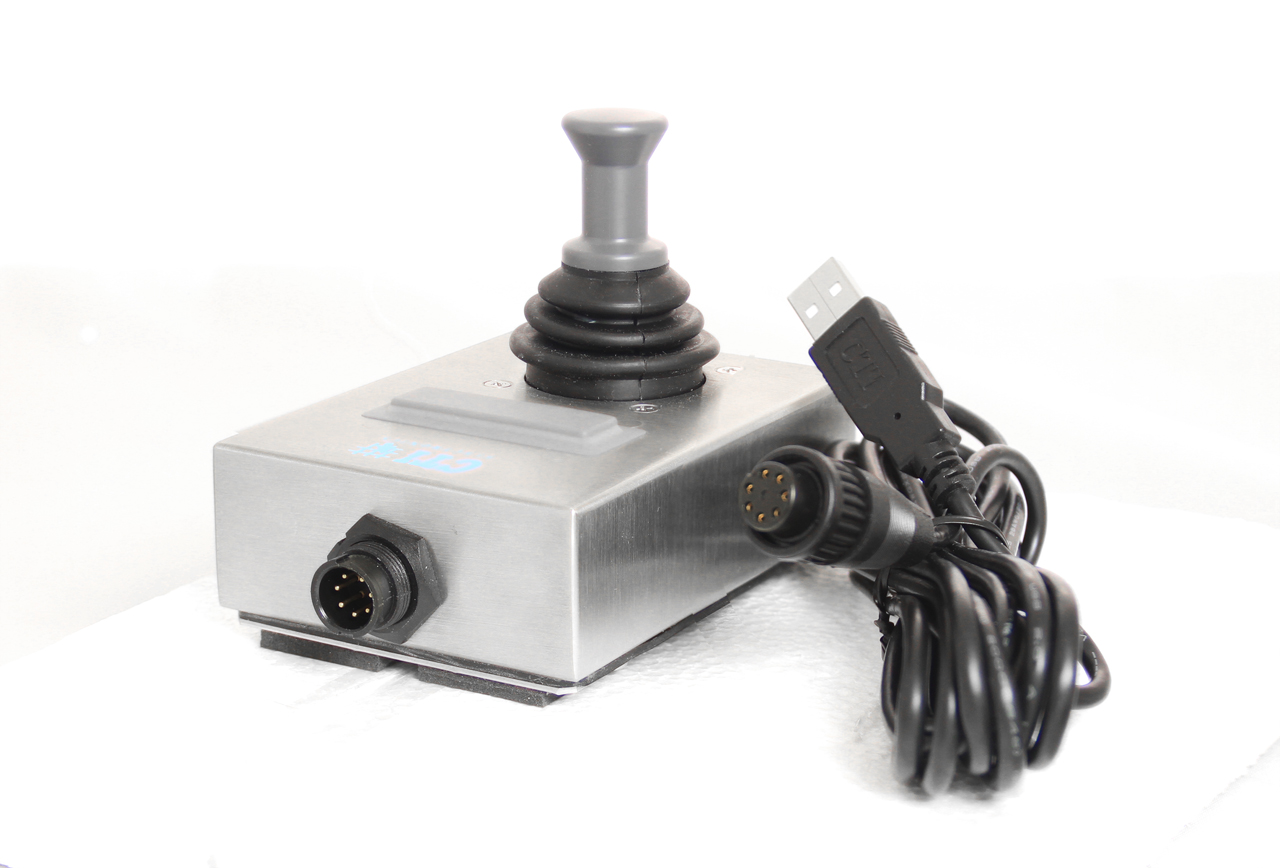

M20U1T-Nx Series Industrial Motion Controller

NEMA 4X (IP66) USB HID Compliant Motion Controller

Product Information

CTI's rugged USB Joystick Industrial Motion Controllers are the most reliable, easy-to-use motion control devices available. The M20U1T-Nx Series is designed for handheld or limited space applications, and features a NEMA 4X (IP66) sealed, stainless steel enclosure complete with gasket sealed bottom plate and rubber feet.

Its near-waterproof design is the perfect solution for harsh or wet environments requiring rugged motion control devices (USB FlightStick). This device also uses the same USB HID Compliant Game Controller technology as a Microsoft Sidewinder®.

The standard Industrial Motion Controllers have all the features of the FlightStick technology family, and when combined with the low-profile N54 joystick knob option, as shown, it can be held in one hand and easily operated with the other hand. The extra large sealed switch offers convenience, allowing the operator to quickly perform a designer-defined function; even while wearing gloves.

A choice from ten different joystick knobs allows for unlimited possibilities to suit your application's unique needs. In addition, an optional PDF Iconbulkhead waterproof cable assembly is available for simple installation of the cable through metal cabinets. CTI also offers an anodized aluminum PDF IconM2000 holder for convenient storage of the M20U1T-Nx series Industrial Motion Controller. The holder has holes for simple screw mounting alongside any machine or cabinet.

CTI's custom plug-n-play usb motion controller are ruggedized to meet aerospace, medical, and military standards. CTI's plug-n-play usb motion controller can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These plug-n-play usb motion controller are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

Inductive Industrial Joysticks Reliability Data
F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
25mA @ 24VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)
Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)
Sealing
Water Tight    NEMA 4 (IP66)
Reliability
MTBF Greater than 100,000 hours
Life 10,000,000 random deflections
Optional Push Button Switch  1,000,000 cycles maximum
Shock
Peak Value 30g to 50g depending on knob & spring option
Pulse Duration 11 ms
Waveform Half Sine
Vibration
Frequency Displacement (inches)
5 - 25 Hz 0.1
25 - 55 Hz   0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
ESD rated to 15KV
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
PDF Icon USB Joystick (FlightStick) One & Two Axes Specification


Inductive Industrial Joysticks Reliability Data
F1800-N82 Series – NEMA 12 (IP 54) 3 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)
Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)
Sealing
Drip Proof     Z Axis NEMA 12 (IP54), suitable for indoor use.
Water Resistant X&Y Axes NEMA 4 (IP66) Sealing Boot
Reliability
MTBF   Greater than 100,000 hours
Life   10,000,000 random deflections
Shock
Peak Value    10 g
Pulse Duration   11 ms
Waveform       Half Sine

Vibration
Frequency Displacement (inches)
5-25 Hz    0.1
25-55 Hz       0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)

PDF IconUSB Joystick (Flightstick) N82 Three Axes Specification


Inductive Industrial Joysticks Reliability Data
F1800-N84 Series NEMA 4 (IP 66) 3 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)
Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)
Sealing
Drip Proof     Z Axis NEMA 12 (IP54), suitable for indoor use.
Water Resistant X&Y Axes NEMA 4 (IP66) Sealing Boot
Reliability
MTBF   Greater than 100,000 hours
Life   10,000,000 random deflections
Shock
Peak Value    10 g
Pulse Duration   11 ms
Waveform       Half Sine

Vibration
Frequency Displacement (inches)
5-25 Hz    0.1
25-55 Hz       0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)

PDF IconUSB Joystick (Flightstick) N84 Three Axes Specification



Pricing

Plug-n-Play Industrial USB FlightStick (HID Compliant Game Controller) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.

PDF IconPlug-n-Play Industrial USB FlightStick (HID Compliant Game Controller) Pricing

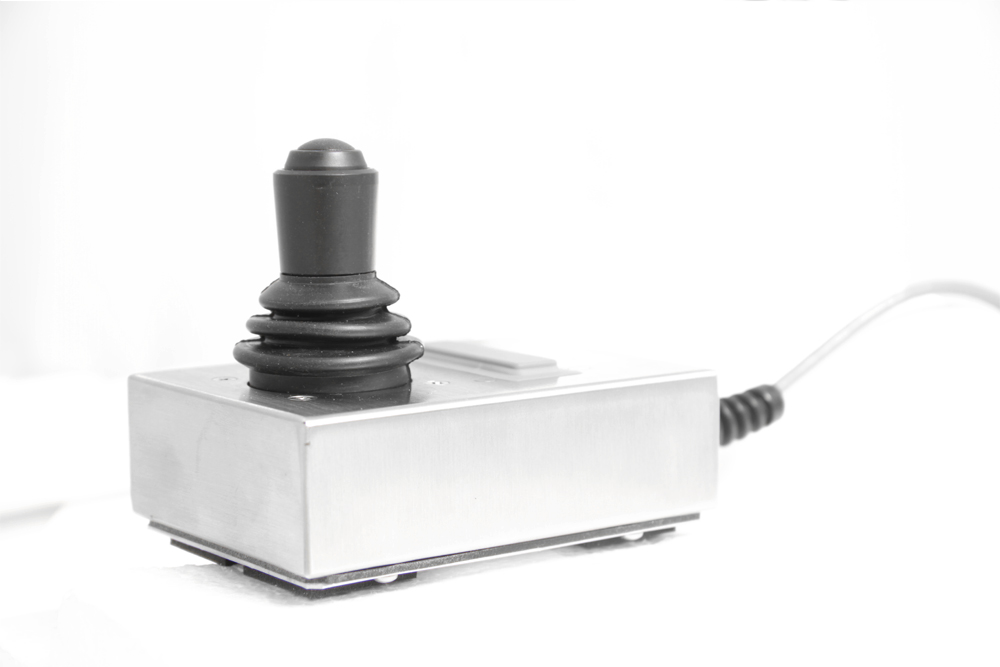

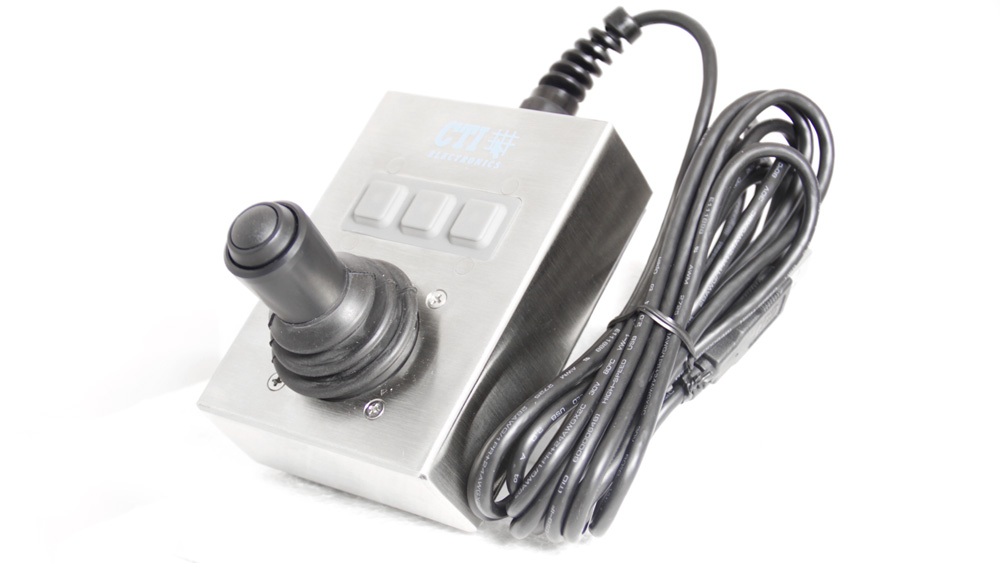

M20U1T-Nx Industrial Motion Controller
Photos
Videos
How-To
RFQ

M2000 Holder

Industrial Motion Controller Holder

Product Information

The M2000 series of rugged hand held computer motion control devices offers an anodized aluminum holder with pre-drilled mounting holes for easy panel mounting.

This precision machined cradle is designed for rugged environments and allows the operator a place of convenient storage for the M2000 series of handheld Industrial Mouse™ pointers such as the Industrial Mouse™, OrbitalMouse®, or industrial motion control devices such as the M2000-Nx and M20UxT-Nx Series (USB Joystick).

Related Documentation:

Specifications

Black Anodized Aluminum

Pricing

M2000 Holder Pricing

$60 each



M2000 Industrial Motion Controller Holder
Photos
Videos
How-To
RFQ

Desktop (USB Joystick) Industrial Motion Control Device

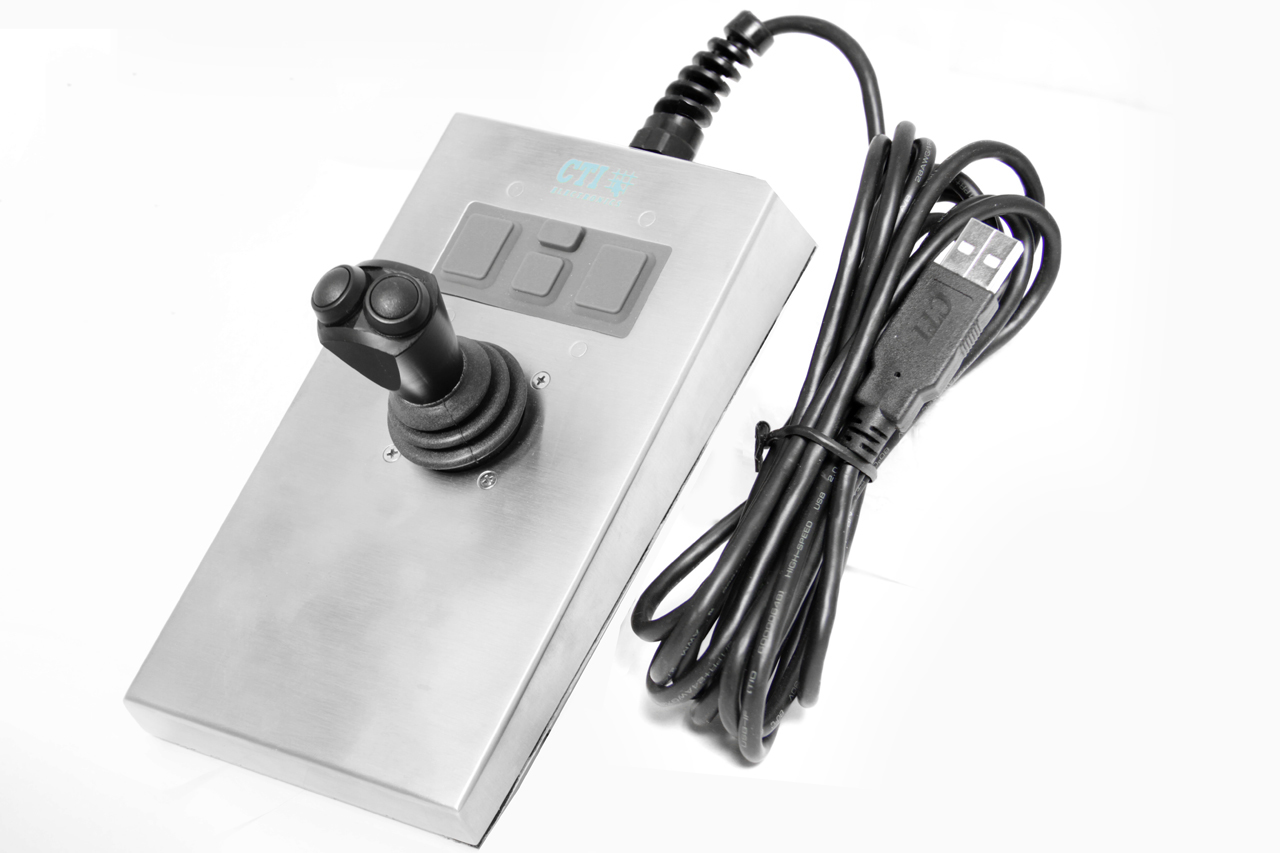

M90U9T-Nx Series Motion Controller

NEMA 4X (IP66) USB HID Compliant Motion Controller

Product Information

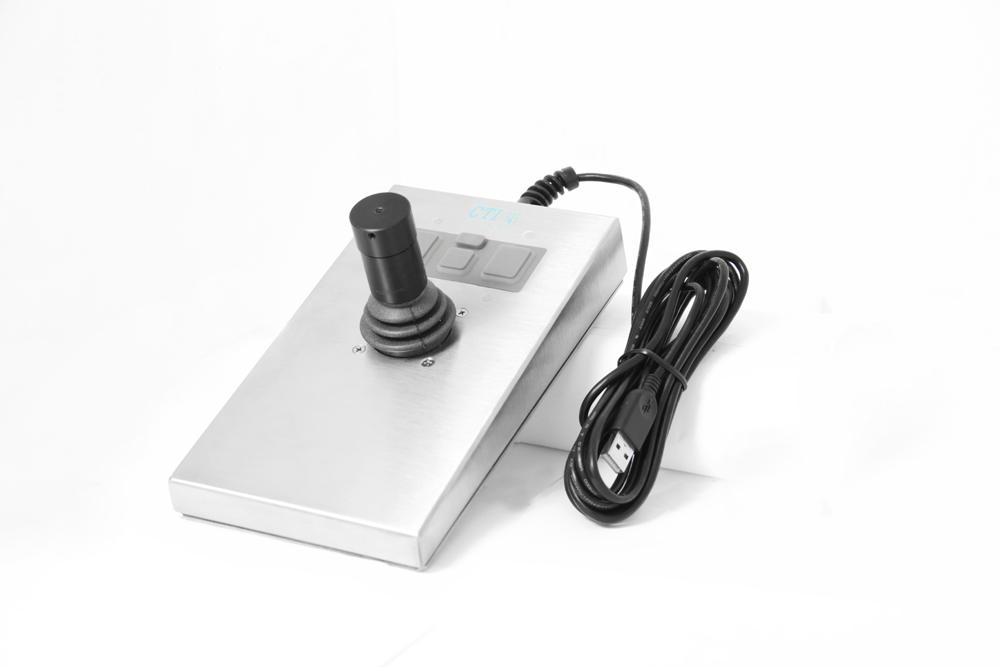

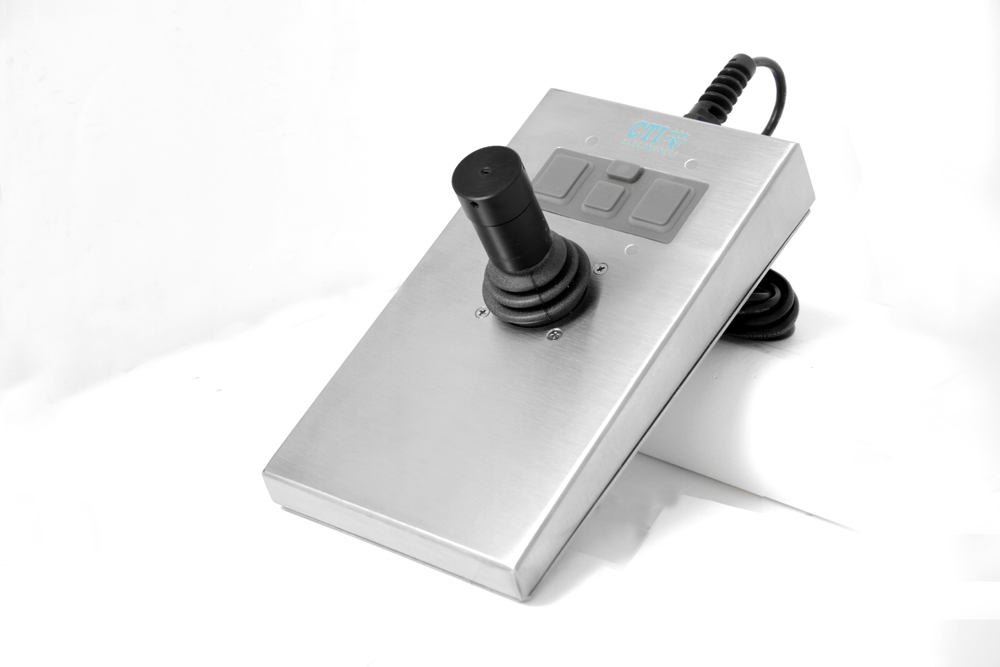

The workstation/desktop version of the Motion Controller has an ergonomic; stainless steel NEMA 4X (IP66) sealed enclosure. This design is perfect for harsh or wet environments requiring rugged Industrial Motion Control devices (USB FlightStick). This device also uses the same USB HID Compliant Game Controller technology as a Microsoft Sidewinder®.

In addition to the three sealed switches on the enclosure, the standard low profile N3 joystick knob offers a NEMA 4 (IP66) sealed button in the USB Joystick handle.

The stainless steel enclosure with gasket sealed bottom plate has rubber feet and a sealed stainless steel threaded insert allowing for easy securing to any work surface with just one bolt. Options include industrial joystick knob, various application specific options, including an optional PDF Iconbulkhead waterproof cable assembly for simple installation of the cable through metal cabinets.

CTI's custom plug-n-play usb motion controller are ruggedized to meet aerospace, medical, and military standards. CTI's plug-n-play usb motion controller can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These plug-n-play usb motion controller are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

Inductive Industrial Joysticks Reliability Data
F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
25mA @ 24VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)
Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)

Sealing
Water Tight    NEMA 4 (IP66)

Reliability
MTBF Greater than 100,000 hours
Life 10,000,000 random deflections
Optional Push Button Switch  1,000,000 cycles maximum

Shock
Peak Value 30g to 50g depending on knob & spring option
Pulse Duration 11 ms
Waveform Half Sine

Vibration
Frequency Displacement (inches)
5 - 25 Hz 0.1
25 - 55 Hz   0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
ESD rated to 15KV
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
PDF Icon
USB Joystick (FlightStick) One & Two Axes Specification


Inductive Industrial Joysticks Reliability Data
F1800-N82 Series – NEMA 12 (IP 54) 3 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)

Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)

Sealing
Drip Proof     Z Axis NEMA 12 (IP54), suitable for indoor use.
Water Resistant X&Y Axes NEMA 4 (IP66) Sealing Boot

Reliability
MTBF   Greater than 100,000 hours
Life   10,000,000 random deflections

Shock
Peak Value    10 g
Pulse Duration   11 ms
Waveform       Half Sine


Vibration
Frequency Displacement (inches)
5-25 Hz    0.1
25-55 Hz       0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)

PDF IconUSB Joystick (Flightstick) N82 Three Axes Specification

Inductive Industrial Joysticks Reliability Data
F1800-N84 Series NEMA 4 (IP 66) 3 Axes Precision Control Joysticks

Electrical
Power Consumption 10mA @ 5VDC (typical)
Repeatability   > 1%
Accuracy  > 1% of Full Scale (typical)
> 2% of Full Scale (worst case)

Environmental
Operating Temperature  0º to 80º C (standard)
-40º to 80º C (with “D” option)
Storage Temperature    -40º to 80º C
Relative Humidity     100% non-condensing (with “Z” option)

Sealing
Drip Proof     Z Axis NEMA 12 (IP54), suitable for indoor use.
Water Resistant X&Y Axes NEMA 4 (IP66) Sealing Boot

Reliability
MTBF   Greater than 100,000 hours
Life   10,000,000 random deflections

Shock
Peak Value    10 g
Pulse Duration   11 ms
Waveform       Half Sine


Vibration
Frequency Displacement (inches)
5-25 Hz    0.1
25-55 Hz       0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
“CE” classification option requires the following modifications:
a.) Ferrite bead on ribbon cable (made by CTI Electronics)
b.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)

PDF IconUSB Joystick (Flightstick) N84 Three Axes Specification

Pricing

Plug-n-Play Industrial USB FlightStick (HID Compliant Game Controller) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.

PDF IconPlug-n-Play Industrial USB FlightStick (HID Compliant Game Controller) Pricing

M90U9T-Nx Series Motion Controller
Photos
Videos
How-To
RFQ
Sidewinder® is a registered trademark of Microsoft Corporation
TOP
Manufactured in U.S.A. Manufactured in U.S.A. Copyright © 2001-2017 | CTI Electronics Corporation an affiliate of ELECTRO SWITCH | Tel: (203) 386-9779 | All Rights Reserved - sitemap | Sales | Tech
