Panel Mount Industrial Pointing Devices




H2XX9-NX Panel Mount Mouse PointerH20x1-Nx Panel Mount Mouse Pointer10x0-Nx Panel Mount Mouse Pointer

CTI' Panel Mount industrial pointing devices are designed to withstand exposure to harsh liquid or solid debris, tough environmental conditions, and/or operate reliably in a temperature range of -40⁰C to +80⁰C (-40⁰F to +176⁰F). CTI is the inventor of the patented Industrial Mouse™ (joystick cursor controller of which there are copycats but no equal. What makes these industrial pointing devices really special is the value derived through higher productivity, elimination of unscheduled downtime, zero servicing, along with a social and ethical responsibility to the reduction of electronic waste.
Long term durability is guaranteed through the use of the highest quality materials and components which also ensures the highest reliability over the broadest operating temperature range. The electrical MTBF is rated for 100,000+ hours (MIL-HDBK-217F rating) due to the electrical components, that's over 10 years of reliable service. CTI' industrial pointing devices are the only choice when reliability is critical™ to the success of your application.

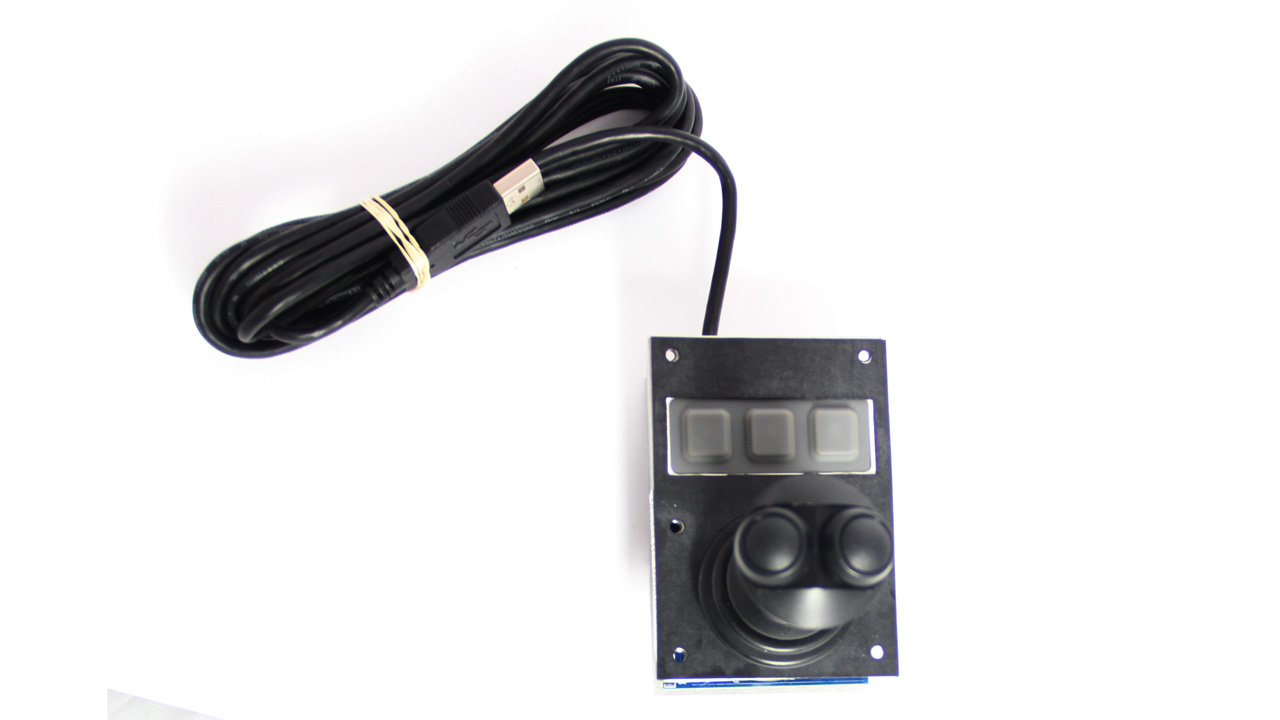

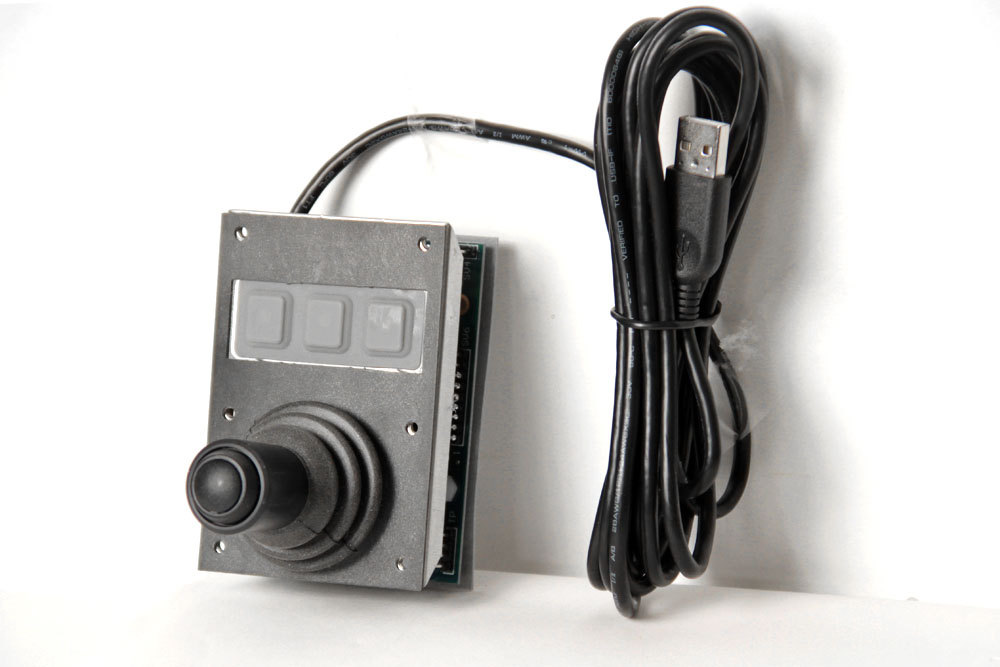

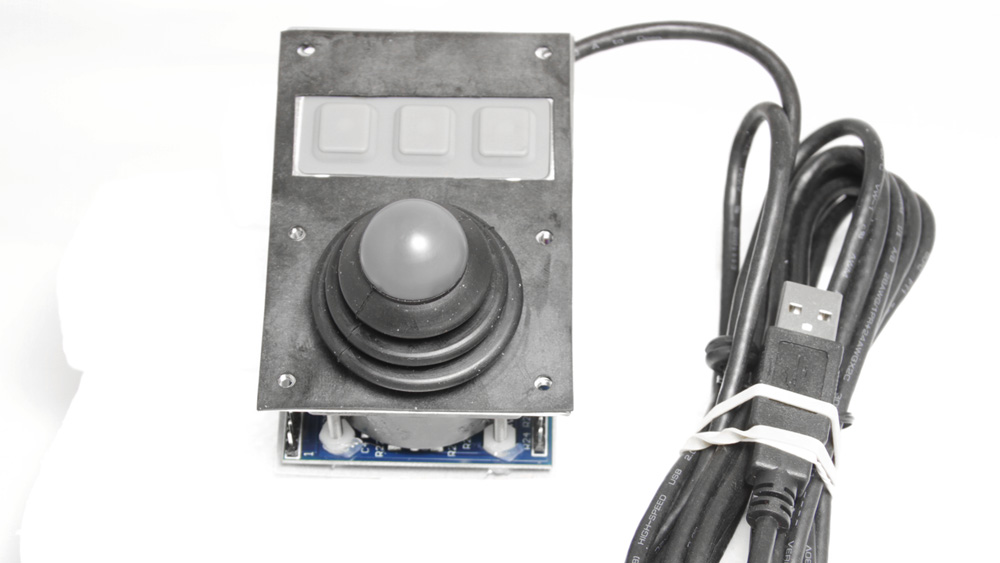

H2XX9-NX Series Panel Mount Pointing Device

Panel Mounted Industrial Mouse™

Product Information

The H2XX9-NX Series is a panel mount version of the Industrial Mouse™ (Joystick Cursor Controller) built as one complete assembly attached to a stainless steel bezel for simple under panel installation. A neoprene gasket is provided, which in combination with a six-screw mounting pattern, provides NEMA 4X (IP66) sealing in a small footprint. This design is perfect for harsh or wet environments requiring rugged computer mouse pointers or control input devices.

Standard industrial computer mouse pointers have all the features of the Industrial Mouse™ family; including choice of eight different joystick knobs, and are available in versions compatible with all computers. The three sealed switches perform all computer mouse pointers functions, as well as allow the operator to select one of eight speed curves.

The H2XX9-NX is optimized for lower volume installations that are not suited for the OEM versions.

CTI's custom panel mount pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's panel mount pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These panel mount pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

H2XX9-NX Series Panel Mount Pointing Device Specification

Industrial Mouse™ (Joystick Cursor Controller)
Original Industrial Mouse™ - A CTI invention!
Reliable mouse cursor, field proven over 20 years
Patented - Non contact inductive handle
No moving electrical parts or magnets
No wear and no drift
Gain never changes - No calibration needed
3/16" diameter solid stainless steel shaft
Eight different knob options
Knobs with pushbuttons on top to act like "left mouse button" for double clicking and drag and drop
Gray or black silicone mouse switches
Withstands 25 lbs. static load
40° total deflection of joystick travel
Sealed stainless steel mounting holes

Features & Options:
NEMA 4, NEMA 4X (IP66)
Point and click operation
Gray or black silicone mouse switches
Waterproof connector assembly for simple cable installation through metal cabinets
Sealed mounting holes
Sealed gold plated switch contacts
Latching feature holds button down to simulate "drag and drop" with LED indicator
Port compatible with all computers - no software drivers needed
Stainless steel or painted aluminum enclosures
Repairable design
Easiest to use sealed mouse cursor
Joystick withstands 25lbs of a static load
USB, PS/2, or Serial Output
Direct factory support - Made in USA

Temperature Ratings:
Operating Temperature  0º to 80º C
Operating (Optional)      -40ºC to 80º C
Storage Temperature: -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures): 100,000 hours per MIL-HDBK-217F.
Shock Rating: 30g to 50g depending on Knob 11ms -1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration: Mil-Std-810F, Category 4
Elastomer Switches: Rated for up to 10 million cycles
Joystick button: Rated at 1 million cycles
Joystick:  Rated at 10 million random operations

Certifications:
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant
PDF Icon
Industrial Mouse™ (Joystick Cursor Controller) Specification

Pricing

Panel Mount Industrial Mouse™ (Joystick Cursor Controller) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPanel Mount Industrial Mouse™ (Joystick Pointing Device) Pricing

H2XX9-Nx Panel Mount Pointing Device
Photos
Videos
How-To
RFQ

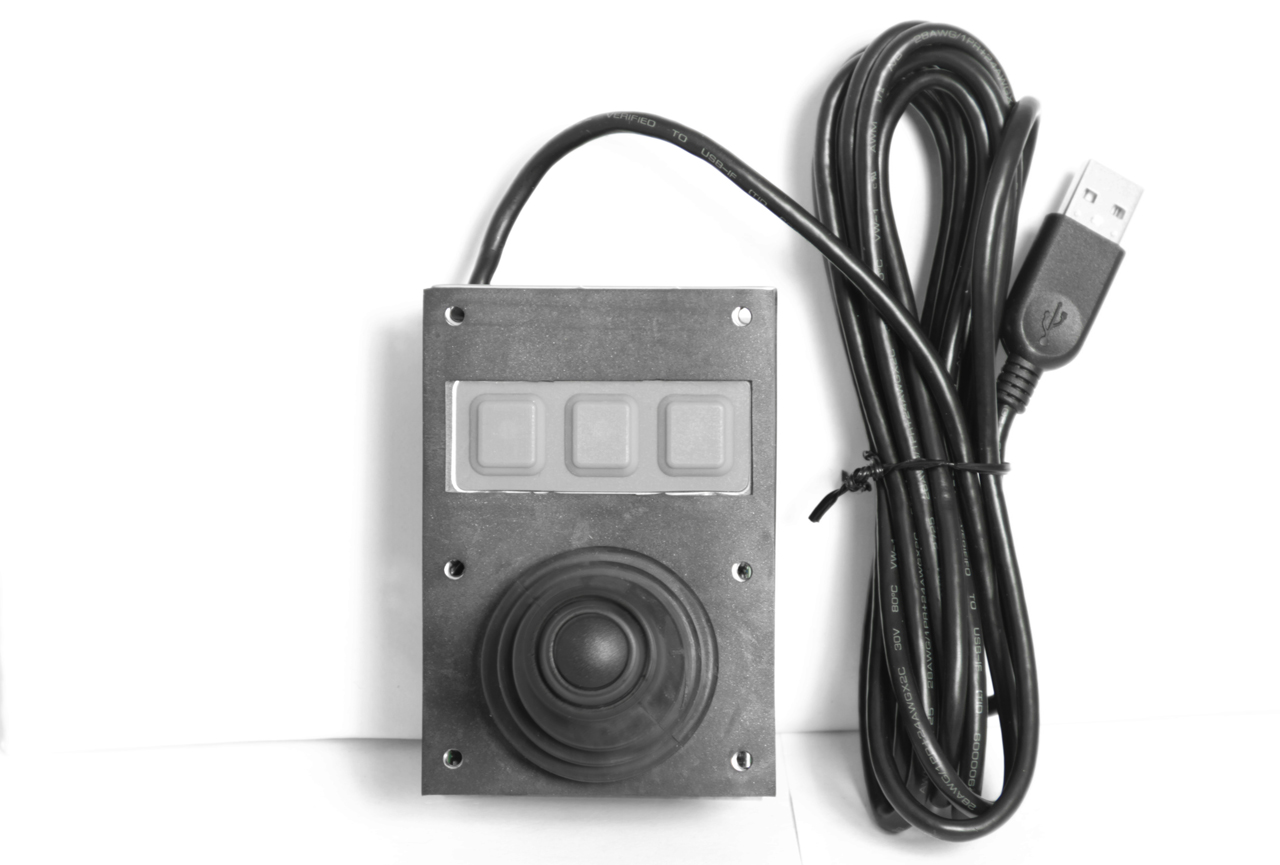

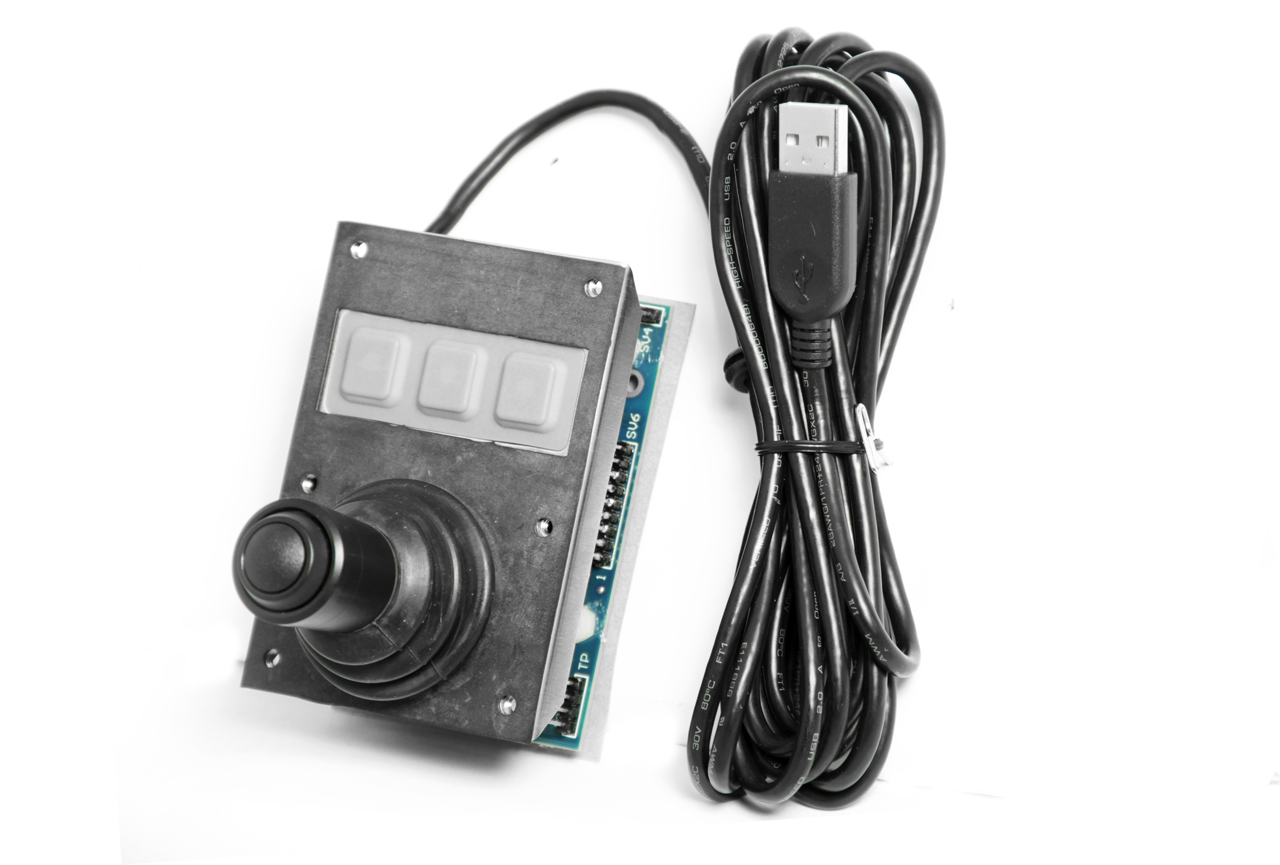

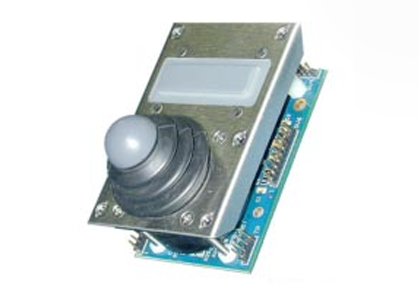

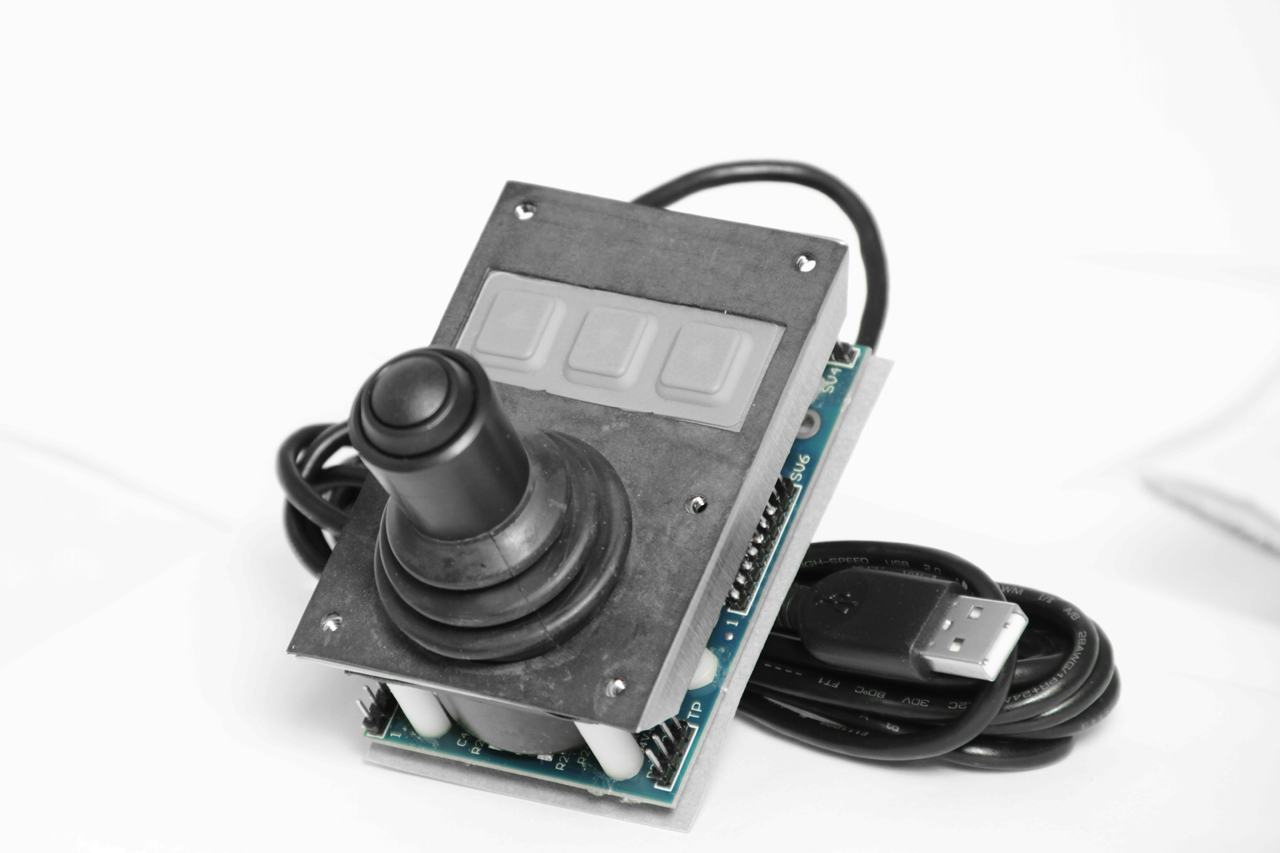

H20x1-Nx Series Panel Mount Pointing Device

Panel Mounted Industrial Mouse™ with Extra Large Button

Product Information

The H20x1-Nx Series is a panel mount version of the Industrial Mouse™ (Joystick Cursor Controller), attached to a stainless steel bezel for simple under-panel installation. A neoprene gasket is combined with a six-screw mounting pattern, providing NEMA 4X (IP66) sealing in a small footprint. This near-waterproof design is perfect for harsh or wet environments requiring rugged computer mouse pointers.

The standard Industrial Mouse™ pointers have all the features of the Industrial Mouse™ family, and when combined with the low-profile N5 joystick knob, it can be mounted to a panel and easily operated with just the thumb. The extra large sealed switch offers convenience, allowing the operator to quickly perform all mouse functions; even while wearing gloves.

A choice from eight different joystick knobs allows for unlimited possibilities to suit your application's unique needs. The H20x1-Nx is optimized for lower volume installations that are not suited for the OEM versions.

CTI's custom panel mount pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's panel mount pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These panel mount pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

H20x1-Nx Series Panel Mount Pointing Device Specification

Industrial Mouse™ (Joystick Cursor Controller)
Original Industrial Mouse™ - A CTI invention!
Reliable mouse cursor, field proven over 20 years
Patented - Non contact inductive handle
No moving electrical parts or magnets
No wear and no drift
Gain never changes - No calibration needed
3/16" diameter solid stainless steel shaft
Eight different knob options
Knobs with pushbuttons on top to act like "left mouse button" for double clicking and drag and drop
Gray or black silicone mouse switches
Withstands 25 lbs. static load
40° total deflection of joystick travel
Sealed stainless steel mounting holes

Features & Options:
NEMA 4, NEMA 4X (IP66)
Point and click operation
Gray or black silicone mouse switches
Waterproof connector assembly for simple cable installation through metal cabinets
Sealed mounting holes
Sealed gold plated switch contacts
Latching feature holds button down to simulate "drag and drop" with LED indicator
Port compatible with all computers - no software drivers needed
Stainless steel or painted aluminum enclosures
Repairable design
Easiest to use sealed mouse cursor
Joystick withstands 25lbs of a static load
USB, PS/2, or Serial Output
Direct factory support - Made in USA

Temperature Ratings:
Operating Temperature  0º to 80º C
Operating (Optional)      -40ºC to 80º C
Storage Temperature: -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures): 100,000 hours per MIL-HDBK-217F.
Shock Rating: 30g to 50g depending on Knob 11ms -1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration: Mil-Std-810F, Category 4
Elastomer Switches: Rated for up to 10 million cycles
Joystick button: Rated at 1 million cycles
Joystick:  Rated at 10 million random operations

Certifications:
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant
PDF Icon
Industrial Mouse™ (Joystick Cursor Controller) Specification


Pricing

Panel Mount Industrial Mouse™ (Joystick Cursor Controller) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPanel Mount Industrial Mouse™ (Joystick Pointing Device) Pricing

H20x1-Nx Panel Mount Pointing Device
Photos
Videos
How-To
RFQ

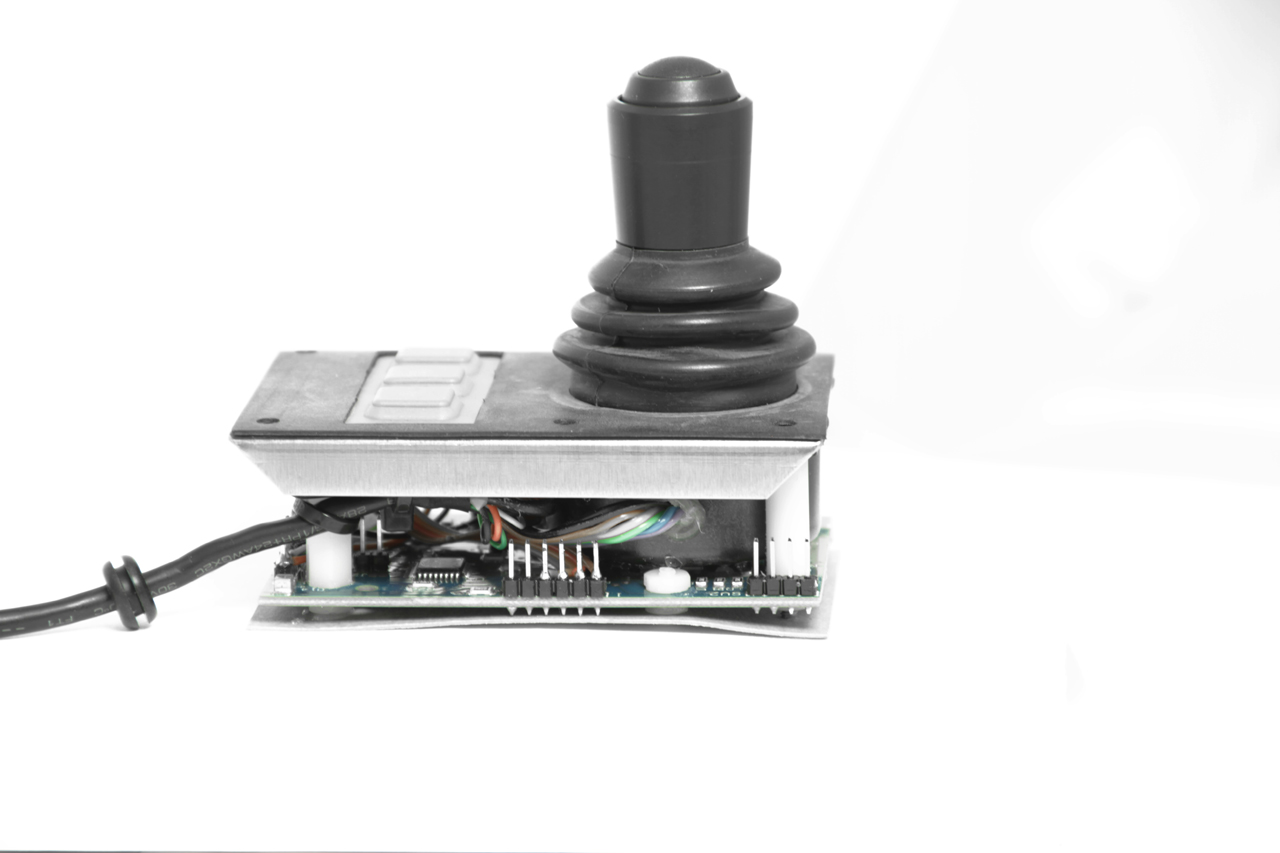

H10x0-Nx Model Panel Mount Pointing Devices

Panel Mounted Industrial Mouse™ - replaces H10x0-N32

Product Information

The H10x0-Nx Models are a panel mount version of the Industrial Mouse™ (Joystick Cursor Controller) using the F-Series joysticks which are attached to a cold rolled steel bezel for simple under-panel installation. The Industrial Mouse™ pointing device is protected from below with a blue anodized aluminum cover.  A neoprene gasket is included with a four-screw mounting pattern, providing NEMA 4 (IP66) sealing in a small footprint. An optional manufacturing step of conformal coating of the PCB protects the electronic components from moisture or humidity.  This near-waterproof design is perfect for harsh or wet environments requiring rugged computer mouse pointers.

The H10x0-Nx Industrial Mouse™ pointers have all the features of the Industrial Mouse™ family. When combined with either the N33 or N34 joystick knob it allows the operator to quickly perform the left and right mouse button functions; even while wearing gloves.
The H10x0-Nx models are a replacement for the legacy H-Series joystick (H10x0-N32 model).

CTI's custom panel mount pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's panel mount pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These panel mount pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

H10x0-Nx Model Panel Mount Pointing Device Specification

Industrial Mouse™ (Joystick Cursor Controller)
Original Industrial Mouse™ - A CTI invention!
Reliable mouse cursor, field proven over 20 years
Patented - Non contact inductive handle
No moving electrical parts or magnets
No wear and no drift
Gain never changes - No calibration needed
3/16" diameter solid stainless steel shaft
Eight different knob options
Knobs with pushbuttons on top to act like "left mouse button" for double clicking and drag and drop
Gray or black silicone mouse switches
Withstands 25 lbs. static load
40° total deflection of joystick travel
Sealed stainless steel mounting holes

Features & Options:
NEMA 4, NEMA 4X (IP66)
Point and click operation
Gray or black silicone mouse switches
Waterproof connector assembly for simple cable installation through metal cabinets
Sealed mounting holes
Sealed gold plated switch contacts
Latching feature holds button down to simulate "drag and drop" with LED indicator
Port compatible with all computers - no software drivers needed
Stainless steel or painted aluminum enclosures
Repairable design
Easiest to use sealed mouse cursor
Joystick withstands 25lbs of a static load
USB, PS/2, or Serial Output
Direct factory support - Made in USA

Temperature Ratings:
Operating Temperature  0º to 80º C
Operating (Optional)      -40ºC to 80º C
Storage Temperature: -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures): 100,000 hours per MIL-HDBK-217F.
Shock Rating: 30g to 50g depending on Knob 11ms -1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration: Mil-Std-810F, Category 4
Elastomer Switches: Rated for up to 10 million cycles
Joystick button: Rated at 1 million cycles
Joystick:  Rated at 10 million random operations

Certifications:
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant
PDF Icon
Industrial Mouse™ (Joystick Cursor Controller) Specification


Pricing

Panel Mount Industrial Mouse™ (Joystick Cursor Controller) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPanel Mount Industrial Mouse™ (Joystick Pointing Device) Pricing

H10x0-Nx Panel Mount Pointing Device
Photos
Videos
How-To
RFQ
