Plug-n-Play Industrial Pointing Devices




M20Ux-Nx-7P Series Pointing Device

NEMA 4X (IP66) Hand Held Industrial Mouse™ with Detachable Cable

Product Information

This series features the Industrial Mouse™ (Joystick Cursor Controller) computer mouse pointer in a space saving, NEMA 4X (IP66) sealed, stainless steel enclosure; designed for hand held or limited space applications. This design is the perfect solution for harsh or wet environments requiring rugged computer mouse pointers or control input devices and near waterproof sealing. The standard Industrial Mouse™ pointers have all the features of the Industrial Mouse™ family; and when combined with the single button N3 joystick knob it can be held in one hand and easily operated with just the thumb. The one button switch or three button switches perform the appropriate mouse functions.

This series features the USB Industrial Mouse™ in a space saving NEMA 4X (IP66) sealed stainless steel enclosure that has a dis-connectable USB cable; designed for rugged use where the cable could become compromised and need replacement. The key feature of this design is a 7 pin NEMA 4 (IP66) connection (Shell) which provides grounding, shielding, and USB signals.

The stainless steel enclosure with gasket sealed bottom plate has rubber feet. Options include joystick knob and various application specific options including protection against Electro-Magnetic Interference (EMI) and Radio-Frequency Interference (RFI) signals.

An anodized aluminum M2000 holder is available for convenient storage of the M20Ux-Nx-7P series Industrial Mouse™ computer mouse pointer. The holder has holes for simple screw mounting alongside any machine or cabinet.

CTI's custom plug-n-play pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's plug-n-play pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These plug-n-play pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

M20Ux-Nx-7P Series Pointing Device Specification

Industrial Mouse™ (Joystick Cursor Controller)
Original Industrial Mouse™ - A CTI invention!
Reliable mouse cursor, field proven over 20 years
Patented - Non contact inductive handle
No moving electrical parts or magnets
No wear and no drift
Gain never changes - No calibration needed
3/16" diameter solid stainless steel shaft
Eight different knob options
Knobs with pushbuttons on top to act like "left mouse button" for double clicking and drag and drop
Gray or black silicone mouse switches
Withstands 25 lbs. static load
40° total deflection of joystick travel
Sealed stainless steel mounting holes

Features & Options:
NEMA 4, NEMA 4X (IP66)
Point and click operation
Gray or black silicone mouse switches
Waterproof connector assembly for simple cable installation through metal cabinets
Sealed mounting holes
Sealed gold plated switch contacts
Latching feature holds button down to simulate "drag and drop" with LED indicator
Port compatible with all computers - no software drivers needed
Stainless steel or painted aluminum enclosures
Repairable design
Easiest to use sealed mouse cursor
Joystick withstands 25lbs of a static load
USB, PS/2, or Serial Output
Direct factory support - Made in USA

Temperature Ratings:
Operating Temperature  0º to 80º C
Operating (Optional)      -40ºC to 80º C
Storage Temperature: -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures): 100,000 hours per MIL-HDBK-217F.
Shock Rating: 30g to 50g depending on Knob 11ms -1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration: Mil-Std-810F, Category 4
Elastomer Switches: Rated for up to 10 million cycles
Joystick button: Rated at 1 million cycles
Joystick:  Rated at 10 million random operations

Certifications:
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant
PDF Icon Industrial Mouse™ (Joystick Cursor Controller) Specification

Pricing

Plug-n-Play Industrial Mouse™ (Joystick Cursor Controller) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPlug-n-Play Industrial Mouse™ (Joystick Pointing Device) Pricing

M20Ux-Nx-7P Industrial Pointing Device
Photos
Videos
How-To
RFQ

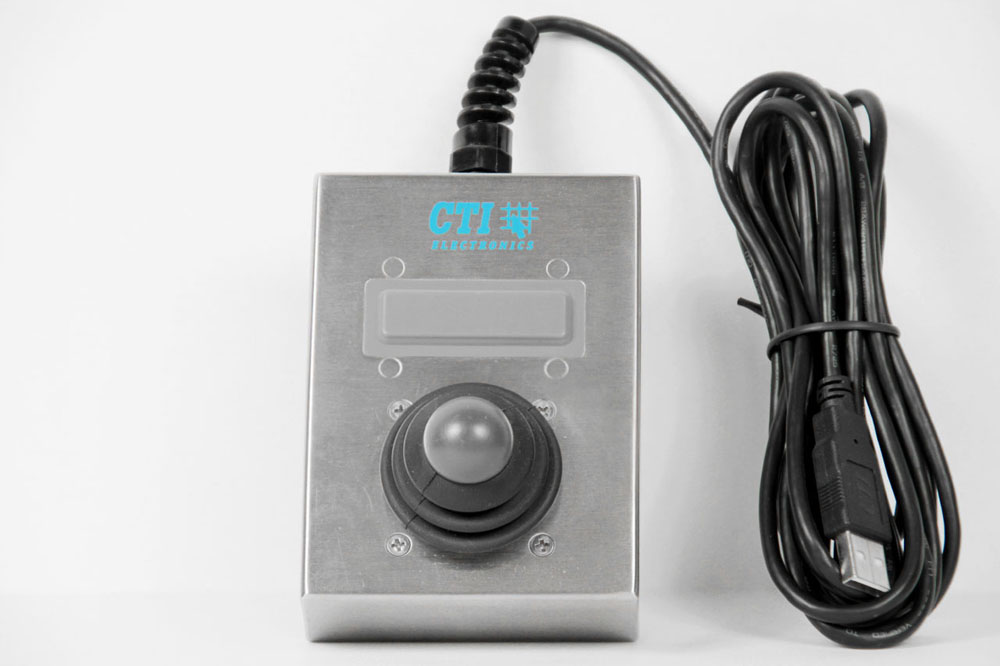

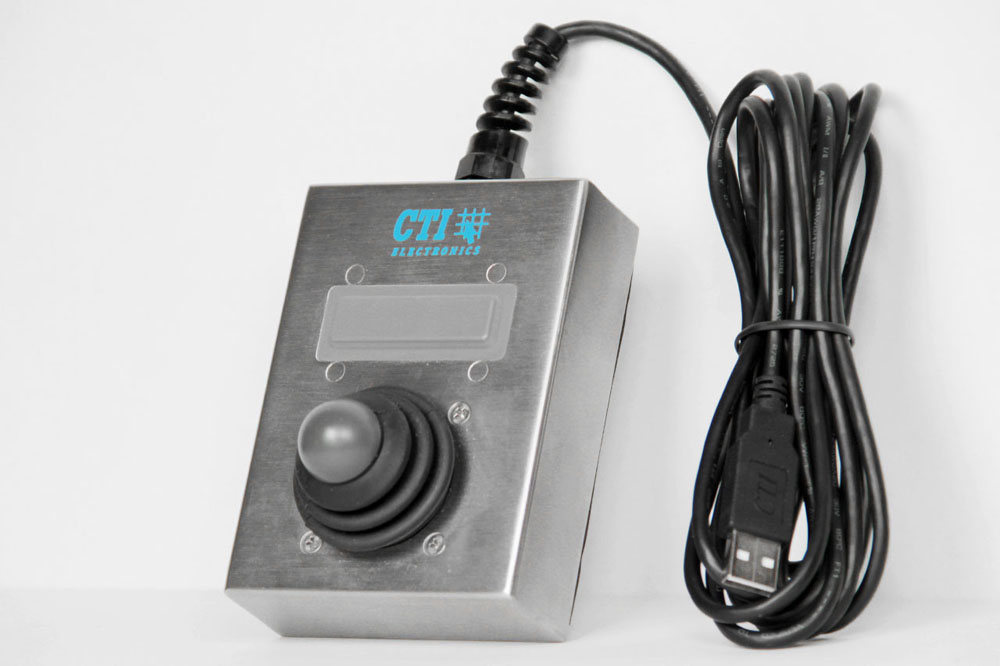

M20U1-Nx-7P Series Pointing Device

NEMA 4X (IP66) Hand Held Industrial Mouse™ with Detachable Cable

Product Information

This series features the Industrial Mouse™ (Joystick Cursor Controller) computer mouse pointer in a space saving, NEMA 4X (IP66) sealed, stainless steel enclosure; designed for hand held or limited space applications. This design is the perfect solution for harsh or wet environments requiring rugged computer mouse pointers or control input devices and near waterproof sealing. The standard Industrial Mouse™ pointers have all the features of the Industrial Mouse™ family; and when combined with the single button N3 joystick knob it can be held in one hand and easily operated with just the thumb. The one button switch or three button switches perform the appropriate mouse functions.

This series features the USB Industrial Mouse™ in a space saving NEMA 4X (IP66) sealed stainless steel enclosure that has a dis-connectable USB cable; designed for rugged use where the cable could become compromised and need replacement. The key feature of this design is a 7 pin NEMA 4 (IP66) connection (Shell) which provides grounding, shielding, and USB signals.

The stainless steel enclosure with gasket sealed bottom plate has rubber feet. Options include joystick knob and various application specific options including protection against Electro-Magnetic Interference (EMI) and Radio-Frequency Interference (RFI) signals.

An anodized aluminum M2000 holder is available for convenient storage of the M20U1-Nx-7P series Industrial Mouse™ computer mouse pointer. The holder has holes for simple screw mounting alongside any machine or cabinet.

CTI's custom plug-n-play pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's plug-n-play pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These plug-n-play pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

M20U1-Nx-7P Series Pointing Device Specification

Industrial Mouse™ (Joystick Cursor Controller)
Original Industrial Mouse™ - A CTI invention!
Reliable mouse cursor, field proven over 20 years
Patented - Non contact inductive handle
No moving electrical parts or magnets
No wear and no drift
Gain never changes - No calibration needed
3/16" diameter solid stainless steel shaft
Eight different knob options
Knobs with pushbuttons on top to act like "left mouse button" for double clicking and drag and drop
Gray or black silicone mouse switches
Withstands 25 lbs. static load
40° total deflection of joystick travel
Sealed stainless steel mounting holes

Features & Options:
NEMA 4, NEMA 4X (IP66)
Point and click operation
Gray or black silicone mouse switches
Waterproof connector assembly for simple cable installation through metal cabinets
Sealed mounting holes
Sealed gold plated switch contacts
Latching feature holds button down to simulate "drag and drop" with LED indicator
Port compatible with all computers - no software drivers needed
Stainless steel or painted aluminum enclosures
Repairable design
Easiest to use sealed mouse cursor
Joystick withstands 25lbs of a static load

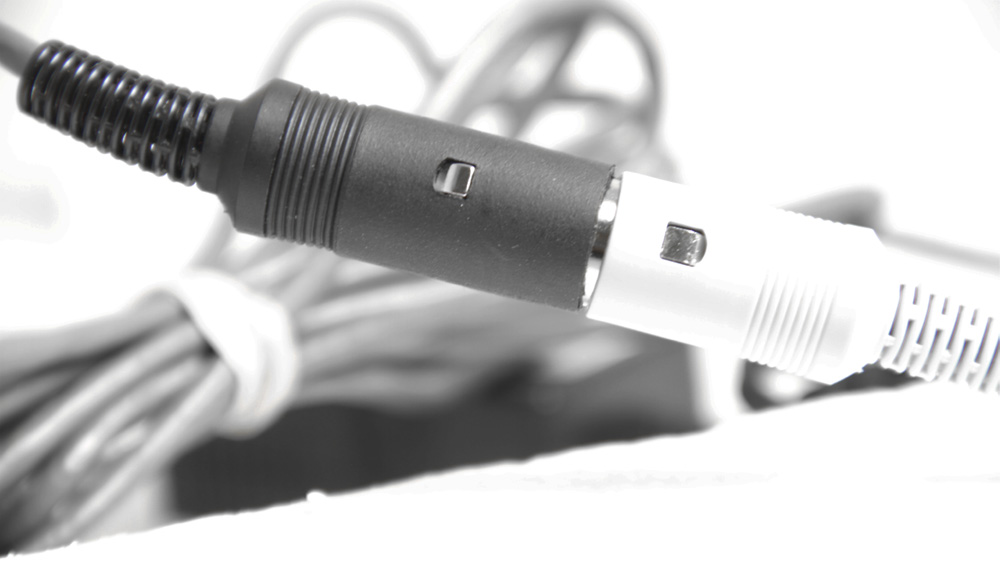

USB, PS/2, or Serial Output
Direct factory support - Made in USA

Temperature Ratings:
Operating Temperature  0º to 80º C
Operating (Optional)      -40ºC to 80º C
Storage Temperature: -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures): 100,000 hours per MIL-HDBK-217F.
Shock Rating: 30g to 50g depending on Knob 11ms -1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration: Mil-Std-810F, Category 4
Elastomer Switches: Rated for up to 10 million cycles
Joystick button: Rated at 1 million cycles
Joystick:  Rated at 10 million random operations

Certifications:
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant
PDF Icon Industrial Mouse™ (Joystick Cursor Controller) Specification

Pricing

Plug-n-Play Industrial Mouse™ (Joystick Cursor Controller) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPlug-n-Play Industrial Mouse™ (Joystick Pointing Device) Pricing

M20Ux-Nx-7P Industrial Pointing Device
Photos
Videos
How-To
RFQ

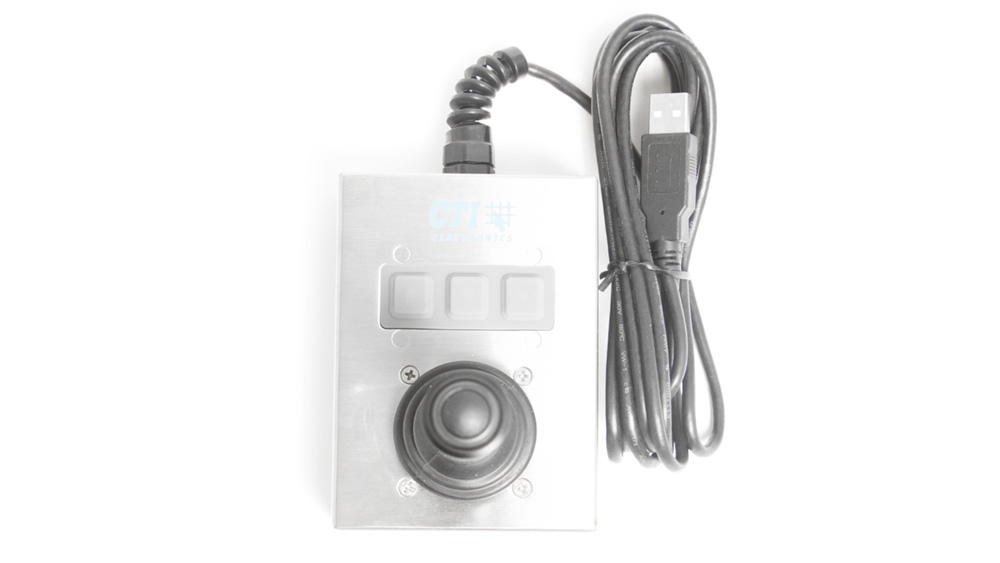

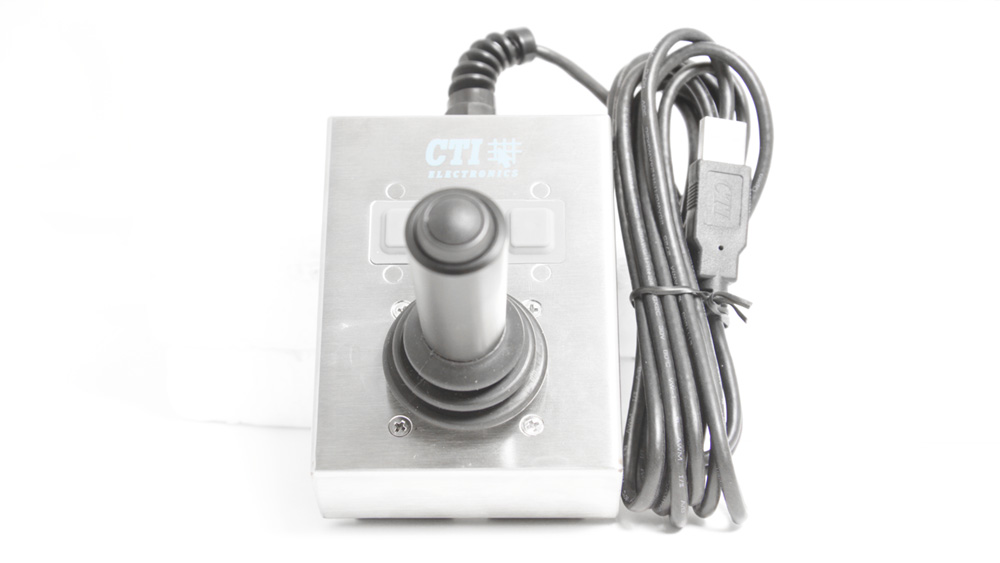

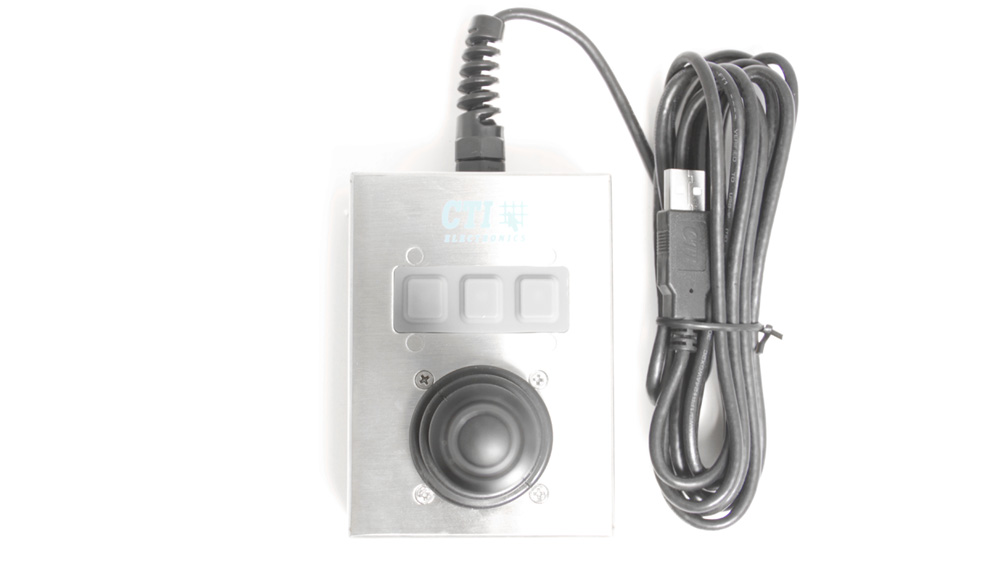

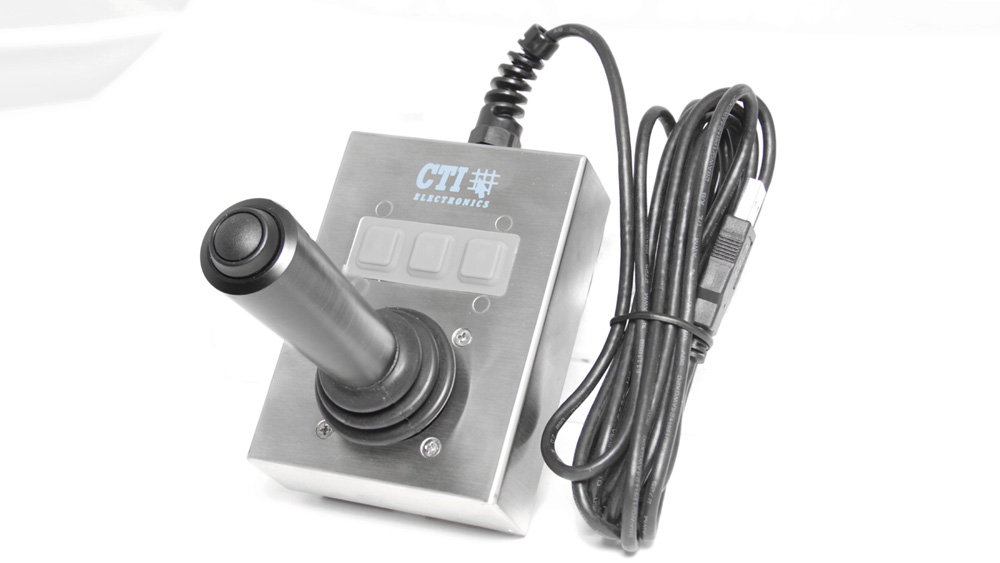

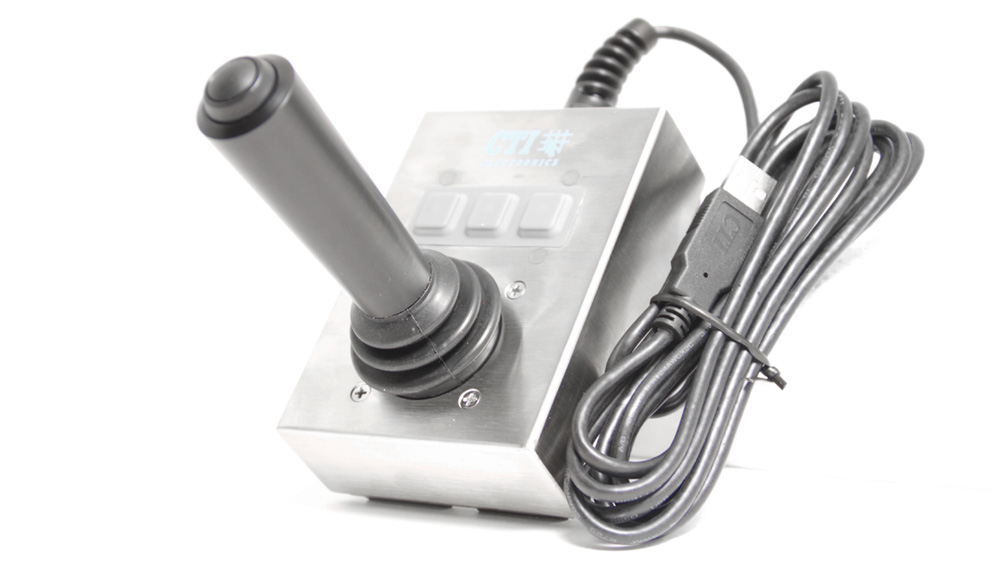

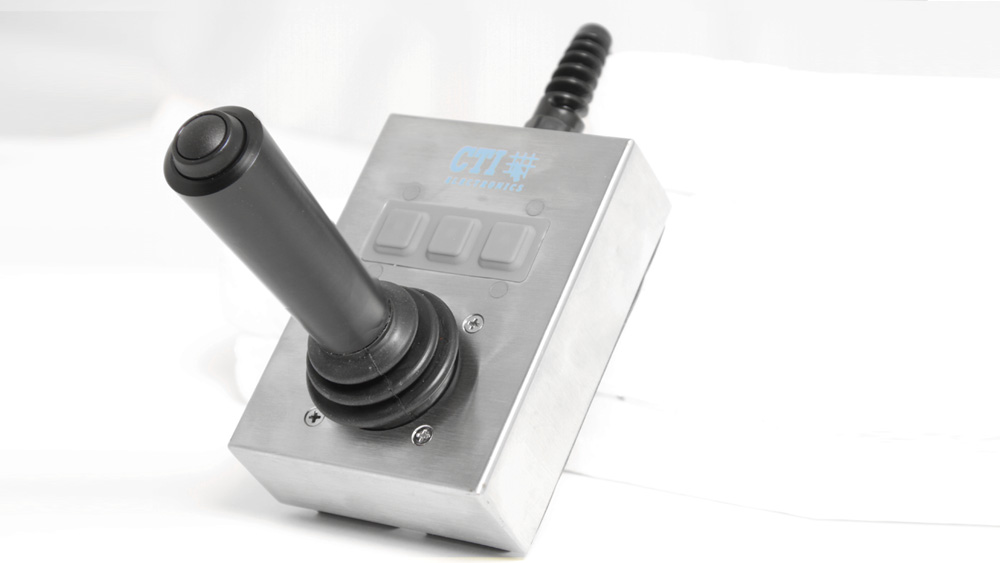

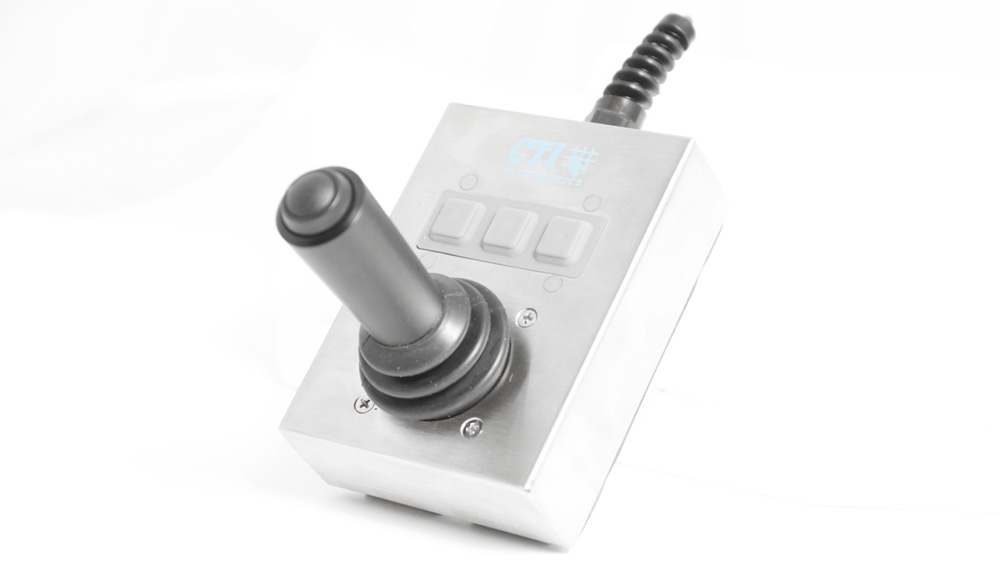

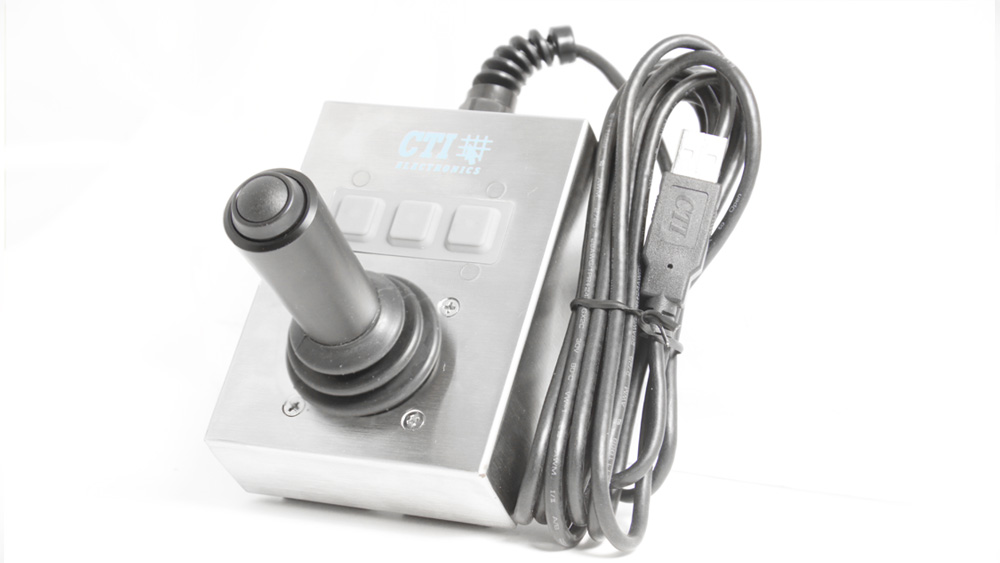

M20X9-NX Series Industrial Pointing Device

NEMA 4X (IP66) Hand Held Industrial Mouse™

Product Information

This series features the Industrial Mouse™ (Joystick Cursor Controller) computer mouse pointer in a space saving, NEMA 4X (IP66) sealed, stainless steel enclosure; designed for hand held or limited space applications. This design is the perfect solution for harsh or wet environments requiring rugged computer mouse pointers or control input devices and near waterproof sealing. The standard Industrial Mouse™ pointers have all the features of the Industrial Mouse™ family; and when combined with the low profile, N5 joystick knob, it can be held in one hand and easily operated with just the thumb. The three sealed switches perform all mouse functions, as well as allow the operator to select one of eight speed curves.

The stainless steel enclosure with gasket sealed bottom plate has rubber feet. Options include joystick knob, Serial, PS/2 or USB interface, and an optional bulkhead waterproof cable assembly for simple installation of the cable through metal cabinets.

An anodized aluminum M2000 holder is available for convenient storage of the M20X9-NX series Industrial Mouse™ computer mouse pointer. The holder has holes for simple screw mounting along side any machine or cabinet.

CTI's custom plug-n-play pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's plug-n-play pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These plug-n-play pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

M20X9-NX Series Industrial Pointing Device Specification

Industrial Mouse™ (Joystick Cursor Controller)
Original Industrial Mouse™ - A CTI invention!
Reliable mouse cursor, field proven over 20 years
Patented - Non contact inductive handle
No moving electrical parts or magnets
No wear and no drift
Gain never changes - No calibration needed
3/16" diameter solid stainless steel shaft
Eight different knob options
Knobs with pushbuttons on top to act like "left mouse button" for double clicking and drag and drop
Gray or black silicone mouse switches
Withstands 25 lbs. static load
40° total deflection of joystick travel
Sealed stainless steel mounting holes

Features & Options:
NEMA 4, NEMA 4X (IP66)
Point and click operation
Gray or black silicone mouse switches
Waterproof connector assembly for simple cable installation through metal cabinets
Sealed mounting holes
Sealed gold plated switch contacts
Latching feature holds button down to simulate "drag and drop" with LED indicator
Port compatible with all computers - no software drivers needed
Stainless steel or painted aluminum enclosures
Repairable design
Easiest to use sealed mouse cursor
Joystick withstands 25lbs of a static load
USB, PS/2, or Serial Output
Direct factory support - Made in USA

Temperature Ratings:
Operating Temperature  0º to 80º C
Operating (Optional)      -40ºC to 80º C
Storage Temperature: -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures): 100,000 hours per MIL-HDBK-217F.
Shock Rating: 30g to 50g depending on Knob 11ms -1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration: Mil-Std-810F, Category 4
Elastomer Switches: Rated for up to 10 million cycles
Joystick button: Rated at 1 million cycles
Joystick:  Rated at 10 million random operations

Certifications:
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant
PDF Icon Industrial Mouse™ (Joystick Cursor Controller) Specification

Pricing

Plug-n-Play Industrial Mouse™ (Joystick Cursor Controller) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPlug-n-Play Industrial Mouse™ (Joystick Pointing Device) Pricing

M20X9-Nx Industrial Pointing Device
Photos
Videos
How-To
RFQ

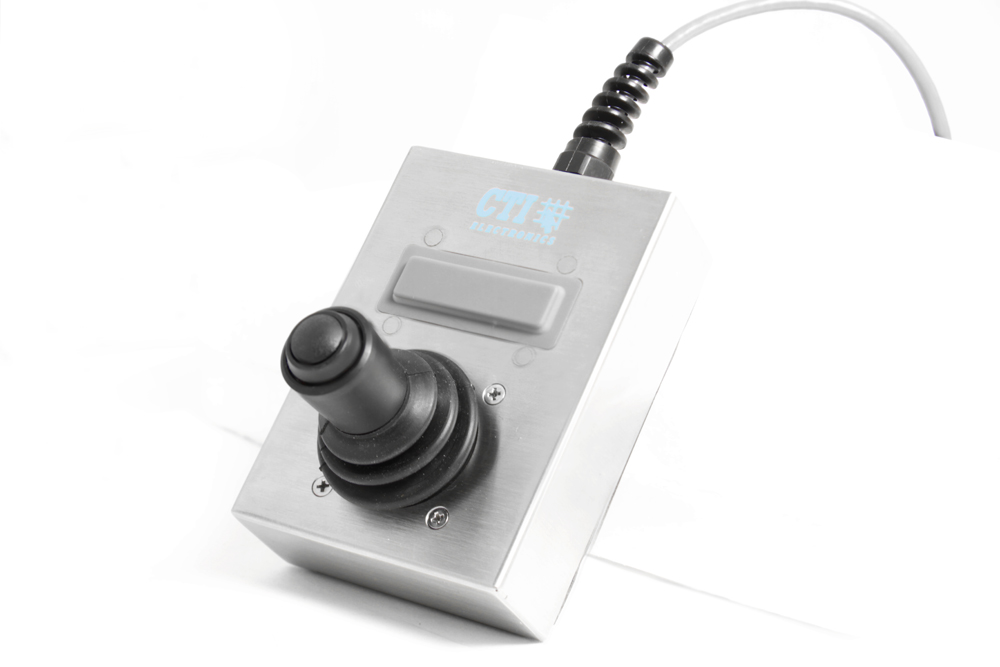

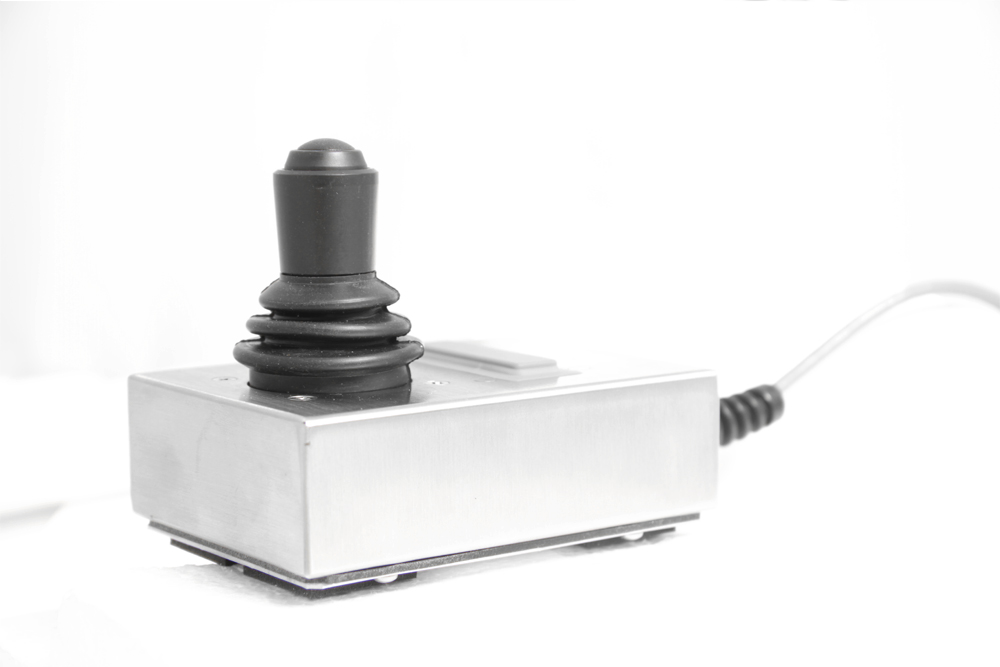

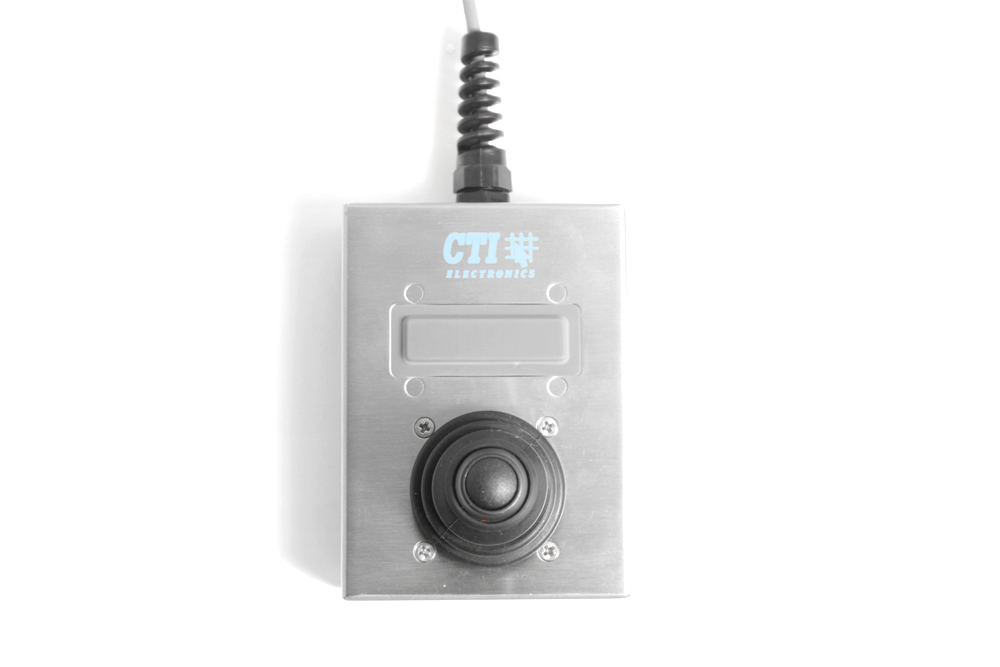

M20U1-NX Series Industrial Pointing Device

NEMA 4X (IP66) Hand Held Industrial Mouse™

Product Information

CTI's rugged Industrial Mouse™ (Joystick Cursor Controller) computer mouse pointers are the most reliable, easy-to-use pointers available. The M20U1-NX Series is designed for hand held or limited space applications, and features a NEMA 4X (IP66) sealed, stainless steel enclosure complete with gasket sealed bottom plate and rubber feet. Its near-waterproof design is the perfect solution for harsh or wet environments requiring rugged computer mouse pointers.

The standard Industrial Mouse™ pointers have all the features of the Industrial Mouse™ family, and when combined with the low-profile N54 joystick knob option, as shown, it can be held in one hand and easily operated with just the thumb. The extra large sealed switch offers convenience, allowing the operator to quickly perform all mouse functions; even while wearing gloves.

A choice from eight different joystick knobs allows for unlimited possibilities to suit your application's unique needs. In addition, an optional bulkhead waterproof cable assembly is available for simple installation of the cable through metal cabinets. CTI also offers an anodized aluminum M2000 holder for convenient storage of the M20U1-NX series Industrial Mouse™ computer mouse pointer. The holder has holes for simple screw mounting along side any machine or cabinet.

CTI's custom plug-n-play pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's plug-n-play pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These plug-n-play pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

DWG IconM20U1-NX Industrial Mouse™ CAD Drawing (CAD DWG)

Specifications

M20U1-NX Series Industrial Pointing Device Specification

Industrial Mouse™ (Joystick Cursor Controller)
Original Industrial Mouse™ - A CTI invention!
Reliable mouse cursor, field proven over 20 years
Patented - Non contact inductive handle
No moving electrical parts or magnets
No wear and no drift
Gain never changes - No calibration needed
3/16" diameter solid stainless steel shaft
Eight different knob options
Knobs with pushbuttons on top to act like "left mouse button" for double clicking and drag and drop
Gray or black silicone mouse switches
Withstands 25 lbs. static load
40° total deflection of joystick travel
Sealed stainless steel mounting holes

Features & Options:
NEMA 4, NEMA 4X (IP66)
Point and click operation
Gray or black silicone mouse switches
Waterproof connector assembly for simple cable installation through metal cabinets
Sealed mounting holes
Sealed gold plated switch contacts
Latching feature holds button down to simulate "drag and drop" with LED indicator
Port compatible with all computers - no software drivers needed
Stainless steel or painted aluminum enclosures
Repairable design
Easiest to use sealed mouse cursor
Joystick withstands 25lbs of a static load
USB, PS/2, or Serial Output
Direct factory support - Made in USA

Temperature Ratings:
Operating Temperature  0º to 80º C
Operating (Optional)      -40ºC to 80º C
Storage Temperature: -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures): 100,000 hours per MIL-HDBK-217F.
Shock Rating: 30g to 50g depending on Knob 11ms -1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration: Mil-Std-810F, Category 4
Elastomer Switches: Rated for up to 10 million cycles
Joystick button: Rated at 1 million cycles
Joystick:  Rated at 10 million random operations

Certifications:
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant
PDF Icon Industrial Mouse™ (Joystick Cursor Controller) Specification

Pricing

Plug-n-Play Industrial Mouse™ (Joystick Cursor Controller) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPlug-n-Play Industrial Mouse™ (Joystick Pointing Device) Pricing

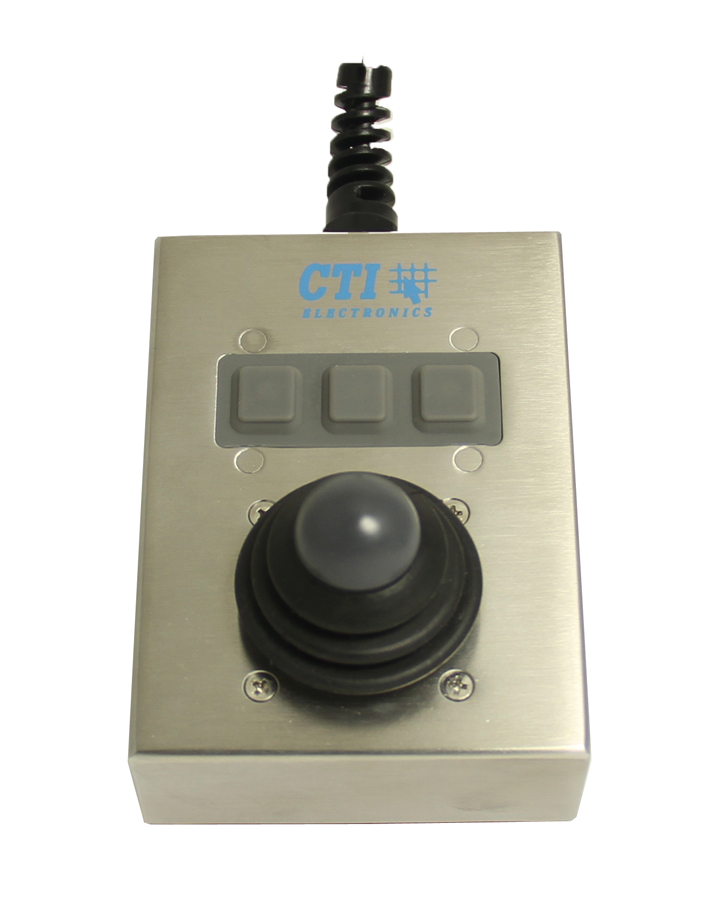

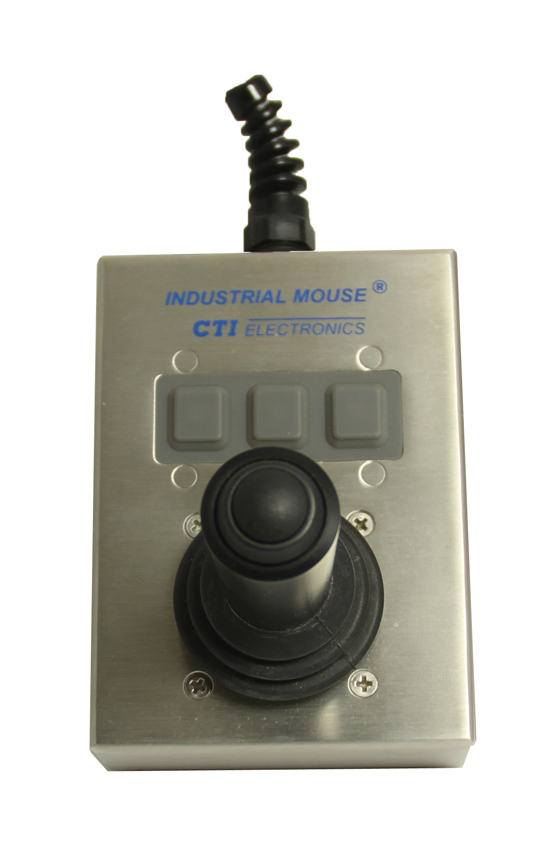

M20U1-Nx Industrial Pointing Device
Photos
Videos
How-To
RFQ

M2000 Device Holder

M2000 Device Holder

Product Information

The M2000 series of rugged hand held computer mouse pointers and computer input devices offers an anodized aluminum holder with pre-drilled mounting holes for easy panel mounting. This precision machined cradle is designed for rugged environments and allows the operator a place of convenient storage for the M2000 series of handheld input devices such as the Industrial Mouse™, OrbitalMouse®, and CTI's Industrial Motion Controller USB FlightStick.

Related Documentation:

Specifications

Black Anodized Aluminum

Pricing

M2000 Pricing

$60 each



M2000 Industrial Mouse™ Holder
Photos
Videos
How-To
RFQ

M90X9-NX Series Pointing Devices

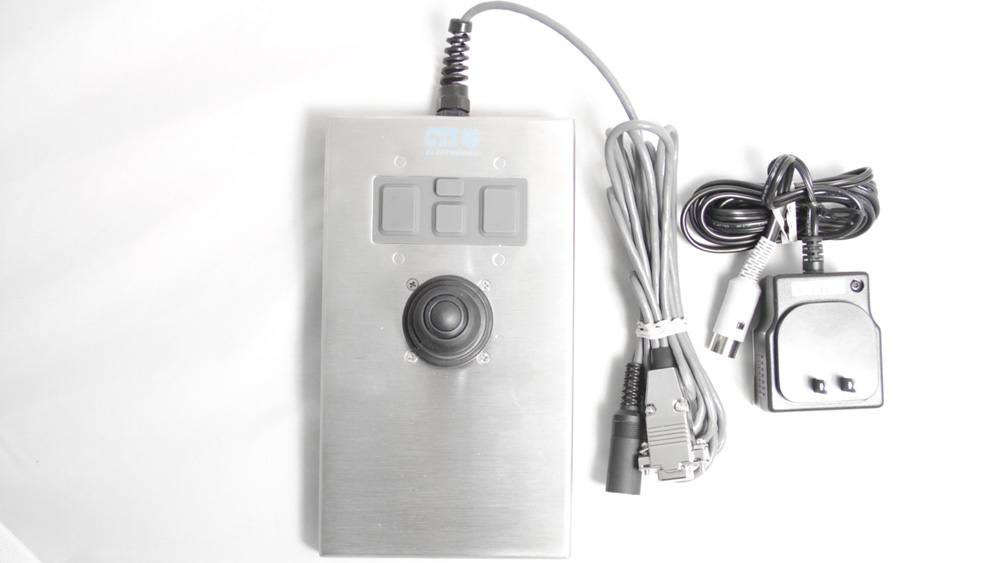

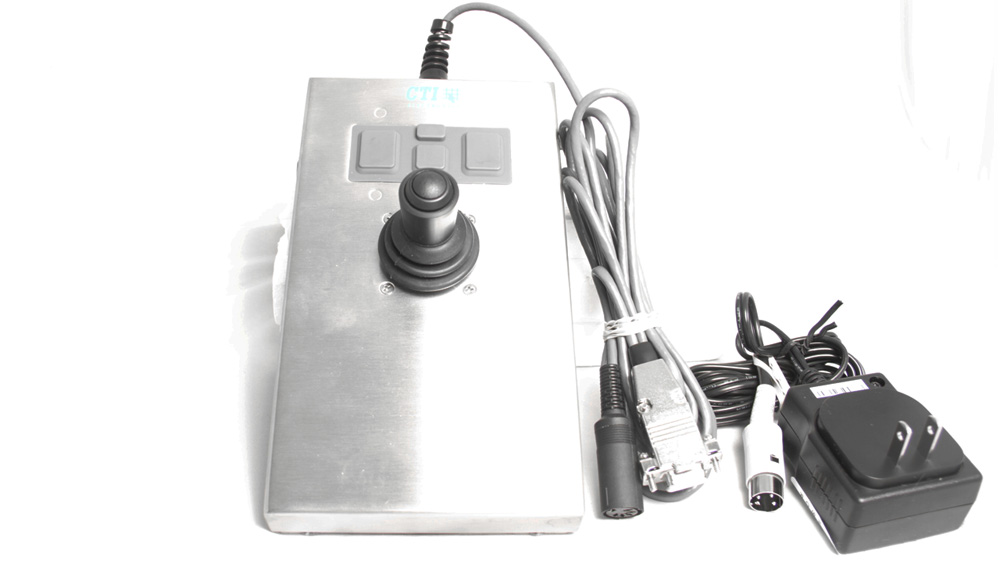

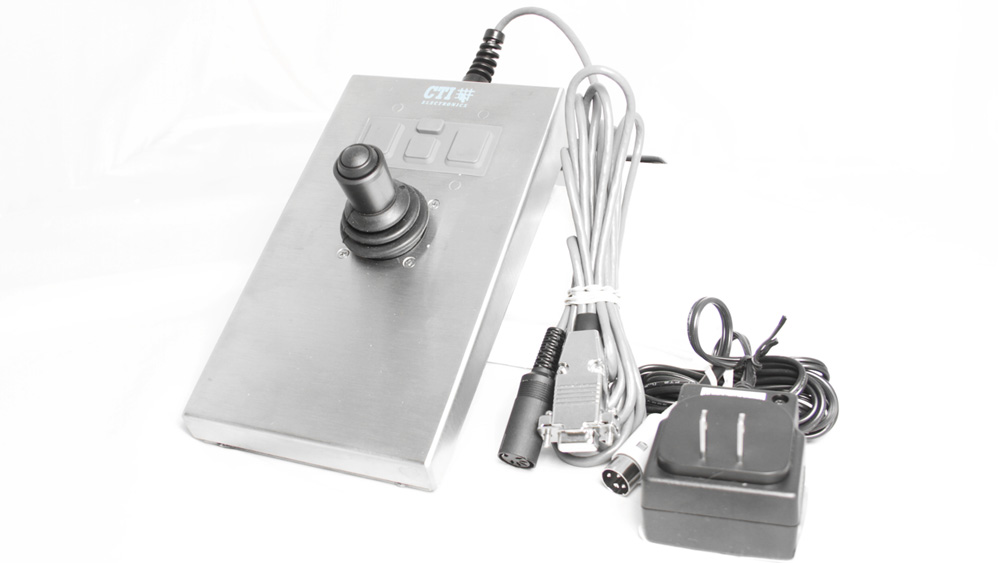

NEMA 4X (IP66) Desktop Industrial Mouse™

Product Information

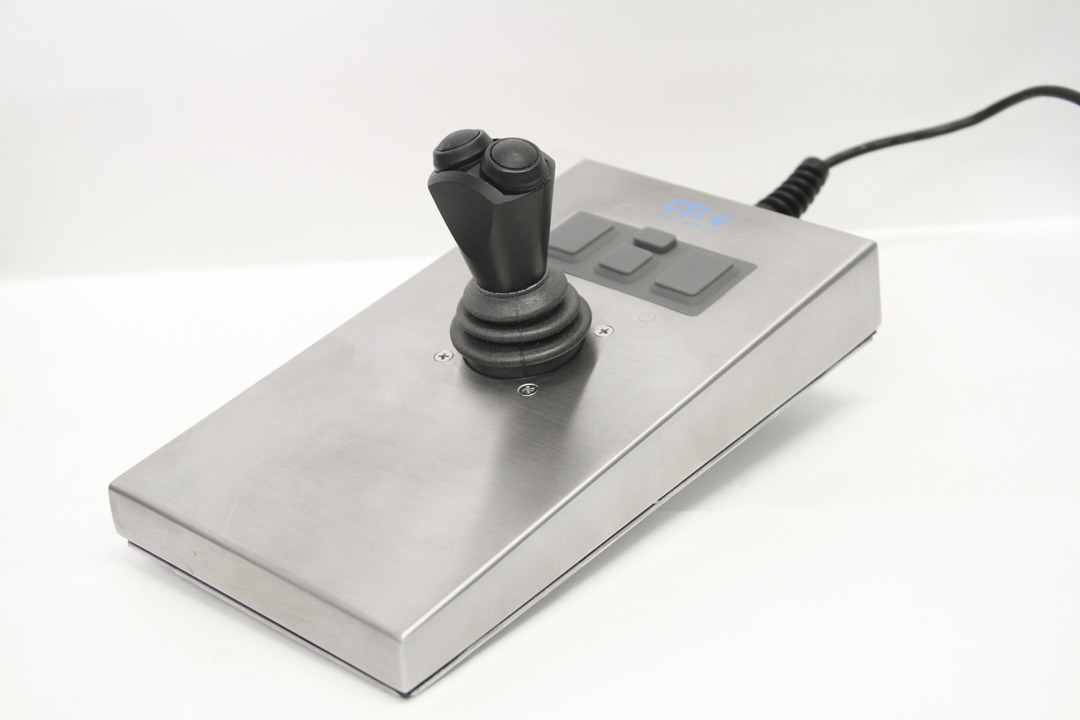

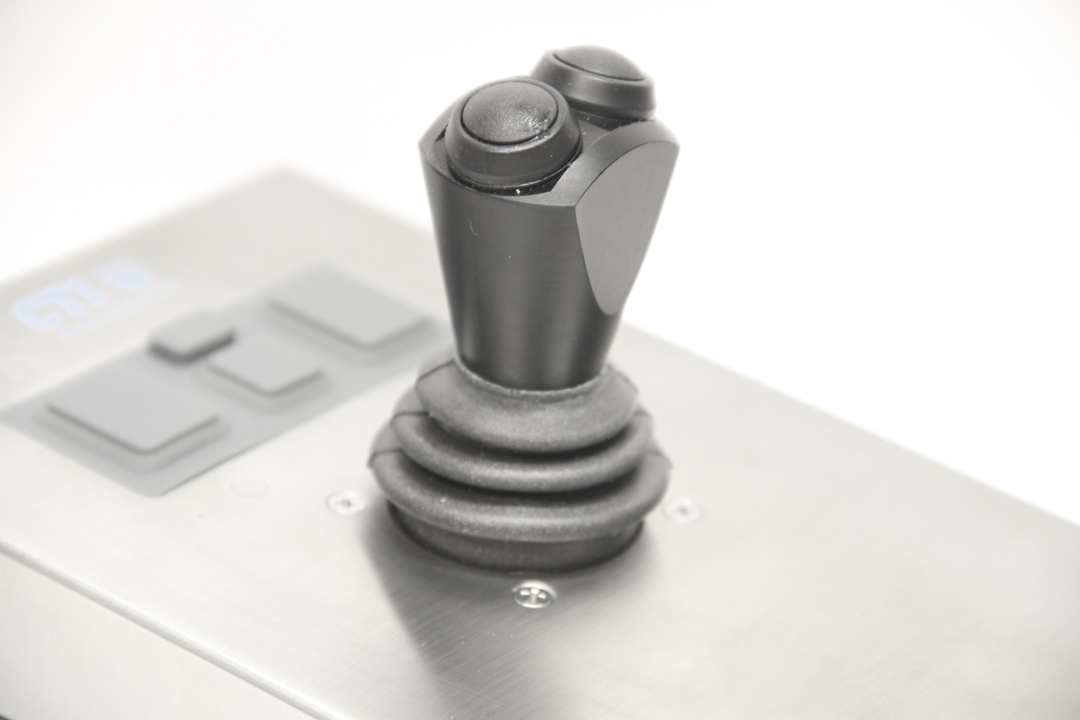

The workstation/desktop version of the Industrial Mouse™ (Joystick Cursor Controller) has an ergonomic; stainless steel NEMA 4X (IP66) sealed enclosure. This design is perfect for harsh or wet environments requiring rugged Industrial Mouse™ pointers or control input devices. In addition to the three sealed computer mouse switches on the enclosure,the standard industrial computer mouse pointer offers a "point and click" button in the handle.
The stainless steel enclosure with gasket sealed bottom plate has rubber feet and a sealed threaded hole allowing for easy securing to any work surface with just one screw. Options include industrial joystick knob, Serial, PS/2 or USB interface, and an optional bulkhead waterproof cable assembly for simple installation of the cable through metal cabinets.

CTI's custom plug-n-play pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's plug-n-play pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These plug-n-play pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

M90X9-NX Series Pointing Devices Specification

Industrial Mouse™ (Joystick Cursor Controller)
Original Industrial Mouse™ - A CTI invention!
Reliable mouse cursor, field proven over 20 years
Patented - Non contact inductive handle
No moving electrical parts or magnets
No wear and no drift
Gain never changes - No calibration needed
3/16" diameter solid stainless steel shaft
Eight different knob options
Knobs with pushbuttons on top to act like "left mouse button" for double clicking and drag and drop
Gray or black silicone mouse switches
Withstands 25 lbs. static load
40° total deflection of joystick travel
Sealed stainless steel mounting holes

Features & Options:
NEMA 4, NEMA 4X (IP66)
Point and click operation
Gray or black silicone mouse switches
Waterproof connector assembly for simple cable installation through metal cabinets
Sealed mounting holes
Sealed gold plated switch contacts
Latching feature holds button down to simulate "drag and drop" with LED indicator
Port compatible with all computers - no software drivers needed
Stainless steel or painted aluminum enclosures
Repairable design
Easiest to use sealed mouse cursor
Joystick withstands 25lbs of a static load
USB, PS/2, or Serial Output
Direct factory support - Made in USA

Temperature Ratings:
Operating Temperature  0º to 80º C
Operating (Optional)      -40ºC to 80º C
Storage Temperature: -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures): 100,000 hours per MIL-HDBK-217F.
Shock Rating: 30g to 50g depending on Knob 11ms -1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration: Mil-Std-810F, Category 4
Elastomer Switches: Rated for up to 10 million cycles
Joystick button: Rated at 1 million cycles
Joystick:  Rated at 10 million random operations

Certifications:
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant
PDF Icon Industrial Mouse™ (Joystick Cursor Controller) Specification

Pricing

Plug-n-Play Industrial Mouse™ (Joystick Cursor Controller) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPlug-n-Play Industrial Mouse™ (Joystick Pointing Device) Pricing

M90X9-Nx Industrial Pointing Device
Photos
Videos
How-To
RFQ
Sidewinder® is a registered trademark of Microsoft Corporation
TOP
Manufactured in U.S.A. Manufactured in U.S.A. Copyright © 2001-2024 | CTI Electronics an affiliate of ELECTRO SWITCH | Tel: (203) 386-9779 | All Rights Reserved - sitemap | Sales | Tech
