Switches as part of a CTI Intelligent Solution

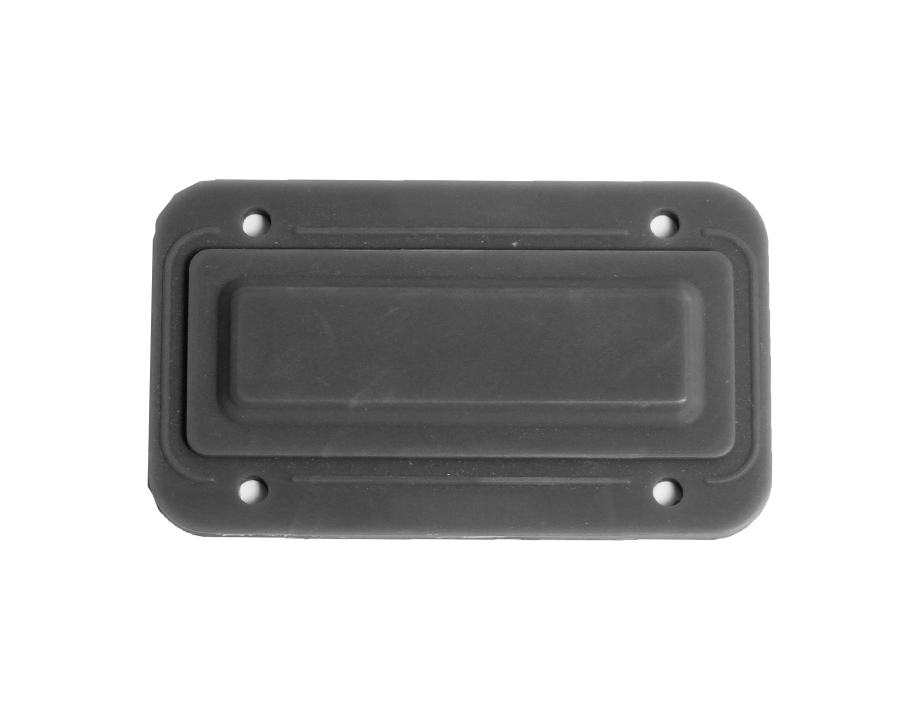

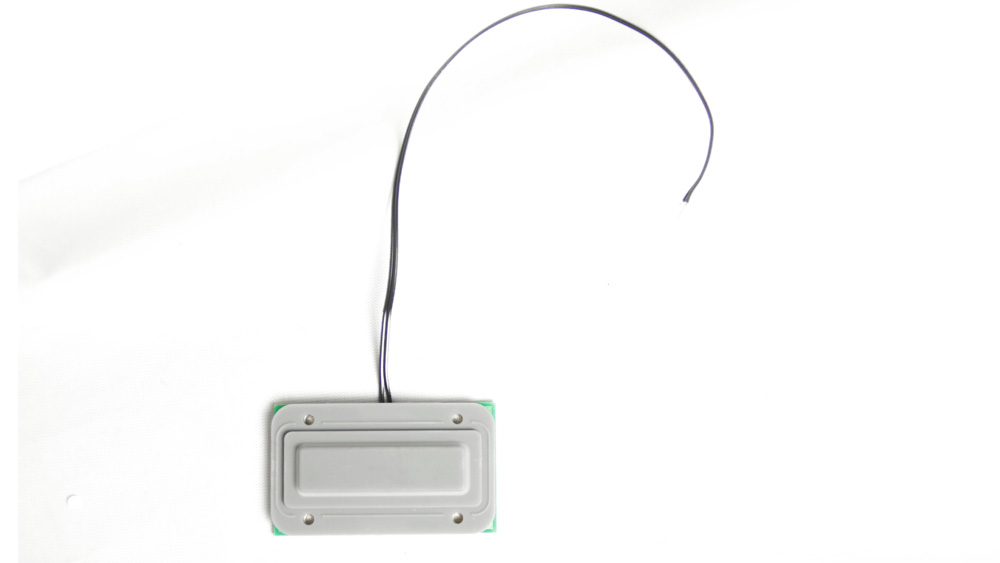

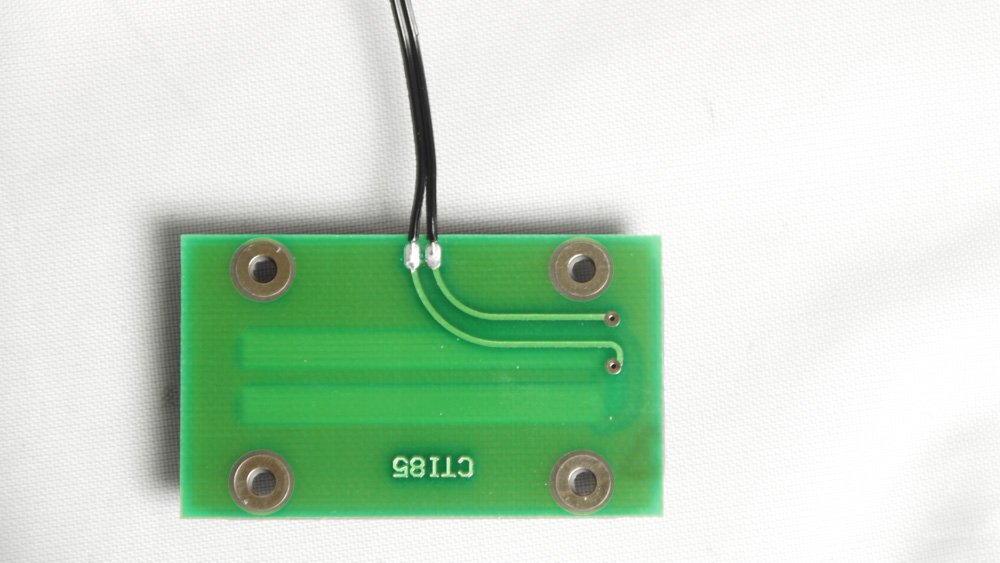

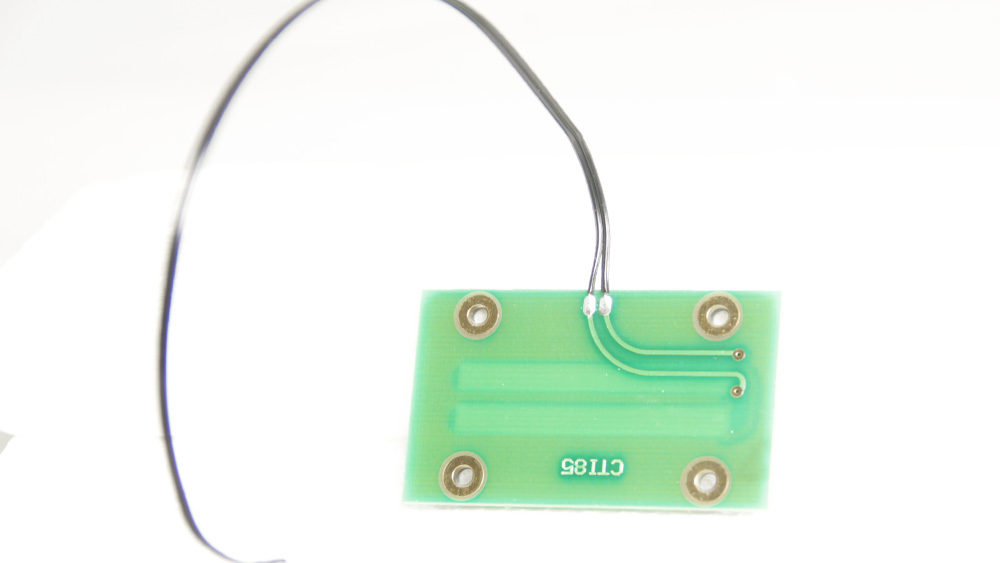

C2001A Series Industrial Switch

NEMA 4 (IP66) Single-Button OEM Switch Assembly, No LED

Product Information

This single, extra large OEM switch offers convenience and allows the operator to quickly perform all mouse functions; even while wearing gloves. Reliable and durable, these industrial input devices feature gray or black silicone rubber molding, gold plating and a ribbon cable. CTI's SYN-Proof™ coating provides protection against harsh oils and solvents.

CTI's custom sealed switches are ruggedized to meet aerospace, medical, and military standards. CTI's sealed switches can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These sealed switches are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

C2001A Series Industrial Switchpad Specification

Industrial Switchpad Features
Molded rubber elastomer keys (Gray or Black) rated for 10 million cycles
Keys: 2mm travel with excellent tactile feedback
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Optional customized legends or elastomer color
Made in the USA

Electrical

Power 5VDC, limit current to < 10mA.
Recommend at 5VDC, < 1mA.

Environmental
Operating Temperature  Operating Temperature -40ºC to 80º C (standard)
Storage Temperature    -40ºC to 80º C
Relative Humidity     100% non-condensing (with "Z" option)

Sealing & Protection
Water Tight    NEMA 4 (IP66)
Protection Syn-Proof™ coating resists most oils and harsh chemicals Optional Parylene® coating available

Reliability
MTBF Greater than 100,000 hours
Life

PCB at recommended power level is 10,000,000+ activations
Syn-Proof™ coated Elastomer is up to 10,000,000 activations
Parylene coated Elastomer is 10,000,000+ activations

Keys Sealed "Hard" gold plated switch contacts

Shock
Peak Value 50g
Pulse Duration 11 ms
Waveform Half Sine

Vibration
Frequency Displacement (inches)
5 - 25 Hz 0.1
25 - 55 Hz   0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
"CE" classification option requires the following modifications:
a.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
ESD rated to 15KV

PDF IconC200XA Industrial OEM Switch Specifications

Pricing

OEM Industrial Switch Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Industrial Switch Pricing

C2001A NEMA 4 (IP66) OEM Switch
Photos
Videos
How-To
RFQ

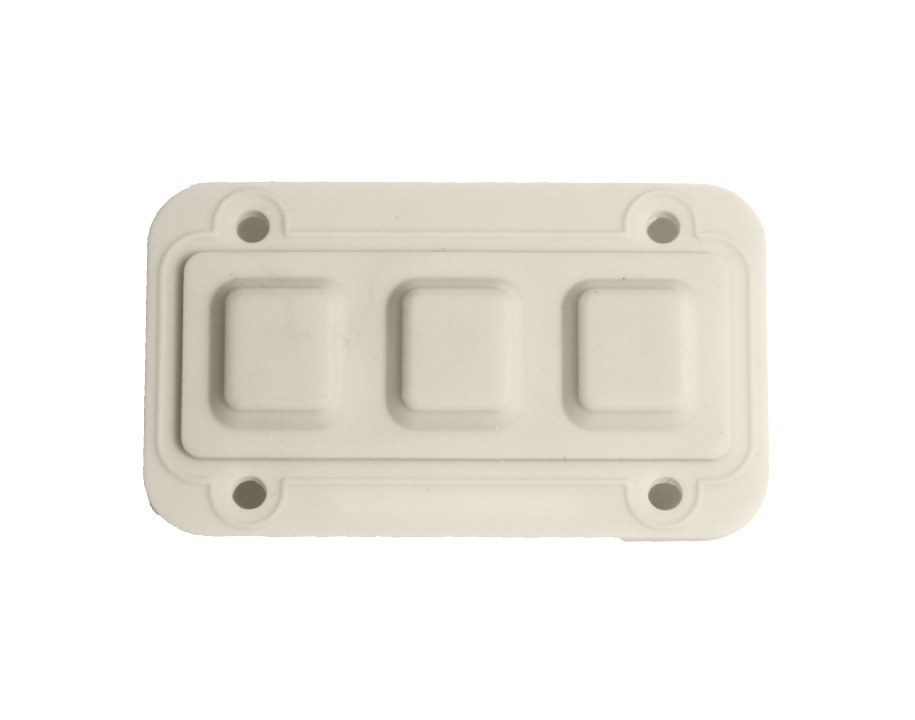

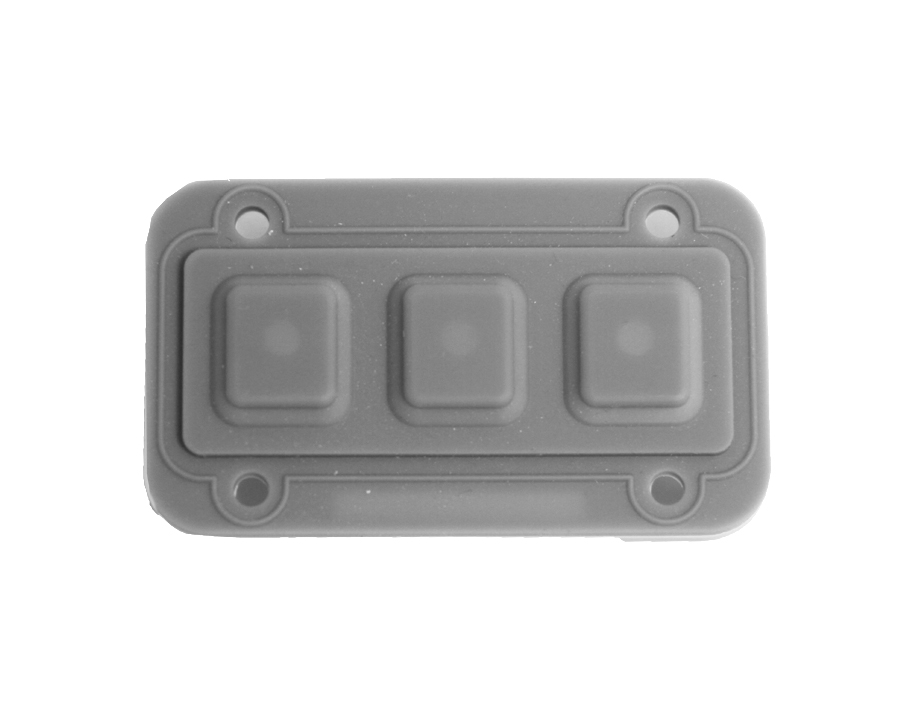

C200XA Series Industrial Switch

NEMA 4 (IP66) Three-Button OEM Switches Assembly

Product Information

These industrial OEM switches are molded silicone rubber, three button industrial switches, and are available from stock with 0, 1 or 3 LED indicators. These OEM switches are very compact in design, and are made with gold plating and a ribbon cable.

Standard colors are gray or black; custom colors and custom legends are available. CTI's C200XA Series industrial switch assembly is the ideal switch for industrial or medical applications because of its small footprint, NEMA 4 (IP66) sealing, and CTI's SYN-Proof™ coating for protection against harsh oils and solvents.

CTI's custom sealed switches are ruggedized to meet aerospace, medical, and military standards. CTI's sealed switches can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These sealed switches are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

C200XA Series Industrial Switchpad Specification

Industrial Switchpad Features
Molded rubber elastomer keys (Gray or Black) rated for 10 million cycles
Keys: 2mm travel with excellent tactile feedback
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Optional customized legends or elastomer color
Made in the USA

Electrical
Power 5VDC, limit current to < 10mA.
Recommend at 5VDC, < 1mA.

Environmental
Operating Temperature  Operating Temperature -40ºC to 80º C (standard)
Storage Temperature    -40ºC to 80º C
Relative Humidity     100% non-condensing (with "Z" option)

Sealing & Protection
Water Tight    NEMA 4 (IP66)
Protection Syn-Proof™ coating resists most oils and harsh chemicals Optional Parylene® coating available

Reliability
MTBF Greater than 100,000 hours
Life

PCB at recommended power level is 10,000,000+ activations
Syn-Proof™ coated Elastomer is up to 10,000,000 activations
Parylene coated Elastomer is 10,000,000+ activations

Keys Sealed "Hard" gold plated switch contacts

Shock
Peak Value 50g
Pulse Duration 11 ms
Waveform Half Sine

Vibration
Frequency Displacement (inches)
5 - 25 Hz 0.1
25 - 55 Hz   0.03

Certifications/Compliance
Compliant with FCC class A and B regulations
"CE" classification option requires the following modifications:
a.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
ESD rated to 15KV

PDF IconC200XA Industrial OEM Switch Specifications


Pricing

OEM Industrial Switch Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Industrial Switch Pricing

C200XA NEMA 4 (IP66) OEM Switch
Photos
Videos
How-To
RFQ

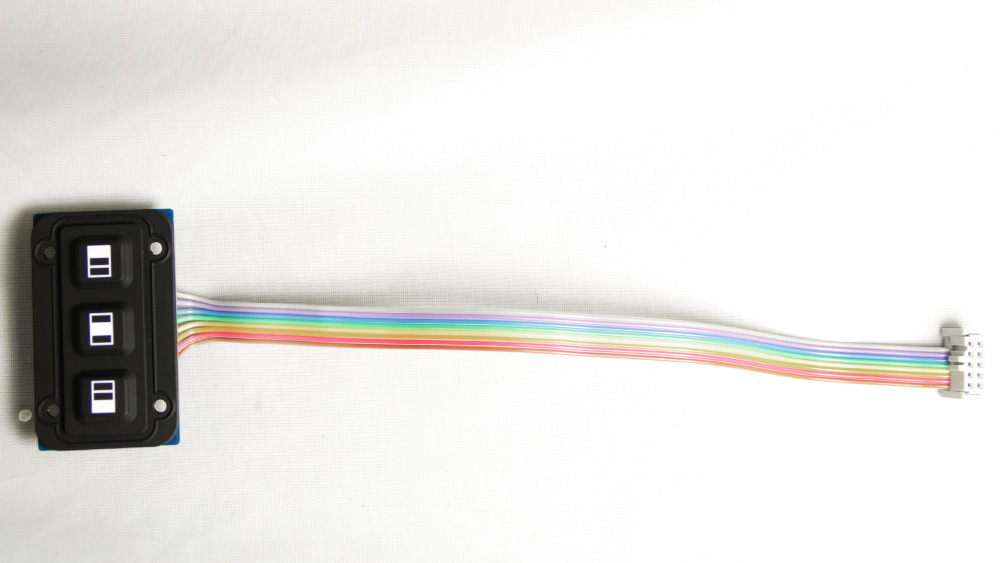

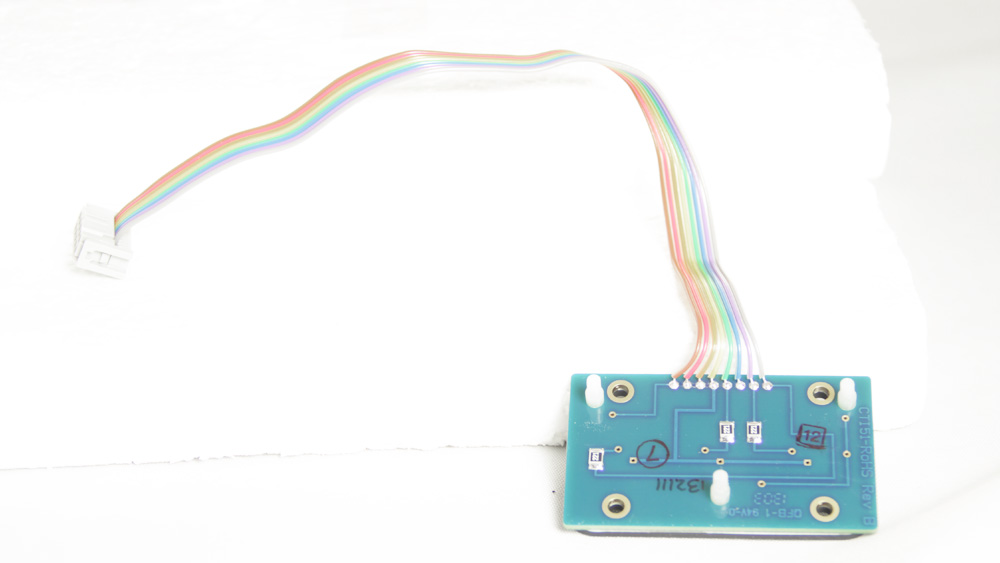

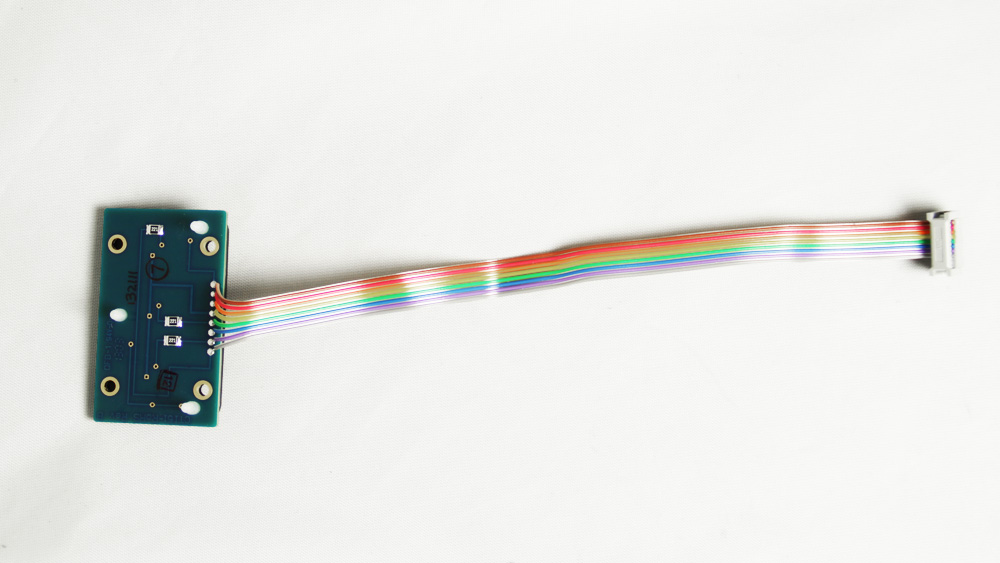

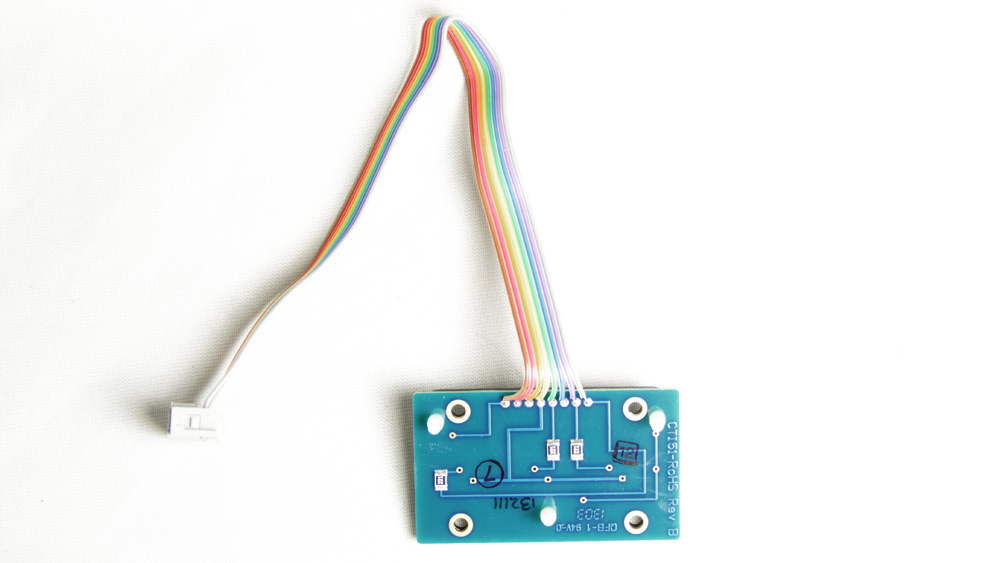

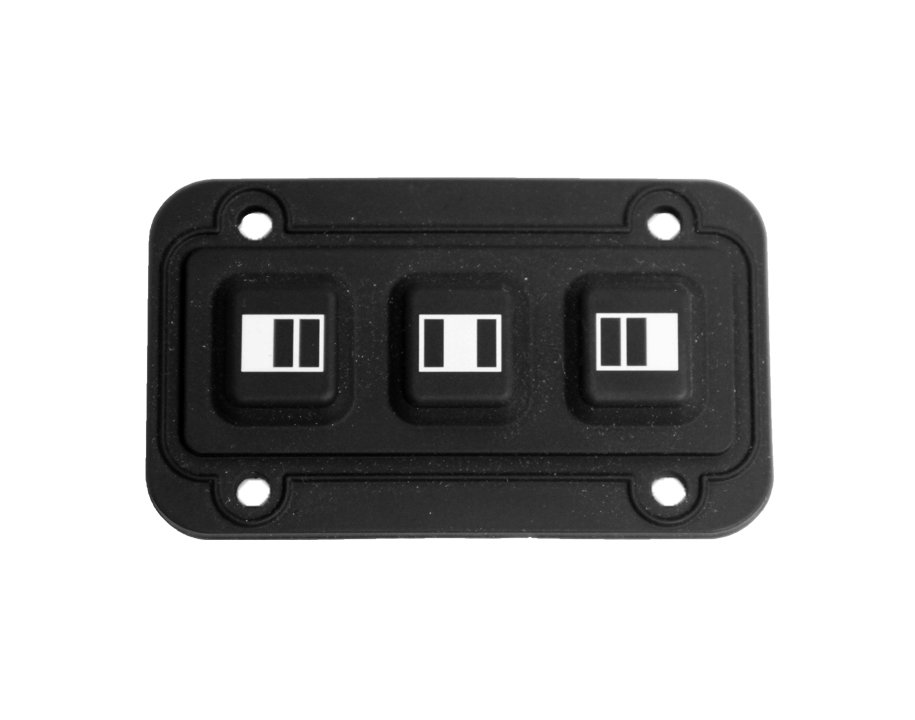

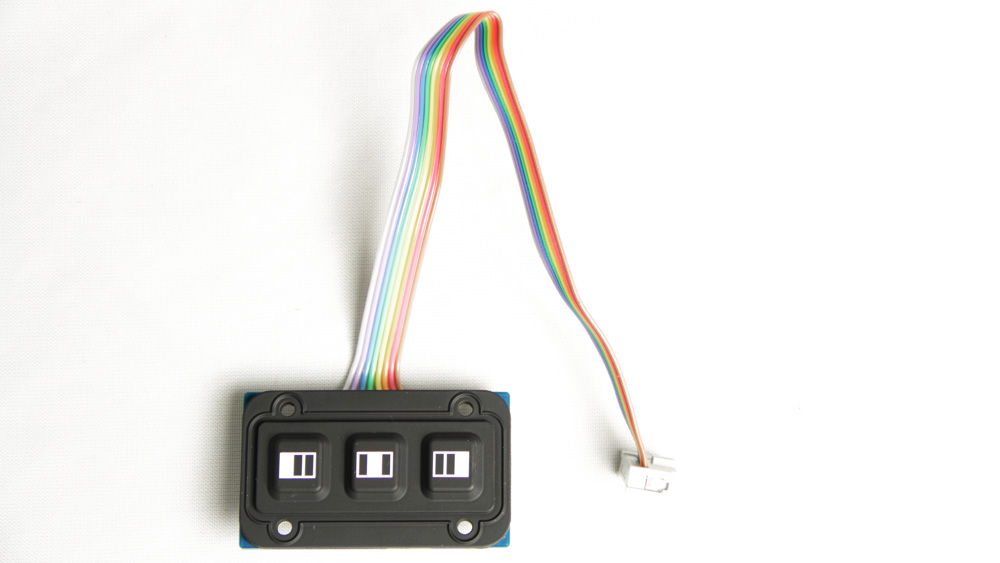

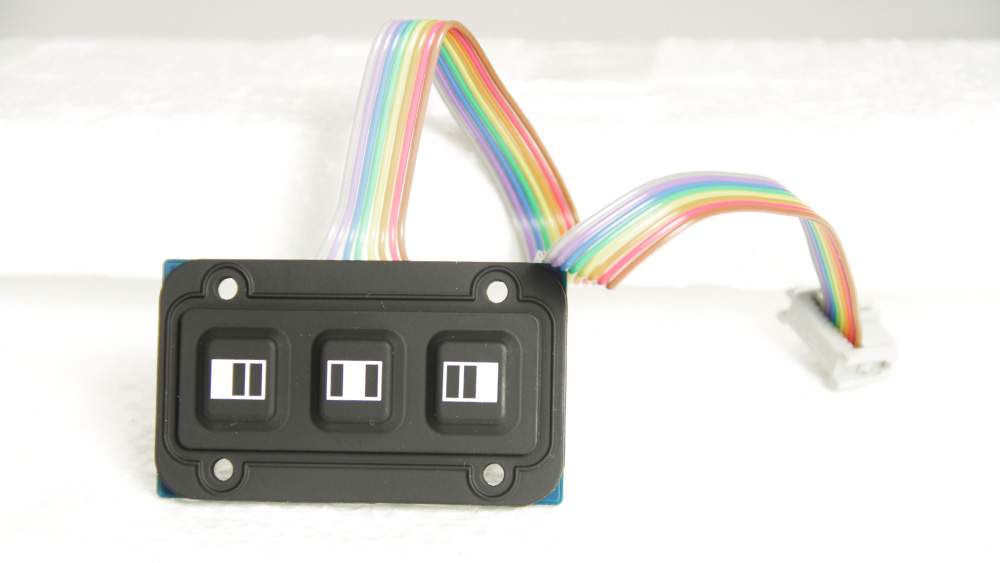

C2208A Series Industrial Switch

NEMA 4 (IP66) OEM Three-Button Sealed Switch, 8.0" Ribbon Cable, 10 Pin Connector

Product Information

These molded silicone rubber switch pads feature three buttons with or without backlighting. Their compact design, NEMA 4 (IP66) sealing and protective SYN-Proof™ coating make them a perfect fit for industrial or medical applications. Standard non-backlit is gray, backlit version is black with red backlighting (optional green), and includes gold plating and 8.0" ribbon cable with a 10 pin connector.

CTI's custom sealed switches are ruggedized to meet aerospace, medical, and military standards. CTI's sealed switches can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These sealed switches are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

C2208A Series Industrial Switchpad Specification

Industrial Switchpad Features
Molded rubber elastomer keys (Gray or Black) rated for 10 million cycles
Keys: 2mm travel with excellent tactile feedback
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Optional customized legends or elastomer color
Made in the USA

Electrical
Power 5VDC, limit current to < 10mA.
Recommend at 5VDC, < 1mA.

Environmental
Operating Temperature  Operating Temperature -40ºC to 80º C (standard)
Storage Temperature    -40ºC to 80º C
Relative Humidity     100% non-condensing (with "Z" option)

Sealing & Protection
Water Tight    NEMA 4 (IP66)
Protection Syn-Proof™ coating resists most oils and harsh chemicals Optional Parylene® coating available

Reliability
MTBF Greater than 100,000 hours
Life

PCB at recommended power level is 10,000,000+ activations
Syn-Proof™ coated Elastomer is up to 10,000,000 activations
Parylene coated Elastomer is 10,000,000+ activations

Keys Sealed "Hard" gold plated switch contacts

Shock
Peak Value 50g
Pulse Duration 11 ms
Waveform Half Sine

Vibration

Frequency Displacement (inches)
5 - 25 Hz 0.1
25 - 55 Hz   0.03

Certifications/Compliance

Compliant with FCC class A and B regulations
"CE" classification option requires the following modifications:
a.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
ESD rated to 15KV

PDF IconC200XA Industrial OEM Switch Specifications


Pricing

OEM Industrial Switch Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Industrial Switch Pricing

C2208A Series OEM Switch, NEMA 4 (IP66) OEM Switch
Photos
Videos
How-To
RFQ

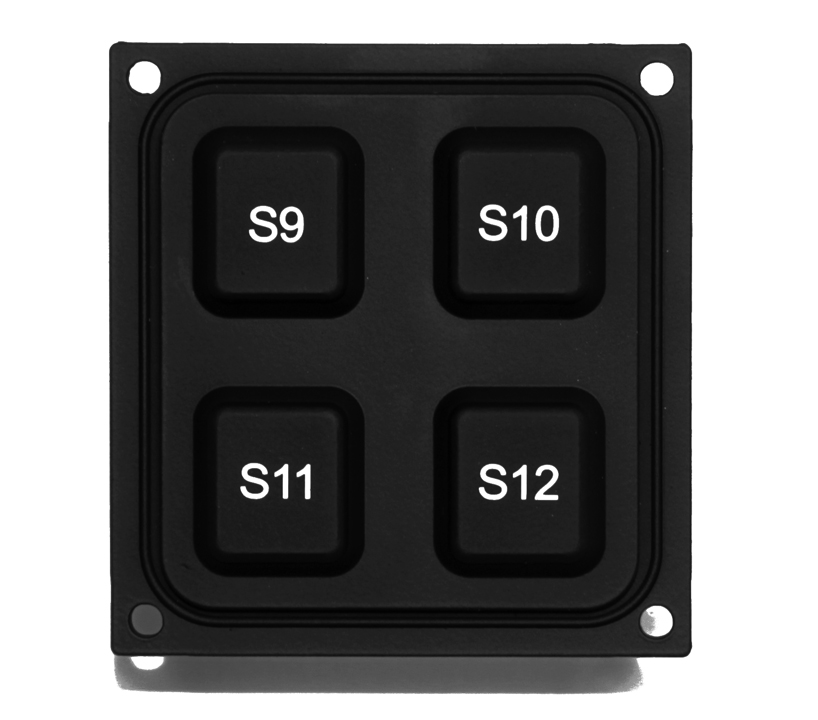

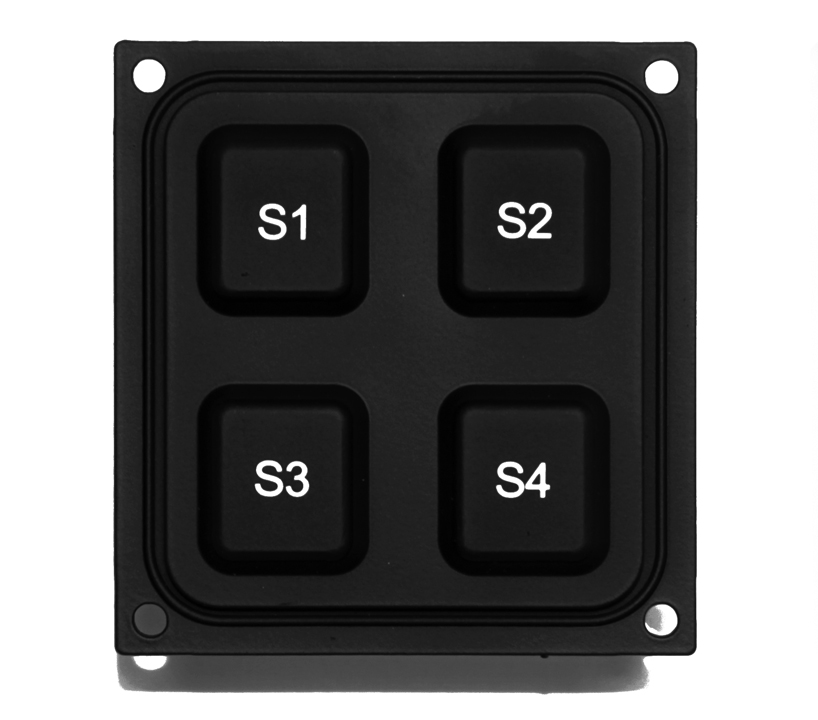

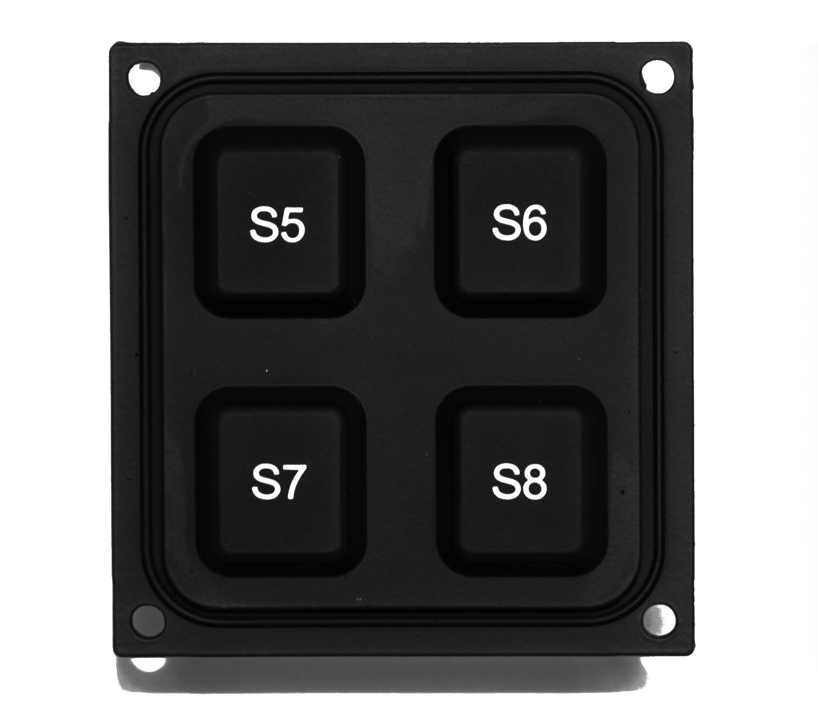

C4010 Series Industrial Switch Assembly

NEMA 4 Four Button Industrial Switch Assembly

Product Information

This general purpose NEMA 4 (IP66) sealing industrial switch has four push buttons and offers a generic S1 through S4 legend.  The molded silicone rubber has an o-ring seal, a 2mm travel key stroke, and an excellent tactile response.  The Printed Circuit Board (PCB) has thick gold plating over nickel contacts ensure long life, rated at over 10 million actuations at 5VDC with a maximum 50mA input. The entire industrial switch assembly measures 1.8 inches by 1.9 inches and requires less than 0.5 inches of panel depth.  The C4010 Model is a general purpose, debris and water resistant, industrial sealed switch device that is ideal for harsh environments and/or extreme operating temperatures ranges (-40°C to +80°C).   The C4010 industrial sealed switches have a high immunity to Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI).   These push button sealed switches can be manufactured with or without backlighting.  The backlit or illuminated option is either all LED's on or selectable on/off.  This FourPush Button Sealed Switch is available to Original Equipment Manufacturers (OEMs) with custom legends.

CTI's custom sealed switches are ruggedized to meet aerospace, medical, and military standards. CTI's sealed switches can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These sealed switches are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

C6010 Series Industrial Switchpad Specification

Industrial Switchpad Features
Molded rubber elastomer keys (Gray or Black) rated for 10 million cycles
Keys: 2mm travel with excellent tactile feedback
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Optional customized legends or elastomer color
Made in the USA

Electrical
Power 5VDC, limit current to < 10mA.
Recommend at 5VDC, < 1mA.

Environmental
Operating Temperature  -40ºC to 80º C (standard)
Storage Temperature    -40ºC to 80º C
Relative Humidity     100% non-condensing (with "Z" option)

Sealing & Protection
Water Tight    NEMA 4 (IP66)
Protection Syn-Proof™ coating resists most oils and harsh chemicals Optional Parylene® coating available

Reliability
MTBF Greater than 100,000 hours
Life

PCB at recommended power level is 10,000,000+ activations
Syn-Proof™ coated Elastomer is up to 10,000,000 activations
Parylene coated Elastomer is 10,000,000+ activations

Keys Sealed "Hard" gold plated switch contacts

Shock
Peak Value 50g
Pulse Duration 11 ms
Waveform Half Sine

Vibration

Frequency Displacement (inches)
5 - 25 Hz 0.1
25 - 55 Hz   0.03

Certifications/Compliance

Compliant with FCC class A and B regulations
"CE" classification option requires the following modifications:
a.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
ESD rated to 15KV

PDF IconC600X0 Industrial OEM Switch Specifications


Pricing

OEM Industrial Switch Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Industrial Switch Pricing

C4010 Series Industrial OEM Switch
Photos
Videos
How-To
RFQ

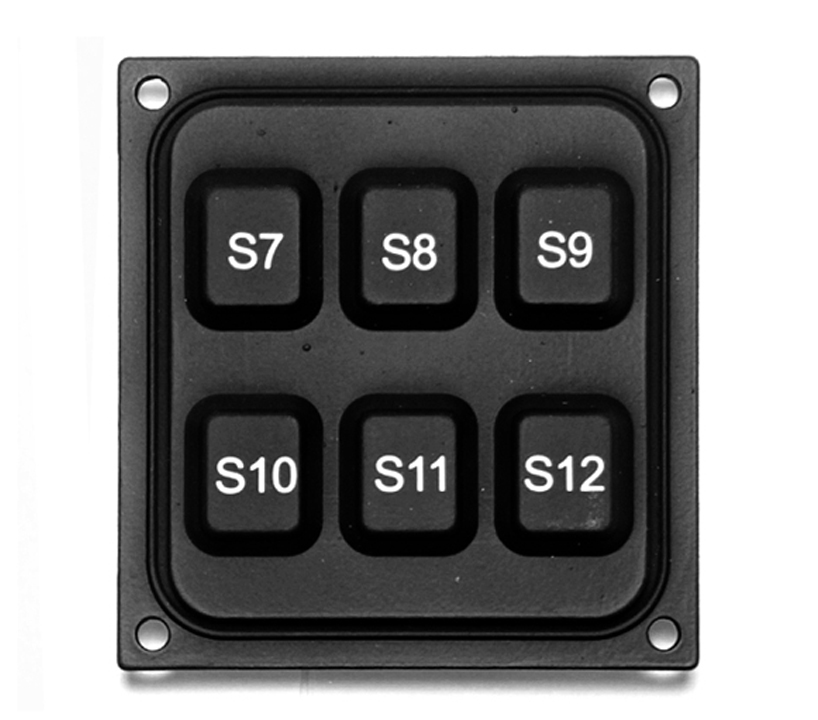

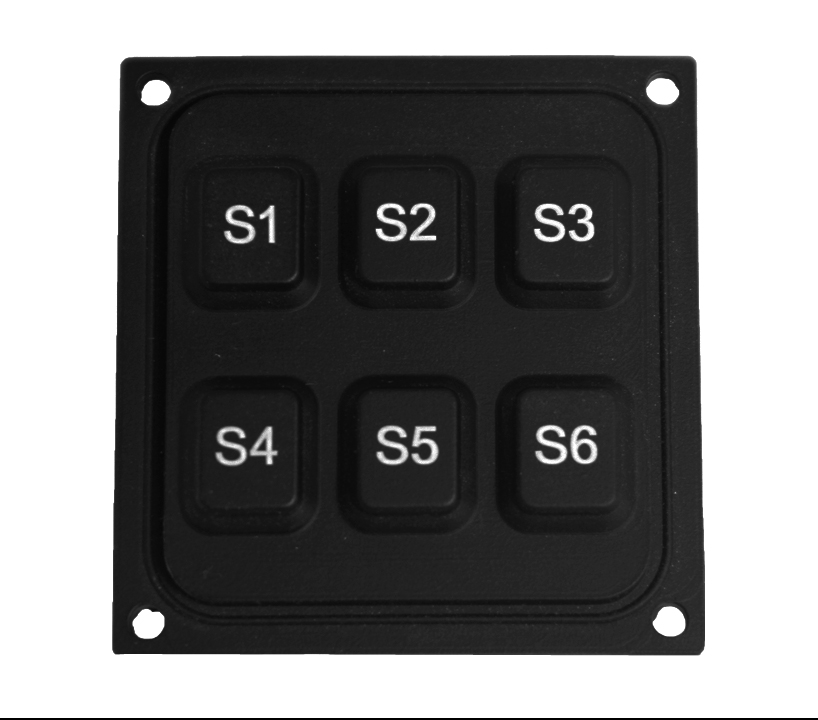

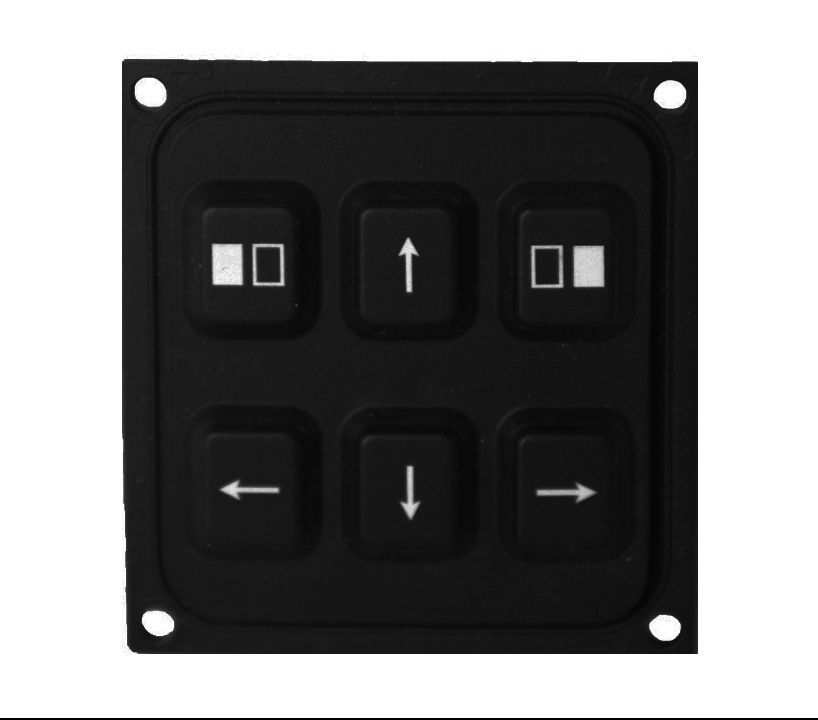

C6010 Series Industrial Switch Assembly

NEMA 4 Six Button Industrial Switch Assembly

Product Information

This general purpose NEMA 4 (IP66) sealing industrial switch has six push buttons and offers a generic S1 through S6 legend.  The molded silicone rubber has an o-ring seal, a 2mm travel key stroke, and an excellent tactile response.  The Printed Circuit Board (PCB) has thick gold plating over nickel contacts ensure long life, rated at over 10 million actuations at 5VDC with a maximum 50mA input. The entire industrial switch assembly measures 1.8 inches by 1.9 inches and requires less than 0.5 inches of panel depth.  The C6010 Model is a general purpose, debris and water resistant, industrial sealed switch device that is ideal for harsh environments and/or extreme operating temperatures ranges (-40°C to +80°C).   The C6010 industrial sealed switches have a high immunity to Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI).   These push button sealed switches can be manufactured with or without backlighting.  The backlit or illuminated option is either all LED’s on or selectable on/off.  This Six Push Button Sealed Switch is available to Original Equipment Manufacturers (OEMs) with custom legends.

CTI's custom sealed switches are ruggedized to meet aerospace, medical, and military standards. CTI's sealed switches can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These sealed switches are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

C6010 Series Industrial Switchpad Specification

Industrial Switchpad Features
Molded rubber elastomer keys (Gray or Black) rated for 10 million cycles
Keys: 2mm travel with excellent tactile feedback
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Optional customized legends or elastomer color
Made in the USA

Electrical
Power 5VDC, limit current to < 10mA.
Recommend at 5VDC, < 1mA.

Environmental
Operating Temperature  -40ºC to 80º C (standard)
Storage Temperature    -40ºC to 80º C
Relative Humidity     100% non-condensing (with "Z" option)

Sealing & Protection
Water Tight    NEMA 4 (IP66)
Protection Syn-Proof™ coating resists most oils and harsh chemicals Optional Parylene® coating available

Reliability
MTBF Greater than 100,000 hours
Life

PCB at recommended power level is 10,000,000+ activations
Syn-Proof™ coated Elastomer is up to 10,000,000 activations
Parylene coated Elastomer is 10,000,000+ activations

Keys Sealed "Hard" gold plated switch contacts

Shock
Peak Value 50g
Pulse Duration 11 ms
Waveform Half Sine

Vibration

Frequency Displacement (inches)
5 - 25 Hz 0.1
25 - 55 Hz   0.03

Certifications/Compliance

Compliant with FCC class A and B regulations
"CE" classification option requires the following modifications:
a.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
ESD rated to 15KV

PDF IconC600X0 Industrial OEM Switch Specifications


Pricing

OEM Industrial Switch Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Industrial Switch Pricing

C6010 Series Industrial OEM Switch
Photos
Videos
How-To
RFQ

C920X Series Industrial Switch

NEMA 4 (IP66) OEM Three-Button OEM Sealed Switch Assembly, 12" Ribbon Cable and 10 Pin Connector

Product Information

These sealed switches are molded, silicone rubber, three button sealed switch pads, and are available with an optional LED over the middle switch. Standard colors are gray or black; custom colors and custom legends are available. The switch printed circuit board has gold over nickel plating and ribbon cable output.

This switch is excellent for applications requiring sealing, and larger key size is desired; especially if the user will be wearing gloves. It provides a NEMA 4 (IP66) sealing and has CTI's SYN-Proof™ coating for protection against harsh oils and solvents.

CTI's custom sealed switches are ruggedized to meet aerospace, medical, and military standards. CTI's sealed switches can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These sealed switches are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

C920X Series Industrial Switch Specification

Industrial Switchpad Features
Molded rubber elastomer keys (Gray or Black) rated for 10 million cycles
Keys: 2mm travel with excellent tactile feedback
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Optional customized legends or elastomer color
Made in the USA

1)Electrical
Power 5VDC, limit current to < 10mA.
Recommend at 5VDC, < 1mA.
2)Environmental
Operating Temperature  Operating Temperature -40ºC to 80º C (standard)
Storage Temperature    -40ºC to 80º C
Relative Humidity     100% non-condensing (with "Z" option)
3)Sealing & Protection
Water Tight    NEMA 4 (IP66)
Protection Syn-Proof™ coating resists most oils and harsh chemicals Optional Parylene® coating available
4)Reliability
MTBF Greater than 100,000 hours
Life

PCB at recommended power level is 10,000,000+ activations
Syn-Proof™ coated Elastomer is up to 10,000,000 activations
Parylene coated Elastomer is 10,000,000+ activations

Keys Sealed "Hard" gold plated switch contacts
5)Shock
Peak Value 50g
Pulse Duration 11 ms
Waveform Half Sine
6)Vibration
Frequency Displacement (inches)
5 - 25 Hz 0.1
25 - 55 Hz   0.03
7)Certifications/Compliance
Compliant with FCC class A and B regulations
"CE" classification option requires the following modifications:
a.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
ESD rated to 15KV

PDF IconC900X Industrial OEM Switch Specifications


Pricing

OEM Industrial Switch Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Industrial Switch Pricing

C920X Industrial OEM Switch, NEMA 4 (IP66) Swtich
Photos
Videos
How-To
RFQ

C900X Series Industrial Switch

NEMA 4 (IP66) OEM Three-Button Waterproof Switch Assembly, 12" Ribbon Cable and No Connector

Product Information

This industrial waterproof switch are molded, silicone rubber, three button waterproof switch pads, and are available with an optional LED over the middle switch. Standard colors are gray or black; custom colors and custom legends are available. The switch printed circuit board has gold over nickel plating and ribbon cable output.

This switch is excellent for applications requiring sealing, and larger key size is desired; especially if the user will be wearing gloves. It provides a NEMA 4 (IP66) sealing and has SYN-Proof™ coating for protection against harsh oils and solvents.

CTI's custom sealed switches are ruggedized to meet aerospace, medical, and military standards. CTI's sealed switches can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These sealed switches are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

C900X Series Industrial Specification

Industrial Switchpad Features
Molded rubber elastomer keys (Gray or Black) rated for 10 million cycles
Keys: 2mm travel with excellent tactile feedback
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Optional customized legends or elastomer color
Made in the USA

1)Electrical
Power 5VDC, limit current to < 10mA.
Recommend at 5VDC, < 1mA.
2)Environmental
Operating Temperature  Operating Temperature -40ºC to 80º C (standard)
Storage Temperature    -40ºC to 80º C
Relative Humidity     100% non-condensing (with "Z" option)
3)Sealing & Protection
Water Tight    NEMA 4 (IP66)
Protection Syn-Proof™ coating resists most oils and harsh chemicals Optional Parylene® coating available
4)Reliability
MTBF Greater than 100,000 hours
Life

PCB at recommended power level is 10,000,000+ activations
Syn-Proof™ coated Elastomer is up to 10,000,000 activations
Parylene coated Elastomer is 10,000,000+ activations

Keys Sealed "Hard" gold plated switch contacts
5)Shock
Peak Value 50g
Pulse Duration 11 ms
Waveform Half Sine
6)Vibration
Frequency Displacement (inches)
5 - 25 Hz 0.1
25 - 55 Hz   0.03
7)Certifications/Compliance
Compliant with FCC class A and B regulations
"CE" classification option requires the following modifications:
a.) Shielded enclosure and shielded cable (made by customer)
Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)
ESD rated to 15KV

PDF IconC900X Industrial OEM Switch Specifications


Pricing

OEM Industrial Switch Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Industrial Switch Pricing

C900X OEM Switch, NEMA 4 (IP66) Switch Assembly
Photos
Videos
How-To
RFQ
TOP
Manufactured in U.S.A. Manufactured in U.S.A. CCopyright © 2001-2016 | CTI Electronics Corporation an affiliate of ELECTRO SWITCH | Tel: (203) 386-9779 | All Rights Reserved - sitemap | Sales | Tech
