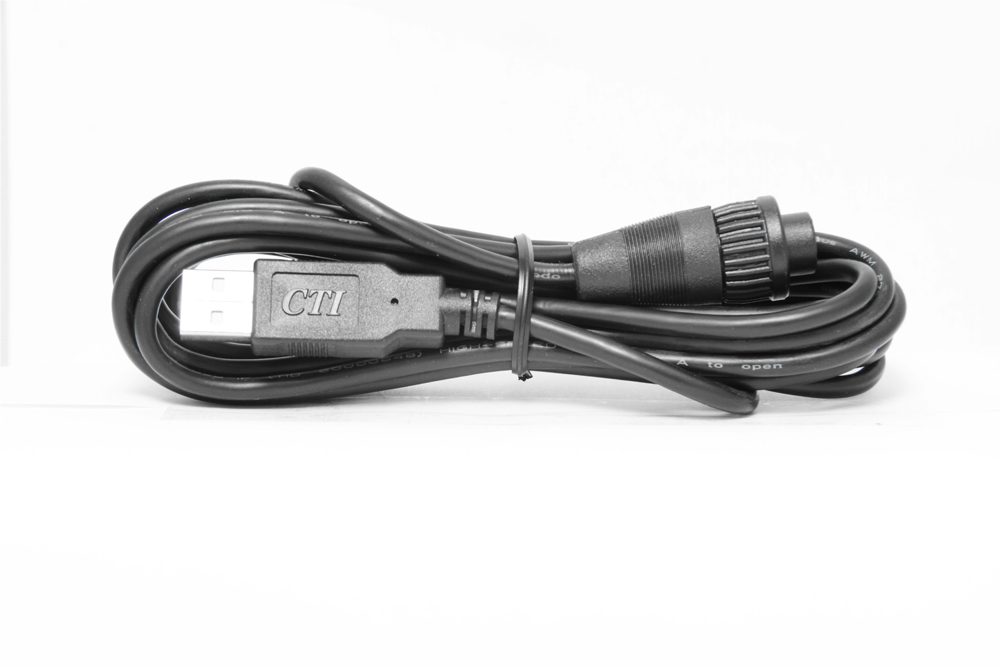

uCTI-Pod™ Universal Industrial Joystick Controller




Plug-n-Play Universal Industrial Joystick Controller

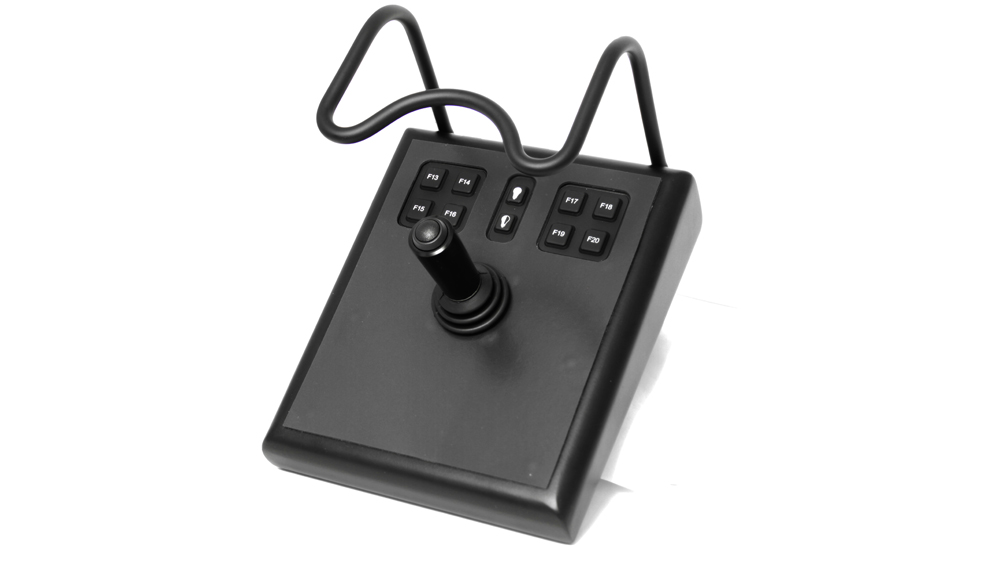

M7XUX-N33 uCTI-Pod™ Universal Industrial Joystick Controller

NEMA 4X (IP66) Plug-n-Play Universal Joystick Controller

Product Information

The uCTI-Pod™ Universal Industrial Joystick Controler is designed to be a modular universal HMI device, the industrial joystick controller can be configured to be used as a motion controller (USB HID Compliant Joystick) allowing up to three axis of control or as a mouse pointing device with two modular switchpads and/or keypads. The uCTI-Pod™ also has a two-button LED brightness control keypad and two customizable slots for up to twelve (12) switchpad, or keypad functions, or optionally it can be configured with an OrbitalMouse® pointing device (only when joystick is used as motion controller.)

This design is the perfect solution for harsh environments requiring rugged industrial motion control or mouse pointer functionality using a joystick and has near waterproof sealing. The industrial joystick installed on the uCTI-Pod™ isprotected by a crash bar / cradle which prevents drop damage and provides a grip for use.

CTI's uCTI-Pod™ Universal Industrial Joystick Controller is ruggedized to meet aerospace, medical, and military standards. CTI's uCTI-Pod™ can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These plug-n-play usb motion controller are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

Inductive Industrial Joysticks Reliability Data
F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

Electrical
N24 JOYSTICK KNOB MECHANICAL SPECIFICATION
N24 Dimensions Above Panel: 2.1" (53.34mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N24 Specification Knob Type Non-Pushbutton Axes Single or Dual Axes Sensor Technology Inductive
Life Expectancy X & Y Axes 10,000,000 random deflections
N3 JOYSTICK KNOB MECHANICAL SPECIFICATION
N3 Dimensions Above Panel: 2.1" (53.34mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N3 Specification Knob Type Pushbutton Axes Single or Dual Axes Sensor Technology Inductive
Life Expectancy X & Y Axes 10,000,000 random deflections Momentary Push-Button 1,000,000 cycles maximum
N33 JOYSTICK KNOB MECHANICAL SPECIFICATION
N33 Dimensions Above Panel: 3.1" (78.74mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N33 Specification Knob Type Pushbutton Axes Single or Dual Axes Sensor Technology Inductive
Life Expectancy X & Y Axes 10,000,000 random deflections Momentary Push-Button 1,000,000 cycles maximum
N34 JOYSTICK KNOB MECHANICAL SPECIFICATION
N34 Dimensions Above Panel: 2.6" (66.04mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N34 Specification Knob Type Dual Pushbutton Axes Single or Dual Axes Sensor Technology Inductive
Life Expectancy X & Y Axes 10,000,000 random deflections Momentary Push-Button 1,000,000 cycles maximum
N84 JOYSTICK KNOB MECHANICAL SPECIFICATION
N84 Dimensions Above Panel: 3.2” (81.28mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N84 Specification Knob Type Non-Pushbutton Axes Dual or Three Axes Sensor Technology Inductive/Potentiometer
Life Expectancy X & Y Axes 10,000,000 random deflections Z Axis 20,000,000 cylces
MTBF Greater than 100,000 hours
FOUR (4) BUTTON KEYPAD MECHANICAL SPECIFICATION
Dimensions Width: 1.83" (46.48mm) Height: 1.93" (49.02mm) Below Panel: 0.43" (10.92mm)
  Key Travel 0.08" (2mm) Key Cap Size Width: 0.44" (11.18mm) Height: 0.51" (12.95mm)
Keys 4 silicone Rubber Keys with carbon pill Actuation Force: 100g +/- 20G
SIX (6) BUTTON KEYPAD MECHANICAL SPECIFICATION
KP6000 Dimensions Width: 1.83" (46.48mm) Height: 1.93" (49.02mm) Below Panel: 0.30" (7.62mm)
  Key Travel 0.08" (2mm) Key Cap Size Width: 0.33" (8.38mm) Height: 0.41" (10.41mm)
Keys 6 silicone Rubber Keys with carbon pill Actuation Force: 100g +/- 20G
CONFORMANCE / CERTIFICATION / COMPLIANCE
U.S.A Standards U.S. FCC 47 CFR 15 Class A & B RF Emissions Compliant 8Kv (Contact), 15Kv (Air)
  MIL-STD-461F Radiated Emissions and Susceptibility Conformance
  MIL-STD-810G Protection against humidity, fungus, and salt spray Conformance
  MIL-STD-910D Protection against shock Conformance
  MIL-STD-671-1 Protection against vibration Conformance
  MIL-STD-1427G Human Factors Conformance
  MIL-I-45208 Quality System Conformance
  IPC-A-610 Acceptability of Electronics Assemblies Certification
European Standards "CE" Compliant
  Restriction of Hazardous Substance (RoHS) Directive Complaint
  Regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Directive Compliant
International Standards IEC 61000-4-2 and EN61000-4-2 ESD 8Kv contact and 15Kv air Conformance
IEC 61000-4-3 and EN61000-4-3 Radiated Emissions and Susceptibility Conformance
  IEC 61000-6-3 and EN61000-6-3 Electromagnetic Compatibility Conformance
  IEC 60601-1 and EN60601-1 Medical Device Design and Manufacture Conformance
  IEC 62353 and BS EN62353 Medical Device Recurrent Testing Conformance
subject to manufacturing options applied



Pricing

uCTI-Pod™ Industrial Joystick Controller Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.

uCTI-Pod™ Industrial Joystick Controller Pricing

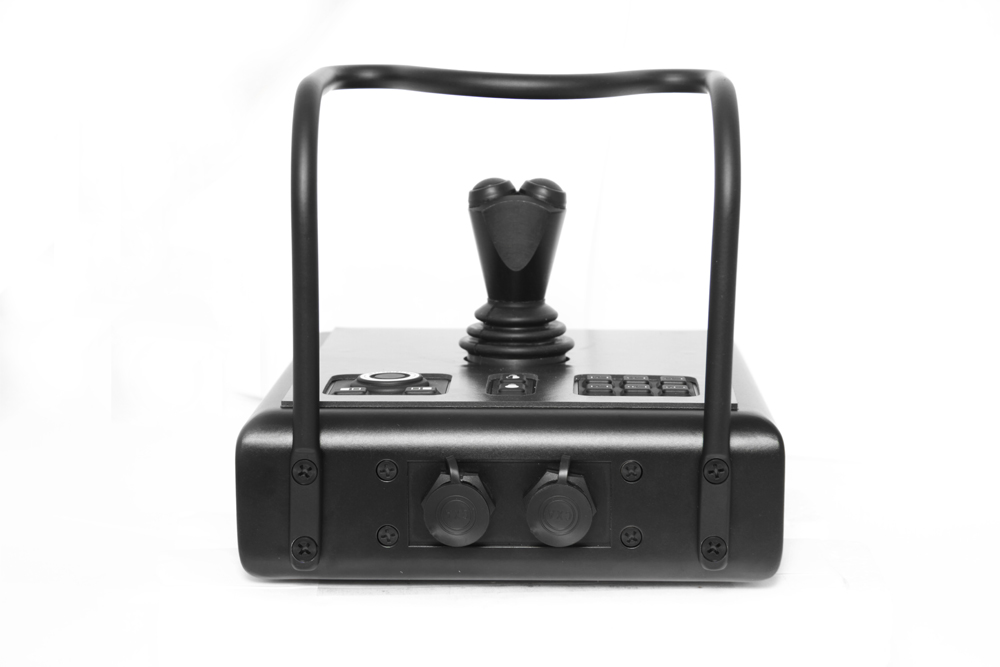

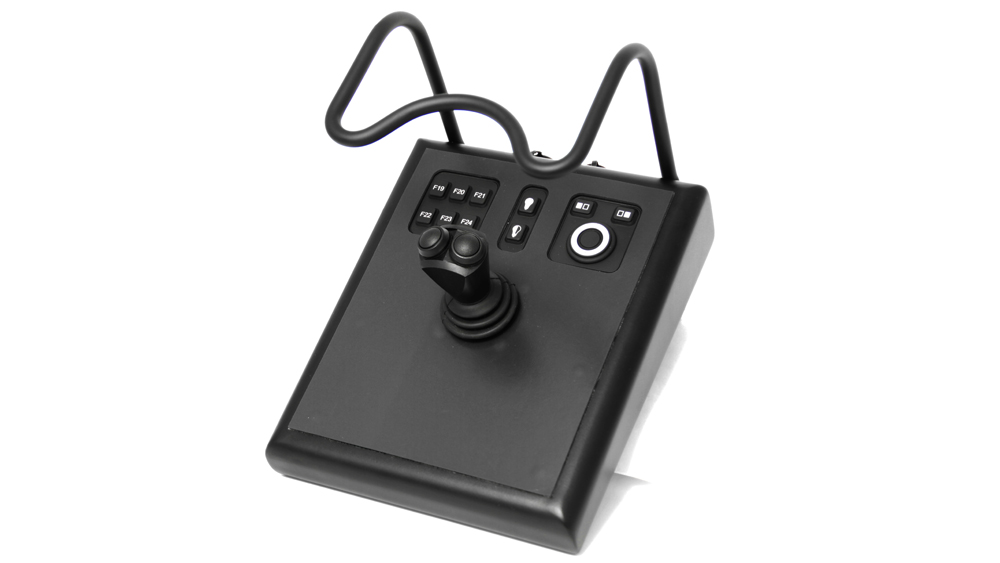

M7XUX-N34 uCTI-Pod™ Universal Industrial Joystick Controller

NEMA 4X (IP66) Plug-n-Play Universal Joystick Controller

Product Information

The uCTI-Pod™ Universal Industrial Joystick Controler is designed to be a modular universal HMI device, the industrial joystick controller can be configured to be used as a motion controller (USB HID Compliant Joystick) allowing up to three axis of control or as a mouse pointing device with two modular switchpads and/or keypads. The uCTI-Pod™ also has a two-button LED brightness control keypad and two customizable slots for up to twelve (12) switchpad, or keypad functions, or optionally it can be configured with an OrbitalMouse® pointing device (only when joystick is used as motion controller.)

This design is the perfect solution for harsh environments requiring rugged industrial motion control or mouse pointer functionality using a joystick and has near waterproof sealing. The industrial joystick installed on the uCTI-Pod™ isprotected by a crash bar / cradle which prevents drop damage and provides a grip for use.

CTI's uCTI-Pod™ Universal Industrial Joystick Controller is ruggedized to meet aerospace, medical, and military standards. CTI's uCTI-Pod™ can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These plug-n-play usb motion controller are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

Inductive Industrial Joysticks Reliability Data
F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

Electrical
N24 JOYSTICK KNOB MECHANICAL SPECIFICATION
N24 Dimensions Above Panel: 2.1" (53.34mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N24 Specification Knob Type Non-Pushbutton Axes Single or Dual Axes Sensor Technology Inductive
Life Expectancy X & Y Axes 10,000,000 random deflections
N3 JOYSTICK KNOB MECHANICAL SPECIFICATION
N3 Dimensions Above Panel: 2.1" (53.34mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N3 Specification Knob Type Pushbutton Axes Single or Dual Axes Sensor Technology Inductive
Life Expectancy X & Y Axes 10,000,000 random deflections Momentary Push-Button 1,000,000 cycles maximum
N33 JOYSTICK KNOB MECHANICAL SPECIFICATION
N33 Dimensions Above Panel: 3.1" (78.74mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N33 Specification Knob Type Pushbutton Axes Single or Dual Axes Sensor Technology Inductive
Life Expectancy X & Y Axes 10,000,000 random deflections Momentary Push-Button 1,000,000 cycles maximum
N34 JOYSTICK KNOB MECHANICAL SPECIFICATION
N34 Dimensions Above Panel: 2.6" (66.04mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N34 Specification Knob Type Dual Pushbutton Axes Single or Dual Axes Sensor Technology Inductive
Life Expectancy X & Y Axes 10,000,000 random deflections Momentary Push-Button 1,000,000 cycles maximum
N84 JOYSTICK KNOB MECHANICAL SPECIFICATION
N84 Dimensions Above Panel: 3.2” (81.28mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N84 Specification Knob Type Non-Pushbutton Axes Dual or Three Axes Sensor Technology Inductive/Potentiometer
Life Expectancy X & Y Axes 10,000,000 random deflections Z Axis 20,000,000 cylces
MTBF Greater than 100,000 hours
FOUR (4) BUTTON KEYPAD MECHANICAL SPECIFICATION
Dimensions Width: 1.83" (46.48mm) Height: 1.93" (49.02mm) Below Panel: 0.43" (10.92mm)
  Key Travel 0.08" (2mm) Key Cap Size Width: 0.44" (11.18mm) Height: 0.51" (12.95mm)
Keys 4 silicone Rubber Keys with carbon pill Actuation Force: 100g +/- 20G
SIX (6) BUTTON KEYPAD MECHANICAL SPECIFICATION
KP6000 Dimensions Width: 1.83" (46.48mm) Height: 1.93" (49.02mm) Below Panel: 0.30" (7.62mm)
  Key Travel 0.08" (2mm) Key Cap Size Width: 0.33" (8.38mm) Height: 0.41" (10.41mm)
Keys 6 silicone Rubber Keys with carbon pill Actuation Force: 100g +/- 20G
CONFORMANCE / CERTIFICATION / COMPLIANCE
U.S.A Standards U.S. FCC 47 CFR 15 Class A & B RF Emissions Compliant 8Kv (Contact), 15Kv (Air)
  MIL-STD-461F Radiated Emissions and Susceptibility Conformance
  MIL-STD-810G Protection against humidity, fungus, and salt spray Conformance
  MIL-STD-910D Protection against shock Conformance
  MIL-STD-671-1 Protection against vibration Conformance
  MIL-STD-1427G Human Factors Conformance
  MIL-I-45208 Quality System Conformance
  IPC-A-610 Acceptability of Electronics Assemblies Certification
European Standards "CE" Compliant
  Restriction of Hazardous Substance (RoHS) Directive Complaint
  Regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Directive Compliant
International Standards IEC 61000-4-2 and EN61000-4-2 ESD 8Kv contact and 15Kv air Conformance
IEC 61000-4-3 and EN61000-4-3 Radiated Emissions and Susceptibility Conformance
  IEC 61000-6-3 and EN61000-6-3 Electromagnetic Compatibility Conformance
  IEC 60601-1 and EN60601-1 Medical Device Design and Manufacture Conformance
  IEC 62353 and BS EN62353 Medical Device Recurrent Testing Conformance
subject to manufacturing options applied



Pricing

uCTI-Pod™ Industrial Joystick Controller Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.

uCTI-Pod™ Industrial Joystick Controller Pricing

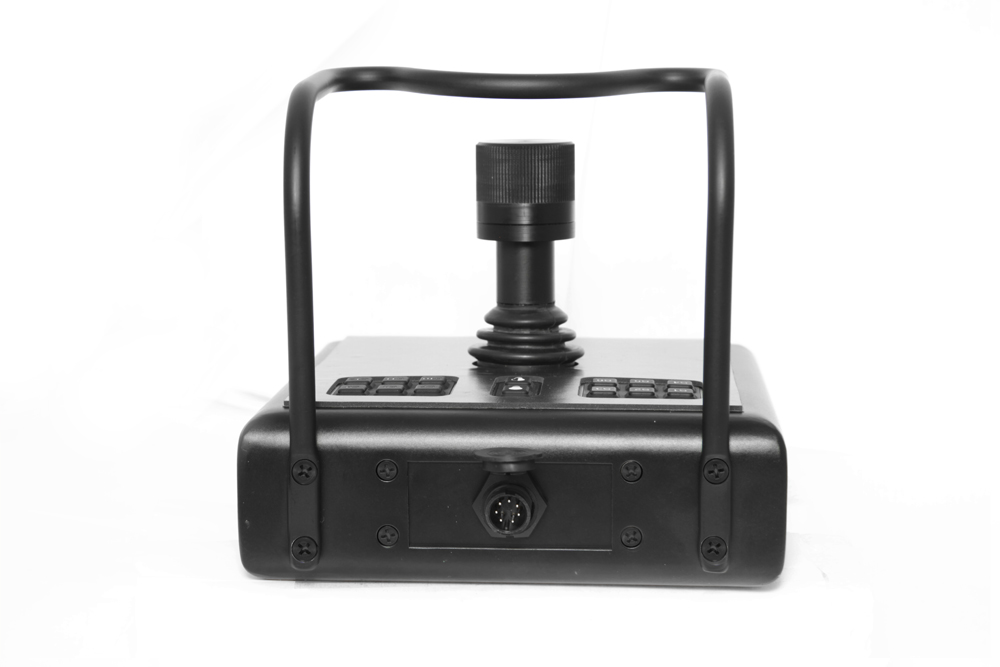

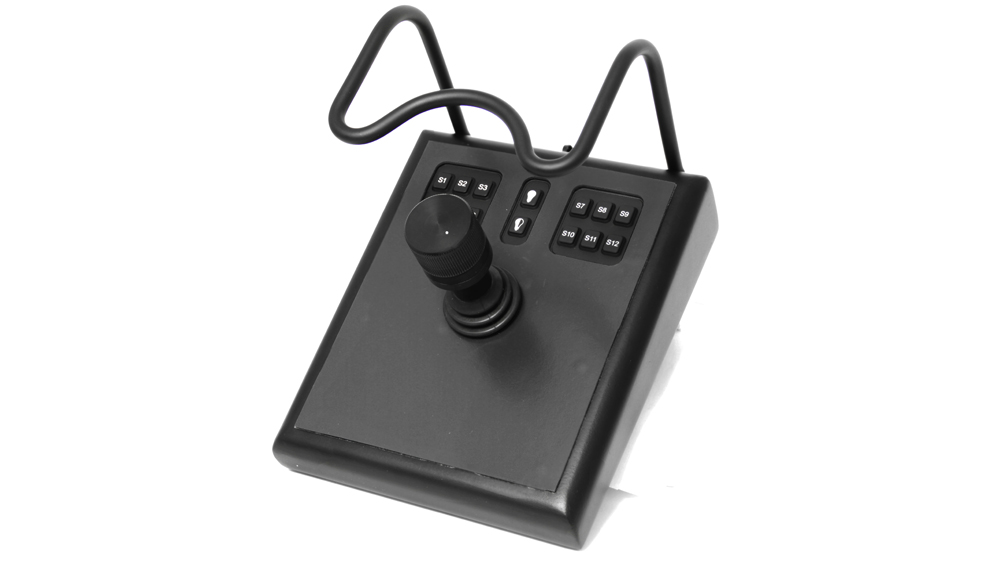

M7XUX-N84 uCTI-Pod™ Universal Industrial Joystick Controller

NEMA 4X (IP66) Plug-n-Play Universal Joystick Controller

Product Information

The uCTI-Pod™ Universal Industrial Joystick Controler is designed to be a modular universal HMI device, the industrial joystick controller can be configured to be used as a motion controller (USB HID Compliant Joystick) allowing up to three axis of control or as a mouse pointing device with two modular switchpads and/or keypads. The uCTI-Pod™ also has a two-button LED brightness control keypad and two customizable slots for up to twelve (12) switchpad, or keypad functions, or optionally it can be configured with an OrbitalMouse® pointing device (only when joystick is used as motion controller.)

This design is the perfect solution for harsh environments requiring rugged industrial motion control or mouse pointer functionality using a joystick and has near waterproof sealing. The industrial joystick installed on the uCTI-Pod™ isprotected by a crash bar / cradle which prevents drop damage and provides a grip for use.

CTI's uCTI-Pod™ Universal Industrial Joystick Controller is ruggedized to meet aerospace, medical, and military standards. CTI's uCTI-Pod™ can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These plug-n-play usb motion controller are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

Inductive Industrial Joysticks Reliability Data
F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

Electrical
N24 JOYSTICK KNOB MECHANICAL SPECIFICATION
N24 Dimensions Above Panel: 2.1" (53.34mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N24 Specification Knob Type Non-Pushbutton Axes Single or Dual Axes Sensor Technology Inductive
Life Expectancy X & Y Axes 10,000,000 random deflections
N3 JOYSTICK KNOB MECHANICAL SPECIFICATION
N3 Dimensions Above Panel: 2.1" (53.34mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N3 Specification Knob Type Pushbutton Axes Single or Dual Axes Sensor Technology Inductive
Life Expectancy X & Y Axes 10,000,000 random deflections Momentary Push-Button 1,000,000 cycles maximum
N33 JOYSTICK KNOB MECHANICAL SPECIFICATION
N33 Dimensions Above Panel: 3.1" (78.74mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N33 Specification Knob Type Pushbutton Axes Single or Dual Axes Sensor Technology Inductive
Life Expectancy X & Y Axes 10,000,000 random deflections Momentary Push-Button 1,000,000 cycles maximum
N34 JOYSTICK KNOB MECHANICAL SPECIFICATION
N34 Dimensions Above Panel: 2.6" (66.04mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N34 Specification Knob Type Dual Pushbutton Axes Single or Dual Axes Sensor Technology Inductive
Life Expectancy X & Y Axes 10,000,000 random deflections Momentary Push-Button 1,000,000 cycles maximum
N84 JOYSTICK KNOB MECHANICAL SPECIFICATION
N84 Dimensions Above Panel: 3.2” (81.28mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N84 Specification Knob Type Non-Pushbutton Axes Dual or Three Axes Sensor Technology Inductive/Potentiometer
Life Expectancy X & Y Axes 10,000,000 random deflections Z Axis 20,000,000 cylces
MTBF Greater than 100,000 hours
FOUR (4) BUTTON KEYPAD MECHANICAL SPECIFICATION
Dimensions Width: 1.83" (46.48mm) Height: 1.93" (49.02mm) Below Panel: 0.43" (10.92mm)
  Key Travel 0.08" (2mm) Key Cap Size Width: 0.44" (11.18mm) Height: 0.51" (12.95mm)
Keys 4 silicone Rubber Keys with carbon pill Actuation Force: 100g +/- 20G
SIX (6) BUTTON KEYPAD MECHANICAL SPECIFICATION
KP6000 Dimensions Width: 1.83" (46.48mm) Height: 1.93" (49.02mm) Below Panel: 0.30" (7.62mm)
  Key Travel 0.08" (2mm) Key Cap Size Width: 0.33" (8.38mm) Height: 0.41" (10.41mm)
Keys 6 silicone Rubber Keys with carbon pill Actuation Force: 100g +/- 20G
CONFORMANCE / CERTIFICATION / COMPLIANCE
U.S.A Standards U.S. FCC 47 CFR 15 Class A & B RF Emissions Compliant 8Kv (Contact), 15Kv (Air)
  MIL-STD-461F Radiated Emissions and Susceptibility Conformance
  MIL-STD-810G Protection against humidity, fungus, and salt spray Conformance
  MIL-STD-910D Protection against shock Conformance
  MIL-STD-671-1 Protection against vibration Conformance
  MIL-STD-1427G Human Factors Conformance
  MIL-I-45208 Quality System Conformance
  IPC-A-610 Acceptability of Electronics Assemblies Certification
European Standards "CE" Compliant
  Restriction of Hazardous Substance (RoHS) Directive Complaint
  Regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Directive Compliant
International Standards IEC 61000-4-2 and EN61000-4-2 ESD 8Kv contact and 15Kv air Conformance
IEC 61000-4-3 and EN61000-4-3 Radiated Emissions and Susceptibility Conformance
  IEC 61000-6-3 and EN61000-6-3 Electromagnetic Compatibility Conformance
  IEC 60601-1 and EN60601-1 Medical Device Design and Manufacture Conformance
  IEC 62353 and BS EN62353 Medical Device Recurrent Testing Conformance
subject to manufacturing options applied



Pricing

uCTI-Pod™ Industrial Joystick Controller Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.

uCTI-Pod™ Industrial Joystick Controller Pricing

TOP
Manufactured in U.S.A. Manufactured in U.S.A. Copyright © 2001-2017 | CTI Electronics Corporation an affiliate of ELECTRO SWITCH | Tel: (203) 386-9779 | All Rights Reserved - sitemap | Sales | Tech
