Backlit / Illuminated Pointing Devices




AP2000-Bx OEM Backlit Mouse Pointer OM2000-BX  OEM Backlit Mouse Pointer OM20U2-BX  OEM Backlit Mouse Pointer
OM2200-BX  OEM Backlit Mouse Pointer

CTI' Backlit industrial pointing devices are designed to withstand exposure to harsh liquid or solid debris, tough environmental conditions, and/or operate reliably in a temperature range of -40⁰C to +80⁰C (-40⁰F to +176⁰F). CTI is the inventor of theOrbital Mouse® (button style pointer), and the Arrow Mouse™(Arrow Key pointer); of which there are copycats but no equal. What makes these industrial pointing devices really special is the value derived through higher productivity, elimination of unscheduled downtime, zero servicing, along with a social and ethical responsibility to the reduction of electronic waste.
Long term durability is guaranteed through the use of the highest quality materials and components which also ensures the highest reliability over the broadest operating temperature range. The electrical MTBF is rated for 100,000+ hours (MIL-HDBK-217F rating) due to the electrical components, that's over 10 years of reliable service. CTI' industrial pointing devices are the only choice when reliability is critical™ to the success of your application.

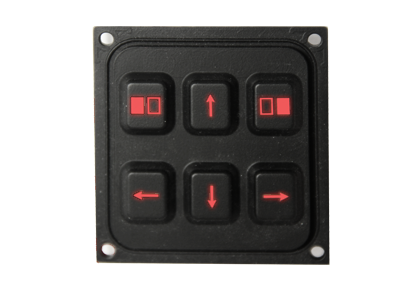

AP2000-Bx Series Pointing Device

NEMA 4 (IP66) OEM ArrowMouse™ (Arrow Key Mouse Pointers)

Product Information

The AP2000-Bx Series has all the features of the CTI ArrowMouse™; high reliability, NEMA 4 (IP66) sealing, low profile and small footprint and adds illumination. These sealing pointers allow vertical and horizontal movement of the mouse cursors and both the left and right mouse cursors functionality.

Additionally, these industrial computer mouse pointers provide red or green LED backlighting with all power drawn only from the computer mouse port. There are ten (10) levels of backlighting intensity; changeable by the user directly from the ArrowMouse™ keys and completely independent of the computer operating system.

Gold plated contacts ensure a very long life with over 10M activations. These sealed industrial computer mouse pointers are the most cost effective, drift free, back-lit cursor controllers available.

Rated NEMA 4 (IP66), FCC class A, CE marked (patents pending).

CTI's custom backlit pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's backlit pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These backlit pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

AP2000-Bx Series Pointing Device Specification

ArrowMouse™(Arrow Key Mouse Cursors)
Molded silicone rubber keys
Excellent tactile feel, 2mm key travel
Available with back-lighting
ArrowMouse™ uses arrow keys for mouse cursor movement

Features:
OEM Design
Sealed gold plated switch contacts
Port compatible with all computers - no software drivers needed
Repairable design
Plug and Play
Direct factory support
No Drift Design
No moving electrical parts or magnets
Made in USA



Temperature Ratings:
Operating Temperature  -40º to 80º C
Storage Temperature:      -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures):   100,000 hours per MIL-HDBK-217F
Shock Rating:   50g       11ms - 1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration:  Mil-Std-810F, Category 4
Buttons  Rated for up to 10 million cycles

Certifications:
Meets FCC Part 15 Class A & B
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV

PDF IconArrowMouse™ Pointers Specifications

Pricing

OEM industrial ArrowMouse™ (Pointing Device) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Industrial ArrowMouse™ (Pointing Device) Pricing

AP2000-BX Backlit / Illuminated Pointing Device
Photos
Videos
How-To
RFQ

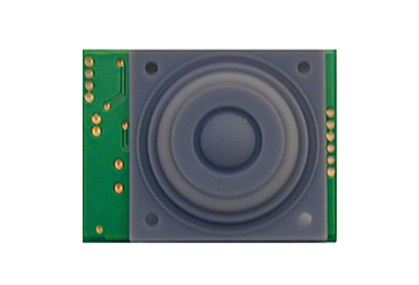

OM2000 Series Backlit Pointing Devices

NEMA 4 (IP66) Sealing Illuminated OrbitalMouse®

Product Information

CTI's OrbitalMouse®, sealed mouse pointers, are high reliability industrial computer mouse pointers with a low-profile button style pointer. This series is designed for OEM applications where the mouse buttons are provided by the OEM. It has various options such as backlighting in red or green, a non-backlit model (OM2000), as well as cable styles and lengths. The dimensions are 1.65 by 2.15 inches and require less than .50 inches behind the panel; the perfect alternative to touchpads. For applications requiring less panel depth, right angle headers can be supplied. Available interfaces are PS/2 or USB and do not require any special drivers or calibration.

CTI's custom backlit pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's backlit pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These backlit pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

OM2000-Bx Series Pointing Device Specification

OrbitalMouse® (Button Style Mouse Cursors)
Molded silicone rubber keys
Excellent tactile feel, 2mm travel
Available with back-lighting
OrbitalMouse®
Button style pointer uses one round button for mouse cursor movement of 360°.

Features:
OEM Design
Sealed “Hard” gold plated switch contacts
Port compatible with all computers - no software drivers needed
Repairable design
Plug and Play
No Drift Design
No moving electrical parts or magnets
USB or PS/2 Output
Direct factory support - Made in USA

Temperature Ratings:
Operating Temperature  -40º to 80º C
Storage Temperature:      -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures):   100,000 hours per MIL-HDBK-217F
Shock Rating:   50g       11ms - 1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration:  Mil-Std-810F, Category 4
Buttons  Rated for up to 10 million cycles

Certifications:
Meets FCC Part 15 Class A & B
Meets CE Requirements, RoHS Requirements
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant

United States Patents:
U.S. Patent No. 7,499,032
U.S. Patents Pending 12/344368

PDF IconOrbitalMouse® Pointers Specifications

Pricing

OEM industrial OrbitalMouse® (Pointing Device) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Industrial OrbitalMouse® (Pointing Device) Pricing

OM2000-Bx Backlit / Illuminated Pointing Device
Photos
Videos
How-To
RFQ

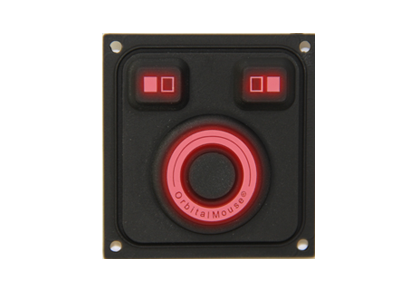

OM20U2 Model Illuminated Pointing Device

NEMA 4 (IP66) Backlit OrbitalMouse® w/ Integrated Buttons

Product Information

The OM20U2 industrial button style mouse pointer integrates two buttons with an elastomer that provides a NEMA 4 (IP66) sealing. These two buttons act as the normal left and right mouse button functionality which are integrated into the compact PCB. This backlit version of the OrbitalMouse® is available with red or green backlighting.

 The dimensions are 1.93 by 1.83 inches and require less than 0.3 inches below panel and 0.2 inches above panel; the perfect alternative to a touchpad. Options include backlighting in red or green, a non-backlit model (OM20U2), as well as cable lengths. Available interface is USB and does not require any special drivers or calibration.

CTI's custom backlit pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's backlit pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These backlit pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

OM20U2 Backlit Model Pointing Device Specification

OrbitalMouse® (Button Style Mouse Cursors)
Molded silicone rubber keys
Excellent tactile feel, 2mm travel
Available with back-lighting
OrbitalMouse®
Button style pointer uses one round button for mouse cursor movement of 360°.

Features:
OEM Design
Sealed “Hard” gold plated switch contacts
Port compatible with all computers - no software drivers needed
Repairable design
Plug and Play
No Drift Design
No moving electrical parts or magnets
USB or PS/2 Output
Direct factory support - Made in USA



Temperature Ratings:
Operating Temperature  -40º to 80º C
Storage Temperature:      -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures):   100,000 hours per MIL-HDBK-217F
Shock Rating:   50g       11ms - 1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration:  Mil-Std-810F, Category 4
Buttons  Rated for up to 10 million cycles

Certifications:
Meets FCC Part 15 Class A & B
Meets CE Requirements, RoHS Requirements
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant



United States Patents:
U.S. Patent No. 7,499,032
U.S. Patents Pending 12/344368

PDF IconOrbitalMouse® Pointers Specifications

Pricing

OEM industrial OrbitalMouse® (Pointing Device) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Industrial OrbitalMouse® (Pointing Device) Pricing

OM20U2-Bx Backlit / Illuminated Pointing Device
Photos
Videos
How-To
RFQ

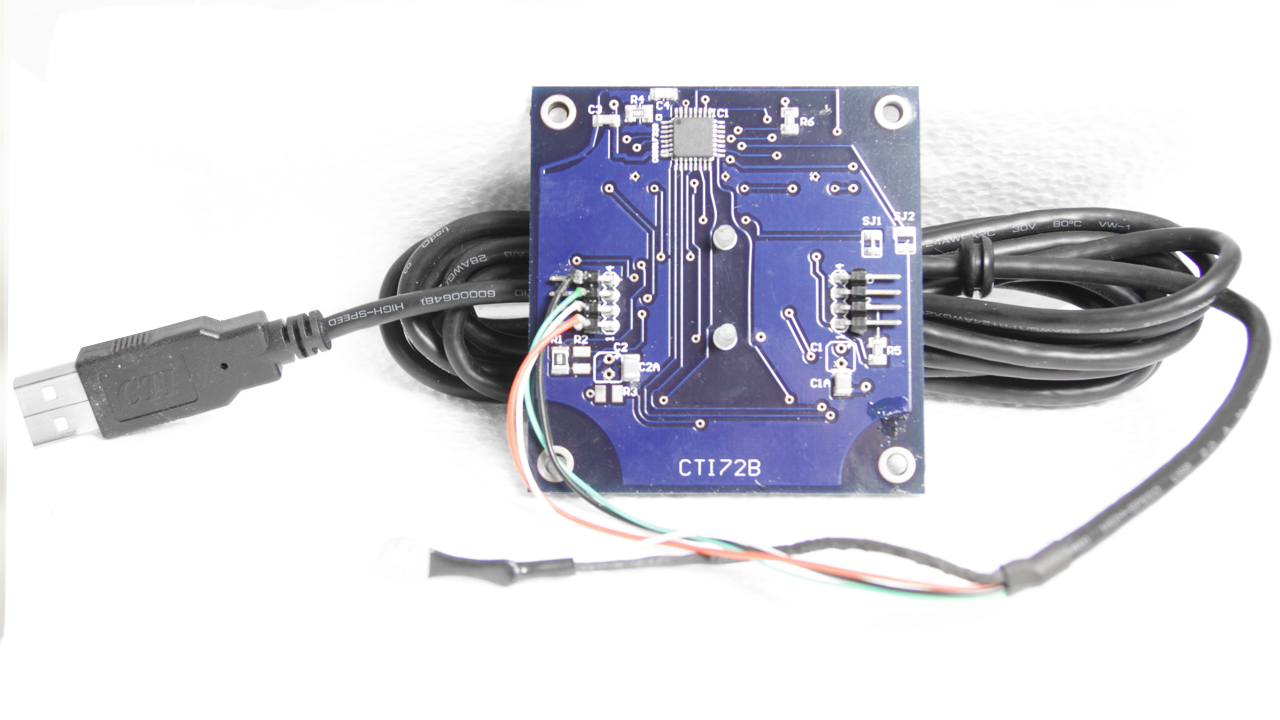

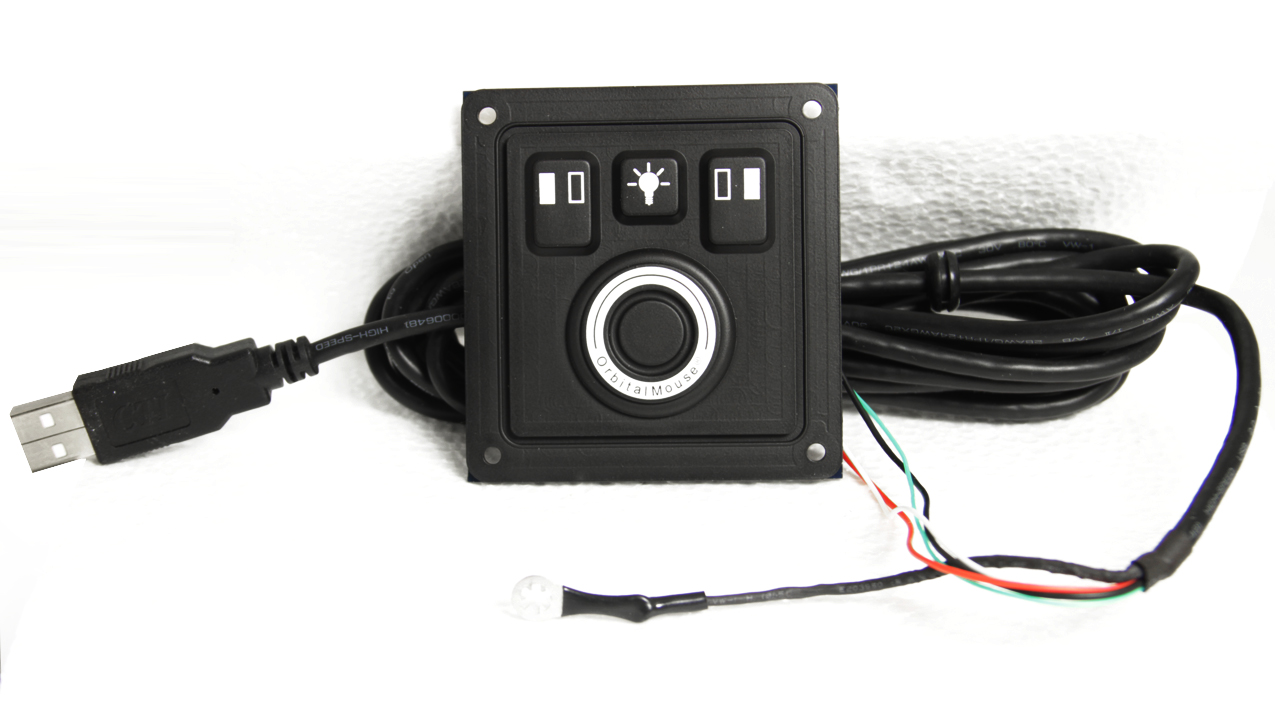

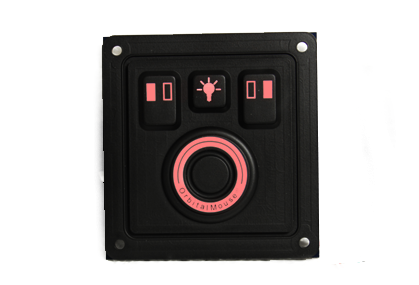

OM2200 Series Illuminated Pointing Devices

NEMA 4 (IP66) Backlit OrbitalMouse® w/ Integrated Switches

Product Information

This version of the industrial button style mouse pointer integrates the OM2000 with industrial rubber switches. This backlit version of the OrbitalMouse® provides NEMA 4 (IP66) sealing, and is available with red or green backlighting. These switches have an LED for the drag function indicator option. The switches are integrated into a PCB offering a compact size. The dimensions are 2.56 by 2.68 inches and require less than .40 inches behind the panel; the perfect alternative to a touchpad. Options include backlighting in red or green, a non-backlit model (OM2200), as well as cable styles and lengths. Available interfaces are PS/2 or USB and do not require any special drivers or calibration.

CTI's custom backlit pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's backlit pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These backlit pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

OM2200-Bx Series Pointing Device Specification

OrbitalMouse® (Button Style Mouse Cursors)
Molded silicone rubber keys
Excellent tactile feel, 2mm travel
Available with back-lighting
OrbitalMouse®
Button style pointer uses one round button for mouse cursor movement of 360°.

Features:
OEM Design
Sealed “Hard” gold plated switch contacts
Port compatible with all computers - no software drivers needed
Repairable design
Plug and Play
No Drift Design
No moving electrical parts or magnets
USB or PS/2 Output
Direct factory support - Made in USA

Temperature Ratings:
Operating Temperature  -40º to 80º C
Storage Temperature:      -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures):   100,000 hours per MIL-HDBK-217F
Shock Rating:   50g       11ms - 1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration:  Mil-Std-810F, Category 4
Buttons  Rated for up to 10 million cycles

Certifications:
Meets FCC Part 15 Class A & B
Meets CE Requirements, RoHS Requirements
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant

United States Patents:
U.S. Patent No. 7,499,032
U.S. Patents Pending 12/344368

PDF IconOrbitalMouse® Pointers Specifications

Pricing

OEM industrial OrbitalMouse® (Pointing Device) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Industrial OrbitalMouse® (Pointing Device) Pricing

OM2200-Bx Backlit / Illuminated Pointing Device
Photos
Videos
How-To
RFQ
Sidewinder® is a registered trademark of Microsoft Corporation
