OEM Industrial Pointing Devices

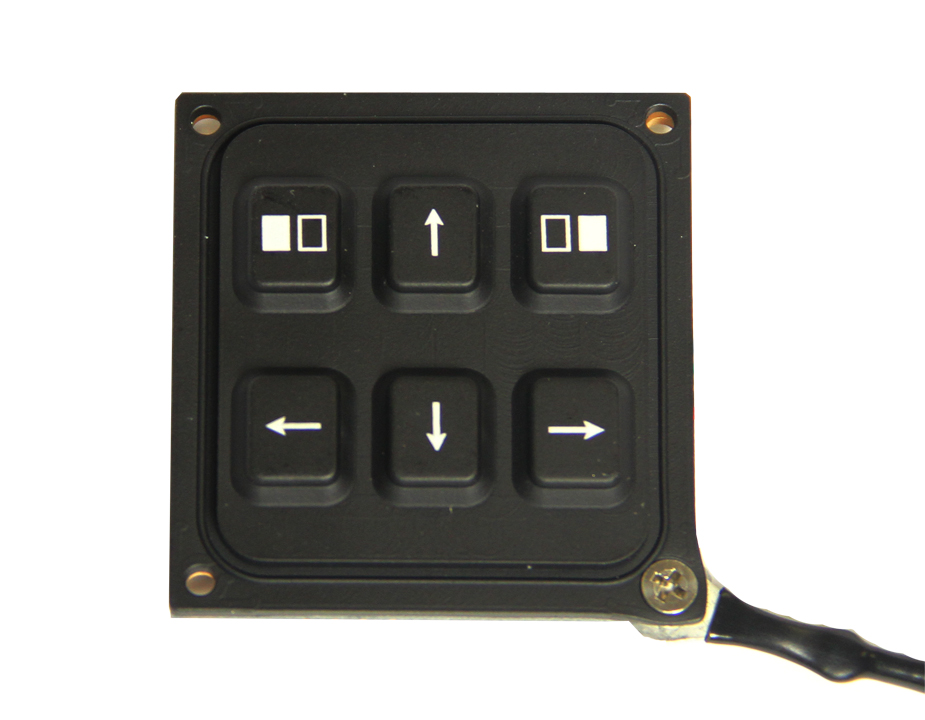

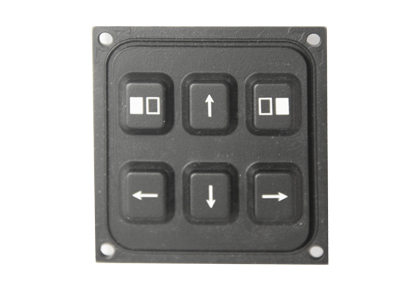

AP2000 Series Pointing Device

NEMA 4 (IP66) OEM ArrowMouse™ (Arrow Key Mouse Pointers)

Product Information

The AP2000 Series are high reliability, drift-free, sealed pointers with a low profile and small footprint. These rugged OEM mouse pointers are extremely reliable in wet, harsh environments and critical applications. The ArrowMouse™ is molded of silicone rubber with 2mm of travel for excellent tactile response; and has gold over nickel contacts for high reliability. Gold plated contacts ensure a very long life with over 10M activations. Besides separate left and right mouse keys, the computer mouse pointers have four other direction keys that allow for cursor movement in eight directions, with variable speed or single pixel control.

The ArrowMouse™ arrow key mouse pointer is a cost effective solution in a miniaturized package, measuring 1.8 by 1.9 inches and requiring less than .5 inch of panel depth. This series is available with backlighting (illumination); and with custom length cables, or wired to your specification. These industrial computer input devices have versions for all types of computers that are port compatible (PS/2 or USB), requiring no special software drivers.

Rated NEMA 4 (IP66), FCC class A, CE marked, (patents pending).

CTI's custom OEM pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's OEM pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These OEM pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

AP2000 Series Pointing Device

ArrowMouse™ Arrow Key Mouse Cursors)
Molded silicone rubber keys
Excellent tactile feel, 2mm key travel
Available with back-lighting
ArrowMouse™ uses arrow keys for mouse cursor movement

Features:
OEM Design
Sealed gold plated switch contacts
Port compatible with all computers - no software drivers needed
Repairable design
Plug and Play
Direct factory support
No Drift Design
No moving electrical parts or magnets
Made in USA



Temperature Ratings:
Operating Temperature  -40º to 80º C
Storage Temperature:      -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures):   100,000 hours per MIL-HDBK-217F
Shock Rating:   50g       11ms - 1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration:  Mil-Std-810F, Category 4
Buttons  Rated for up to 10 million cycles

Certifications:
Meets FCC Part 15 Class A & B
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV

ArrowMouse™ Pointers Specifications PDF Icon

Pricing

OEM industrial ArrowMouse™ (Pointing Device) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


OEM Industrial ArrowMouse™ (Pointing Device) Pricing PDF Icon

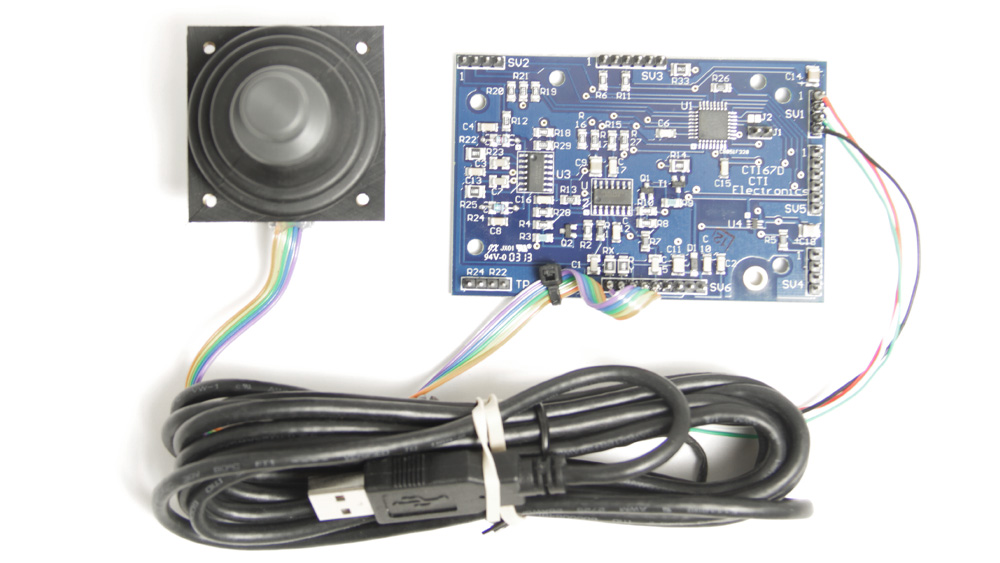

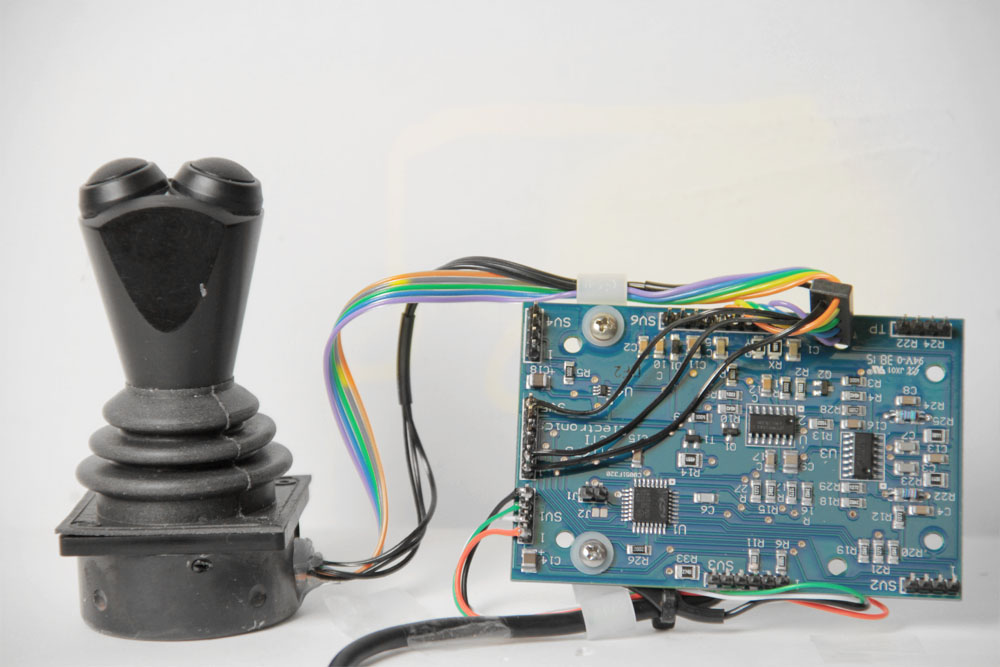

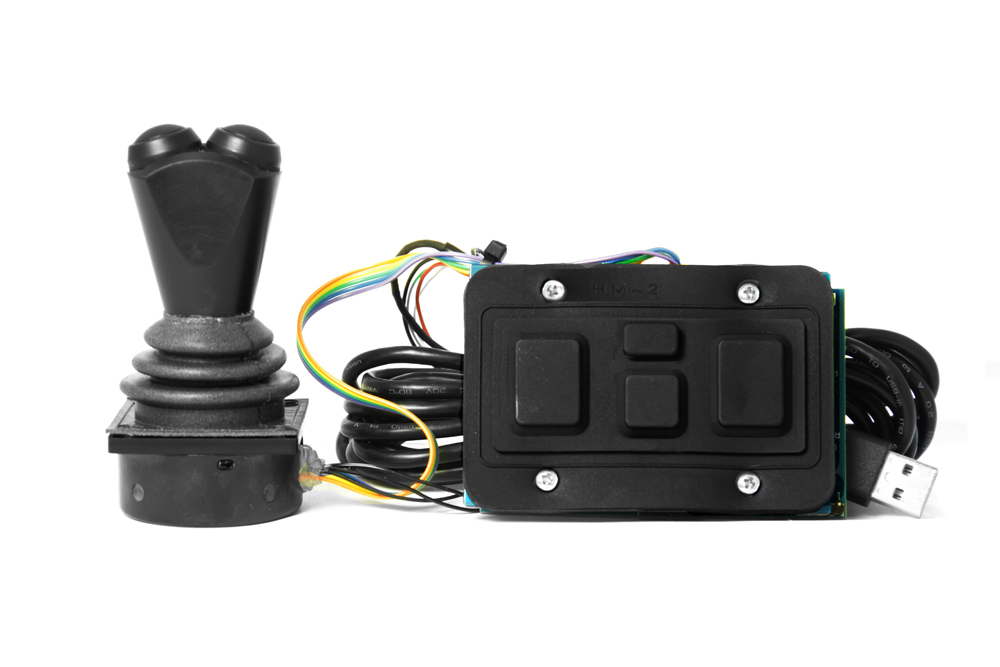

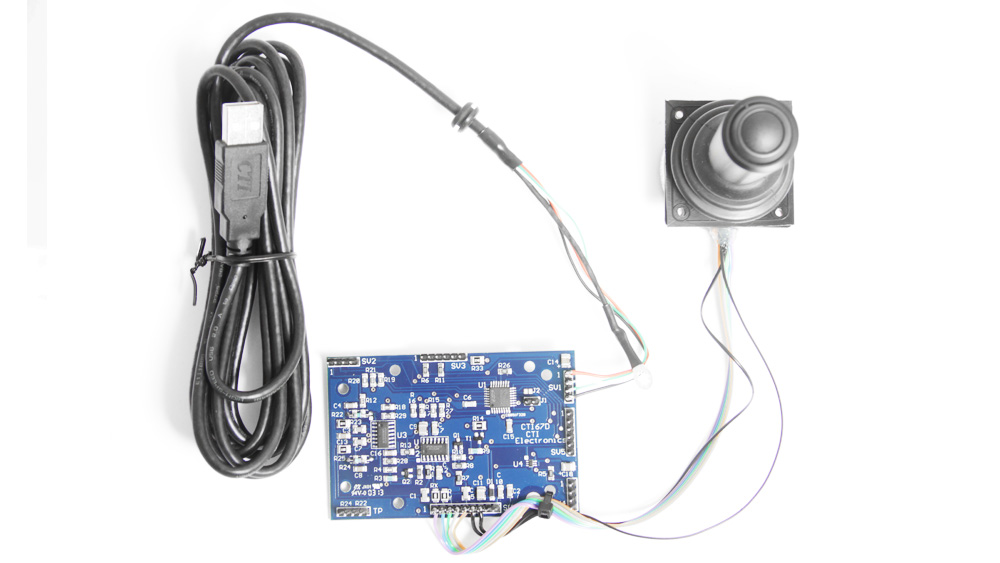

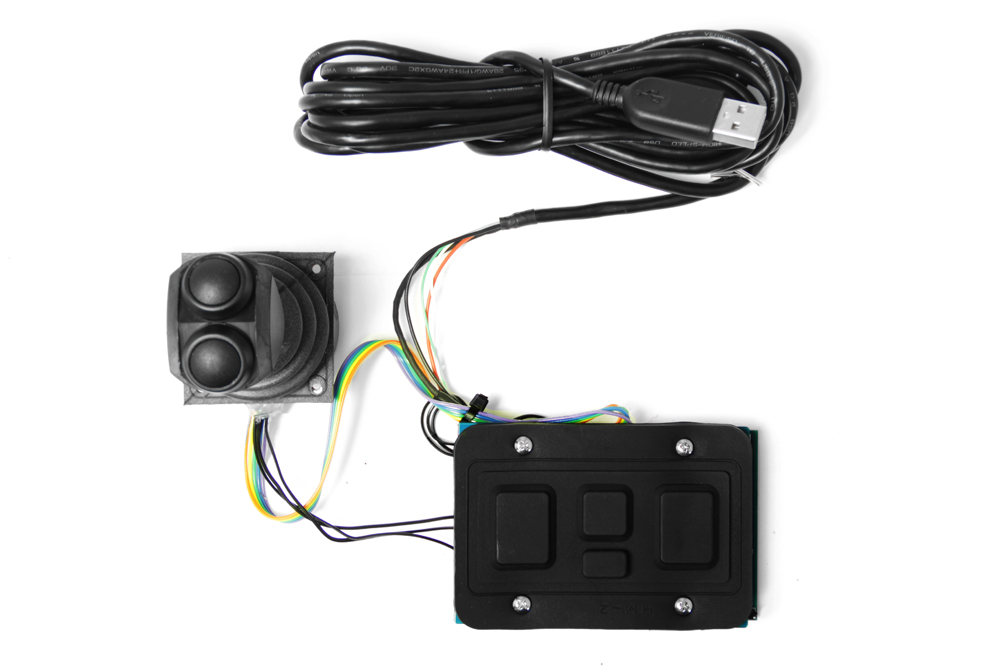

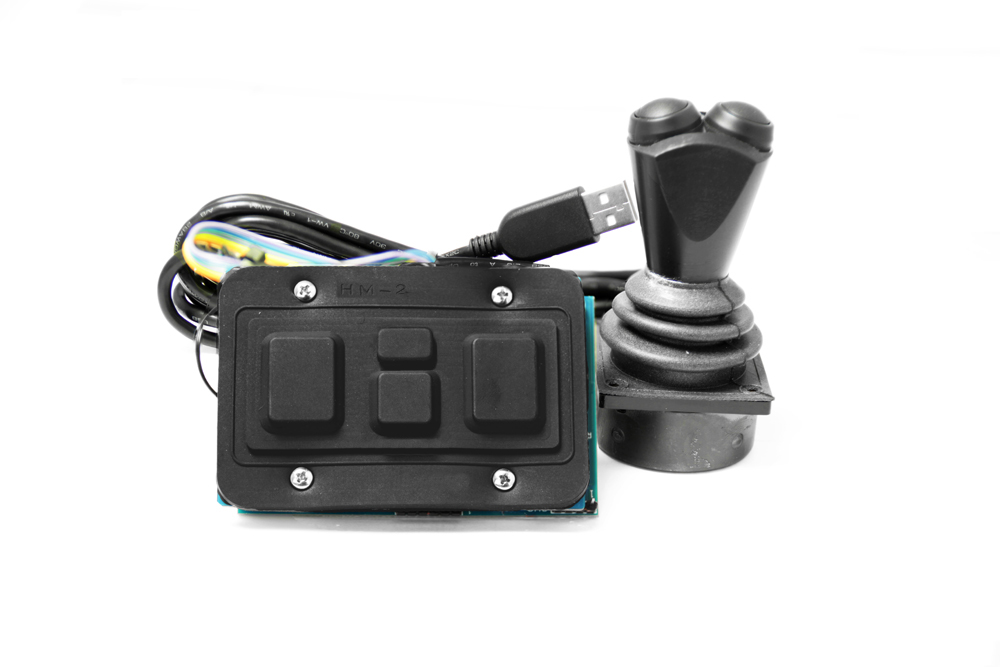

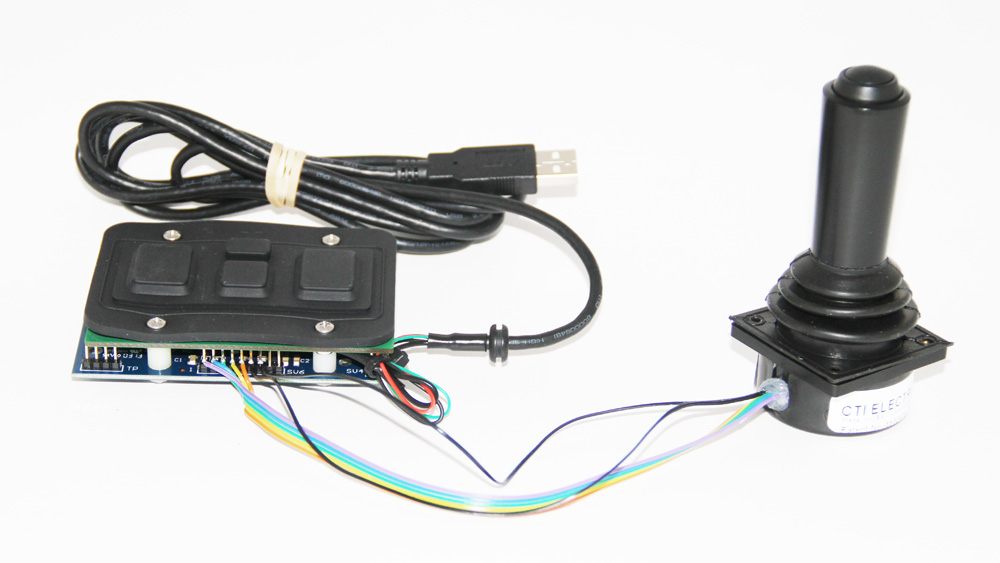

F10X0 Series Industrial Pointing Device

NEMA 4 (IP66) OEM Industrial Mouse™

Product Information

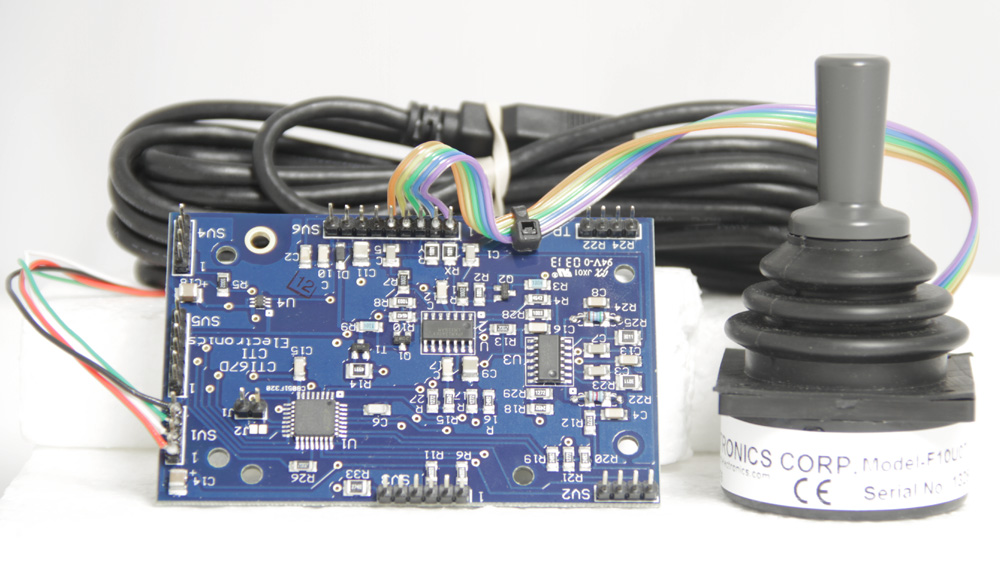

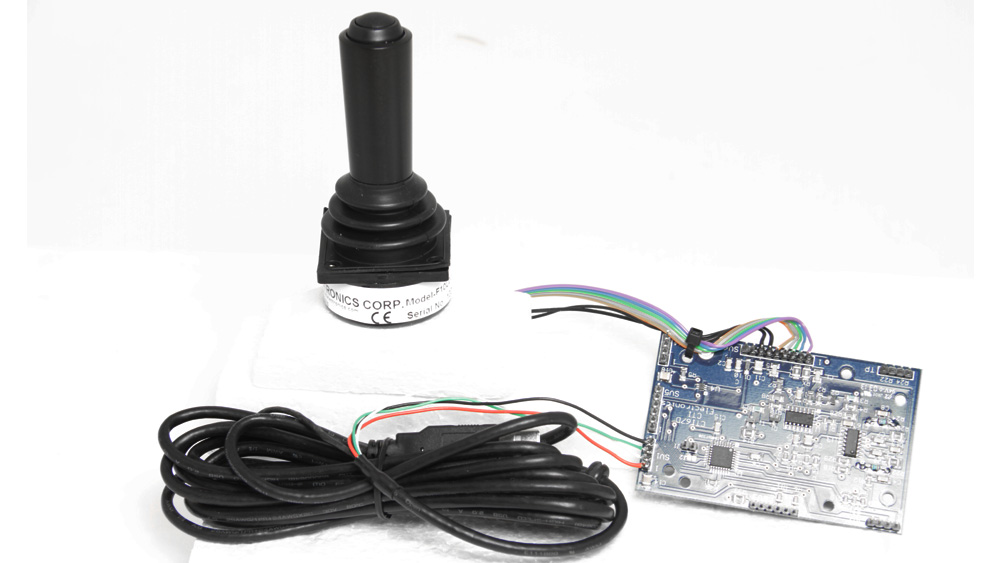

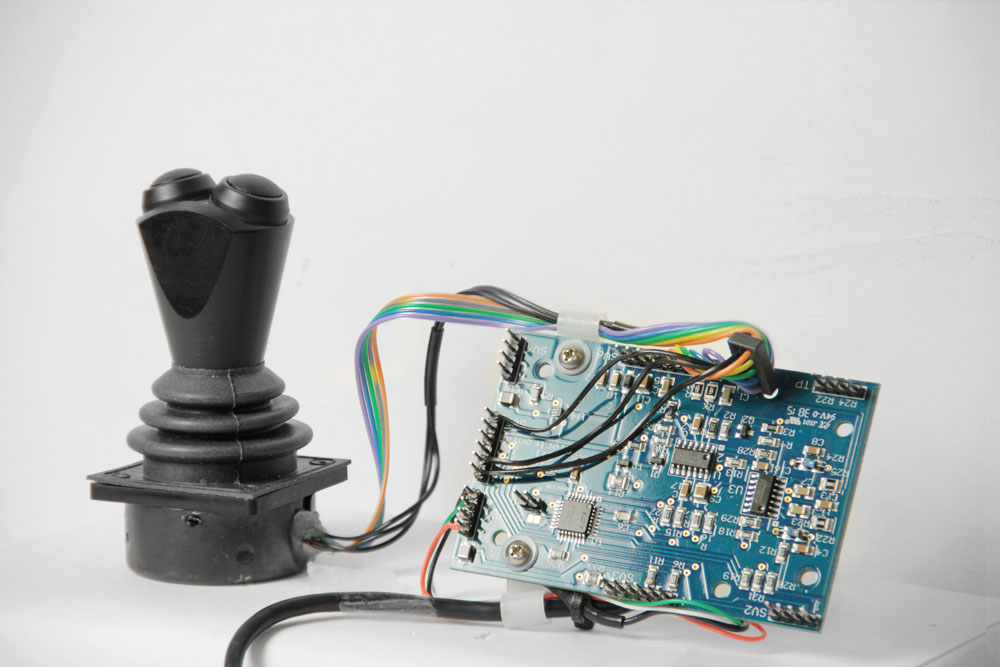

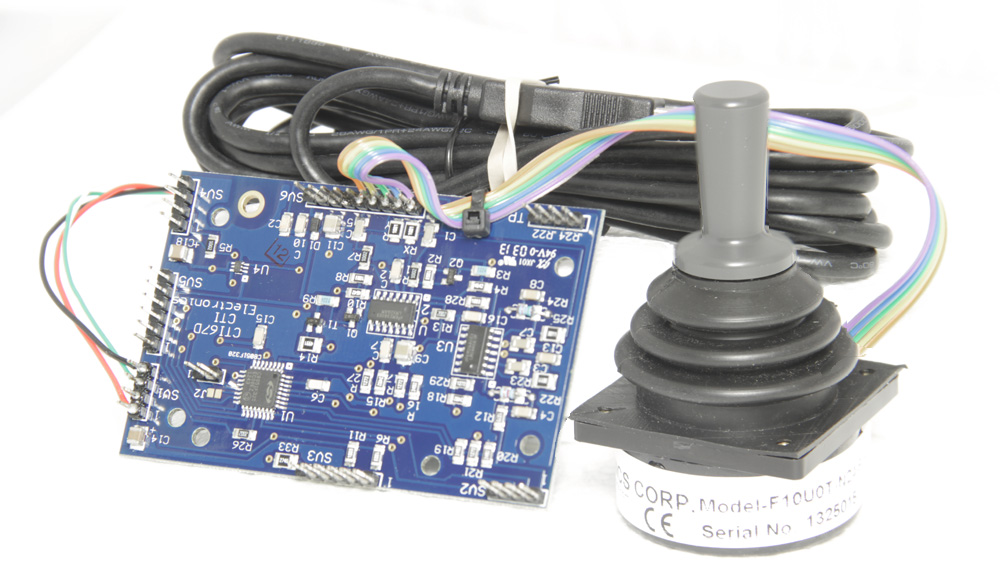

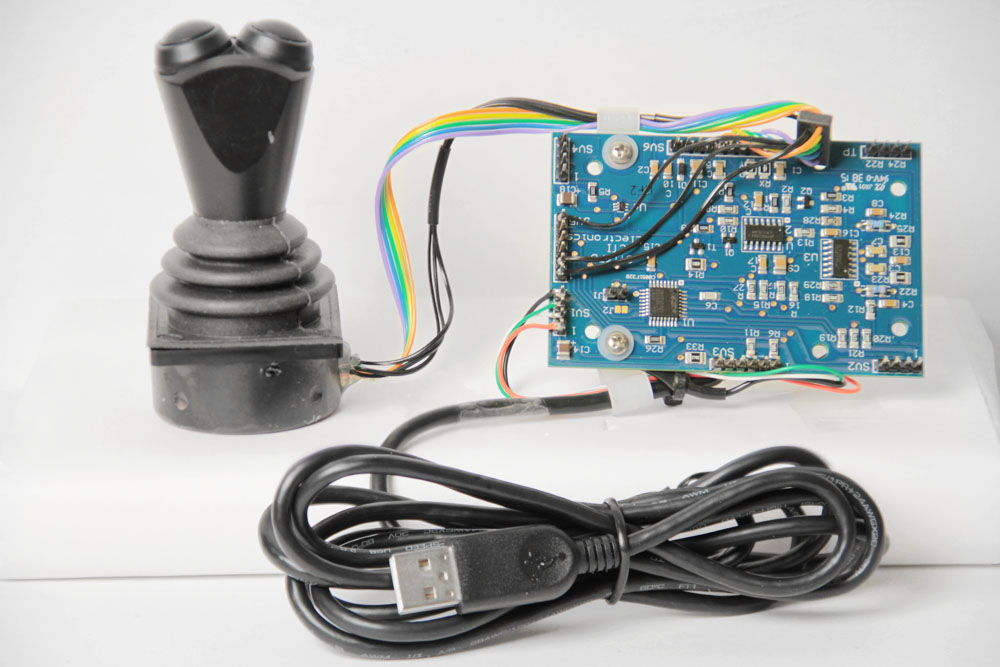

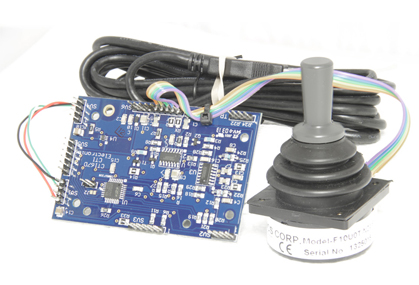

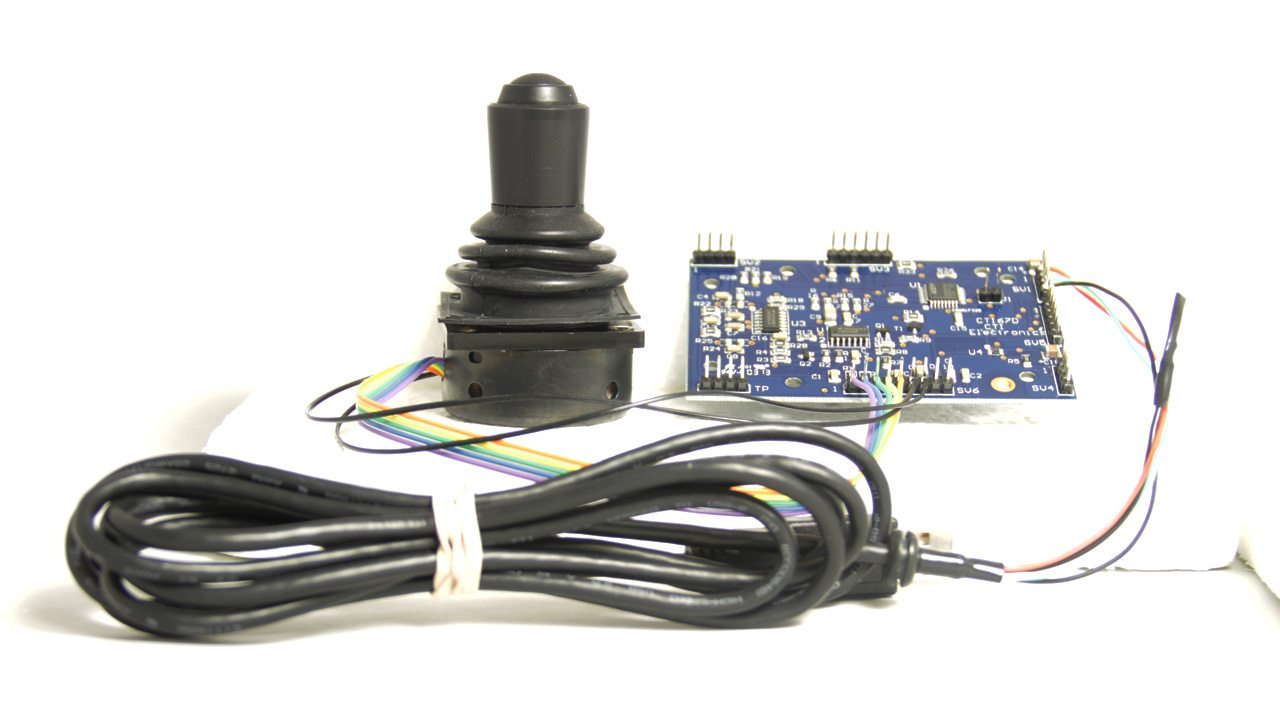

The F10X0 Series is CTI's Industrial Mouse™( joystick cursor controller), it's an OEM industrial computer mouse pointer.These space saving mouse pointers that have one sealed "point and click" button in the handle for easy panel mounting. The miniature joystick only requires a 1.65 inch square footprint and 7/8 inch depth for the handle, as the interface PCB can be located anywhere beneath the panel. These rugged mouse pointers allow for custom OEM mouse switches to be wired directly to the PCB, in which case any of the alternate eight knob options can be substituted.

When mounted to a panel, the computer mouse pointers assembly provides NEMA 4 (IP66) sealing. Options include joystick knob selection with Serial, PS/2 or USB interface, and custom length cables or special wiring as required.

In addition, this series can also be used as control input devices instead of traditional computer mouse pointers. The USB FlightStick is an industrial input device that offers real-time response rates with pin-point precise accuracy for a broad range of application possibilities. These industrial computer input devices are ideally suited for harsh environments, precision instruments, and restricted spaces. A few of the industries benefiting from the USB FlightStick are aerospace, automotive, heavy equipment, medical, and military.

CTI's custom OEM pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's OEM pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These OEM pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications


F10X0 Series Industrial Pointing Device Specification

Industrial Mouse™ (Joystick Cursor Controller)
Original Industrial Mouse™ - A CTI invention!
Reliable mouse cursor, field proven over 20 years
Patented - Non contact inductive handle
No moving electrical parts or magnets
No wear and no drift
Gain never changes - No calibration needed
3/16" diameter solid stainless steel shaft
Eight different knob options
Knobs with pushbuttons on top to act like "left mouse button" for double clicking and drag and drop
Gray or black silicone mouse switches
Withstands 25 lbs. static load
40° total deflection of joystick travel
Sealed stainless steel mounting holes

Features & Options:
NEMA 4, NEMA 4X (IP66)
Point and click operation
Gray or black silicone mouse switches
Waterproof connector assembly for simple cable installation through metal cabinets
Sealed mounting holes
Sealed gold plated switch contacts
Latching feature holds button down to simulate "drag and drop" with LED indicator
Port compatible with all computers - no software drivers needed
Stainless steel or painted aluminum enclosures
Repairable design
Easiest to use sealed mouse cursor
Joystick withstands 25lbs of a static load
USB, PS/2, or Serial Output
Direct factory support - Made in USA

Temperature Ratings:
Operating Temperature  0º to 80º C
Operating (Optional)      -40ºC to 80º C
Storage Temperature: -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures): 100,000 hours per MIL-HDBK-217F.
Shock Rating: 30g to 50g depending on Knob 11ms -1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration: Mil-Std-810F, Category 4
Elastomer Switches: Rated for up to 10 million cycles
Joystick button: Rated at 1 million cycles
Joystick:  Rated at 10 million random operations

Certifications:
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant

Industrial Mouse™ (Joystick Cursor Controller) Specification
PDF Icon


Pricing

OEM Industrial Mouse™ (Joystick Cursor Controller) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


OEM Industrial Mouse™ (Joystick Pointing Device) Pricing PDF Icon

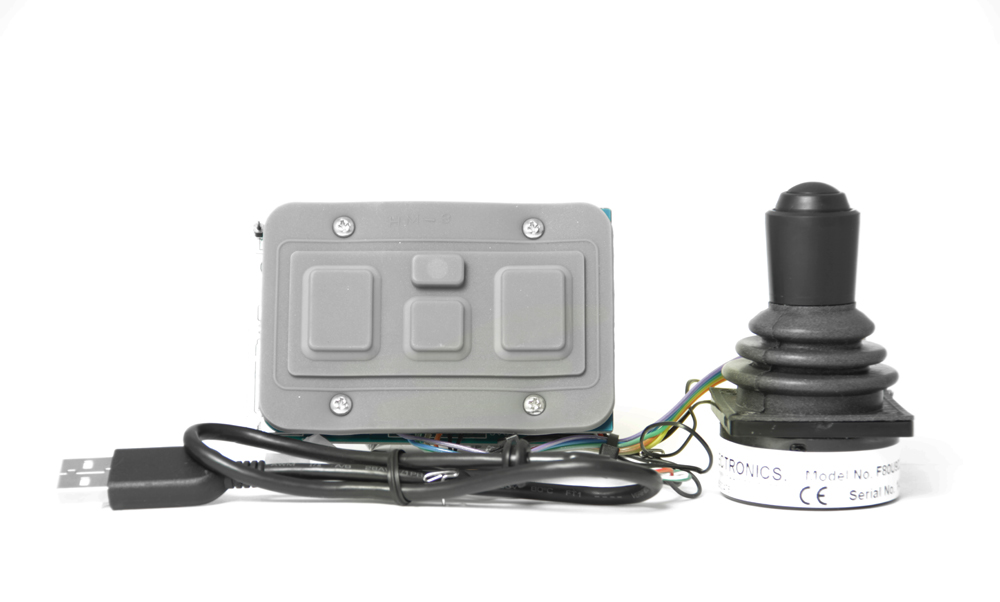

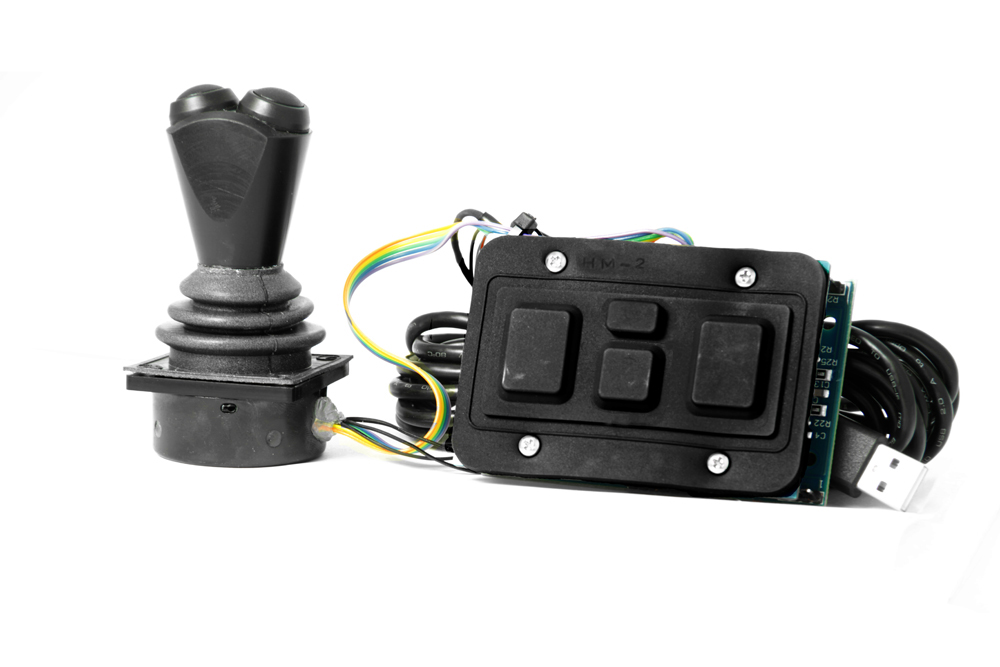

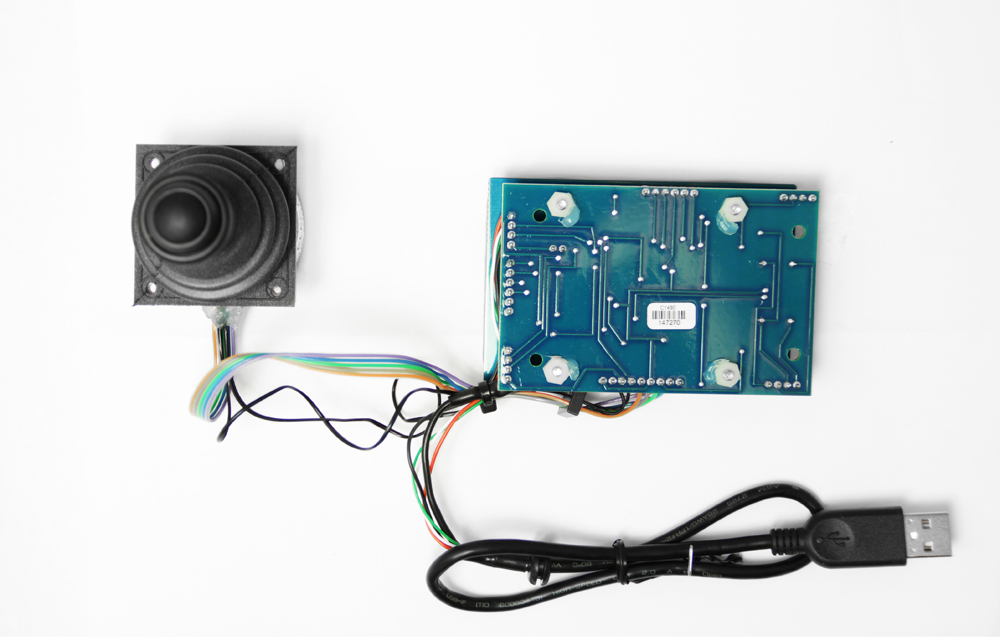

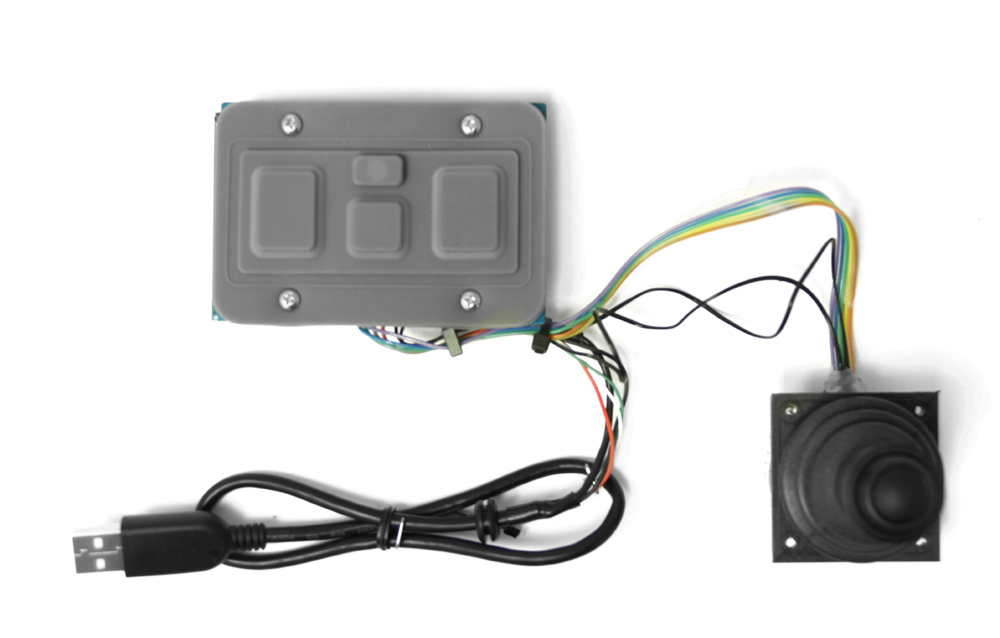

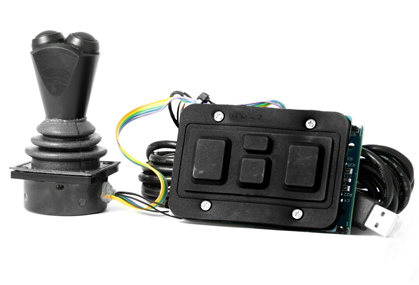

F80X0 Series Industrial Pointing Devices

OEM Industrial Mouse™ w/ 3 Switches

Product Information

The F80X0 Series are OEM industrial computer mouse pointers. These NEMA 4 (IP66) Industrial Mouse™ pointers have a separate joystick control knob wired to the interface PCB and switch assembly, allowing the designer to locate the switches in any position relative to the handle. As with all of our Industrial Mouse™ products, the handle is available with a choice of eight different knobs including the "point and click" option. Standard options include joystick knob, Serial, PS/2 or USB interface, and cabling.

The switch assembly is molded silicone with 2mm travel and has gold over nickel contacts for both tactile response and reliability. When mounted to your panel, the computer mouse pointers assembly provides NEMA 4 (IP66) sealing.

In addition, this series can also be used as control input devices instead of traditional computer mouse pointers. The USB FlightStick (flight simulator) is an industrial input device that offers real-time response rates with pin-point precise accuracy for a broad range of application possibilities. These industrial computer input devices are ideally suited for harsh environments, precision instruments, and restricted spaces. A few of the industries benefiting from the USB FlightStick are aerospace, automotive, heavy equipment, medical, and military.

CTI's custom OEM pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's OEM pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These OEM pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

F80X0 Series Industrial Pointing Devices Specification

Industrial Mouse™ (Joystick Cursor Controller)
Original Industrial Mouse™ - A CTI invention!
Reliable mouse cursor, field proven over 20 years
Patented - Non contact inductive handle
No moving electrical parts or magnets
No wear and no drift
Gain never changes - No calibration needed
3/16" diameter solid stainless steel shaft
Eight different knob options
Knobs with pushbuttons on top to act like "left mouse button" for double clicking and drag and drop
Gray or black silicone mouse switches
Withstands 25 lbs. static load
40° total deflection of joystick travel
Sealed stainless steel mounting holes

Features & Options:
NEMA 4, NEMA 4X (IP66)
Point and click operation
Gray or black silicone mouse switches
Waterproof connector assembly for simple cable installation through metal cabinets
Sealed mounting holes
Sealed gold plated switch contacts
Latching feature holds button down to simulate "drag and drop" with LED indicator
Port compatible with all computers - no software drivers needed
Stainless steel or painted aluminum enclosures
Repairable design
Easiest to use sealed mouse cursor
Joystick withstands 25lbs of a static load
USB, PS/2, or Serial Output
Direct factory support - Made in USA

Temperature Ratings:
Operating Temperature  0º to 80º C
Operating (Optional)      -40ºC to 80º C
Storage Temperature: -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures): 100,000 hours per MIL-HDBK-217F.
Shock Rating: 30g to 50g depending on Knob 11ms -1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration: Mil-Std-810F, Category 4
Elastomer Switches: Rated for up to 10 million cycles
Joystick button: Rated at 1 million cycles
Joystick:  Rated at 10 million random operations

Certifications:
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant

Industrial Mouse™ (Joystick Cursor Controller) Specification
PDF Icon

Pricing

OEM Industrial Mouse™ (Joystick Cursor Controller) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


OEM Industrial Mouse™ (Joystick Pointing Device) Pricing PDF Icon

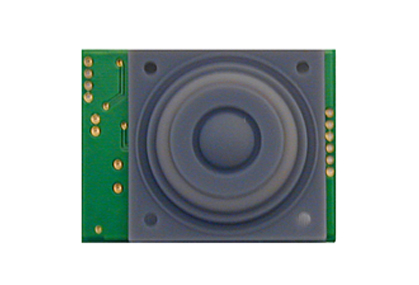

OM2000 Series Pointing Devices

NEMA 4 (IP66) OEM OrbitalMouse® (Button Style Mouse Pointers)

Product Information

CTI's OrbitalMouse®, sealed mouse pointers, are high reliability industrial computer mouse pointers with a low-profile button style pointer. The OM2000 Series is designed for OEM applications where the mouse buttons are provided by the OEM. It has various options such as backlighting (OM2000-BX) in red or green, as well as cable styles and lengths. The dimensions are 1.65 by 2.05 inches and require less than .70 inches behind the panel; the perfect alternative to touchpads. For applications requiring less panel depth, right angle headers can be supplied. Available interfaces are PS/2 or USB and do not require any special drivers or calibration.

CTI's custom OEM pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's OEM pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These OEM pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

OM2000 Series Pointing Device Specification

OrbitalMouse® (Button Style Mouse Cursors)
Molded silicone rubber keys
Excellent tactile feel, 2mm travel
Available with back-lighting

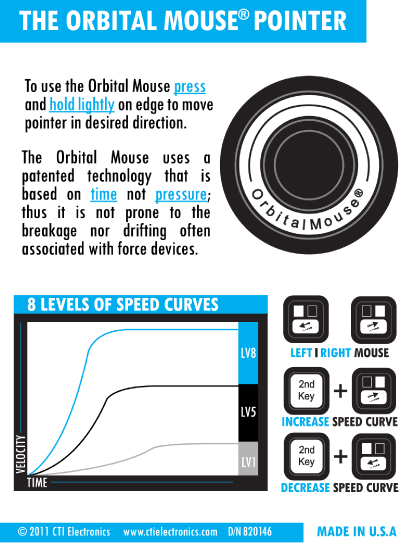

OrbitalMouse®
Button style pointer uses one round button for mouse cursor movement of 360°.

Features:
OEM Design
Sealed “Hard” gold plated switch contacts
Port compatible with all computers - no software drivers needed
Repairable design
Plug and Play
No Drift Design
No moving electrical parts or magnets
USB or PS/2 Output
Direct factory support - Made in USA

Temperature Ratings:
Operating Temperature  -40º to 80º C
Storage Temperature:      -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures):   100,000 hours per MIL-HDBK-217F
Shock Rating:   50g       11ms - 1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration:  Mil-Std-810F, Category 4
Buttons  Rated for up to 10 million cycles

Certifications:
Meets FCC Part 15 Class A & B
Meets CE Requirements, RoHS Requirements
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant

United States Patents:
U.S. Patent No. 7,499,032
U.S. Patents Pending 12/344368


OrbitalMouse® Pointers SpecificationsPDF Icon

Pricing

OEM industrial OrbitalMouse® (Pointing Device) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


OEM Industrial OrbitalMouse® (Pointing Device) Pricing PDF Icon

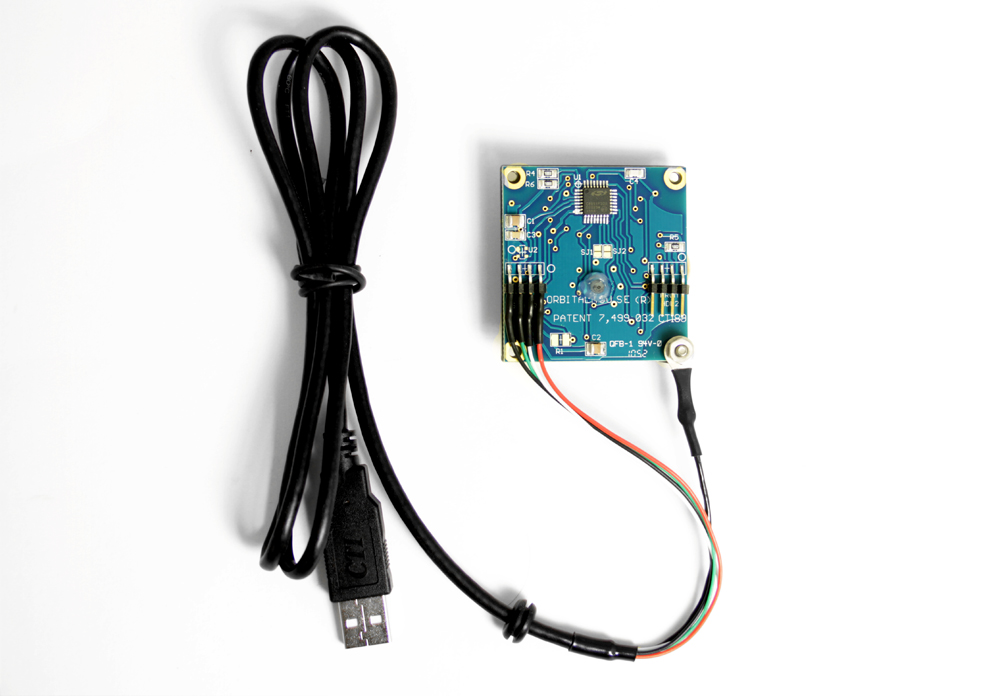

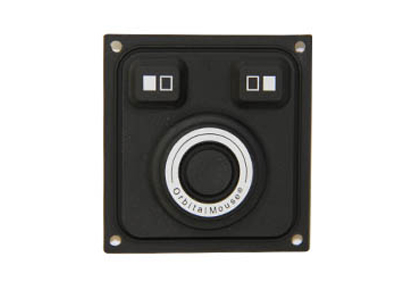

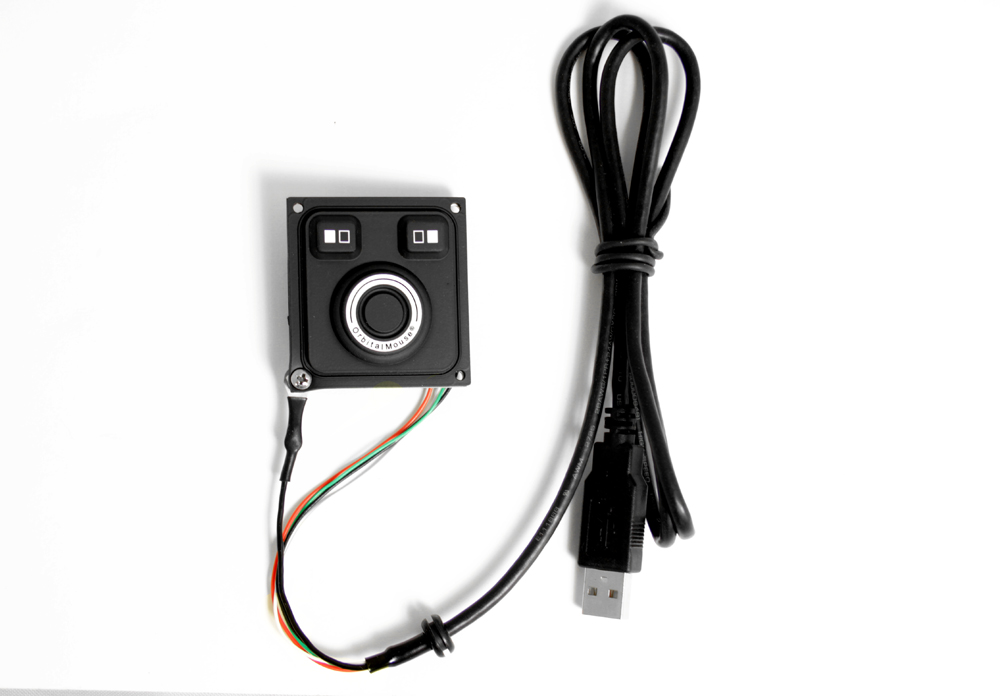

OM20U2 Model Pointing Device

OEM NEMA 4 (IP66) OrbitalMouse® w/ Integrated Buttons

Product Information

The OM20U2 industrial button style mouse pointer integrates two buttons with an elastomer that provides a NEMA 4 (IP66) sealing. These two buttons act as the normal left and right mouse button functionality. The buttons are integrated into a PCB offering a compact size.

The dimensions are 1.93 by 1.83 inches and require less than 0.3 inches below panel and 0.2 inches above panel; the perfect alternative to a touchpad. Options include backlighting (OM20U2-Bx) in red or green, as well as cable lengths. Available interface is USB and does not require any special drivers or calibration.

CTI's custom OEM pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's OEM pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These OEM pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

OM20U2 Model Pointing Device Specification

OrbitalMouse® (Button Style Mouse Cursors)
Molded silicone rubber keys
Excellent tactile feel, 2mm travel
Available with back-lighting
OrbitalMouse®
Button style pointer uses one round button for mouse cursor movement of 360°.

Features:
OEM Design
Sealed “Hard” gold plated switch contacts
Port compatible with all computers - no software drivers needed
Repairable design
Plug and Play
No Drift Design
No moving electrical parts or magnets
USB or PS/2 Output
Direct factory support - Made in USA

Temperature Ratings:
Operating Temperature  -40º to 80º C
Storage Temperature:      -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures):   100,000 hours per MIL-HDBK-217F
Shock Rating:   50g       11ms - 1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration:  Mil-Std-810F, Category 4
Buttons  Rated for up to 10 million cycles

Certifications:
Meets FCC Part 15 Class A & B
Meets CE Requirements, RoHS Requirements
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant



United States Patents:
U.S. Patent No. 7,499,032
U.S. Patents Pending 12/344368

OrbitalMouse® Pointers SpecificationsPDF Icon

Pricing

OEM industrial OrbitalMouse® (Pointing Device) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


OEM Industrial OrbitalMouse® (Pointing Device) Pricing PDF Icon

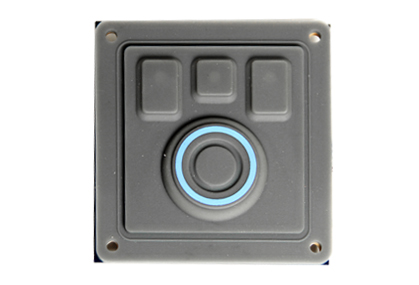

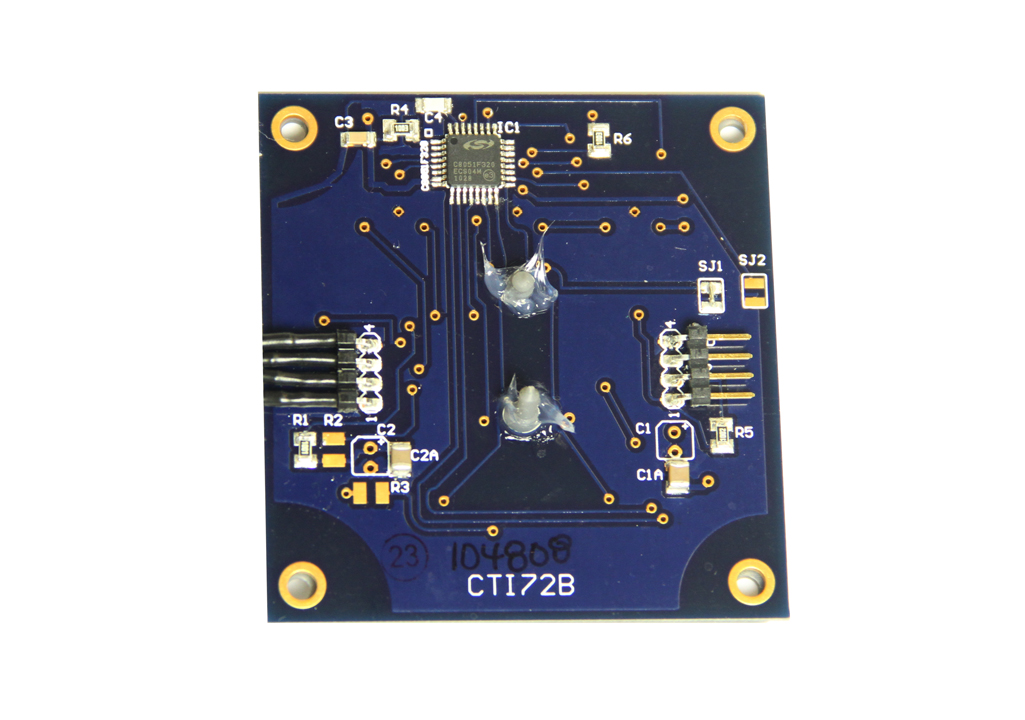

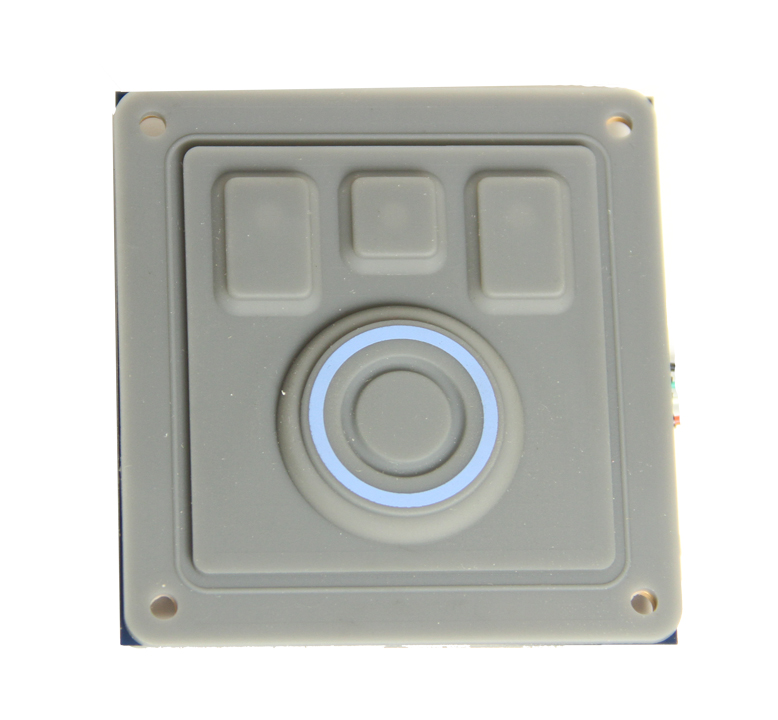

OM2200 Series Pointing Devices

OEM NEMA 4 (IP66) OrbitalMouse® w/ Integrated Switches

Product Information

This version of the industrial button style mouse pointer integrates the OM2000 with industrial rubber switches, providing NEMA 4 (IP66) sealing. These switches have an LED for the drag function indicator option. The switches are integrated into a PCB offering a compact size. The dimensions are 2.56 by 2.68 inches and require less than .40 inches behind the panel; the perfect alternative to a touchpad. Options include backlighting (OM2200-BX) in red or green, as well as cable styles and lengths. Available interfaces are PS/2 or USB and do not require any special drivers or calibration.

CTI's custom OEM pointing devices are ruggedized to meet aerospace, medical, and military standards. CTI's OEM pointing devices can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These OEM pointing devices are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

OM2200 Series Pointing Device Specification

OrbitalMouse® (Button Style Mouse Cursors)
Molded silicone rubber keys
Excellent tactile feel, 2mm travel
Available with back-lighting
OrbitalMouse®
Button style pointer uses one round button for mouse cursor movement of 360°.

Features:
OEM Design
Sealed “Hard” gold plated switch contacts
Port compatible with all computers - no software drivers needed
Repairable design
Plug and Play
No Drift Design
No moving electrical parts or magnets
USB or PS/2 Output
Direct factory support - Made in USA



Temperature Ratings:
Operating Temperature  -40º to 80º C
Storage Temperature:      -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures):   100,000 hours per MIL-HDBK-217F
Shock Rating:   50g       11ms - 1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration:  Mil-Std-810F, Category 4
Buttons  Rated for up to 10 million cycles

Certifications:
Meets FCC Part 15 Class A & B
Meets CE Requirements, RoHS Requirements
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant

United States Patents:
U.S. Patent No. 7,499,032
U.S. Patents Pending 12/344368

OrbitalMouse® Pointers SpecificationsPDF Icon

Pricing

OEM industrial OrbitalMouse® (Pointing Device) Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


OEM Industrial OrbitalMouse® (Pointing Device) Pricing PDF Icon

Sidewinder® is a registered trademark of Microsoft Corporation
TOP
Manufactured in U.S.A. Manufactured in U.S.A. Copyright © 2001-2014 | CTI Electronics Corporation | Tel: (203) 386-9779 | All Rights Reserved - sitemap | Sales | Tech
