Backlit / Illuminated Keyboards




OEM Backlit / Illuminated Keyboards

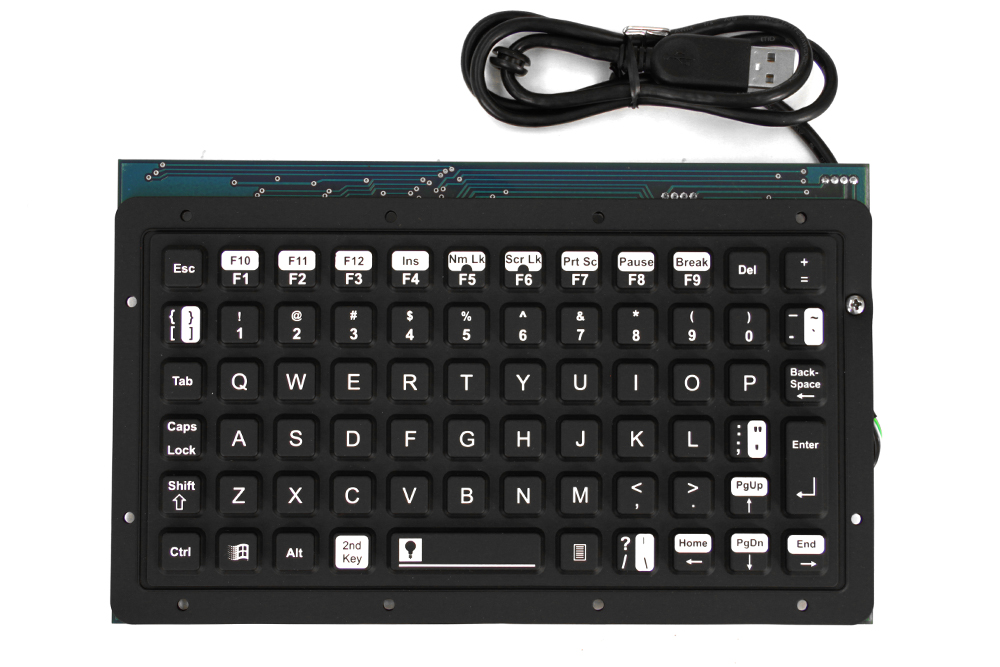

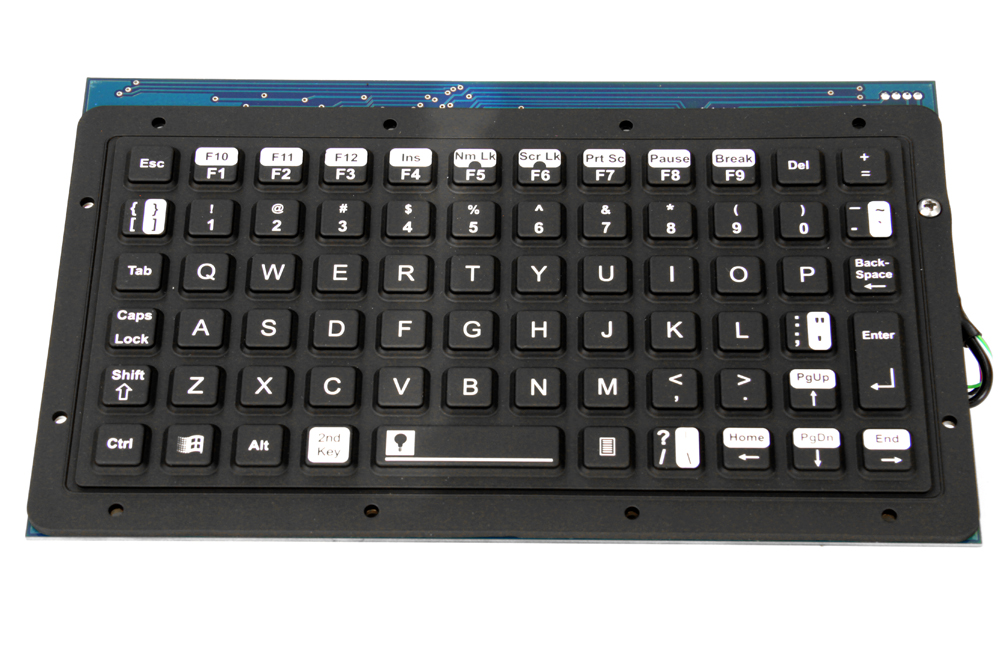

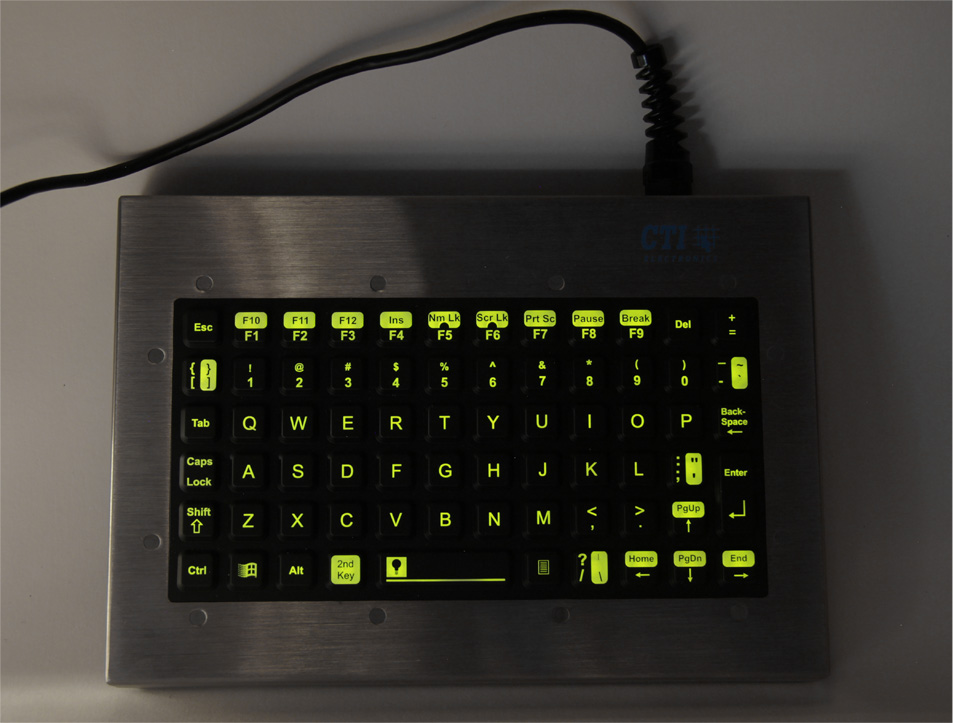

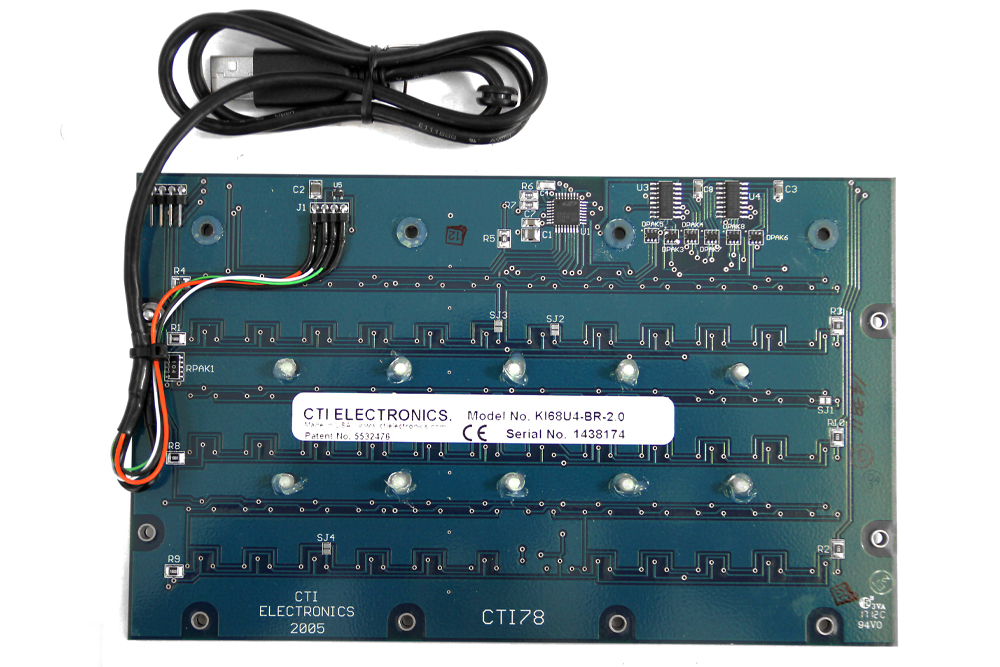

KI6800-Bx Series Backlit Keyboard

NEMA 4 (IP66) Sealed Backlit (Illuminated) OEM Keyboards

Product Information

The KI6800-Bx Series are rugged, NEMA 4 (IP66) sealing, industrial keyboards with full 101/104 key functionality in a patented, innovative small foot print with full size keys. These OEM illuminated keyboards are available with red or green backlighting with ten (10) levels of user changeable intensity; with no need for external power.

These OEM backlit keyboards are a perfect fit for custom panels, and are an excellent solution when portability and space are a consideration; such as military, security, commercial fleet vehicles, marine vessels, and medical equipment carts.

CTI's custom backlit keyboards are ruggedized to meet aerospace, medical, and military standards. CTI's backlit keyboards can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These backlit keyboards are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

KI6800-Bx Series Backlit Keyboard Specifications

Industrial Keyboards without Mouse Pointer
Anodized beige or black aluminum enclosure
Stainless steel enclosure available
Molded silicone rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel
Optional French (AZERTY), Spanish (QWERTY), German (QWERTZ), Italian (QWERTY)
Serial, PS/2, or USB Interface with optional Bulkhead Cable

Features
Two, stainless steel threaded mounting holes (in bottom plate)

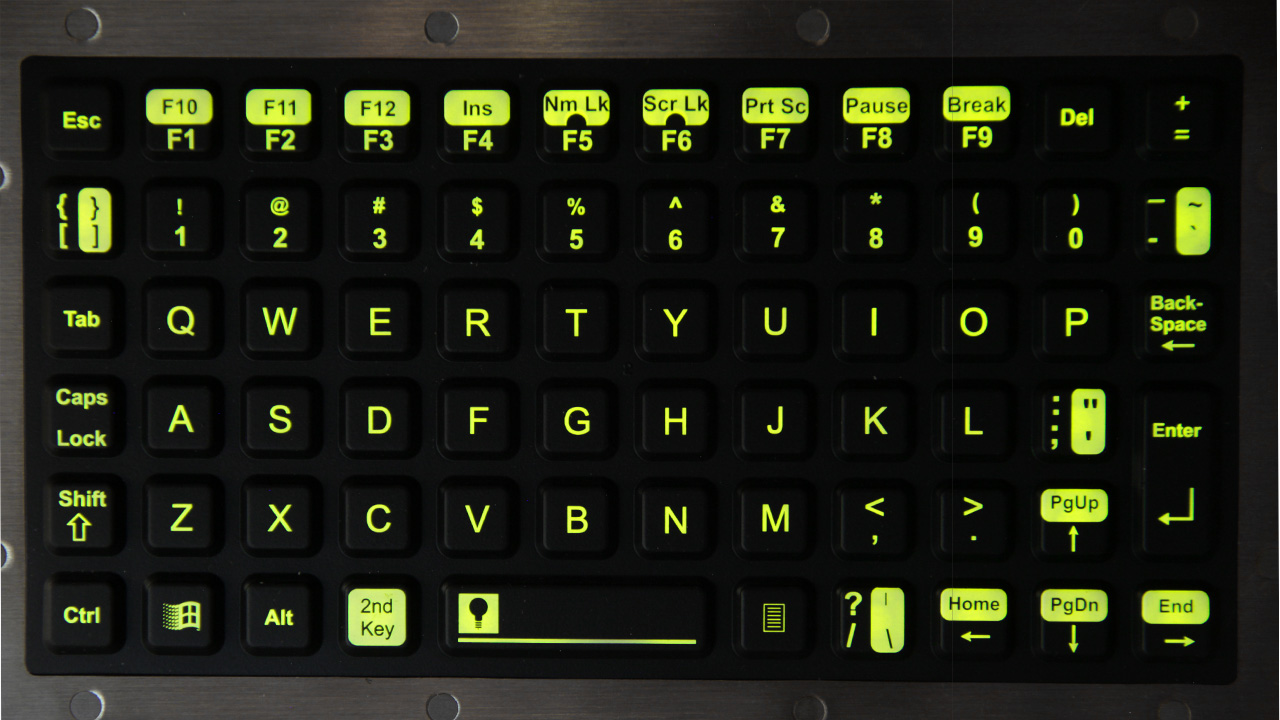

Back lighting option: RED or GREEN LED’s
Black Elastomer or Gray Elastomer
Rugged NEMA 4, 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Made in the USA

Reliability
MTBF (Mean Time between Failures): Electronics is greater than 100,000 hours
Operating Temperature: -40º to 80º C
Storage Temperature:  -40º to 80º C
Shock rating:   50g 11msec. half sine, three axes
Vibration:    10-55 Hz@ 0.013 DA
Elastomer keys: Rated for up to 10 million cycles
Contact Keys: "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts.

NEMA and IP Sealing and Protection Standards
NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Optional Parylene® coating available

Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
Electro Static Discharge (ESD) rated to 15KV

KI6800 Industrial Keyboard Specification Data PDF Icon

Pricing

OEM Industrial Keyboard Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


OEM Industrial Keyboard Pricing PDF Icon

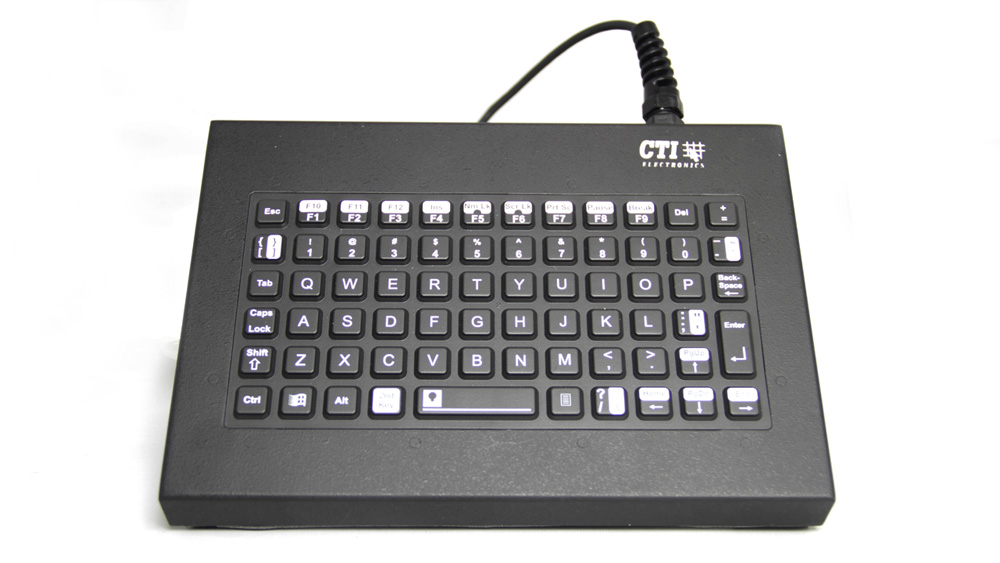

KI6800-Bx Industrial Backlit / Illuminated Keyboard

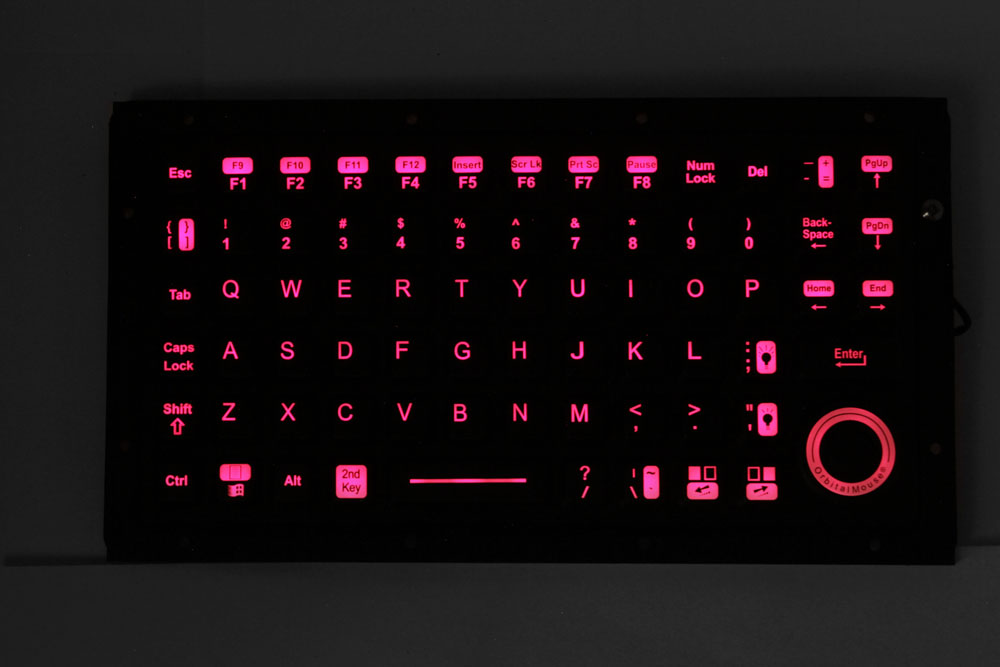

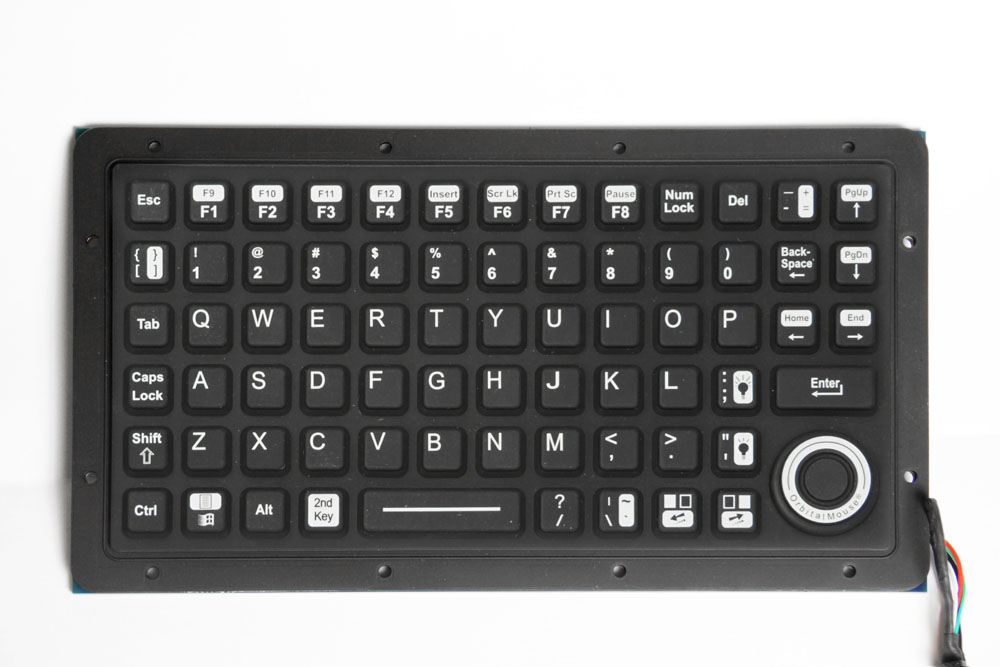

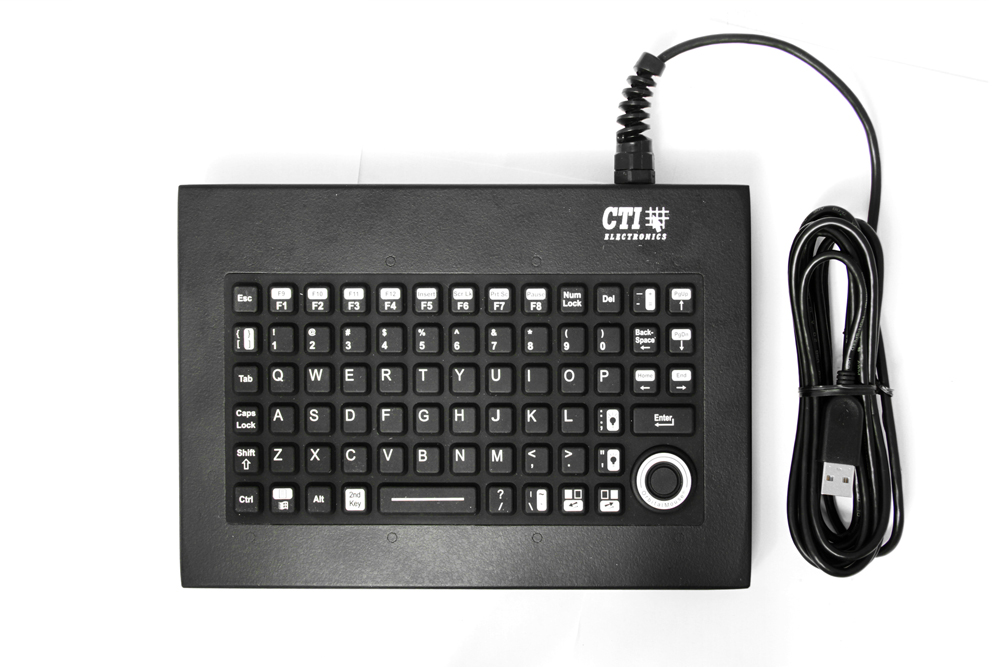

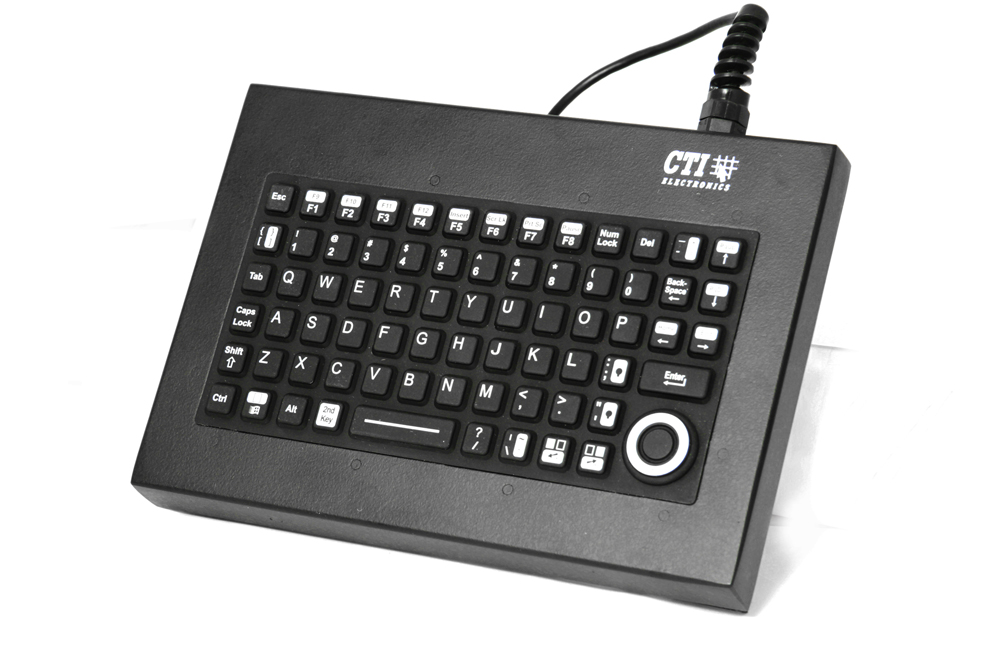

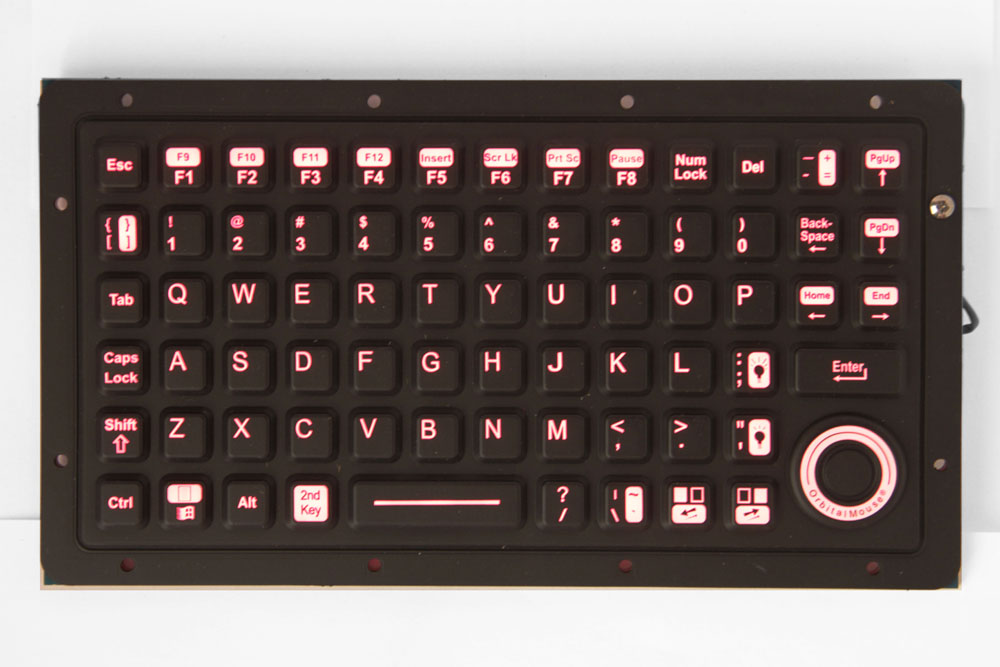

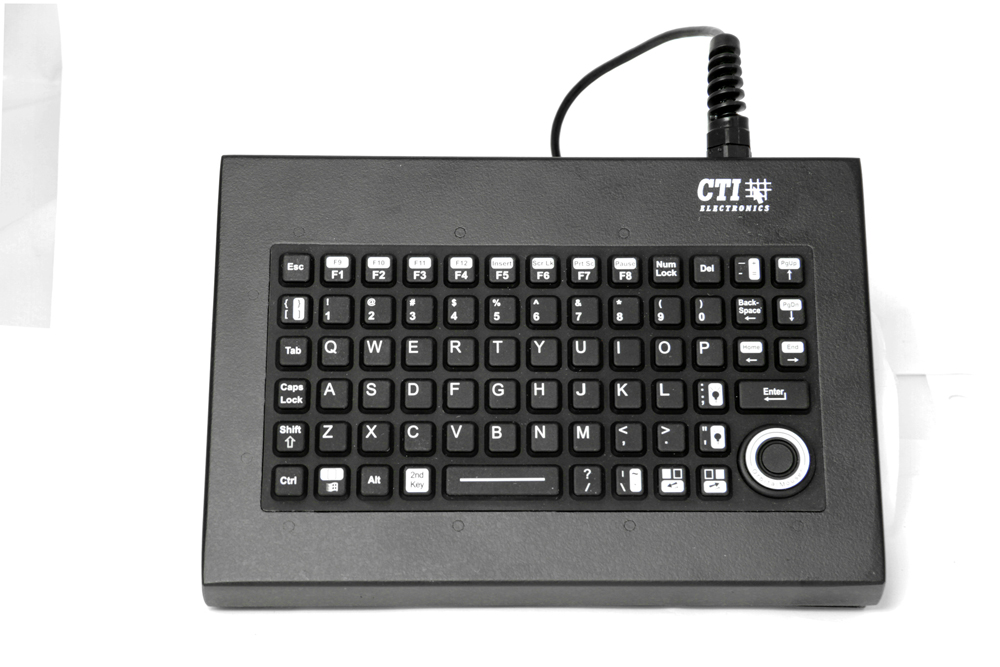

KIO6800-Bx OEM Backlit Keyboard

NEMA 4 (IP66) Sealing OEM Keyboards w/ OrbitalMouse®

Product Information

The KIO6800-Bx Series are NEMA 4 (IP66) sealing industrial keyboards with full 101/104 key functionality in a patented, innovative small foot print. These miniature keyboards feature full backlighting and are combined with CTI's OrbitalMouse® button style mouse pointer.

ArrowMouse™ mouse pointers offer high reliability and ease of use.
CTI's OrbitalMouse® is a sealed NEMA 4 (IP66), drift-free, button style industrial pointer, and is molded in silicone rubber; making it more user friendly and durable than a touchpad. These OEM keyboards use CTI's advanced design for sealing and reliability. They are molded of silicone rubber and have 2mm travel with excellent tactile feel. Gold over nickel contacts combined with superior sealing (waterproof) assure users of years of reliable operation. These mini keyboards are a perfect fit for custom panels, and are an excellent solution when portability and space are a consideration; such as military, security, commercial fleet vehicles, marine vessels, and medical equipment carts. The KIO6800-Bx Series is also available in anodized aluminum or stainless steel enclosures rated at NEMA 4/4X (IP66).

CTI's custom backlit keyboards are ruggedized to meet aerospace, medical, and military standards. CTI's backlit keyboards can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These backlit keyboards are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

KIO6800-Bx OEM Backlit Keyboard Specification

Industrial Keyboards with OrbitalMouse® Mouse Pointers
Anodized aluminum enclosure powder coated beige or black
Stainless steel enclosure available
Molded silicone rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel
OrbitalMouse® (Button Style Mouse Cursors) (8 selectable mouse pointer speed curve settings)
Optional French (AZERTY), Spanish (QWERTY), or German (QWERTZ) legends

Features
Two, stainless steel threaded mounting holes (in bottom plate)
Back lighting option: RED or GREEN LED’s
Black Elastomer with backlighting option
Black Elastomer standard
Rugged NEMA 4, 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Made in the USA

Reliability
MTBF (Mean Time between Failures): Electronics is greater than 100,000 hours
Operating Temperature: -40º to 80º C
Storage Temperature:  -40º to 80º C
Shock rating:   50g 11msec. half sine, three axes
Vibration:    10-55 Hz@ 0.013 DA
Elastomer keys: Rated for up to 10 million cycles
Contact Keys: "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts.

NEMA and IP Sealing and Protection Standards
NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Optional Parylene® coating available

Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV

United States Patents
U.S. Patent No. 7,499,032
U.S. Patents Pending 12/344368

KIO6800 Industrial Keyboard Specification Data PDF Icon

Pricing

OEM Industrial Keyboard Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


OEM Industrial Keyboard Pricing PDF Icon

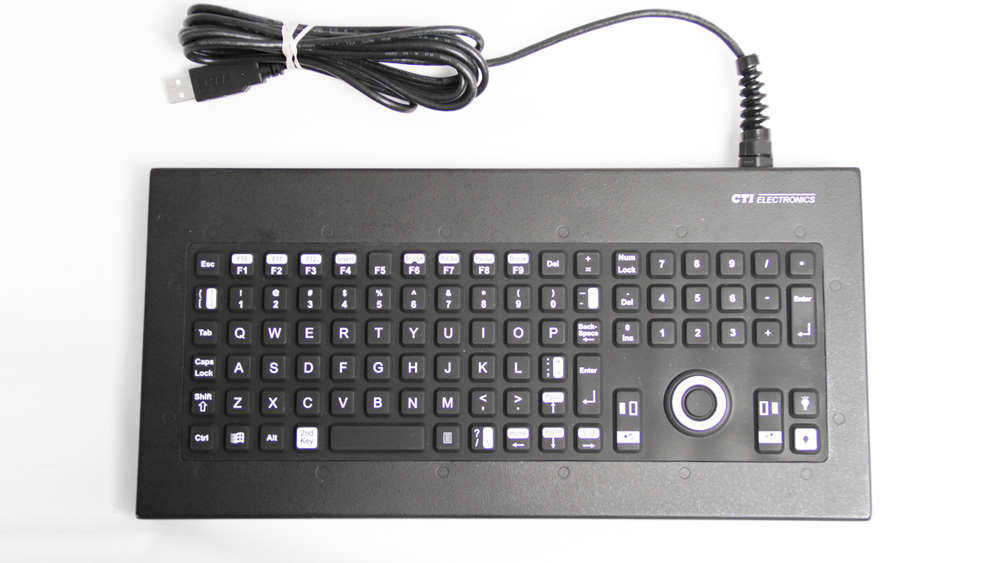

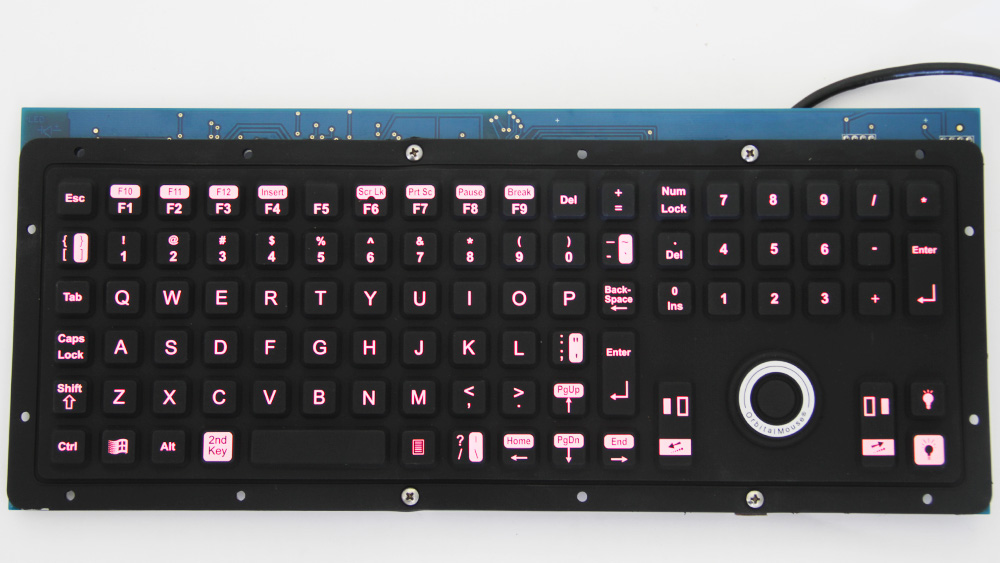

KIO6800-Bx Industrial Backlit / Illuminated Keyboard

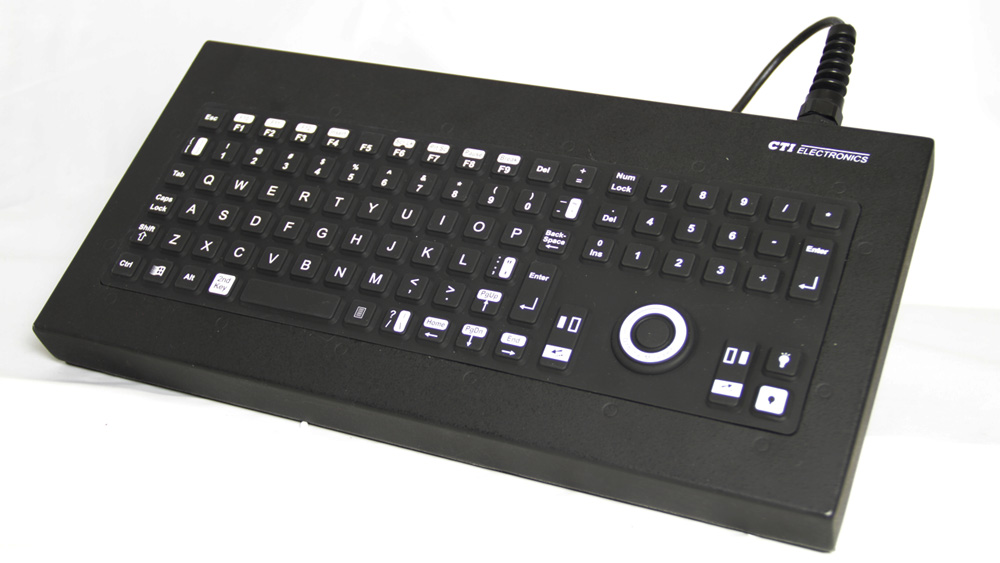

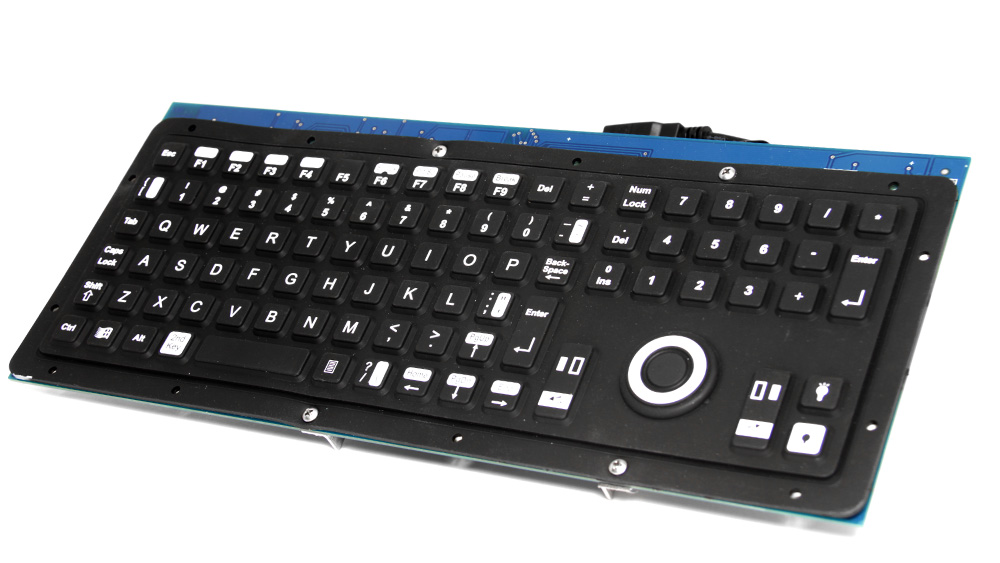

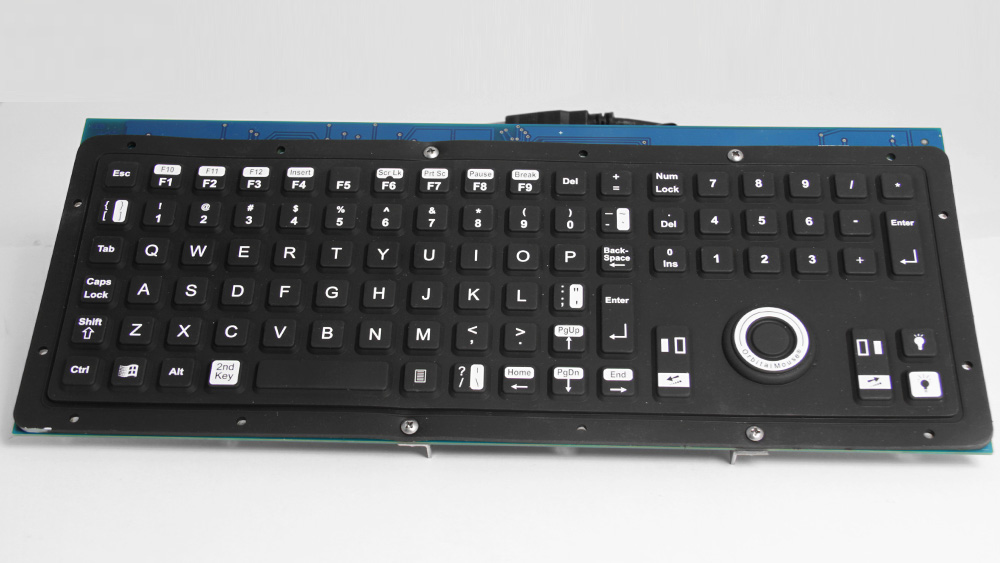

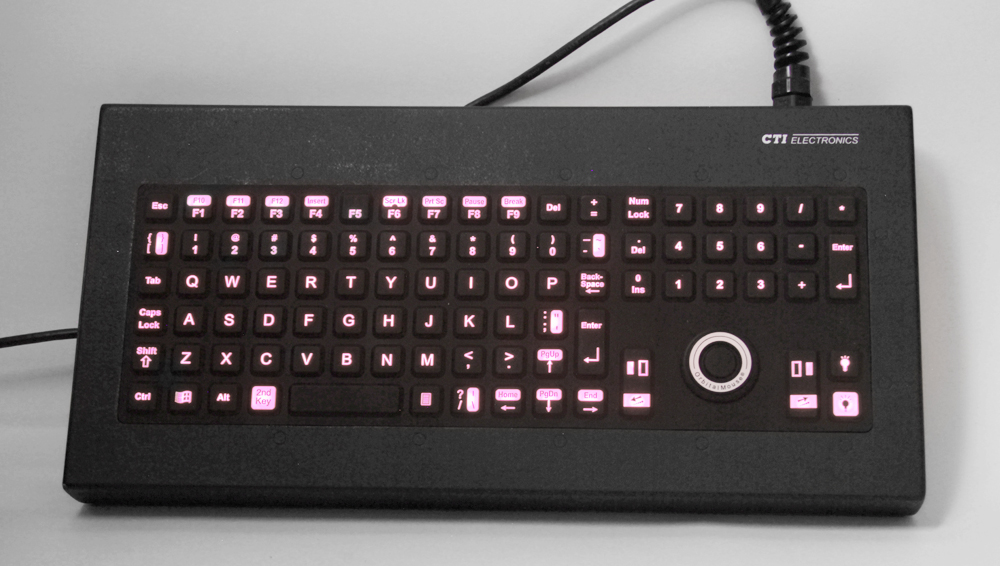

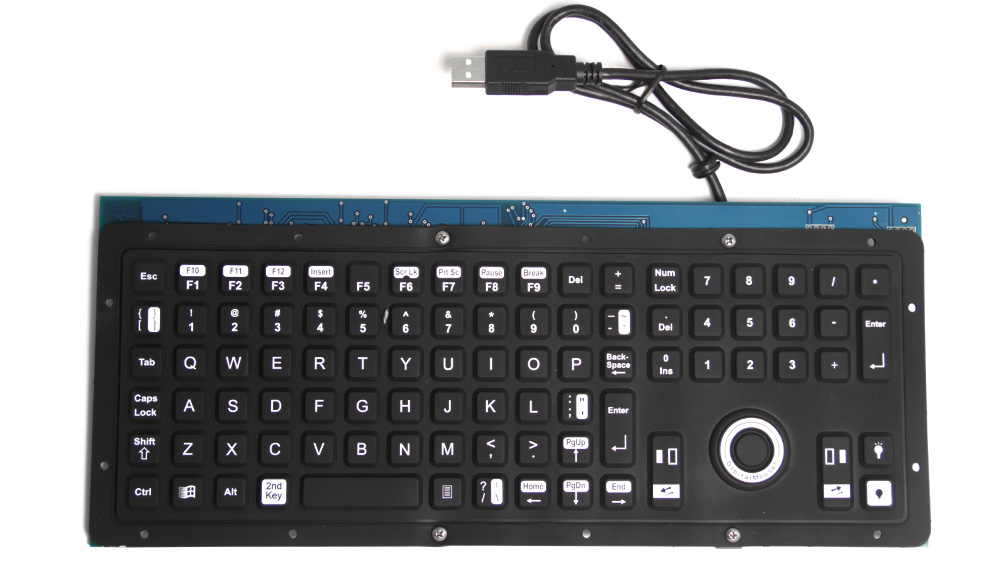

KIO7800-Bx Series OEM Illuminated Keyboard

NEMA 4 (IP66) Illuminated OEM Keyboards w/ OrbitalMouse®

Product Information

The KIO7800-Bx Series are NEMA 4 (IP66) sealing illuminated keyboards with full 101/104 key functionality in a patented, innovative small foot print with full size keys. These backlit keyboards include 12 function keys, a separate numeric keypad, and are combined with CTI's OrbitalMouse® button style mouse pointer.

CTI's OrbitalMouse® is a sealed NEMA 4 (IP66), drift-free, button style industrial pointer, and is molded in silicone rubber; making it more user friendly and durable than a touchpad.
These backlit keyboards are molded of black silicone rubber, and are available with red or green LED backlighting with ten (10) levels of intensity.

The KIO7800-Bx Series is designed for continuous use in harsh environments; and in areas with low level lighting.

CTI's custom backlit keyboards are ruggedized to meet aerospace, medical, and military standards. CTI's backlit keyboards can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These backlit keyboards are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

KIO7800-Bx Series OEM Illuminated Keyboard Specification

Industrial Keyboards with OrbitalMouse® Mouse Pointers
Anodized aluminum enclosure powder coated beige or black
Stainless steel enclosure available
Molded rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel
OrbitalMouse® (Button Style Mouse Cursors) (8 selectable mouse pointer speed curve settings)
Optional French (AZERTY), Spanish (QWERTY), German (QWERTZ), Italian (QWERTY) legend
PS/2, or USB Interface with optional Bulkhead Cable

Features
Two stainless steel threaded mounting holes (in bottom plate)
Back lighting option: RED or GREEN LED’s
Black Elastomer with backlighting option
Gray Elastomer standard
Rugged NEMA 4, NEMA 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Made in the USA



Reliability
MTBF (Mean Time between Failures): Electronics is greater than 100,000 hours
Operating Temperature: -40º to 80º C
Storage Temperature:  -40º to 80º C
Shock rating:   50g 11msec. half sine, three axes
Vibration:    10-55 Hz@ 0.013 DA
Elastomer keys: Rated for up to 10 million cycles
Contact Keys: "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts.

NEMA and IP Sealing and Protection Standards
NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Optional Parylene® coating available



Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV

United States Patents
U.S. Patent No. 7,499,032
U.S. Patents Pending 12/344368

KIO7800 Industrial Keyboard Specification Data
PDF Icon

Pricing

OEM Industrial Keyboard Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


OEM Industrial Keyboard Pricing PDF Icon


KIO7800-Bx Industrial Backlit / Illuminated Keyboard

Plug-n-Play Backlit / Illuminated Keyboards

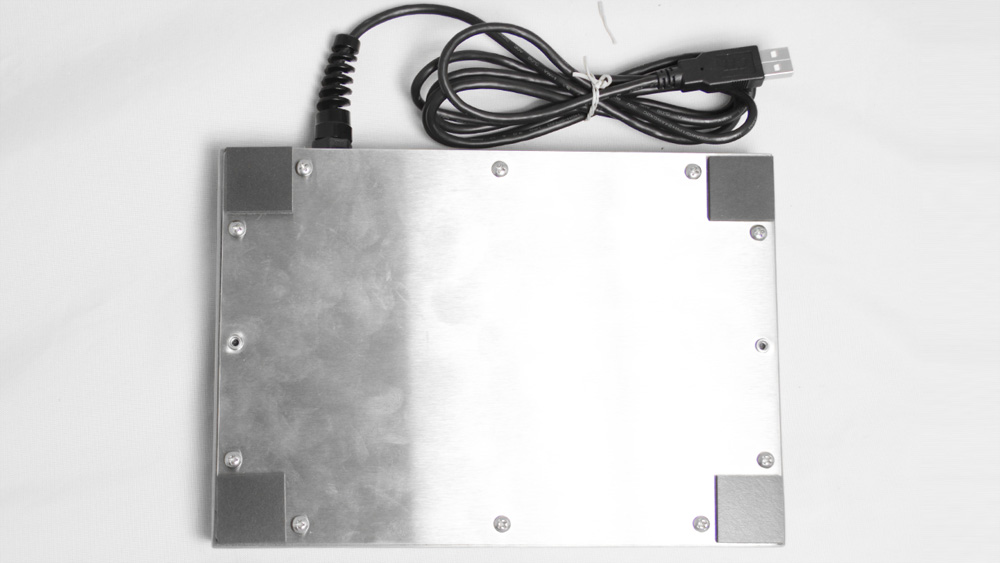

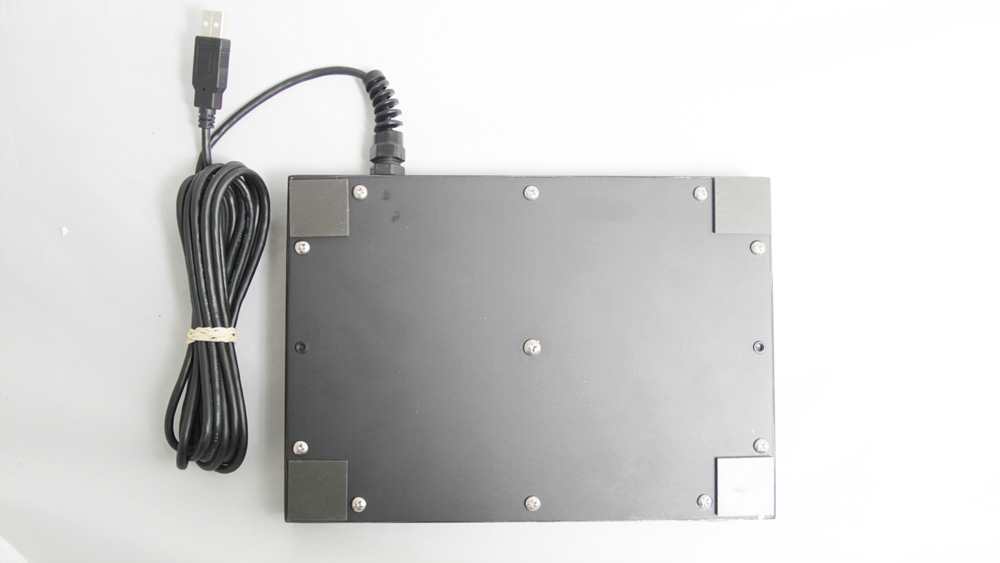

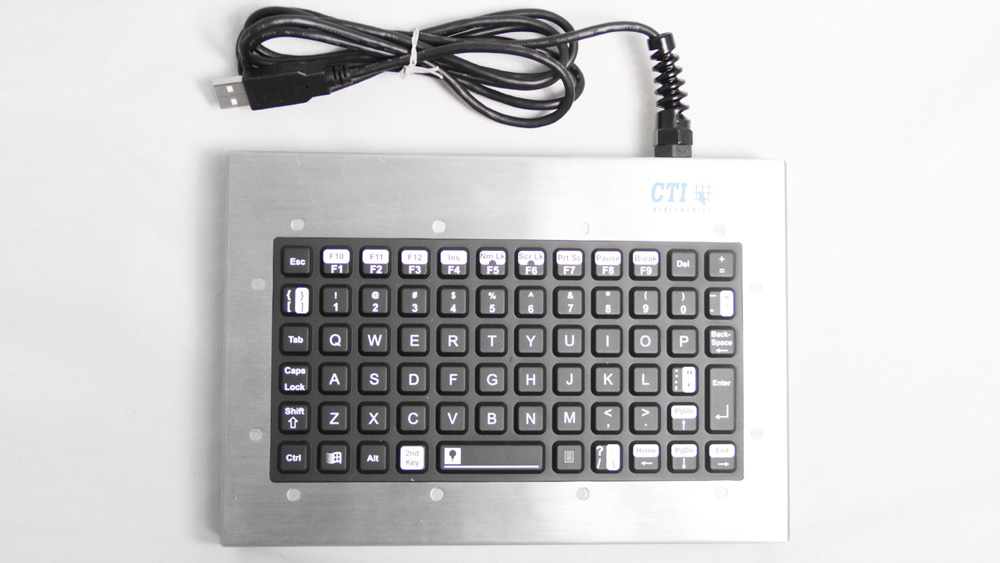

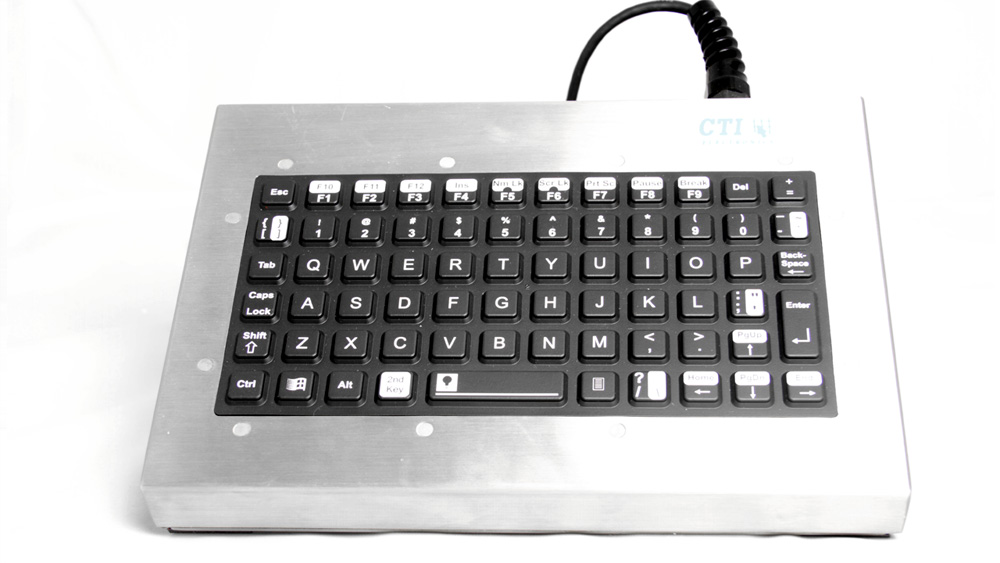

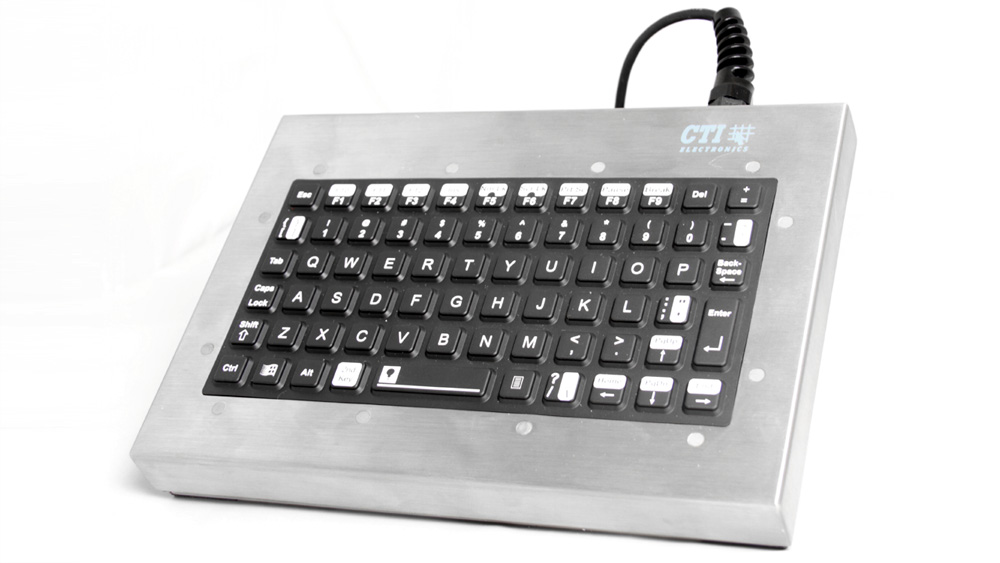

KI6000-Bx Series Industrial Backlit Keyboard

NEMA 4/4X (IP66) Sealed Backlit (Illuminated) Keyboards

Product Information

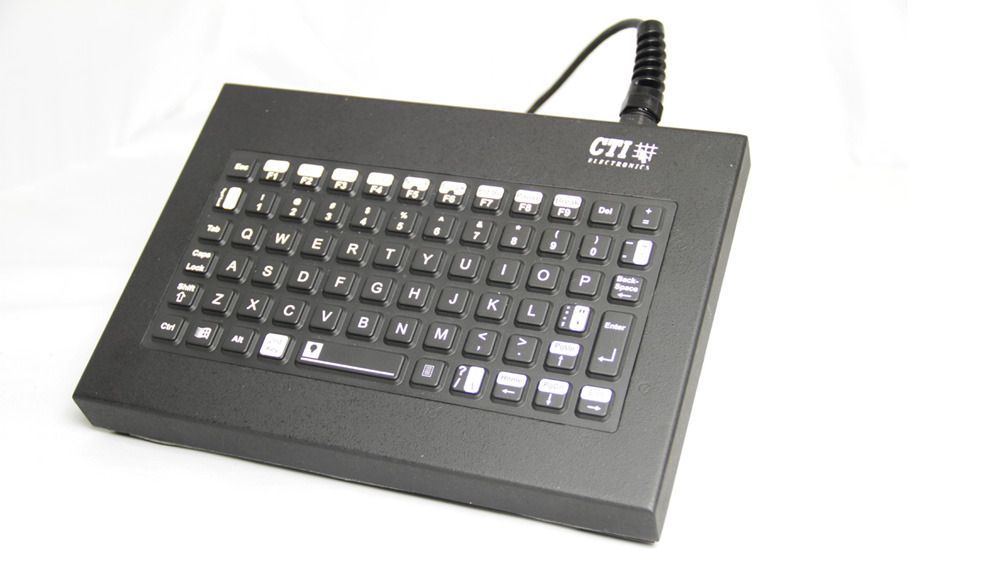

The KI6000-Bx Series are rugged, NEMA 4 (IP66) sealed, industrial keyboards with full 101/104 key functionality in a patented, innovative small foot print with full size keys. These illuminated keyboards are available with red or green backlighting with ten (10) levels of user changeable intensity; with no need for external power.

These backlit mini keyboards are packaged in a waterproof anodized aluminum enclosure. The enclosure comes standard with a gasket sealed bottom plate, rubber feet and sealed threaded holes for optional mounting to any work surface with just two screws.

Various options are available to meet your application requirements. These rugged industrial computer input devices are an excellent solution when portability and space are a consideration; such as military, security, commercial fleet vehicles, marine vessels, and medical equipment carts.

CTI's custom backlit keyboards are ruggedized to meet aerospace, medical, and military standards. CTI's backlit keyboards can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These backlit keyboards are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

KI6000-Bx Series Industrial Backlit Keyboard Specification

Industrial Keyboards without Mouse Pointer
Anodized beige or black aluminum enclosure
Stainless steel enclosure available
Molded silicone rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel
Optional French (AZERTY), Spanish (QWERTY), German (QWERTZ), Italian (QWERTY)
Serial, PS/2, or USB Interface with optional Bulkhead Cable

Features
Two, stainless steel threaded mounting holes (in bottom plate)
Back lighting option: RED or GREEN LED’s
Black Elastomer or Gray Elastomer
Rugged NEMA 4, 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Made in the USA

Reliability
MTBF (Mean Time between Failures): Electronics is greater than 100,000 hours
Operating Temperature: -40º to 80º C
Storage Temperature:  -40º to 80º C
Shock rating:   50g 11msec. half sine, three axes
Vibration:    10-55 Hz@ 0.013 DA
Elastomer keys: Rated for up to 10 million cycles
Contact Keys: "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts.

NEMA and IP Sealing and Protection Standards

NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Optional Parylene® coating available

Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
Electro Static Discharge (ESD) rated to 15KV

KI6000 Series - NEMA 4 (IP66) Computer KeyboardsPDF Icon

Pricing

Plug-n-Play Industrial Keyboard Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


Plug-n-Play Industrial Keyboard Pricing PDF Icon


KI6000-Bx Industrial Backlit / Illuminated Keyboard

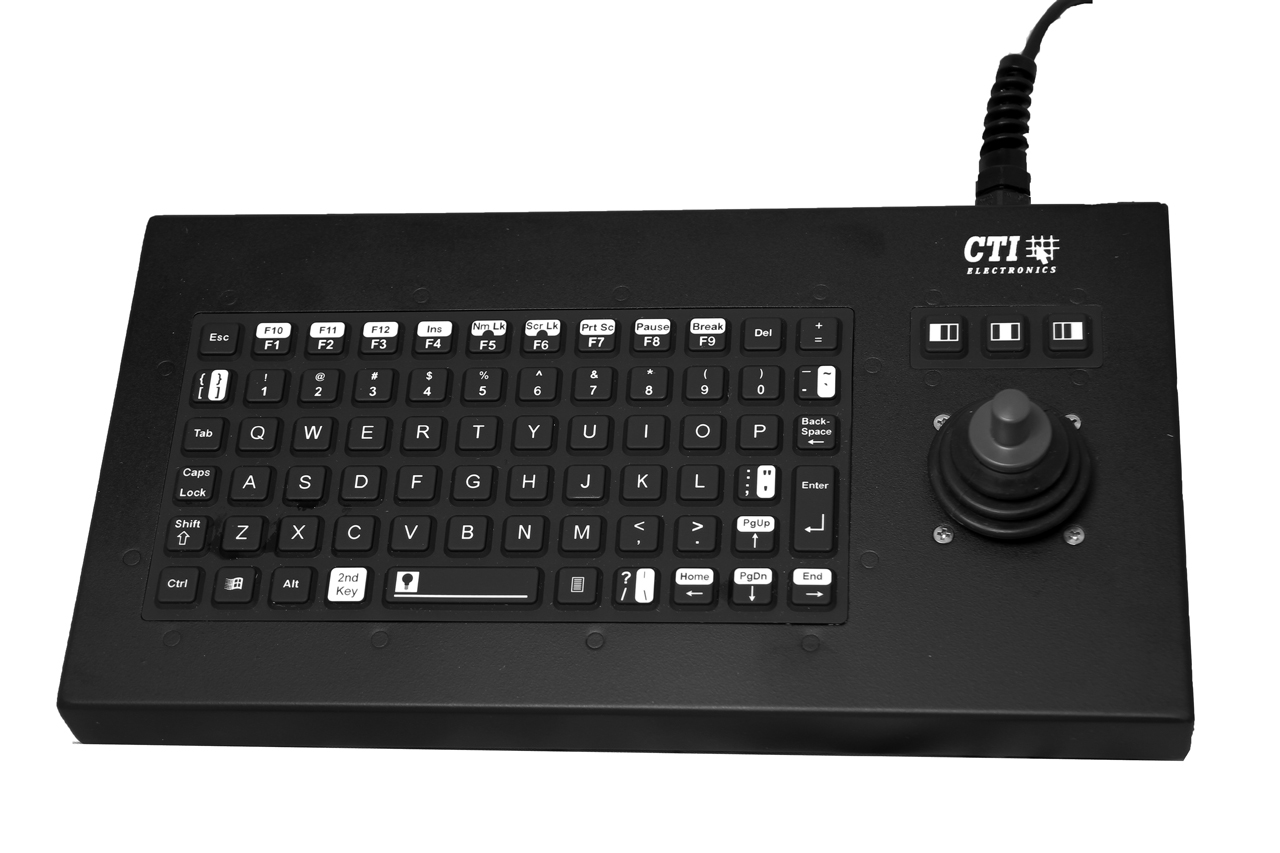

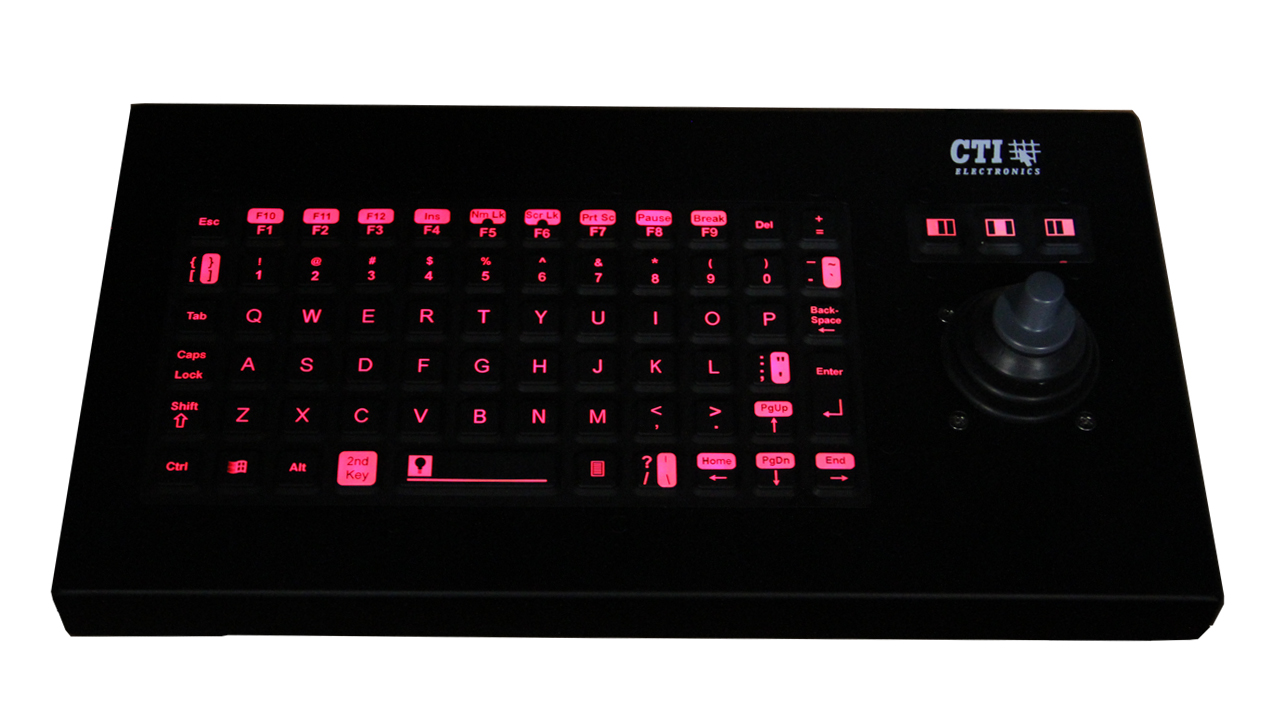

KIF6000-Bx Series Industrial Illuminated Keyboard

NEMA 4/4X (IP66) sealed Industrial Keyboards w/ Industrial Mouse™

Product Information

The KIF6000-Bx Series are rugged, NEMA 4/4X (IP66) sealed industrial keyboards with full 101/104 key functionality in a patented, innovative small foot print with 69 full size keys including 12 function keys. The KIF6000-Bx Series combines CTI's rugged, industrial keyboard with its original, full travel Industrial Mouse™ (Joystick Cursor Controller) mouse pointer. The Industrial Mouse™ is the most reliable, rugged pointer with a sealed button in the joystick knob, that provides simple point and click operation. Models are compatible with all computers, no special software drivers required.

The illuminated keyboards are available with red or green backlighting with ten levels of user changeable intensity; with no need for external power. Our ergonomic keyboards are designed for continuous use in harsh environments; even while wearing gloves. The backlit mini keyboards are packaged in a watertight, anodized aluminum or welded stainless steel enclosure. Both enclosure options come standard with a gasket sealed bottom plate, rubber feet and sealed threaded holes for optional mounting to any work surface with just two screws.

These industrial keyboards with Industrial Mouse™ mouse pointers are perfect when portability and space are a consideration; such as off-road heavy equipment, on-road fleet vehicles, military, marine vessels, and medical equipment carts.

CTI's custom backlit keyboards are ruggedized to meet aerospace, medical, and military standards. CTI's backlit keyboards can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These backlit keyboards are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

KIF6000-Bx Series Industrial Illuminated Keyboard Specification

Industrial Keyboards with Industrial Mouse™ (Joystick Cursor Controller)
Anodized aluminum in black or beige enclosure or a stainless steel enclosure
Stainless steel enclosure available
Molded silicone rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel
Industrial Mouse™ (Joystick Mouse Cursors) available with eight joystick knob options
Optional French (AZERTY), Spanish (QWERTY), or German (QWERTZ) legends

Features
Two, stainless steel threaded mounting holes (in bottom plate)
Back lighting option: RED or GREEN LED’s
Black Elastomer with backlighting option
Gray Elastomer (non-backlit)
Rugged NEMA 4, 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Joystick withstands 25lbs of a static load
No drift pointer design
Made in the USA

Reliability
MTBF (Mean Time between Failures): Electronics is greater than 100,000 hours
Operating Temperature: -40º to 80º C
Storage Temperature:  -40º to 80º C
Shock rating:   50g 11msec. half sine, three axes
Vibration:    10-55 Hz@ 0.013 DA
Elastomer keys: Rated for up to 10 million cycles
Contact Keys: "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts.  A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts is used.

NEMA and IP Sealing and Protection Standards
NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Optional Parylene® coating available



Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV

KIF6000 Series - NEMA 4 (IP66) Computer Keyboards PDF Icon

Pricing

Plug-n-Play Industrial Keyboard Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


Plug-n-Play Industrial Keyboard Pricing PDF Icon


KIF6000-Bx Industrial Backlit / Illuminated Keyboard

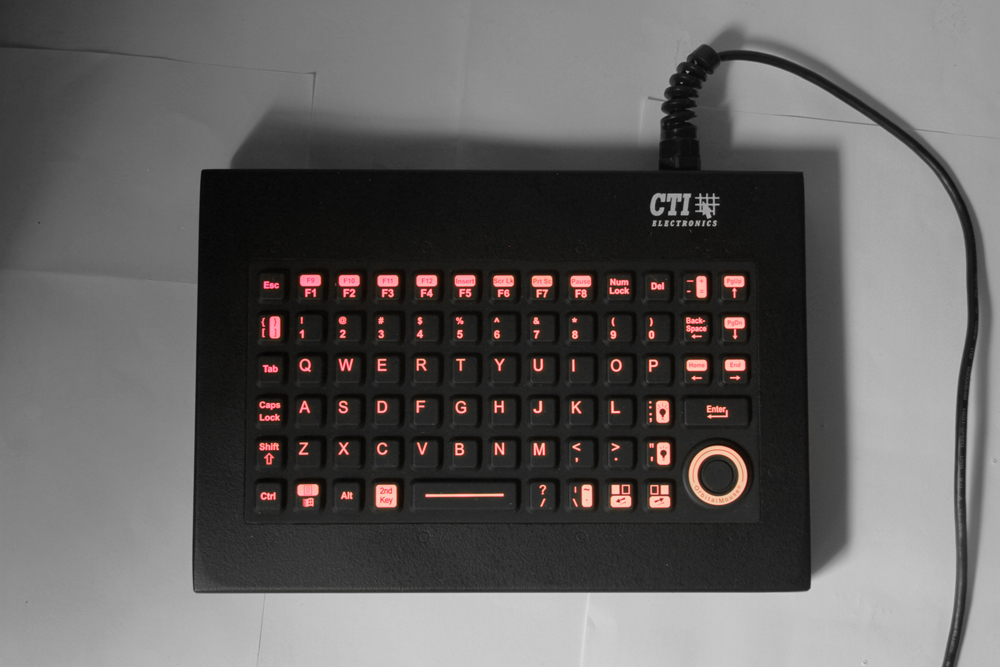

KIO6000-Bx Series Industrial Backlit Keyboard

NEMA 4/4X (IP66) Miniature Keyboards w/ OrbitalMouse®

Product Information

The KIO6000-Bx Series are NEMA 4/4X (IP66) sealed industrial keyboards with full 101/104 key functionality in a patented, innovative small foot print. These miniature keyboards feature full backlighting and are combined with CTI's OrbitalMouse® button style mouse pointer.

CTI's OrbitalMouse® is a sealed NEMA 4 (IP66), drift-free, button style industrial pointer, and is molded in silicone rubber; making it more user friendly and durable than a touchpad, the OrbitalMouse® also has 8 selectable mouse pointer speed curve control settings.

These rugged keyboards use CTI's advanced design for sealing and reliability. They are molded of silicone rubber and have 2mm travel with excellent tactile feel. Gold over nickel contacts combined with superior sealing (waterproof) assure users of years of reliable operation. These mini keyboards are an excellent solution when portability and space are a consideration; such as military, security, commercial fleet vehicles, marine vessels, and medical equipment carts. The KIO6000-Bx Series is available in anodized aluminum or stainless steel enclosures rated at NEMA 4/4X (IP66), or as OEM sub-assemblies.

CTI's custom backlit keyboards are ruggedized to meet aerospace, medical, and military standards. CTI's backlit keyboards can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These backlit keyboards are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

KIO6000 Series - NEMA 4 (IP66) Computer Keyboards Specification

Industrial Keyboards with OrbitalMouse® Mouse Pointers
Anodized aluminum enclosure powder coated beige or black
Stainless steel enclosure available
Molded silicone rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel
OrbitalMouse® (Button Style Mouse Cursors) (8 selectable mouse pointer speed curve settings)
Optional French (AZERTY), Spanish (QWERTY), or German (QWERTZ) legends

Features
Two, stainless steel threaded mounting holes (in bottom plate)
Back lighting option: RED or GREEN LED’s
Black Elastomer with backlighting option
Black Elastomer standard
Rugged NEMA 4, 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Made in the USA

Reliability
MTBF (Mean Time between Failures): Electronics is greater than 100,000 hours
Operating Temperature: -40º to 80º C
Storage Temperature:  -40º to 80º C
Shock rating:   50g 11msec. half sine, three axes
Vibration:    10-55 Hz@ 0.013 DA
Elastomer keys: Rated for up to 10 million cycles
Contact Keys: "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts.

NEMA and IP Sealing and Protection Standards
NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Optional Parylene® coating available



Certifications

Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV

United States Patents
U.S. Patent No. 7,499,032
U.S. Patents Pending 12/344368

KIO6000 Series - NEMA 4 (IP66) Computer Keyboards w/ OrbitalMouse® PDF Icon

Pricing

Plug-n-Play Industrial Keyboard Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


Plug-n-Play Industrial Keyboard Pricing PDF Icon


KIO6000-Bx Industrial Backlit / Illuminated Keyboard

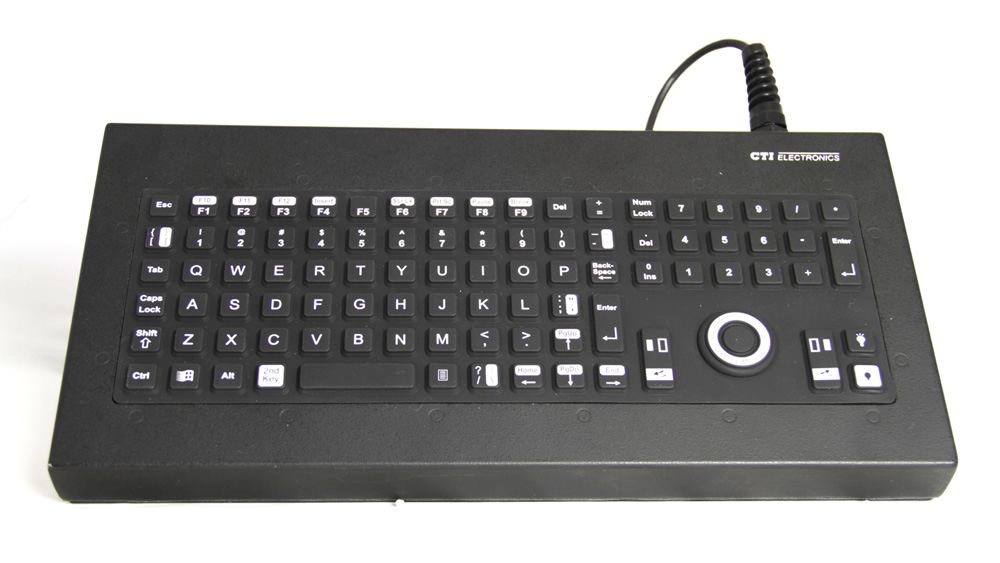

KIO7000-Bx Series Industrial Illuminated Keyboard

NEMA 4/4X (IP66) Sealed Backlit (Illuminated) Keyboards w/ OrbitalMouse®

Product Information

The KIO7000-Bx Series are NEMA 4/4X (IP66) sealed industrial keyboards with full 101/104 key functionality in a patented, innovative small foot print with full size keys. These illuminated keyboards include 12 function keys, a separate numeric keypad, and are combined with CTI's OrbitalMouse® button style mouse pointer.

CTI's OrbitalMouse® is a sealed NEMA 4 (IP66), drift-free, button style industrial pointer, and is molded in silicone rubber; making it more user friendly and durable than a touchpad, the OrbitalMouse® also has 8 selectable mouse pointer speed curve control settings.

These backlit keyboards are molded of black silicone rubber, and are available with red or green LED backlighting with ten levels of intensity. This series is designed for continuous use in harsh environments; and in areas with low level lighting.
The KIO7000-Bx Series is available in anodized aluminum or stainless steel enclosures rated at NEMA 4/4X (IP66), or as OEM sub-assemblies.

CTI's custom backlit keyboards are ruggedized to meet aerospace, medical, and military standards. CTI's backlit keyboards can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These backlit keyboards are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

KIO7000-Bx Series Industrial Illuminated Keyboard Specification

Industrial Keyboards with OrbitalMouse® Mouse Pointers
Anodized aluminum enclosure powder coated beige or black
Stainless steel enclosure available
Molded rubber elastomer keys rated for 10 million cycles
Excellent tactile feel, 2mm key travel
OrbitalMouse® (Button Style Mouse Cursors) (8 selectable mouse pointer speed curve settings)
Optional French (AZERTY), Spanish (QWERTY), German (QWERTZ), Italian (QWERTY) legend
PS/2, or USB Interface with optional Bulkhead Cable

Features
Two stainless steel threaded mounting holes (in bottom plate)
Back lighting option: RED or GREEN LED’s
Black Elastomer with backlighting option
Gray Elastomer standard
Rugged NEMA 4, NEMA 4X (IP66) for harsh environments
Keys: 2mm travel with excellent tactile feedback
Repairable design
Plug and Play, Port compatible - no drivers required
Legends are silicon ink, oven cured, so as to thermally fuse the ink to the rubber
Direct factory support
Made in the USA



Reliability
MTBF (Mean Time between Failures): Electronics is greater than 100,000 hours
Operating Temperature: -40º to 80º C
Storage Temperature:  -40º to 80º C
Shock rating:   50g 11msec. half sine, three axes
Vibration:    10-55 Hz@ 0.013 DA
Elastomer keys: Rated for up to 10 million cycles
Contact Keys: "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts.

NEMA and IP Sealing and Protection Standards
NEMA 4, NEMA 4X (IP66)
Syn-Proof™ coating resists most oils and harsh chemicals
Optional Parylene® coating available

Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV

United States Patents
U.S. Patent No. 7,499,032
U.S. Patents Pending 12/344368

KIO7000 Series - NEMA 4 (IP66) Computer Keyboards w/ OrbitalMouse® PDF Icon

Pricing

Plug-n-Play Industrial Keyboard Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


Plug-n-Play Industrial Keyboard Pricing PDF Icon


KIO7000-Bx Industrial Backlit / Illuminated Keyboard

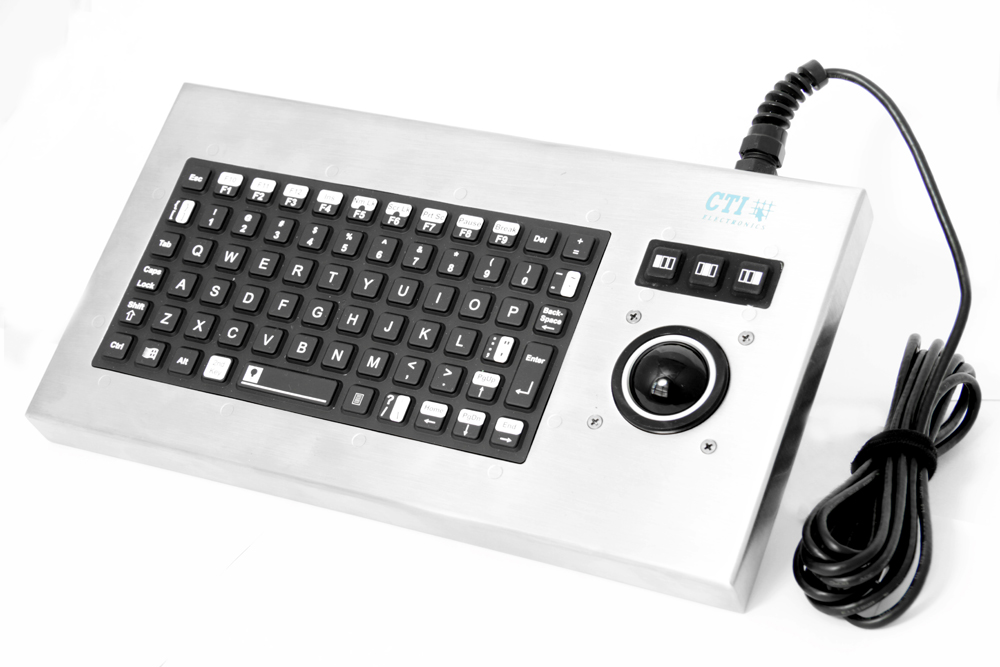

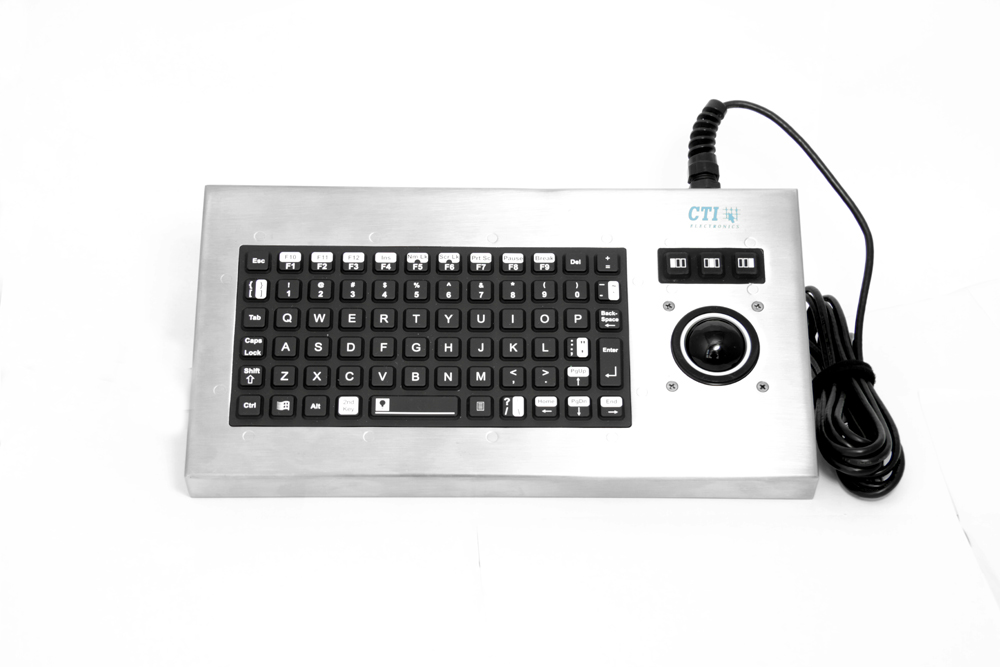

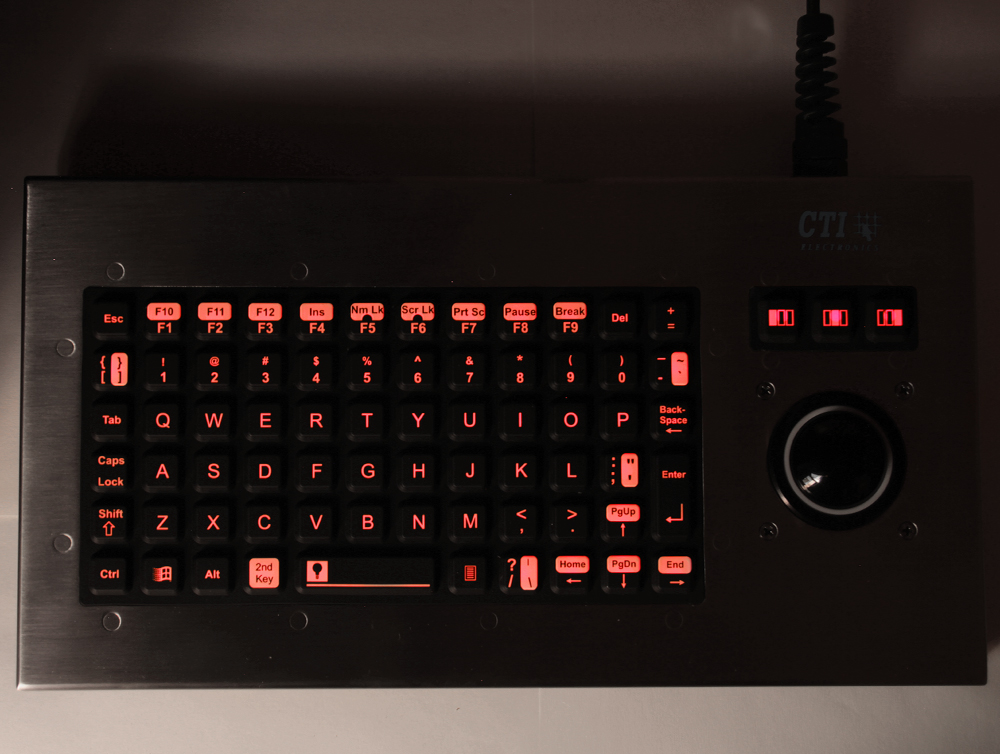

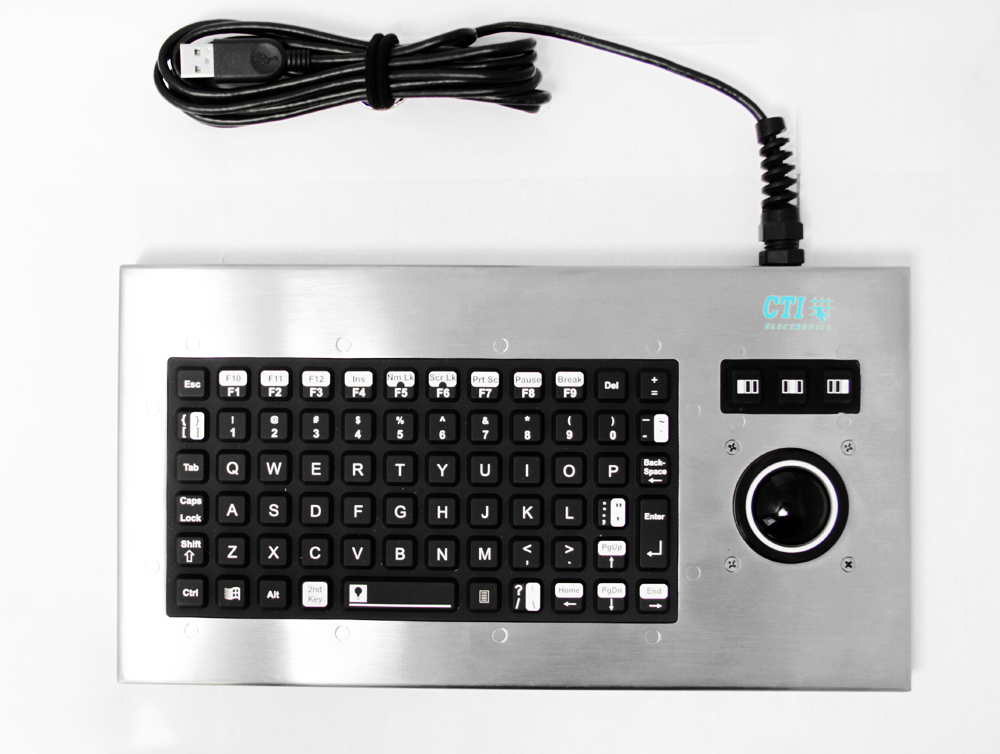

KIT6000-Bx Series Industrial Backlit Keyboard

NEMA 12 (IP54) Backlit Keyboards w/ 1.3" Trackball

Product Information

The KIT6000-Bx Series are NEMA 12 (IP54) sealed mini keyboards with full 101/104 key functionality, small footprint with full size keys and red or green LED backlighting with ten levels of intensity. This backlit industrial keyboard is combined with CTI's high reliability 1.3" trackball mouse pointer, and is compatible with all computers; without requiring any special software drivers.

These illuminated keyboards with trackball mouse pointers offer high reliability and ease of use; and are packaged in compact, anodized aluminum enclosures. The enclosure comes standard with a gasket sealed bottom plate, rubber feet and sealed threaded holes for optional mounting to any work surface with just two screws.

These backlit keyboards with trackball mouse pointers are perfect for use in low level lighting.

CTI's custom backlit keyboards are ruggedized to meet aerospace, medical, and military standards. CTI's backlit keyboards can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These backlit keyboards are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

KIT6000 Series Industrial Keyboard Specification

Industrial Keyboards with built-in Industrial Trackball Mouse Pointers
Anodized aluminum enclosure in beige or black, or stainless steel enclosure
Molded silicone rubber elastomer keys
Excellent tactile feel, 2mm key travel
1.3” diameter Trackballs  (Trackball Mouse Cursors)
Standard U.S. English (QWERTY) legend
Optional French (AZERTY), Spanish (QWERTY), or German (QWERTZ) legends
Serial, PS/2, or USB Interface with optional Bulkhead Cable Set (Waterproof)

Features
Two, Stainless steel threaded mounting holes (in bottom plate)
Back lighting option: RED or GREEN LED’s
Gray Elastomer standard, Black Elastomer with backlighting option
Trackball has Teflon seal in aluminum collar.
Repairable design
Plug and Play
Direct factory support
Calculated rolling life of trackball bearings is 20 years
No rubber or foam on trackball rollers, no cleaning is required
Made in the USA

Reliability
MTBF (Mean Time between Failures): Electronics is greater than 100,000 hours
Operating Temperature: -40º to 80º C
Storage Temperature:  -40º to 80º C
Shock rating:   50g 11msec. half sine, three axes
Vibration:    10-55 Hz@ 0.013 DA
Elastomer keys: Rated for up to 10 million cycles
Contact Keys: "Hard" gold plated switch contacts. A minimum of 30 to 50 micro inches of Gold over 100 micro inches of Nickel over Copper on switch contacts.

NEMA and IP Sealing and Protection Standards
NEMA 12 (IP54) Trackball, NEMA 4 (IP66) Keyboard
Syn-Proof™ coating resists most oils and harsh chemicals
Optional Parylene® coating available

Certifications
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV

KXT6000 Series - NEMA 12 (IP54) Computer Keyboards w/ 1.3 Trackballs PDF Icon

Pricing

Plug-n-Play Industrial Keyboard Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


Plug-n-Play Industrial Keyboard Pricing PDF Icon


KIT6000-Bx Industrial Backlit / Illuminated Keyboard
TOP
Copyright © 2001-2013 | CTI Electronics Corporation | Tel: (203) 386-9779 | All Rights Reserved - sitemap | Sales | Tech Manufactured in U.S.A. Manufactured in U.S.A.
