Medical Mouse Pointing Devices




F10U0-NxW Series Medical Mouse / Cleanroom Pointing Device F60U6-NxW Series Medical Mouse / Cleanroom Pointing Device M20U6-Nx Series Medical Mouse / Cleanroom Pointing Device

CTI' medical mouse is the most reliable and durable cleanroom pointing device available anywhere in the world today. Its NEMA 4X (IP66) watertight sealing protection resists ingress of liquid or solid debris. What makes the medical mouse really special is the parylene coating protection that is applied to the white FDA Silicone elastomer, strain relief, joystick boot and knob. On a molecular level, Parylene encapsulates the substrate materials of the cleanroom pointing device to ensure a non-permeable surface to bio-hazardous agents.
The robust design of CTI' medical mouse is comprised of only three moving parts: the shaft (3/8" diameter solid stainless steel), the spring-guide, and the spring. The two joystick body parts which encase the shaft bearing are secured together by six screws. The four mounting holes have threaded brass inserts instead of just clearance holes, which protects the body from cracking due to stresses caused by the installation, vibration, or shock. Its inductive coil sensor technology cannot be affected by changes in temperature, age, or usage. There is never a "drifting" issue of the calibrated voltage setting as the ratio of coil windings remains constant. When installed in either iridited painted aluminum or the finest grade of stainless steel the medical mouse will provide 10+ years of reliable service.
Long term durability is guaranteed through the use of the highest quality materials and components which also ensures the highest reliability while being subjected to repeated hygienic cleaning, disinfection, or sterilization. CTI' cleanroom pointing device is the only choice when reliability is critical™ to the success of your application.

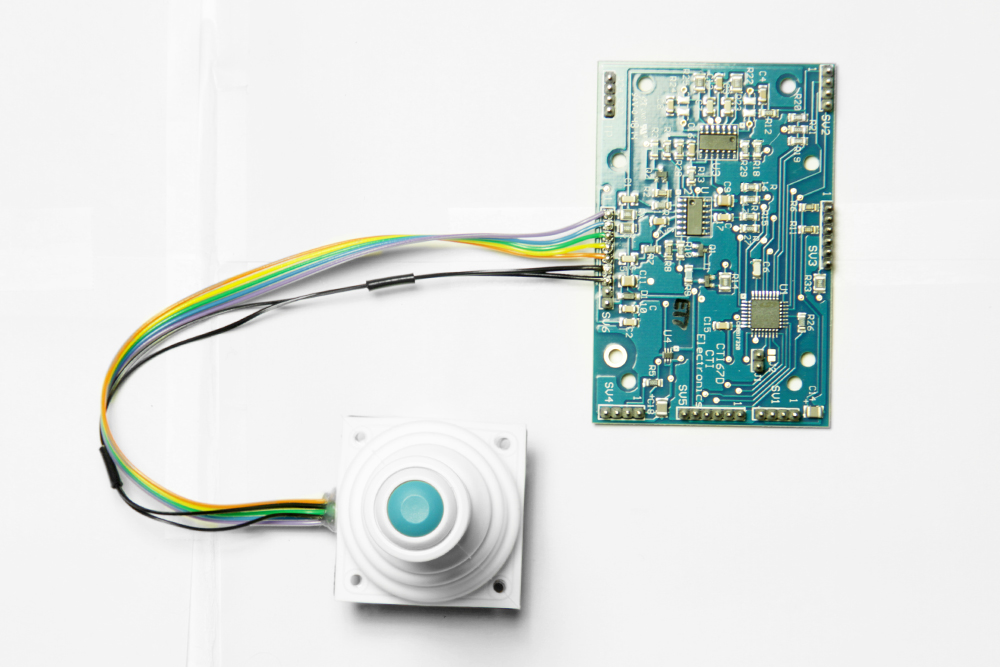

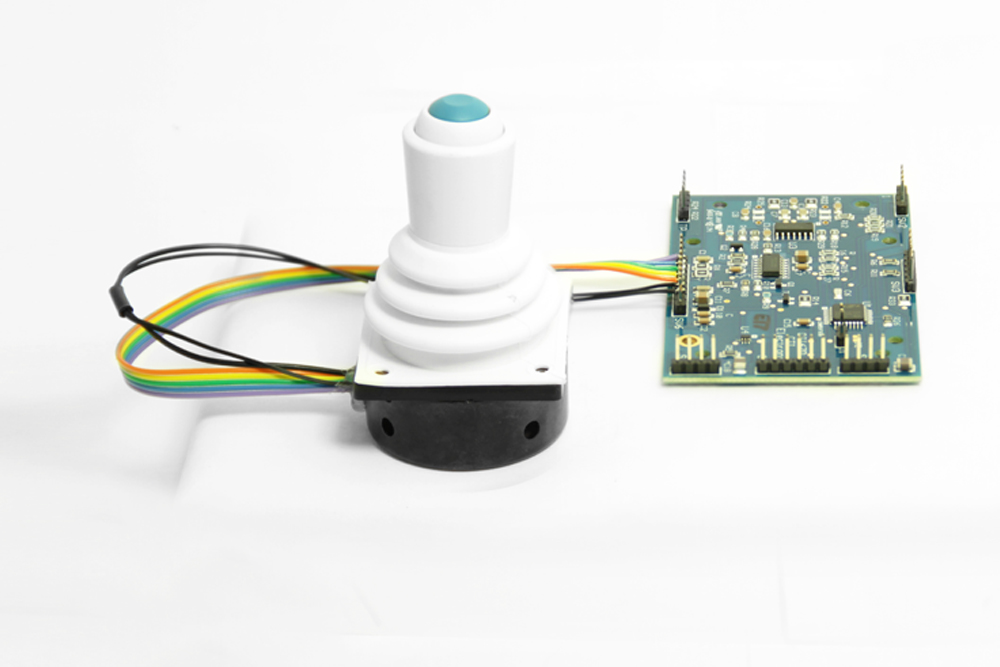

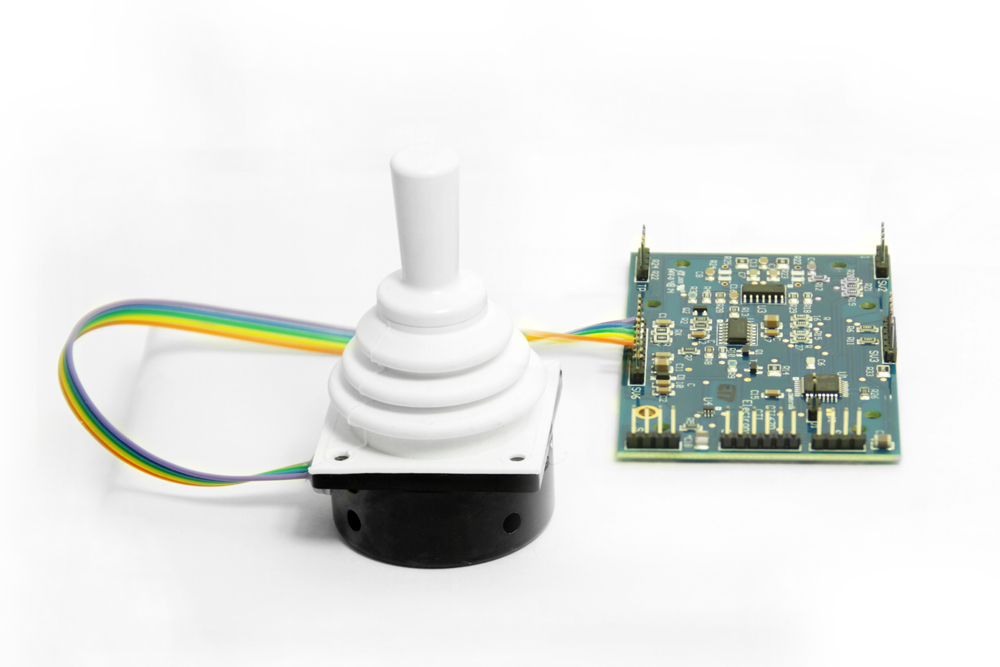

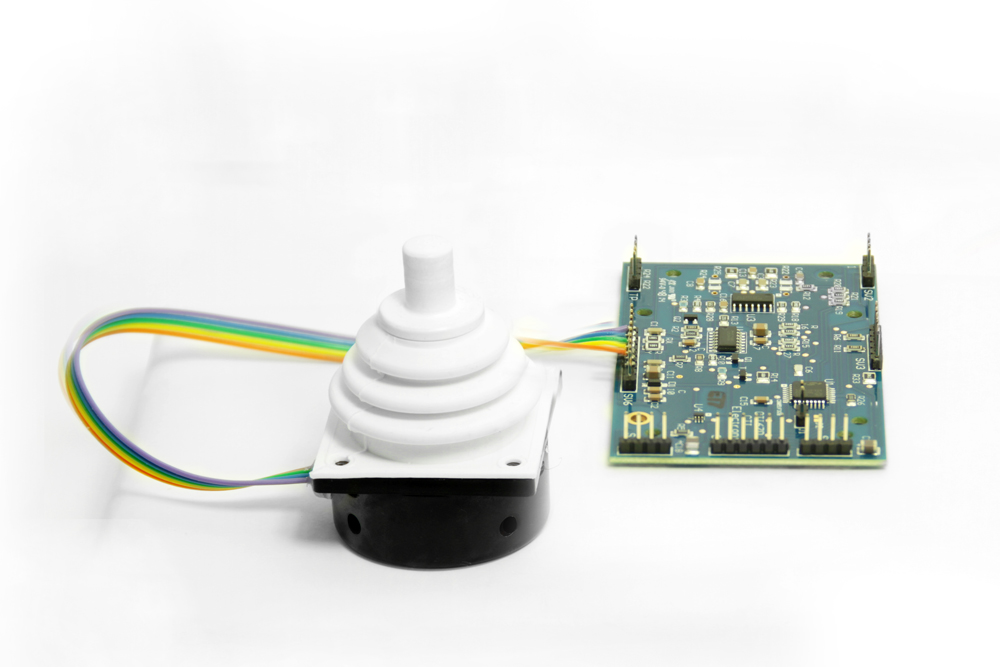

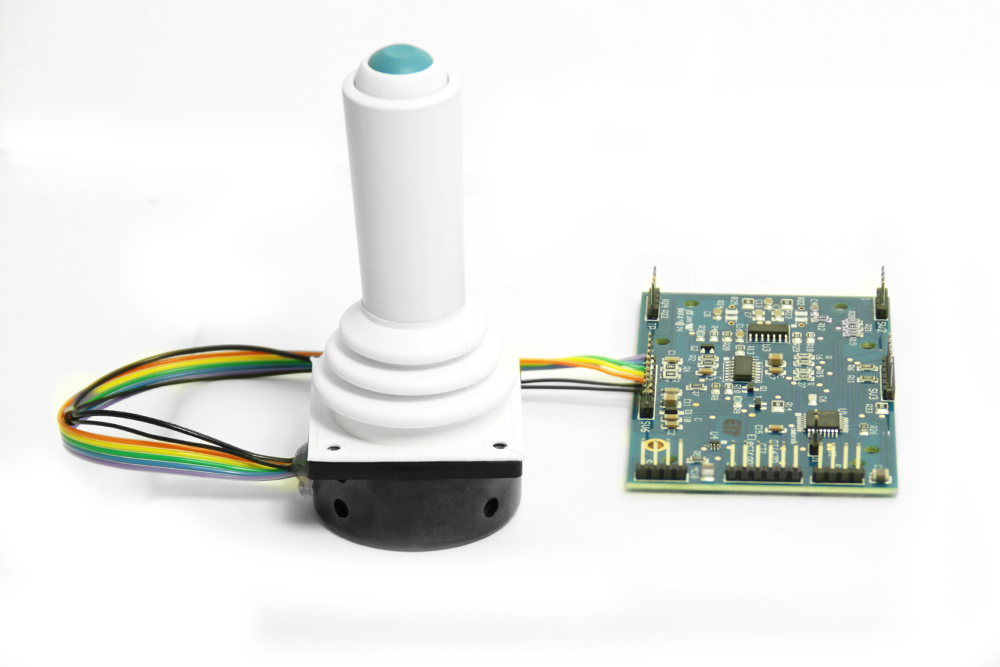

F10U0-NxW Series Medical Mouse / Cleanroom Pointing Device

NEMA 4 (IP66) sealing OEM Medical Mouse / Cleanroom Pointing Device

Product Information

The NEMA 4 (IP66) sealing F10U0-NxW Series medical mouse is an "open frame" that is offered to Original Equipment Manufacturers. These rugged medical mouse / cleanroom pointing devices allow for custom OEM mouse switches to be wired directly to the USB interface PCB. There are four knobs/handles and a number of manufacturing options to tailor the device to the requirements of the application, see the technical drawings below.

The white FDA silicone boot, white PVC joystick knob, and blue "left click" button have an impermeable molecular barrier sealing protection obtained from a Parylene C conformal coating process. This hygienic medical mouse repels infectious pathogens or carcinogenic compounds so that proper decontamination, sanitization, or sterilization procedures can easily remove.

Related Documentation:

Specifications

F10U0-NxW Series Medical Mouse / Cleanroom Pointing Device Specification

Medical Mouse / Cleanroom Pointing Device

PDF IconF10U0-NxW Series OEM Medical Mouse Input Device Product Data Sheet
PDF Icon Industrial Mouse™ (Joystick Cursor Controller) Specification

Pricing

OEM Medical Mouse / Cleanroom Pointing Device Pricing

Thank you for selecting CTIs medical / cleanroom computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "medical grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called medical products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Medical Mouse / Cleanroom Pointing Device Pricing

F10U0-NxW Series OEM Medical Mouse / Cleanroom Pointing Device
Photos
Videos
How-To
RFQ

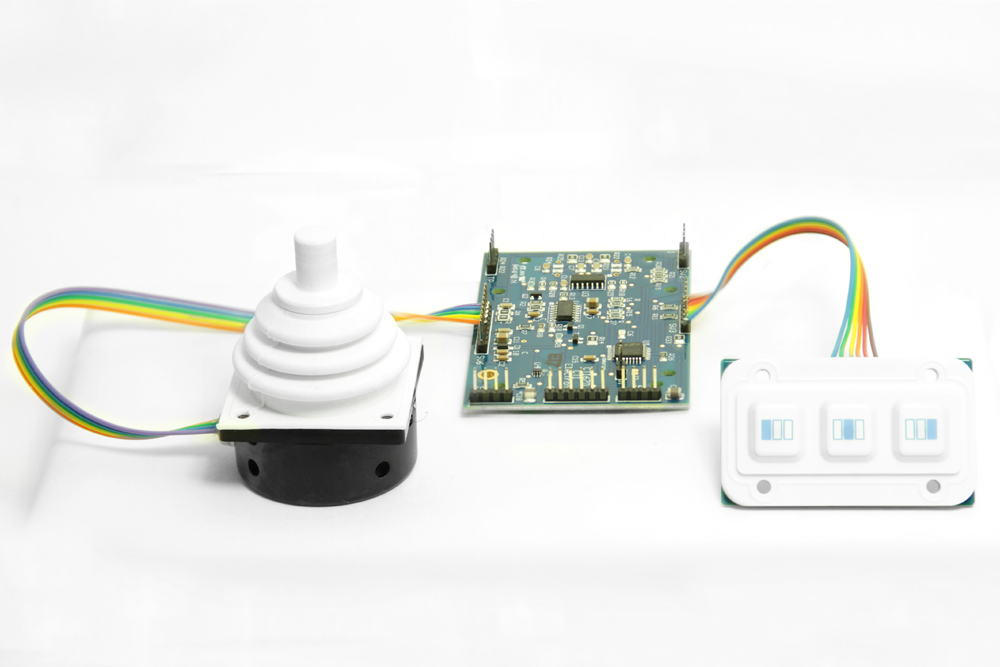

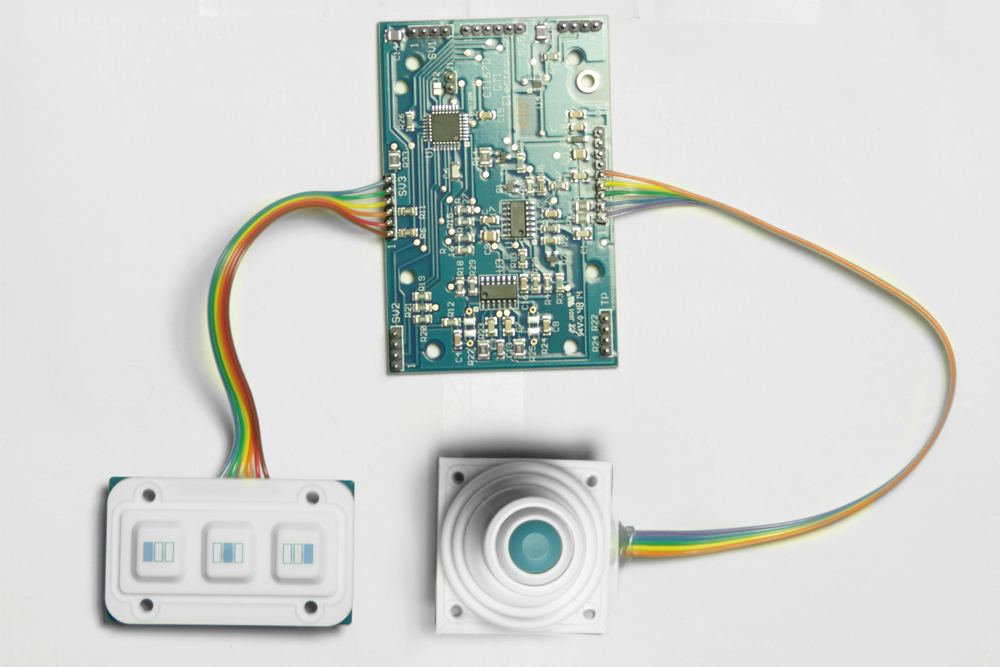

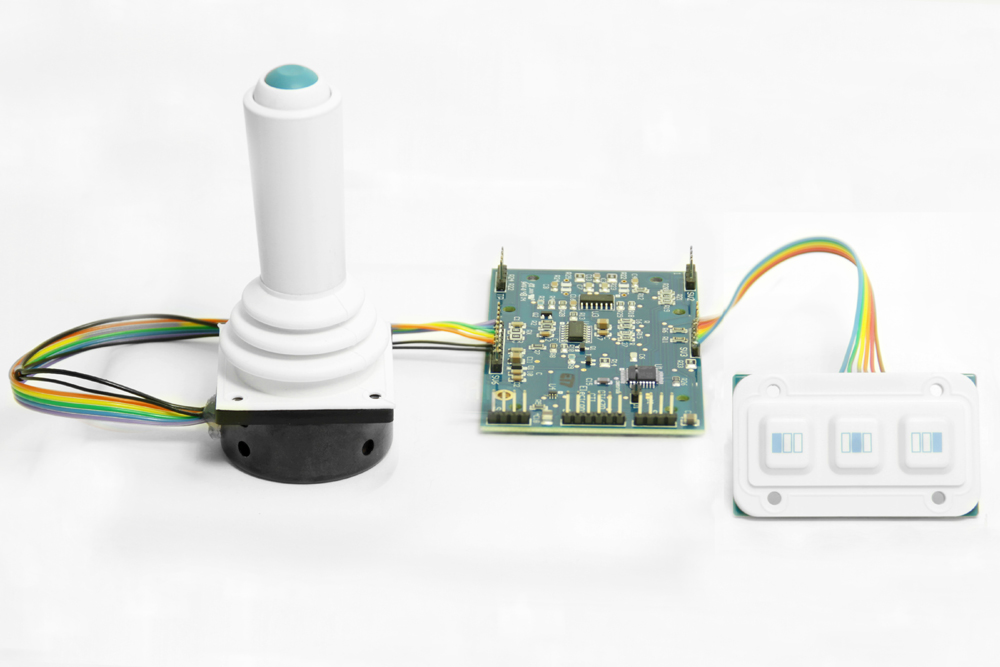

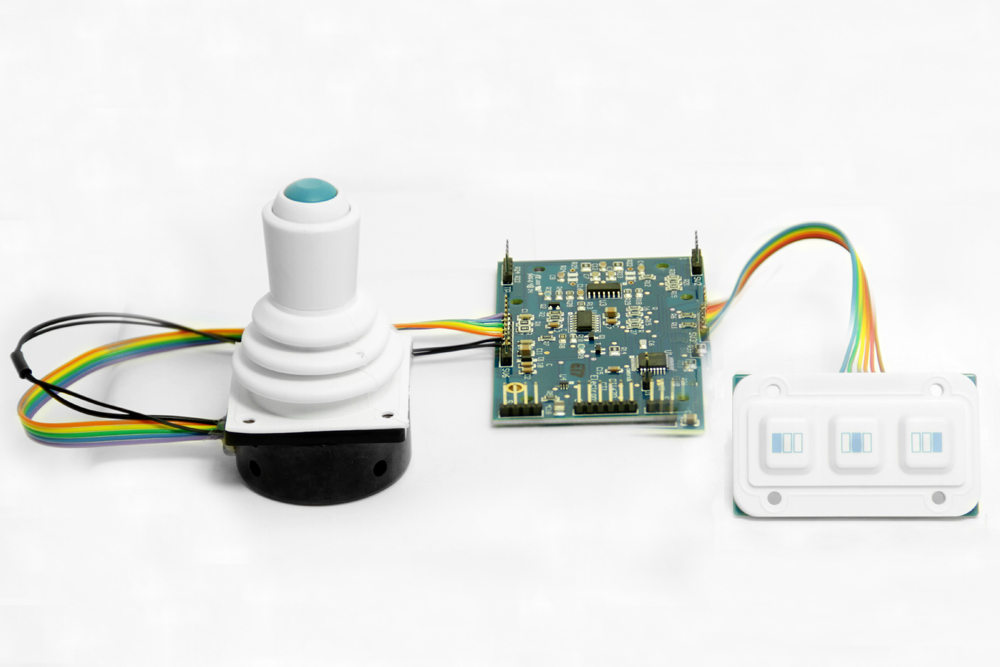

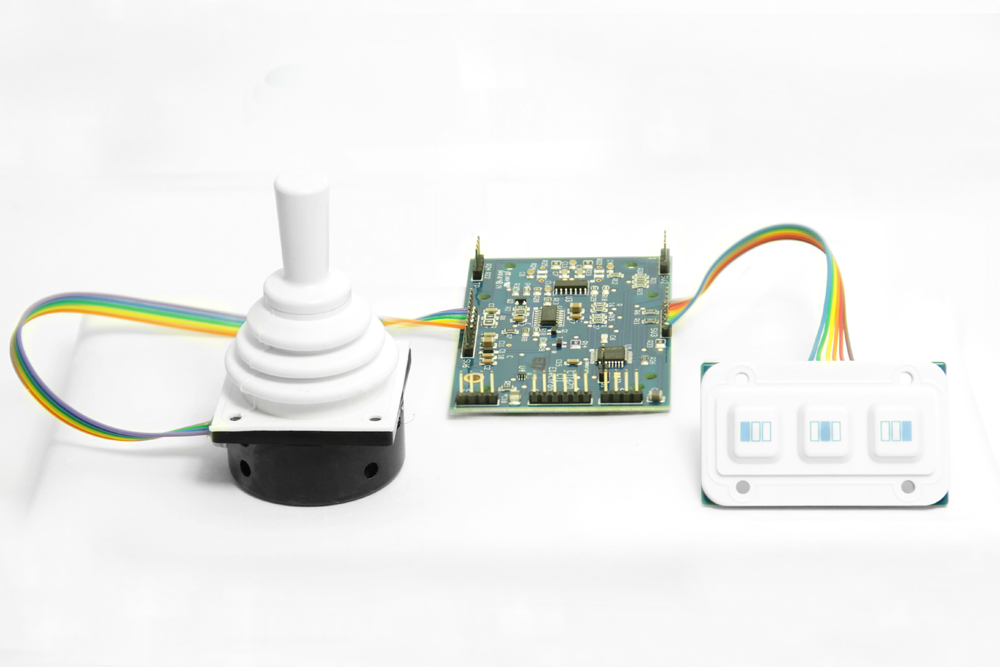

F60U6-NxW Series Medical Mouse / Cleanroom Pointing Device

NEMA 4 (IP66) sealing OEM Medical Mouse / Cleanroom Pointing Device with Three (3) Mouse Buttons

Product Information

The NEMA 4 (IP66) sealing F60U6-NxW Series medical mouse is an "open frame" that is offered to Original Equipment Manufacturers. These rugged medical mouse / cleanroom pointing devices have a three (3) button mouse switchpad wired directly to the USB interface PCB. The heavy duty switch PCB is layered with thick "hard gold" contacts and the white three button elastomer has molded "hard carbon" pill contacts that combined have been proven to provide more than 10 years of reliable, maintenance free, service. The white elastomer with its 2mm key travel provides excellent tactile feel, even while wearing gloves. There are four knobs/handles and a number of manufacturing options to tailor the device to the requirements of the application, see the technical drawings below.

The white FDA silicone boot, white PVC joystick knob, white three button elastomer, and blue "left click" button have an impermeable molecular barrier sealing protection obtained from a Parylene C conformal coating process. This hygienic cleanroom pointing device is impervious to infectious pathogens or carcinogenic compounds with allows complete removal by proper decontamination, sanitization, or sterilization procedures.

Related Documentation:

Specifications

F60U6-NxW Series Medical Mouse / Cleanroom Pointing Device Specification

Medical Mouse / Cleanroom Pointing Device

PDF IconF60U0-NxW Series OEM Medical Mouse Input Device Product Data Sheet
PDF Icon Industrial Mouse™ (Joystick Cursor Controller) Specification

Pricing

OEM Medical Mouse / Cleanroom Pointing Device Pricing

Thank you for selecting CTIs medical / cleanroom computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "medical grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called medical products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Medical Mouse / Cleanroom Pointing Device Pricing

F60U6-NxW Series OEM Medical Mouse / Cleanroom Pointing Device
Videos
How-To
RFQ

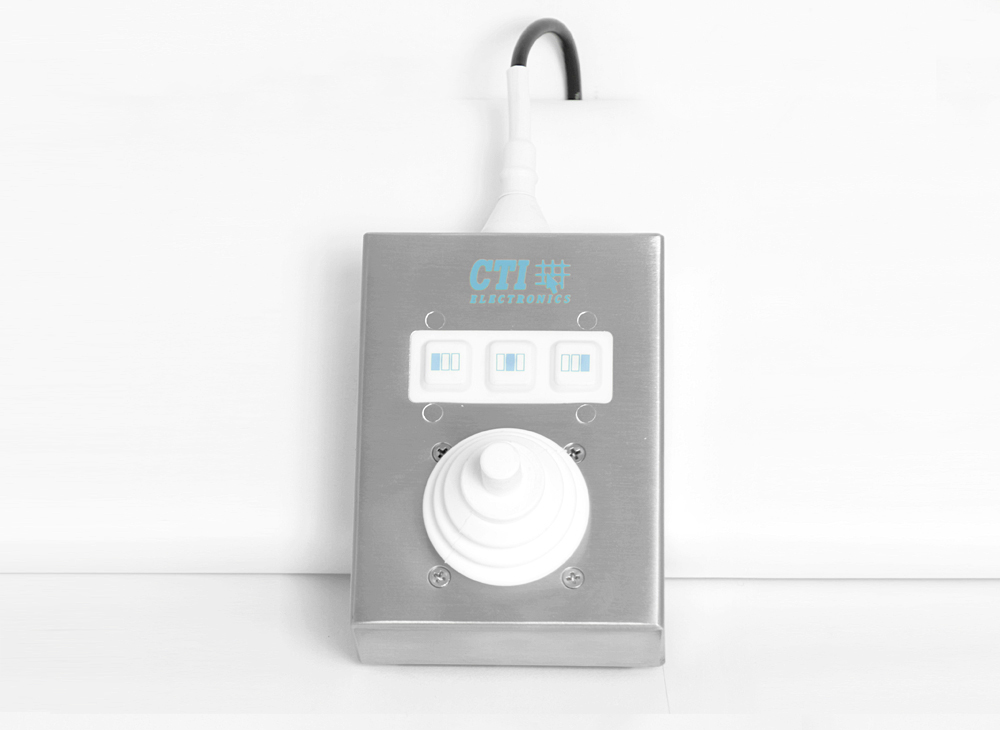

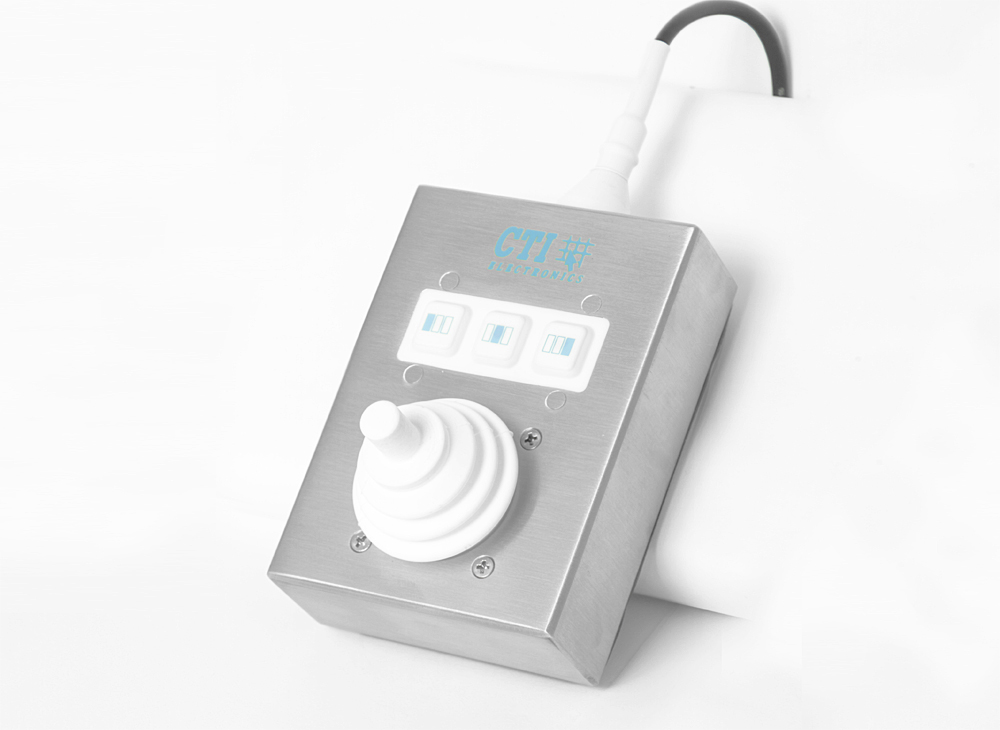

M20U6-N2W Plug-n-Play Medical Mouse / Cleanroom Pointing Device

NEMA 4X (IP66) watertight sealed Handheld Medical Mouse / Cleanroom Pointing Device with Three (3) Mouse Buttons

Product Information

The NEMA 4X (IP66) sealed M20U6-N2W medical mouse is a fully enclosed Plug-n-Play pointing device that is offered to Systems Integrators and Commercial End Users. The space-saving design utilizes the original Industrial Mouse™ (Joystick Cursor Controller) mouse pointer with a Three (3) Button Switchpad for the left, middle, and right mouse buttons. The heavy duty switchpad is layered with thick "hard gold" contacts and the white elastomer has molded "hard carbon" pill contacts that has been proven to provide more than 10 years of reliable, maintenance free, service. The white elastomer has a 2mm key travel which provides excellent tactile feel, even while wearing gloves, but most impressive is the impermeable molecular barrier sealing protection obtained from a Parylene C conformal coating process. This hygienic medical mouse is impervious to infectious pathogens or carcinogenic compounds with allows complete removal by proper decontamination, sanitization, or sterilization procedures.

This Plug-n-Play hygienic medical mouse / cleanroom pointing device is sealed (water resistant) in the finest grade of stainless steel or an iridited painted aluminum. The metal enclosure has a gasket sealed bottom plate with closed foam cushion padding for operator comfort. The 9.5 foot USB cable is secured through a specially designed white PVC strain relief which is Parylene C coated. Optionally, a USB bulkhead cable is available if the USB port is behind a panel or cabinet. The Parylene C coated medical mouse is a very precise finger controlled pointer, it is the most reliable cursor controller.

As a Plug-n-Play medical mouse or cleanroom pointing device, this hygienic cursor controller can be confidently installed with an assurance of high reliability and long term durability. Applications include managing infection control in healthcare facilities or managing exposure and/or contamination control in chemical, biological, or pharmaceutical research laboratories and other cleanroom facilities such as semiconductor, lithography, and manufacturing. To maintain a clean appearance in these facilities a convenient anodized aluminum M2000 holder/cradle can be easily secured alongside any machine or cabinet.

Related Documentation:

Specifications

M20U6-N2W Plug-n-Play Medical Mouse / Cleanroom Pointing Device Specification

Medical Mouse / Cleanroom Pointing Device
Original Industrial Mouse™ (Joystick Cursor Controller) - A CTI invention!
Reliable mouse cursor, field proven for 30 years
Patented - Non contact inductive handle
No moving electrical parts or magnets
No wear and no drift
Gain never changes - No calibration needed
3/16" diameter solid stainless steel shaft
Four different knob options - Parylene coated
Knobs with pushbuttons on top to act like "left mouse button" for double clicking and drag and drop
White elastomer mouse switches - Parylene coated
Withstands 25 lbs. static load
40° total deflection of joystick travel
White FDA silicone boot - Parylene coated

Features & Options:
NEMA 4, NEMA 4X (IP66)
Point and click operation
Waterproof connector assembly for simple cable installation through metal cabinets
Sealed gold plated switch contacts
Port compatible with all computers - no software drivers needed
Stainless steel or painted aluminum enclosures
Repairable design
Easy to use sealed mouse cursor
Joystick withstands 25lbs of a static load
USB Output
Direct factory support - Made in USA

Temperature Ratings:
Operating Temperature  0º to 80º C
Operating (Optional)      -40ºC to 80º C
Storage Temperature: -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures): 100,000 hours per MIL-HDBK-217F.
Shock Rating: 30g to 50g depending on Knob 11ms -1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration: Mil-Std-810F, Category 4
Elastomer Switches: Rated for up to 10 million cycles
Joystick button: Rated at 1 million cycles
Joystick:  Rated at 10 million random operations

Certifications:
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant
PDF IconM2XU6-NxW Medical Mouse Product Data Sheet
PDF Icon Industrial Mouse™ (Joystick Cursor Controller) Specification

Pricing

Plug-n-Play Medical Mouse / Cleanroom Pointing Device Pricing

Thank you for selecting CTIs medical / cleanroom computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "medical grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called medical products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPlug-n-Play Medical Mouse / Cleanroom Pointing Device Pricing

M2XU6-N2 Medical Mouse / Cleanroom Pointing Device
Photos
Videos
How-To
RFQ

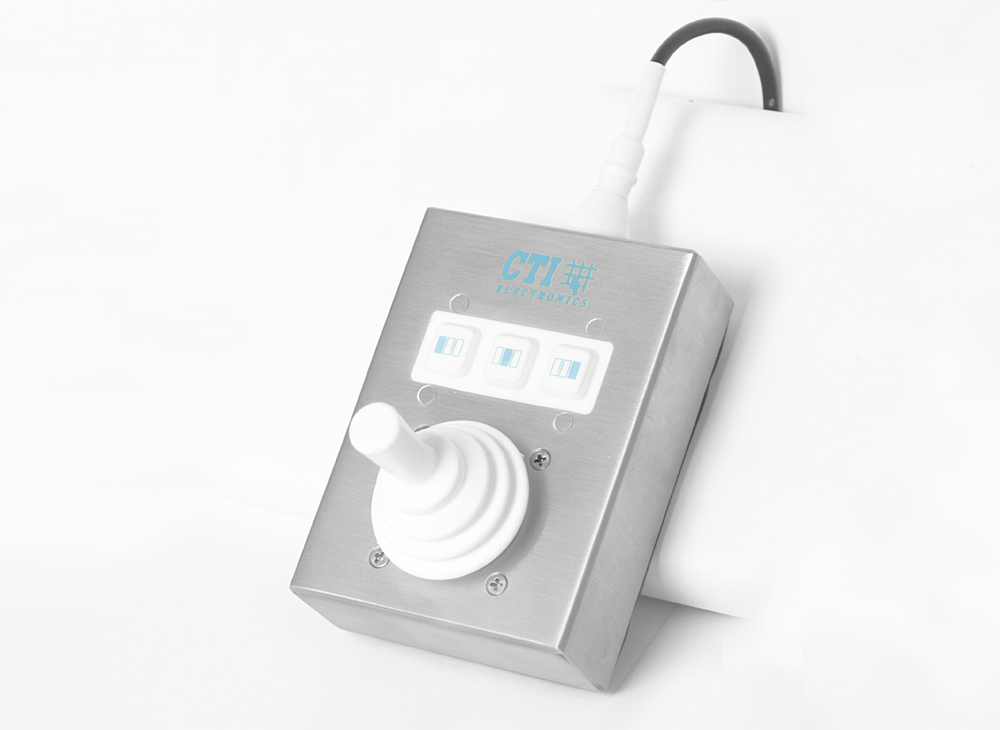

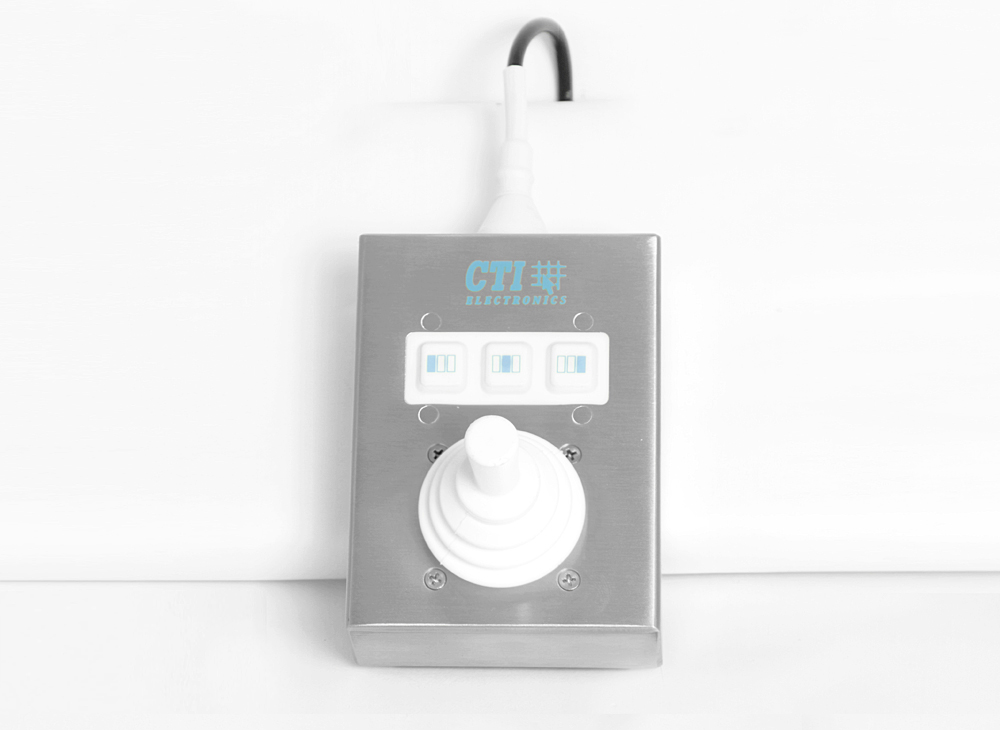

M20U6-N24W Plug-n-Play Medical Mouse / Cleanroom Pointing Device

NEMA 4X (IP66) watertight sealed Handheld Medical Mouse / Cleanroom Pointing Device with Three (3) Mouse Buttons

Product Information

The NEMA 4X (IP66) sealed M20U6-N24W medical mouse is a fully enclosed Plug-n-Play pointing device that is offered to Systems Integrators and Commercial End Users. The space-saving design utilizes the original Industrial Mouse™ (Joystick Cursor Controller) mouse pointer with a Three (3) Button Switchpad for the left, middle, and right mouse buttons. The heavy duty switchpad is layered with thick "hard gold" contacts and the white elastomer has molded "hard carbon" pill contacts that has been proven to provide more than 10 years of reliable, maintenance free, service. The white elastomer has a 2mm key travel which provides excellent tactile feel, even while wearing gloves, but most impressive is the impermeable molecular barrier sealing protection obtained from a Parylene C conformal coating process. This hygienic medical mouse is impervious to infectious pathogens or carcinogenic compounds with allows complete removal by proper decontamination, sanitization, or sterilization procedures.

This Plug-n-Play hygienic medical mouse / cleanroom pointing device is sealed (water resistant) in the finest grade of stainless steel or an iridited painted aluminum. The metal enclosure has a gasket sealed bottom plate with closed foam cushion padding for operator comfort. The 9.5 foot USB cable is secured through a specially designed white PVC strain relief which is Parylene C coated. Optionally, a USB bulkhead cable is available if the USB port is behind a panel or cabinet. The Parylene C coated medical mouse is a very precise finger controlled pointer, it is the most reliable cursor controller.

As a Plug-n-Play medical mouse or cleanroom pointing device, this hygienic cursor controller can be confidently installed with an assurance of high reliability and long term durability. Applications include managing infection control in healthcare facilities or managing exposure and/or contamination control in chemical, biological, or pharmaceutical research laboratories and other cleanroom facilities such as semiconductor, lithography, and manufacturing. To maintain a clean appearance in these facilities a convenient anodized aluminum M2000 holder/cradle can be easily secured alongside any machine or cabinet.

Related Documentation:

Specifications

M20U6-N24W Plug-n-Play Medical Mouse / Cleanroom Pointing Device Specification

Medical Mouse / Cleanroom Pointing Device
Original Industrial Mouse™ (Joystick Cursor Controller) - A CTI invention!
Reliable mouse cursor, field proven for 30 years
Patented - Non contact inductive handle
No moving electrical parts or magnets
No wear and no drift
Gain never changes - No calibration needed
3/16" diameter solid stainless steel shaft
Four different knob options - Parylene coated
Knobs with pushbuttons on top to act like "left mouse button" for double clicking and drag and drop
White elastomer mouse switches - Parylene coated
Withstands 25 lbs. static load
40° total deflection of joystick travel
White FDA silicone boot - Parylene coated

Features & Options:
NEMA 4, NEMA 4X (IP66)
Point and click operation
Waterproof connector assembly for simple cable installation through metal cabinets
Sealed gold plated switch contacts
Port compatible with all computers - no software drivers needed
Stainless steel or painted aluminum enclosures
Repairable design
Easy to use sealed mouse cursor
Joystick withstands 25lbs of a static load
USB Output
Direct factory support - Made in USA

Temperature Ratings:
Operating Temperature  0º to 80º C
Operating (Optional)      -40ºC to 80º C
Storage Temperature: -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures): 100,000 hours per MIL-HDBK-217F.
Shock Rating: 30g to 50g depending on Knob 11ms -1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration: Mil-Std-810F, Category 4
Elastomer Switches: Rated for up to 10 million cycles
Joystick button: Rated at 1 million cycles
Joystick:  Rated at 10 million random operations

Certifications:
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant
PDF IconM2XU6-NxW Medical Mouse Product Data Sheet
PDF Icon Industrial Mouse™ (Joystick Cursor Controller) Specification

Pricing

Plug-n-Play Medical Mouse / Cleanroom Pointing Device Pricing

Thank you for selecting CTIs medical / cleanroom computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "medical grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called medical products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPlug-n-Play Medical Mouse / Cleanroom Pointing Device Pricing

M2XU6-N24 Medical Mouse / Cleanroom Pointing Device
Photos
Videos
How-To
RFQ

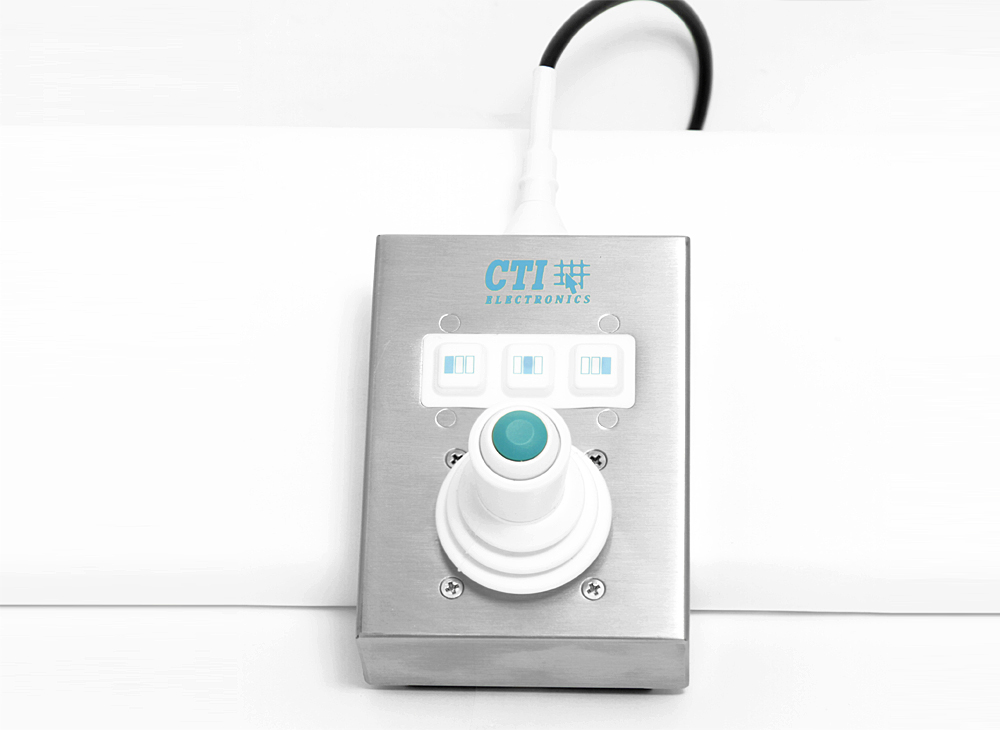

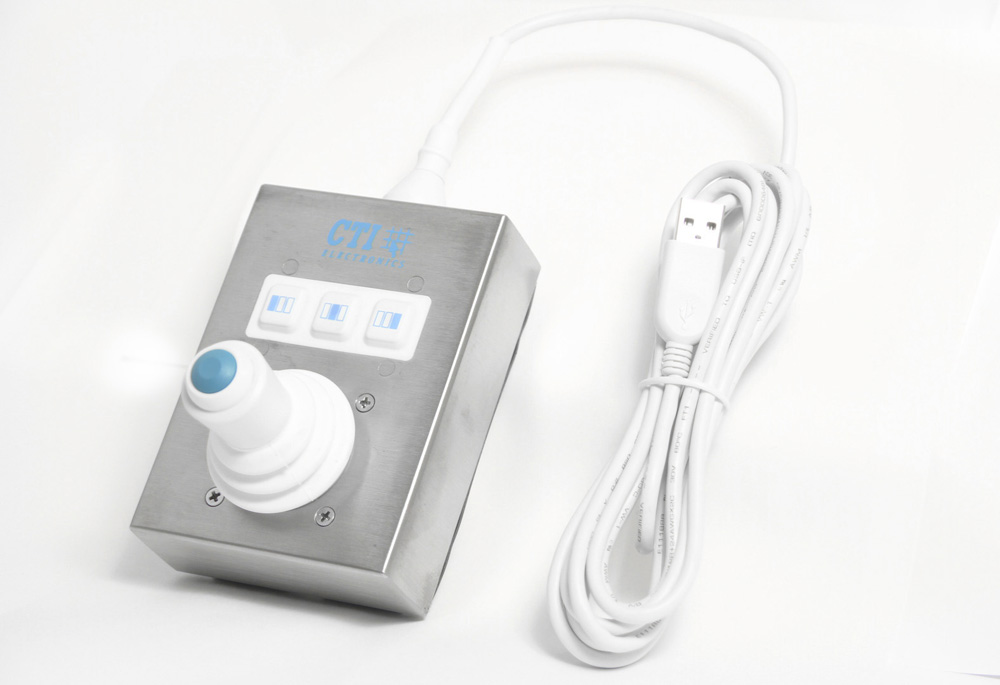

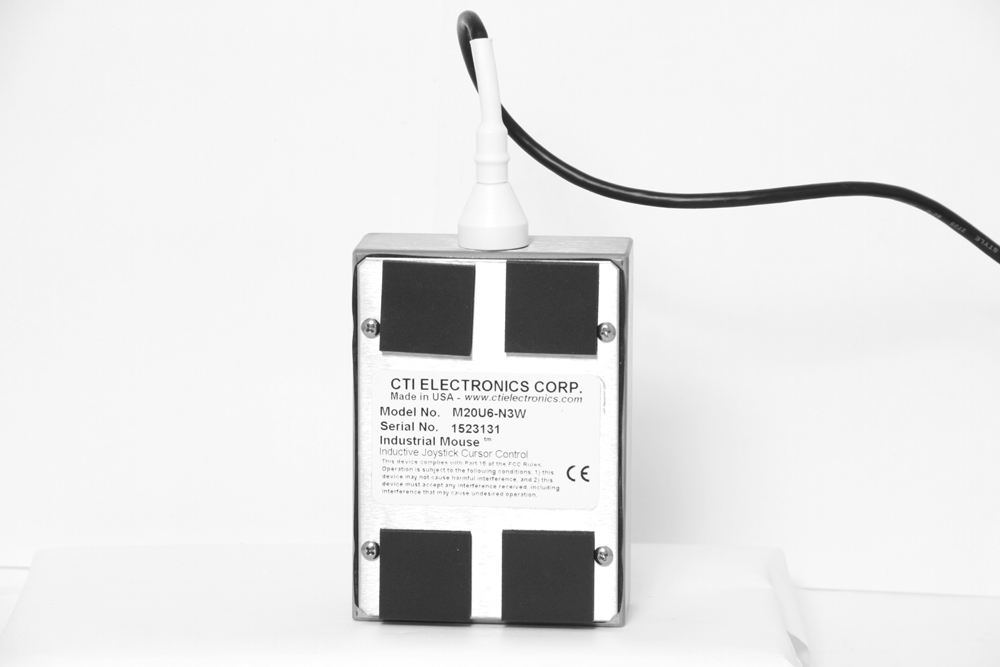

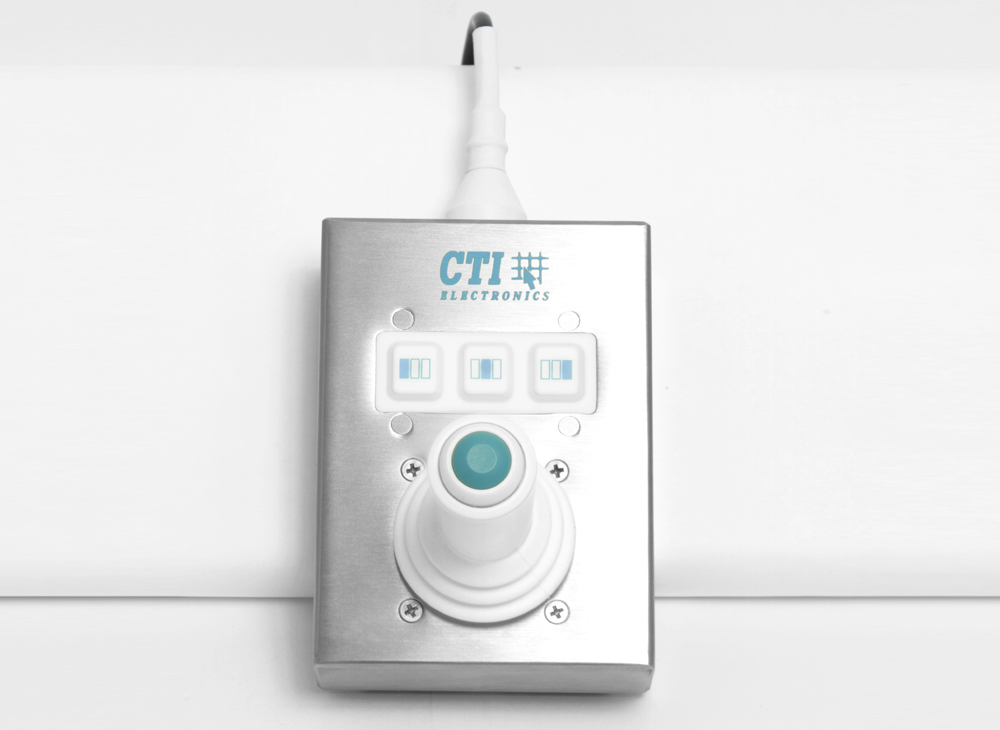

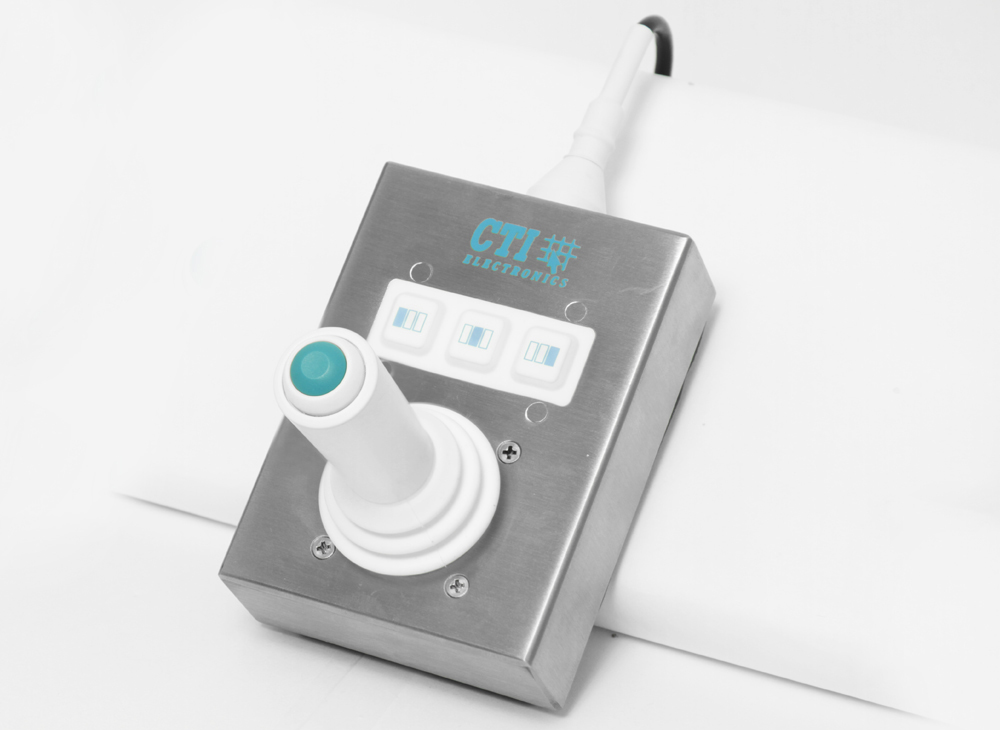

M20U6-N3W Plug-n-Play Medical Mouse / Cleanroom Pointing Device

NEMA 4X (IP66) watertight sealed Handheld Medical Mouse / Cleanroom Pointing Device with Three (3) Mouse Buttons

Product Information

The NEMA 4X (IP66) sealed M20U6-N3W medical mouse is a fully enclosed Plug-n-Play pointing device that is offered to Systems Integrators and Commercial End Users. The space-saving design utilizes the original Industrial Mouse™ (Joystick Cursor Controller) mouse pointer with a blue "left click" button and a Three (3) Button Switchpad for the left, middle, and right mouse buttons. The heavy duty switchpad is layered with thick "hard gold" contacts and the white elastomer has molded "hard carbon" pill contacts that has been proven to provide more than 10 years of reliable, maintenance free, service. The white elastomer has a 2mm key travel which provides excellent tactile feel, even while wearing gloves, but most impressive is the impermeable molecular barrier sealing protection obtained from a Parylene C conformal coating process. This hygienic medical mouse is impervious to infectious pathogens or carcinogenic compounds with allows complete removal by proper decontamination, sanitization, or sterilization procedures.

This Plug-n-Play hygienic medical mouse / cleanroom pointing device is sealed (water resistant) in the finest grade of stainless steel or an iridited painted aluminum. The metal enclosure has a gasket sealed bottom plate with closed foam cushion padding for operator comfort. The 9.5 foot USB cable is secured through a specially designed white PVC strain relief which is Parylene C coated. Optionally, a USB bulkhead cable is available if the USB port is behind a panel or cabinet. The Parylene C coated medical mouse is a very precise finger controlled pointer, it is the most reliable cursor controller.

As a Plug-n-Play medical mouse or cleanroom pointing device, this hygienic cursor controller can be confidently installed with an assurance of high reliability and long term durability. Applications include managing infection control in healthcare facilities or managing exposure and/or contamination control in chemical, biological, or pharmaceutical research laboratories and other cleanroom facilities such as semiconductor, lithography, and manufacturing. To maintain a clean appearance in these facilities a convenient anodized aluminum M2000 holder/cradle can be easily secured alongside any machine or cabinet.

Related Documentation:

Specifications

M20U6-N3W Plug-n-Play Medical Mouse / Cleanroom Pointing Device Specification

Medical Mouse / Cleanroom Pointing Device
Original Industrial Mouse™ (Joystick Cursor Controller) - A CTI invention!
Reliable mouse cursor, field proven for 30 years
Patented - Non contact inductive handle
No moving electrical parts or magnets
No wear and no drift
Gain never changes - No calibration needed
3/16" diameter solid stainless steel shaft
Four different knob options - Parylene coated
Knobs with pushbuttons on top to act like "left mouse button" for double clicking and drag and drop
White elastomer mouse switches - Parylene coated
Withstands 25 lbs. static load
40° total deflection of joystick travel
White FDA silicone boot - Parylene coated

Features & Options:
NEMA 4, NEMA 4X (IP66)
Point and click operation
Waterproof connector assembly for simple cable installation through metal cabinets
Sealed gold plated switch contacts
Port compatible with all computers - no software drivers needed
Stainless steel or painted aluminum enclosures
Repairable design
Easy to use sealed mouse cursor
Joystick withstands 25lbs of a static load
USB Output
Direct factory support - Made in USA

Temperature Ratings:
Operating Temperature  0º to 80º C
Operating (Optional)      -40ºC to 80º C
Storage Temperature: -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures): 100,000 hours per MIL-HDBK-217F.
Shock Rating: 30g to 50g depending on Knob 11ms -1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration: Mil-Std-810F, Category 4
Elastomer Switches: Rated for up to 10 million cycles
Joystick button: Rated at 1 million cycles
Joystick:  Rated at 10 million random operations

Certifications:
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant
PDF IconM2XU6-NxW Medical Mouse Product Data Sheet
PDF Icon Industrial Mouse™ (Joystick Cursor Controller) Specification

Pricing

Plug-n-Play Medical Mouse / Cleanroom Pointing Device Pricing

Thank you for selecting CTIs medical / cleanroom computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "medical grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called medical products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPlug-n-Play Medical Mouse / Cleanroom Pointing Device Pricing

M2XU6-N3 Medical Mouse / Cleanroom Pointing Device
Photos
Videos
How-To
RFQ

M20U6-N33W Plug-n-Play Medical Mouse / Cleanroom Pointing Device

NEMA 4X (IP66) watertight sealed Handheld Medical Mouse / Cleanroom Pointing Device with Three (3) Mouse Buttons

Product Information

The NEMA 4X (IP66) sealed M20U6-N33 medical mouse is a fully enclosed Plug-n-Play pointing device that is offered to Systems Integrators and Commercial End Users. The space-saving design utilizes the original Industrial Mouse™ (Joystick Cursor Controller) mouse pointer with a blue "left click" button and a Three (3) Button Switchpad for the left, middle, and right mouse buttons. The heavy duty switchpad is layered with thick "hard gold" contacts and the white elastomer has molded "hard carbon" pill contacts that has been proven to provide more than 10 years of reliable, maintenance free, service. The white elastomer has a 2mm key travel which provides excellent tactile feel, even while wearing gloves, but most impressive is the impermeable molecular barrier sealing protection obtained from a Parylene C conformal coating process. This hygienic medical mouse is impervious to infectious pathogens or carcinogenic compounds with allows complete removal by proper decontamination, sanitization, or sterilization procedures.

This Plug-n-Play hygienic medical mouse / cleanroom pointing device is sealed (water resistant) in the finest grade of stainless steel or an iridited painted aluminum. The metal enclosure has a gasket sealed bottom plate with closed foam cushion padding for operator comfort. The 9.5 foot USB cable is secured through a specially designed white PVC strain relief which is Parylene C coated. Optionally, a USB bulkhead cable is available if the USB port is behind a panel or cabinet. The Parylene C coated medical mouse is a very precise finger controlled pointer, it is the most reliable cursor controller.

As a Plug-n-Play medical mouse or cleanroom pointing device, this hygienic cursor controller can be confidently installed with an assurance of high reliability and long term durability. Applications include managing infection control in healthcare facilities or managing exposure and/or contamination control in chemical, biological, or pharmaceutical research laboratories and other cleanroom facilities such as semiconductor, lithography, and manufacturing. To maintain a clean appearance in these facilities a convenient anodized aluminum M2000 holder/cradle can be easily secured alongside any machine or cabinet.

Related Documentation:

Specifications

M20U6-N33W Plug-n-Play Medical Mouse / Cleanroom Pointing Device Specification

Medical Mouse / Cleanroom Pointing Device
Original Industrial Mouse™ (Joystick Cursor Controller) - A CTI invention!
Reliable mouse cursor, field proven for 30 years
Patented - Non contact inductive handle
No moving electrical parts or magnets
No wear and no drift
Gain never changes - No calibration needed
3/16" diameter solid stainless steel shaft
Four different knob options - Parylene coated
Knobs with pushbuttons on top to act like "left mouse button" for double clicking and drag and drop
White elastomer mouse switches - Parylene coated
Withstands 25 lbs. static load
40° total deflection of joystick travel
White FDA silicone boot - Parylene coated

Features & Options:
NEMA 4, NEMA 4X (IP66)
Point and click operation
Waterproof connector assembly for simple cable installation through metal cabinets
Sealed gold plated switch contacts
Port compatible with all computers - no software drivers needed
Stainless steel or painted aluminum enclosures
Repairable design
Easy to use sealed mouse cursor
Joystick withstands 25lbs of a static load
USB Output
Direct factory support - Made in USA

Temperature Ratings:
Operating Temperature  0º to 80º C
Operating (Optional)      -40ºC to 80º C
Storage Temperature: -40º to 80º C

Reliability:
MTBF (Mean Time Between Failures): 100,000 hours per MIL-HDBK-217F.
Shock Rating: 30g to 50g depending on Knob 11ms -1/2 sine
Sealing: NEMA 4, NEMA 4X (IP66)
Vibration: Mil-Std-810F, Category 4
Elastomer Switches: Rated for up to 10 million cycles
Joystick button: Rated at 1 million cycles
Joystick:  Rated at 10 million random operations

Certifications:
Meets FCC Class A
Meets CE Requirements, RoHS Compliant
ESD rated to 15KV
USB Protocol Specification 1.1 & 2.0 Compliant, USB HID Specification 1.11 Compliant
PDF IconM2XU6-NxW Medical Mouse Product Data Sheet
PDF Icon Industrial Mouse™ (Joystick Cursor Controller) Specification

Pricing

Plug-n-Play Medical Mouse / Cleanroom Pointing Device Pricing

Thank you for selecting CTIs medical / cleanroom computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "medical grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called medical products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconPlug-n-Play Medical Mouse / Cleanroom Pointing Device Pricing

M2XU6-N33 Medical Mouse / Cleanroom Pointing Device
Photos
Videos
How-To
RFQ

M2000 Series Medical Mouse Holder / Cradle

M2000 Series Cleanroom Pointing Device Holder / Cradle

Product Information

The M2000 series of medical computer mouse pointers can be securely stored in an anodized aluminum holder /cradle. This precision machined cradle has closed foam cushion padding for tight "snug" fit and pre-drilled mounting holes for easy panel mounting. It offers a place of convenient storage and protection for the M2000 series Medical Mouse / Cleanroom Pointing Devices.

Related Documentation:

Specifications

Black Anodized Aluminum

Pricing

M2000 Pricing

$60 each



M2000 Industrial Mouse™ Holder
Photos
Videos
How-To
RFQ
TOP
Manufactured in U.S.A. Manufactured in U.S.A. Copyright © 2001-2024 | CTI Electronics an affiliate of ELECTRO SWITCH | Tel: (203) 386-9779 | All Rights Reserved - sitemap | Sales | Tech
