F-Series OEM Analog Joysticks



Understanding the Progression of Joystick Technologies

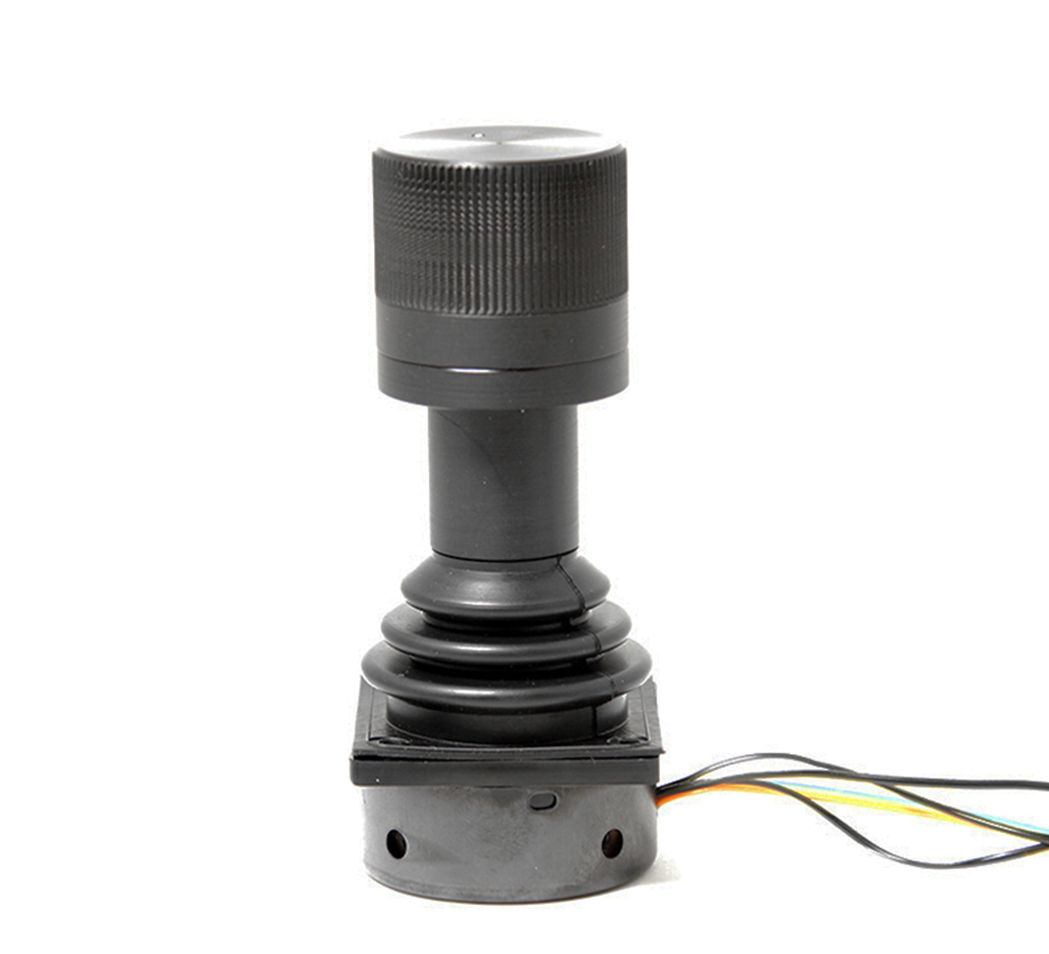

Inductive Analog Joystick Knobs




Analog Joystick Knob Options for F1000 Industrial Joysticks

CTI' inductive industrial joystick is the most reliable and durable joystick available anywhere in the world today. Its inductive coil sensor technology cannot be affected by changes in temperature, age, or usage. There is never a "drifting" issue of the calibrated voltage setting as the ratio of coil windings remains constant. The coil sensor is not prone to the wear issues of potentiometer joysticks or degradation of material composition in hall effect joysticks.
The robust design of CTI' inductive industrial joystick is comprised of only three moving parts: the shaft (3/8" diameter solid stainless steel), the spring-guide, and the spring. The two joystick body parts which encase the shaft bearing are secured together by six screws. The four mounting holes have threaded brass inserts instead of just clearance holes, which protects the body from cracking due to stresses caused by the installation, vibration, or shock
Long term durability is guaranteed through the use of the highest quality materials and components which also ensures the highest reliability over the broadest operating temperature range. CTI' inductive industrial joystick is the only choice when reliability is critical™ to the success of your application.

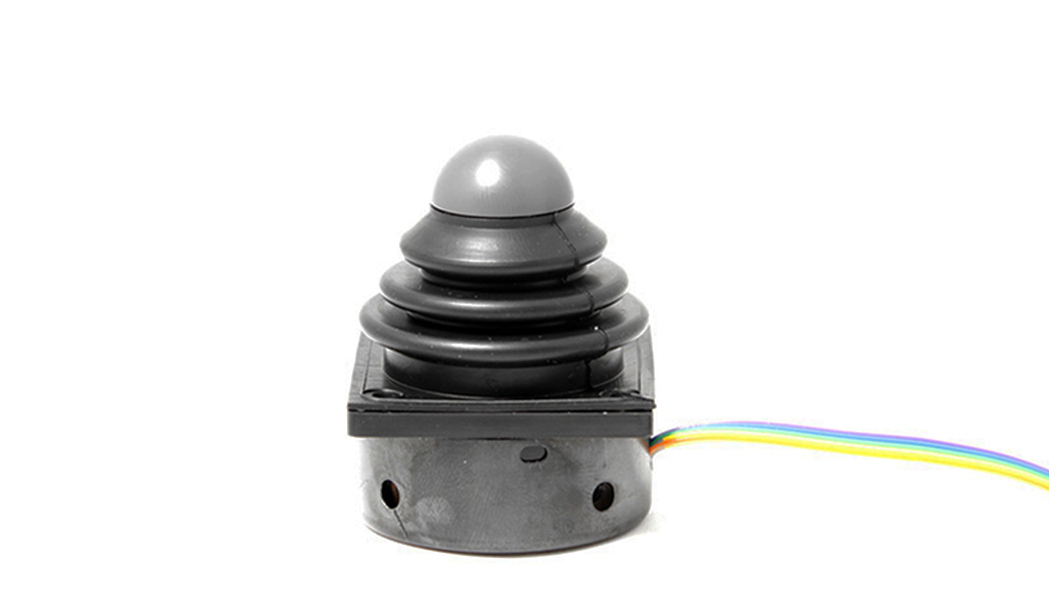

F1000-N5 Series OEM Analog Joystick

NEMA 4 (IP66) Miniature Industrial Joysticks

Product Information

F1000-N5 Series OEM Analog Joystick Features

Standard Joystick Features Optional Joystick Features
Single Axis or Two Axes Analog Joystick Non-Simultaneous X&Y Axis Movement (Cross Pattern) - by special order only
No button on joystick Conformal Coating of PCB - Moisture protection
Spring Return to Center Friction Held - by special order only
Operating Temperature Range 0°C to 80°C (0°F to 176°F) Operating Temperature Range -40°C to 80°C (-40°F to 176°F)
Storage Temperature Range -40°C to 80°C (-40°F to 176°F) Storage Temperature Range -40°C to 80°C (-40°F to 176°F)
Neoprene Boot - NEMA 4 (IP66) sealing Silicone Conductive Boot and Ferrite Bead NEMA 4 (IP66) sealing - EMI/RFI protection
Deadband - 1° to 2° zone around center No Deadband - without a 1° to 2° zone around center
Palm or Finger Operation Maximum Compression Spring - Increased Breakout Force
Seven input/output voltage options Customized input/output voltage option
Non-contacting inductive technology provides increased reliability and durability over a complete potentiometer joystick (resistive) or hall effect joystick design. Optical Neutral "Safety" Switch -Electrical indicator of an Open Circuit or Short Circuit

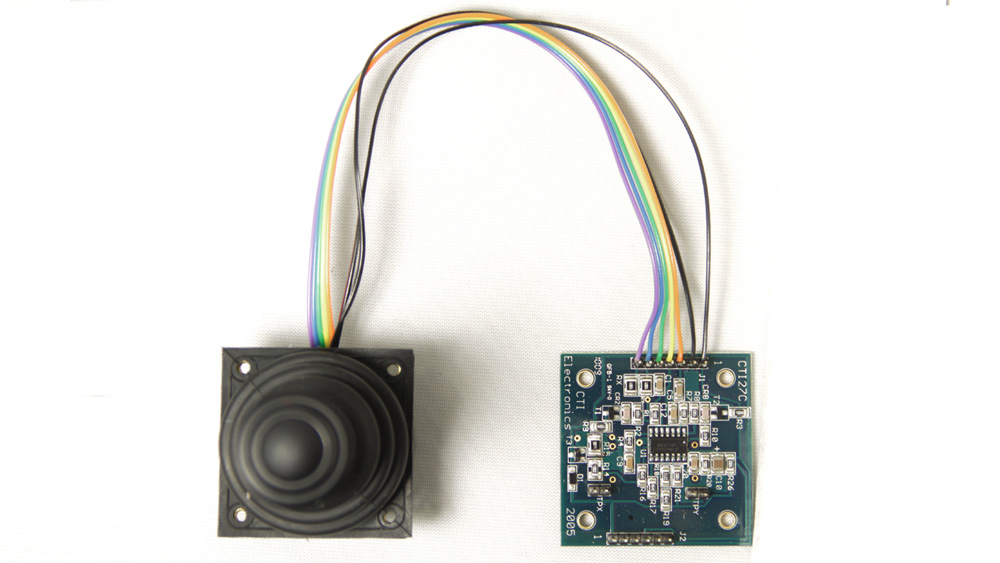

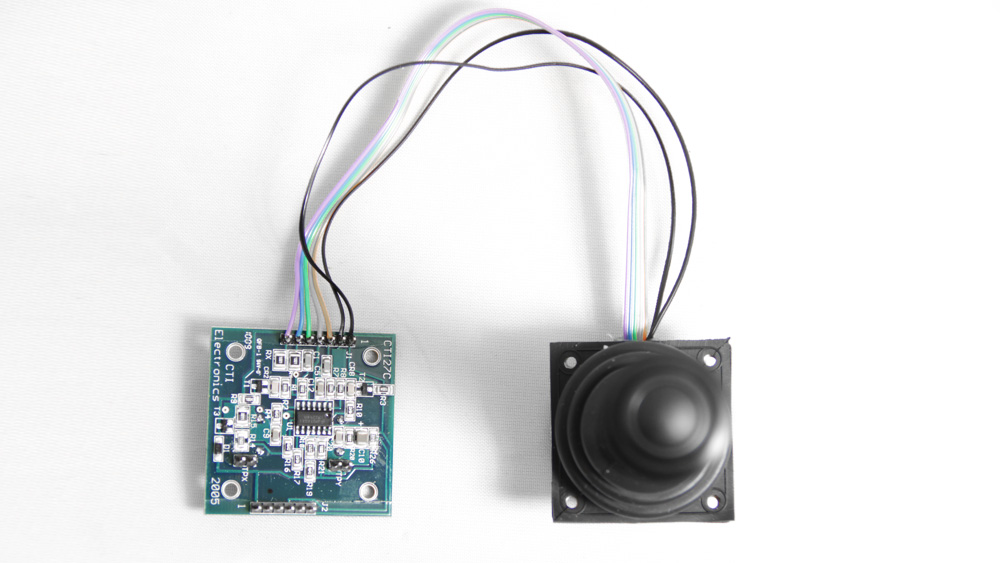

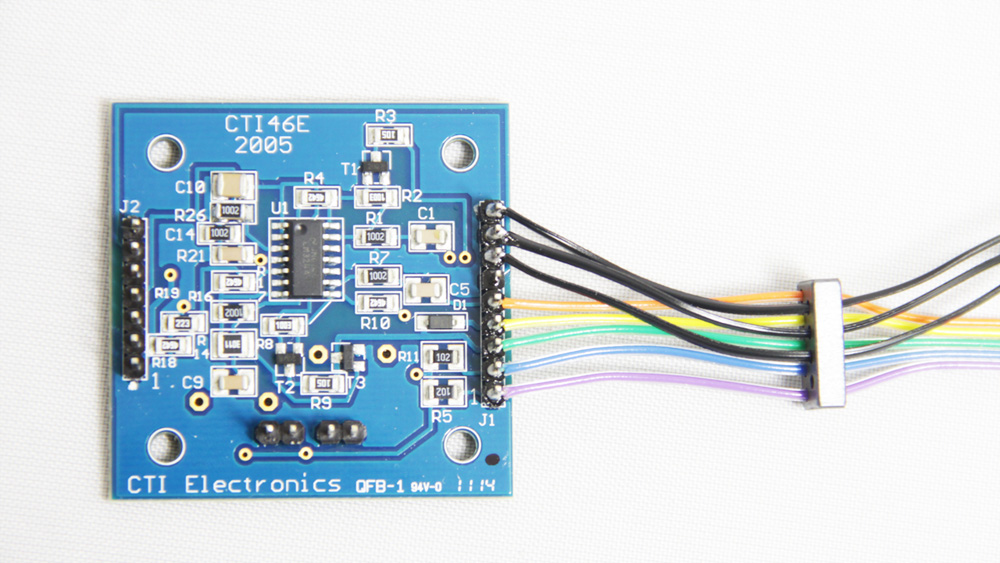

New Integrated PCB Option vs. Standard Option

CTI's custom inductive joysticks are ruggedized to meet aerospace, medical, and military standards. CTI's inductive joysticks can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These inductive joysticks are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:


Specifications

F1000-N5 Series OEM Analog Joystick Specification

F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

MECHANICAL SPECIFICATION
N5 Dimensions Above Panel: 1.4” (35.05mm) Below Panel: 0.87” (22.10mm) Base:1.65” SQ. (41.91mm SQ.)
N5 Specification Knob Type Non-Pushbutton Axes Single or Dual Axes Sensor Technology Inductive
Life Expectancy X & Y Axes 10,000,000 random deflections
MTBF Greater than 100,000 hours
Movement X & Y Axes Movement Max +/- 20˚ travel
Position Placement Spring Return (Standard) Friction Held (Special Order)
Operational Force X & Y Breakout Force 140g (Standard) Two (G Options)
X & Y Full Scale Force 235g (Standard) Two (G Options)
Vibration Frequency / Displacement
5-25 Hz / 0.1” 25-55 Hz / 0.03”
ENVIRONMENTAL SPECIFICATION
Operating Temperature 0º to 80º C / 32º to 176º F (Standard) -40º to 80º C / -40º to 176º F (D Option)
Storage Temperature -40º to 80º C / -40º to 176º F
Relative Humidity Range 35-65%, 100% non-condensing 100% condensing (Z Option)
Sealing Rating X & Y Axes: NEMA 4 (IP66)
CONFORMANCE / CERTIFICATION / COMPLIANCE
U.S.A Standards U.S. FCC 47 CFR 15 Class A & B RF Emissions Compliant 8Kv (Contact), 15Kv (Air)
  MIL-STD-461F Radiated Emissions and Susceptibility Conformance
  MIL-STD-810G Protection against humidity, fungus, and salt spray Conformance
  MIL-STD-910D Protection against shock Conformance
  MIL-STD-671-1 Protection against vibration Conformance
  MIL-STD-1427G Human Factors Conformance
  MIL-I-45208 Quality System Conformance
  IPC-A-610 Acceptability of Electronics Assemblies Certification
European Standards "CE" Compliant
  Restriction of Hazardous Substance (RoHS) Directive Complaint
  Regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Directive Compliant
International Standards IEC 61000-4-2 and EN61000-4-2 ESD 8Kv contact and 15Kv air Conformance
IEC 61000-4-3 and EN61000-4-3 Radiated Emissions and Susceptibility Conformance
  IEC 61000-6-3 and EN61000-6-3 Electromagnetic Compatibility Conformance
  IEC 60601-1 and EN60601-1 Medical Device Design and Manufacture Conformance
  IEC 62353 and BS EN62353 Medical Device Recurrent Testing Conformance
subject to manufacturing options applied


PDF IconF1000-N5 Industrial Joystick Product Data Sheet

Pricing

OEM Analog Industrial Joystick Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Analog Industrial Joystick Pricing

F1000-N5 OEM Analog Joystick
Photos
Videos
How-To
RFQ

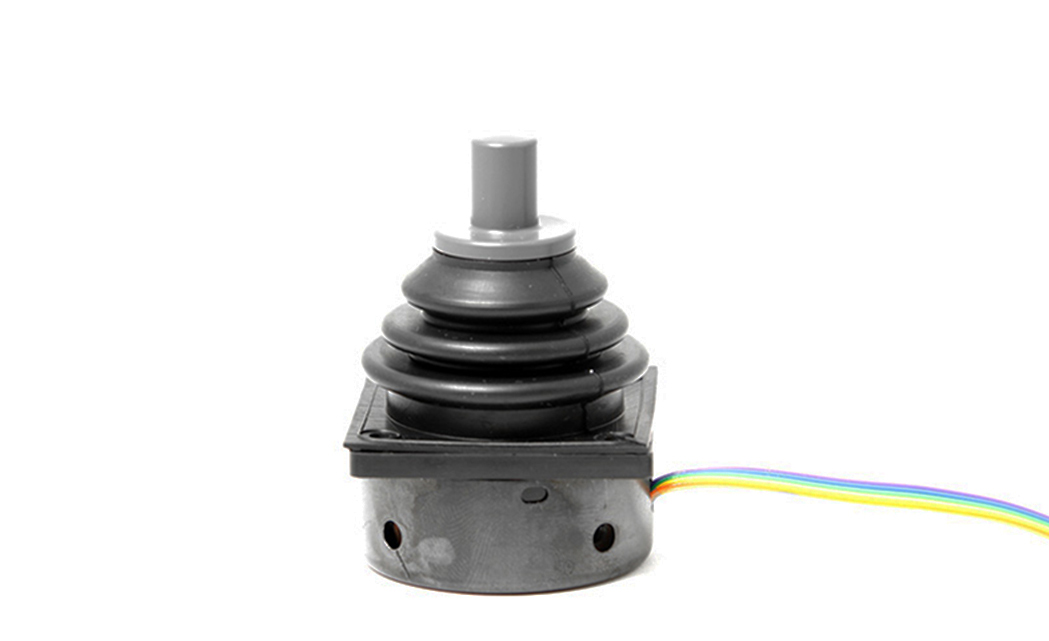

F1000-N2 Series OEM Analog Joystick

NEMA 4 (IP66) Miniature Industrial Joysticks

Product Information

F1000-N2 Series OEM Analog Joystick Features

Standard Joystick Features Optional Joystick Features
Single Axis or Two Axes Analog Joystick Non-Simultaneous X&Y Axis Movement (Cross Pattern) - by special order only
No button on joystick Conformal Coating of PCB - Moisture protection
Spring Return to Center Friction Held - by special order only
Operating Temperature Range 0°C to 80°C (0°F to 176°F) Operating Temperature Range -40°C to 80°C (-40°F to 176°F)
Storage Temperature Range -40°C to 80°C (-40°F to 176°F) Storage Temperature Range -40°C to 80°C (-40°F to 176°F)
Neoprene Boot - NEMA 4 (IP66) sealing Silicone Conductive Boot and Ferrite Bead NEMA 4 (IP66) sealing - EMI/RFI protection
Deadband - 1° to 2° zone around center No Deadband - without a 1° to 2° zone around center
Finger Operation Maximum Compression Spring - Increased Breakout Force
Seven input/output voltage options Customized input/output voltage option
Non-contacting inductive technology provides increased reliability and durability over a complete potentiometer joystick (resistive) or hall effect joystick design. Optical Neutral "Safety" Switch -Electrical indicator of an Open Circuit or Short Circuit

New Integrated PCB Option vs. Standard Option

CTI's custom inductive joysticks are ruggedized to meet aerospace, medical, and military standards. CTI's inductive joysticks can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These inductive joysticks are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

F1000-N2 Series OEM Analog Joystick Specification

F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

MECHANICAL SPECIFICATION
N2 Dimensions Above Panel: 1.6" (40.64mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N2 Specification Knob Type Non-Pushbutton Axes Single or Dual Axes Sensor Technology Inductive
Life Expectancy X & Y Axes 10,000,000 random deflections
MTBF Greater than 100,000 hours
Movement X & Y Axes Movement Max +/- 20˚ travel
Position Placement Spring Return (Standard) Friction Held (Special Order)
Operational Force X & Y Breakout Force 140g (Standard) Two (G Options)
X & Y Full Scale Force 235g (Standard) Two (G Options)
Vibration Frequency / Displacement
5-25 Hz / 0.1" 25-55 Hz / 0.03"
ENVIRONMENTAL SPECIFICATION
Operating Temperature 0º to 80º C / 32º to 176º F (Standard) -40º to 80º C / -40º to 176º F (D Option)
Storage Temperature -40º to 80º C / -40º to 176º F
Relative Humidity Range 35-65%, 100% non-condensing 100% condensing (Z Option)
Sealing Rating X & Y Axes: NEMA 4 (IP66)
CONFORMANCE / CERTIFICATION / COMPLIANCE
U.S.A Standards U.S. FCC 47 CFR 15 Class A & B RF Emissions Compliant 8Kv (Contact), 15Kv (Air)
  MIL-STD-461F Radiated Emissions and Susceptibility Conformance
  MIL-STD-810G Protection against humidity, fungus, and salt spray Conformance
  MIL-STD-910D Protection against shock Conformance
  MIL-STD-671-1 Protection against vibration Conformance
  MIL-STD-1427G Human Factors Conformance
  MIL-I-45208 Quality System Conformance
  IPC-A-610 Acceptability of Electronics Assemblies Certification
European Standards "CE" Compliant
  Restriction of Hazardous Substance (RoHS) Directive Complaint
  Regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Directive Compliant
International Standards IEC 61000-4-2 and EN61000-4-2 ESD 8Kv contact and 15Kv air Conformance
IEC 61000-4-3 and EN61000-4-3 Radiated Emissions and Susceptibility Conformance
  IEC 61000-6-3 and EN61000-6-3 Electromagnetic Compatibility Conformance
  IEC 60601-1 and EN60601-1 Medical Device Design and Manufacture Conformance
  IEC 62353 and BS EN62353 Medical Device Recurrent Testing Conformance
subject to manufacturing options applied


PDF IconF1000-N2 Industrial Joystick Product Data Sheet

Pricing

OEM Analog Industrial Joystick Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Analog Industrial Joystick Pricing


F1000-N2 OEM Analog Joystick
Photos
Videos
How-To
RFQ

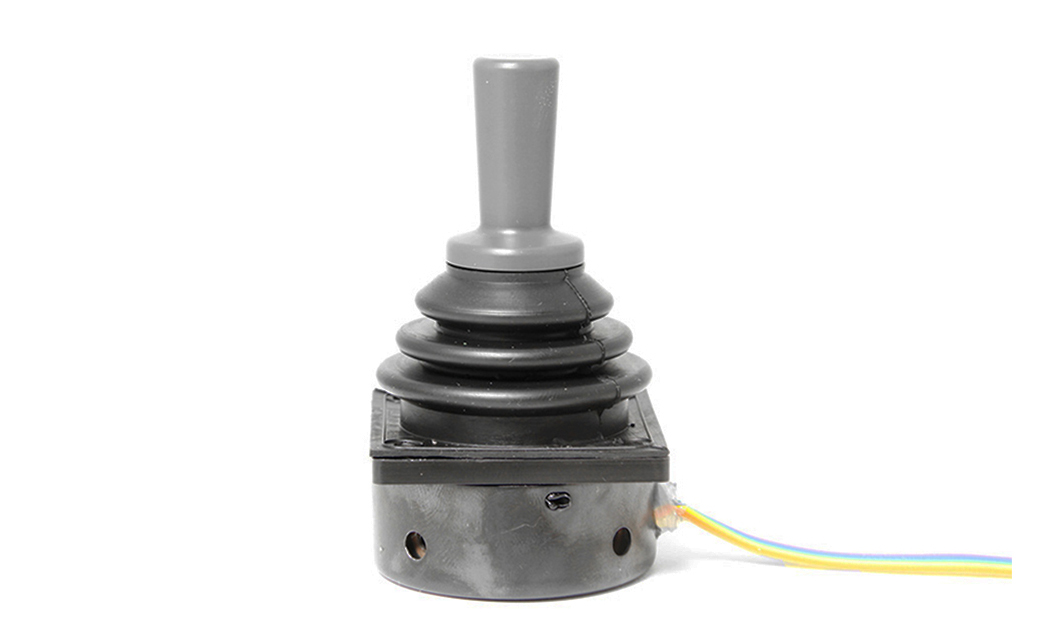

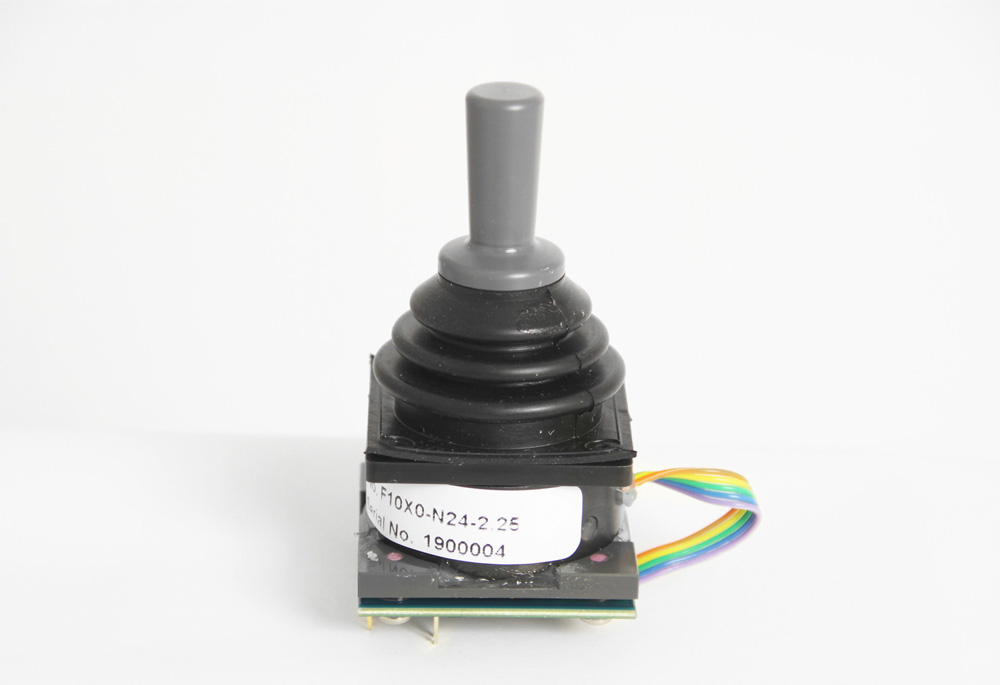

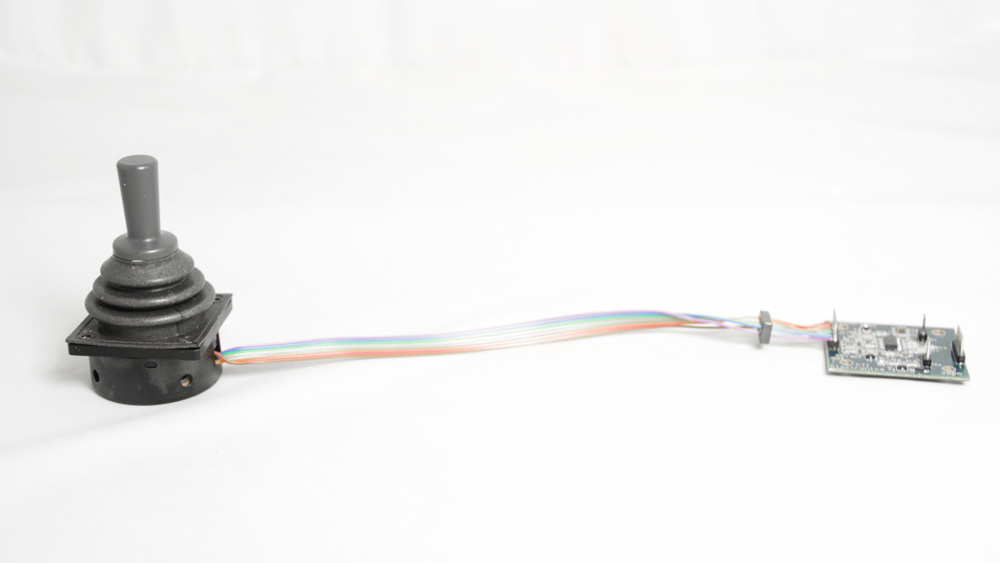

F1000-N24 Series OEM Analog Joystick

NEMA 4 (IP66) Miniature Industrial Joysticks

Product Information

F1000-N24 Series OEM Analog Joystick Features

Standard Joystick Features Optional Joystick Features
Single Axis or Two Axes Analog Joystick Non-Simultaneous X&Y Axis Movement (Cross Pattern) - by special order only
No button on joystick Conformal Coating of PCB - Moisture protection
Spring Return to Center Friction Held - by special order only
Operating Temperature Range 0°C to 80°C (0°F to 176°F) Operating Temperature Range -40°C to 80°C (-40°F to 176°F)
Storage Temperature Range -40°C to 80°C (-40°F to 176°F) Storage Temperature Range -40°C to 80°C (-40°F to 176°F)
Neoprene Boot - NEMA 4 (IP66) sealing Silicone Conductive Boot and Ferrite Bead NEMA 4 (IP66) sealing - EMI/RFI protection
Deadband - 1° to 2° zone around center No Deadband - without a 1° to 2° zone around center
Finger Operation Maximum Compression Spring - Increased Breakout Force
Seven input/output voltage options Customized input/output voltage option
Non-contacting inductive technology provides increased reliability and durability over a complete potentiometer joystick (resistive) or hall effect joystick design. Optical Neutral "Safety" Switch -Electrical indicator of an Open Circuit or Short Circuit

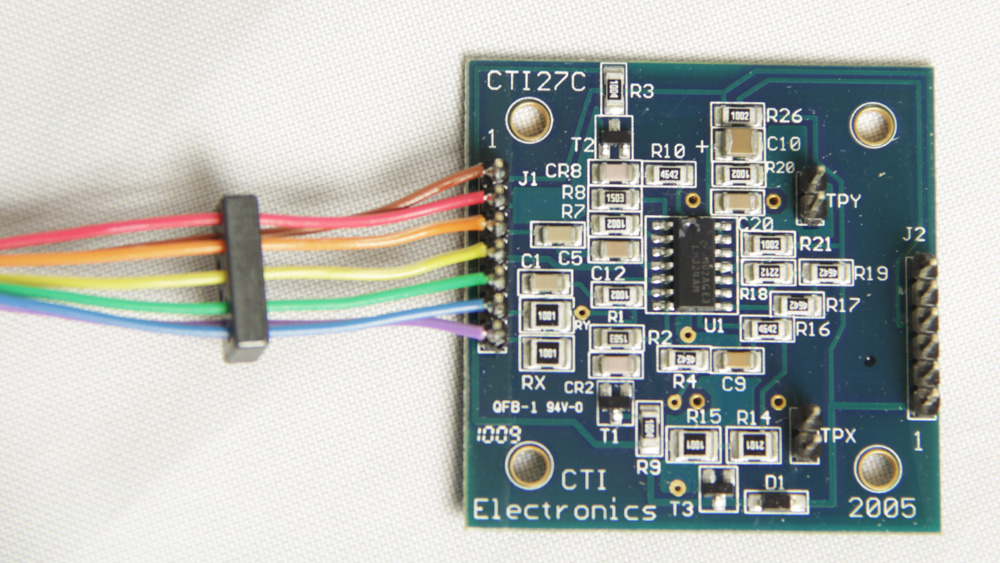

New Integrated PCB Option vs. Standard Option

CTI's custom inductive joysticks are ruggedized to meet aerospace, medical, and military standards. CTI's inductive joysticks can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These inductive joysticks are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

F1000-N24 Series OEM Analog Joystick Specification

F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

MECHANICAL SPECIFICATION
N24 Dimensions Above Panel: 2.1” (53.34mm) Below Panel: 0.87” (22.10mm) Base:1.65” SQ. (41.91mm SQ.)
N24 Specification Knob Type Non-Pushbutton Axes Single or Dual Axes Sensor Technology Inductive
Life Expectancy X & Y Axes 10,000,000 random deflections
MTBF Greater than 100,000 hours
Movement X & Y Axes Movement Max +/- 20˚ travel
Position Placement Spring Return (Standard) Friction Held (Special Order)
Operational Force X & Y Breakout Force 140g (Standard) Two (G Options)
X & Y Full Scale Force 235g (Standard) Two (G Options)
Vibration Frequency / Displacement
5-25 Hz / 0.1” 25-55 Hz / 0.03”
ENVIRONMENTAL SPECIFICATION
Operating Temperature 0º to 80º C / 32º to 176º F (Standard) -40º to 80º C / -40º to 176º F (D Option)
Storage Temperature -40º to 80º C / -40º to 176º F
Relative Humidity Range 35-65%, 100% non-condensing 100% condensing (Z Option)
Sealing Rating X & Y Axes: NEMA 4 (IP66)
CONFORMANCE / CERTIFICATION / COMPLIANCE
U.S.A Standards U.S. FCC 47 CFR 15 Class A & B RF Emissions Compliant 8Kv (Contact), 15Kv (Air)
  MIL-STD-461F Radiated Emissions and Susceptibility Conformance
  MIL-STD-810G Protection against humidity, fungus, and salt spray Conformance
  MIL-STD-910D Protection against shock Conformance
  MIL-STD-671-1 Protection against vibration Conformance
  MIL-STD-1427G Human Factors Conformance
  MIL-I-45208 Quality System Conformance
  IPC-A-610 Acceptability of Electronics Assemblies Certification
European Standards "CE" Compliant
  Restriction of Hazardous Substance (RoHS) Directive Complaint
  Regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Directive Compliant
International Standards IEC 61000-4-2 and EN61000-4-2 ESD 8Kv contact and 15Kv air Conformance
IEC 61000-4-3 and EN61000-4-3 Radiated Emissions and Susceptibility Conformance
  IEC 61000-6-3 and EN61000-6-3 Electromagnetic Compatibility Conformance
  IEC 60601-1 and EN60601-1 Medical Device Design and Manufacture Conformance
  IEC 62353 and BS EN62353 Medical Device Recurrent Testing Conformance
subject to manufacturing options applied


PDF IconF1000-N24 Industrial Joystick Product Data Sheet

Pricing

OEM Analog Industrial Joystick Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Analog Industrial Joystick Pricing


F1000-N24 OEM Analog Joystick
Photos
Videos
How-To
RFQ

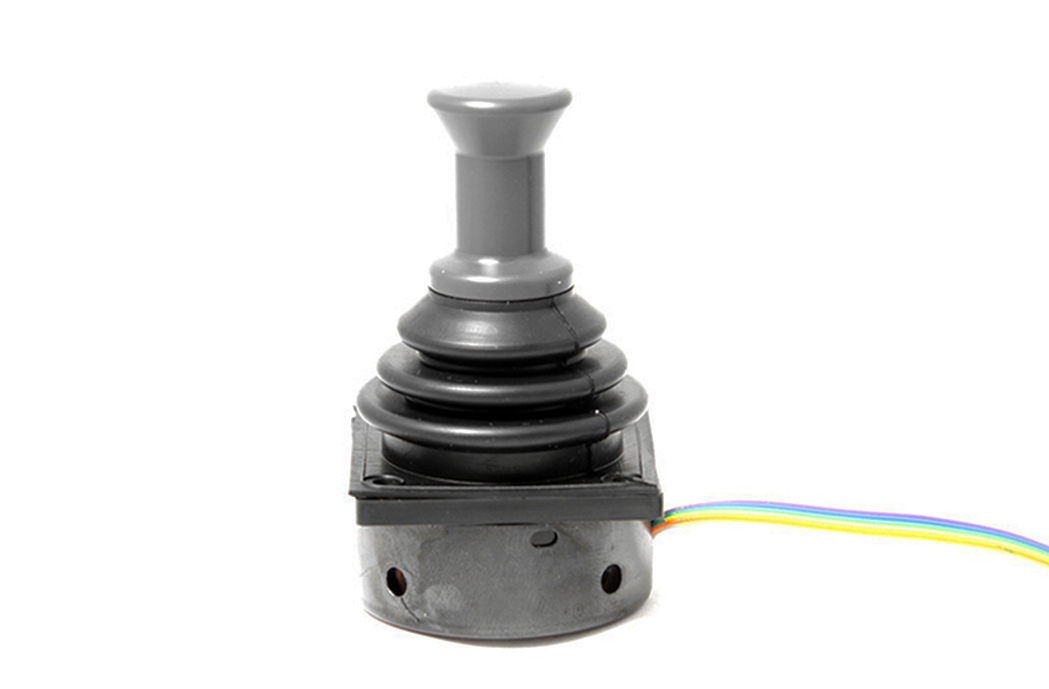

F1000-N54 Series OEM Analog Joystick

NEMA 4 (IP66) Industrial Joysticks

Product Information

F1000-N54 Series OEM Analog Joystick Features

Standard Joystick Features Optional Joystick Features
Single Axis or Two Axes Analog Joystick Non-Simultaneous X&Y Axis Movement (Cross Pattern) - by special order only
No button on joystick Conformal Coating of PCB - Moisture protection
Spring Return to Center Friction Held - by special order only
Operating Temperature Range 0°C to 80°C (0°F to 176°F) Operating Temperature Range -40°C to 80°C (-40°F to 176°F)
Storage Temperature Range -40°C to 80°C (-40°F to 176°F) Storage Temperature Range -40°C to 80°C (-40°F to 176°F)
Neoprene Boot - NEMA 4 (IP66) sealing Silicone Conductive Boot and Ferrite Bead NEMA 4 (IP66) sealing - EMI/RFI protection
Deadband - 1° to 2° zone around center No Deadband - without a 1° to 2° zone around center
Finger Operation Maximum Compression Spring - Increased Breakout Force
Seven input/output voltage options Customized input/output voltage option
Non-contacting inductive technology provides increased reliability and durability over a complete potentiometer joystick (resistive) or hall effect joystick design. Optical Neutral "Safety" Switch -Electrical indicator of an Open Circuit or Short Circuit

New Integrated PCB Option vs. Standard Option

CTI's custom inductive joysticks are ruggedized to meet aerospace, medical, and military standards. CTI's inductive joysticks can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These inductive joysticks are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

F1000-N54 Series OEM Analog Joystick

F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

MECHANICAL SPECIFICATION
N54 Dimensions Above Panel: 2.1" (53.34mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N54 Specification Knob Type Non-Pushbutton Axes Single or Dual Axes Sensor Technology Inductive
Life Expectancy X & Y Axes 10,000,000 random deflections
MTBF Greater than 100,000 hours
Movement X & Y Axes Movement Max +/- 20˚ travel
Position Placement Spring Return (Standard) Friction Held (Special Order)
Operational Force X & Y Breakout Force 140g (Standard) Two (G Options)
X & Y Full Scale Force 235g (Standard) Two (G Options)
Vibration Frequency / Displacement
5-25 Hz / 0.1" 25-55 Hz / 0.03"
ENVIRONMENTAL SPECIFICATION
Operating Temperature 0º to 80º C / 32º to 176º F (Standard) -40º to 80º C / -40º to 176º F (D Option)
Storage Temperature -40º to 80º C / -40º to 176º F
Relative Humidity Range 35-65%, 100% non-condensing 100% condensing (Z Option)
Sealing Rating X & Y Axes: NEMA 4 (IP66)
CONFORMANCE / CERTIFICATION / COMPLIANCE
U.S.A Standards U.S. FCC 47 CFR 15 Class A & B RF Emissions Compliant 8Kv (Contact), 15Kv (Air)
  MIL-STD-461F Radiated Emissions and Susceptibility Conformance
  MIL-STD-810G Protection against humidity, fungus, and salt spray Conformance
  MIL-STD-910D Protection against shock Conformance
  MIL-STD-671-1 Protection against vibration Conformance
  MIL-STD-1427G Human Factors Conformance
  MIL-I-45208 Quality System Conformance
  IPC-A-610 Acceptability of Electronics Assemblies Certification
European Standards "CE" Compliant
  Restriction of Hazardous Substance (RoHS) Directive Complaint
  Regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Directive Compliant
International Standards IEC 61000-4-2 and EN61000-4-2 ESD 8Kv contact and 15Kv air Conformance
IEC 61000-4-3 and EN61000-4-3 Radiated Emissions and Susceptibility Conformance
  IEC 61000-6-3 and EN61000-6-3 Electromagnetic Compatibility Conformance
  IEC 60601-1 and EN60601-1 Medical Device Design and Manufacture Conformance
  IEC 62353 and BS EN62353 Medical Device Recurrent Testing Conformance
subject to manufacturing options applied


PDF IconF1000-N54 Industrial Joystick Product Data Sheet

Pricing

OEM Analog Industrial Joystick Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Analog Industrial Joystick Pricing


F1000-N54 OEM Analog Joystick
Photos
Videos
How-To
RFQ

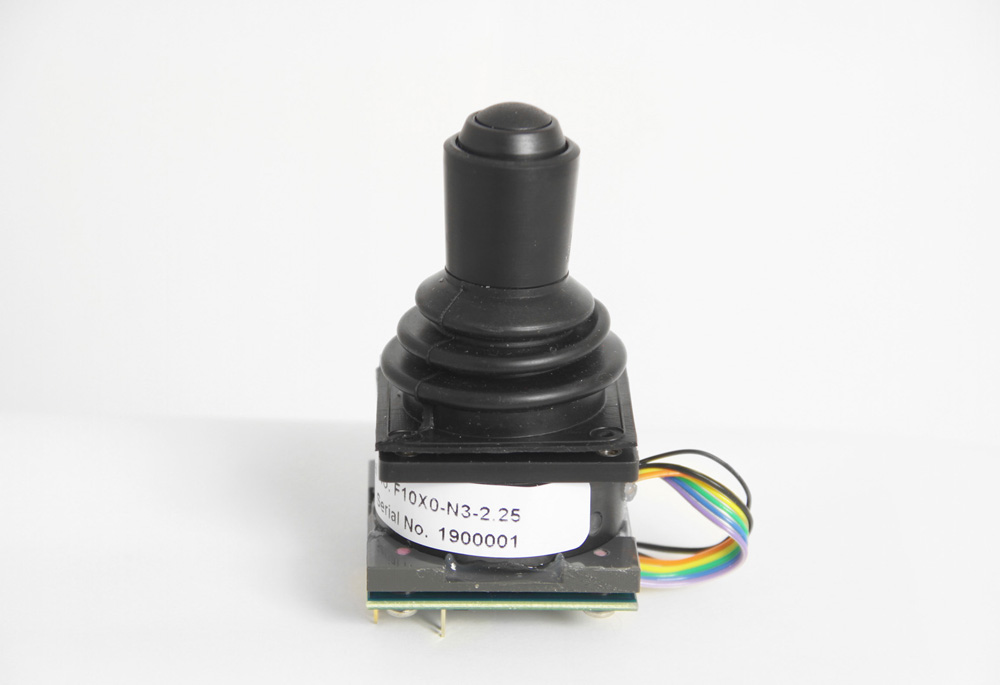

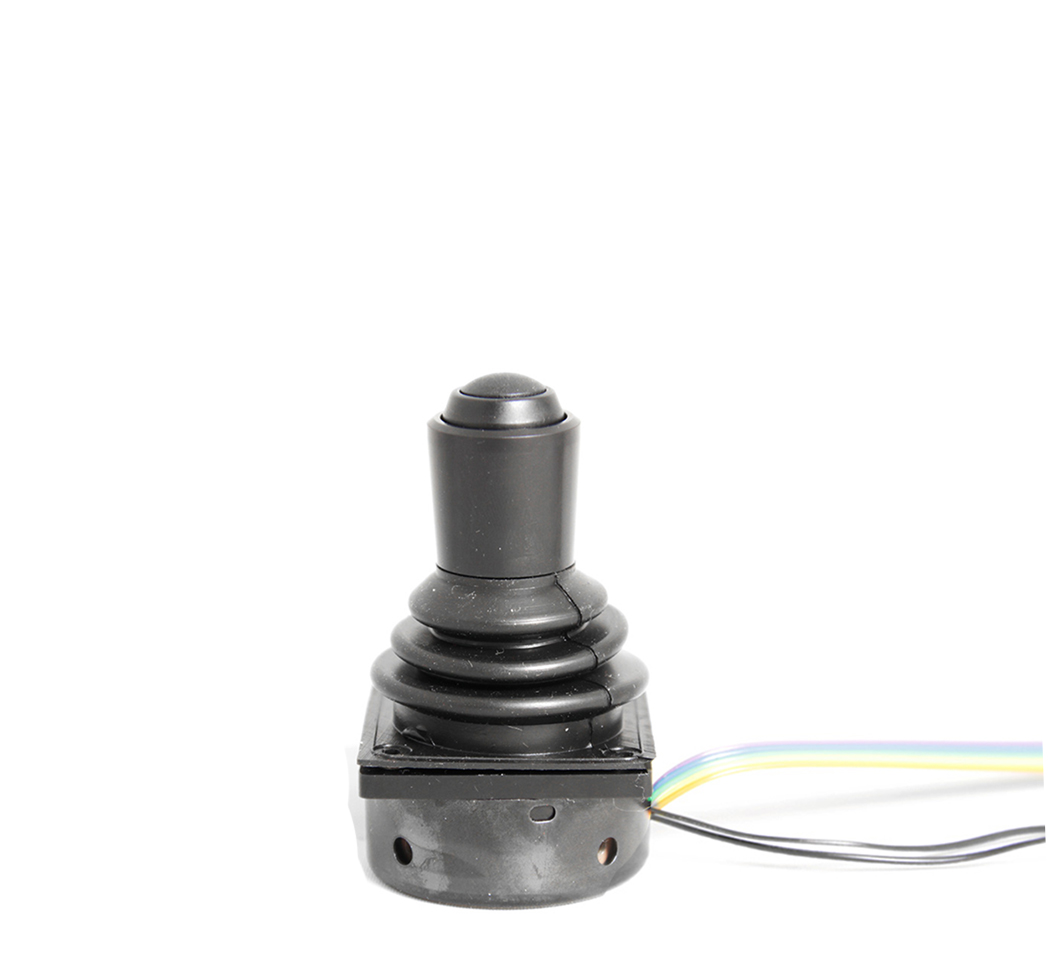

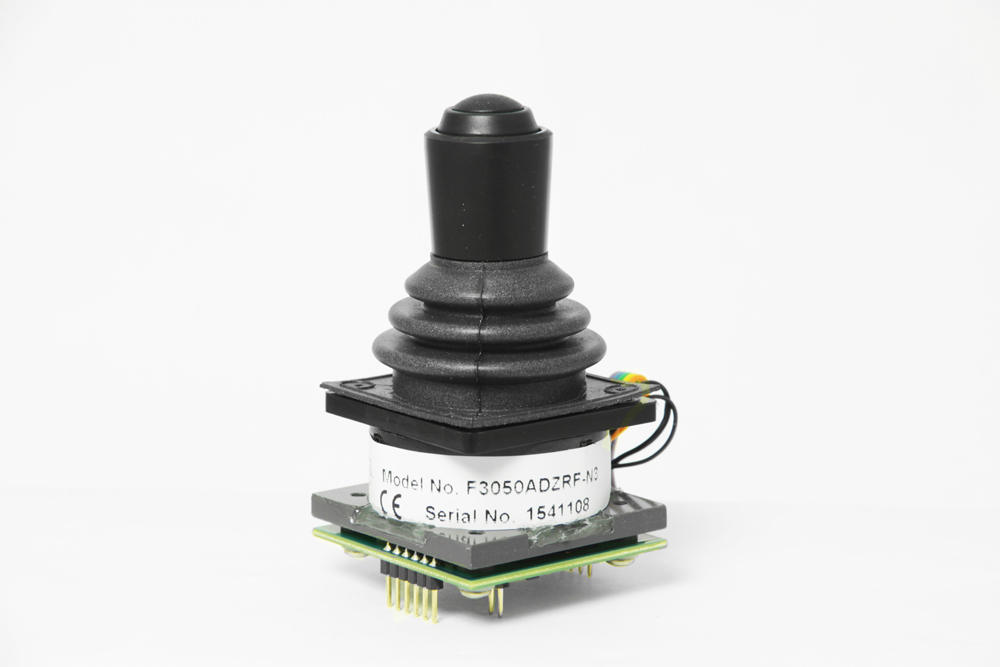

F1000-N3 Series OEM Analog Joystick

NEMA 4 (IP66) (IP66) Industrial Joysticks w/ Pushbutton

Product Information

F1000-N3 Series OEM Analog Joystick Features

Standard Joystick Features Optional Joystick Features
Single Axis or Two Axes Analog Joystick Non-Simultaneous X&Y Axis Movement (Cross Pattern) - by special order only
One momentary button – 1M MTBF, NEMA 4 (IP66) sealing Conformal Coating of PCB - Moisture protection
Spring Return to Center Friction Held - by special order only
Operating Temperature Range 0°C to 80°C (0°F to 176°F) Operating Temperature Range -40°C to 80°C (-40°F to 176°F)
Storage Temperature Range -40°C to 80°C (-40°F to 176°F) Storage Temperature Range -40°C to 80°C (-40°F to 176°F)
Neoprene Boot - NEMA 4 (IP66) sealing Silicone Conductive Boot and Ferrite Bead NEMA 4 (IP66) sealing - EMI/RFI protection
Deadband - 1° to 2° zone around center No Deadband - without a 1° to 2° zone around center
One Hand Operation Maximum Compression Spring - Increased Breakout Force
Seven input/output voltage options Customized input/output voltage option
Non-contacting inductive technology provides increased reliability and durability over a complete potentiometer joystick (resistive) or hall effect joystick design. Optical Neutral "Safety" Switch -Electrical indicator of an Open Circuit or Short Circuit

New Integrated PCB Option vs. Standard Option

CTI's custom inductive joysticks are ruggedized to meet aerospace, medical, and military standards. CTI's inductive joysticks can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These inductive joysticks are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

F1000-N3 Series OEM Analog Joystick Specification

F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

MECHANICAL SPECIFICATION
N3 Dimensions Above Panel: 2.1" (53.34mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N3 Specification Knob Type Pushbutton Axes Single or Dual Axes Sensor Technology Inductive
Life Expectancy X & Y Axes 10,000,000 random deflections Momentary Push-Button 1,000,000 cycles maximum
MTBF Greater than 100,000 hours
Movement X & Y Axes Movement Max +/- 20˚ travel
Position Placement Spring Return (Standard) Friction Held (Special Order)
Operational Force X & Y Breakout Force 140g (Standard) Two (G Options)
X & Y Full Scale Force 235g (Standard) Two (G Options)
Vibration Frequency / Displacement
5-25 Hz / 0.1" 25-55 Hz / 0.03"
ENVIRONMENTAL SPECIFICATION
Operating Temperature 0º to 80º C / 32º to 176º F (Standard) -40º to 80º C / -40º to 176º F (D Option)
Storage Temperature -40º to 80º C / -40º to 176º F
Relative Humidity Range 35-65%, 100% non-condensing 100% condensing (Z Option)
Sealing Rating X & Y Axes: NEMA 4 (IP66) Push-button:NEMA 4 (IP66)
CONFORMANCE / CERTIFICATION / COMPLIANCE
U.S.A Standards U.S. FCC 47 CFR 15 Class A & B RF Emissions Compliant 8Kv (Contact), 15Kv (Air)
  MIL-STD-461F Radiated Emissions and Susceptibility Conformance
  MIL-STD-810G Protection against humidity, fungus, and salt spray Conformance
  MIL-STD-910D Protection against shock Conformance
  MIL-STD-671-1 Protection against vibration Conformance
  MIL-STD-1427G Human Factors Conformance
  MIL-I-45208 Quality System Conformance
  IPC-A-610 Acceptability of Electronics Assemblies Certification
European Standards "CE" Compliant
  Restriction of Hazardous Substance (RoHS) Directive Complaint
  Regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Directive Compliant
International Standards IEC 61000-4-2 and EN61000-4-2 ESD 8Kv contact and 15Kv air Conformance
IEC 61000-4-3 and EN61000-4-3 Radiated Emissions and Susceptibility Conformance
  IEC 61000-6-3 and EN61000-6-3 Electromagnetic Compatibility Conformance
  IEC 60601-1 and EN60601-1 Medical Device Design and Manufacture Conformance
  IEC 62353 and BS EN62353 Medical Device Recurrent Testing Conformance
subject to manufacturing options applied


PDF IconF1000-N3 Industrial Joystick Product Data Sheet

Pricing

OEM Analog Industrial Joystick Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Analog Industrial Joystick Pricing


F1000-N3 OEM Analog Joystick
Photos
Videos
How-To
RFQ

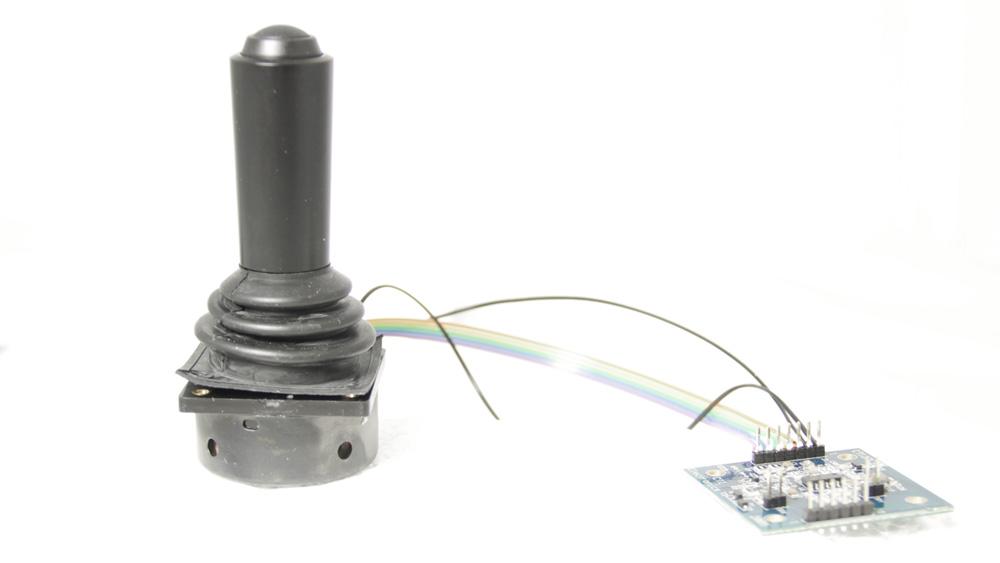

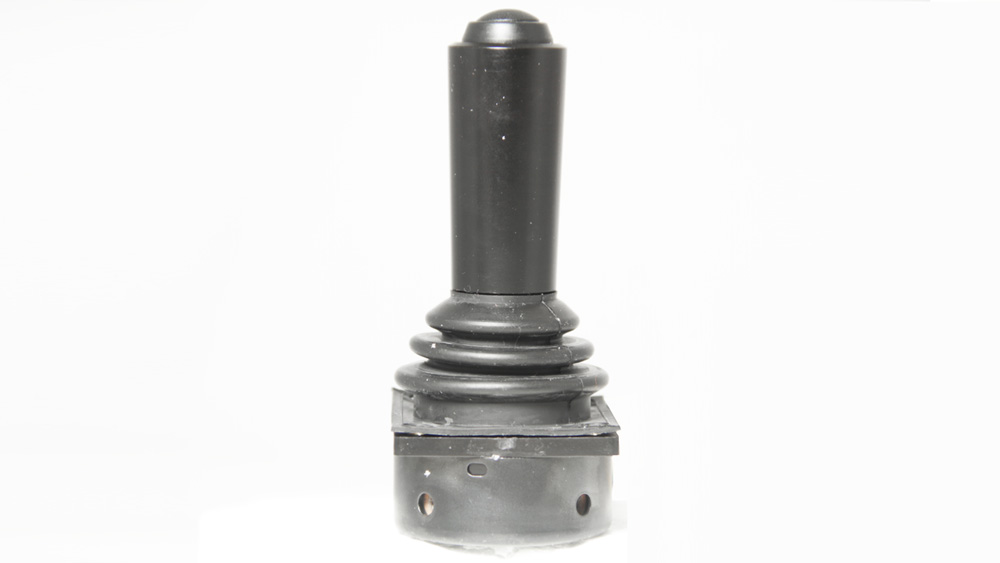

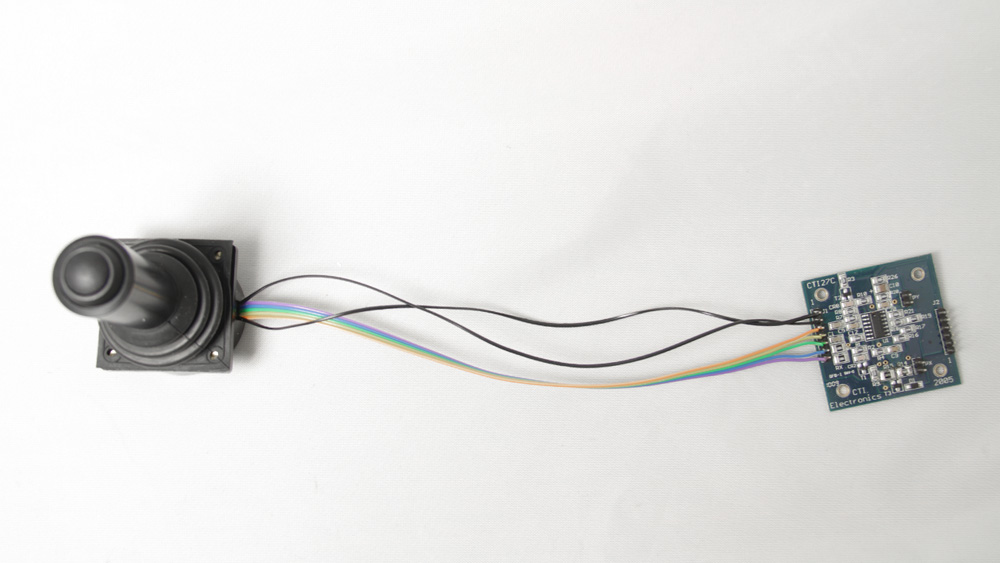

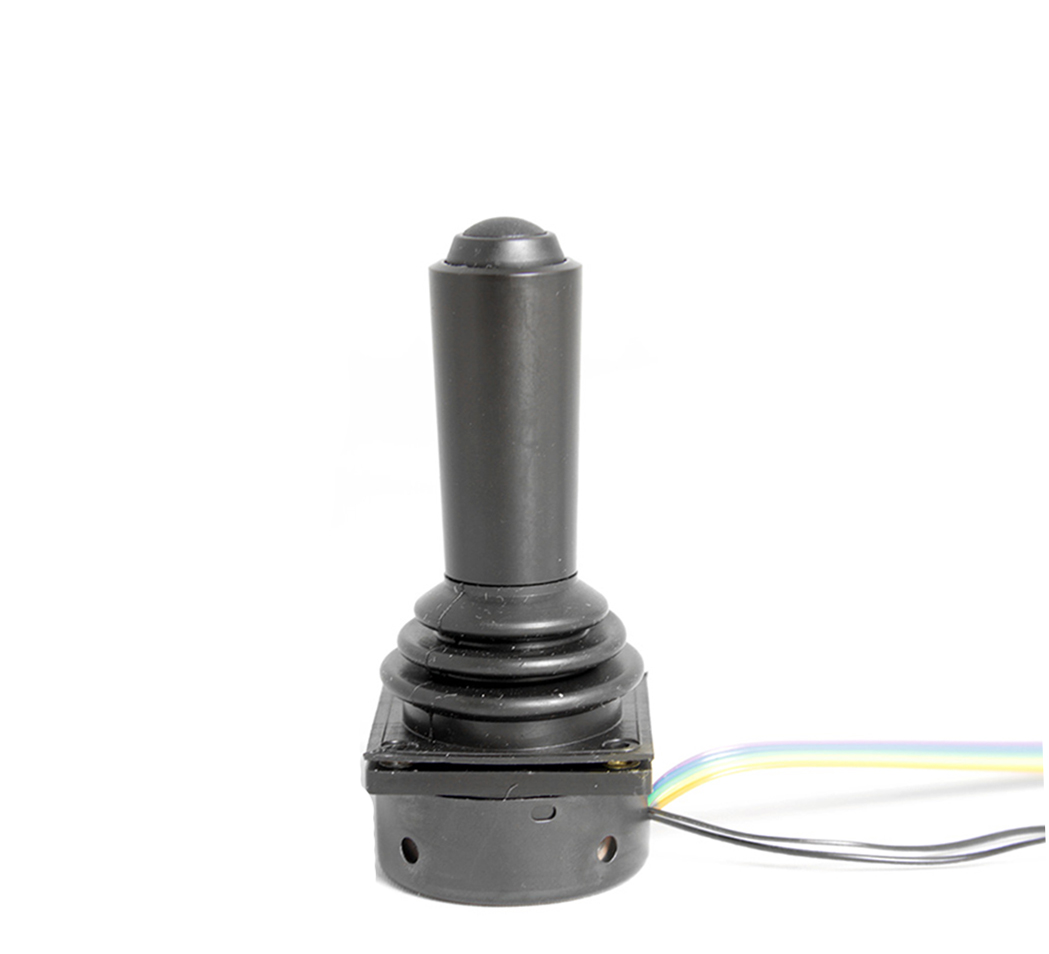

F1000-N33 Series OEM Analog Joystick Joystick

NEMA 4 (IP66) (IP66) Industrial Joysticks w/ Pushbutton

Product Information

F1000-N33 Series OEM Analog Joystick Features

Standard Joystick Features Optional Joystick Features
Single Axis or Two Axes Analog Joystick Non-Simultaneous X&Y Axis Movement (Cross Pattern) - by special order only
One momentary button – 1M MTBF, NEMA 4 (IP66) sealing Conformal Coating of PCB - Moisture protection
Spring Return to Center Friction Held - by special order only
Operating Temperature Range 0°C to 80°C (0°F to 176°F) Operating Temperature Range -40°C to 80°C (-40°F to 176°F)
Storage Temperature Range -40°C to 80°C (-40°F to 176°F) Storage Temperature Range -40°C to 80°C (-40°F to 176°F)
Neoprene Boot - NEMA 4 (IP66) sealing Silicone Conductive Boot and Ferrite Bead NEMA 4 (IP66) sealing - EMI/RFI protection
Deadband - 1° to 2° zone around center No Deadband - without a 1° to 2° zone around center
One Hand Operation Maximum Compression Spring - Increased Breakout Force
Seven input/output voltage options Customized input/output voltage option
Non-contacting inductive technology provides increased reliability and durability over a complete potentiometer joystick (resistive) or hall effect joystick design. Optical Neutral "Safety" Switch -Electrical indicator of an Open Circuit or Short Circuit

New Integrated PCB Option vs. Standard Option

CTI's custom inductive joysticks are ruggedized to meet aerospace, medical, and military standards. CTI's inductive joysticks can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These inductive joysticks are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

F1000-N33 Series OEM Analog Joystick Joystick Specification

F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

MECHANICAL SPECIFICATION
N33 Dimensions Above Panel: 3.1" (78.74mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N33 Specification Knob Type Pushbutton Axes Single or Dual Axes Sensor Technology Inductive
Life Expectancy X & Y Axes 10,000,000 random deflections Momentary Push-Button 1,000,000 cycles maximum
MTBF Greater than 100,000 hours
Movement X & Y Axes Movement Max +/- 20˚ travel
Position Placement Spring Return (Standard) Friction Held (Special Order)
Operational Force X & Y Breakout Force 140g (Standard) Two (G Options)
X & Y Full Scale Force 235g (Standard) Two (G Options)
Vibration Frequency / Displacement
5-25 Hz / 0.1" 25-55 Hz / 0.03"
ENVIRONMENTAL SPECIFICATION
Operating Temperature 0º to 80º C / 32º to 176º F (Standard) -40º to 80º C / -40º to 176º F (D Option)
Storage Temperature -40º to 80º C / -40º to 176º F
Relative Humidity Range 35-65%, 100% non-condensing 100% condensing (Z Option)
Sealing Rating X & Y Axes: NEMA 4 (IP66) Push-button:NEMA 4 (IP66)
CONFORMANCE / CERTIFICATION / COMPLIANCE
U.S.A Standards U.S. FCC 47 CFR 15 Class A & B RF Emissions Compliant 8Kv (Contact), 15Kv (Air)
  MIL-STD-461F Radiated Emissions and Susceptibility Conformance
  MIL-STD-810G Protection against humidity, fungus, and salt spray Conformance
  MIL-STD-910D Protection against shock Conformance
  MIL-STD-671-1 Protection against vibration Conformance
  MIL-STD-1427G Human Factors Conformance
  MIL-I-45208 Quality System Conformance
  IPC-A-610 Acceptability of Electronics Assemblies Certification
European Standards "CE" Compliant
  Restriction of Hazardous Substance (RoHS) Directive Complaint
  Regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Directive Compliant
International Standards IEC 61000-4-2 and EN61000-4-2 ESD 8Kv contact and 15Kv air Conformance
IEC 61000-4-3 and EN61000-4-3 Radiated Emissions and Susceptibility Conformance
  IEC 61000-6-3 and EN61000-6-3 Electromagnetic Compatibility Conformance
  IEC 60601-1 and EN60601-1 Medical Device Design and Manufacture Conformance
  IEC 62353 and BS EN62353 Medical Device Recurrent Testing Conformance
subject to manufacturing options applied


PDF IconF1000-N33 Industrial Joystick Product Data Sheet

Pricing

OEM Analog Industrial Joystick Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Analog Industrial Joystick Pricing


F1000-N33 OEM Analog Joystick
Photos
Videos
How-To
RFQ

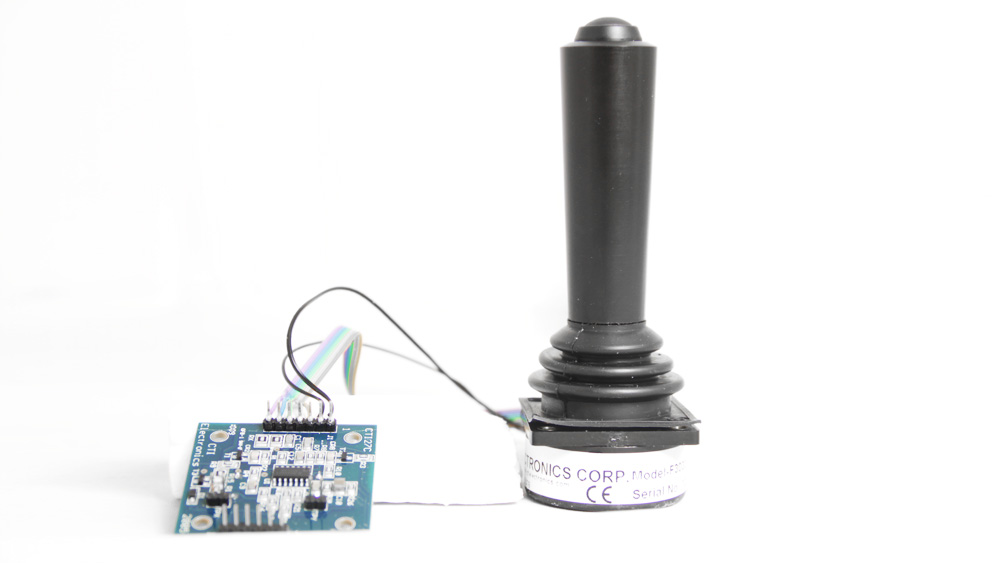

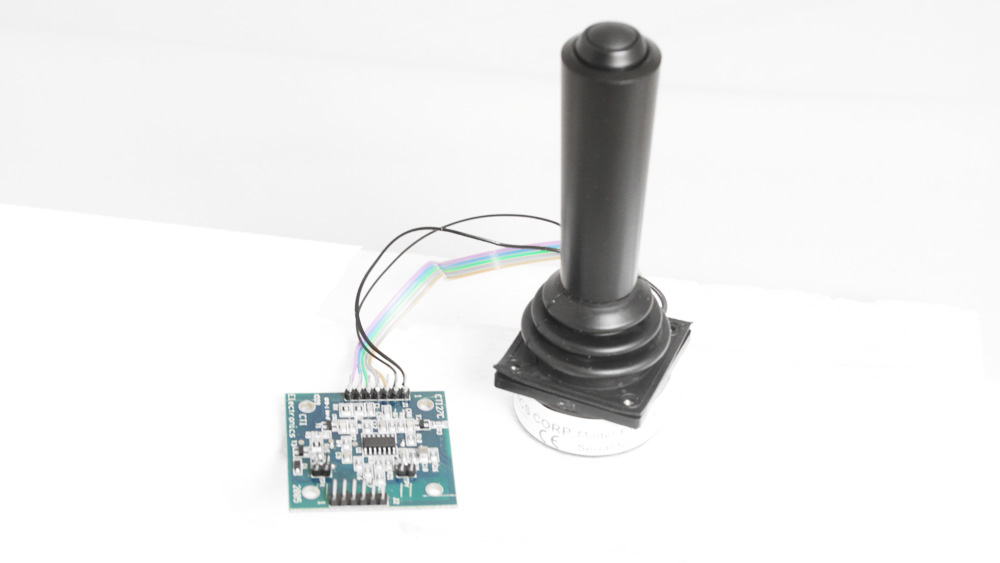

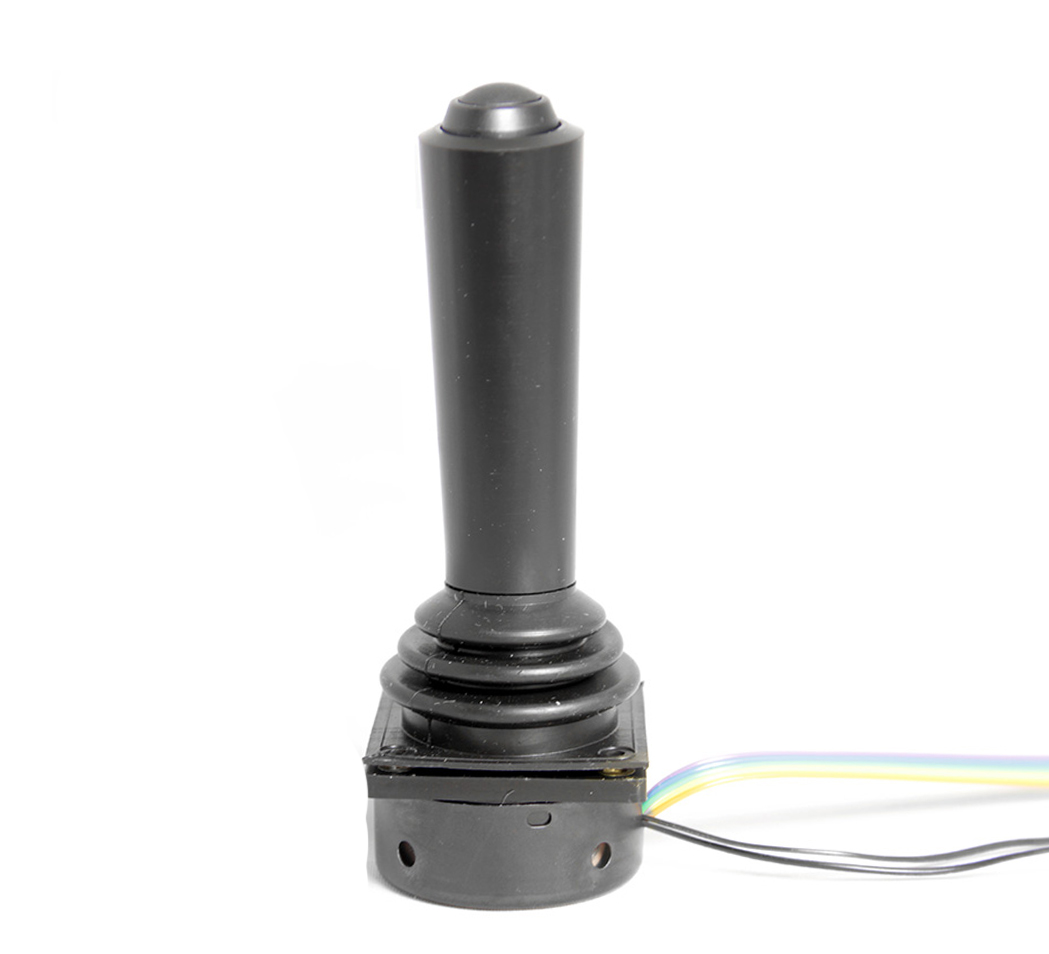

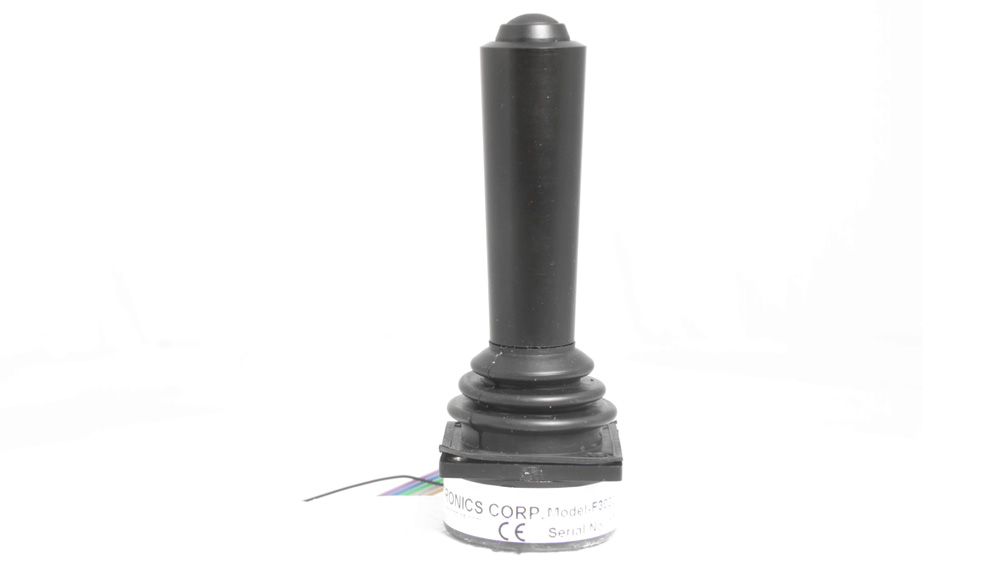

F1000-N63 Series OEM Analog Joystick

NEMA 4 (IP66) (IP66) Industrial Joysticks w/ Pushbutton

Product Information

F1000-N63 Series OEM Analog Joystick Features

Standard Joystick Features Optional Joystick Features
Single Axis or Two Axes Analog Joystick Non-Simultaneous X&Y Axis Movement (Cross Pattern) - by special order only
One momentary button – 1M MTBF, NEMA 4 (IP66) sealing Conformal Coating of PCB - Moisture protection
Spring Return to Center Friction Held - by special order only
Operating Temperature Range 0°C to 80°C (0°F to 176°F) Operating Temperature Range -40°C to 80°C (-40°F to 176°F)
Storage Temperature Range -40°C to 80°C (-40°F to 176°F) Storage Temperature Range -40°C to 80°C (-40°F to 176°F)
Neoprene Boot - NEMA 4 (IP66) sealing Silicone Conductive Boot and Ferrite Bead NEMA 4 (IP66) sealing - EMI/RFI protection
Deadband - 1° to 2° zone around center No Deadband - without a 1° to 2° zone around center
One Hand Operation Maximum Compression Spring - Increased Breakout Force
Seven input/output voltage options Customized input/output voltage option
Non-contacting inductive technology provides increased reliability and durability over a complete potentiometer joystick (resistive) or hall effect joystick design. Optical Neutral "Safety" Switch -Electrical indicator of an Open Circuit or Short Circuit

New Integrated PCB Option vs. Standard Option

CTI's custom inductive joysticks are ruggedized to meet aerospace, medical, and military standards. CTI's inductive joysticks can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These inductive joysticks are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

F1000-N63 Series OEM Analog Joystick Specification

F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

MECHANICAL SPECIFICATION
N63 Dimensions Above Panel: 4.0” (102.36mm) Below Panel: 0.87” (22.10mm) Base:1.65” SQ. (41.91mm SQ.)
N63 Specification Knob Type Pushbutton Axes Single or Dual Axes Sensor Technology Inductive
Life Expectancy X & Y Axes 10,000,000 random deflections Momentary Push-Button 1,000,000 cycles maximum
MTBF Greater than 100,000 hours
Movement X & Y Axes Movement Max +/- 20˚ travel
Position Placement Spring Return (Standard) Friction Held (Special Order)
Operational Force X & Y Breakout Force 140g (Standard) Two (G Options)
X & Y Full Scale Force 235g (Standard) Two (G Options)
Vibration Frequency / Displacement
5-25 Hz / 0.1” 25-55 Hz / 0.03”
ENVIRONMENTAL SPECIFICATION
Operating Temperature 0º to 80º C / 32º to 176º F (Standard) -40º to 80º C / -40º to 176º F (D Option)
Storage Temperature -40º to 80º C / -40º to 176º F
Relative Humidity Range 35-65%, 100% non-condensing 100% condensing (Z Option)
Sealing Rating X & Y Axes: NEMA 4 (IP66) Push-button:NEMA 4 (IP66)
CONFORMANCE / CERTIFICATION / COMPLIANCE
U.S.A Standards U.S. FCC 47 CFR 15 Class A & B RF Emissions Compliant 8Kv (Contact), 15Kv (Air)
  MIL-STD-461F Radiated Emissions and Susceptibility Conformance
  MIL-STD-810G Protection against humidity, fungus, and salt spray Conformance
  MIL-STD-910D Protection against shock Conformance
  MIL-STD-671-1 Protection against vibration Conformance
  MIL-STD-1427G Human Factors Conformance
  MIL-I-45208 Quality System Conformance
  IPC-A-610 Acceptability of Electronics Assemblies Certification
European Standards "CE" Compliant
  Restriction of Hazardous Substance (RoHS) Directive Complaint
  Regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Directive Compliant
International Standards IEC 61000-4-2 and EN61000-4-2 ESD 8Kv contact and 15Kv air Conformance
IEC 61000-4-3 and EN61000-4-3 Radiated Emissions and Susceptibility Conformance
  IEC 61000-6-3 and EN61000-6-3 Electromagnetic Compatibility Conformance
  IEC 60601-1 and EN60601-1 Medical Device Design and Manufacture Conformance
  IEC 62353 and BS EN62353 Medical Device Recurrent Testing Conformance
subject to manufacturing options applied


PDF IconF1000-N63 Industrial Joystick Product Data Sheet

Pricing

OEM Analog Industrial Joystick Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Analog Industrial Joystick Pricing


F1000-N63 OEM Analog Joystick
Photos
Videos
How-To
RFQ

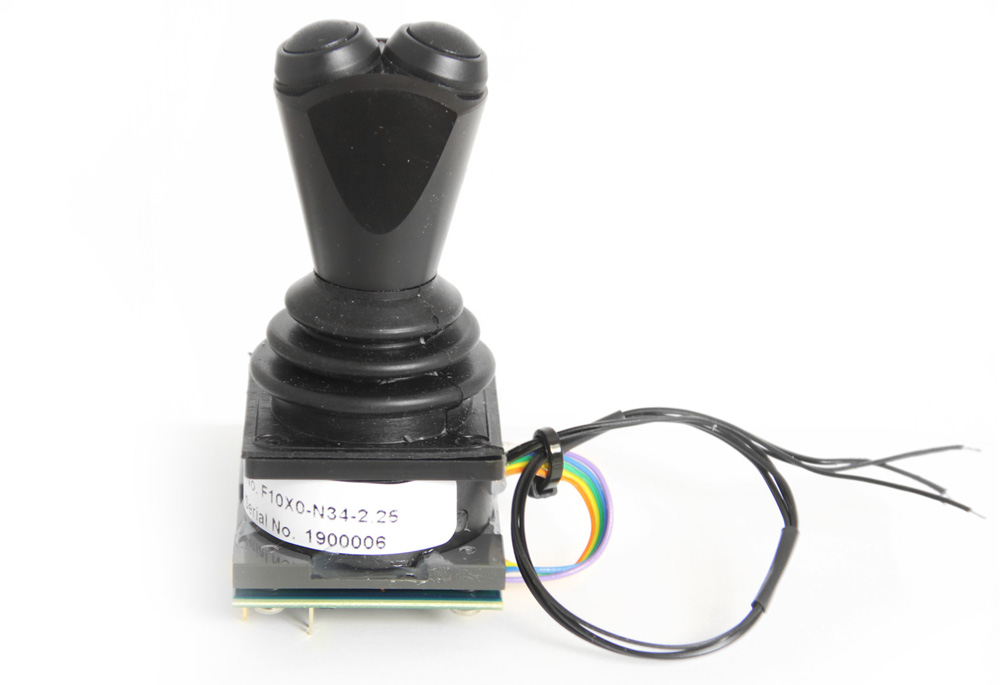

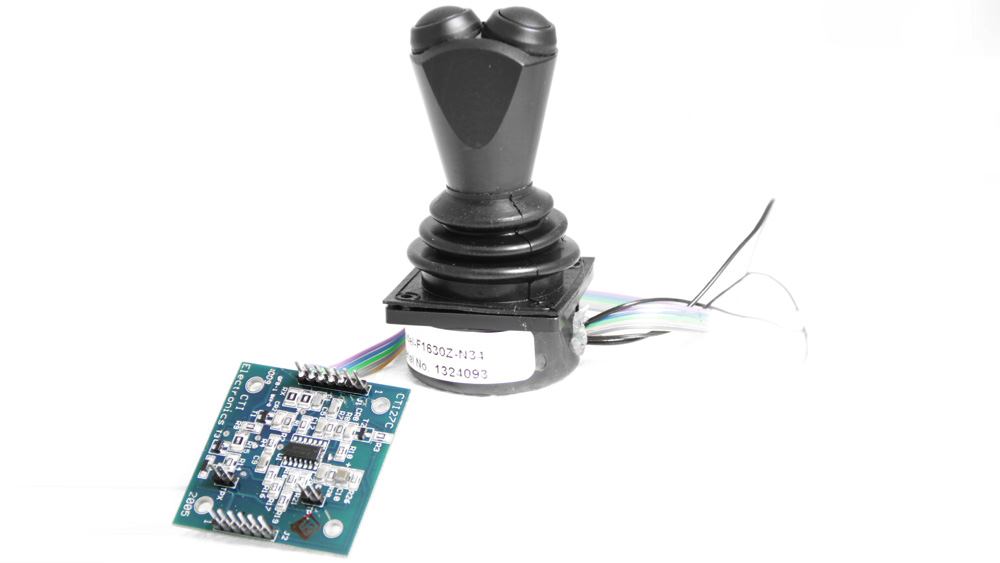

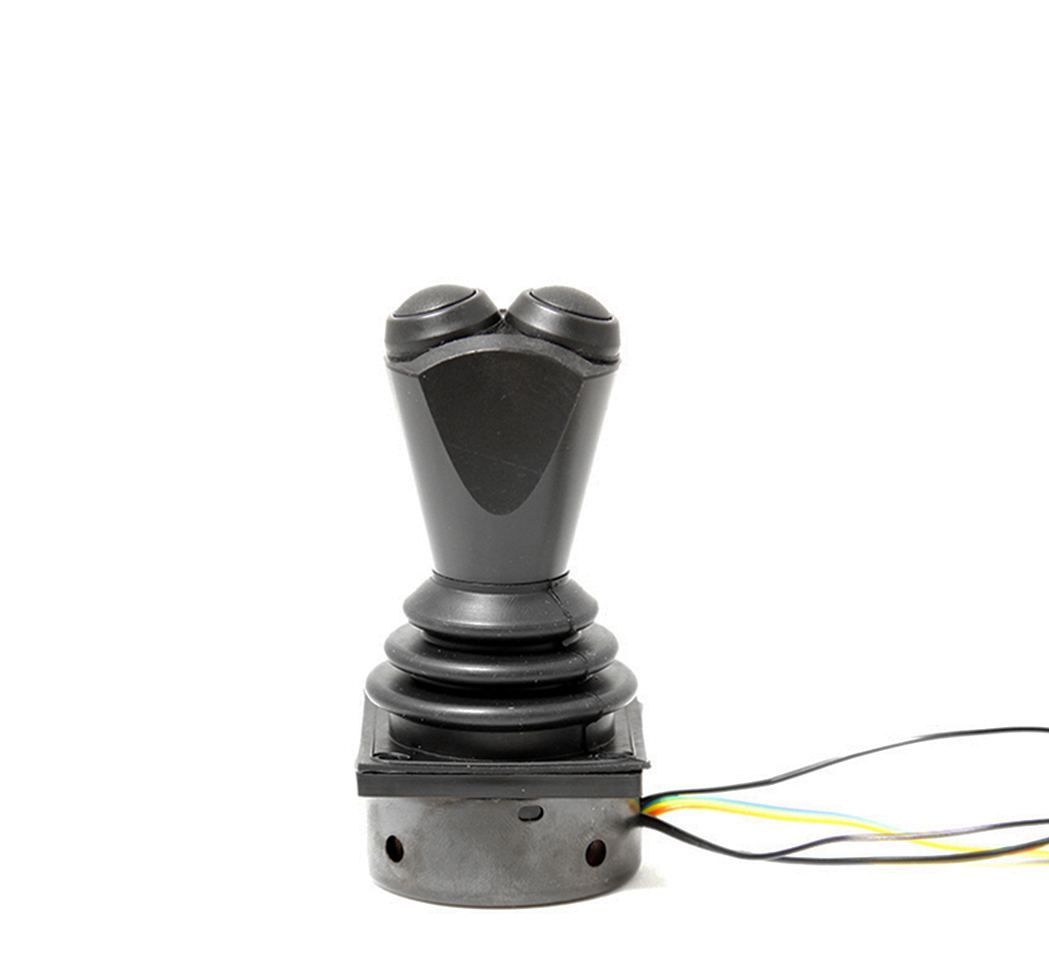

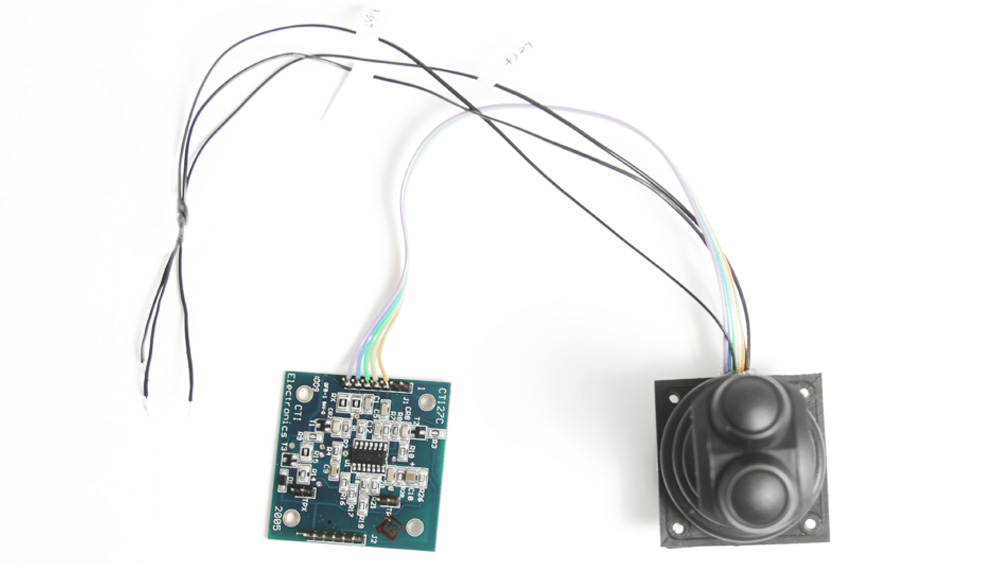

F1000-N34 Series OEM Analog Joystick

NEMA 4 (IP66) (IP66) Industrial Joysticks w/ Dual Pushbuttons

Product Information

F1000-N34 Series OEM Analog Joystick Features

Standard Joystick Features Optional Joystick Features
Single Axis, Dual Axes, or 3 Axes Analog Joystick Non-Simultaneous X&Y Axis Movement (Cross Pattern) - by special order only
Two momentary buttons - can be used as Third Axis, 1M MTBF, NEMA 4 (IP66) sealing Conformal Coating of PCB - Moisture protection
Spring Return to Center Friction Held - by special order only
Operating Temperature Range 0°C to 80°C (0°F to 176°F) Operating Temperature Range -40°C to 80°C (-40°F to 176°F)
Storage Temperature Range -40°C to 80°C (-40°F to 176°F) Storage Temperature Range -40°C to 80°C (-40°F to 176°F)
Neoprene Boot - NEMA 4 (IP66) sealing Silicone Conductive Boot and Ferrite Bead NEMA 4 (IP66) sealing - EMI/RFI protection
Deadband - 1° to 2° zone around center No Deadband - without a 1° to 2° zone around center
One Hand Operation Maximum Compression Spring - Increased Breakout Force
Seven input/output voltage options Customized input/output voltage option
Non-contacting inductive technology provides increased reliability and durability over a complete potentiometer joystick (resistive) or hall effect joystick design. Optical Neutral "Safety" Switch -Electrical indicator of an Open Circuit or Short Circuit

New Integrated PCB Option vs. Standard Option

CTI's custom inductive joysticks are ruggedized to meet aerospace, medical, and military standards. CTI's inductive joysticks can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These inductive joysticks are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

F1000-N34 Series OEM Analog Joystick Specification

F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

MECHANICAL SPECIFICATION
N34 Dimensions Above Panel: 2.6" (66.04mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N34 Specification Knob Type Dual Pushbutton Axes Single or Dual Axes Sensor Technology Inductive
Life Expectancy X & Y Axes 10,000,000 random deflections Momentary Push-Button 1,000,000 cycles maximum
MTBF Greater than 100,000 hours
Movement X & Y Axes Movement Max +/- 20˚ travel Z Axis Operation via Pushbutton
Position Placement Spring Return (Standard) Friction Held (Special Order)
Operational Force X & Y Breakout Force 140g (Standard) Two (G Options)
X & Y Full Scale Force 235g (Standard) Two (G Options)
Vibration Frequency / Displacement
5-25 Hz / 0.1" 25-55 Hz / 0.03"
ENVIRONMENTAL SPECIFICATION
Operating Temperature 0º to 80º C / 32º to 176º F (Standard) -40º to 80º C / -40º to 176º F (D Option)
Storage Temperature -40º to 80º C / -40º to 176º F
Relative Humidity Range 35-65%, 100% non-condensing 100% condensing (Z Option)
Sealing Rating X & Y Axes: NEMA 4 (IP66) Z Axis/Push-button: NEMA 4 (IP66)
CONFORMANCE / CERTIFICATION / COMPLIANCE
U.S.A Standards U.S. FCC 47 CFR 15 Class A & B RF Emissions Compliant 8Kv (Contact), 15Kv (Air)
  MIL-STD-461F Radiated Emissions and Susceptibility Conformance
  MIL-STD-810G Protection against humidity, fungus, and salt spray Conformance
  MIL-STD-910D Protection against shock Conformance
  MIL-STD-671-1 Protection against vibration Conformance
  MIL-STD-1427G Human Factors Conformance
  MIL-I-45208 Quality System Conformance
  IPC-A-610 Acceptability of Electronics Assemblies Certification
European Standards "CE" Compliant
  Restriction of Hazardous Substance (RoHS) Directive Complaint
  Regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Directive Compliant
International Standards IEC 61000-4-2 and EN61000-4-2 ESD 8Kv contact and 15Kv air Conformance
IEC 61000-4-3 and EN61000-4-3 Radiated Emissions and Susceptibility Conformance
  IEC 61000-6-3 and EN61000-6-3 Electromagnetic Compatibility Conformance
  IEC 60601-1 and EN60601-1 Medical Device Design and Manufacture Conformance
  IEC 62353 and BS EN62353 Medical Device Recurrent Testing Conformance
subject to manufacturing options applied


PDF IconF1000-N34 Industrial Joystick Product Data Sheet

Pricing

OEM Analog Industrial Joystick Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Analog Industrial Joystick Pricing


F1000-N34 OEM Analog Joystick
Photos
Videos
How-To
RFQ

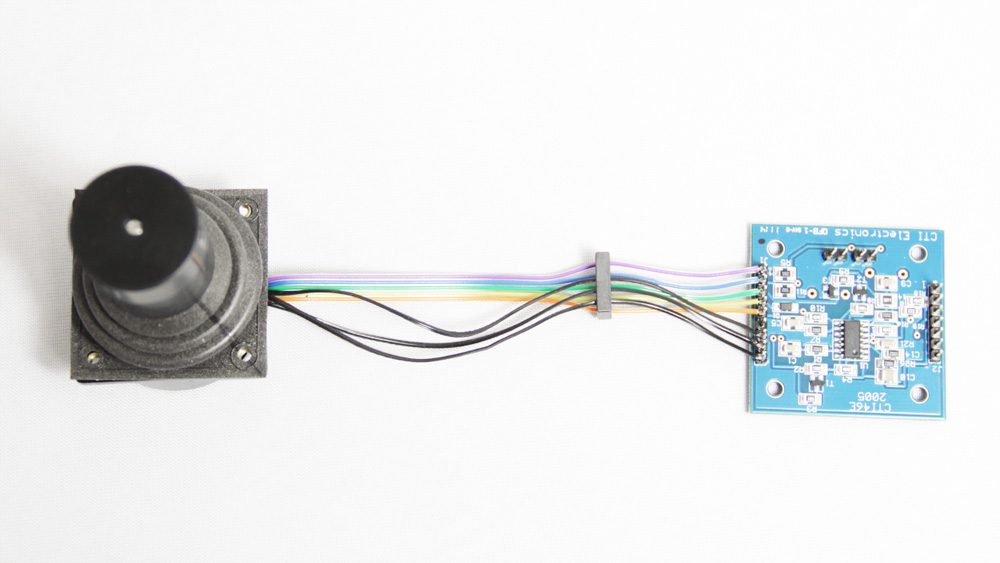

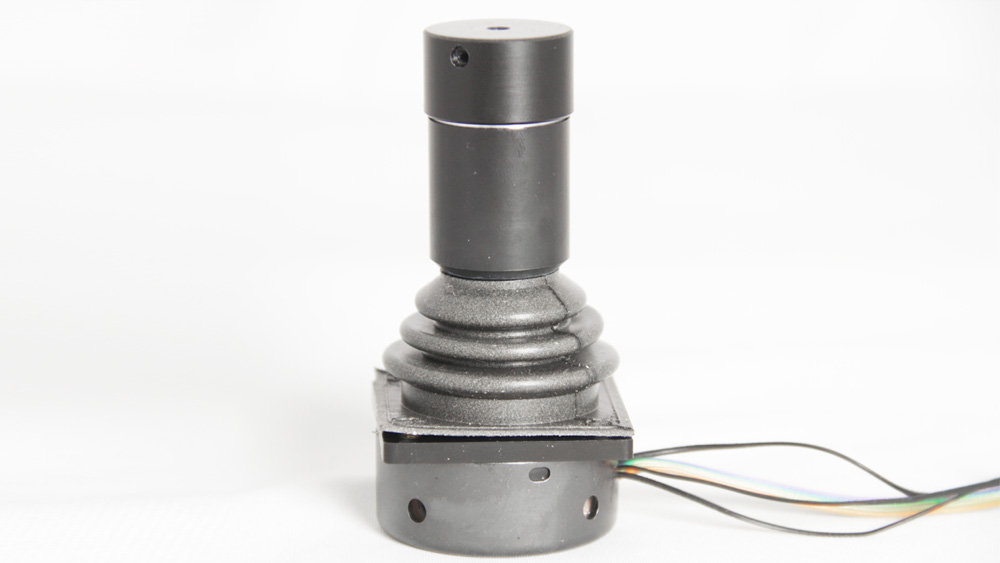

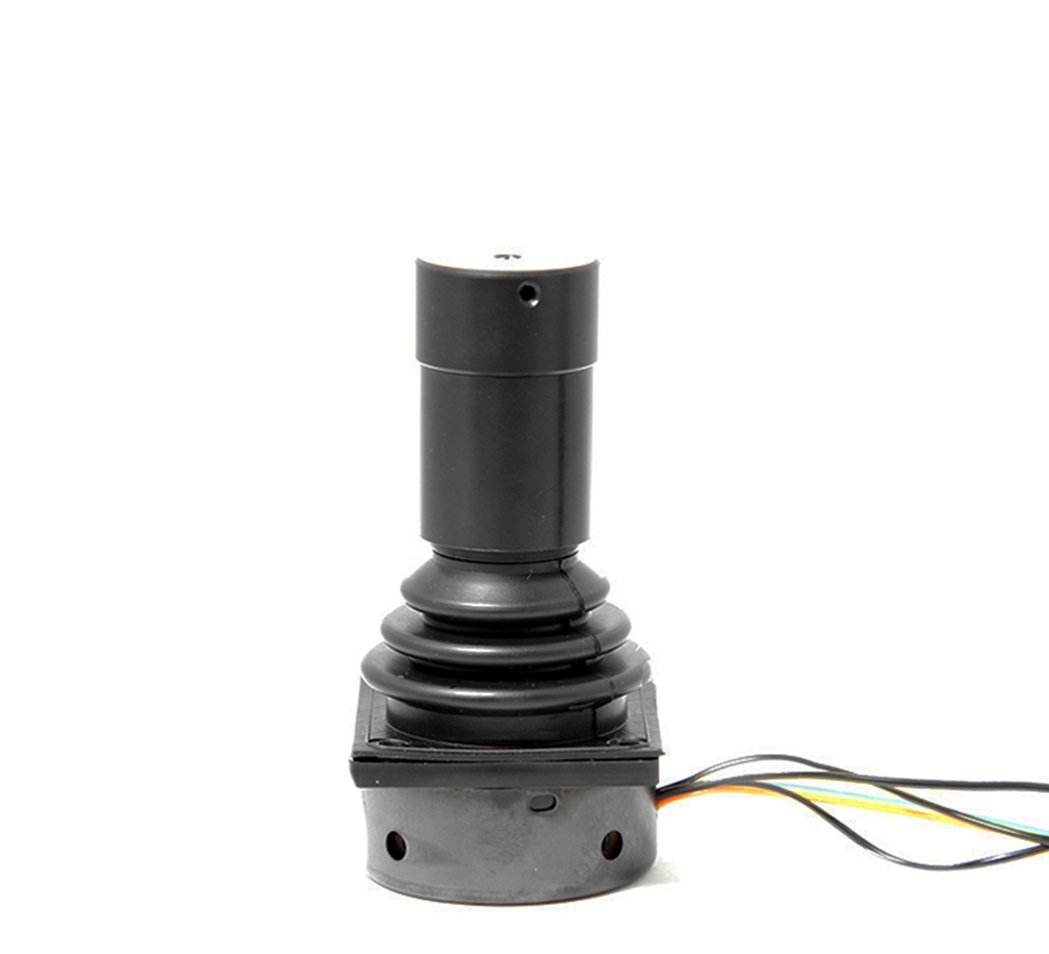

F1800-N82 Series OEM Analog Joystick

NEMA 12 (IP54) Three Axes Industrial Joysticks

Product Information

F1800-N82 Series OEM Analog Joystick Features

Standard Joystick Features Optional Joystick Features
3 Axes Analog Joystick
Third Axis - 5k rotating potentiometer, 20M MTBF NEMA 12 (IP54) sealing Conformal Coating of PCB - Moisture protection
Third Axis - Smooth Delrin Cap Third Axis - Knurled Aluminum Cap or Splined Delrin Cap
Spring Return to Center - all Axes
Operating Temperature Range 0°C to 80°C (0°F to 176°F) Operating Temperature Range -40°C to 80°C (-40°F to 176°F)
Storage Temperature Range -40°C to 80°C (-40°F to 176°F)
Neoprene Boot - NEMA 4 (IP66) sealing Silicone Conductive Boot and Ferrite Bead NEMA 4 (IP66) sealing - EMI/RFI protection
No Deadband - without a 1° to 2° zone around center
Three input/output voltage options Customized input/output voltage option
#4-40 Brass Threaded Mounting Inserts 3mm Brass Threaded Mounting Inserts
Non-contacting inductive technology provides increased reliability and durability over a complete potentiometer joystick (resistive) or hall effect joystick design. Optical Neutral "Safety" Switch -Electrical indicator of an Open Circuit or Short Circuit

New Integrated PCB Option vs. Standard Option

CTI's custom inductive joysticks are ruggedized to meet aerospace, medical, and military standards. CTI's inductive joysticks can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These inductive joysticks are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

F1000-N82 Series OEM Analog Joystick Specification

F1800-N82 Series – NEMA 12 (IP 54) 3 Axes Precision Control Joysticks

MECHANICAL SPECIFICATION
N82 Dimensions Above Panel: 2.6" (66.04mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N82 Specification Knob Type Non-Pushbutton Axes Dual or Three Axes Sensor Technology Inductive/Potentiometer
Life Expectancy X & Y Axes 10,000,000 random deflections Z Axis 20,000,000 cylces
MTBF Greater than 100,000 hours
Movement X & Y Axes Movement Max +/- 20˚ travel Z Axis +/- 30˚ travel
Position Placement Spring Return (Standard) Friction Held (Special Order)
Operational Force X & Y Breakout Force 140g (Standard) Two (G Options)
X & Y Full Scale Force 235g (Standard) Two (G Options)
Vibration Frequency / Displacement
5-25 Hz / 0.1" 25-55 Hz / 0.03"
ENVIRONMENTAL SPECIFICATION
Operating Temperature 0º to 80º C / 32º to 176º F (Standard) -40º to 80º C / -40º to 176º F (D Option)
Storage Temperature -40º to 80º C / -40º to 176º F
Relative Humidity Range 35-65%, 100% non-condensing 100% condensing (Z Option)
Sealing Rating X & Y Axes: NEMA 4 (IP66) Z Axis: NEMA 12 (IP54)
CONFORMANCE / CERTIFICATION / COMPLIANCE
U.S.A Standards U.S. FCC 47 CFR 15 Class A & B RF Emissions Compliant 8Kv (Contact), 15Kv (Air)
  MIL-STD-461F Radiated Emissions and Susceptibility Conformance
  MIL-STD-810G Protection against humidity, fungus, and salt spray Conformance
  MIL-STD-910D Protection against shock Conformance
  MIL-STD-671-1 Protection against vibration Conformance
  MIL-STD-1427G Human Factors Conformance
  MIL-I-45208 Quality System Conformance
  IPC-A-610 Acceptability of Electronics Assemblies Certification
European Standards "CE" Compliant
  Restriction of Hazardous Substance (RoHS) Directive Complaint
  Regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Directive Compliant
International Standards IEC 61000-4-2 and EN61000-4-2 ESD 8Kv contact and 15Kv air Conformance
IEC 61000-4-3 and EN61000-4-3 Radiated Emissions and Susceptibility Conformance
  IEC 61000-6-3 and EN61000-6-3 Electromagnetic Compatibility Conformance
  IEC 60601-1 and EN60601-1 Medical Device Design and Manufacture Conformance
  IEC 62353 and BS EN62353 Medical Device Recurrent Testing Conformance
subject to manufacturing options applied


PDF IconF1800-N82 Industrial Joystick Product Data Sheet

Pricing

OEM Analog Industrial Joystick Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Analog Industrial Joystick Pricing


F1800-N82 OEM Analog Joystick
Photos
Videos
How-To
RFQ

F1800-N84 Series OEM Analog Joystick

NEMA 4 (IP66) Three Axes Industrial Joysticks

Product Information

F1800-N84 Series OEM Analog Joystick Features

Standard Joystick Features Optional Joystick Features
3 Axes Analog Joystick
Third Axis - 5k rotating potentiometer, 20M MTBF, NEMA 4 (IP66) sealing Conformal Coating of PCB - Moisture protection
Third Axis - Knurled Aluminum Cap
Spring Return to Center - all Axes
Operating Temperature Range 0°C to 80°C (0°F to 176°F) Operating Temperature Range -40°C to 80°C (-40°F to 176°F)
Storage Temperature Range -40°C to 80°C (-40°F to 176°F) Storage Temperature Range -40°C to 80°C (-40°F to 176°F)
Neoprene Boot - NEMA 4 (IP66) sealing Silicone Conductive Boot and Ferrite Bead NEMA 4 (IP66) sealing - EMI/RFI protection
No Deadband - without a 1° to 2° zone around center
Three input/output voltage options Customized input/output voltage option
Non-contacting inductive technology provides increased reliability and durability over a complete potentiometer joystick (resistive) or hall effect joystick design. Optical Neutral "Safety" Switch -Electrical indicator of an Open Circuit or Short Circuit

New Integrated PCB Option vs. Standard Option

CTI's custom inductive joysticks are ruggedized to meet aerospace, medical, and military standards. CTI's inductive joysticks can meet MIL-STD-167-1, MIL-STD-901D, MIL-STD-461F, MIL-STD-810G, and MIL-HDBK-217F. These inductive joysticks are able to withstand vibration, shock, high EMI/RFI levels, compliant for humidity, fungus, spray, and MTBF is greater than 100,000 hours.

Related Documentation:

Specifications

F1000-N84 Series OEM Analog Joystick Specification

F1800-N84 Series NEMA 4 (IP 66) 3 Axes Precision Control Joysticks

MECHANICAL SPECIFICATION
N84 Dimensions Above Panel: 3.2” (81.28mm) Below Panel: 0.87” (22.10mm) Base:1.65" SQ. (41.91mm SQ.)
N84 Specification Knob Type Non-Pushbutton Axes Dual or Three Axes Sensor Technology Inductive/Potentiometer
Life Expectancy X & Y Axes 10,000,000 random deflections Z Axis 20,000,000 cylces
MTBF Greater than 100,000 hours
Movement X & Y Axes Movement Max +/- 20˚ travel Z Axis +/- 35˚ travel
Position Placement Spring Return (Standard) Friction Held (Special Order)
Operational Force X & Y Breakout Force 140g (Standard) Two (G Options)
X & Y Full Scale Force 235g (Standard) Two (G Options)
Vibration Frequency / Displacement
5-25 Hz / 0.1" 25-55 Hz / 0.03"
ENVIRONMENTAL SPECIFICATION
Operating Temperature 0º to 80º C / 32º to 176º F (Standard) -40º to 80º C / -40º to 176º F (D Option)
Storage Temperature -40º to 80º C / -40º to 176º F
Relative Humidity Range 35-65%, 100% non-condensing 100% condensing (Z Option)
Sealing Rating X, Y, & Z Axes: NEMA 4 (IP66)
CONFORMANCE / CERTIFICATION / COMPLIANCE
U.S.A Standards U.S. FCC 47 CFR 15 Class A & B RF Emissions Compliant 8Kv (Contact), 15Kv (Air)
  MIL-STD-461F Radiated Emissions and Susceptibility Conformance
  MIL-STD-810G Protection against humidity, fungus, and salt spray Conformance
  MIL-STD-910D Protection against shock Conformance
  MIL-STD-671-1 Protection against vibration Conformance
  MIL-STD-1427G Human Factors Conformance
  MIL-I-45208 Quality System Conformance
  IPC-A-610 Acceptability of Electronics Assemblies Certification
European Standards "CE" Compliant
  Restriction of Hazardous Substance (RoHS) Directive Complaint
  Regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Directive Compliant
International Standards IEC 61000-4-2 and EN61000-4-2 ESD 8Kv contact and 15Kv air Conformance
IEC 61000-4-3 and EN61000-4-3 Radiated Emissions and Susceptibility Conformance
  IEC 61000-6-3 and EN61000-6-3 Electromagnetic Compatibility Conformance
  IEC 60601-1 and EN60601-1 Medical Device Design and Manufacture Conformance
  IEC 62353 and BS EN62353 Medical Device Recurrent Testing Conformance
subject to manufacturing options applied


PDF IconF1800-N84 Industrial Joystick Product Data Sheet

Pricing

OEM Analog Industrial Joystick Pricing

Thank you for selecting CTIs industrial computer peripheral products. As our customer you will discover the long term benefit and value that is designed into all of CTIs human machine interface devices. The robust design and quality craftsmanship produces a level of reliability and durability that is a step above any so-called competitive "industrial grade" device. We pride ourselves in the fact that our designs have withstood the test of time. We are constantly innovating and adapting, using the best materials and technologies available today. It's reflected in the products, which can operate from one extreme temperature range to another within moments, protect against harsh chemicals, oils, and bio-hazardous materials, and provide a water tight seal for ingress protection.

We understand that you cannot afford the risk of throwing away or having to constantly repair cheap imitations of so called "industrialized" products. The cost of service interruption, including actual downtime, loss of materials, additional labor costs, loss of actual revenue, will negatively impact your bottom line.

Your return on investment will be recognized through years of uninterrupted service, zero to little maintenance required, reduced labor costs along with employee frustration/aggravation levels, and most importantly your customers' satisfaction.

Commercial off the Shelf (COTS), factory direct, pricing is provided to our clientele which consists of Original Equipment Manufacturers (OEMs), Systems Integrators, and commercial end users from a wide variety of industries such as industrial processing, medical, military, off-road equipment and aerospace. CTI's innovative modular design allows customized solutions to be rapidly prototyped from build to print specifications into a full production rollout. Our technical staff offers free consultative advice as to which manufacturing options are the most appropriate based upon the requirements of the application.

To obtain a specific price quote please use the Request for Quote (RFQ) form. Optionally, if you are unsure of the manufacturing options for the application then call us for our recommendation or use the general inquiry form.


PDF IconOEM Analog Industrial Joystick Pricing




F1800-N84 OEM Analog Joystick
Photos
Videos
How-To
RFQ
TOP
Manufactured in U.S.A. Manufactured in U.S.A. Copyright © 2001-2017 | CTI Electronics Corporation an affiliate of ELECTRO SWITCH | Tel: (203) 386-9779 | All Rights Reserved - sitemap | Sales | Tech
